GALLOWAY BAR TOP & BASE
ASSEMBLY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCT AND RESULT IN A
HAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVAROCKS,
LOGS, FIRE ICE, ETC.
WARNING:
Improper installation, adjustment alteration,
service, or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR USE WITH 20LB (9KG) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED).
Jul-01-2018
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
WARNING: For Outdoor Use Only
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.–
5 p.m.Eastern Time.
Thi
s app
li
ance can pro
d
uce car
b
on
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
CSA Model WT17IL
SKU: 272-4292\4293
Factory Model: ARV04700K02/K04
WARNING: It is UNSAFE to use this
product for cooking!

2
TABLE OF CONTENTS
Important Safety Information 3
Important About Propane 4
Specification 4
Parts Identification List 5-6
Installation 7-9
Natural Gas Conversion 10
Batteries 11
Maintenance 11
Lighting Instructions 12
Troubleshooting Guide 13
Warranty 14

3
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code,
CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at a safe
distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or near the
appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the
appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartments, burners and circulating
air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire ice) into the burner pan. The
media must be evenly distributed over the burner.
During initial firing of firepit, please stay away from the firepit for 20 minutes as fire media (lava rock or fire ice)
may pop and hit someone on the face or eyes
Do NOT ignite or use the firepit if the burner media (lava rock or fire ice) are wet. Ensure the burner media are
completely dry before igniting as intense heat could cause the media to crack and pop.
It is UNSAFE to use this product for cooking!
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This regulator is
set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP Hose. If
there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas
appliance being put into operation. Use only the replacement hose assembly specified in this manual. Inspect
the burner before each use of the appliance. The burner must be replaced prior to the appliance being put
into operation if it is evident that the burner is damaged. Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces.

4
IMPORTANT SAFETY INFORMATION
ABOUT PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a
capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD
(overfill protection device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in
accordance with the specification for LP-gas cylinders of the U.S. Department
of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinder, Sphere and Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and
shall not be used in a building, garage or any other enclosed space.
When this appliance is not in use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the
reach of children .Disconnected cylinders must have threaded valve plugs
tightly installed and must not be stored in a building, garage or any other
enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97-2014 / CSA
2.41-2014 “ Outdoor Decorative Gas Appliances”

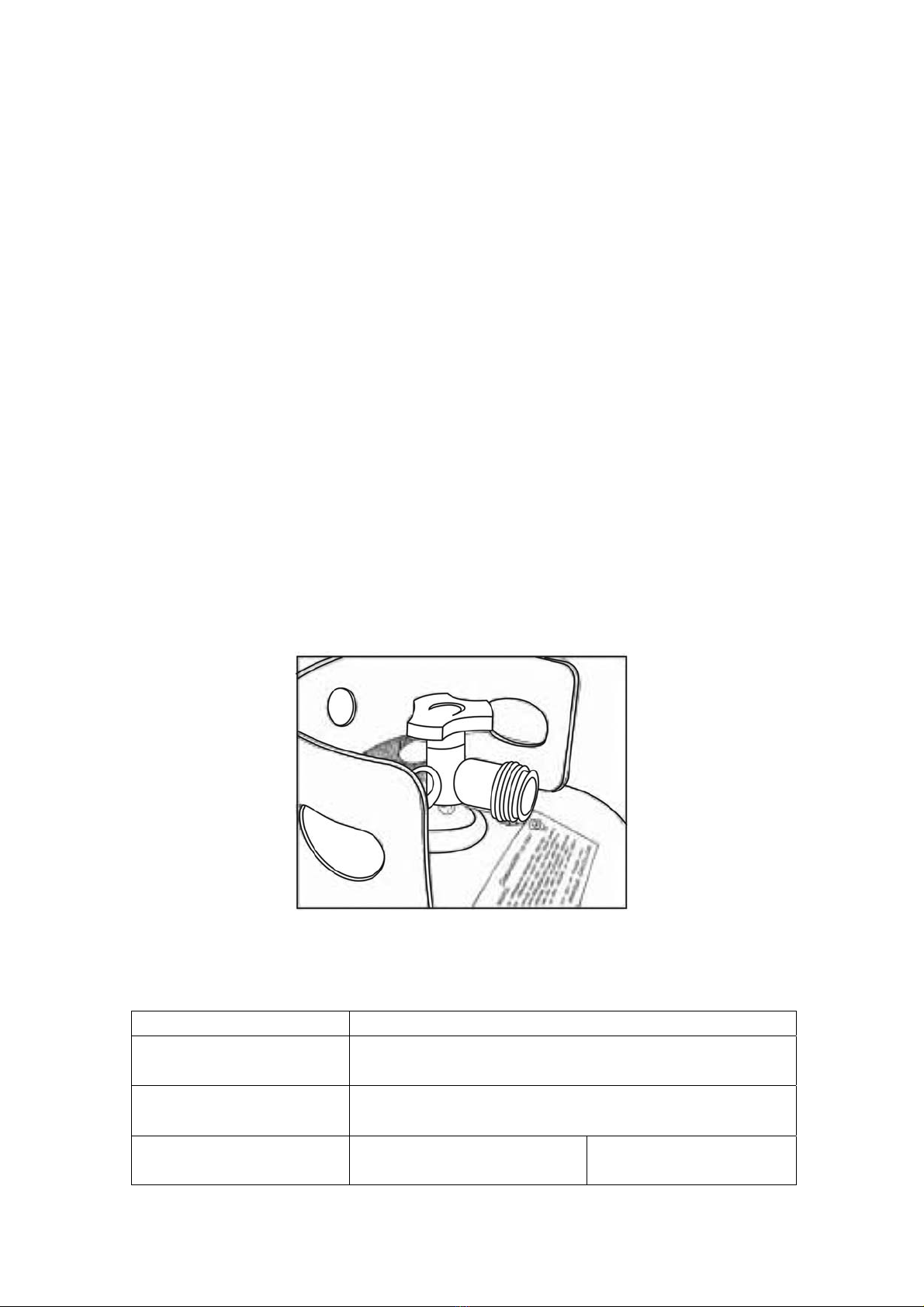

Figure1
SPECIFICATIONS
INPUT 30,000 Btu/hr
Propane Regulator
Pressure
11 in / 2.74 kPa water column
Natural Gas Minimum
Inlet Pressure
7 in / 1.74 kPa water column
Clearances to
combustible surfaces
Sides 24 in / 60.96 cm Top: 72 in / 182.88 cm

5

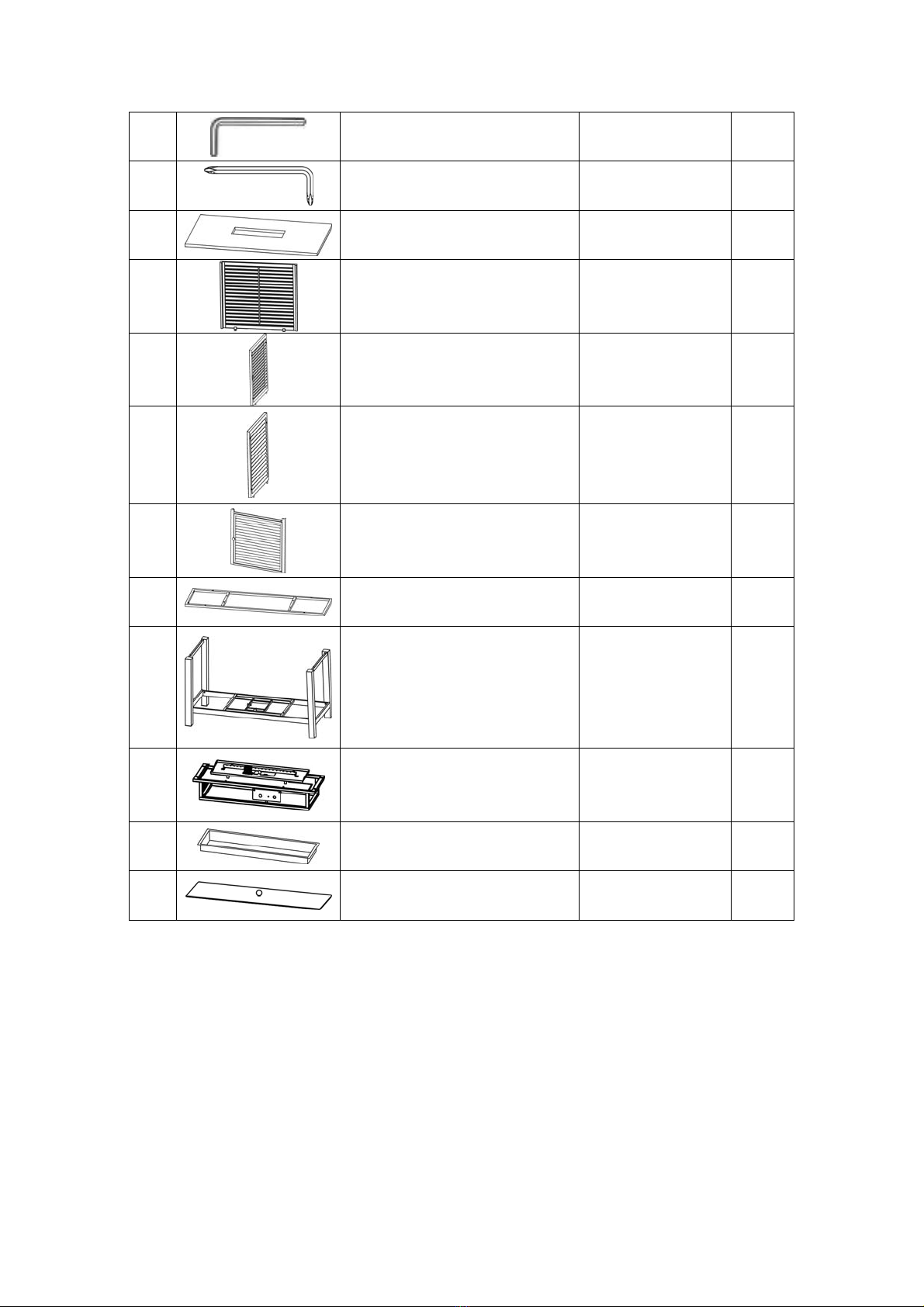

PARTS IDENTIFICATION LIST
PART DESCRIPTION PART# QTY
A CONTROL KNOB FP2329 1
B GAS VALVE FP2330 1
C THERMOCOUPLE FP2331 1
D FLEX CONNECTOR FP2332 1
E ELECTRODE FP2333 1
F IGNITION MODULE FP2334 1
G LP REGULATOR HOSE FP1916 1
H
LP TANK RETAINING
KNOB FP0585 2
J
ADJUSTABLE FOOT
CAPS FC0754 4
K PROPANE ORIFICE FP2122 1
L NATURAL GAS ORIFICE FP2123 1
M AIR SHUTTER FP1922 1
N M4 SCREW HW0898 2
O “AA” BATTERY(1.5V) HW0905 1
P 1/4" X 25 MM BOLT HW0037 4
Q 1/4" X 35 MM BOLT HW0036 4
R 1/4" X 40 MM BOLT HW0086 8
S 1/4" X 60 MM BOLT HW0135 4
T Ø6.5 X 1.0 MM WASHER HW0004 16
U
Ø20 X Ø6.5 X 2.0 MM
WASHER HW0594 4

6
V HEX BOLT DRIVER HW0006 1
W
CROSS POINT
SCREWDRIVER HW0900 1
X FIREPIT TABLETOP FP1692 1
Y BACK PANEL FP1693 1
Z SIDE PANEL-1 FP1694 1
AA SIDE PANEL-2 FP1695 1
BB DOOR PANEL FP1696 1
CC TOP SUPPORT FP1697 1
DD BASE FRAME FP1700 1
EE
FIREPAN/BURNER
ASSEMBLY FP2658 1
FF
BURNER PAN
PROTECTIVE RING FP2659 1
GG BURNER COVER FP1698 1

7
INSTALLATION
1.Identify parts packed in carton against the parts list. Remove all protective materials and
set parts on a flat, non-abrasive surface.
2.Attach the back panel to the base frame by using two 1/4"x25 mm bolts and Ø6.5x1.0 mm
washers as shown in Figure 2.Guide bolts through holes in back panel, into pre-drilled holes
in the base frame. Hand tighten only. Repeat for the door panel.
Figure2
3. Insert a side panel to the base frame as shown in Figure 3a. Attach the side panel to the
back panel with door panel by using two 1/4"x35 mm bolts and Ø6.5x1.0 mm washers as
shown in Figure 3b. Guide the bolts through the holes in the side panel, into the pre-drilled
holes in the back with door panel. Hand tighten only. Repeat for other side panel.
Figure3a Figure3b
4. Carefully place the firepan/burner assembly and top support inside the base frame, resting
on the side panels as shown in Figure 4a. Secure them by using four 1/4"x40 mm bolts and
four 1/4"x60 mm bolts as shown in Figure 4b. Add a Ø6.5x1.0 mm washer to each bolt. Hand
tighten only.

8
Figure4a Figure4b
5. With the help of another person, carefully place the table top onto the firepit base. After
making any necessary adjustments to the alignment of the table top and the assembled base,
use four 1/4"x40 mm bolts and Ø20xØ6.5x2.0 mm as shown in Figure 5. Hand tighten only.
Figure 5
6. After making any necessary adjustments to the alignment of the unit, use the hex bolt driver
to tighten all bolts. Repeat until all bolts are tight. Do not over tighten. Over tightening may
strip bolts.
7. Place the burner pan protective ring into the firepan/burner assembly as shown in Figure 6.
Align the holes in the burner pan protective ring with the pre-drilled holes on the firepan/burner
assembly. Secure the burner pan protective ring to the firepan/burner assembly by using the
two M4 screws as shown in Figure 6.
Figure 6

9
8. Pour ALL the provided media (fire ice or lava rock) into the burner pan. The burner MUST
be completely covered to ensure the appliance functions properly and safely. Remove any
lava rocks or fire ice on top of the ignition well. See Figure 7.
Figure 7
9. Open the door and place the LP tank in the bottom frame. Connect the regulator as shown
in Figure 8. Turn the black handle clockwise to tighten. Turn the handle counterclockwise to
remove. The hose must point down. Open the control door and check that the valve is turned
all the way clockwise to the “OFF” position. Open the tank valve. Apply a solution of soapy
water to the tank-regulator connection and to the valve-hose connection to check for leaks. If
soap bubbles continue to form, the connection has a leak. If a leak is found, close the tank
valve and tighten all connections.
NEVER USE A FLAME TO CHECK FOR LEAKS.
Figure 8
10. Tighten the threaded knobs found on the tank tray (Figure 9) so that the LP tank cannot
move from side to side. Do not remove the plastic cap from the end of the threaded section.
Figure 9
Checking the tank-regulator for leaks

10

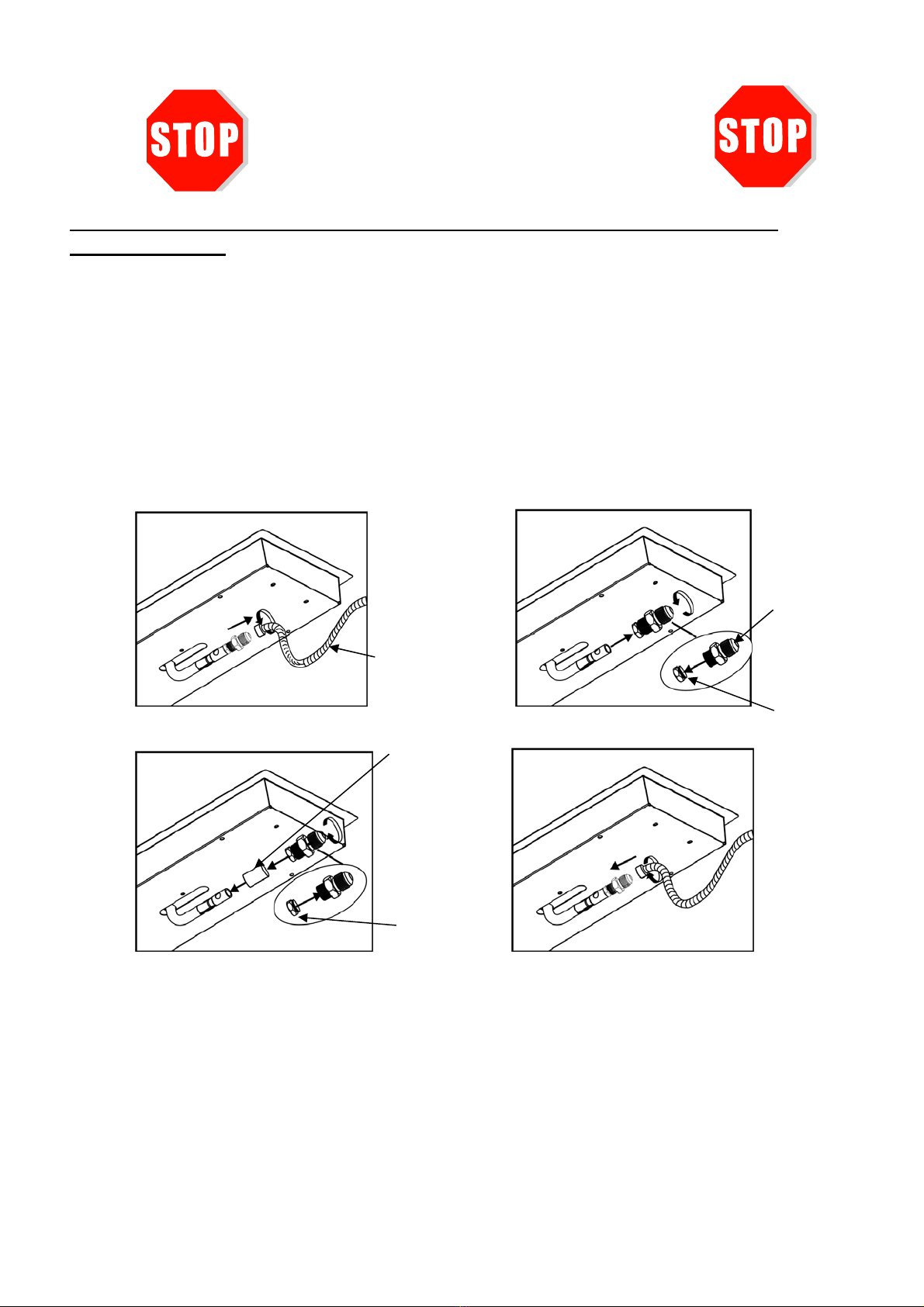

NATURAL GAS CONVERSION
Natural gas conversion must be performed only by your natural gas provider or
service company.
1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL
SOURCE OR APPLICANCES
2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see
step1).
3. Carefully unscrew the orifice holder from the burner pipe (see step2).
4. Remove the propane orifice from the holder and replace with natural gas orifice (see
step2).
5. Install the air shutter over the burner pipe to cover the air holes. Then reattach the orifice
holder to the burner pipe (see step3).
6. Reattach the flex connector to the orifice holder. (see step 4).
7. To convert the regulator from propane to natural gas, the appliance must be isolated from
the gas supply piping system by closing its individual manual shut off valve. Ensure any
pressure testing of the gas supply piping system is at test pressure equal to or less than 1/2
psi(3.5KPA)
8. Remove the propane rubber hose from valve and replace with 5/8” natural gas pipe (see
step5, natural gas pipe package is not provided).
Flex
connector
Orifice
holder
Propane
orifice
Air
shutter
NaturalGas
orifice
Step1 Step2
Step3 Step4

11

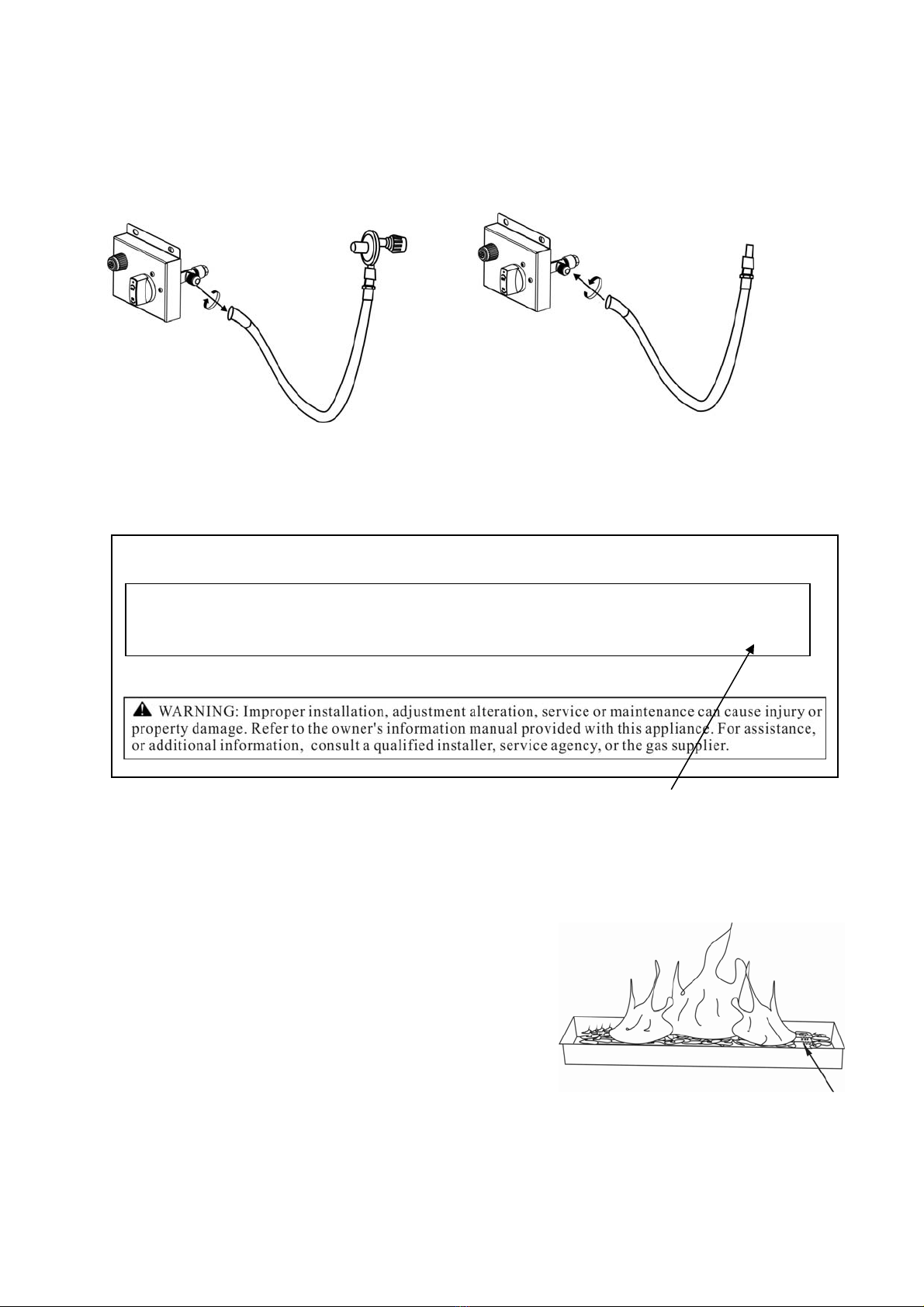

9. Restore your gas supply and check ALL of the connections for leaks using a solution of
soapy water. If a leak is discovered and any bubbles are seen, close the main gas valve and
re-tighten
ALL the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS!
Step5
10. Stick the conversion label on the rating plate as shown in Figure 10.
Metal Rating Plate
1.
2.
3.
4.
5.
6.
7.
Figure 17ConversionLabel
MAINTENANCE
The flames should look like those in Figure 11. To clean
the burner, use a soft brush after the burner has cooled
completely. Never use a vacuum cleaner on the burner.
It is recommended to store the fire pit indoors during
winter if it will be subjected to freezing temperatures. The
LP cylinder must be disconnected and removed from the
appliance before the appliance can be stored indoors.
Figure11
Serial Number _________________ Model Number: WT17IL
CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of
Minimum clearance from combustible constructions: Sides: 24 in.609 mm. Top 72 in. 1828 mm.
FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.
This appliance has been converted to use Natural Gas. Input 30,000 Btu/hr.
Max Gas Supply Pressure 7 inch w.c. (1.74 kPa) Min. Gas Supply Pressure 5 inch w.c. (1.24 kPa)
Fi
g
ure 10 Conversion Label

12
BATTERIES
Make sure the control knob is in the "OFF" position. Unscrew the push
button cap on the ignition module located on the control panel to access
the battery compartment. The ignition module requires one Alkaline AA
size battery (1.5V). The negative (-) end goes in first. See Figure
12.Dispose of battery safely. May explode or leak if charged or
disposed of in fire. Make sure of the polarity. Mercury and cadmium
free.
FFigure 12
CAUTIONS: BATTERY INSTRUCTIONS
●Always purchase the correct size and grade of battery most suitable for the intended use.
●Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different
types.
●Clean the battery contacts and also those of the device prior to battery installation.
●Ensure the batteries are installed correctly with regard to polarity (+ and -).
●Remove batteries from equipment which is not to be used for an extended period of time.
●Remove used batteries promptly.
For recycling and disposal of batteries to protect the environment, please check the internet or your local phone
directory for local recycling centers and / or follow local government regulations.
LIGHTING INSTRUCTIONS
Warning: If these instructions are not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
1. Open the tank drawer and find the control panel on the left. Make sure the control knob
is in the "OFF" position. See Figure 10. Open the tank valve all the way.

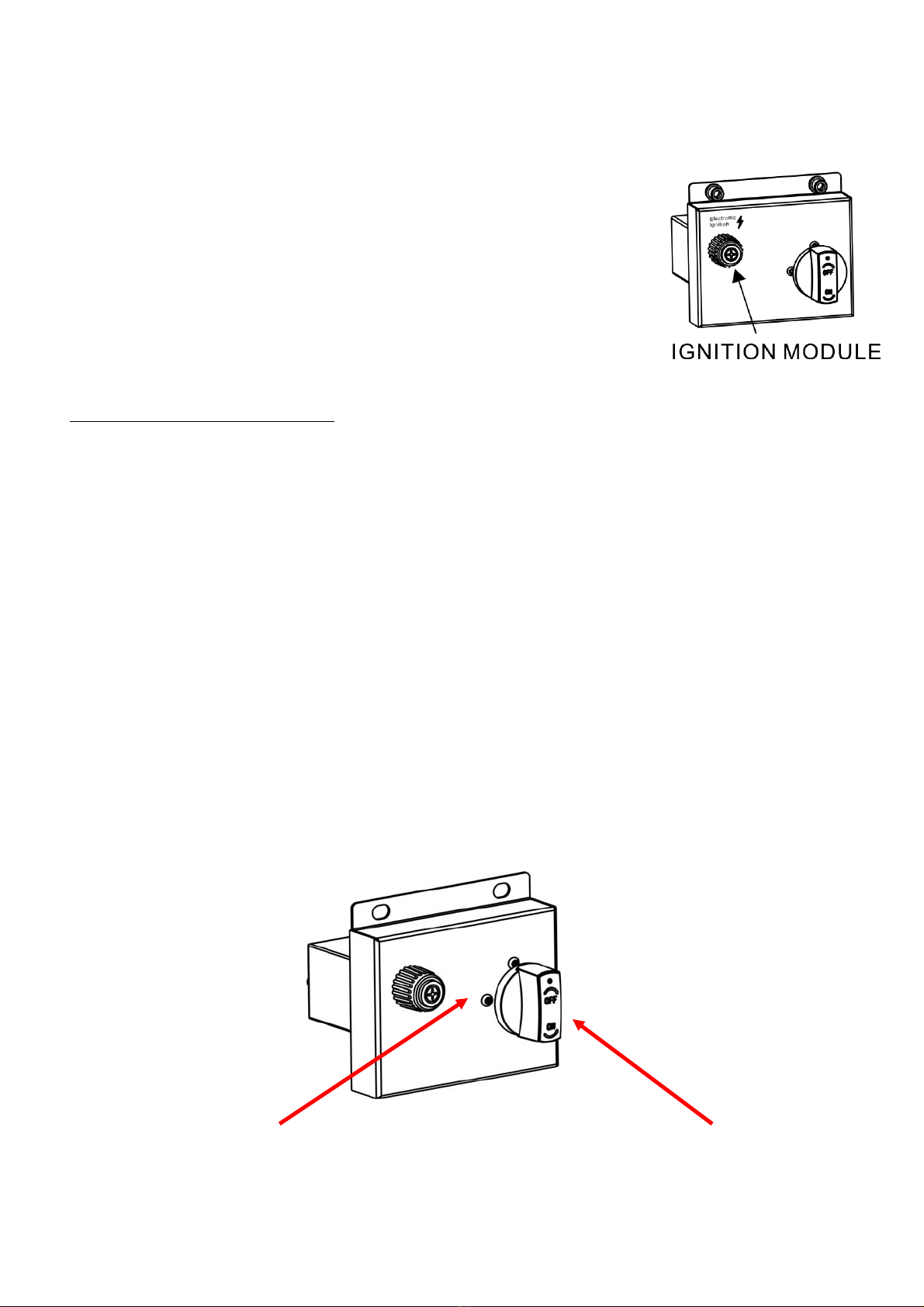

IGNITER BUTTON CONTROL KNOB
Figure 10

13
2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button
pushed in, push and turn the control knob to the “ON” position. The fire should light
within a few seconds. Once the flame is lit, release the igniter button and continue to hold
the control knob in for 10 to 15 seconds. Release the control knob. The control knob
should pop back out and then the fire remain lit. Note: If the fire does not light, turn the
knob to the “OFF” position and wait five (5) minutes before trying again.
3. To turn down the flame, push the control knob in slightly and turn to Medium (medium
flame), or Low (small flame).
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the
tank valve.
TROUBLESHOOTINGGUIDE
PROBLEM CAUSE REMEDY
No propane gas at burner
Check that gas tank valve is open.
Turn control knob to “ON” and push
control knob in. Make sure tank has
propane gas.
No spark at electrode
Check that AA battery is installed
with negative (-) end first and has a
charge. Check that the wire is
connected to the ignition module.
Check that the electrode is not
cracked or broken.
Burner won’t light
Lack of oxygen Remove excess glass beads from
around the ignition well.
Thermocouple not in flame
Check that the tip of the
thermocouple is even with the top of
the ignition well. Remove any glass
beads from the ignition well.
Thermocouple connection
at the main control valve is
loose
Tighten the thermocouple nut at the
back of the valve.
Burner won’t stay
lit after lighting
No glass beads on burner Cover the burner with glass beads
per the instructions.

14
ONE-YEAR LIMITED WARRANTY
What is Covered Under This Warranty?
The item you have purchased is warranted against defects in material and workmanship for the
following parts from the date of purchase for the period of warranty as outlined below, but only
when the unit is installed and operated in accordance with the instructions in this Owner’s
Manual and in compliance with local building and fire codes:
Limited 1 Year
•Stainless Tube/Plate burner
Limited 90 days
•All remaining parts
How Do I Obtain Warranty Service?
To obtain warranty service, you must contact our customer service center within the relevant
warranty period and provide us with a copy of your dated register receipt as proof of the
purchase date. We reserve the right to request photographs and/or return of the defective
item(s) and/or such other evidence relating to any claim as we shall reasonably require. Please
call our customer service center at 1-800-416-3511 for additional warranty claim details and
procedures.
What are the Limitations and Exclusions of this Warranty?
Warranty Limitations:
This warranty is subject to the limitation set forth above. In addition, this warranty is made to the
original purchaser only and is effective only if items are purchased from one of our authorized
dealers. This warranty is not transferable. For warranty replacements based on warranty claims,
we will not be responsible for charges associated with shipments outside continental North
America at any time or for any reason.
Warranty Exclusions: This warranty is subject to the exclusions set forth above. In addition, the
following are excluded from coverage under this warranty: any item used for commercial,
contract or any other non-residential purpose; clearance items, display models or items
purchased “as is”; freight damage; items subject to misuse, abuse, neglect or lack of proper
care or maintenance (including without limitation as provided in any “care and maintenance
guide” or similar information we provide); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other casualty, or improper assembly; hardware
against corrosion or rusting; purchased or replacement parts; and all plastic parts. Also
excluded are loss of use or time; inconvenience; money; travel; packaging; or incidental, special
or consequential damages of any kind. Replacement of defective items or parts as provided
herein, or (at our sole discretion) pro rated refund of your purchase price, shall constitute your
sole and exclusive remedy for items which are not as warranted. In no event shall our
responsibility exceed the purchase price of the item found to be other than as warranted. This
warranty is the exclusive statement of your rights with respect to items you have purchased and
supersedes any other express warranty or statement, written or oral, made in connection with
the purchase and sale of such items. The term ”item” when used herein in the singular refers to
the specific piece found to be defective, and not to the entire set of which the item is a part.
Some states do not allow exclusion or limitation of incidental or consequential damage, so that
limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state.
