WIRELESS COLOR WEATHER STATION
WITH 3 REMOTE SENSORS
We thank you for your purchase of Baldr wireless color
weather station with 3 remote sensors.It has been designed
and constructed using innovative components and techniques
to enable the perfect display. Please read the instructions
carefully to become familiar with the properties and functions
before you use the unit.
For the start-up of this device:
Main unit by Ac adaptor(included) or 3xAAA batteries(no included)
Sensor by 6 x AA batteries (not included)
1

OVERVIEW
MAIN UNIT
10 18
19
17
4
2
8
7
6
1
5
3
911
12
13
14
15
16
2

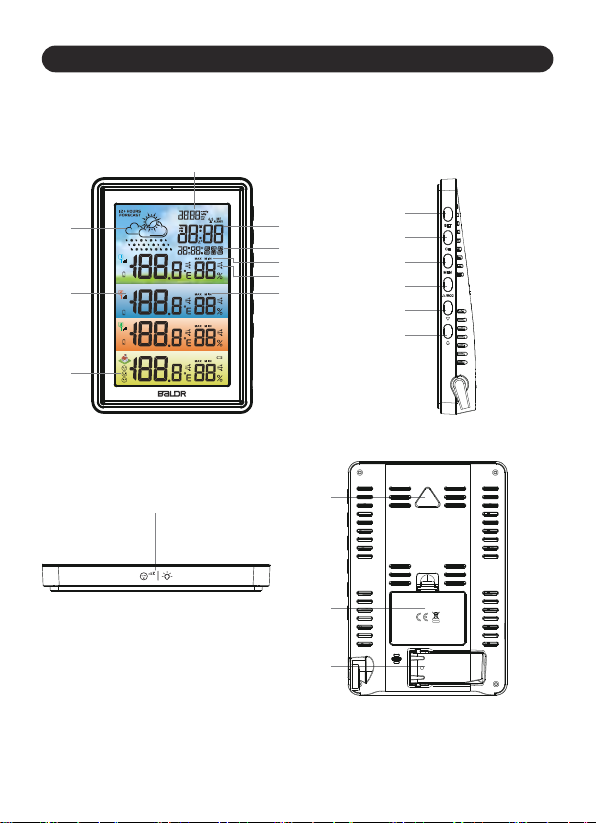

1. Temperature and humidity of channel 1/2/3
2. Max/min record of channel 1/2/3
3. Indoor temperature and humidity
4. Max/min record of indoor temperature and humidity
5. Three comfort level indication
6. Weather forecast
Weather forecast for next
12-24 hours
7. Barometric pressure
Barometer display in mmHg,
inHg or hPa/mb
8. Calendar display
Weekdays in 7 languages
9.Current time
12/24 hour format selectable
10. “ ” button
11. “ SET ” button
Enter into time setting
12. “ CH ” button
Clear sensors data and
re-registration
13. “ MEM ” button
Check or clear Max/min
record
14. “ ▲/RCC ” button
Switch C/F, RCC function or
increase the data
15. “ ▼ ” button
Switch 12/24 H or decrease
the data
16. “ ” button
Check alarm time, turn on/off
alarm, enter into alarm setting
17. Stand bracket
18. Hanging hole
19. Battery compartment
3

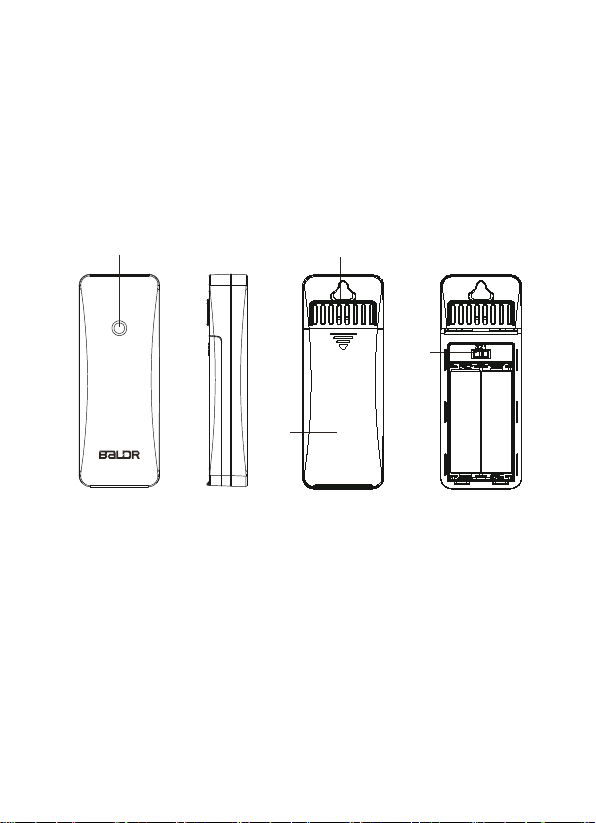

1. Signal light
2. Hanging hole
3. Battery compartment
4. Channel 1-2-3 switch
OUTDOOR SENSOR
12
3
4
The default year is 2020, if the weekday display is incorrect .
Please confirm year was set correct. (for manual setting only)
Notes:
4

•Clear color LCD display
•DCF Radio controlled time
•Weather forecast for next 12-24 hours with barometer
•Measures in/out humidity and temperature (℃/℉)
•Four groups of temperature & humidity data
•Max/min record of temperature & humidity
•Comfort level indication
•Indoor temperature range: -10℃~50℃(14 ℉~122℉)
•Outdoor temperature range: -40℃~60℃(-40℉~140℉)
•In/outdoor humidity range: 1%-99%
•Calendar, alarm and snooze function
•Time display in 12/24H
•White backlight with dimmer
FEATURES
PACKAGE CONTENT
Following contents are included in the package:
1 x Weather Station Main Unit
3 x Remote Sensors
1 x AC Adaptor
1 x User Manual
5

GETTING START
MAIN UNIT INSTALLATION
SENSOR INSTALLATION
Install 3xAAA batteries or plug the adaptor to a
powered outlet.
1. Remove the battery compartment cover;
2. Insert 2 x AA batteries in each sensor matching the polarity
（+and-);
3. Replace the battery cover.
SENSOR SETUP
● Switch the button of 3 sensors to CH1 , CH2 and CH3 ( the
channel of each sensor should be different from others).
● Power the main unit prior to load the batteries of sensor.
Note: 1. Main unit will auto receive outdoor signal after power
on, the receiving status will last for max 3 minutes.
The receiving antenna signal will flash. If no signal
received in 3 minutes, it will stop receiving outdoor
signal.
2. If the main unit is out of 3 minutes’ signal receiving
window, you need to press and hold the “ CH ” button
to enter signal receiving again.
BALDR recommends high quality alkaline or lithium
batteries for the best product performance. Heavy duty
or rechargeable batteries are not recommended.
6

MAIN UNIT SETUP
When power on or reset, LCD will full display for 3
seconds with “BI” sound.
Barometer Calibration
● After power on, the pressure reading will be flashing for 10
seconds. If there is no need for calibration, touch the top
button to exit setting. If calibration is required, you can press
“▲/RCC ” or “ ▼ ” button to adjust data; press and hold “▲/
RCC” or “ ▼ ” button will quickly change the value by 8 steps.
● If no operation within 10 seconds, it will automatically save
and exit setting.
● Barometer range: 800-1100hPa/mb (600-825 mmHg,23.62
-29.53inHg ).
RF Signal Receiving
After barometer setting, It will start receiving 3 outdoor sensors’
signal for 3 minutes. If all 3 channels signal received within 3
minutes or receiving window ends, it will enter into DCF signal
receiving window.
Pressure Unit
hPa/mb GER 0:00
(24H format) D/M 15.June 2020
Weekday
Language
Display Time Date Format Display Date
Temperature Unit
℃ON 0 0:00 Alarm OFF
RCC Function Zone Alarm Time
The default value is :
7

DCF Signal Receiving
1. After RF signal receiving, it will start searching radio signal
for 7 minutes with the antenna symbol displaying on screen,
Meanwhile, the backlight brightness will automatically adjust
to 3% (default brightness: 100%).
2. Once signal received, the main unit will display the received
time/month/date/weekday.
3. Daily RCC signal receiving: there are regular radio signal
receiving at 1:00AM,2:00AM, 3:00AM, 4:00AM, 5:00AM
each day. It starts receiving signal at 1:00AM everyday. For
each day, once signal received at any one receiving time, it
will stop receiving signal that day.
4. Manual receiving: press and hold “▲/RCC ” button to enter
RCC signal receiving.
5. During receiving, press and hold “▲/RCC ” button to exit
RCC receiving.
*RCC symbol display:
a. When receiving signal , RCC icon will be flashing by“1HZ”.
b. When signal successfully received, LCD will display
complete RCC icon and exit RCC receiving.
c. If no signal is received, the RCC icon will disappear.
Manual Settings
1. After signal received, if there is no need for other settings,
you can just finish reading here. If there is other setting
requirements. Please check the following steps. Or if there
is no signal received, you can follow bellow steps for
manual setting.
8

2. Press and hold “ SET ” button to enter into setting, press
“ SET ”button to skip setting steps or go to the next setting
option.
3. Press “ SET ” to select Weekday Language. Default setting
:GER. Press the“▲/RCC” or “ ▼ ” button to select
languages: ENG、GER、ITA、FRE、DUT、SPA、DAN
optional . (English/German/Italian/French/Dutch/Spanish/
Danish)
*Tips: press and hold “▲/RCC” or “ ▼ ” button will quickly
change the value by 8 steps.
4. Press “ SET ” to select Hours. Press “▲/RCC” or “ ▼ ”
button to adjust the value.
5. Press “ SET ” to select Minutes. Press “▲/RCC” or “ ▼ ”
button to adjust the value.
6. Press “ SET ” to select Year. Press “▲/RCC” or “ ▼ ” button
to adjust the value.
7. Press “ SET ” to select Month&Date display format. Default
setting : D/M. Press the“▲/RCC” or “ ▼ ” button to select
M/D or D/M format. (M: Month ,D: Date)
8. Press “ SET ” to select the Month. Press “▲/RCC” or “ ▼ ”
button to adjust the value.
9. Press “ SET ” to select the Date. Press “▲/RCC” or “ ▼ ”
button to adjust the value.
10. Press “ SET ” to select the Barometric Unit. Default setting
: hPa/mb. Press “▲/RCC” or “ ▼ ” button to select unit:
mmHg, inHg or hPa/mb optional.
11. Press “ SET ” to select the RCC. Default setting : ON.
Press “▲/RCC” or “ ▼ ” button to select OFF or ON.
9

ALARM FUNCTION
12. Press “ SET ” to select Time Zone. Default setting : 0.
Press “▲/RCC” or “ ▼ ” button to select time zone from
-12 H to + 12 H.
13. Press “ SET ” to select Weather. Press “▲/RCC” or “ ▼ ”
button to select weather : Sunny, Sunny To Cloudy, Cloudy,
Rainy or Stormy optional.
14. Press “SET” to confirm and exit.
15. During setting, touch top button to save and exit setting.
16. During setting, if no operation for 10 seconds, it will
automatically save and exit setting.
Alarm Time Setting
1. Press and hold “ ” button to enter into alarm time setting.
2. Press “▲/RCC ” or “ ▼ ” button to adjust data; press and
hold “▲/RCC ” or “ ▼ ” button will quickly change the value
by 8 steps.
3. The setting order is: Hour → Minute→ Exit.
4. During setting, touch top button to save and exit setting.
5. During setting, if no operation for 10 seconds, it will
automatically save and exit setting.
6. The alarm is default ON after setting the alarm time. Alarm
symbol will display on screen.
Alarm ON/OFF Setting
1. When in time display mode, press “ ” button to check
alarm time. Press “ ” button twice to turn ON/OFF alarm
by the ON/OFF of symbol .
2. When in alarm time display mode, press “ ” button to turn
on/off the alarm by the ON/OFF of symbol .
10

SNOOZE FUNCTION
1. When the alarm is ringing, press any other button except
top button to stop the alarm. And the alarm will restart next
day.
2. Or when alarm is ringing, press the top button to activate
snooze function. The alarm will ring again in 5 minutes
snooze interval. And the “ ” symbol will be flashing on
screen to indicate the snooze mode. Press any other
button except top button to exit the snooze mode. And the
alarm will restart next day.
3. When alarm rings, the ascending “Bibi” alarm sound will last
for 2 minutes if no operation.
OPERATION GUIDELINES
1. Press “MEM” button to check maximum temperature and
humidity, the value will display for 5 seconds.
2. Press “MEM” button second time to check the minimum
temperature and humidity, the value will display for 5
seconds.
3. Press “MEM” button third time will return to standard mode.
4. Press and hold “MEM” button will clear the max and min
record and reactivate the memory.
5. Normally, the Max and Min record will update every 24
hours at 0:00.
MAX AND MIN RECORD
11

TEMPERATURE
HUMIDITY
1. After power on ,the indoor temperature will display
automatically, it will update reading each 30 seconds and
start to receive outdoor signal which lasts for max 3 minutes.
2. Indoor temperature display range:-10℃~ 50.0℃(14℉~
122℉); for temperature lower than -10℃,the reading will
be :”LL.L”; for temperature higher than +50℃,the reading
will be :”HH.H”.
3. Outdoor temperature display range :-40℃~60℃(-40℉~
140℉); for temperature lower than -40℃,the reading will
be :”LL.L”; for temperature higher than +60℃,the reading
will be :”HH.H”.
4. Arrow indication for temperature changes:
will display when temperature changes less than 1℃within
one hour or compared with last reading;
will display when the reading increase by 1℃within one
hour or compared with last reading.
will display when the reading decrease by 1℃within one
hour or compared with last reading.
5. Accuracy: ±1 ℃. Temperature resolution is 0.1 ℃(0.1℉).
6. Press “▲/RCC ” button to switch from Celsius degree to
Fahrenheit degree.
1. After power on ,the indoor humidity will display automatically,
it will update reading each 30 seconds and start to receive
outdoor signal which lasts for max 3 minutes.
12

2. Humidity display range: 1%-99%;for humidity lower than
1%,the reading will be “1%”;for humidity higher than 99%,
the reading will be “99%”.
3. Accuracy: when the temperature is between 20℃~26℃(68
℉~ 78.8℉) and the humidity is between 40-80%,the
accuracy is ±5%,if out of this range the accuracy will be ±8%.
4. Arrow indication for humidity changes:
will display when humidity changes less than 3% RH within
one hour or compared with last reading;
will display when the reading increase by 3% RH within one
hour or compared with last reading.
will display when the reading decrease by 3% RH within
one hour or compared with last reading.
5. Humidity resolution:1% .
Display
Humidity DRY 1%- 39% COMFORT
40%-70% WET 71%-99%
COMFORT LEVEL INDICATOR
●Press and hold the "CH" button to clear all sensors data and
start receiving signal again.
RF RE-REGISTRATION
13

WEATHER FORECAST
● The weather forecast icon will show after power on. There
are 5 kinds of weather modes: Sunny, Sunny To Cloudy,
Cloudy, Rainy, Stormy. The weather icon displays are based
on the hourly calculation of indoor/outdoor temperature &
humidity and barometer data. The forecast is for next 12
hours with 70%-75% accuracy .
ADJUSTABLE BACKLIGHT
LOW BATTERY INDICATORS
● About Outdoor Sensor: When battery indicator shows next
to the outdoor temperature, replace batteries in your outdoor
sensor.
● About Main Unit: When battery indicator shows next to your
indoor temperature, replace battery.
● After powering on, touch “ ” button to adjust the
brightness of the backlight.
● Backlight brightness can be selected from 3%,50%,100%
and off.
● Powered by batteries , If no operation within 10 seconds,
it will automatically turn off backlight.
14

TROUBLE SHOOTING
Problem
Outdoor reading
is flashing or
showing dashes
No outdoor
sensor reception
1. Reload the batteries of both outdoor
sensor and main unit. Please refer
to the SENSOR SETUP section.
2. Relocate the main unit and/or the
outdoor sensor. The units must be
within 100m(328ft) of each other.
3. Make sure both units are placed at
least 0.9 m (3 ft) away from
electronics that may interfere with
the wireless communication (such as
Flashing of the outdoor reading is
generally an indication of wireless
interference.
1. Bring both the sensor and display
indoors, side by side and remove
batteries from each.
2. Make sure the 1-2-3 switch on both
units match.
3. Reload batteries in outdoor sensor.
4. Reload batteries in main unit.
5. Let both units sit within a couple feet
of each other for a few minutes to
gain a strong connection before
taking sensor to outdoor area.
Possible Solution
15

Inaccurate
temperature/
humidity
TVs, microwaves, computers, etc).
4. Use standard alkaline batteries. Do
not use heavy duty or rechargeable
batteries. NOTE: It may take a few
minutes for main unit and sensor to
synchronize after batteries are
reloaded.
Make sure both the main unit and
sensor are placed out of direct sunlight
and away from any heat sources or
vents.
“HH.H/LL.L”
display in indoor
and/or outdoor
temperature
If your BALDR product does not operate properly after
trying the troubleshooting steps, please contact the seller
on your order page or shoot an email to: [e-mail].
If the temperature is higher than the
detection range, “HH.H” will display on
screen for indication; if lower than the
detection range, “LL.L” will display on
screen for indication.
16

PLACEMENT INSTRUCTION
BALDR sensors are sensitive to surrounding
environmental conditions. Proper placement of both the
main unit and outdoor sensor are critical to the accuracy
and performance of this product.
Main Unit Placement
Place main unit in a dry area free of dirt and dust. To help
ensure an accurate indoor temperature measurement, be
sure to place the Main unit away from heat sources or vents.
Outdoor Sensor Placement
Sensor must be placed outside to observe outdoor conditions.
Sensor is water resistant for water splashes and is designed
for general outdoor use, however, to extend its life place the
sensor in an area protected from direct weather elements.
The best location is 1.2 to 2.4 meters (4 to 8 feet) above the
ground with permanent shade and plenty of fresh air to
circulate around the sensor.
Important Placement Guidelines
● The distance between main unit and transmitter should be
at least 1.5~2 meters (5~6.5 feet) away from any interfering
sources such as computer monitors or TV sets.
● To maximize wireless range, place units away from large
metallic items, thick walls, metal surfaces, or other objects
that may limit wireless communication.
17

PRECAUTIONS
● Please do not use other electrical products such as
headphones or speakers operating on the same signal
frequency.
● Neighbors using electrical devices operating on the same
signal frequency can also cause interference.
● Do not clean any part of the product with benzene, thinner
or other solvent chemicals. When necessary, clean it with
a soft cloth.
● Never immerse the product in water. This can cause
electrical shock and damage the product.
● Do not subject the product to extreme force, shock, or
fluctuations in temperature or humidity.
● Do not tamper With the internal components.
● Do not mix new and old batteries or batteries of different
types.
● Do not mix alkaline, standard or rechargeable batteries with
this product. Remove the batteries if storing this product for
a long period of time.
● Do not dispose of this product as unsorted municipal waste.
Collection of such waste separately for special treatment is
necessary.
18

WARRANTY
BALDR provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
Warranty service can only be performed by our authorized
service center. The original dated bill of sale must be
presented upon request as proof of purchase to us, or our
authorized service center.
The warranty covers all defects in material and workmanship
with the following specified exceptions:(1) damage caused by
accident, unreasonable use or neglect (including the lack or
reasonable and necessary maintenance); (2) damage
occurring during shipment (claims must be presented to the
carrier); (3) damage to, or deterioration of any accessory or
decorative surface;(4) damage resulting from failure to follow
instructions contained in your owner’s manual.
This warranty covers only actual defects within the product
itself, and does not cover the cost of installation or removal
from a fixed installation, normal set-up or adjustments, claims
based on misrepresentation by the seller or performance
variations resulting from installation-related circumstances.
To receive warranty service, the purchaser must contact with
BALDR nominated service center for the problem
determination and service procedure.
Thank you for your choice of BALDR products!
19
