Bartscher 12L-10 User manual

12L-10 - 12L-20
162650 - 162651

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-06-27
EN
2

162650 1 / 26
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ........................................................................10

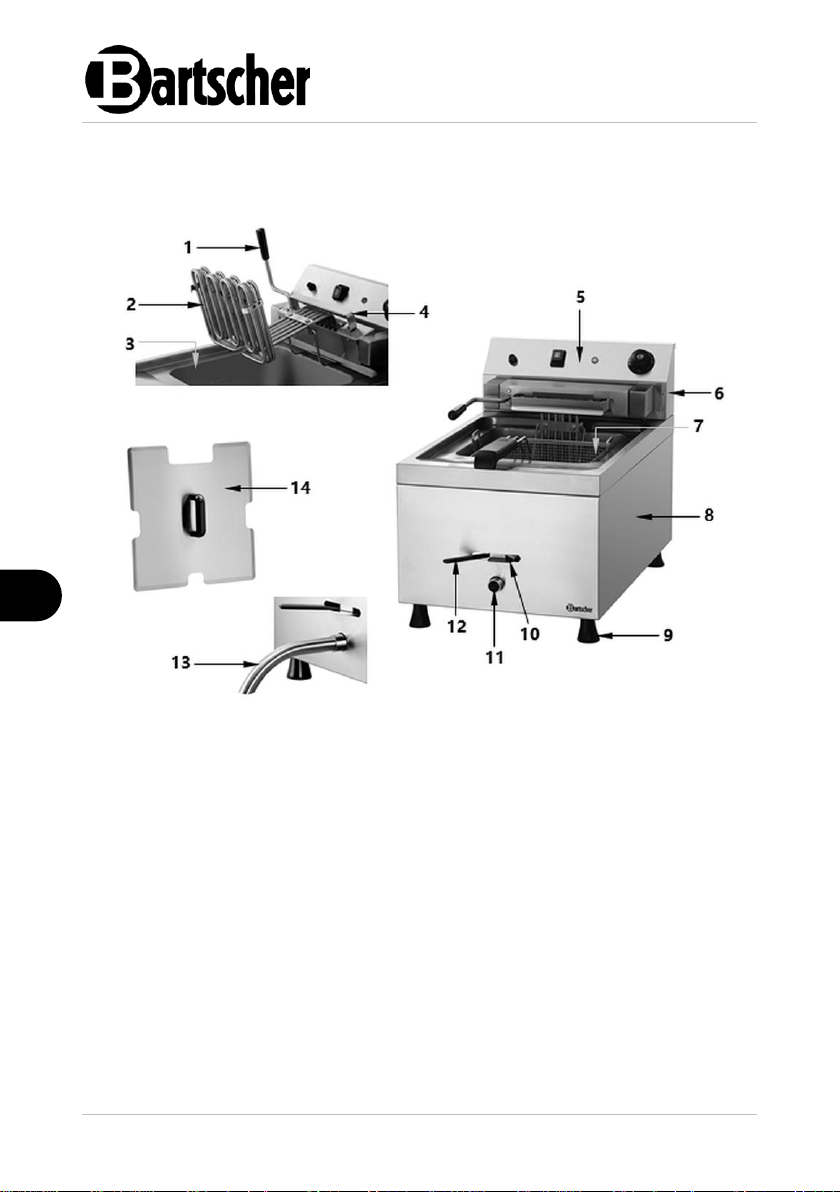

4.2 List of Components of the Appliance .....................................................12
4.3 Functions of the Appliance.....................................................................14
5Installation and operation ............................................................................15
5.1 Installation..............................................................................................15
5.2 Operation...............................................................................................17
6Cleaning ......................................................................................................23
6.1 Safety Instructions for Cleaning.............................................................23
6.2 Cleaning.................................................................................................23
7Possible Malfunctions..................................................................................24
8Disposal....................................................................................................... 26

Safety
2 / 26 162650
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Die Ke nntnis aller enthalten enSic herheitshinweis eu ndH andlungsan weisungen sch afft die Voraussetzu ngf ürd as sichere und sachg erechte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Gerät sg eltenden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Be dienungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für d as In¬stallations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
162650 3 / 26
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 26 162650
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Safety during deep fat frying
•Never leave the operating appliance without supervision. Possible malfunctions
may lead to overheating and ignition of frying oil / fat in cubes (blocks).
•If due to overheating, the frying oil / fat in cubes (blocks) catches fire, put the lid
on and disconnect the appliance from the power supply.
•Spatters or outbursts of hot oil/fat may cause scalding of hands, arms and face.
Use protective kitchen mitts.
•Do not use wet nor humid products. Dry them before use. Remove excess of ice
from deep frozen products prior to frying them.
•Do not hang frozen food in the basket over the tank filled with hot frying oil / fat
in cubes (blocks). When deep frying in fat, even the smallest drop of water may
cause spatters of hot oil or even small outbursts.
Hot Surfaces

Safety
162650 5 / 26
EN
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Health hazard due to burnt food products
•Acrylamides that are present in burnt food products are hazardous to health and
may cause cancer. In order to avoid or reduce acrylamide content, products
should always be fried to the point, when their colour is golden–yellowish, and
not dim and dark nor brown.
•Burnt left-overs and scrubs should be regularly removed from frying oil.
•Products containing starch —cereals and potato products in particular —
should be fried in a maximum temperature of 180 °C.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.

Safety
6 / 26 162650
EN
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Deep fat frying of adequate food products.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Deep fat frying of inadequate food products.
–Deep fat frying of wet or humid food products.
–Do not hang frozen food in the fryer’s basket over the hot frying oil/fat.

General information
162650 7 / 26
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 26 162650
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
162650 9 / 26
EN
4 Technical Data
Version / Characteristics 162650 / 162651
•Type: table-top appliance
•Type of power supply: electric
•Equipment connection: 3 NAC
•Deep-drawn basin
•Heating element:
–stainless steel
–can be pivoted out
•Temperature control: manual
•Control: knob
•Cold zone
•Grease drain tap
•Safety thermostat
•ON/OFF switch
•Indicator lights:
–heating-up
–ON/OFF
•The set includes:
–1 or 2 baskets
–1 or 2 lids
–1 or 2 sieves for breadcrumb coating

Technical Data
10 / 26 162650
EN
4.1 Technical Specifications
Name:
Deep fat fryer 12L-10
Art. No.:
162650
Material:
stainless steel
Number of basins:
1
Basin volume, in litres:
12
Basin dimensions (W x D x H), in mm:
290 x 308 x 210
Number of baskets:
1
Basket volume, in l:
6,5
Basket dimensions (W x D x H), in mm:
250 x 230 x 110
Temperature range, min.–max., in °C:
50 - 190
Degree of protection:
IPX4
Connected load:
9,0 kW | 400 V | 50 Hz
Dimensions (W x D x H), in mm:
400 x 650 x 445
Weight, in kg:
15,4
We reserve the right to implement technical modifications.

Technical Data
162650 11 / 26
EN
Name:
Deep fat fryer 12L-20
Art. No.:
162651
Material:
stainless steel
Number of basins:
2
Basin volume, in litres:
12
Basin dimensions (W x D x H), in mm:
290 x 308 x 210
Number of baskets:
2
Basket volume, in l:
6,5
Basket dimensions (W x D x H), in mm:
250 x 230 x 110
Temperature range, min.–max., in °C:
50 - 190
Degree of protection:
IPX4
Connected load:
18,0 kW | 400 V | 50 Hz
Dimensions (W x D x H), in mm:
800 x 650 x 445
Weight, in kg:
28,8
We reserve the right to implement technical modifications.

Technical Data
12 / 26 162650
EN
4.2 List of Components of the Appliance
162650
Fig. 1
1. Lever for setting heating element
drip position
2. Heating element
3. Basin
4. Bracket for hanging the basket
5. Control panel
6. Control box
7. Basket
8. Main appliance
9. Feet (4 pcs)
10.Grease drain mechanism lock
11.Grease drain stub
12.Grease drain mechanism lever
13.Grease drain tap
14.Lid with handle

Technical Data
162650 13 / 26
EN
162651
Fig. 2
1. Lever for setting heating element
drip position (2 pcs)
2. Heating element (2 pcs)
3. Basin (2 pcs)
4. Bracket for hanging the basket (2 pcs)
5. Control panel (2 pcs)
6. Control box (2 pcs)
7. Basket (2 pcs)
8. Main appliance
9. Feet (4 pcs)
10.Grease drain mechanism lock (2 pcs)
11.Grease drain mechanism stub
(2 pcs)
12.Grease drain mechanism lever (2 pcs)
13.Grease drain tube (2 pcs)
14.Lid with handle (2 pcs)

Technical Data
14 / 26 162650
EN
Accessories (not included in the scope of delivery)
Deep frying basket 12L-10/20
Material: high-alloy steel;
Basket dimensions: W 250 x D 230 x H 110 mm
Volume: 6.5 litres
Dimensions: W 253 x D 510 x H 215 mm
Weight: 0.95 kg
Art. No.: 162653
4.3 Functions of the Appliance
The deep fat fryer is used to fry suitable food products in hot fat at a suitable
temperature setting. The deep fat fryer —being a robust tabletop appliance —is
perfectly adapted to using especially i professional kitchens, foremost, thanks to 12-
litre basin. The grease drain tap, removable sieve for breadcrumbs coating and
pivoted-out heating element facilitate cleaning.

Installation and operation
162650 15 / 26
EN
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;

Installation and operation
16 / 26 162650
EN
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Fix the enclosed feet to the appliance by screwing them into the provided
openings.
•Compensate for smaller unevenness in the place of installation through
screwing the feet in and out.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Leave at least 20 cm clearance from flammable walls and items.
Electric Connection
•Before connecting the appliance to the power supply, make sure that voltage
and frequency values on the rating plate are conforming to the existing electric
installation.
The allowable voltage deviation is ±10%.
•Make sure that appropriate connection with protection conductor is available,
conforming to the valid regulations. Use a cord of sufficient cross section for
connection to the power supply.
•Between the appliance and electric supply grid must be installed an active multi-
pole breaker, suitable for the power of the appliance. The breaker must be
located in an easily accessible location. The breaker contacts should feature a
minimum opening of 3 mm.
•Connect the appliance to an electric mains installation according to the valid
international, national, and local regulations.
•Do not use the appliance with an external timer or remote control.

Installation and operation
162650 17 / 26
EN
5.2 Operation
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erbet ween the heating elem ent andl eft-over foo d tray.
Ostrożnie osadzić skrzynkę rozdzi elczą z eleme ntem grzewczym na tylnej kra wędzi urządze nia. Sworzeń w dol nej części s krzynki rozdzielcz ej musi wchodzić w otwór w urzą dzeniu główn ym. W taki sposó b skrzynka roz dzielcza jest pr awidłowo ustawi ona.
WARNING!
Fire hazard!
Operation of the appliance with the oil level below MIN mark may lead to
overheating of frying oil and cause oil to catch fire.
The oil level should be between MIN and MAX marks on the side wall of a
tank.
If overheated during operation, the frying oil or fat in cubes (blocks)
may catch fire.
The appliance should not remain in use for extended periods of time.
During breaks between subsequent frying processes, the temperature
control knob should be set to lower values.
WARNING!
Risk of burns!
Due to lower flashpoint, old oil that had already been used for frying,
exhibits a tendency for self-ignition and favours frothing.
Do not use old oil for frying. Regularly change frying oil.
When the oil level is above the MAX mark during operation of the
appliance, hot oil may spill out.
The oil level should be between MIN and MAX marks on the side wall of a
tank.
If the basket is overfilled with products for frying, the frying oil or fat in
cubes (blocks) may boil over.
Observe the maximum allowable level of filling the basket with products
for frying.
If water enters hot frying oil, it may cause spatters of oil and scalding.
Use only dry products for frying.
When deep frying in fat, even drops of water under the lid may cause
spatters of hot oil or even small outbursts.
Never place the lid on during or immediately after the frying process.
The lid is used only for protection against dirt or for keeping the
temperature of frying oil / fat in cubes (blocks) in the case of possible
interruptions of operation.

Installation and operation
18 / 26 162650
EN
Before placing the lid, make sure that it is dry, so that no water drips into
the tank.
When pouring hot frying oil / fat in cubes (blocks) be aware of the risk
of burns.
Cool the frying oil / fat in cubes (blocks) before pouring.
CAUTION!
The deep fat fryer can only be used by individuals who have been
instructed in the proper use of the appliance and hazards that may arise
during the frying process.
Appliance Preparation
1. Remove the equipment from the appliance (lid, deep frying basket, sieve for
breadcrumb coating).
2. Before use, thoroughly clean the appliance and equipment according to
instructions in section 6 'Cleaning'. Then thoroughly dry the appliance and the
entire equipment.
3. After cleaning, lower the heating element using the lever for setting the drip
position by pulling it down.
ATTENTION!
For safety reasons, the appliance operates only when the heating element
is properly lowered in the basin, so that the microswitch enables the
appliance to be ready for operation.
