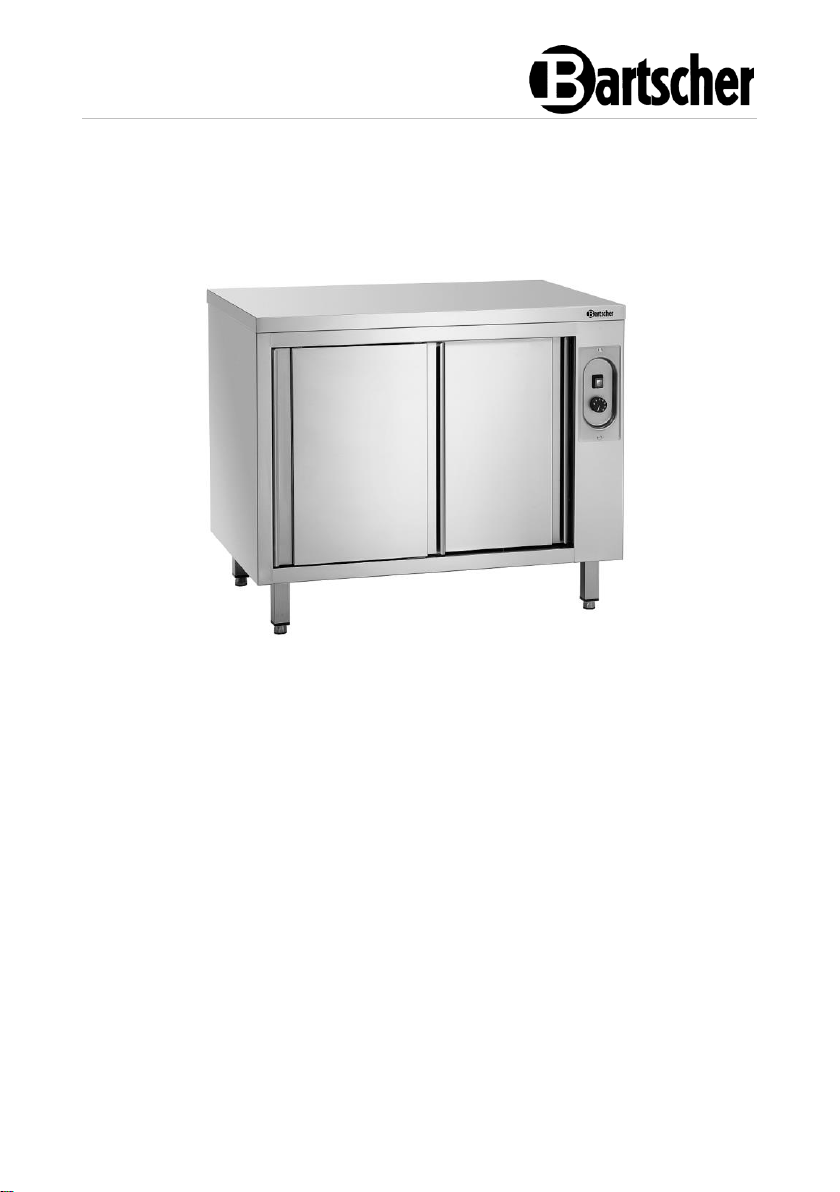

Bartscher 700-4T User manual

700-4T
346107 - 346127 - 346147
346167 - 346187 - 346207

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-11-07
EN

346107 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended use........................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery check .........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9
4.2 List of components of the appliance.......................................................13
4.3 Functions of the appliance..................................................................... 13
5Installation and operation ............................................................................14
5.1 Installation..............................................................................................14
5.2 Operation............................................................................................... 15
6Cleaning ......................................................................................................17
6.1 Safety Instructions for cleaning..............................................................17
6.2 Cleaning.................................................................................................17
7Disposal....................................................................................................... 18

Safety
2 / 20 346107
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für das sichere und sac hgerechte Arbeite n mit dem Gerät. Darüber hi naus müssen die für den Eins atzbereich des Geräts gelt enden örtlich enU nfallverhütungs vorschriften und allgem einen Sicherheitsb estimmungen eing ehalten werden. Diese Be dienungsanleitung is t Bestandt eild es Produkts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallatio ns-, Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeit zugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
346107 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 20 346107
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.

Safety
346107 5 / 20
EN
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 20 346107
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Displaying and warming up cookware.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating up food.

General information
346107 7 / 20
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 20 346107
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
346107 9 / 20
EN
4 Technical data
4.1 Technical specifications
Version / Characteristics of Heated Cabinets 700-4T Series
•Internal design: 2 compartments
•Shelves: full surface
•Shelves without height adjustment
•Door type: slide door, both sides
•Number of doors: 4
•State at delivery: assembled for ready to use
•Height-adjustable feet
•Height-adjustable: 850 x 900 mm
•Temperature control: stepless
•Temperature range: 20°C –80°C
•Control: electronic, knob
•ON/OFF switch
•Indicator light
•Features:
–with edges turned down: 40 mm
–square tubing frame feet, 40 x 40 mm section
–Scotch-Brite sanding

Technical data
10 / 20 346107
EN
Name:
Heated cabinet 700-4T 1000
Art. no.:
346107
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
1.000 x 700
Internal dimensions (W x D x H), in mm:
855 x 580 x 580
Worktop load-bearing capacity, max. in kg:
315
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
315
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
1.000 x 700 x 850
Weight in kg:
70,8
Name:
Heated cabinet 700-4T 1200
Art. no.:
346127
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
1.200 x 700
Internal dimensions (W x D x H), in mm:
1.055 x 580 x 580
Worktop load-bearing capacity, max. in kg:
120
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
120
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
1.200 x 700 x 850
Weight in kg:
84

Technical data
346107 11 / 20
EN
Name:
Heated cabinet 700-4T 1400
Art. no.:
346147
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
1.400 x 700
Internal dimensions (W x D x H), in mm:
1.255 x 580 x 580
Worktop load-bearing capacity, max. in kg:
210
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
210
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
1.400 x 700 x 850
Weight in kg:
92
Name:
Heated cabinet 700-4T 1600
Art. no.:
346167
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
1.600 x 700
Internal dimensions (W x D x H), in mm:
1.455 x 580 x 580
Worktop load-bearing capacity, max. in kg:
237
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
237
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
1.600 x 700 x 850
Weight in kg:
103

Technical data
12 / 20 346107
EN
Name:
Heated cabinet 700-4T 1800
Art. no.:
346187
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
1.800 x 700
Internal dimensions (W x D x H), in mm:
1.655 x 580 x 580
Worktop load-bearing capacity, max. in kg:
223
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
223
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
1.800 x 700 x 850
Weight in kg:
113,4
Name:
Heated cabinet 700-4T 2000
Art. no.:
346207
Material:
Stainless steel
Worktop material:
Stainless steel
Worktop dimensions (W x D x H), in mm:
2.000 x 700
Internal dimensions (W x D x H), in mm:
1.855 x 580 x 580
Worktop load-bearing capacity, max. in kg:
210
Number of shelves:
1
Shelves load-bearing capacity, max. in kg:
210
Power supply:
2 kW / 230 V / 50-60 Hz
Dimensions (W x D x H) in mm:
2.000 x 700 x 850
Weight in kg:
125,6
We reserve the right to implement technical modifications!

Technical data
346107 13 / 20
EN
4.2 List of components of the appliance
1. Housing
2. Worktop
3. Appliance interior
4. ON/OFF switch with integrated
power indicator light (red)
5. Temperature controller
6. Height-adjustable feet (4 pcs.)
7. Shelf (1 pcs.)
8. Lower baseplate
9. Sliding door (4 pcs.)
4.3 Functions of the appliance
The heated cabinet offers a heated space with stepless regulation for storage of
cookware with the possibility of servicing from both sides and a sturdy worktop.

Installation and operation
14 / 20 346107
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•To install the appliance, perform the following steps:
–Remove the packaging of the appliance, except for the pallet.
–Lift the appliance with the lift truck and move it to the planned installation
location. Be careful not to damage the appliance. Control the stability in
order not to lose the balance of the appliance.
–Do not drag nor push the appliance, as it may fall down. This may also
cause the damage to external elements or feet.
–As soon as the appliance is in the planned installation location, remove
the pallet.
–Level the appliance by screwing in or out the height-adjustable feet.

Installation and operation
346107 15 / 20
EN
–Remove the protective film from the appliance at the end.
•Leave at least 10 cm clearance from flammable walls and items.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze w skazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. M ake sure no water enters electric ins tallation and co nnection b ox. Następnie dokł adnie osusz yć urządzenie i elementy wypos ażenia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erb etween the heating ele ment andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge of th e appliance. A pin in botto mpar to ft hec onnecti onb ox must enter a hole in the main ap pliance. This way the con nection box is properly mounted.
Preparation of the appliance
1. Before use clean the appliance according to the instructions in section 6
“Cleaning”.
2. Then, dry the appliance.
3. Prepare suitable cookware.
Cookware must be completely clean and dry before putting it into the device.
4. Fill the heated cabinet with the necessary cookware, by placing them on the
shelves or the lower baseplate of the appliance. Mind the load-bearing capacity
of the shelf. Check the specification in section 4 “Technical Specifications”.
NOTE!
Optimum cookware warming may be achieved, when the internal space is
filled from the top.
To operate the appliance correctly, arrange the cookware inside the appliance so
that a clearance of 80 mm is maintained for the purpose of providing proper air
circulation. Do not use the cookware to obstruct nor cover ventilation opening inside
of the appliance.
5. Close the sliding door at both sides.

Installation and operation
16 / 20 346107
EN
Operation of the appliance
WARNING!
Risk of scalding!
When the set temperature reaches over 60°C, the cookware becomes
very hot.
For removing hot cookware use dish washing cloths or kitchen mitts.
1. Plug the appliance into a suitable single socket.
2. Turn the appliance on with the ON/OFF switch by setting it in “I” position.
A red mains control light in the switch will light up.
3. Rotate the temperature control knob clockwise,
to set the required temperature in the range of
20 °C –80 °C.
The optimum temperature is approx. 60 °C. When
the set temperature is below 60 °C, the cookware
are not too hot to remove them manually and there
is no scalding hazard to fingers nor hands. The
food remains warm for a long time, when they are
served in cookware warmed to such a temperature.
The internal compartment temperature is evenly distributed by the fan.
The warming time is conditioned by various factors:
–material of the cookware and its thickness;
–number of cookware in the appliance;
–temperature setting;
–ambient temperature.
Thus it is not possible to define the exact time of warming. Taking the above factors
into account, the user may determine the right settings only during operation of the
appliance.

Cleaning
346107 17 / 20
EN
Removing cookware
1. Remove the cookware from the appliance as needed.
2. Close the slide doors, so that the cookware does not lose temperature.
Switching the appliance off
1. Set the temperature controller in the “O” position by turning it counter-
clockwise.
The heating is switched-off, but the appliance is still powered.
2. If device is no longer used, switch it off, by setting the ON/OFF switch in “O”
position.
3. Disconnect the appliance from the socket (pull the plug out).
6 Cleaning
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance regularly at the end of a working day, and, if necessary,
also in the meantime or when the appliance is not to be used for a longer time.
2. Remove the cookware from the appliance.
3. Clean the lower baseplate and the shelf thoroughly with a soft, damp cloth. Use
mild cleaning agent if required.
4. Clean the internal surfaces regularly, thoroughly wiping them with soft cloth,
dampened in water with a food-grade disinfecting cleaning agent. Wipe with
clean cloth and then dry the cleaned surfaces.
5. Clean the worktop thoroughly after each use by using a soft cloth and a mild
cleaning agent.

Disposal
18 / 20 346107
EN
6. Wipe the housing and the sliding doors with soft and moist cloth.
7. Afterwards, dry the washed external surfaces thoroughly.
7 Disposal
Electrical appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
