Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
700134 3 / 16
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 16 700134
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
700134 5 / 16
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling wine bottles.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Cooling food products.

General information
6 / 16 700134
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
700134 7 / 16
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
8 / 16 700134
EN
4 Technical Data
4.1 Technical Specifications
Name:
Wine cooler 4FL-100
Art. No.:
700134
Material:
Plastic
Inner material:
Plastic
Storage capacity, bottles:
4
Bottle opening, Ø in mm:
90
Temperature range, min.–max., in °C:
5 - 18
Number of temperature zones:
1
Climate class:
4
Ambient temperature, min.–max., in °C:
10 - 32
Energy efficiency class:
B
Energy consumption, in kWh/year:
170
Power supply:
0,05 kW / 230 V / 50 Hz
Dimensions (W x D x H), in mm:
482 x 260 x 262
Weight in kg:
6,6
We reserve the right to implement technical modifications!
Version / Characteristics
•Cooling: thermoelectric
•Temperature control: electronic, in 1°C increments
•Thermostat
•Fan
•Insulation: cyclopentane, C5H10
•Lighting: LED, may be switched separately
•Digital display

Technical Data
700134 9 / 16
EN

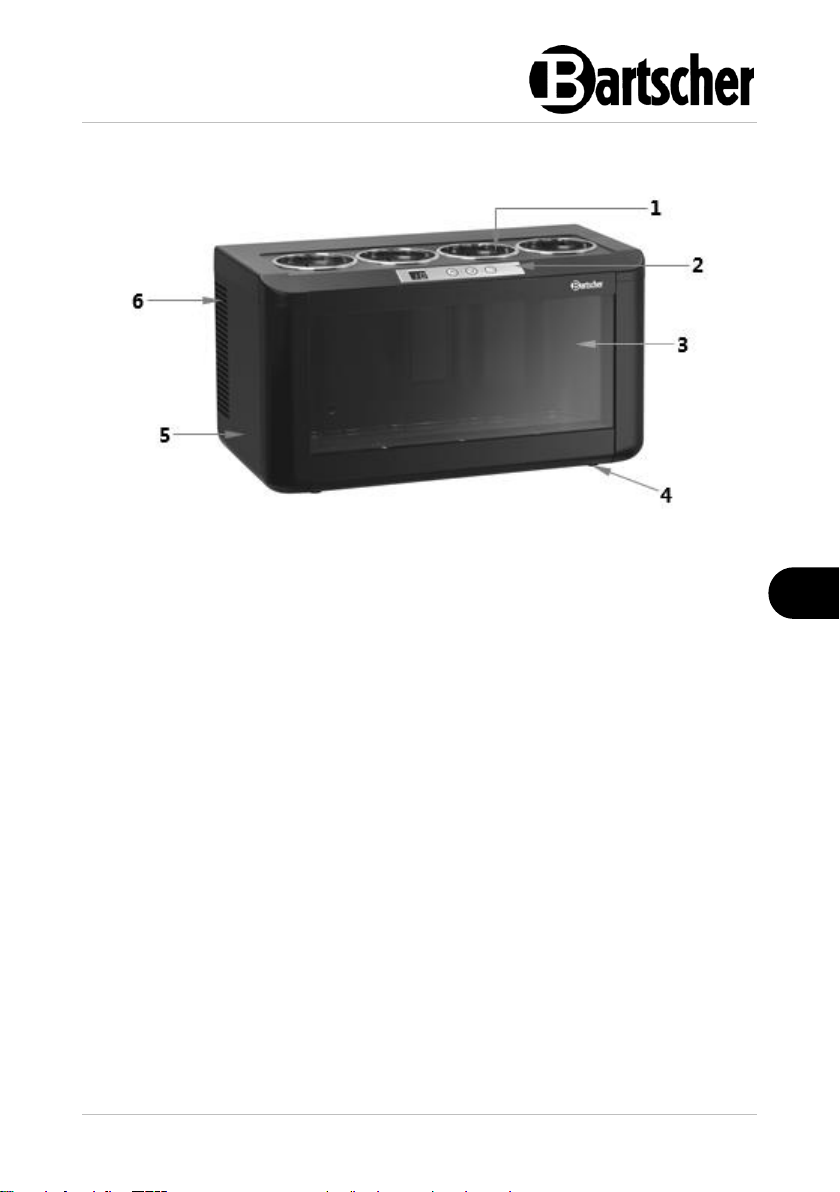

4.2 List of Components of the Appliance
1. Openings for bottles (4 pcs)
2. Control panel
3. Plastic plate
4. Feet (4x)
5. Housing
6. Ventilation openings
4.3 Functions of the Appliance
The wine cooler may store and present 4 various bottles of wine (white, rosé or red)
in one temperature zone, in the form of an open bar in a buffet, at a bar or during
wine tasting.

Installation and operation
10 / 16 700134
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Keep minimum distance from flammable walls and objects; maintain clearance
of 5 cm at both sides and 10 cm at the rear.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.

Installation and operation
700134 11 / 16
EN
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2 Operation
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze w skazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. M ake sure no water enters electric ins tallation and connection b ox. Następnie dokł adnie osusz yć urządzenie i elementy wypos ażenia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erb etween the heating elem ent andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge o ft he appliance. A pin in botto m parto ft hec onnecti onb ox must enter a hole in the main ap pliance. This way the co nnection box is properly mounted.
Preparation of the Appliance
1. Before use, clean the appliance, observing instructions in section 6“Cleaning”.
2. Dry the appliance thoroughly.
3. Put pre-cooled wine bottles into suitable bottle openings in the top part of the
appliance.
4. Plug the appliance into a suitable single socket.
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze ws kazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. Ma ke sure no water enters electric ins tallation and co nnection b ox. Następnie dokła dnie osusz yć urządzenie i elementy wyposaż enia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erbet ween the heating elem ent andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge o ft he appliance. A pin in bott om part oft he connection bo xm uste nter a hole in the main applia nce. This way the connec tion box is properl y mounted.

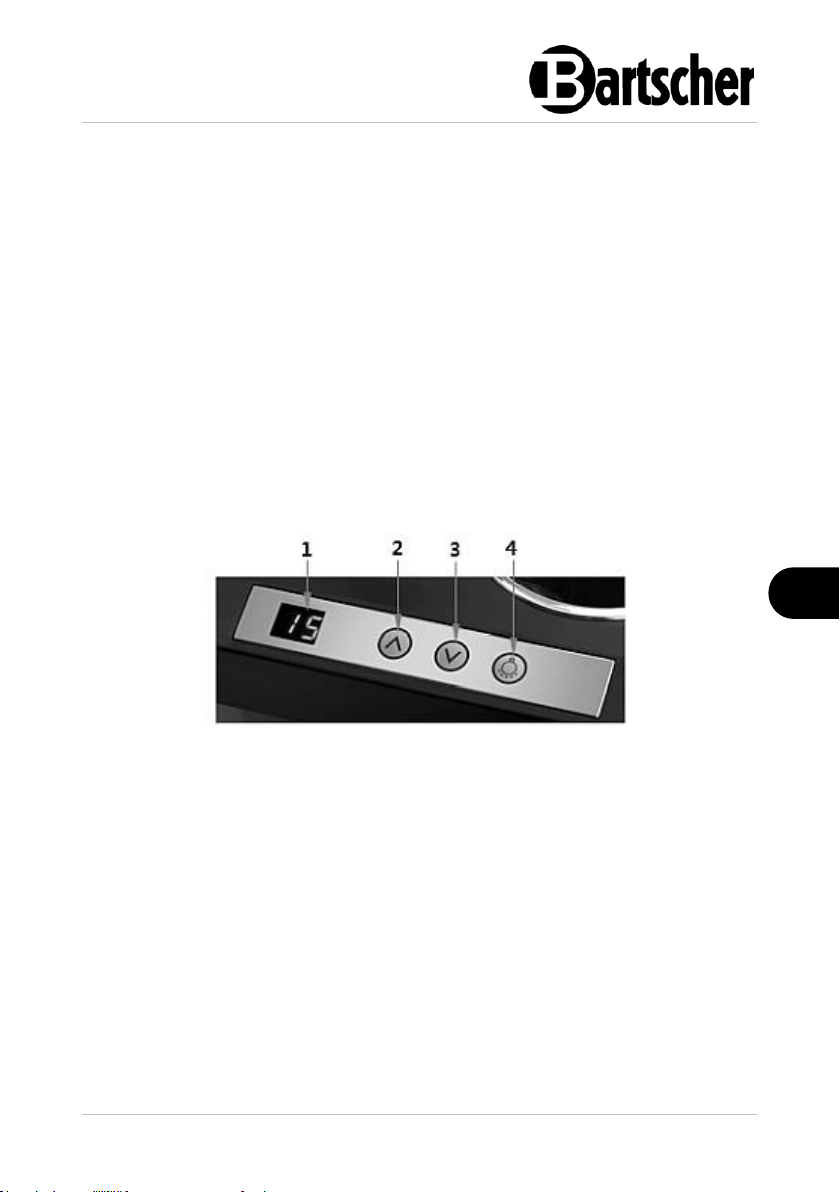

Control Panel
1. Digital display
2. Temperature increase button
3. Temperature decrease button
4. LED lighting button
Temperature Setting
Temperature may be set the temperature in the range of 5°C and 18°C, with 1°C
increments. This temperature range is ideal for red, rosé or white wines,
depending from the selected temperature.
For the appliance feature one temperature zone, only one value may be set for all
bottles (1–4).
1. To set the temperature, press temperature increase or decrease buttons as long
as the digital display shows the selected the temperature.
The temperature value is displayed as long as other temperature value is set.

Cleaning
12 / 16 700134
EN
Actual temperature of opened wine depends on the ambient temperature. If it is too
high, the wine cooler may not reach the required temperature.
LED Lighting
The wine cooler is equipped with LED lighting, which —if necessary —may be
switched on and off at any time.
1. Press the LED lighting button, to switch it on.
LED lighting makes it possible to present wine bottles through a transparent plastic
glass in a buffet, at a bar or during wine tasting.
2. Press the LED lighting button again, to switch it off.
Temperature Indicator
Temperature may be displayed according to the selection: in Celsius degrees or in
Fahrenheit degrees.
1. Press and hold the LED lighting button for at least 5 seconds, to change the
displayed temperature.
The acoustic signal sounds.
Switching the Appliance Off
After use, disconnect the appliance from the socket (pull the plug out).
6 Cleaning
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Wash the appliance regularly.

Possible Malfunctions
700134 13 / 16
EN
2. Wipe surfaces for placing bottles inside the appliance, the housing and front of
the transparent plastic glass with a soft, damp cloth. Use mild cleaning agent if
required.
3. Wipe the washed surfaces with a cloth moistened in clean water.
4. Finally, dry thoroughly all washed surfaces.
5. Regularly remove dust and dirt from ventilation openings of the appliance.
ATTENTION!
Soiled or obstructed ventilation openings negatively influence operation
of the appliance.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
Error
Possible Cause
Solution
No functions
available.
The plug is not properly
connected to the socket.
Remove the plug and
insert it properly in the
socket
Electric power supply safety
fuse damaged.
Check the fuse, connect
the appliance to another
socket.
No power supply.
Check electric power
supply.

Disposal
14 / 16 700134
EN
Error
Possible Cause
Solution
Insufficient cooling
efficiency.
Direct sunlight or heat
sources in immediate vicinity.
Move the appliance away
from heat sources.
Poor air circulation around
the appliance.
Maintain minimum
clearance from walls and
other objects.
Soiled seals.
Clean seals.
Damaged fan.
Contact the service
company.
Too high a temperature was
set.
Select lower temperature
setting.
Wine is too cold.
Too low a temperature was
set.
Select higher temperature
setting.
Ambient temperature is too
low (below 10°C).
Select installation location
with ambient temperature
of 10°C –32°C.
LED lighting blinks.
The set temperature is
higher than the internal
temperature.
Select lower temperature
setting.
Too much moisture
inside the appliance.
Ambient temperature too
low.
Disconnecting the
appliance from power
supply, dry it and restart.
8 Disposal
Electrical Appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
