Bebob V90RM CINE User manual

bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: [phone]
www.bebob.de
October 2016
V90RM CINE rechargeable li-ion Battery
USER MANUAL
WE STRONGLY RECOMMEND THAT YOU
READ THIS INSTRUCTION BEFORE USING
YOUR BEBOB V90RM CINE BATTERY!
PLEASE KEEP THIS MANUAL FOR FUTURE
REFERENCE
Features
 A high capacity, high load battery which is compact and lightweight. Direct fitting to a
camera via V-Mount.
 Five-step LED power indicator (100% - 80% - 60% - 40% - 20%).
 Full Capacity Status LED (green over 80%; yellow between 60% and 80%; red under 60%)
 Full Data Communication with the Camera (Info Li, Digiview,…)
Safety instructions
 Only for professional use! Keep batteries out of reach of children and personnel that has
not been instructed in the use of high capacity Lithium-ion batteries!
 Use only with recommended charger.
 Keep the battery dry and do not immerse in water.
 Never open the case of the battery.
 Do not expose to temperature over 60°C.
 Do not expose the battery to fire! May explode if thrown into fire!
 Maximum Load 20.0A. (Over CINE V-Mount)
 Do not put the battery on a device when the red charging LED flashes.
 Handle with care! Do not throw! Do not drop!

bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: [phone]
www.bebob.de
October 2016
Charging
 The bebob V90RM CINE battery can be charged with an external bebob charger (or
equivalent) with Lithium-ion (Li-ion) charging ability.
 Approximate charge time may vary depending on charger and temperature.
 bebob V90RM CINE can be charged in ambient temperature for optimum performance at
10°C - 30°C.
 bebob V90RM CINE batteries can be recharged in any charge condition.
Discharging
 Maximum load is 20.0A. When using the battery with video or lighting equipment, power
consumption of the equipment must be 20.0A or below. For the protection of the battery, a
load of 20.0A or over may activate the internal protection circuit and stop supply of power.
In this case the Fuse will self-rest after a couple of minutes
 The battery can be used in ambient temperature of - 20°C - + 55°C.
Storage
 Storage temperature range is - 20°C ~ + 35°C (<85% humidity).
 To store the battery for a long period (longer than 4 Weeks), the battery should be charged
between 50% and 75%. The battery should be recharged every 4 Weeks.
 After storage some self-discharge will occur. Before re-use it is advisable to recharge the
battery fully.
Warranty
 The V90RM CINE is covered by a 2 years unconditional warranty on all parts, except the
cells.
 The cells are covered by a 2 year warranty, 80% of the original capacity.
 For warranty issues or if you have any additional questions, please contact the appropriate
bebob distributor listed at www.bebob.de.

bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: [phone]
www.bebob.de
October 2016
Specifications
Model V90RM CINE
Mount V-Mount
Capacity 6,0Ah; 89Wh
Voltage 14,8V DC
Maximum Output Voltage 16.8 V DC
End Voltage 12.0 V
Cells Lithium-Ion Trimix HL made in Japan
Max. Discharge Current 20.0A (over CINE V-Mount)
Twist D-Tap 14.4V unreg. Max. 35W
USB Port 5V, 1.0A
Fuel Gauge 5-Step LED
Status
Green: Full Capacity over 80%
Yellow: Full Capacity between 60 and 80%
Red: Full Capacity under 60%
Weight 0,82 Kg
Dimensions (WXHXD) 94x144x58mm
Chargers bebob, idx, sony
Charging time (bebob VS2/VS4) 3 Hours
Operating Temp. Range
Charge: + 10°C ~ + 30°C recommended
Discharge:- 20°C ~ + 55°C
Storage:- 20°C ~ + 35°C (<85% RH )

bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: [phone]
www.bebob.de
October 2016
Transport as of April 1st 2016
 This Summary reflects our current Knowledge.
1. Transport by Commercial Airline / Carry-on Luggage
 You can transport in your carry-on luggage a V90RM CINE attached to the camera or
equipment it powers.
 You can transport in your carry-on luggage an unspecified number of spare V90RM
CINE:
- Put tape over the contacts.
- Put each single battery in a plastic bag before packing it in your carry-on luggage
 V90RM CINE do not need to be discharged to 30% SoC for transport as personal
luggage, this is only a requirement of cargo shipments.

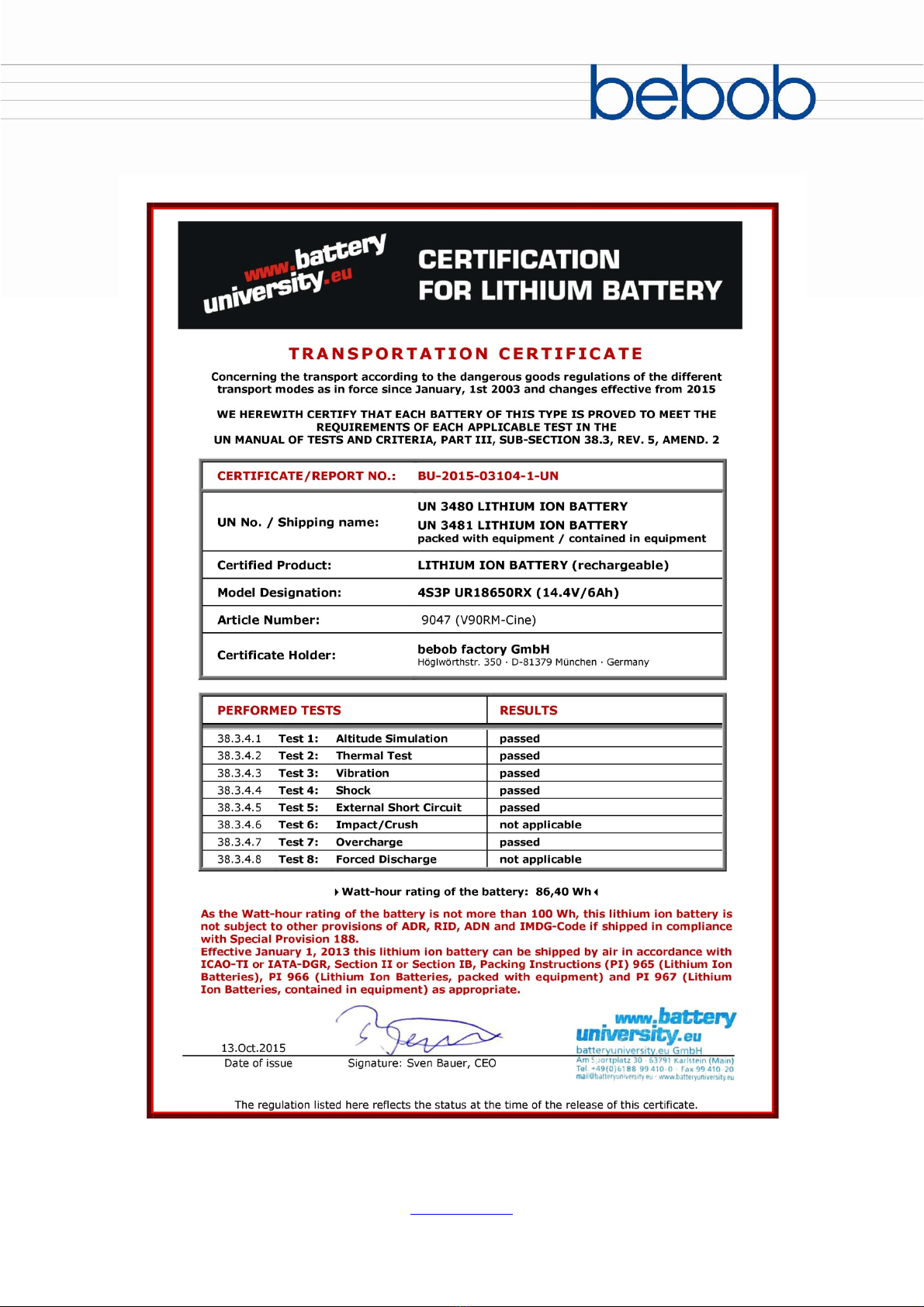

 Carry a copy of the bebob UN Transport Documentation and V90RM CINE UN
Certificate
 We recommend that you confirm with your carrier of choice, to determine any further
restriction or local policies, before travelling. You will find the actual regulation of
your carrier of choice in the bebob transport information system www.fly-
lithium.com,
2. Transport by Commercial Airline / Checked-in Luggage
 You can transport in your checked-in luggage a V90RM CINE attached to the camera
or equipment it powers and a maximum of 3 V90RM CINE spare packed in the same
piece of luggage
 V90RM CINE do not need to be discharged to 30% SoC for transport as personal
luggage, this is only a requirement of cargo shipments.
 Carry a copy of the bebob UN Transport Documentation and V90RM CINE UN
Certificate
 We recommend that you confirm with your carrier of choice, to determine any further
local restriction or policies, before travelling. You will find the actual regulation of
your carrier of choice in the bebob transport information system www.fly-
lithium.com,
3. Transport as air-, road- and sea-freight
 Li-Ion batteries, and so bebob V90RM CINE, when shipped by air, road or sea are
classified as dangerous goods class 9 and subject to special UN certified packaging.
 Air transport authority training and authorisation (PK 1) are required for packing any
more than 2 V90RM CINE, for an air cargo shipment.
 Li-Ion batteries for air cargo must have a state-of-charge of no more than 30% for
shipping, means only one out of the five fuel gauge led lights up.
 We recommend that you confirm with your carrier of choice, to determine any further
local restriction or policies, before travelling. You will find the actual regulation of
your carrier of choice in the bebob transport information system www.fly-
lithium.com,

bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: [phone]
www.bebob.de
October 2016
