Beko BEVPI 090 User manual

BEVPI 090
BEVPI 180
BEHPI 090
BEHPI 180
BEEPI 090
BEVPI 091
BEVPI 181
BEHPI 091
BEHPI 181
BEEPI 091
BEVPI 120
BEVPI 240
BEHPI 120
BEHPI 240
BEEPI 120
BEVPI 121
BEVPI 241
BEHPI 121
BEHPI 241
BEEPI 121
02M-8868633200-5320-01

Splt-type room ar condtoner / User Manual 3 / 64 EN
1 Safety instructions 4
2 Unit specifications and features 7
2.1 Unt parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 Achevng optmal performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.3 Inverter splt type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4 Fxed-speed type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.5 Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Manual operation (without remote) 14
3.1 How to operate your unt wthout the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Care and maintenance 15
4.1 Cleanng your ndoor unt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Cleanng your ar flter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Ar flter remnders (optonal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.3.1 Ar flter cleanng remnder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.3.2 Ar flter replacement remnder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.4 Mantenance – long perods of non-use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5 Mantenance – pre-season nspecton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Troubleshooting 20
5.1 Common ssues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Troubleshootng . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 European disposal guidelines 24
7 Installation instructions 25
7.1 F-Gas nstructon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8 Specification 26
CONTENTS

4 / 64 EN Splt-type room ar condtoner / User Manual
Warning
tServcng shall only be performed as recommended by the equpment
manufacturer. Mantenance and repar requrng the assstance of
other sklled personnel shall be carred out under the supervson
of the person competent n the use of flammable refrgerants.
For more detals, please refer to the “Informaton on servcng" on
"INSTALLATION MANUAL" (Ths s only requred for the unt adopts
R32/R290 Refrgerant)
Read safety precautions before installation
Incorrect installation due to ignoring instructions can
cause serious damage or injury.
The serousness of potental damage or njures s classfed as
Warning.
Warning
tThs applance can be used by chldren aged from 8 years and above
and persons wth reduced physcal, sensory or mental capabltes
or lack of experence and knowledge f they have been gven
supervson or nstructon concernng use of the applance n a safe
way and understand the hazards nvolved. Chldren shall not play
wth the applance. Cleanng and user mantenance shall not be
made by chldren wthout supervson.
Installation warnings
tAsk an authorzed dealer to nstall ths ar condtoner. Inapproprate
nstallaton may cause water leakage, electrc shock, or fre.
tAll repars, mantenance and relocaton of ths unt must be
performed by an authorzed servce techncan. Inapproprate
repars can lead to serous njury or product falure.
1 Safety instructions

Splt-type room ar condtoner / User Manual 5 / 64 EN
Warnings for product use
tIf an abnormal stuaton arses (lke a burnng smell), mmedately
turn off the unt and pull the power plug. Call your dealer for
nstructons to avod electrc shock, fre or njury.
tDo not nsert fngers, rods or other objects nto the ar nlet or
outlet. Ths may cause njury, snce the fan may be rotatng at hgh
speeds.
tDo not use flammable sprays such as har spray, lacquer or pant
near the unt. Ths may cause fre or combuston.
tDo not operate the ar condtoner n places near or around
combustble gases. Emtted gas may collect around the unt and
cause exploson.
tDo not operate the ar condtoner n a wet room (e.g., bathroom or
laundry room). Ths can cause electrcal shock and cause the product
to deterorate.
tDo not expose your body drectly to cool ar for a prolonged perod
of tme.
Electrical warnings
tOnly use the specfed power cord. If the power cord s damaged, t
must be replaced by the manufacturer or certfed servce agent.
tKeep power plug clean. Remove any dust or grme that accumulates
on or around the plug. Drty plugs can cause fre or electrc shock.
tDo not pull power cord to unplug unt. Hold the plug frmly and pull
t from the outlet. Pullng drectly on the cord can damage t, whch
can lead to fre or electrc shock.
1 Safety instructions

6 / 64 EN Splt-type room ar condtoner / User Manual
1 Safety instructions
tDo not use an extenson cord, manually extend the power cord, or
connect other applances to the same outlet as the ar condtoner.
Poor electrcal connectons, poor nsulaton, and nsuffcent voltage
can cause fre.
Cleaning and maintenance warnings
tTurn off the devce and pull the plug before cleanng. Falure to do
so can cause electrcal shock.
tDo not clean the ar condtoner wth excessve amounts of water.
tDo not clean the ar condtoner wth combustble cleanng agents.
Combustble cleanng agents can cause fre or deformaton.
Warning
tIf the ar condtoner s used together wth burners or other heatng
devces, thoroughly ventlate the room to avod oxygen defcency.
tTurn off the ar condtoner and unplug the unt f you are not gong
to use t for a long tme.
tTurn off and unplug the unt durng storms.
tMake sure that water condensaton can dran unhndered from the
unt.
tDo not operate the ar condtoner wth wet hands. Ths may cause
electrc shock.
tDo not use devce for any other purpose than ts ntended use.
tDo not clmb onto or place objects on top of the outdoor unt.
tDo not allow the ar condtoner to operate for long perods of tme
wth doors or wndows open, or f the humdty s very hgh.

Splt-type room ar condtoner / User Manual 7 / 64 EN
2.1 Unit parts
1
2
3
4
5
6
7
1. Front Panel
2. Dsplay wndow
3. Power Cable (Some Unts)
4. Remote control Holder (Some Unts)
5. Remote Control
6. Functonal Flter (On Front of Man Flter - Some Unts)
7. Louver
Display code meanings
“ ” for 3 seconds when:
tTIMER ON s set
tFRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on
“” for 3 seconds when:
tTIMER OFF s sett
tFRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off
“” when ant-cold ar feature s turned on
“” when defrostng
“” when unt s self-cleanng
“” when freeze protecton s turned on
2 Unit specifications and features

8 / 64 EN Splt-type room ar condtoner / User Manual
2 Unit specifications and features
" " when wreless Control feature s actvated (some unts)
"" When ECO functon(optonal) s actvated, the ' ' llumnates gradually one by one as -- --
--set temperature-- ...... n one second nterval.
In Fan mode, the unt wll dsplay the room temperature.
In other modes, the unt wll dsplay your temperature settng.
C
Note: A guide on using the infrared remote is not included in this literature package.
2.2 Achieving optimal performance
Optmal performance for the COOL, HEAT, and DRY modes can be acheved n the followng
temperature ranges. When your ar condtoner s used outsde of these ranges, certan safety
protecton features wll actvate and cause the unt to perform less than optmally.
2.3 Inverter split type
COOL mode HEAT mode DRY mode
Room temperature 17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C
(5°F - 122°F)
(For models wth
low temp. coolng
systems.)
0°C - 60°C
(32°F - 140°F)
(For specal tropcal
models)
0°C - 60°C
(32°F - 140°F)
(For specal tropcal
models)
For outdoor units with auxiliary electric heater
When outsde temperature s below 0°C (32°F ), we strongly recommend keepng the unt plugged n
at all tme to ensure smooth ongong performance.

Splt-type room ar condtoner / User Manual 9 / 64 EN
2.4 Fixed-speed type
COOL mode HEAT mode DRY mode
Room
temperature
17° - 32°C (63° - 90°F) 0° - 30°C
(32° - 86°F)
10° - 32°C (50° - 90°F)
Outdoor
temperature
18° - 43°C (64° - 109°F)
-7° - 24°C
(19° - 75°F)
11° - 43°C (52° - 109°F)
-7° - 43°C (19° - 109°F)
(For models wth low-temp
coolng systems)
18° - 43°C (64° - 109°F)
18° - 54°C (64° - 129°F)
(For specal tropcal models)
18° - 54°C (64° - 129°F)
(For specal tropcal models)
To further optimize the performance of your unit, do the following:
tKeep doors and wndows closed.
tLmt energy usage by usng TIMER ON and TIMER OFF functons.
tDo not block ar nlets or outlets.
tRegularly nspect and clean ar flters.
For a detaled explanaton of each functon, refer to the Remote Control Manual.
2.5 Other features
tAuto-restart
If the unt loses power, t wll automatcally restart wth the pror settngs once power has been
restored.
tAnti-mildew (some units)
When turnng off the unt from COOL, AUTO (COOL), or DRY modes, the ar condtoner wll contnue
operate at very low power to dry up condensed water and prevent mldew growth.
tWireless control (some units)
Wreless control allows you to control your ar condtoner usng your moble phone and a Wreless
connecton.
tLouver angle memory (some units)
When turnng on your unt, the louver wll automatcally resume ts former angle.
tRefrigerant leakage detection (some units)
The ndoor unt wll automatcally dsplay “EC” when t detects refrgerant leakage.
For a detaled explanaton of your unt’s advanced functonalty (such as TURBO mode and ts self-
cleanng functons), refer to the Remote Control Manual.
2 Unit specifications and features

10 / 64 EN Splt-type room ar condtoner / User Manual
C
Note:
Illustratons n ths manual are for explanatory purposes. The actual shape of your
ndoor unt may be slghtly dfferent. The actual shape shall preval.
tSetting angle of air flow
Setting vertical angle of air flow
Whle the unt s on, use the SWING/DIRECT button to set the drecton (vertcal angle) of arflow.
1. Press the SWING/DIRECT button once to actvate the louver. Each tme you press the button, t
wll adjust the louver by 6°. Press the button untl the drecton you prefer s reached.
2. To make the louver swng up and down contnuously, press and hold the SWING/DIRECT button
for 3 seconds. Press t agan to stop the automatc functon.
Setting horizontal angle of air flow
The horzontal angle of the arflow must be set manually. Grp the deflector rod (See Fig.B) and
manually adjust t to your preferred drecton.
For some units, the horzontal angle of the arflow can be set by remote control. please refer to the
Remote Control Manual.
C
Note on louver angles:
When usng COOL or DRY mode, do not set louver at too vertcal an angle for long
perods of tme. Ths can cause water to condense on the louver blade, whch wll drop
on your floor or furnshngs. (See Fig.A)
When usng COOL or HEAT mode, settng the louver at too vertcal an angle can reduce
the performance of the unt due to restrcted ar flow.
Do not move louver by hand. Ths wll cause the louver to become out of sync. If ths
occurs, turn off the unt and unplug t for a few seconds, then restart the unt. Ths wll
reset the louver.
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 11 / 64 EN
Range
Fig. A
A
Warning
Do not keep louver at too vertcal an angle for long
perods of tme. Ths can cause water condensaton to
drp on yur furnshngs.
A
Warning
Do not put your fingers in or near the blower and suction
side of the unit. The high-speed fan inside the unit may
cause injury.
2 Unit specifications and features

12 / 64 EN Splt-type room ar condtoner / User Manual

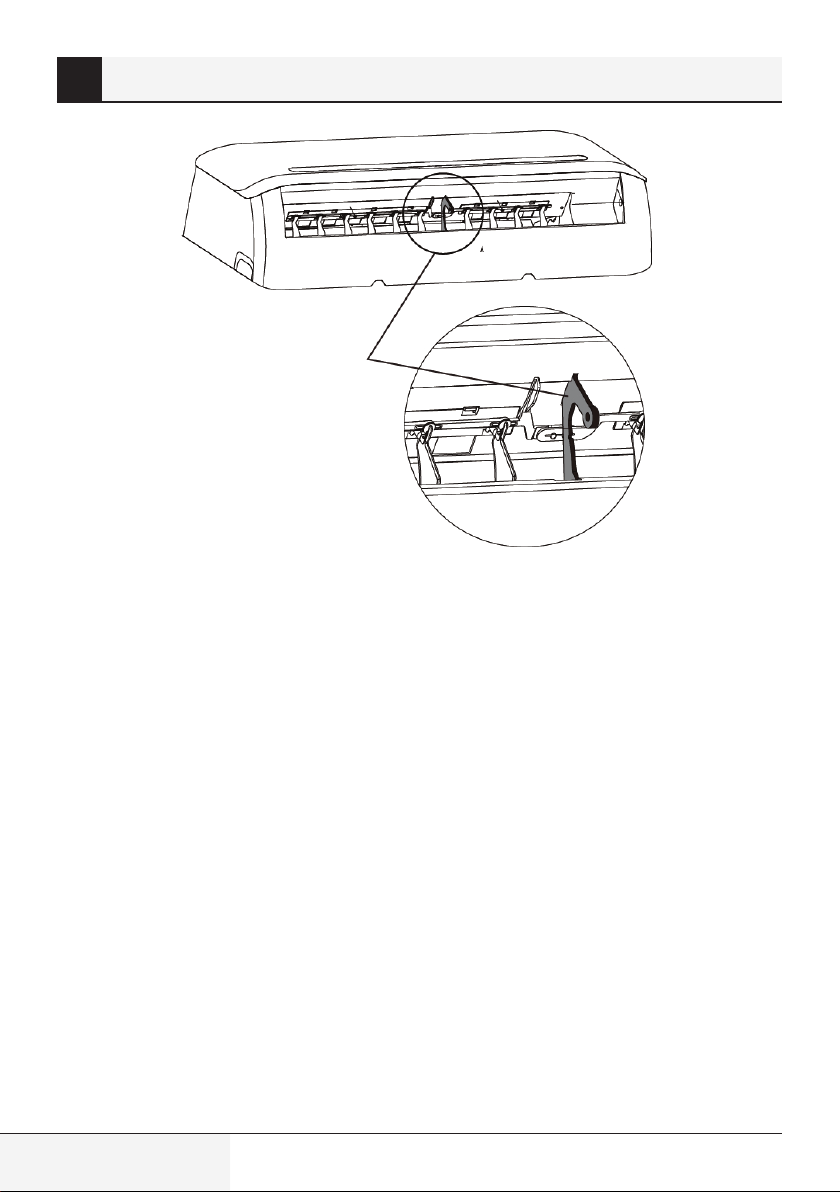

Deflector rod
Fig. B
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 13 / 64 EN
tSleep operation
The SLEEP functon s used to decrease energy use whle you sleep (and don’t need the same
temperature settngs to stay comfortable). Ths functon can only be actvated va remote control.
Press the SLEEP button when you are ready to go to sleep. When n COOL mode, the unt wll ncrease
the temperature by 1°C (2°F) after 1 hour, and wll ncrease an addtonal 1°C (2°F) after another
hour. When n HEAT mode, the unt wll decrease the temperature by 1°C (2°F) after 1 hour, and wll
decrease an addtonal 1°C (2°F) after another hour.
It wll hold the new temperature for 5 hours, then the unt wll turn off automatcally.
C
Note: The SLEEP function is not available in FAN or DRY mode.
1hr 1hr
+/- 1 C/2 F +/- 1 C/2 F
SLEEP Operation
Set
temperature
7 hours
tmer off
Saving energy during sleep
2 Unit specifications and features

14 / 64 EN Splt-type room ar condtoner / User Manual
3.1 How to operate your unit without the remote control
In the event that your remote control fals to work, your unt can be operated manually wth the
MANUAL CONTROL button located on the ndoor unt. Note that manual operaton s not a long-term
soluton, and that operatng the unt wth your remote control s strongly recommended.
Before manual operation
Unt must be turned off before manual operaton.
To operate your unt manually:
1. Open the front panel of the ndoor unt.
2. Locate the MANUAL CONTROL button on the rght-hand sde of the unt.
3. Press the MANUAL CONTROL button one tme to actvate FORCED AUTO mode.
4. Press the MANUAL CONTROL button agan to actvate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a thrd tme to turn the unt off.
6. Close the front panel.
A
Warning
The manual button is intended for testing purposes and
emergency operation only. Please do not use this function
unless the remote is lost and it is absolutely necessary.
To restore regular operation, use the remote control to
activate the unit.
Manual control button
3 Manual operation (without remote)

Splt-type room ar condtoner / User Manual 15 / 64 EN
4.1 Cleaning your indoor unit
A
Before cleaning or maintenance
Always turn off your air conditioner system and disconnect its power
supply before cleaning or maintenance.
A
Warning
Only use a soft, dry cloth to wpe the unt clean. If the unt
s especally drty, you can use a cloth soaked n warm
water to wpe t clean.
tDo not use chemcals or chemcally treated cloths to
clean the unt.
tDo not use benzene, pant thnner, polshng powder
or other solvents to clean the unt. They can cause the
plastc surface to crack or deform.
tDo not use water hotter than 40°C (104°F) to clean
the front panel. Ths can cause the panel to deform or
become dscolored.
4.2 Cleaning your air filter
A clogged ar condtoner can reduce the coolng effcency of your unt, and can also be bad for your
health. Make sure to clean the flter once every two weeks.
1. Lft the front panel of the ndoor unt.
2. Grp the tab on the end of the flter, lft t up,then pull t towards yourself.
3. Now pull the flter out.
4. If your flter has a small ar freshenng flter, unclp t from the larger flter. Clean ths ar freshenng
flter wth a hand-held vacuum.
5. Clean the large ar flter wth warm, soapy water. Be sure to use a mld detergent.
6. Rnse the flter wth fresh water, then shake off excess water.
7. Dry t n a cool, dry place, and refran from exposng t to drect sunlght.
8. When dry, re-clp the ar freshenng flter to the larger flter, then slde t back nto the ndoor unt.
4 Care and maintenance

16 / 64 EN Splt-type room ar condtoner / User Manual
9. Close the front panel of the ndoor unt.
Flter Tabs
Remove ar freshenng flter from back of
larger flter (some unts)
A
Warning
Do not touch ar freshenng (Plasma) flter for at least
10 mnutes after turnng off the unt.
4 Care and maintenance

Splt-type room ar condtoner / User Manual 17 / 64 EN
A
Warning
tBefore changng the flter or cleanng, turn off the unt and
dsconnect ts power supply.
tWhen removng flter, do not touch metal parts n the
unt. The sharp metal edges can cut you.
tDo not use water to clean the nsde of the ndoor unt.
Ths can destroy nsulaton and cause electrcal shock.
tDo not expose flter to drect sunlght when dryng. Ths
can shrnk the flter.
4.3 Air filter reminders (optional)
4.3.1 Air filter cleaning reminder
After 240 hours of use, the dsplay wndow on the ndoor unt wll flash “CL.” Ths s a remnder to clean
your flter. After 15 seconds, the unt wll revert to ts prevous dsplay.
To reset the remnder, press the LED button on your remote control 4 tmes, or press the MANUAL
CONTROL button 3 tmes. If you don’t reset the remnder, the “CL” ndcator wll flash agan when you
restart the unt.
4.3.2 Air filter replacement reminder
After 2,880 hours of use, the dsplay wndow on the ndoor unt wll flash “nF.” Ths s a remnder to
replace your flter. After 15 seconds, the unt wll revert to ts prevous dsplay.
To reset the remnder, press the LED button on your remote control 4 tmes, or press the MANUAL
CONTROL button 3 tmes. If you don’t reset the remnder, the “nF” ndcator wll flash agan when you
restart the unt.
A
Warning
tAny mantenance and cleanng of outdoor unt should
be performed by an authorzed dealer or lcensed
servce provder.
tAny unt repars should be performed by authorzed
dealer or lcensed servce provder.
4 Care and maintenance

18 / 64 EN Splt-type room ar condtoner / User Manual
4.4 Maintenance – long periods of non-use
If you plan not to use your ar condtoner for an extended perod of tme, do the followng:
Clean all flters Turn on FAN functon untl unt dres out
completely
Turn off the unt and dsconnect the power Remove batteres from remote control
4 Care and maintenance

Splt-type room ar condtoner / User Manual 19 / 64 EN
4.5 Maintenance – pre-season inspection
After long perods of non-use, or before perods of frequent use, do the followng:
Check for damaged wres Clean all flters
Check for leaks Replace batteres
Make sure nothng s blockng all ar nlets and outlets
4 Care and maintenance

20 / 64 EN Splt-type room ar condtoner / User Manual
C
Safety precautions
If ANY of the followng condtons occurs, turn off your unt mmedately!
tThe power cord s damaged or abnormally warm
tYou smell a burnng odor
tThe unt emts loud or abnormal sounds
tA power fuse blows or the crcut breaker frequently trps
tWater or other objects fall nto or out of the unt
Do not attempt to fix these yourself! Contact authorized service provider
immediately!
5.1 Common issues
The followng problems are not a malfuncton and n most stuatons wll not requre repars.
Issue Possible causes
Unit does not turn on
when pressing ON/
OFF button
The Unt has a 3-mnute protecton feature that prevents the unt from
overloadng. The unt cannot be restarted wthn three mnutes of beng
turned off.
The unit changes
from COOL/HEAT
mode to FAN mode
The unt may change ts settng to prevent frost from formng on the
unt. Once the temperature ncreases, the unt wll start operatng n the
prevously selected mode agan.
The set temperature has been reached, at whch pont the unt turns off
the compressor. The unt wll contnue operatng when the temperature
fluctuates agan.
The indoor unit emits
white mist
In humd regons, a large temperature dfference between the room’s
ar and the condtoned ar can cause whte mst.
Both the indoor and
outdoor units emit
white mist
When the unt restarts n HEAT mode after defrostng, whte mst may
be emtted due to mosture generated from the defrostng process.
The indoor unit
makes noises
A rushng ar sound may occur when the louver resets ts poston.
A squeakng sound may occur after runnng the unt n HEAT mode due
to expanson and contracton of the unt’s plastc parts.
5 Troubleshooting
