Belden Hirschmann OCTOPUS 8TX PoE-EEC User manual

Installation OCTOPUS 8TX-EEC
Release 07 01/2021
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
IP65/67 Switch
OCTOPUS 8TX-EEC
OCTOPUS 8TX PoE-EEC
OCTOPUS 8TX-EEC-M

2021-01-26 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2021 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 3
Contents
Safety instructions 5
About this Manual 11
Legend 12
1 Description 13
1.1 General device description 13

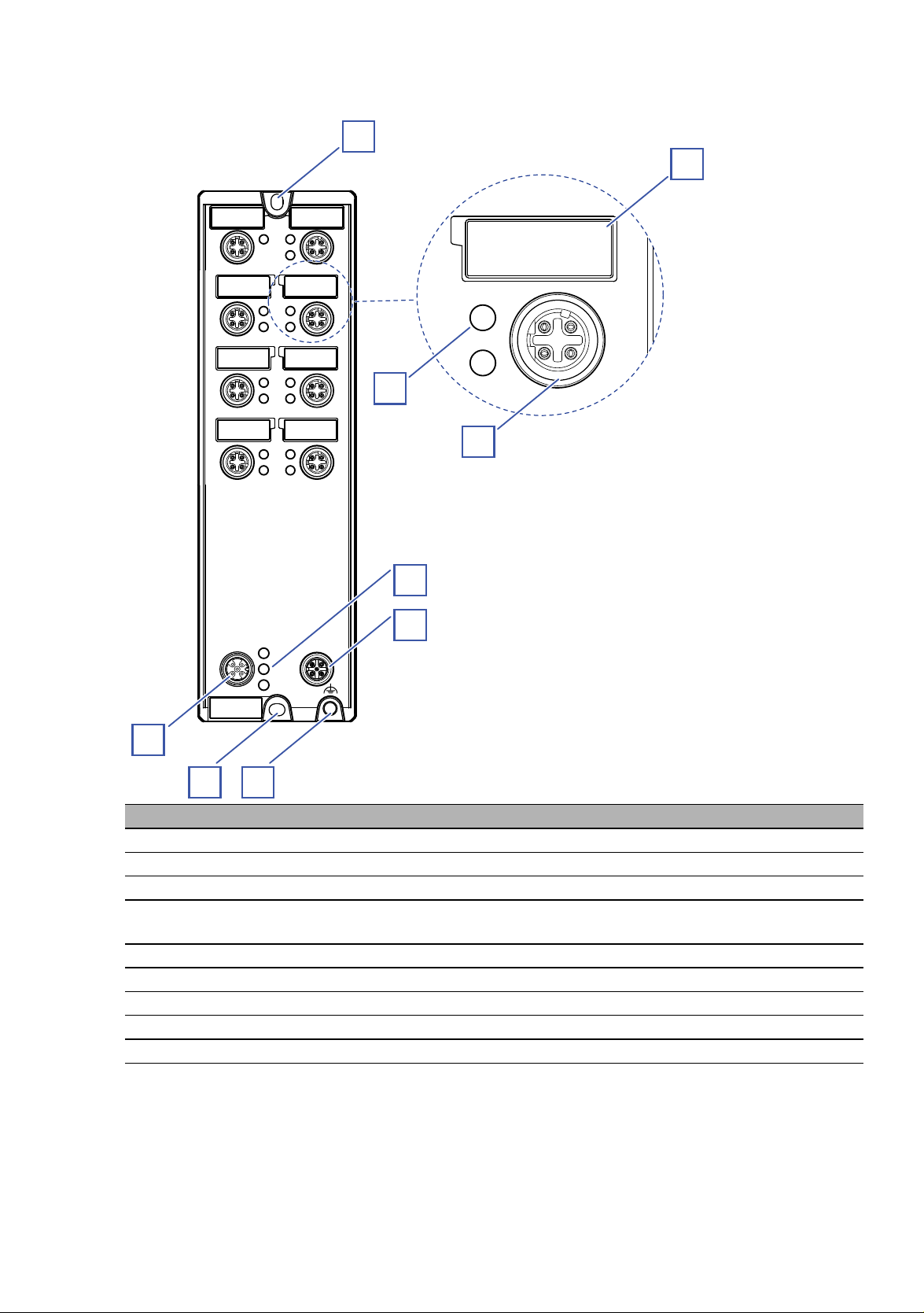

1.2 Device view 14
1.2.1 OCTOPUS 8TX-EEC 14
1.2.2 OCTOPUS 8TX PoE-EEC 15
1.2.3 OCTOPUS 8TX-EEC-M 17
1.3 Power supply 18
1.4 Ethernet ports 18
1.4.1 10/100 Mbit/s twisted pair port 18
1.4.2 10/100 Mbit/s PoE port 18
1.4.3 Pin assignment OCTOPUS 8TX-EEC and
OCTOPUS 8TX-EEC-M 19
1.4.4 Pin assignment OCTOPUS 8TX PoE-EEC 19
1.5 Display elements 20
1.5.1 Device state 20
1.5.2 Port Status 23
1.6 Management interfaces 26
1.6.1 ACA-M12 interface 26
1.6.2 ACA22-C interface 26
1.6.3 Signal contact 28
2 Installation 30
2.1 Checking the package contents 30
2.2 Installing and grounding the device 30
2.2.1 Mounting on a flat surface 30
2.2.2 Grounding the device 31
2.3 Connecting the power supply and the signal contact lines 32
2.3.1 Connecting the signal contact (optional) 32
2.3.2 Pin assignment OCTOPUS 8TX-EEC 32

4Installation OCTOPUS 8TX-EEC
Release 07 01/2021
2.3.3 Pin assignment OCTOPUS 8TX PoE-EEC 33
2.3.4 Pin assignment OCTOPUS 8TX-EEC-M 33
2.4 Operating the device 33
2.5 Connecting data cables 34
2.6 Configuration (optional) 35
2.6.1 Configuration readout 41
3 Making basic settings 42
3.1 First login (Password change) 43
4 Monitoring the ambient air temperature 44
5 Maintenance and service 45
6Disassembly 46
7 Technical data 47
7.1 General technical data 47
7.2 Dimension drawings 49
7.3 EMC and immunity 52
7.4 Network range 52
7.5 Power consumption/power output 53
7.6 Signal contact 53
8 Scope of delivery, order numbers and
accessories 54
9 Underlying technical standards 56
A Further support 57
B Open Source Software used in the product 58

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 47.
Connect to the product only components suitable for the requirements
of the specific application case.
Operational environment:
On the inside of vehicles
On the inside of buildings
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6Installation OCTOPUS 8TX-EEC
Release 07 01/2021
Installation site requirements
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Operate the device at the specified ambient temperature (temperature
of the ambient air at a distance of 2 in (5 cm) from the device) and at
the specified relative humidity exclusively.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
Note: Operation of the device in high humidity or condensing
atmospheres is exclusively allowed when using recommended
accessories with IP67 rating.
Strain relief
Note: If the strain relief is insufficient, there is a risk of torsion, contact
problems and creeping interruptions.
Relieve the connection points of cables and lines from mechanical
stress.
Design strain relieves in such a way that they prevent any mechanical
damage to cables, wires or conductors caused by external influences
or their own weight.
To prevent damage to device connections, connectors and cables,
follow the instructions for proper installation in accordance with DIN
VDE 0100-520:2013-06, sections 522.6, 522.7 and 522.13.
Device casing
At ambient air temperatures > +140 °F (+60 °C):
The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 7
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Shielding ground
The overall shield of a connected shielded twisted pair cable is connected
to the ground connection on the metal housing as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
General requirements for connecting electrical wires
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
Ground the device via the ground screw.
Disconnect the grounding only after disconnecting all other cables.
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
The power supply cable to be connected is suitable for ambient air temperature of at least
212 °F (100 °C).
The power supply complies with the requirements for a safety extra-low voltage (SELV) as
per IEC/EN 60950-1.
Requirements for connecting the supply voltage
The following requirements apply without restrictions:
All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type plate of the device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for example a switch or
a plug). This disconnecting device is clearly identified. So in the case of an emergency, it is
clear which disconnecting device belongs to which power supply cable.
The power supply cable is suitable for the voltage, the current and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to AWG18).
The following requirements apply alternatively:
Relevant when the device is supplied via 1 voltage input:
Alternative 1 The power supply complies with the requirements for a limited power source
(LPS) as per EN 60950-1.
Alternative 2 Relevant for North America:
The power supply complies with the requirements according to NEC Class 2.

8Installation OCTOPUS 8TX-EEC
Release 07 01/2021
Relevant for use in explosion hazard areas (Hazardous
Locations, Class I, Division 2)
This equipment is exclusively suitable for use in Class I, Division 2,
Groups A, B, C, and D or non-hazardous locations.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE
AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
Avertissement - Risque d'explosion - Ne pas débrancher tant que le
circuit est sous tension à moins que l'emplacement soit connu pour ne
contenir aucune concentration de gaz inflammable.
Avertissement - Risque d'explosion - La substitution de tout composant
peut rendre ce matériel incompatible pour une utilisation en classe I,
division 2.
This device is an open-type device that is to be installed in an enclosure
suitable for the environment.
Exclusively use the device for the application cases specified by the
manufacturer. Failure to follow these instructions can impair device
protection.
Alternative 3 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-low
voltage (SELV) as per IEC/EN 60950-1.
Install a fuse suitable for DC voltage in the plus conductor of the power
supply.
Connect the minus conductor to the ground potential. If the minus
conductor is not connected to the ground potential, also install an external
fuse in the minus conductor.
Regarding the properties of this fuse:
See “General technical data” on page 47.
Relevant when the device is supplied via 2 voltage inputs:
Alternative 1 The total voltage supply meets the requirements for a limited power source
(LPS) as per EN 60950-1.
Alternative 2 Relevant for North America:
The total voltage supply complies with the requirements as per NEC Class 2.
Alternative 3 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-low
voltage (SELV) as per IEC/EN 60950-1.
In both voltage inputs, install a fuse suitable for DC voltage in the plus
conductor of the power supply.
In both voltage inputs, connect the minus conductor to the ground potential.
If the minus conductor is not connected to the ground potential, also install
an external fuse in the minus conductor.
Regarding the properties of this fuse:
See “General technical data” on page 47.
Requirements for connecting the supply voltage

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 9
E marking
The labeled devices comply with the conditions of ECE Directive No. 10:
Certified devices must be labeled with the E type approval indicator.
The labeled devices comply with the conditions of ECE Directive No. 118:
Certified devices must be labeled with the E type approval indicator.
OCTOPUS 8TX-EEC devices are suited for installation in vehicles
according to the conditions of ECE Regulation No. 118.
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parliament and of the Council on the
harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The device can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.

10 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
FCC note
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
OCTOPUS 8TX-EEC
U.S. Contact Information
Belden – St. Louis
1 N. Brentwood Blvd. 15th Floor
St. Louis, Missouri 63105, United States
Phone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 11
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet at: https://www.doc.hirschmann.com

12 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 13
1 Description
1.1 General device description
The device is designed for the special requirements of industrial automation.
The device meets the relevant industry standards, provides very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.
The device allows you to set up switched Industrial Ethernet networks
according to standard IEEE 802.3.
The device complies with the degrees of protection IP65/67.
The device works without a fan.
The voltage is supplied redundantly.

14 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
1.2 Device view
1.2.1 OCTOPUS 8TX-EEC
Item Characteristic
1 Slot hole for mounting on a flat surface
2 8 × Indicator plate
3 8 × 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
4 8 × LED display elements for port status
5 LED display element for device status
6 M12 interface for the connection of ACA21-M12 (EEC) and ACA22-M12 (EEC)
7 Ground connection
8 Slot hole for mounting on a flat surface
9 Supply voltage connection
1
2
4
5
6
7
8
9
3
15
2
3
4
6
7
8
ACAPOWER

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 15
1.2.2 OCTOPUS 8TX PoE-EEC
Item Characteristic
1 Slot hole for mounting on a flat surface
2 8 × Indicator plate
3 7 × 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
with PoE support
4 15 × LED display elements for port status
PoE status
5 LED display element for device status
6 M12 interface for the connection of ACA21-M12 (EEC) and ACA22-M12 (EEC)
7 Ground connection
8 Slot hole for mounting on a flat surface
9 Supply voltage connection
10 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
without PoE support
1
2
4
5
6
7
8
9
10
3
1
2
3
4
5
6
7
8
POWER ACA

16 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
The device supports Power over Ethernet Plus in accordance with
IEEE 802.3at (PoE+) and enables you to supply current to terminal devices
such as IP phones via the twisted-pair cable.
The Power over Ethernet Plus function is activated both globally and on the
PoE-capable ports on delivery.
You will recognize the PoE-capable ports from the printed PoE logo.
The voltage is supplied through the wire pairs transmitting the signal
(phantom voltage). The individual ports are not electrically insulated from
each other.
In accordance with IEEE 802.3af and IEEE 802.3at:
Endpoint PSE
Alternative A

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 17
1.2.3 OCTOPUS 8TX-EEC-M
Item Characteristic
1 Slot hole for mounting on a flat surface
2 8 × Indicator plate
3 8 × 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
48×LED
a
Port status
a. In the present hardware version, the lower port LEDs of the M12 ports are without
function.The port status is displayed via the upper port LED.
5 LED display element for device status
6 M12 interface for the connection of ACA22-M12-C (EEC) or a USB adapter cable
7 Ground connection
8 Slot hole for mounting on a flat surface
9 Supply voltage connection and signal contact
1
2
4
5
6
7
8
9
3
1
2
3
4
5
6
7
8
POWER ACA22-C

18 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
1.3 Power supply
The supply voltage is connected by means of a 5-pin, “A”-coded M12
connector (e. g. ELWIKA 5012 PG7).
You will find more information here:
“Connecting the power supply and the signal contact lines” on page 32
1.4 Ethernet ports
You can connect terminal devices and other segments at the ports of the
device via twisted pair cables.
You find information on pin assignments for making patch cables here:
“Pin assignment OCTOPUS 8TX-EEC and OCTOPUS 8TX-EEC-M” on
page 19
“Pin assignment OCTOPUS 8TX PoE-EEC” on page 19
1.4.1 10/100 Mbit/s twisted pair port
This port is a 4-pin, “D”-coded M12 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The screw threads of the M12 ports are electrically connected to the device
casing.
1.4.2 10/100 Mbit/s PoE port
The PoE ports support the connection and a remote power supply of (for
example) IP phones (Voice-over-IP), webcams, sensors, print servers, and
WLAN access points. With PoE, these end devices are powered via the
twisted pair cable.
This port is a 4-pin, “D”-coded M12 socket.
The 10/100 Mbit/s PoE(+) port allows you to connect network components as
a powered device (PD) according to standards IEEE 802.3 10BASE-T/
100BASE-TX and IEEE 802.3af/at.

Installation OCTOPUS 8TX-EEC
Release 07 01/2021 19
This port supports:
Autonegotiation
Autopolarity
Autocrossing
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Power over Ethernet (PoE/PoE+)
Devices are supplied with PoE voltage (54 V DC SELV) using the internal
power supply. PoE voltage via twisted pair cables is supplied using the wire
pairs transmitting the signal (phantom supply).
Delivery state: Autonegotiation activated
The screw threads of the M12 ports are electrically connected to the device
casing.
The PoE voltage is uncoupled from the power supply.
The maximum PoE output of the device is 35 W.
1.4.3 Pin assignment OCTOPUS 8TX-EEC and OCTOPUS
8TX-EEC-M
1.4.4 Pin assignment OCTOPUS 8TX PoE-EEC
Figure Pin Function
1 TD+ Transmit Data+
2 RD+ Receive Data+
3 TD- Transmit Data-
4 RD- Receive Data-
Housing: shield
Figure Pin Function PoE voltage input
1 TD+ Transmit Data + V+
2 RD+ Receive Data + V-
3 TD- Transmit Data- V+
4 RD- Receive Data- V-
Casing: shield
1
23
4
1
23
4

20 Installation OCTOPUS 8TX-EEC
Release 07 01/2021
1.5 Display elements
After the supply voltage is set up, the software starts and initializes itself.
During this process, various LEDs light up.
1.5.1 Device state
These LEDs provide information about conditions which affect the operation
of the whole device.
Figure 1: Display elements device status OCTOPUS 8TX-EEC
LED Display Color Activity Meaning
P1 Supply voltage 1 green lights up Supply voltage is on
none Supply voltage is too low
P2 Supply voltage 2 green lights up Supply voltage is on
none Supply voltage is too low
P1
P2
Power
