Belden Hirschmann SPIDER-SL-20-08T1999999SY9HHHH User manual

Installation SPIDER-SL
Release 07 05/2022
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
Industrial Ethernet Rail Switch
SPIDER Standard Line

2022-05-25 Installation SPIDER-SL
Release 07 05/2022
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2022 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Installation SPIDER-SL
Release 07 05/2022 3
Contents
Important information 5
Safety instructions 7
About this Manual 13
Key 14
1 Description 15
1.1 General device description 15
1.2 Device name and product code 16
1.3 Device view 17
1.3.1 Front view 17
1.4 Power supply 19
1.4.1 Supply voltage with the characteristic value HH 19
1.4.2 Supply voltage with characteristic value HK 19
1.5 Ethernet ports 19
1.5.1 10/100/1000 Mbit/s twisted pair port 19
1.5.2 10/100 Mbit/s twisted pair port 20
1.5.3 100/1000 Mbit/s F/O port 20
1.5.4 100 Mbit/s F/O port 20
1.6 Pin assignments 21
1.7 Display elements 21
1.7.1 Device status 21
1.7.2 Port status 22
2 Installation 23
2.1 Checking the package contents 23
2.2 Mounting the device 23
2.2.1 Installing the device onto the DIN rail 24
2.2.2 Mounting on a flat surface 25
2.3 Installing an SFP transceiver (optional) 26
2.4 Connecting the terminal block 26
2.4.1 Connecting the 3-pin terminal block (device variants
with characteristic value HH) 27

4Installation SPIDER-SL
Release 07 05/2022
2.4.2 Connecting the 3-pin voltage terminal with spring
(device variants with the characteristic value HK) 28
2.5 Operating the device 29
2.6 Connecting data cables 29
3 Monitoring the ambient air temperature 30
4 Maintenance and service 31
5Disassembly 32
5.1 Removing an SFP transceiver (optional) 32
5.2 Removing the device 33
6 Technical data 34
A Further support 41

Installation SPIDER-SL
Release 07 05/2022 5
Important information
Note: Read these instructions carefully, and familiarize yourself with the
device before trying to install, operate, or maintain it. The following notes may
appear throughout this documentation or on the device. These notes warn of
potential hazards or call attention to information that clarifies or simplifies a
procedure.
Symbol explanation
This is a general warning symbol. This symbol alerts you to
potential personal injury hazards. Observe all safety notes that
follow this symbol to avoid possible injury or death.
If this symbol is displayed in addition to a safety instruction of the
type “Danger” or “Warning”, it means that there is a danger of
electric shock and failure to observe the instructions will
inevitably result in injury.
This symbol indicates the danger of hot surfaces on the device.
In connection with safety instructions, non-observance of the
instructions will inevitably result in injuries.
DANGER
DANGER draws attention to an immediately dangerous situation, which will
inevitably result in a serious or fatal accident if not observed.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a possible danger which, if not avoided, may result in
minor injuries.

6Installation SPIDER-SL
Release 07 05/2022
NOTICE
NOTICE provides information about procedures that do not involve the risk
of injury.

Installation SPIDER-SL
Release 07 05/2022 7
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 34.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation site requirements
Operate the device only at the specified ambient temperature
(temperature of the ambient air at a distance of 5 cm (2 in) from the
device) and at the specified relative humidity.
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
Install the device in a switch cabinet or on a wall.

8Installation SPIDER-SL
Release 07 05/2022
Strain relief
Note: If the strain relief is insufficient, there is a potential risk of torsion,
contact problems and creeping interruptions.
Relieve the connection points of cables and lines from mechanical
stress.
Design strain reliefs in such a way that they help prevent any
mechanical damage to cables, wires or conductors caused by external
influences or their own weight.
To help prevent damage to device connections, connectors and
cables, follow the instructions for proper installation in accordance with
DIN VDE 0100-520:2013-06, sections 522.6, 522.7 and 522.13.
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
See “General technical data” on page 34.
Mount the device in the vertical position.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
The device is grounded by a 3-pin terminal block.
Use a wire diameter for the ground conductor that is no smaller than
the diameter of the supply voltage connection, however of at least
0.5 mm² (AWG20).

Installation SPIDER-SL
Release 07 05/2022 9
Shielding ground
The shielding ground of the connectable twisted pair cables is connected
to the ground connection as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
Supply voltage
The supply voltage is only connected with the ground connection via
protective elements.
General requirements for connecting electrical wires
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
The switched voltage complies with the requirements for a safety extra-low voltage (SELV)
according to IEC 60950-1 or ES1 according to IEC/EN 62368-1.
Relevant for North America:
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
Requirements for connecting the supply voltage
The following requirements apply without restrictions:
The supply voltage corresponds to the voltage specified on the type plate of the device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for example a switch or
a plug). This disconnecting device is clearly identified. So in the case of an emergency, it is
clear which disconnecting device belongs to which power supply cable.
The power supply cable is suitable for the voltage, the current and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² (AWG20).
The cross-section of the ground conductor is the same size as or bigger than the cross-
section of the power supply cables.
The following requirements apply alternatively:
Alternative 1 The power supply complies with the requirements for a limited power source
(LPS) according to IEC 60950-1 or ES1 + PS2 according to IEC/EN 62368-1.
Alternative 2 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-low
voltage (SELV) according to IEC 60950-1 or ES1 according to IEC/
EN 62368-1.
A back-up fuse suitable for DC voltage is located in the plus conductor of
the power supply.
The minus conductor is on ground potential. Otherwise, a back-up fuse is
also located in the minus conductor.
Regarding the properties of this back-up fuse:
See “General technical data” on page 34.
Alternative 3 Relevant for North America:
The power supply complies with the requirements according to NEC Class 2.

10 Installation SPIDER-SL
Release 07 05/2022
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parliament and of the Council on the
harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
You find the EU conformity declaration as PDF file for downloading on the
Internet at: https://www.doc.hirschmann.com/certificates.html
The device can be used in industrial environments.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
You find more information on technical standards here:
“Technical data” on page 34
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.

Installation SPIDER-SL
Release 07 05/2022 11
UKCA marking
The labeled devices comply with the following UK regulations:
S.I. 2012 No. 3032
Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronical Equipment Regulations
S.I. 2016 No. 1091
Electromagnetic Compatibility Regulations 2016
The UKCA conformity declaration will be available to the relevant
authorities at the following address:
Belden UK Ltd.
1 The Technology Centre, Station Road
Framlingham, IP13 9EZ, United Kingdom
You find the UKCA conformity declaration as PDF file for downloading on
the Internet at: https://www.doc.hirschmann.com/certificates.html
The device can be used in industrial environments.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
You find more information on technical standards here:
“Technical data” on page 34
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
LED or laser components
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

12 Installation SPIDER-SL
Release 07 05/2022
FCC note
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
SPIDER-SL
U.S. Contact Information
Belden – St. Louis
1 N. Brentwood Blvd. 15th Floor
St. Louis, Missouri 63105, United States
Phone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation SPIDER-SL
Release 07 05/2022 13
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet at: https://www.doc.hirschmann.com

14 Installation SPIDER-SL
Release 07 05/2022
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

Installation SPIDER-SL
Release 07 05/2022 15
1 Description
1.1 General device description
The device is designed for the special requirements of industrial automation.
The device meets the relevant industry standards, provides very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden Online Catalog https://catalog.belden.com on the web
page of the device.

16 Installation SPIDER-SL
Release 07 05/2022
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Item Characteristic Character
istic value
Description
1 ... 9 Product SPIDER-
SL
SPIDER Standard Line
10 (hyphen) –
11 Data rate 2 10/100 Mbit/s
4 10/100/1000 Mbit/s
12 Power over Ethernet
(PoE)
0 without PoE support
13 (hyphen) –
14 ... 17 Number
Twisted pair ports
01T1
04T1
05T1
06T1
08T1
18 ... 19 Optical fiber port 1 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
M4 ST multimode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000 Mbit/s F/O connections
99 without
20 ... 21 Optical fiber port 2 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000 Mbit/s F/O connections
99 without
22 ... 23 Optical fiber port 3 99 without
24 Temperature range S Standard 0 °C ... +60 °C (+32 °F ...
+140 °F)
Deratinga
T Extended -40 °C ... +70 °C (-40 °F ...
+158 °F)
25 ... 26 Certificates and
declarations
Z9 CE, FCC, EN 61131, RCM
Y9 Z9 + cUL 61010
TY Y9 + EN 50121-4
27 ... 28 Customer-specific
version
HH Hirschmann Standard
HK Voltage terminal with spring
29 ... 30 Configuration HH Hirschmann Standard
Table 1: Device name and product code

Installation SPIDER-SL
Release 07 05/2022 17
1.3 Device view
1.3.1 Front view
a. For device variant SPIDER SL-40-06T1O6O699SZ9HHHH, the maximum permitted
ambient air temperature has to be reduced to 122 °F (50 °C).
Front view using example of device variants SPIDER-SL-20...
SPIDER-SL-20-08T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
SPIDER-SL-20-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 depending on device variant
DSC multimode socket for 100 Mbit/s F/O connections
DSC singlemode socket for 100 Mbit/s F/O connections
5 RJ45 socket for 10/100 Mbit/s Twisted pair connections
6 Rail lock slide for DIN rail mounting
7 ... 11 5 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
SPIDER-SL-20-04T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
7 LED display elements for port status
8 Rail lock slide for DIN rail mounting
SPIDER-SL-20-01T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 RJ45 socket for 10/100 Mbit/s Twisted pair connections
2
3
4
5
SPIDER-SL-20-01T1...
1
SPIDER-SL-20-04T1...
1
2
3
4
5
6
7
8
SPIDER-SL-20-06T1...
1
1111
1010
9
8
7
2
4
5
6
3
SPIDER-SL-20-08T1...
1
7
1111
1010
9
8
3
4
5
6
2

18 Installation SPIDER-SL
Release 07 05/2022
4 LED display elements for port status
5 Rail lock slide for DIN rail mounting

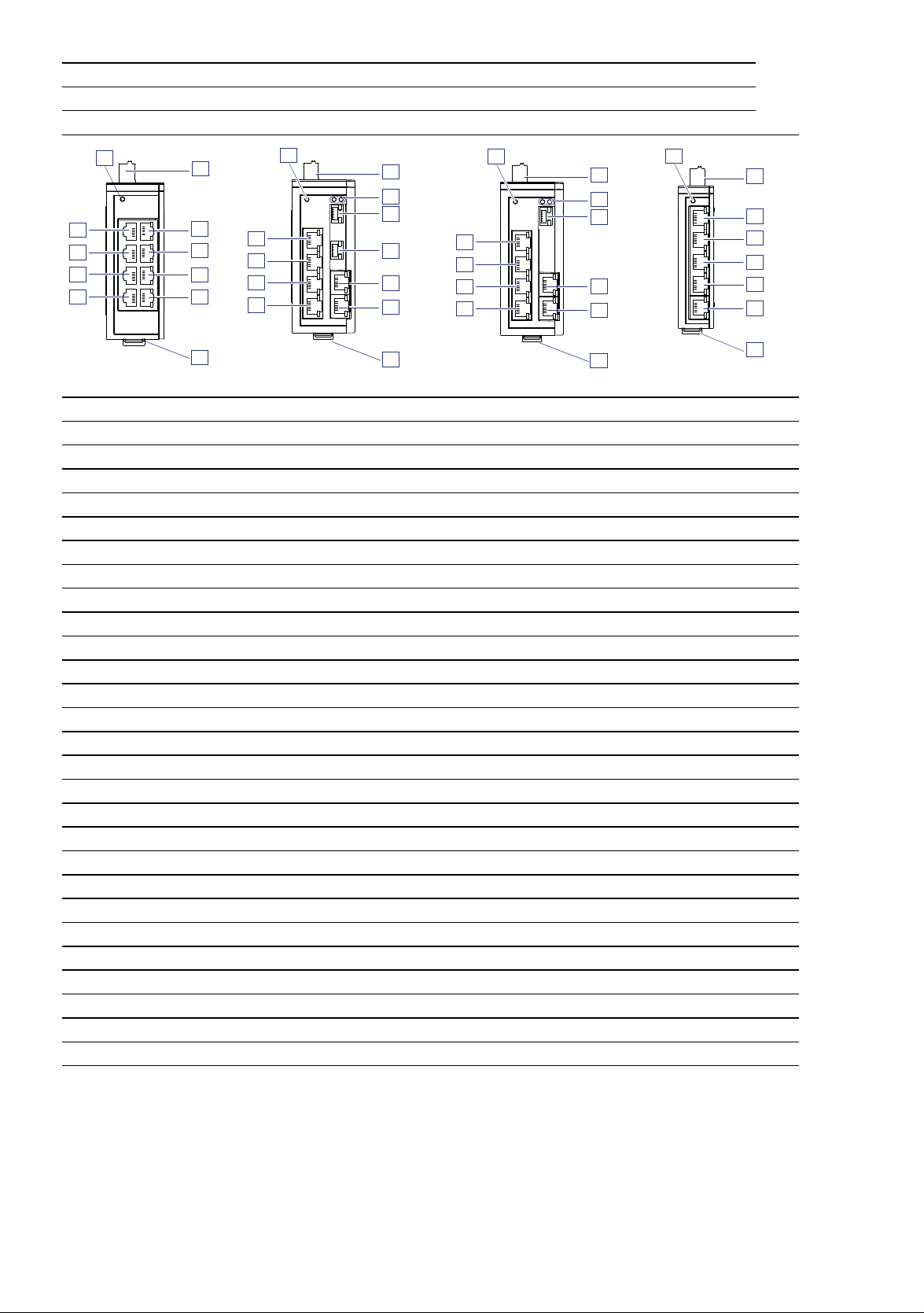

Front view using example of device variants SPIDER-SL-40...
SPIDER-SL-40-08T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 ... 5 SFP slot for 100/1000 Mbit/s F/O connections
6 ... 7 2 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 Rail lock slide for DIN rail mounting
9 ... 12 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 SFP slot for 100/1000 Mbit/s F/O connections
5 ... 6 2 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-05T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 7 5 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 Rail lock slide for DIN rail mounting
SPIDER-SL-40-06T1...
1
1212
1111
1010
9
2
4
6
7
3
5
SPIDER-SL-40-06T1...
1
7
2
4
5
6
3
1111
1010
9
8
SPIDER-SL-40-05T1...
1
2
3
4
5
6
7
8
SPIDER-SL-40-08T1...
8
1
7
1111
1010
9
8
3
4
5
6
2

Installation SPIDER-SL
Release 07 05/2022 19
1.4 Power supply
1.4.1 Supply voltage with the characteristic value HH
The following options for power supply are available:
3-pin terminal block
You will find information on connecting the supply voltage here:
See “Connecting the 3-pin terminal block (device variants with
characteristic value HH)” on page 27.
1.4.2 Supply voltage with characteristic value HK
The following options for power supply are available:
3-pin terminal block
You will find information on connecting the supply voltage here:
See “Connecting the 3-pin voltage terminal with spring (device variants
with the characteristic value HK)” on page 28.
1.5 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
You find information on the pin assignments for making patch cables here:
“Pin assignments” on page 21
1.5.1 10/100/1000 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing
1000 Mbit/s full duplex
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

20 Installation SPIDER-SL
Release 07 05/2022
1.5.2 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
1.5.3 100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
1.5.4 100 Mbit/s F/O port
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
Full duplex mode
