Installing MAMMUTHUS SWITCH
Published on 01 01/2020
3
Contents
Safety guidelines 6
About the manual 13
Legend 14
1 Description 15
1.1 General equipment description 15
1.2 Equipment name and product code 19
1.2.1 Basic device 19
1.2.2 Power module 20
1.2.3 Media module 20
1.3 Equipment view 21
1.3.1 MTS2624-4X-B 21
1.3.2 MTS2724-4X-FP-S 21
1.3.3 MTS2724-6X-MP-E 22
1.3.4 MTS2748-6X-MP-E 23
1.3.5 MTS2824-4X-S 24
1.3.6 MTS2824-6X-E 25
1.3.7 MTS2824F-4X-S 26
1.3.8 MTS2832TF-4X-E 27
1.3.9 MTS2848-6X-E 28
1.3.10 MTS2848-6X-S 29
1.3.11 Power module 30
1.3.12 Media module 32
1.4 Power supply 33
1.5 Ethernet port 34
1.5.1 100/1000 Mbit/s F/O port 34
1.5.2 10 Gbit/s F/O port 34
1.5.3 10/100/1000 Mbit/s twisted pair port 34

4 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
1.5.4 PoE(+) support 34
1.5.5 Out-of-band management port 35
1.6 Display unit 36
1.6.1 Equipment status 36
1.6.2 Port Status 37
1.7 Management interface 38
1.7.1 DC0 interface (external management) 38
1.7.2 USB interface 38
2 Installation 39
2.1 Unpack the box for inspection 39
2.2 Install power module (optional) 39
2.2.1 Install power module 39
2.3 Install equipment and ground 40
2.4 Install SFP transceiver (optional) 41
2.5 Operate equipment 42
2.6 Connect data cable 42
2.7 Fill in the Device Label 42
3 Make basic settings 43
4 Monitor ambient air temperature 44
5 Maintenance and repair 45
6 Remove 46
6.1 Remove power module 46
6.2 Remove media module 46
6.3 Remove SFP transceiver 47
6.4 Remove device 48
7 Technical data 49
7.1 General technical data 49
7.2 Dimension drawing 51
7.3 EMC and immunity 63

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
5
7.4 Network range 66
7.5 Power consumption / power output 67
8 Delivery item, order number and accessories 68
9 Basic technical standards 69
A More support 71

6 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
Safety guidelines
Warning
Uncontrolled machine action
To avoid uncontrolled machine action due to data loss, configure all data
transfer devices separately.
Before start
ing any machine controlled by data transfer, be sure to complete
the configuration of all data transfer devices.
Failure to comply with these guidelines may result in death, serious
injury or equipment damage.
 General safety guidelines
Hot-line work is required for the equipment. Improper use of the equipment
may result in personal injury or great destruction of property. The proper
and safe operation of the equipment depends on proper handling during
transportation, reasonable storage and installation, as well as careful
establishment and strict adherence to the operation and maintenance
procedures.
 Please read this manual as well as safety guidelines and warnings
before connecting any cable.
 Only operate the equipment without any damaged components.
 Make sure there is no component to be repaired in the equipment. In
case of any damage or failure to the equipment, switch off the power
and return the equipment to Belden for inspection.
 Qualification requirements for operators
 Only qualified personnel are allowed to operate the equipment.
Qualified personnel have the following characteristics:
 They shall receive appropriate training. Training and required practical
knowledge and experience are prerequisites to be qualified for product
operation. Only when these prerequisites are met can operators
perform grounding and labeling operations on circuits, equipment and
systems in accordance with current safety technical standards.
 Qualified personnel shall be aware that there is danger in their work.
 Qualified personnel shall know well how to deal with these hazards to
reduce risks posed to themselves and others.
 Qualified personnel shall receive training on a regular basis.

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
7
 Correct use
Use the equipment only for the purposes specified in the catalog and
technical instructions. Only external devices and components
recommended and permitted by the manufacturer can be used to operate
the equipment.
The correct and safe operation of this product depends on the correct
operation, storage, assembly and installation during transport, as well as
careful operation and maintenance procedures.
 National and international safety regulations
Carry out validation to ensure that electrical installations comply with
applicable local or national safety regulations.
 Wire connection requirements
Always make sure that all requirements listed are met before connecting
the wires.
The requirements below shall apply without limitation:
 The wires are voltage free.
 The cables used meet the temperature range required for a particular purpose.

First, connect the ground screw on the back of the equipment to the protective conductor before setting
up other connections. When to remove connections, the protective conductor shall be the last to be
removed.
 Do not power up the equipment during installation.

Requirements for North America:
Use 60 / 75 ° C (140 / 167 ° F) or 75 ° C (167 ° F) copper (Cu) wires only.
Table 1: Wire connection requirements
 Power voltage connection requirements
Device Model The requirements below shall apply without limitation:
All
model
s
Meet
all
of the following requirements
 The supply voltage shall be consistent with the specified value on the equipment
nameplate.
 The power supply shall conform to overvoltage category I or II.
 The power supply shall be equipped with an easy-to-operate disconnector (such as a
switch or plug).

The disconnector shall be clearly marked, so that in an emergency, the operator
knows at a glance the correspondence between the disconnector and the power
cable.

When to connect a power supply voltage with a protective conductor: first connect the
protective conductor, and then the power supply voltage. If the equipment contains
such a second power supply voltage connection module: first connect the protective
conductor, and then the power supply voltage.
 Supply with DC voltage:
 Power cord diameter at the power supply voltage input shall be at least 1mm² (North
America: AWG16). Supply with AC voltage:

8 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
 Power cord diameter at the power supply voltage input shall be at least 0.75 mm²
(North America: AWG18).
 The cross section of the grounding conductor shall be the same as or larger than that
of the power cord.
 Power cables suitable for voltage, current and physical loads shall be used.
 The external fuse shall be installed in the conductor at the non-spot position.
Table 2: Power voltage connection requirements

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
9
Special conditions for safe use
 Install the basic equipment and modules in a suitable enclosure based
on specific environmental conditions to provide at least IP54 protection
according to the requirements of EN 60529.
 Take measures to prevent instantaneous interference from exceeding
140% of the rated voltage at the voltage input.
 Shield grounding
The shield grounding module of the twisted-pair cable shall be connected
to the front panel as a conductor.
When connecting a cable segment with a conductive shield braid, pay
attention to the possible short circuit.
 ESD guide
These modules are equipped with electrostatic sensitive components.
If the connection is touched, these sensitive components may be damaged
or their service life shortened by electric field or charge balance effects.
You may find information about electrostatic hazard components in DIN
EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).

10 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
 Equipment enclosure
Only technicians authorized by the manufacturer are allowed to open the
enclosure.
 Keep vents open to ensure good air circulation.
 Ensure a minimum of 3.94 inches (10 cm) of space in front of the
enclosure vent.
 Do not touch the enclosure during operation or shortly after shutting
down the equipment. Hot surfaces may cause injury.
 Install the equipment horizontally in the cabinet or vertically on a flat
surface.
Do not place the equipment on the desktop for operation. See Page 40
for details of “Install equipment and ground”.
 Operate the equipment at the maximum ambient air temperature and in
stacking: when to install the equipment, make sure that there is at least
one available rack space (approx. 5 cm) above the equipment to allow
heat to escape through the enclosure of the equipment.
 If you operate the equipment in 19” switch cabinet: install the slide /
rails to support the weight of the equipment.
 Installation site requirements
The equipment can only be operated at the specified ambient temperature
- the ambient air temperature at a distance of 2 inches (5 cm) from the
equipment - with relative humidity.
 When selecting the installation position, be sure to comply with the
climate thresholds set forth in the technical data.
 Please use the equipment in the environment where the maximum
pollution level conforms to the technical data.

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
11
 CE mark
Marked equipment shall comply with the European directives below:
Device Model Instruction
All models 2011/65/EU and 2015/863/EU(RoHS)
Directive of the European Parliament and of the Council on the restrictio
n of
the use of certain hazardous substances in electrical and electron.
All models 2014/30/EU (EMC)
Directive of the European Parliament and of the Council on electromagnetic
compatibility among standardization members.
Please submit the EU compliance statement to the authorities at the following
address in accordance with the above EU directives:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.belden.com
Warning! As Class A equipment, it may cause interference to the living area.
In such case, the operator may need to take appropriate actions.
Warning! When Ethernet cables are used in industrial environments, they
must be shielded.
Note: It is required to strictly comply with the assembly guidelines provided in
these guidelines to observe EMC thresholds.

12 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
 LED or Laser Component
LED or Laser Component conforming to IEC 60825-1 (2014):
Class 1 laser products
Class 1 LED products
 FCC description:
The equipment complies with Section 15 of FCC. The equipment shall be
operated in line with the following two requirements: (1) the equipment
causes no harmful interference; (2) the equipment must accept any
interference it receives, including interference that may result in accidental
operation. Appropriate testing has confirmed that the equipment meets the
requirements for Class A digital equipment in Section 15 of FCC.
These requirements are intended to provide adequate protection against
interference with the equipment when used in commercial environments.
The equipment creates and uses high frequencies and may also radiate
them. Failure to observe this user manual in installation or use of the
equipment may cause interference with radio transmission. Use of the
equipment in residential areas may also cause interference, in which case
the user is obliged to pay to eliminate such interference.
 Recovery instructions
At the end of use, you must properly dispose of the equipment as e-waste
in accordance with the current disposal regulations of your county, state
and country.

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
13
About the manual
This user manual about “Installation” contains equipment instructions, safety
instructions, display instructions, and other information required for equipment
installation.

14 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
Legend
The symbols used in this manual have the following meanings:


Item list


Work step

Subtitle

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
15
1 Description
1.1 General equipment description
MTS2600 switch provides an economic choice for port expansion and LAN
extension, which enables customers to choose products with good
performance, function and flexibility under the condition of tight budget. Users
can extend the Gigabit line speed switching performance from the core to
access equipment.
MTS2700 is a PoE switch with comprehensive functions, which can provide
up to 30W power for PoE PD equipment; rich L2/L3 and security functions can
support complex network applications. Modular power supplies can provide
fast field maintenance (FRU), and the equipment can ensure normal operation
under the environment of 55℃.
MTS2800 switch provides a complete set of access and convergence
solutions, and all models have redundant power configuration. The model is
compact, low noise, and can be compatible with 600*600 compact cabinet.
The switch has a complete L2/L3 feature set, which can provide flexibility,
reliability and security for network planning.
 Basic device

16 Installing MAMMUTHUS SWITCH
Published on 01 01/2020

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
17

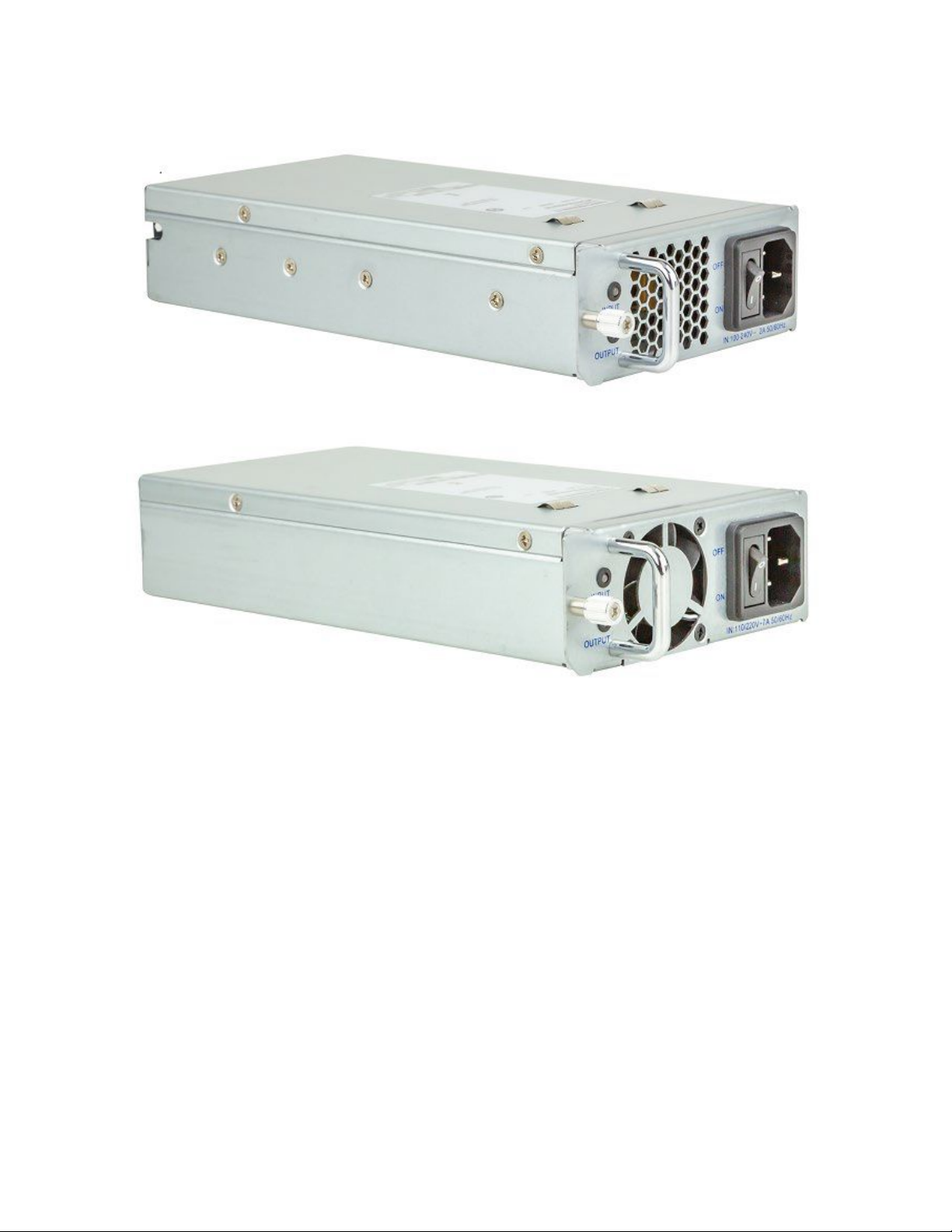

 Power module
You may choose 1 or 2 power modules with the same input voltage:
 LV / Ethernet power supply (+)
Power modules are provided as accessories. Please refer to “Order number”
on Page 68 .

18 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
 Media module
You can select 1 media module.
Media modules are provided as accessories. Please refer to “Order
number” on Page 68.

Installing MAMMUTHUS SWITCH
Published on 01 01/2020
19
1.2 Equipment name and product code
The equipment name corresponds to the product code.
1.2.1 Basic device
Order
number
Product code Description
942999847 MTS2624-4X-B
24 × FE/GE TX, 4 × 1/10G SFP+ slot,
single fixed power supply, basic software.
942999835 MTS2724-4X-FP-S 24 × FE/GE POE/POE+, 4 × 1/10G SFP+
slot, fixed redundant power supply, POE
output 380W, basic software.
942999832 MTS2724-6X-MP-E
24 × FE/GE POE/POE+, 4 × 1/10G SFP+
slot, 1 × extend media module
slot, 2 ×
modular power supply unit slot, advanced
software.
942999831 MTS2748-6X-MP-E 48 ×
FE/GE POE/POE+, 4 × 1/10G SFP+
slot, 1 × extend media module
slot, 2 ×
modular power supply unit slot, advanced
software.
942999846 MTS2832TF-4X-E
24 × 100/1000M SFP slot, 8 × FE/GE TX,
4 × 1/10G SFP + slot, fixed redundant
power supply, advanced software.
942999845 MTS2824F-4X-S
24 × 100/1000M SFP slot, 4 × 1/10G SFP
+ slot, fixed redundant power supply,
basic software.
942999844 MTS2824-4X-S
24 × FE/GE TX, 4 × 1/10G SFP + slot,
fixed redundant power supply, basic
software.
942999843 MTS2848-6X-S 48
× FE/GE TX, 6 × 1/10G SFP + slot,
fixed redundant power supply, basic
software.
942999842 MTS2824-6X-E
24 × FE/GE TX, 6 × 1/10G SFP + slot,
fixed redundant power supply, advanced
software.
942999841 MTS2848-6X-E
48 × FE/GE TX, 6 × 1/10G SFP + slot,
fixed
redundant power supply, advanced
software.

20 Installing MAMMUTHUS SWITCH
Published on 01 01/2020
1.2.2 Power module
Order
number
Product code Description
942999834 MTM2700-PSU120
AC/DC 120W power supply unit; input
100-240V/2.0A; output 12V/10A;
No PoE
support.
942999833 MTM2700-PSU500 AC/DC 500W power sup
ply unit; input
100-
240V/7.0A; output 12VDC/10A,
53.5VDC/7A; PoE support.
1.2.3 Media module
Order
number
Product code Description
942999836 MTM2700-2X MTS 2700 media
module, 2 × 1/10G
SFP+ slot.
