Belden Hirschmann MICE MS20 User manual

Installation MS20/MS30
Release 14 03/2023
Technical support
https://hirschmann-support.belden.com
User Manual
Installation

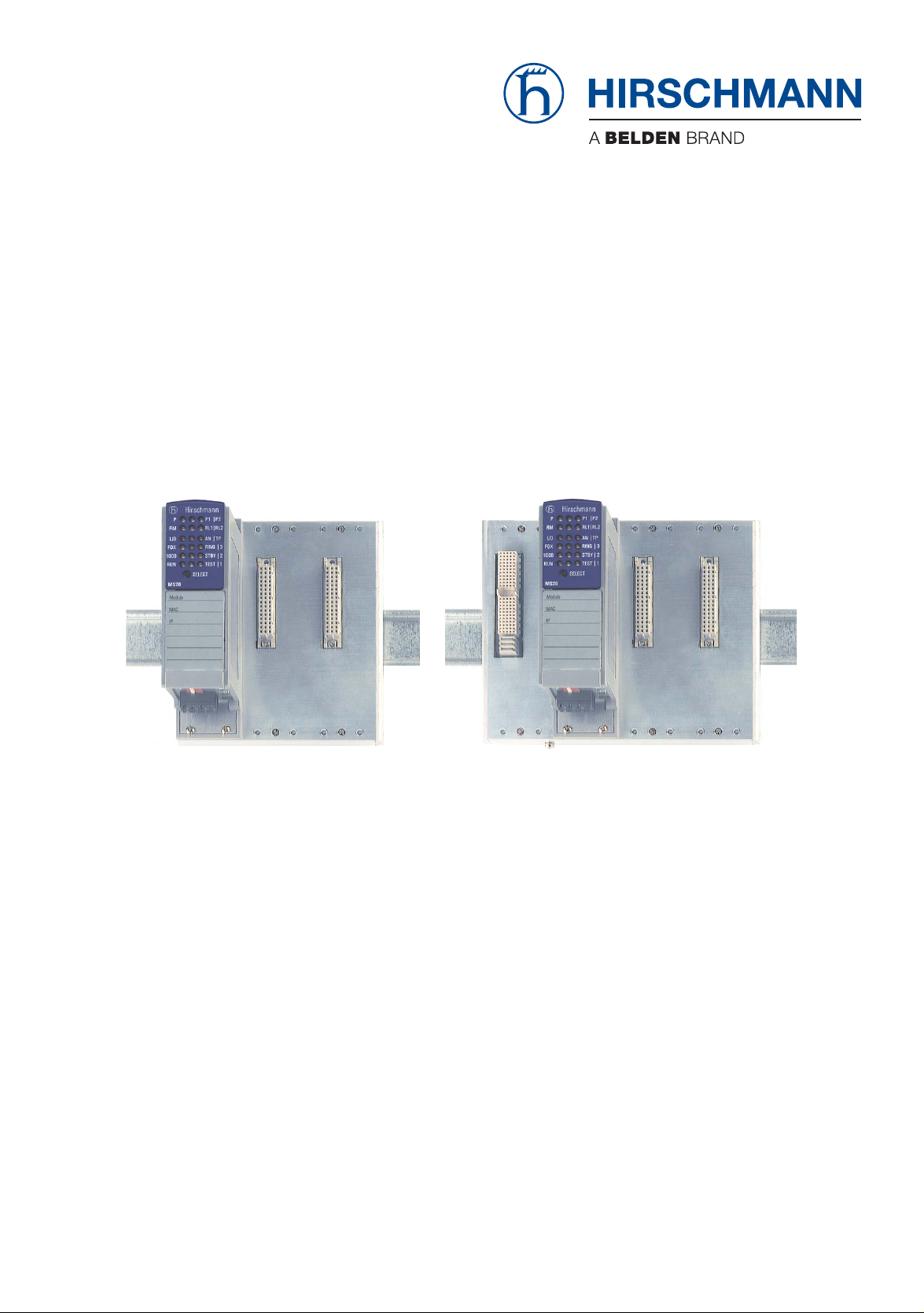

Industrial ETHERNET Switch MICE
MS20/MS30
MICE MS20 MICE MS30

24.3.23 Installation MS20/MS30
Release 14 03/2023
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2023 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at:
https://www.doc.hirschmann.com
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Contents
Important information 5
Safety instructions 7
About this Manual 22
Key 23
1 Description 24
1.1 General device description 24
1.2 Device name and product code 26
1.3 Description of the device variants 27
1.3.1 Number of ports and connections 28
1.3.2 Media modules 32
1.3.3 Digital I/O Module MM24 36
1.3.4 MB20 extender module 36
1.3.5 SFP Transceiver 37
1.4 Ethernet ports 37
1.4.1 10/100/1000 Mbit/s twisted pair port 37
1.4.2 10/100 Mbit/s twisted pair port 37
1.4.3 10/100 Mbit/s PoE port 38
1.4.4 1000 Mbit/s F/O port 38
1.4.5 100 Mbit/s F/O port 38
1.4.6 Pin assignments 39
1.5 AUI port 40
1.6 Display elements 41
1.6.1 Device Status 42
1.6.2 Display status 43
1.6.3 Port status 44
2 Installation 46
2.1 Checking the package contents 46
2.2 Installing media modules 47
2.3 Filling out and attaching labels 47
2.4 Installing an SFP transceiver (optional) 49

4Installation MS20/MS30
Release 14 03/2023
2.5 Adjusting the DIP switch settings on the basic module (4-pin
DIP switch) 49
2.6 Adjusting the DIP switch settings on the MS20/MS30-...E...
basic module (3-pin DIP switch) 51
2.7 Adjusting the DIP switch settings on the
MM20-A8A89999SAHH media module 53
2.8 Connecting the MM22-T1T1T1T1 PoE media module 53
2.9 Terminal block for supply voltage and signal contact 54
2.9.1 Supply voltage 55
2.9.2 Signal contacts 55
2.10 Connecting the terminal blocks, start-up procedure 55
2.10.1 Terminal blocks on MS20/MS30-...A... and MS20/
MS30-...C... 56
2.10.2 Terminal block on MS20/MS30-...E... 57
2.10.3 Operating the device 57
2.11 Installing and grounding the device 58
2.11.1 Installing the device onto the DIN rail 58
2.11.2 Grounding the device 59
2.12 Connecting data cables 59
2.12.1 Twisted Pair ports 59
2.12.2 Optical fiber ports 60
2.13 Assembly of the MB20 extender module 60
2.14 Defining the meaning of the display LEDs 60
3 Making basic settings 61
3.1 First login (Password change) 63
4 Maintenance and service 64
5Disassembly 65
5.1 Removing the device 65
5.2 Removing an SFP transceiver (optional) 66
6 Technical data 67
A Further support 89

Installation MS20/MS30
Release 14 03/2023 5
Important information
Note: Read these instructions carefully, and familiarize yourself with the
device before trying to install, operate, or maintain it. The following notes may
appear throughout this documentation or on the device. These notes warn of
potential hazards or call attention to information that clarifies or simplifies a
procedure.
Symbol explanation
This is a general warning symbol. This symbol alerts you to
potential personal injury hazards. Observe all safety notes that
follow this symbol to avoid possible injury or death.
If this symbol is displayed in addition to a safety instruction of the
type “Danger” or “Warning”, it means that there is a danger of
electric shock and failure to observe the instructions will
inevitably result in injury.
This symbol indicates the danger of hot surfaces on the device.
In connection with safety instructions, non-observance of the
instructions will inevitably result in injuries.
DANGER
DANGER draws attention to an immediately dangerous situation, which will
inevitably result in a serious or fatal accident if not observed.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a possible danger which, if not avoided, may result in
minor injuries.

6Installation MS20/MS30
Release 14 03/2023
NOTICE
NOTICE provides information about procedures that do not involve the risk
of injury.

Installation MS20/MS30
Release 14 03/2023 7
Safety instructions
Certified usage
Use the device solely for the application cases described in the
Hirschmann product information, including this manual.
Operate the device solely according to the technical specifications.
Supply voltage
The devices are designed for operation with Safety Extra-low Voltage
(SELV). Connect only SELV circuits with voltage restrictions according to
IEC 60950-1 or ES1 according to IEC/EN 62368-1 to the supply voltage
connections and to the signal contacts.
The supply voltage is electrically isolated from the housing.
Use undamaged parts.
For power supply via DC voltage: All following prerequisites are
fulfilled:
There are fuses suitable for DC voltage in the positive conductors
of the supply lines, or the voltage sources are appropriately current-
limited. Regarding the properties of this fuse: See “General
technical data” on page 67.
The negative conductors of the voltage inputs are on ground
potential.
For power supply via AC voltage: All following prerequisites are
fulfilled:
There are fuses in the supply lines, or the voltage sources are
appropriately current-limited. Regarding the properties of this fuse:
See “General technical data” on page 67.
The power sources are electrically isolated from the ground
potential.
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

8Installation MS20/MS30
Release 14 03/2023
Relevant for North America:
The device may only be connected to a Class 2 supply voltage that
fulfills the requirements of the National Electrical Code, Table 11(b). If
the voltage is being supplied redundantly (two different voltage
sources), the combined supply voltages must fulfill the requirements of
the National Electrical Code, Table 11(b).
Relevant for North America: For use in Class 2 circuits.
Only use copper wire/conductors of class 1, 75 °C (167 °F).
Start connecting the electrical wires only if all the above safety
requirements are fulfilled.
Use in Hazardous Locations
Relevant for North America for modules certified for Hazardous
Locations:
This equipment is suitable for use in Class 1, Division 2, Groups A, B, C
and D or Non-Hazardous (unclassified) locations only.
Make sure that peripheral devices are suitable for the application
environment. The wiring for the voltage supply and for the inputs and
outputs (I/O) must adhere to the wiring regulations for Class 1, Division 2
[article 501(b) of the National Electrical Code (USA), NFPA 70] and to the
applicable statutory regulations.
Note: Observe the control drawing (document number 000160011DNR)
on the following pages.
Avertissement - Risque d'explosion - Ne pas débrancher tant que le
circuit est sous tension à moins que l'emplacement soit connu pour ne
contenir aucune concentration de gaz inflammable.
Avertissement - Risque d'explosion - La substitution de tout composant
peut rendre ce matériel incompatible pour une utilisation en classe I,
division 2.

Installation MS20/MS30
Release 14 03/2023 9

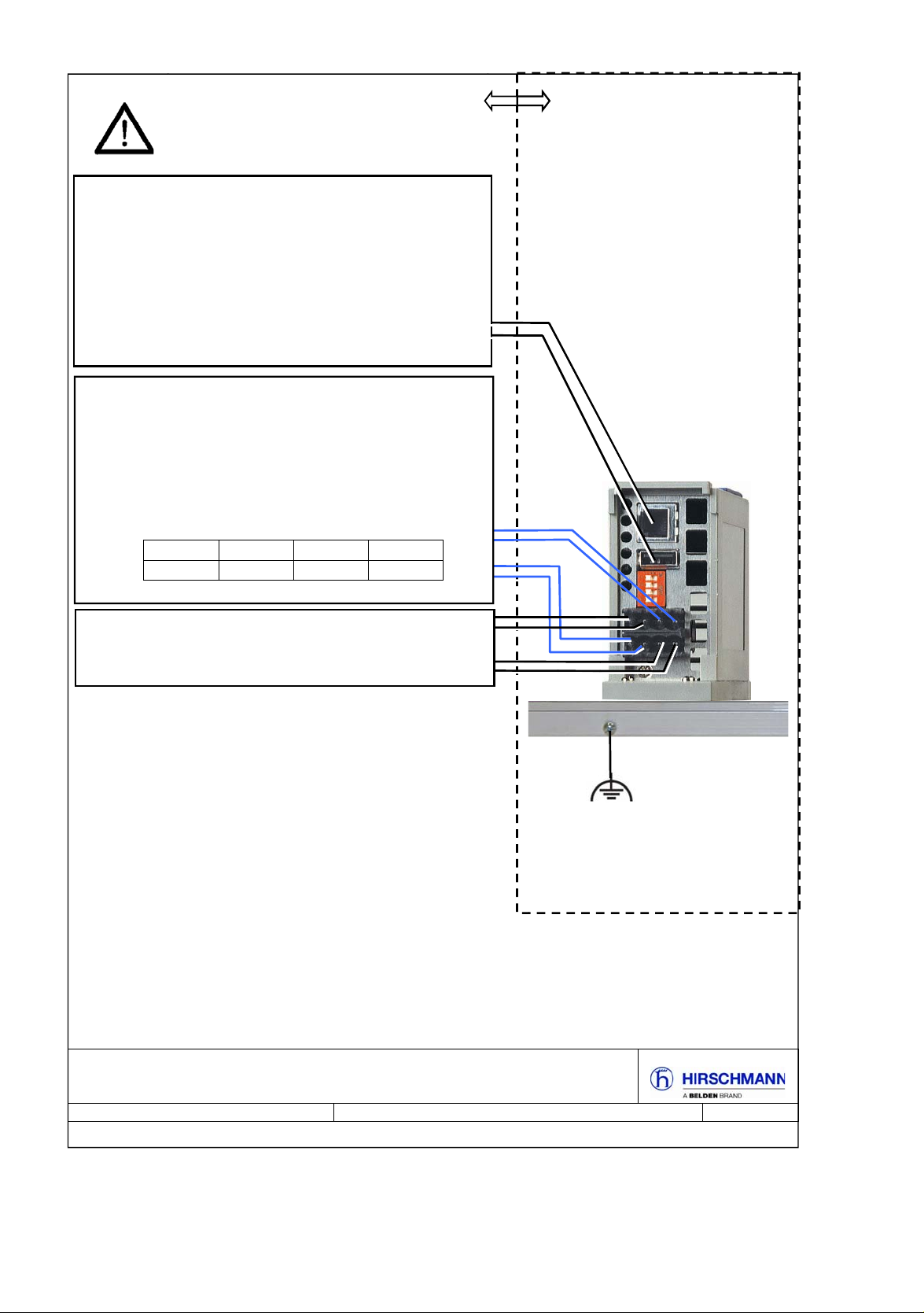

CONTROL DRAWING
for Industrial ETHERNET Rail Switch MS20 and MS30 devices 943-435-999
according to Class I Division 2 Hazardous Locations
Version: 4 Document No.: 000160011DNR Pa
g
e 1/3
P1
P2
Ordinary Location,
Non-Hazardous Area,
non-explosive atmosphere
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Rela
y
The ground connector must be
at least the same wire size
(mm² or AWG) as the supply
conductors.
Power Supply range “C” (P1, P2 Redundant)
18 – 60 V DC;
4.0 – 1.2 A; max. 72 W
Relay contacts:
Equipment with non-incendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS: 1) 2)
Temperature Code: T4
Ambient Temperature rating:
Ta: 0 °C to +60 °C for “S” types
Ta: -40 °C to +70 °C for “T” or “E” types
– refer to the type designation on the device
(Position 10 of nomenclature: “Temperature range”).
MS20/30 switch basic module
with voltage range type “C”
Class I, Division 2,
Groups A, B, C, D
Hazardous Location
UiIiCiLi
30 V 90 mA 2 nF 1 µH

10 Installation MS20/MS30
Release 14 03/2023
CONTROL DRAWING
for Industrial ETHERNET Rail Switch MS20 and MS30 devices 943-435-999
according to Class I Division 2 Hazardous Locations
Version: 4 Document No.: 000160011DNR Pa
g
e 2/3
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Relay
P1
P2
Power Supply range “A” (P1, P2 Redundant)
18 – 32 V DC;
4.0 – 2.25 A; max. 72 W
Temperature Code: T4
Ambient Temperature rating:
Ta: 0 °C to +60 °C for “S” types
Ta: -40 °C to +70 °C for “T” or “E” types
– refer to the type designation on the device
(Position 10 of nomenclature: “Temperature range”).
Class I Division 2
Groups A, B, C, D
Hazardous Location
Ordinary Location,
Non-Hazardous Area,
non-explosive atmosphere
The ground connector must be
at least the same wire size
(mm² or AWG) as the supply
conductors.
MS20/30 switch basic module
with voltage range type “A”
Relay contacts:
Equipment with non-incendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS: 1) 2)
UiIiCiLi
30 V 90 mA 2 nF 1 µH

Installation MS20/MS30
Release 14 03/2023 11
For use in Hazardous Locations Class I, Division 2, Groups A, B, C, D:
Applied standard: ANSI/ISA 12.12.01-2012
CSA C22.2 No. 213-M1987
Only allowed for MS20 or MS30 model No´s. which are individually labelled
“FOR USE IN HAZARDOUS LOCATIONS”
Non-incendive field wiring circuits must be wired in accordance with the National Electrical Code
(NEC),
NFPA 70, article 501.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-
HAZARDOUS.
Use + 60/75 °C or +75 °C copper (CU) wire only.
Only for connection to a Class 2 power supply.
Note
1
):
The non-incendive field wiring circuit concept allows interconnection of non-incendive field wiring apparatus
and associated non-incendive field wiring apparatus using any of the wiring methods permitted for unclassified
locations when certain parametric conditions are met.
Capacity: C
0
&
i
+ C
Cable
; Inductivity: L
0
/
i
+ L
Cable
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
0
- L
i
) / Cable
L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
0
- C
i
) / Cable
C
(“Cable
C”
denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Note
2
):
The non-incendive field wiring circuit concept allows interconnection of non-incendive field wiring apparatus
and associated non-incendive field wiring apparatus using any of the wiring methods permitted for unclassified
locations when certain parametric conditions are met.
Capacity: C
a
&
i
+ C
Cable
; Inductivity: L
a
/
i
+ L
Cable
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
a
- L
i
) / Cable
L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
a
- C
i
) / Cable
C
(“Cable
C
” denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control GmbH.
DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).
CONTROL DRAWING
for Industrial ETHERNET Rail Switch MS20 and MS30 devices 943-435-999
according to the Directive 2014/34/EU or Class I Division 2 Hazardous Locations
Version: 4 Document No.: 000160011DNR Page 3/3

12 Installation MS20/MS30
Release 14 03/2023
ATEX directive 2014/34/EU – specific regulations for safe
operation
The following applies to MICE devices and modules for use in hazardous
locations:
List of standards:
EN IEC 60079-0:2018
EN 60079-7:2015 + A1:2018
EN IEC 60079-15:2019
Make sure that the device has the following label:
For device type MSxx:
II 3G Ex ec nC IIC T4 Gc DEKRA 13ATEX0019 X
0°C≤Ta ≤+45 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+45 °C for device types “T” or “E”
(Position 10 of the product code)
For device type MB20:
II 3G Ex ec IIC T4 Gc DEKRA 13ATEX0019 X
0°C≤Ta ≤+60 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+70 °C for device types “T” or “E”
(Position 10 of the product code)
The equipment is suitable for use in an area with maximum pollution
degree 2, as defined in IEC 60664-1.
Install the modules in a suitable enclosure according to
EN IEC 60079-0 providing a degree of protection of at least IP54
according to EN 60529, taking into account the environmental
conditions under which the equipment will be used.
Make provisions to prevent transient disturbances from exceeding
119 V at the voltage inputs.
In potentially explosive atmospheres, only use MSxx units that have
not previously been operated in other applications at ambient
temperatures higher than +45 °C (+113 °F).
Make sure that the temperature specification of the selected cable and
cable entries is in compliance with the actual measured temperature
values.
Connectors shall be connected or disconnected exclusively in dead-
voltage state.
If a relay output (signal contact) is used, the current must be limited to
100 mA resistive load.

Installation MS20/MS30
Release 14 03/2023 13
WARNING! The USB connection and the V.24 interface
connection are for temporary connection only during
maintenance. Do NOT use, connect or disconnect unless the
area is known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could result in an
explosion.
UK regulation S.I. 2016 No. 1107
(as amended by S.I. 2019 No. 696) - Schedule 3A, Part 6
The following applies to MICE devices and modules for use in hazardous
locations:
List of standards:
EN IEC 60079-0:2018
EN 60079-7:2015 + A1:2018
EN IEC 60079-15:2019
Make sure that the device has the following label:
For device type MSxx:
II 3G Ex ec nC IIC T4 Gc DEKRA 21UKEX0068 X
0°C≤Ta ≤+45 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+45 °C for device types “T” or “E”
(Position 10 of the product code)
For device type MB20:
II 3G Ex ec IIC T4 Gc DEKRA 21UKEX0068 X
0°C≤Ta ≤+60 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+70 °C for device types “T” or “E”
(Position 10 of the product code)
The equipment is suitable for use in an area with maximum pollution
degree 2, as defined in IEC 60664-1.
Install the modules in a suitable enclosure according to
EN IEC 60079-0 providing a degree of protection of at least IP54
according to EN 60529, taking into account the environmental
conditions under which the equipment will be used.
Make provisions to prevent transient disturbances from exceeding
119 V at the voltage inputs.
In potentially explosive atmospheres, only use MSxx units that have
not previously been operated in other applications at ambient
temperatures higher than +45 °C (+113 °F).
Make sure that the temperature specification of the selected cable and
cable entries is in compliance with the actual measured temperature
values.

14 Installation MS20/MS30
Release 14 03/2023
Connectors shall be connected or disconnected exclusively in dead-
voltage state.
If a relay output (signal contact) is used, the current must be limited to
100 mA resistive load.
WARNING! The USB connection and the V.24 interface
connection are for temporary connection only during
maintenance. Do NOT use, connect or disconnect unless the
area is known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could result in an
explosion.
IECEx – Certification Scheme for Explosive Atmospheres
The following applies to MICE devices and modules for use in hazardous
locations:
List of standards:
IEC 60079-0:2017
IEC 60079-7:2017
IEC 60079-15:2017
Make sure that the device has the following label:
For device type MSxx:
II 3G Ex ec nC IIC T4 Gc IECEx DEK 14.0078 X
0°C≤Ta ≤+45 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+45 °C for device types “T” or “E”
(Position 10 of the product code)
For device type MB20:
II 3G Ex ec IIC T4 Gc IECEx DEK 14.0078 X
0°C≤Ta ≤+60 °C for device types “S”
(Position 10 of the product code) or
-40 °C ≤Ta ≤+70 °C for device types “T” or “E”
(Position 10 of the product code)
The equipment is suitable for use in an area with maximum pollution
degree 2, as defined in IEC 60664-1.
Install the modules in a suitable enclosure according to IEC 60079-0
providing a degree of protection of at least IP54 according to
IEC 60529, taking into account the environmental conditions under
which the equipment will be used.

Installation MS20/MS30
Release 14 03/2023 15
In potentially explosive atmospheres, only use MSxx units that have
not previously been operated in other applications at ambient
temperatures higher than +45 °C (+113 °F).
Make provisions to prevent transient disturbances from exceeding
119 V at the voltage inputs.
Make sure that the temperature specification of the selected cable and
cable entries is in compliance with the actual measured temperature
values.
Connectors shall be connected or disconnected exclusively in dead-
voltage state.
If a relay output (signal contact) is used, the current must be limited to
100 mA resistive load.
WARNING! The USB connection and the V.24 interface
connection are for temporary connection only during
maintenance. Do NOT use, connect or disconnect unless the
area is known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could result in an
explosion.
Shielded ground
The shielded ground wire of the twisted pairs cables is connected to the
front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shield braiding.
Device casing
WARNING
ELECTRIC SHOCK
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors.
Do not touch the connection terminals.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

16 Installation MS20/MS30
Release 14 03/2023
Only technicians authorized by the manufacturer are permitted to open
the casing.
The lower panel of the device is grounded by means of the DIN rail and
optionally by means of the separate ground screw.
The switch basic module is an inseparable unit. The switch basic
module may be damaged by detachment of the display and
connection part.
Verify that the electrical installation meets locally or nationally
applicable safety regulations.
Keep the ventilation slits free to ensure good air circulation.
Make sure there is at least 3.94 in (10 cm) of space in front of the
ventilation slits of the casing.
The device has to be mounted in an upright position (see figure 1).
Installation site requirements
CAUTION
OVERHEATING OF THE DEVICE
Verify that all ventilation slots are clear when installing the device. Avoid
touching the device while it is operating.
Failure to follow these instructions can result in minor injury or
equipment damage.
WARNING
FIRE HAZARD
If you connect the device to a power supply that does NOT meet the
requirements for Limited Power Source, NEC Class 2 or PS2 according to
IEC/EN 62368-1 and is NOT limited to 100 W output power, the device
must be installed in either a switch cabinet or other fire enclosure.
The fire enclosure can be made of metal or plastic with fire-protection
properties of at least V-1 according to IEC 60695-11-10. Bottom openings
of the fire enclosure must NOT exceed 2 mm in diameter.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation MS20/MS30
Release 14 03/2023 17
Only operate the device at the specified ambient temperature
(temperature of the ambient air at a distance of up to 2 inches (5 cm)
from the device) and at the specified relative humidity.
See “General technical data” on page 67.
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Note: LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
Note: You will find additional warning information and security
instructions for the MICE media modules in the “Description and
Operating Instructions” supplied with every module.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.

18 Installation MS20/MS30
Release 14 03/2023
Strain relief
Note: If the strain relief is insufficient, there is a potential risk of torsion,
contact problems and creeping interruptions.
Relieve the connection points of cables and lines from mechanical
stress.
Design strain reliefs in such a way that they help prevent any
mechanical damage to cables, wires or conductors caused by external
influences or their own weight.
To help prevent damage to device connections, connectors and
cables, follow the instructions for proper installation in accordance with
DIN VDE 0100-520:2013-06, sections 522.6, 522.7 and 522.13.

Installation MS20/MS30
Release 14 03/2023 19
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parliament and of the Council on the
harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
2014/34/EU (ATEX)
Directive of the European Parliament and of the Council on the
harmonisation of the laws of the Member States relating to equipment and
protective systems intended for use in potentially explosive atmospheres.
The ATEX Directive applies exclusively to the device variants labeled with
an ATEX certificate number:
See “ATEX directive 2014/34/EU – specific regulations for safe
operation” on page 12.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
You find the EU conformity declaration as PDF file for downloading on the
Internet at: https://www.doc.hirschmann.com/certificates.html
The product can be used in residential areas (residential, commercial and
light-industrial environments) and in industrial areas.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.

20 Installation MS20/MS30
Release 14 03/2023
UKCA marking
The labeled devices comply with the following UK regulations:
S.I. 2012 No. 3032
Restriction of the Use of Certain Hazardous Substances in Electrical
and Electronical Equipment Regulations
S.I. 2016 No. 1091
Electromagnetic Compatibility Regulations 2016
S.I. 2016 No. 1107
Equipment and Protective Systems Intended for use in Potentially
Explosive Atmospheres Regulations 2016
Note:The regulation applies exclusively to the device variants labeled
with a UKEX certificate number: See “UK regulation S.I. 2016 No.
1107 (as amended by S.I. 2019 No. 696) - Schedule 3A, Part 6” on
page 13.
The UKCA conformity declaration will be available to the relevant
authorities at the following address:
Belden UK Ltd.
1 The Technology Centre, Station Road
Framlingham, IP13 9EZ, United Kingdom
You find the UKCA conformity declaration as PDF file for downloading on
the Internet at: https://www.doc.hirschmann.com/certificates.html
The product can be used in residential areas (residential, commercial and
light-industrial environments) and in industrial areas.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
