Belkin TuneBase User manual

TuneBaseTM FM for iPhone and iPod
User Manual
PM01713-A F8Z341-XXXX

TuneBase™FM for iPhone and iPod i
SECTIONS 1 2 3 87654Table of Contents
TABLE OF CONTENTS
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 iPhone and iPod Models You Can Use with Your TuneBase FM . . . . . . 2
3 What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4 Setup Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5 Basic Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using ClearScan to Find the Best FM Frequency . . . . . . . . . . . . . . . . . . . . . . . 8
Using the PRO Setting to Improve Performance. . . . . . . . . . . . . . . . . . . . . . . 11
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TuneBase™FM for iPhone and iPod 1
SECTIONS 2 3 87654Table of Contents 1
INTRODUCTION
Your TuneBase FM can be used to charge, hold, power, and play your iPhone or iPod as you
drive. This User Manual explains how you can use your TuneBase FM to get the most from your
iPhone or iPod, virtually anywhere you go.

TuneBase™FM for iPhone and iPod 2
SECTIONS 1 3 87654Table of Contents 2
iPhone AND iPod MODELS YOU CAN USE WITH YOUR TUNEBASE FM
Note: iPod 3rd generation and iPod mini are not supported.
For best performance, make sure you have the latest firmware for your iPhone or iPod model.
To check the firmware version of your iPhone or iPod, select “Settings” and then select “About”.
Your version is listed under “Version”. If your firmware is out of date, you can use iTunes to
automatically update your iPhone or iPod. See http://www.apple.com/iPod/download.
*Cradles to support these iPod models are available for order at www.belkin.com/iPodadapter/.
Your TuneBase FM can be used with the following iPhone or iPod models:
iPhone or iPod
iPhone 3G iPod classic
iPhone iPod nano 2nd generation (aluminum)
iPod touch 2nd generation iPod 5th generation (video)
iPod nano 4th generation (video) iPod nano 1st generation*
iPod touch 1st generation
iPod 4th generation (color display)*
iPod nano 3rd generation (video) iPod 4th generation*

TuneBase™FM for iPhone and iPod 3
SECTIONS 1 2 87654Table of Contents

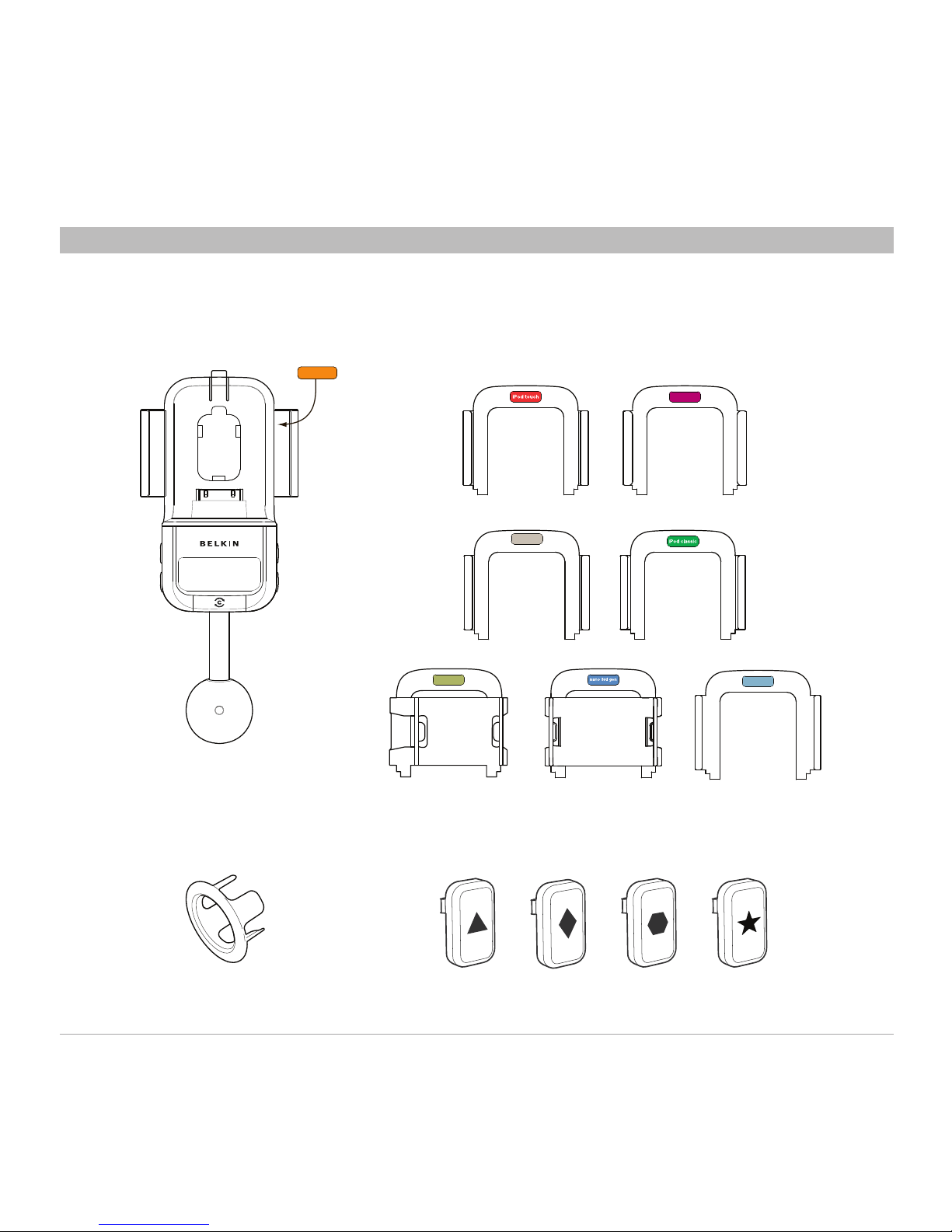

WHAT’S IN THE BOX
3
TuneBase FM
Fit Ring
Adapter Sleeves
Spacer Pads
iPhone 3G
iPhone
touch 2nd gen
iPod video
iPod nano

TuneBase™FM for iPhone and iPod 4
SECTIONS 1 2 3 8765Table of Contents 4
SETUP INSTRUCTIONS
Your TuneBase FM includes eight adapter sleeves and four spacer pads for all supported
iPhone and iPod models.

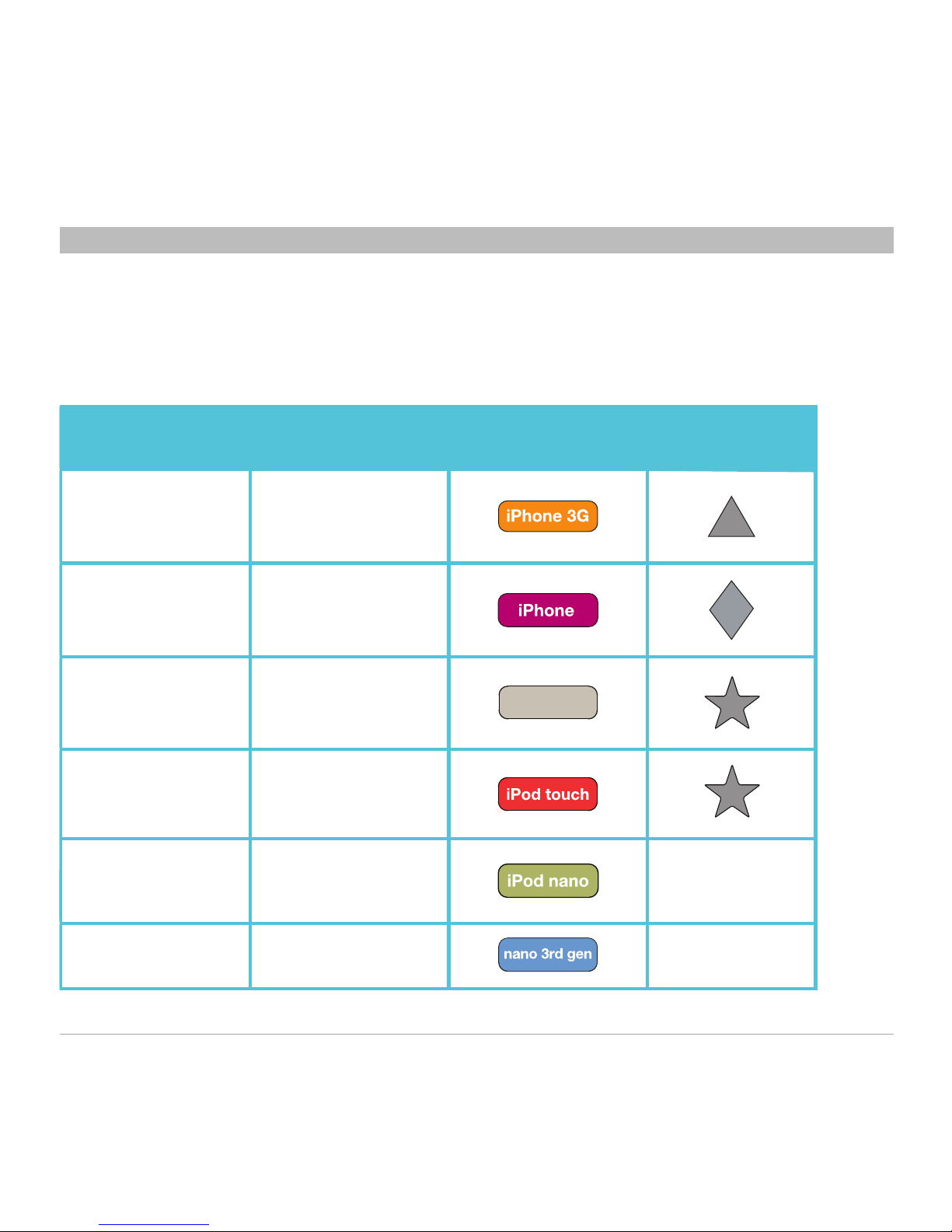

Select the correct sleeve and pad for your iPhone or iPod model from the chart below.
iPhone or iPod Model Capacity Sleeve Pad
iPhone 3G 8GB/16GB
iPhone 4GB/8GB/16GB
iPod touch
1st generation
8GB/16GB/32GB
iPod nano 4th
generation (video) 8GB/16GB none
iPod nano 3rd
generation (video)4GB/8GBnone
iPhone or iPod
Model Capacity Sleeve Pad
iPod 5th
generation (video)
30GB
60GB/80GB
iPod nano 2nd
generation (aluminum)2GB/4GB/8GB none
iPod video
iPod video
touch 2nd gen
iPod touch
2nd generation 8GB/16GB/32GB
iPod classic
80GB/120GB
160GB

TuneBase™FM for iPhone and iPod 5
SECTIONS 1 2 3 8765Table of Contents 4
SETUP INSTRUCTIONS
iPhone or iPod Model Capacity Sleeve Pad
iPhone 3G 8GB/16GB
iPhone 4GB/8GB/16GB
iPod touch
1st generation
8GB/16GB/32GB
iPod nano 4th
generation (video) 8GB/16GB none
iPod nano 3rd
generation (video)4GB/8GBnone
iPhone or iPod
Model Capacity Sleeve Pad
iPod 5th
generation (video)
30GB
60GB/80GB
iPod nano 2nd
generation (aluminum)2GB/4GB/8GB none
iPod video
iPod video
touch 2nd gen
iPod touch
2nd generation 8GB/16GB/32GB
iPod classic
80GB/120GB
160GB

TuneBase™FM for iPhone and iPod 6
SECTIONS 1 2 3 8765Table of Contents 4
SETUP INSTRUCTIONS

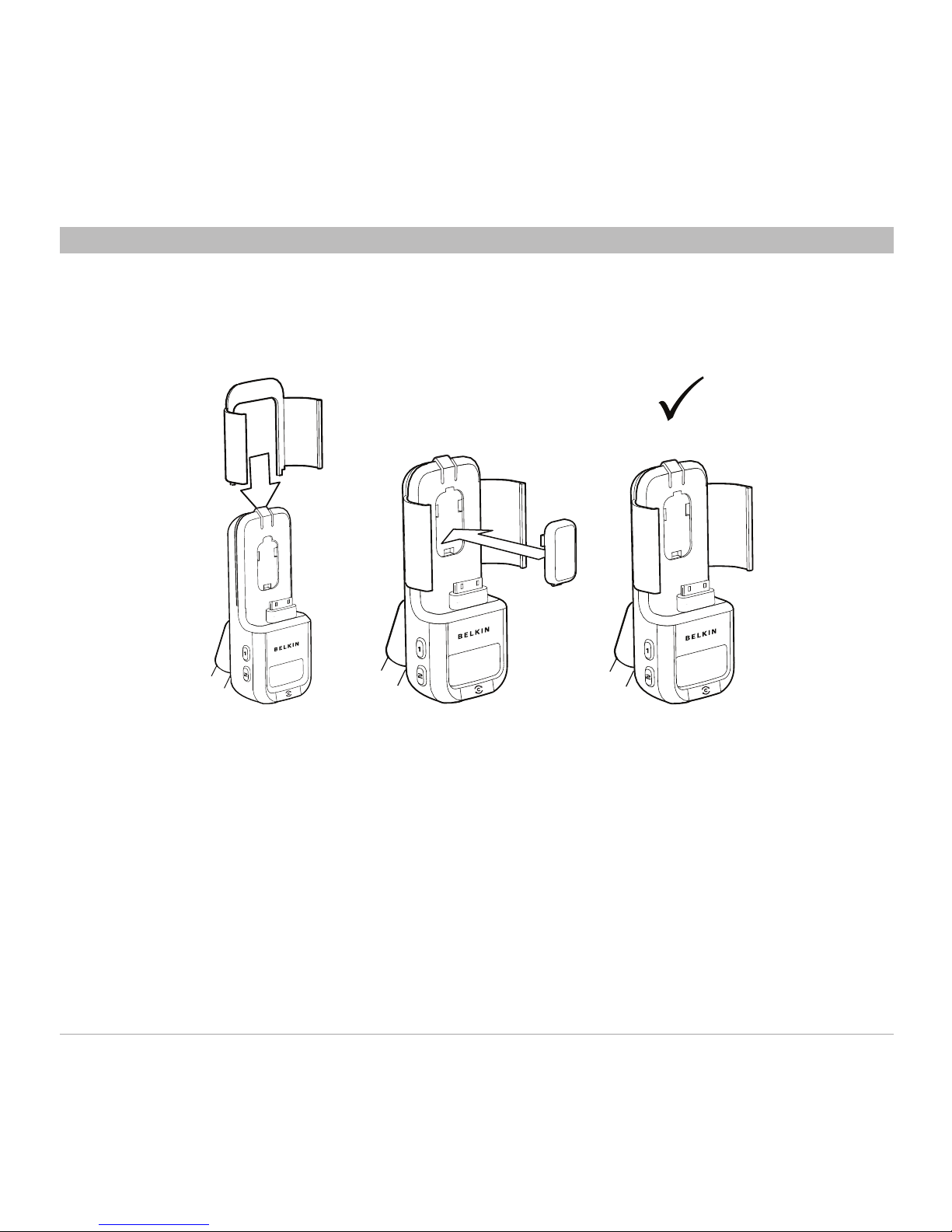

Carefully slide the sleeve into the top of the cradle and attach the spacer pad to the back of
the cradle.
1. Turn down your stereo volume.
2. Connect your TuneBase FM to the cigarette lighter adapter or power outlet in your vehicle.
The LED on your TuneBase FM indicates proper connection.
Warning: Be careful when rotating the connector in the cigarette lighter adapter or power
outlet. If you experience resistance, unplug the connector and reinsert it in the desired position.
Failure to do so may damage the cigarette lighter adapter or power outlet.
Note: Cigarette lighter adapters vary in size in different vehicles. In some cases, the fit can be
improved by pressing the collar (included with your TuneBase FM) into the power outlet before
inserting the connector. However, the collar will not usually be needed.

TuneBase™FM for iPhone and iPod 7
SECTIONS 1 2 3 8765Table of Contents 4
SETUP INSTRUCTIONS

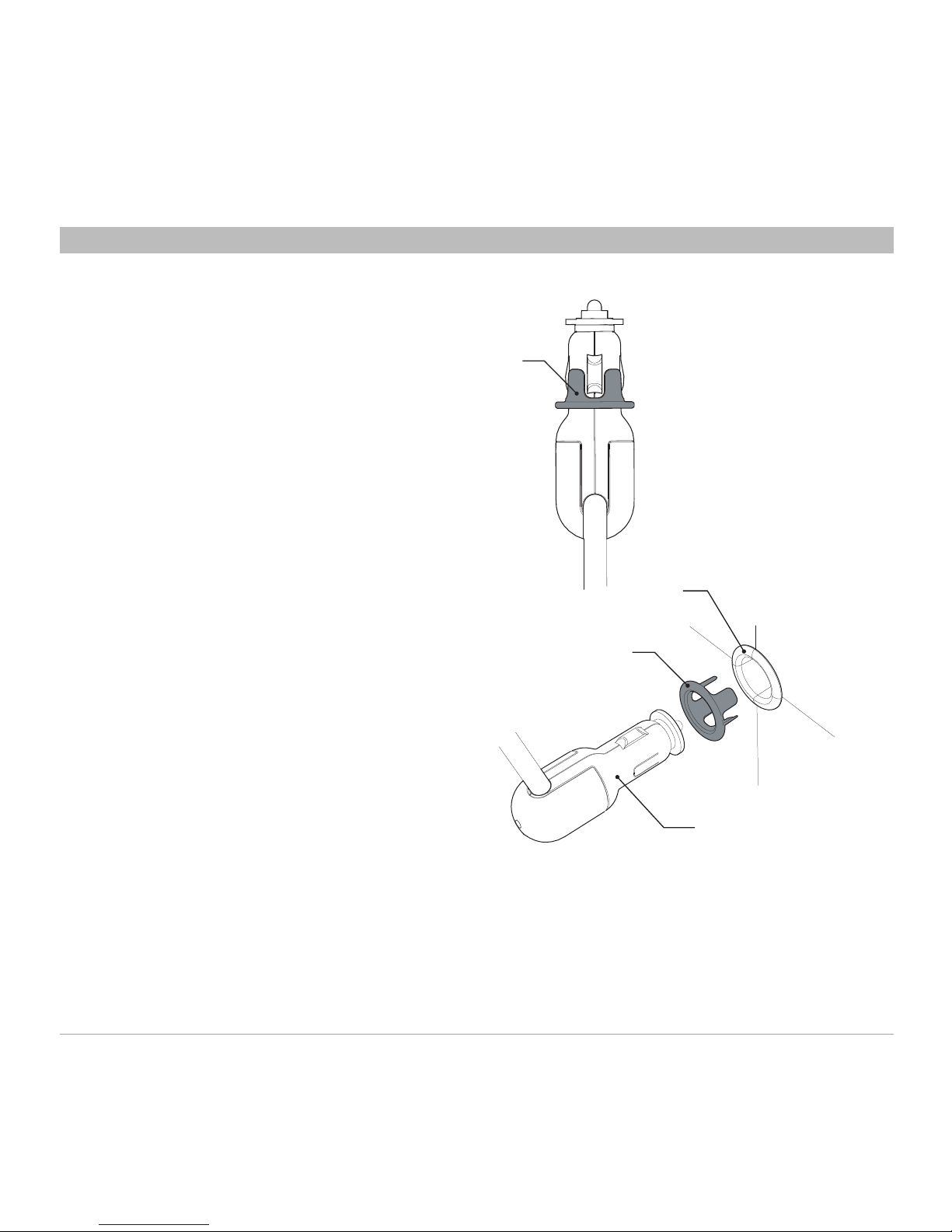

3. Bend the flexible neck to your
desired position.
(A)
(B)
(D)
(C)
A. Be sure to
position the
ring securely
around the
metal contact
to ensure
proper electrical
connection.
B. Power source
(cigarette lighter
adapter or
power outlet)
C. Fit ring
D. Connector
4. Carefully slide your iPhone or iPod into
the cradle at the top of your TuneBase
FM. The iPhone or iPod will power on if
the vehicle’s battery is on.
Warning: To avoid damaging your iPhone
or iPod, please remove your iPhone or
iPod from your TuneBase FM’s cradle
before disconnecting your TuneBase FM
from the power outlet.
Note: Your iPhone or iPod will automatically
pause if your TuneBase FM is removed
from the cigarette lighter or if the vehicle is
turned off.

TuneBase™FM for iPhone and iPod 8
SECTIONS 1 2 3 8764Table of Contents 5
BASIC CONTROLS
Using Your TuneBase FM
Your TuneBase FM will automatically turn on when your iPhone or iPod is connected and power
is available, and it will automatically turn off when your iPhone or iPod is removed or if power
becomes unavailable.

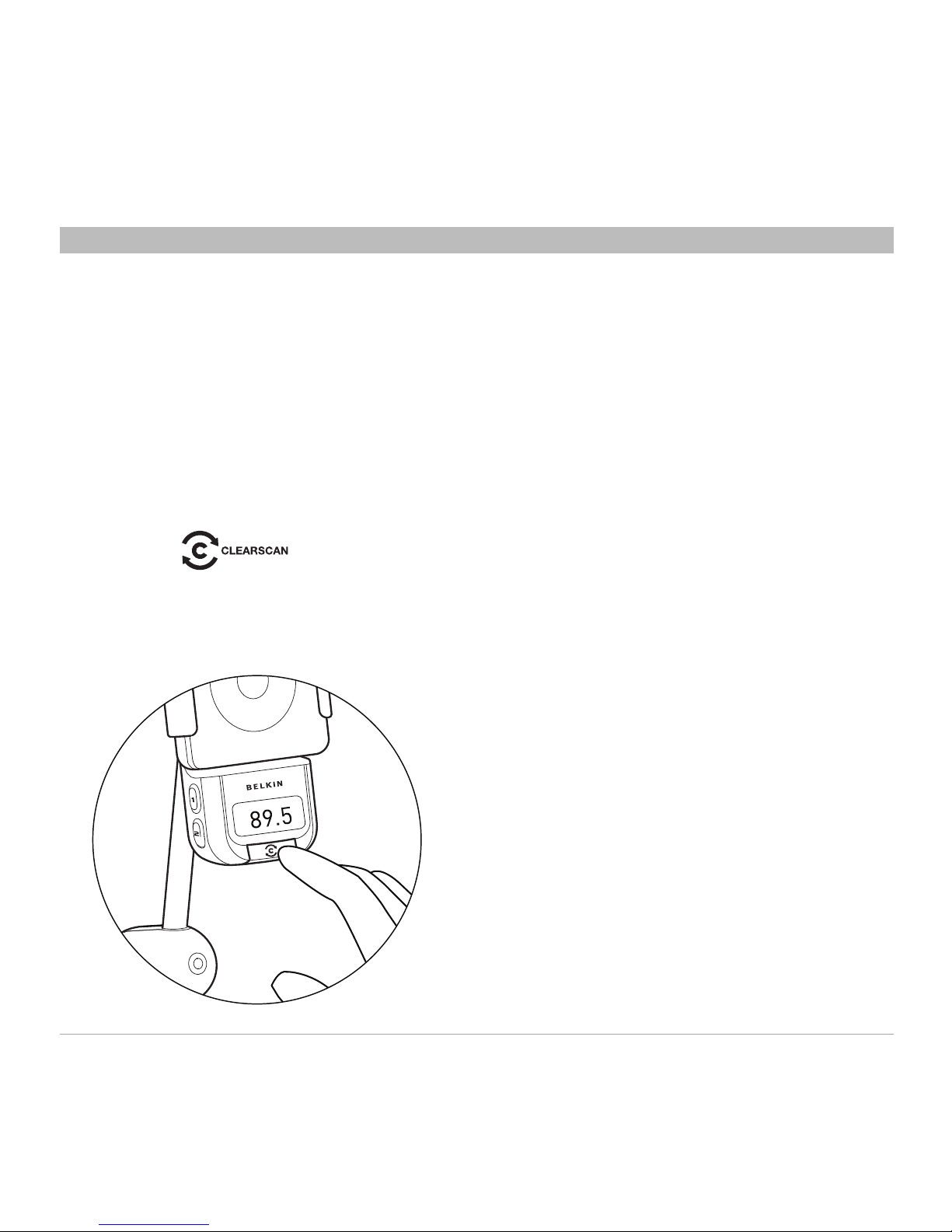

Using ClearScan to Find the Best FM Frequency (recommended)
Your TuneBase FM uses ClearScan technology to scan for the clearest FM frequencies in your
area. If you hear any interference:
1. Press the button. TuneBase
FM will display the words “tune to”
followed by a clear frequency. It will then
start transmitting on this new frequency.
2. Tune the stereo to the frequency on your
TuneBase FM display.
3. If you hear interference on the new
frequency, just press the “ClearScan”
button again and tune your stereo to the
new frequency.
Note: If you immediately press the
ClearScan button when you turn on your
TuneBase FM, it may take up to 10 seconds
for ClearScan to locate the best frequency.

TuneBase™FM for iPhone and iPod 9
SECTIONS 1 2 3 8764Table of Contents 5
BASIC CONTROLS
Manually Selecting an FM Frequency
If you want to use a specific frequency, you
can manually select it on your TuneBase FM.
1. Tune your stereo to a frequency with
a weak signal. If possible, try to find a
frequency that is not broadcasting a
radio station.
2. Press the + or - button on your TuneBase
FM to select the same frequency.
Pressing and holding either button will
provide faster tuning.
Storing a Preset Frequency
When you find a clear FM frequency, you can
store it for later use. You can store two radio
frequencies using the 1 and 2 preset buttons.
1. If you are not currently on the frequency
you want to store, use the + or - buttons
to select the frequency.
2. Press and hold the 1 or 2 preset button
for two seconds. You will hear a beep
when the new frequency is programmed.

TuneBase™FM for iPhone and iPod 10
SECTIONS 1 2 3 8764Table of Contents 5
BASIC CONTROLS
Selecting a Preset Frequency
• Press the 1 or 2 preset button. Your
TuneBase FM will change to the
preset frequency.
Using the Audio-Out Jack and a
Cassette Adapter
Your TuneBase FM is equipped with a 3.5mm
audio-out jack. If you cannot find a clear
FM frequency, you can connect the 3.5mm
audio-out jack on your TuneBase FM directly
to your stereo (if line-in is available) or to a
cassette adapter. Note: When making this
type of connection, TuneBase FM and your
car stereo should be turned off to eliminate
possible damage caused by electrostatic
discharge (ESD).

TuneBase™FM for iPhone and iPod 11
SECTIONS 1 2 3 8764Table of Contents 5
BASIC CONTROLS
Using the PRO Setting to Improve Performance
When you connect your iPhone or iPod, your TuneBase FM will automatically adjust the volume
for your iPhone or iPod model. Although the default volume setting will be ideal for most
conditions, you may be able to improve the audio performance of your TuneBase FM by using
the PRO setting:
Normal – No change to the audio. This
setting works well with all types of audio.
PRO 1 – Increases the average volume of
the audio. This setting works well with most
types of music.
PRO 2 – Increases the average volume even
further. This setting works well with quieter
music, but it may cause distortion with
louder music.
–Increases the average volume
and transmits in mono (instead of stereo).
This setting works well for podcasts and
audio books. It can also be used to improve
reception if you are not receiving a clear
signal from your TuneBase FM.
Your TuneBase FM displays the current PRO
setting. Pressing the “PRO” button changes
the setting as follows:
Listening to Mono Recordings
Your TuneBase FM transmits in stereo,
but you can transmit in mono if needed.
We suggest that you switch to mono
transmission if your stereo is not receiving a
clear signal from your TuneBase FM or if you
are listening to a mono recording such as a
podcast or audio book.
To switch to mono transmission, press
the “PRO” button until the
setting appears. The “PRO” button settings
are as follows:
PRO1 PRO2
PRO1 PRO2

TuneBase™FM for iPhone and iPod 12
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
You can quickly solve most problems with your TuneBase FM by following the advice in
this section.
Problem
Your iPhone or iPod is not charging.
Solution
• Make sure your TuneBase FM is correctly
connected to the power outlet.
The green indicator light on your TuneBase
FM’s cigarette lighter adapter should be lit
at all times.
• Check to see that the iPhone or iPod is
pushed all the way into the cradle.
• Make sure the power outlet is receiving
power. Some vehicles do not provide
power to the power outlet unless the
vehicle is in ignition mode or the engine
is running.

TuneBase™FM for iPhone and iPod 13
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
• If none of these solutions solves the
problem, the fuse in your TuneBase FM
might be burned out. Carefully follow the
steps below to replace the fuse.
Use a clean, level surface to disassemble
your TuneBase FM so that components do
not get lost. Do not attempt to change the
fuse in a vehicle.
CAUTION: For continuous protection
against the risk of fire, replace with same
type and rating fuse.

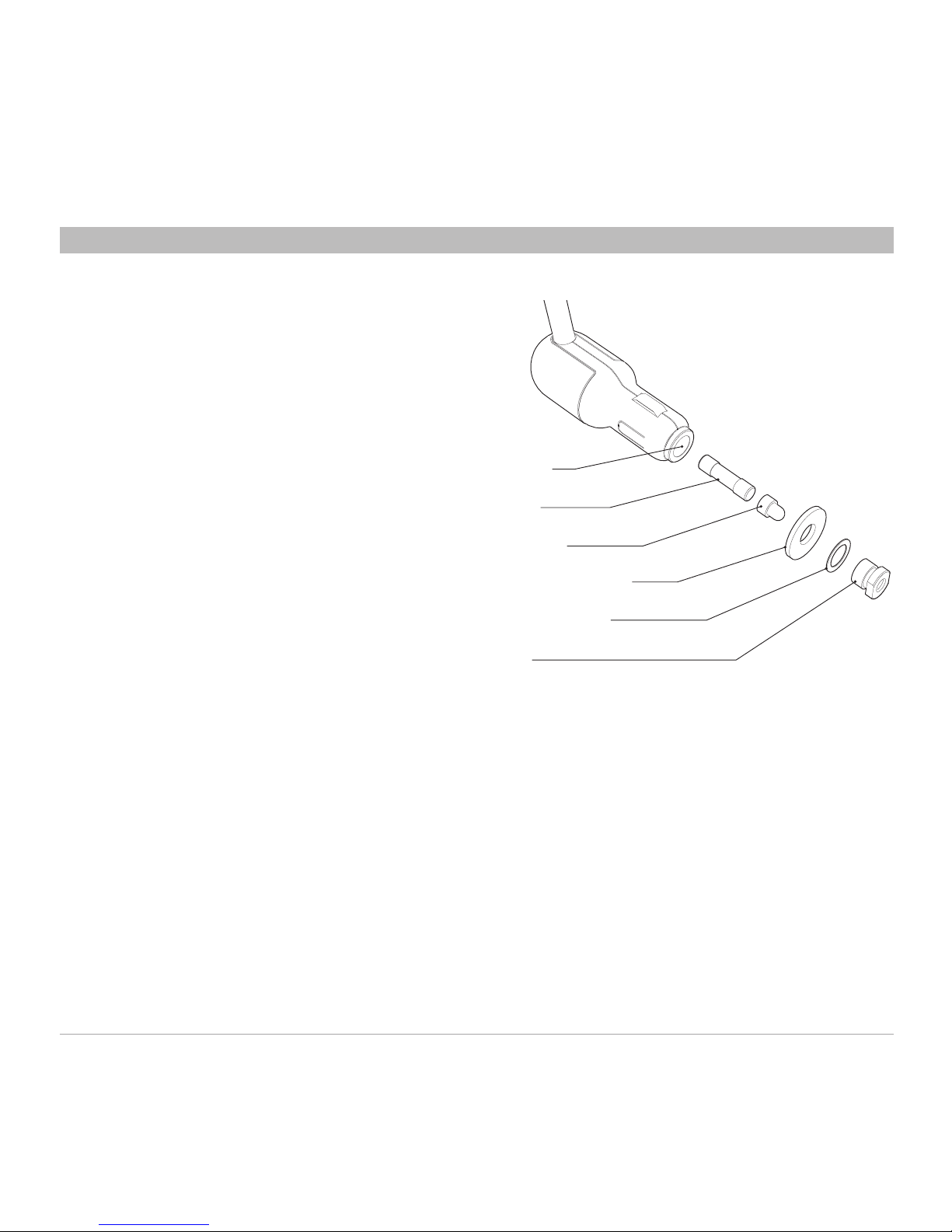

To replace the fuse, you will need to remove
the front of the cigarette lighter adapter.
The front of the cigarette lighter adapter
is spring-loaded. Remove it slowly and
carefully using pliers so that it does not get
lost. Purchase a new fuse at an auto supply
store. Please refer to Fig. A for correct order
of assembly. Be sure to tighten the nut firmly
with pliers.
SPRING
(NOT PICTURED)
FUSE
CONTACT
FRICTION WASHER
METAL WASHER
NUT
FIG. A

TuneBase™FM for iPhone and iPod 14
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
Problem
Your TuneBase FM and iPhone or iPod are in the way of your vehicle’s controls.
Solution
Use the flexible gooseneck and the articulation behind the docking
cradle to position your TuneBase FM away from your vehicle’s
controls. Try to position the gooseneck in as close to an upright
position in relation to the adapter as possible (Fig. B).

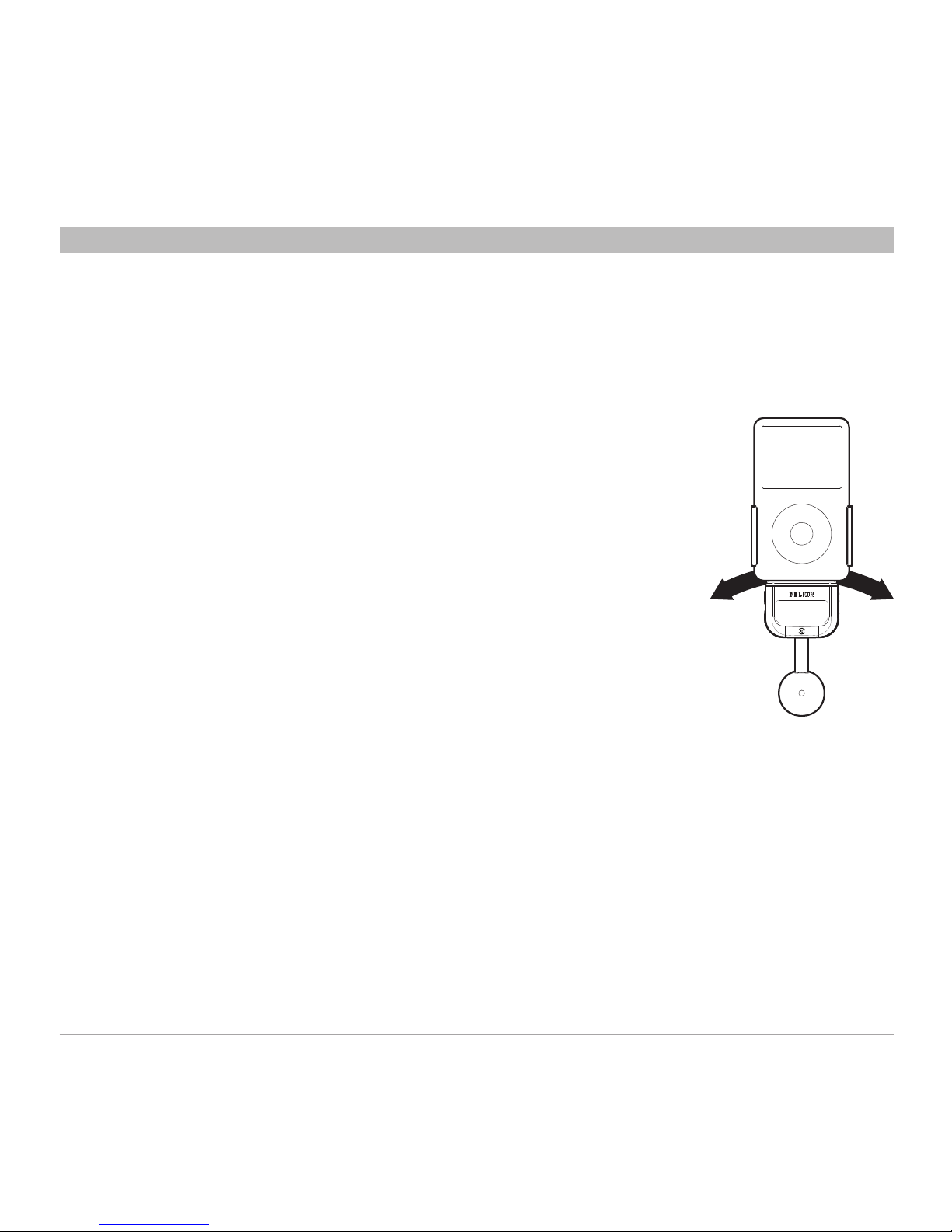

FIG. B

TuneBase™FM for iPhone and iPod 15
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
Problem
Your TuneBase FM rotates out of position around the center of the power outlet.
CUT
CUT
CUT
FIG. C
Solution 1
Be sure to solidly attach your TuneBase FM’s cigarette lighter adapter to
the power outlet. Test the stability by pushing it sideways before driving.
Solution 2
In some vehicles, the power outlet is wider than the cigarette lighter
adapter. You may notice a wiggle in your TuneBase FM when you push it.
In that case, fit the provided collar around your TuneBase FM’s cigarette
lighter adapter. Then, attach the cigarette lighter adapter to the power
outlet. Slide the collar into the power outlet, making sure that all four
protrusions securely fit into the power outlet.
Solution 3
Some power outlets will not fit all four protrusions of the collar. In order
to improve the fit of the cigarette lighter adapter in the power outlet of the
vehicle, you can cut the collar to size. You can use scissors to carefully
cut as many protrusions as you need. Cut the protrusions from one side
to the other, and try to fit your TuneBase FM into the power outlet after
each cut. (Fig. C).

TuneBase™FM for iPhone and iPod 16
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
Problem
Your TuneBase FM connects firmly to the
power outlet, but it still rotates.
Solution
Check to see if the power outlet rotates
in its socket. If so, please consult your
vehicle’s manufacturer.
Problem
You cannot insert the cigarette lighter
adapter into the power outlet.
Solution
The cigarette lighter adapter’s friction washer
may need to be centered. Carefully follow the
steps below to center the friction washer.
Use a clean, level surface to disassemble
your TuneBase FM so that components do
not get lost. Do not attempt to center the
washer in a vehicle.
To center the washer, you will need to loosen
the nut on the front of the cigarette lighter
adapter. Use pliers to slightly loosen the nut.
It is not necessary to remove it. Move the
friction washer back into centered position.
Use pliers to tighten the nut firmly.

TuneBase™FM for iPhone and iPod 17
SECTIONS 1 2 3 8754Table of Contents 6
TROUBLESHOOTING
Problem
The rubber washer remained in the power outlet when you removed your TuneBase FM.
Solution
This is rare, but if it occurs you can remove the rubber washer from the power outlet and place it
back on the cigarette lighter adapter.
Disconnect the vehicle’s battery. Any attempt to remove the washer without
disconnecting the battery may result in physical harm to you or damage to the vehicle.
Use pliers to carefully remove the friction washer from the power outlet. Place the friction
washer back on the cigarette lighter adapter. Then, reconnect the vehicle’s battery.

TuneBase™FM for iPhone and iPod 18
SECTIONS 1 2 3 8654Table of Contents 7
SAFETY WARNINGS
Your TuneBase FM requires full concentration and both hands to install. Do not attempt to
connect your TuneBase FM while driving. Make sure your TuneBase FM fits securely and
firmly into the power outlet before driving. After installation, make sure your TuneBase FM does
not freely rotate in the power outlet. Do not attempt to adjust or retrieve an unsecured
TuneBase FM, or iPhone or iPod, while driving. Adjust your TuneBase FM so that your
TuneBase FM and iPhone do not interfere with any of the operating controls of the vehicle.
Do not insert any objects other than the cigarette lighter adapter into the power outlet
without disconnecting the battery of the vehicle first. Failure to observe this safety
warning can result in injury or property damage.
Belkin does not assume any responsibility for personal injury or property damage incurred due
to hazardous driving as a result of interaction with the TuneBase FM, the iPhone or iPod, or the
vehicle’s power outlet.
