Belkin F1DL102 User manual

Belkin Corporation
501 West Walnut Street
Compton • CA • 90220 • USA
Tel: [phone]
Fax: [phone]
Belkin Components, Ltd.
Express Business Park • Shipton Way • Rushden
NN10 6GL • United Kingdom
Tel: [phone]
Fax: [phone]
Belkin Components B.V.
Starparc Building • Boeing Avenue 333
1119 PH Schiphol-Rijk • The Netherlands
Tel: [phone]
Fax: [phone]
Belkin, Ltd.
7 Bowen Crescent • West Gosford
NSW 2250 • Australia
Tel: [phone]
Fax: [phone]
Belkin Tech Support
US: 310.898.1100 ext. 2263
800.223.5546 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 666 040
P74475
© 2004 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed. Mac OS is a trademark of
Apple Computer, Inc., registered in the U.S. and other countries.

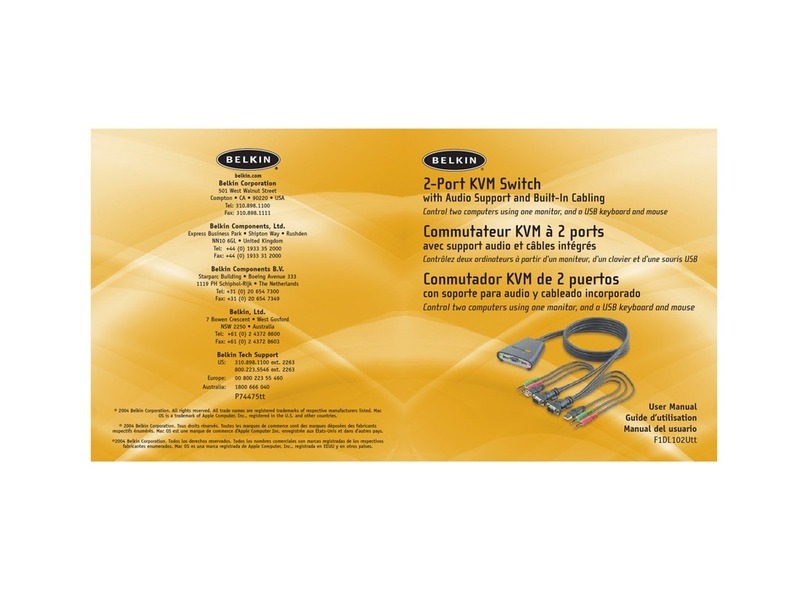

2-Port KVM Switch
with Audio Support and Built-In Cabling
User Manual
F1DL102U
Control two computers
using one monitor,
and a USB
keyboard
and mouse
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 2

Congratulations on your purchase of this Belkin 2-Port KVM Switch with Audio
Support and Built-In Cabling (the Switch). The diverse line of market-leading KVM
solutions from Belkin exemplifies our commitment to delivering high-quality, durable
products at a competitive price. Engineered to give you control over multiple
computers and/or servers from one console, Belkin KVM switches come in a variety
of capacities suitable for all configurations, large or small. A Belkin Three-Year
Warranty and free technical support back this Switch.
This manual will provide you details about your new Switch, from installation
and operation, to troubleshooting—in the unlikely event of a problem.
For easy installation, please refer to the Quick Installation Guide included with
your Switch.
Thank you for purchasing the Belkin 2-Port KVM Switch with Audio Support and
Built-In Cabling. We appreciate your business.
Package Contents
•2-Port KVM Switch with Audio Support and Built-In Cabling
•User Manual
•Quick Installation Guide
•Registration Card
INTRODUCTION
1
Introduction
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Overview
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Unit Display Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TABLE OF CONTENTS
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 4

Manual Port Selector
The manual push button at the top of the Switch allows for simple, manual
port selection.
Software Switching
The included software lets you switch ports with the click of an icon. (This
feature is available for Windows operating systems only)
Operating Systems
Your Switch is for use on CPUs using:
Platforms
• Windows® 2000, Me, XP
• Mac OS® X v10.x or higher
Keyboards
• Supports USB keyboards
Mice
• Supports USB mice
Monitors
• VGA
• SVGA
• MultiSync®
Speakers
• Stereo
OVERVIEW
3
The Belkin 2-Port KVM Switch with Audio Support and Built-In Cabling allows
you to control multiple computers with one keyboard, monitor, and mouse. The
Switch supports USB input devices (keyboard and mouse), VGA, SVGA, XGA, and
USB computers.
Features
Complete Compact Solution
Built-in cables and color-coded connectors make operation and organization easy.
Video Resolution
The Switch is able to support video resolutions of up to 2048x1536. To preserve
signal integrity at high resolutions, 75-Ohm coaxial VGA cabling is built-in to
your Switch.
Microphone/Audio Support
Built-in microphone, speaker jacks, and cables support your small- and home-office
multimedia add-ons. This feature reduces clutter by eliminating the need to unplug
and re-plug speakers and mics when you switch between computers.
Light-Emitting Diode Display
LEDs on the top of the Switch function as status monitors. The LEDs light to
indicate which corresponding monitor port is currently active.
OVERVIEW
2
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 2

4
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 4

Specifications
Part No.: F1DL102U
PCs Supported: 2
Monitors Supported: VGA, SVGA, MultiSync
Max. Resolution: 2048x1536@65Hz
Keyboard Input: USB
Mouse Input: USB
Audio/Mic Input: 3.5mm jack
VGA Port: 15-pin HDDB type
LED Indicators: 2
Enclosure: Plastic
Dimensions: 27.5 (H) x 82 (W) x 81.25mm (D)
Weight: 1.2 lbs.
Operating Temp: 32° to 104° F (0° to 40° C)
Storage Temp: -4° to 140° F (-20° to 60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 3 years
NOTE: Specifications are subject to change without notice.
65
OVERVIEWOVERVIEW
Push button
with LEDs
The 2-Port KVM Switch with Audio Support and Built-In Cabling:
Console USB Port
Unit Display Diagram
Built-In Cables
Console USB Port
Console VGA
Monitor Port
Console
Speaker Jack
Console
Mic Jack
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 5

Step-by-Step Installation Guide
This section provides complete instructions for the hardware setup of a
single Switch.
Connecting Computers to the Switch
1. Make sure the computer is powered on.
2. Verify that your USB keyboard and mouse work properly with your computer
before you install the Switch.
3. Using the attached cables, take the
VGA cable and connect it to the
VGA port on the first computer.
4. Connect the USB keyboard KVM
cable to the keyboard port on
the computer.
5. Connect the green speaker KVM
cable to the speaker jack on the
computer.
6. Connect the pink mic KVM cable to
the mic jack on the computer.
7. Repeat steps 1 through 6
for the additional computer
to be connected to
the Switch.
87
INSTALLATIONINSTALLATION
Pre-Configuration
Where to Place the Switch
The Switch is designed for positioning on the desktop. The exact placement will
be based on the location of your CPUs and length of your cables.
Cable Distance Requirements
VGA signals are best retained when transmitted up to eight feet. Beyond eight
feet, probability of video degradation increases with an increase in distance.
For this reason, your USB computer should be placed within eight feet of the
KVM Switch.
Cautions and Warnings
Avoid placing cables near fluorescent lights, air conditioning equipment, or
machines that create electrical noise (e.g., vacuum cleaners).
INSTALLATION
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 7

10
Q: What operating system does the Switch support?
A: The Switch will support Windows 2000, Me, XP, Linux, and Mac OS X v10.x
or higher.
Q: What type of mice does the Switch support?
A: The Switch will support USB mice from many manufacturers including Belkin,
Microsoft®, Logitech®, and Kensington®.
Q: How does the Switch allow the user to toggle between ports?
A: The user can choose computers using the manual port selector on the Switch
or the included switching software (supported by Windows OS only).
Q: What is the maximum video resolution the Switch supports?
A: The advanced video circuit in the Switch supports a maximum resolution
of 2048x1536.
Q: What is the difference between the 2-Port KVM Switch with Audio Support and
Built-In Cabling and the OmniView™ SOHO Series KVM Switch with Audio Support?
A: The SOHO Series KVM Switch offers a sculpted, space-saving design; cable
management; flash-upgrade capability; and a USB device option.
FAQs
Connecting the Console to the Switch
1. Connect your USB-type keyboard and mouse to the KEYBOARD and MOUSE
ports located on the front panel of your Switch.
2. Take the video cable that is attached to your monitor and connect it to the
VGA port on the front panel of the Switch.
3. Connect your speaker cable to the green speaker jack on the front panel of
your Switch.
4. Connect your mic cable to the pink mic jack on the front panel of your Switch.
9
INSTALLATION
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 9

Video
I am getting ghosting, shadowing, or fuzzy images on my monitor.
• Check that all video cables are inserted properly.
• Check that the monitor you are using supports the resolution and refresh-rate
setting on your computer.
• Check that the graphics card you are using supports the resolution and
refresh-rate setting on your computer.
• Connect the monitor directly into the computer you are having trouble with to
see if the problem still appears.
I am getting a black screen on my monitor.
• Check that all video cables are inserted properly.
• Connect your monitor directly to the computer to verify that your monitor is
functioning properly.
• Take your computer off standby mode.
Keyboard
Computer does not detect your keyboard and you get a keyboard error reported
at boot up.
• Check that the keyboard cable between the Switch and the computer is
connected properly. Tighten any loose connections.
• Try swapping your keyboard with a different one.
• Enable USB support on your BIOS.
12
TROUBLESHOOTING
11
Q: What are the benefits of the Belkin 2-Port KVM Switch with Audio Support and
Built-In Cabling over a similar competitor product?
A: The Belkin 2-Port KVM Switch with Audio Support and Built-In Cabling is an
affordable solution, packed with features usually found in higher-priced units.
The Belkin 2-Port KVM Switch with Audio Support and Built-In Cabling offers
software switching, resolution support of up to 2048x1536, and a Belkin
Three-Year Limited Warranty—all at a very affordable price.
Q: Do I have to install any software to use the Switch?
A: No, the included Windows-only software is optional. The Switch has manual
port selectors to change ports.
Q: Does the Switch require an AC adapter?
A: No, the USB ports of your computer power the Switch.
Q: Can I use the Switch to switch video signals only?
A: No, you cannot use the Switch to switch between video signals only. The
Switch requires power from the USB ports in order to operate.
Q: What type of USB devices can I connect to the Switch?
A: The Switch will work only with USB mice and keyboards. No other devices
are supported.
Q: How long is the warranty for the Switch?
A: The Switch comes with a Three-Year Limited Warranty.
FAQs
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 11

14
When I switch from one port to another, mouse movement is completely erratic.
• Make sure you do not have more than one mouse driver installed.
• Avoid moving the mouse or pressing the mouse button when switching ports
on the Switch.
• You can reset the mouse and resume proper mouse movement simply by
unplugging the mouse from the Switch and waiting 2–3 seconds before
plugging it in again.
General
My computer does not boot up when connected to the Switch, but works fine
when I connect the keyboard, video, and mouse directly to it.
• Make sure that the keyboard and mouse cables are connected tightly between
the Switch and the computer.
• Check that the USB cables are not crossed, i.e., make sure the connectors are
plugged into the correct ports.
TROUBLESHOOTING
13
• Connect the KVM Switch USB cable directly to the USB port on the computer.
• Make sure that the drivers for your keyboard are installed on your computers.
• Uninstall all other keyboard drivers from your computers.
Mouse
Mouse is lost when I switch to a different channel.
• Check that the mouse you are using is connected properly to the console port
of the Switch.
• Attach the mouse directly to the computer with which you are experiencing
mouse problems.
• Allow up to one minute following the computer’s waking from standby mode
for mouse function to return.
• Deactivate power management schemes on the PC with which you are
experiencing problems.
• Try swapping the mouse with a different one.
The computer boots up fine, but the mouse does not work.
• Make sure that the drivers for your mouse are installed on your computers.
• Make sure the mouse works when directly plugged into the computer.
Rebooting may be necessary when trying this.
• Try a different mouse.
TROUBLESHOOTING
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 13

Belkin Corporation Limited Three-Year Product Warranty
Belkin Corporation warrants this product against defects in materials and workmanship
for its warranty period. If a defect is discovered, Belkin will, at its option, repair or
replace the product at no charge provided it is returned during the warranty period,
with transportation charges prepaid, to the authorized Belkin dealer from whom you
purchased the product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse,
or misapplication; if the product has been modified without the written permission of
Belkin; or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS,
WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension,
or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH
BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or consequential
damages or exclusions of implied warranties, so the above limitations of exclusions
may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state.
16
INFORMATION
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare
under our sole responsibility that the product:
F1DL102U
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
CE Declaration of Conformity
We, Belkin Corporation, declare under our sole responsibility that the product F1DL102U,
to which this declaration relates, is in conformity with Emissions Standard EN55022 and
with Immunity Standard EN55024, LVP EN61000-3-2, and EN61000-3-3.
ICES
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe B est conforme á la norme NMB-003 du Canada.
15
INFORMATION
P74475-F1DL102U-man.qxd 12/2/03 2:56 PM Page 15
