Secure Audio and Microphone 4-Port Switch
User Manual
F1DN104A
8820-01080 Rev. A00

i
Secure Audio and Microphone 4-Port Switch
TABLE OF CONTENTS
SECTIONSTable of Contents 12345
Secure Audio and Microphone 4-Port Switch
SECTIONSTable of Contents 1SECTIONS 1Table of Contents
Introduction ............................................. 1
Package Contents ..................................... 1
Overview................................................ 2
Features ............................................. 2
Equipment Requirements ............................... 3
System Requirements .................................. 4
Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications......................................... 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pre-Configuration ..................................... 8
Connection and Installation.............................. 8
Color Code Chip Installation ............................. 9
Operating the Audio and Microphone Switch ............... 10
Information............................................. 11

1
Secure Audio and Microphone 4-Port Switch
SECTIONSTable of Contents SECTIONSTable of Contents 123451
9
Thank you for purchasing this Belkin Secure Audio and Microphone
Switch (the Switch). The Switch offers centralized control, and is
designed to reduce the possibility of analog cross-talk of the audio
signals between computers running at different security levels.
This User Manual provides all the details you’ll need to install and
operate your new Switch.
Package Contents
• Belkin Secure Audio and Microphone Switch
• 5V, 0.5A DC Power Supply and Power Cord
• 10 Interchangeable Port Color Chips (multiple colors)
• User Manual
Important: This Switch is equipped with tamper-evident labels.
The labels will provide a visual indication if the Switch has
been opened or compromised. If the unit’s enclosure appears
disrupted, please call Belkin Technical Support at
[phone].
INTRODUCTION

2
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1
Features
The Belkin Secure Audio and Microphone Switch was designed with
the user in mind for today’s VoIP environments. Below is a summary
of some features incorporated into the Switch.
Dedicated Boards
The Switch features a dedicated printed circuit board for audio and
microphone signals. This keeps the audio signals physically separated
from the microphone signals to reduce the possibility of leakage
between both signals.
No Memory Buffer
The Switch does not have a memory buffer and does not have the
ability to store data. This prevents any keystrokes or other data
input from being unintentionally transferred as you switch between
computers, ensuring the integrity of your data.
Non-Reprogrammable Firmware
The Switch features custom firmware that is not reprogrammable,
preventing the ability to tamper with the Switch logic.
Metal-Plate Firewall
A metal firewall is placed between the audio and microphone PCBs
(printed circuit boards) to reduce the potential of EMI (electromagnetic
interference) leakage.
Tamper-Evident Tape
A holographic security tamper-evident label is placed on the
enclosure to provide a visual indication if the Switch has been opened
or compromised.
Secure Packaging
“Tear away” packaging ensures secure delivery of the Switch as it is
routed to the end user.
Audio and Microphone Switching
The Switch supports both stereo audio and microphone analog
signals. Analog signals are passed through. This allows you to share
headsets, speakers and microphones between computers or
IP phones.
Microphone-Mute Button
The Switch incorporates a microphone-mute button to shut-off the
microphone when the Switch is not in use or while handling calls
where the microphone is not required.
Port Coloring
The included color chips can be inserted into each port-selector
button. Colors can be associated with an established network to
facilitate port identification and reduce user switching error.
12345

3
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1234
Equipment Requirements

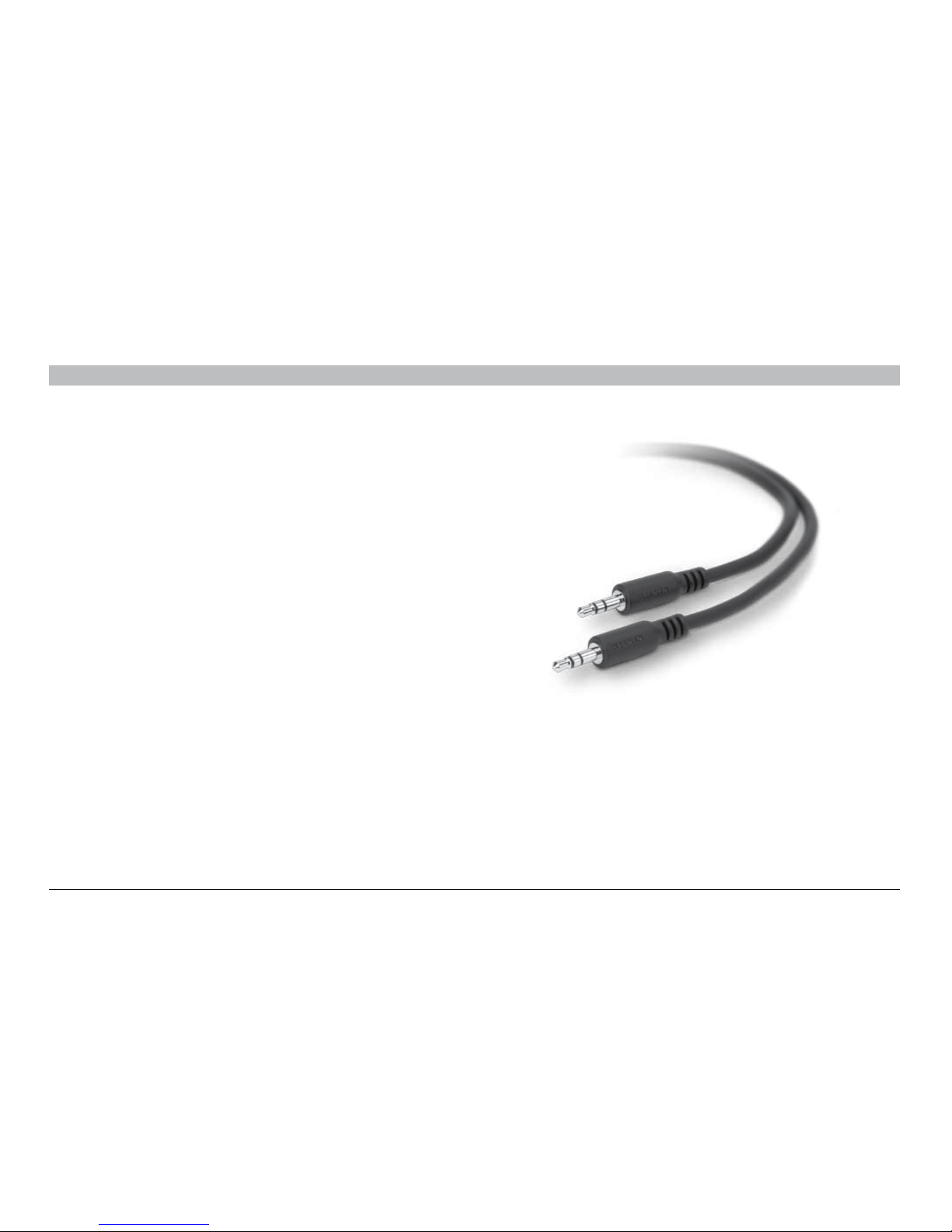

Cables
Belkin highly recommends you use Belkin Audio/Mic Cable Kits for
your Switch to help ensure superior performance. These cables offer
the highest quality possible to ensure optimal signal transmission.
One Cable Kit is required per connected computer or IP phone.
Belkin Shielded Audio/Mic Cable Kits:
F1D9016b06 – 6 ft. (1.8m)
F1D9016b10 – 10 ft. (3m)
12345

4
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1234
System Requirements
The Switch is compatible with computers and IP phones.
Headsets, Speakers, and Microphones
The Switch is compatible with analog headsets, speakers, and
microphones. Headset compatibility includes but is not limited to:
• Plantronics HW261N with 3.5mm PC Cable Adapter
• PC Headsets, 3.5mm
• PC Microphones, 3.5mm
12345

5
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1234

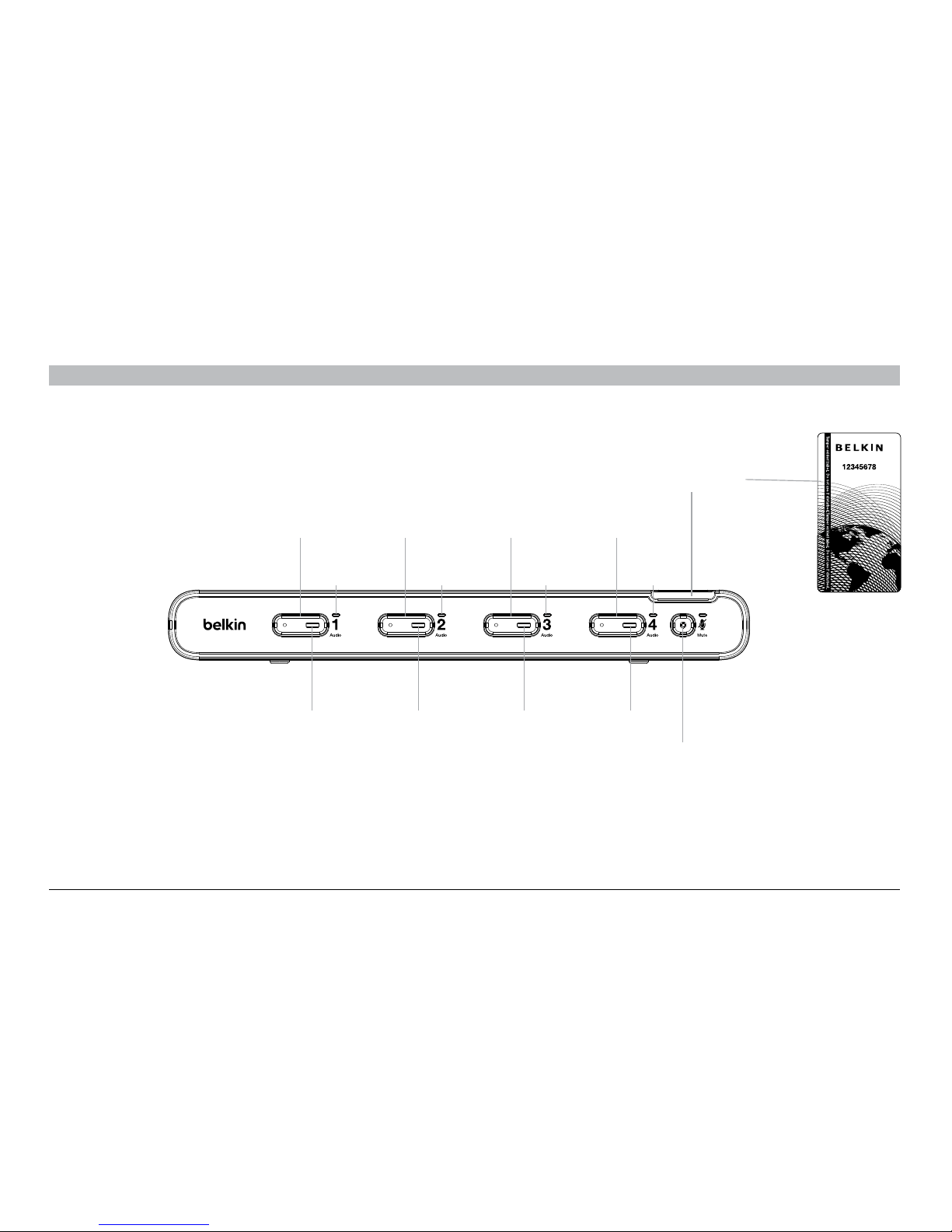

Unit Display Diagram, Front View
IMPORTANT
NOTICE:
If for any reason
the tamper-evident
seal is missing,
appears disrupted,
or looks different
than the example
shown here,
please call Belkin
Technical Support
at [phone].
12345
Tamper-Evident Seal
Microphone-Mute
Button
Port 3
Selector
Port 4
Selector
Port 2
Selector
Port 1
Selector
Color Chip Color Chip Color Chip Color Chip
LED
Indicator
LED
Indicator
LED
Indicator
LED
Indicator

6
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1234

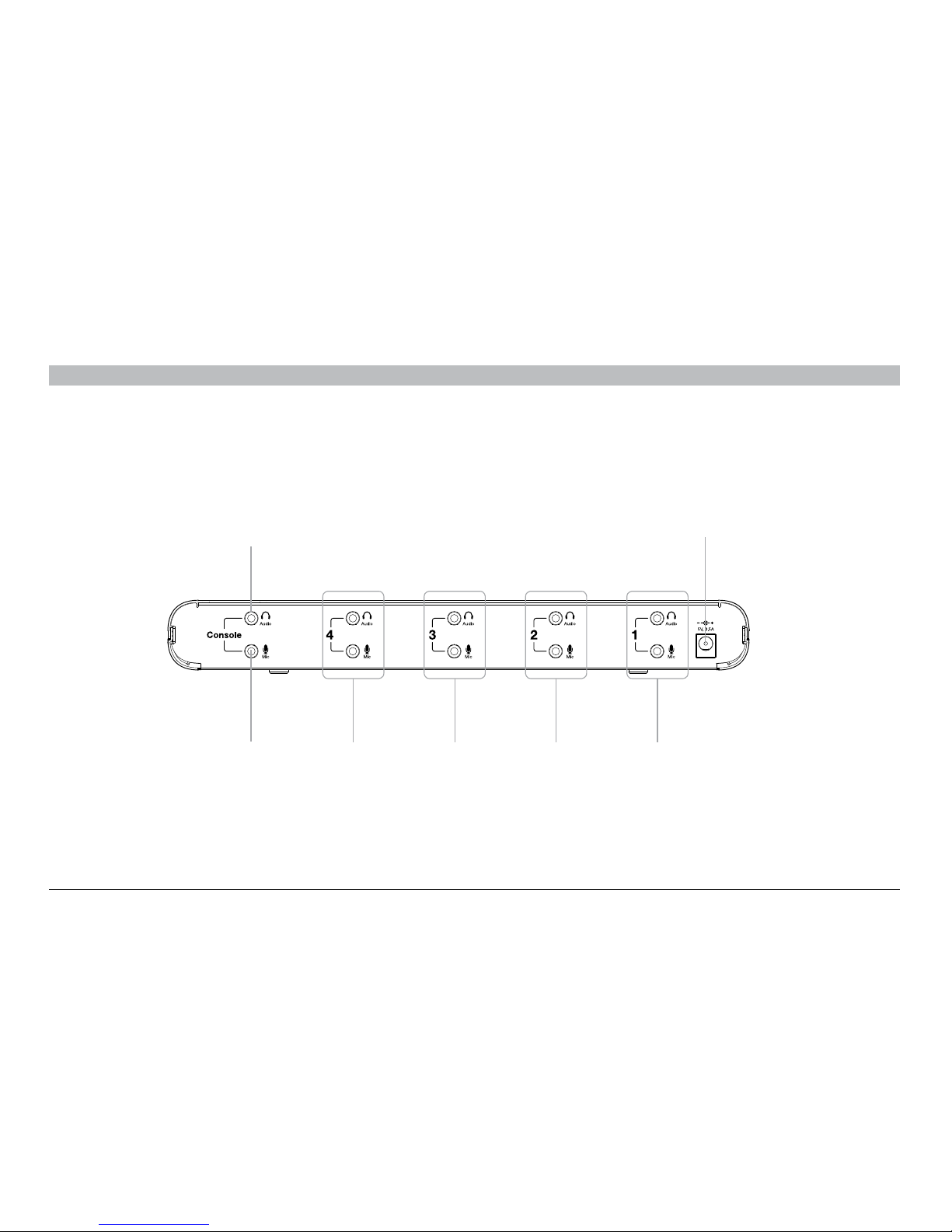

Unit Display Diagram, Back View
12345
Port 4
Audio and
Microphone
Console
Microphone
Port
Port 3
Audio and
Microphone
Port 2
Audio and
Microphone
Port 1
Audio and
Microphone
DC Power Jack
Console
Audio Port

7
Secure Audio and Microphone 4-Port Switch
OVERVIEW
SECTIONSTable of Contents 1234
Part No.: F1DN104A
Enclosure: Metal enclosure with high-impact
plastic faceplate
Power Requirements: 5V DC, 0.5A (minimum) power adapter
with center-pin-positive polarity
AC Input: 100 to 240VAC
No. of Users Supported: 1
No. of Computers Supported: 4
Console Audio Output: 3.5mm, female
Console Microphone Input: 3.5mm, female
Audio Port Inputs: 3.5mm, female
Microphone Port Outputs: 3.5mm, female
Port Selectors: 4
Port LED Indicators: 4
Microphone-Mute Button: 1
Mute LED Indicator: 1
Operating Temp: 32° to 104° F (0° to 40° C)
Storage Temp: -4° to 140° F (-20° to 60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 3 years
Dimensions: 10.9 (W) x 3.4 (D) x 1.3 (H) inches
Weight: 1.65 lbs.
Made in the USA
Specifications
12345

8
Secure Audio and Microphone 4-Port Switch
INSTALLATION
SECTIONSTable of Contents 1234 5
Pre-Configuration
Where to place the Switch:
The enclosure of the Switch is designed for desktop configuration.
Consider the following when deciding where to place the Switch:
• your proximity to the port selectors on the front of the Switch
• the lengths of the cables you use to connect your computers/phones
to the Switch
Connection and Installation
Step 1 Connecting the Console to the Switch
Connect your headset, speaker, and microphone to the rear of the
Switch in the “Console” section. (Refer to diagram on page 6.)
Step 2 Power Up
Power up the Switch by connecting the power. The LED for Port 1
should light up solid white a second after power up.
Step 3 Connecting Computers to the Switch
Using the Belkin Shielded Audio/Mic Cable Kit, connect the computers
to a port on the rear of the Switch. Other devices may be connected
with appropriate adapter cables. (Refer to diagram on page 6.)
