Bel-Cypher N
Ｉ０２－１１６７Ｅ
Installation Manual
Digital Panoramic Radiograph
Bel-Cypher N
Notice
★
★★
★Read this installation Manual thoroughly before Installation.
The classification is shown as follows
According to the type of protection against electric shock. : Class Ⅰ
According to the degree of protection against electric shock. : Type B applied part
TAKARA BELMONT CORPORATION.

Bel-Cypher N
Caution!
This manual provides information and instruction for the installation, assembly, and certification pro
cedures
for the “Bel-Cypher N” X-Ray.
The instructions contained in this book should be thoroughly read and understood before attempting to
install the “Bel-Cypher N” unit. After the installation is completed, file this manual and refer back to it
when performing periodic maintenance.

Bel-Cypher N
CONTENTS
1. Introduction 01 1 / 1
2. WARNING 02 1 / 2
3. Pre-Installation Instructions 03 1 / 1
4. Specification 04 1 / 1
5. Names of each components, Measurement of equipment 05 1 / 3
6. Checking of each components and accessories 06 1 / 3
7. Installation Procedure 07 1 /14
8. Methods to install LAN Card for Panoramic Radiography 08 1 /3
9. Methods to install a TWAIN driver in imaging software 09 1 / 20
10. Post-Installation Instructions 10 1 / 5
11. Contact Information 11 1 / 1
12. Revised record of this manual 12 1 / 1

Bel-Cypher N
1. Introduction
1. Observe “Warning” and “Prohibition” matters in this Installation Manual.
2. Read this Installation Manual thoroughly to prevent an accident or trouble.
3. If you have any unclear matters in installation, reconfirm it by reading this Installation Manual.
4. After installation, read Operation Manual to understand operation procedures.
5. Discharge
Be sure to observe Installation Manual. If accidents or troubles of the equipment happen due to im-
proper installation, we cannot be responsible for those accidents or troubles.
6. Repair and repair parts supply
Repair and repair parts supply is available for 10 years from discontinued date.
7. mark means “ Attention, consult accompanying documents “.

Bel-Cypher N
2. WARNING
WARNING
Always conform to the safety work standards to assure safety for workers and other people concerned.
Repair work for internal parts of the equipment involves high risk. This should be strictly conducted by an au-
thorized service personnel only.
Meanings
DANGER
Explains danger that may cause serious adverse effect to a human body.
WARNING
Explains an instruction where personal injury or physical damage may occur
CAUTION
Explains an instruction that should be observed for safety reasons
NOTE
States descriptions which serve to improve work efficiency and to help user to understand instructions in
the manual

Bel-Cypher N

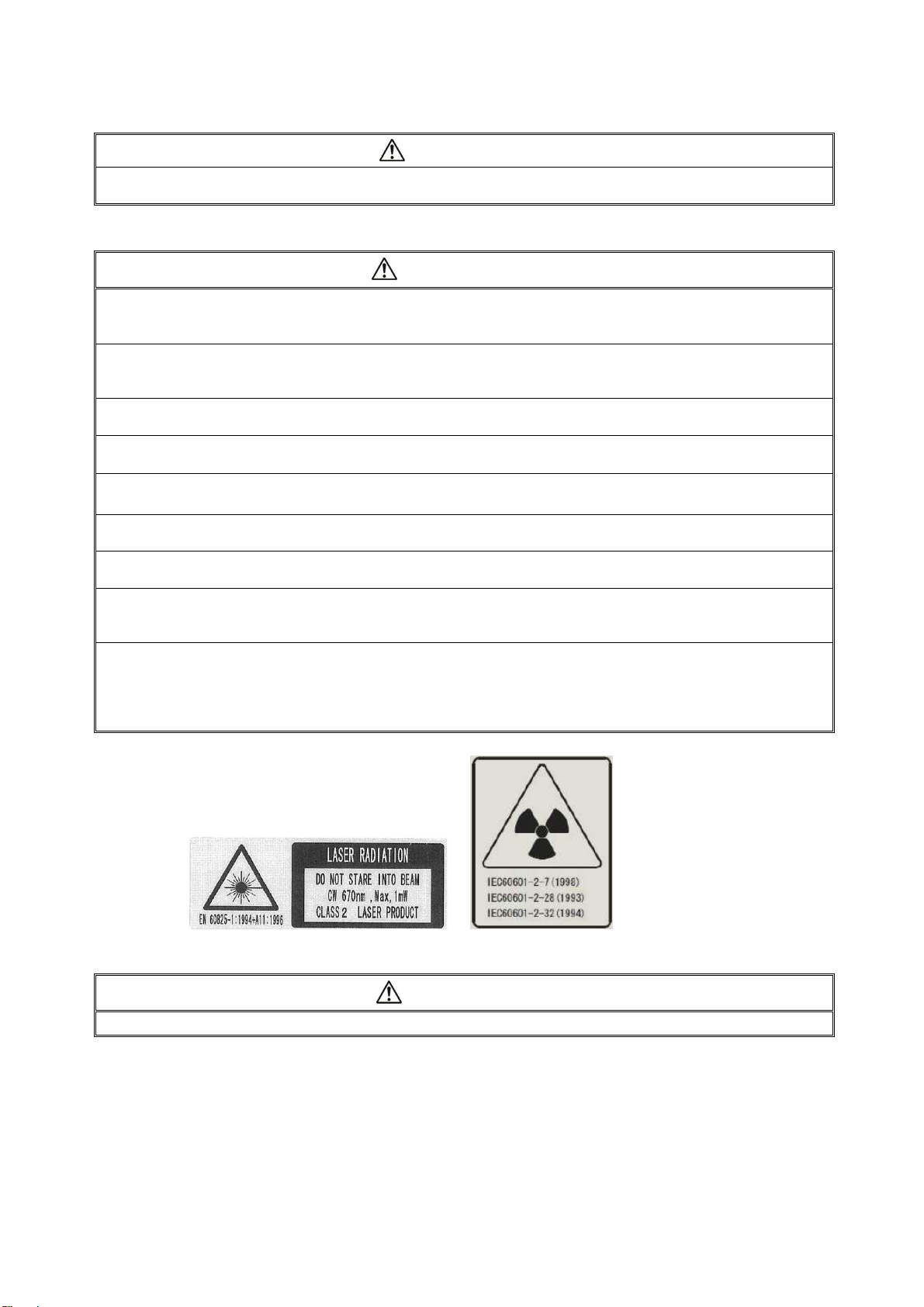

DANGER
This equipment is electrical instrument. Do not splash water.
Such action causes electric shock or trouble of equipment.
WARNING
This X-ray Unit may be dangerous to patient and operator unless safe exposure factors and operating in-
structions are observed.
Follow the local zoning authority's regulations regarding X-ray room that you are going to install
Bel-Cypher N.
The floor should have strength of 650N/100cm
2
and should be rigid.
This equipment has units which are more than 20kg. Heavy units should be brought up by more than 2
people.
Do not put things in area where equipment functions.
In order to avoid influence by other electric equipment, use separated power source from the other electric
equipment.
Those who install X-ray apparatus should wear X-ray protector apron.
Pay attention when Sliding Unit is moves up and down.
LASER RADIATION, DO NOT STARE INTO A BEAM, CLASS 2 LASER PRODUCT
１．Laser Beam is applied. For safety, instruct patient not to look at the laser beam.
２．Before the beam is lightened, lower Frankfort Line Beam to bottom.
３．Do not set the beam to patient's eyes.
CAUTION
Do not turn ROTATION ARM by hand. It might cause a trouble of the equipment .

Bel-Cypher N
3. Pre-Installation Instructions
1. Manuals
1) Installation Manual of Bel-Cypher N
2) Operation Manual of Bel-Cypher N
2. Measuring instruments and tools
2-1. Measuring instruments
1) Digital Multi Meter with an accuracy of 1%, capable of measuring 150VAC and 20mA DC, and
capable of indicating true RMS value within one second
2) Fluorescent Screen
2-2. Tools
1) Philips Head Screwdrivers (Small and Big)
2) Slotted Head Screwdrivers (Small, Anti-Static type)
3) Nut Drivers (M6, M5, M4 and M3)
4) Ratchet wrench
5) Allen keys
6) Cutting Nippers
7) Long nose nippers
8) Hammer
9) Electric Drill
10) Drill bit 8.3mm = 21/64”(which can drill in wall and a floor )
2-3. Others
1) Ethanol for disinfections
2) Waste Clothe
3) Cleanser
3. User supplied Network Card (NIC) and PC.
NOTE: IN GENERAL, MAJOR STRUCTURAL MODIFICATIONS ARE NOT REQUIRED,
HOWEVER THE FLOOR ON WHICH Bel-Cypher N IS PLACED SHOULD BE ABLE
TO SUPPORT 600 lbs. DEAD LOAD.
3 Electrical Requirements
1) Power Supply
Bel-Cypher N X-Ray operates on a power supply of 120 VAC. A three wire GROUNDED circuit, sep-
arately connected to the central distribution panel with an over current protection device rated for 15
amperes. Recommended wire size is 12 AWG. But if the wire run distance is to exceed 50 feet, 10
AWG is required. For wire run distance in excess of 75 feet, up to 125 feet, 8 AWG is required.
2) All connections, workmanship and materials used must comply with the national Electric Code and
local codes.

Bel-Cypher N
4. Specifications
General name Digital Panoramic Radiograph
Model Bel-Cypher N
Power Voltage 120Vac 60Hz 1φ
Power Capacity 11A
High Tension
Generator High TensionGenerator (100kHz)
X-ray Tube Voltage 60kV to 80kV (1kV step)
X-ray Tube Current 2 to 8mA (2mA step)
Exposure method Manual
X-ray Tube D-052SB (Toshiba)
X-ray Tube Focal Spot 0.5 mm
Total Filtration 2.8mmAl (minimum)
Radiographic Mode Panorama: (Adult, Child), Panoramic Bitewing (Adult, Child)
TMJ:
Exposure Time Panorama: 10 sec. Panoramic Bitewing:4.6 sec.
TMJ: 2.5 sec. (x 4)
MagnificationRatio Panorama: 1.2 to 1.3, Panoramic Bitewing: 1.2 to 1.3
TMJ: 1.2
Image receiver Digital Sensor
Beam for patient positioning 3 beams
Dimension W:920mm x D:1,100mm x H:2,200mm
Weight Approximately 287 lb(130 kg)
Environmental condition for Operation
Temperature : 41~95F (5～35℃)
Humidity : 30～85%
Pressure : 700～1060 hpa
Environmental condition for Storage
Temperature : 14~140F (－10～60℃)
Humidity : 10～95%
Pressure : 700～1060 hpa
Environmental condition for Transportation
Temperature : 14~140F (－10～60℃)
Humidity : 10～95%
Pressure : 700～1060 hpa

Bel-Cypher N
5. Name of each parts and Dimension of equipment
１．
１．１．
１．Names of each parts of equipment
Arm Section
X-Ray Generator
Pillar
Chinrest Unit
Exposure Switch
Rotation Unit
Control Unit
Digital Sensor
Grip
Base
Sliding Unit
Power Switch
Lock Switch

Bel-Cypher N
2．
．．
．Dimensions of equipment (with Free Standing Base)

Bel-Cypher N
Dimensions of equipment (without Free Standing Base)

Bel-Cypher N
6. Parts and Accessories for equipment
1. Parts for equipment
1) Base
2) Joint Block
3) Pillar
4) Rotation Unit ASSY
5) Rest Unit Assy
6) Weight Assy
7) Look pulley Assy
8) Upper Cover for Pillar
9) Rotation Unit Cover
10) Sliding Unit Cover
11) Fixed Screw of base and joint block
Cap Screw: M10 x 30 (6 pcs.), Spring Washer: φ10 (6 pcs.), Flat Washer: φ10 (4 pcs.)
12) Fixing screws for Joint Block and Pillar
Cap Screw: M6 x 16 (4 pcs.), Spring Washer: φ6 (4 pcs.), Flat Washer: φ6(4 pcs.)
Hexagon socket flat screw: M6 x 16 (4 pcs.), Washer (4 pcs.)
13) Fixing bolts for Sliding Unit ASSY and Rotation Unit ASSY
Hexagon Bolt: M8 x 30 (4 pcs.), Flat Washer: φ8 (4 pcs.), Spring Washer: φ8 (4 pcs.)
Taper Pin: (2 pcs.)
14) Fixing Bolts for Sliding Unit ASSY and REST ASSY
Hexagon Bolt: M5 x 30 (4 pcs.), Flat Washer: φ5 (4 pcs.), Spring Washer: φ5 (4 pcs.)
15) Fixing Screws fro Pillar and Look pulley Assy: Hex-head tapping screw φ4 x 20 (2 pcs.)
16) Fixing Screws fro Rotation Unit Cover
Binder Screw: M3 x 8 (2 pcs.), Nylon Washer: φ3 (2 pcs.)
17) Fixing Screws for Sliding Unit ASSY
Binder Screw: M3 x 16 (4 pcs.), Nylon Washer: φ3 (4 pcs.)
18) Power Cable

Bel-Cypher N
Accessories
2-1. Accessories
1) Head Holding Rods (Panorama)
2) Chinrest (Panorama)
3) Bite Block (Panorama)
4) Ear Rods (TMJ / 4 divisions)

Bel-Cypher N
2-2. Expendable Supplies
Bite Block Cover
3. X-ray Exposure Switch (with Holder)
4. CD containing TWAIN Driver

Bel-Cypher N
7. Installation Procedure

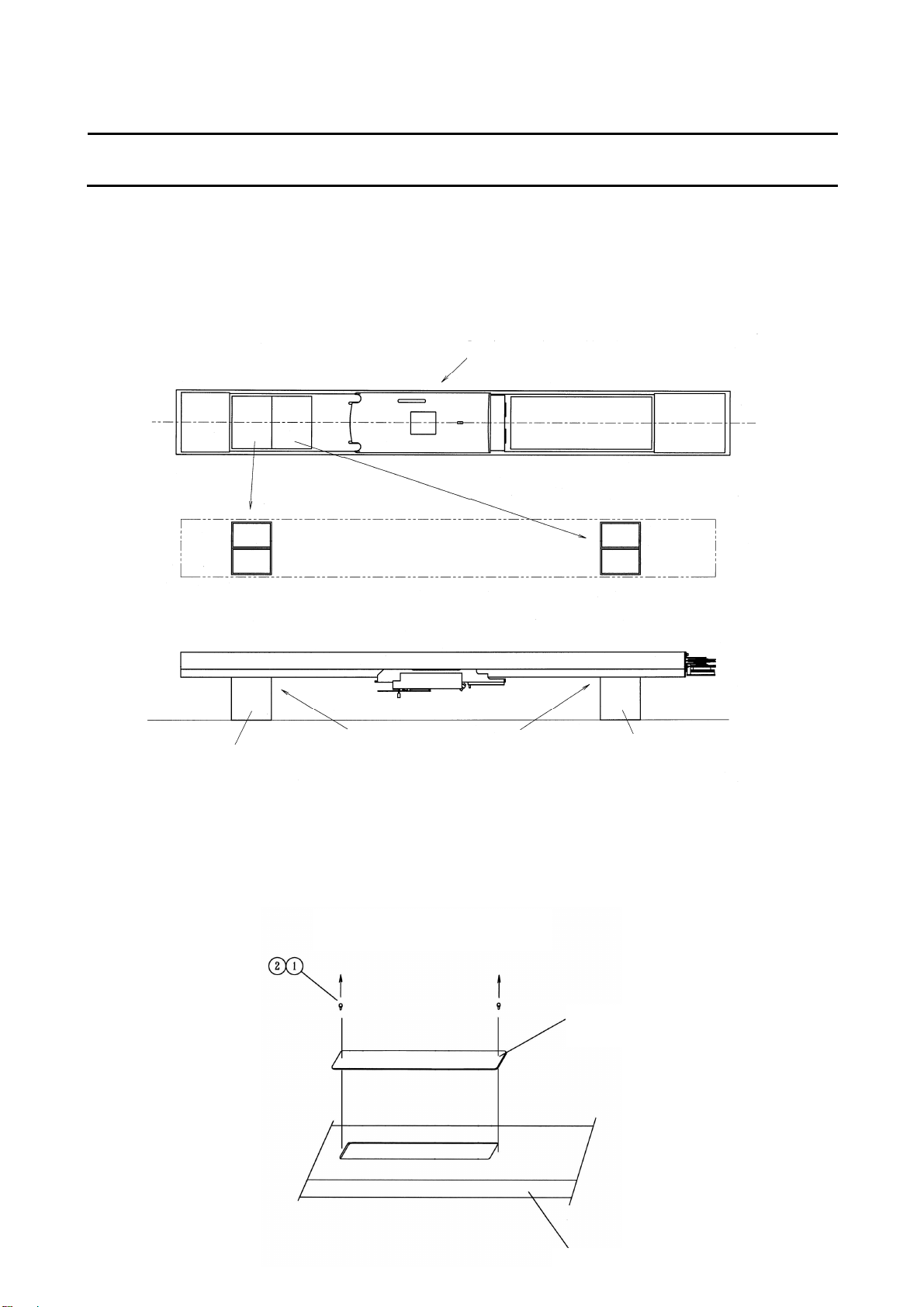

1. Remove packing material cover for Pillar, then remove pillows shown
in below
drawing they are used for pillars at installation.
1. 1. （Two pillows）
Put vinyl in the packing or waste clothe on the pillow for protecting scratch of
Pillar. Then, put the Pillar on the pillows(Sliding Unit ASSY is down side).
2．
．．
．Remove pillar cover from Pillar Assy
Take out pillows and put them
on the floor as shown below
Pillar without upper cover is shown
Put waste cloth on packing vinyl
on the pillows to avoid scratch
Pillow Pillow
(1): Bind M3 × 6 2 sets
(2): Nylon washer φ3 2 sets
Pillar cover
Pillar assy

Bel-Cypher N
3. Mount joint block by Cap Screws to base.
Free Standing Base Type Floor Type
4．
．．
．Attach the Wall Bracket to upper part of the Pillar by 2 flat head cap screws
(1): Cap Screw M10 X 30 6 sets.
(2): Spring φ10 6 sets.
(3): Washer φ10 6 sets.
(1): Flat head screw M10 X 25 6
sets.
(1): cap screw M6 × 12 2 sets
Wall bracket

Bel-Cypher N

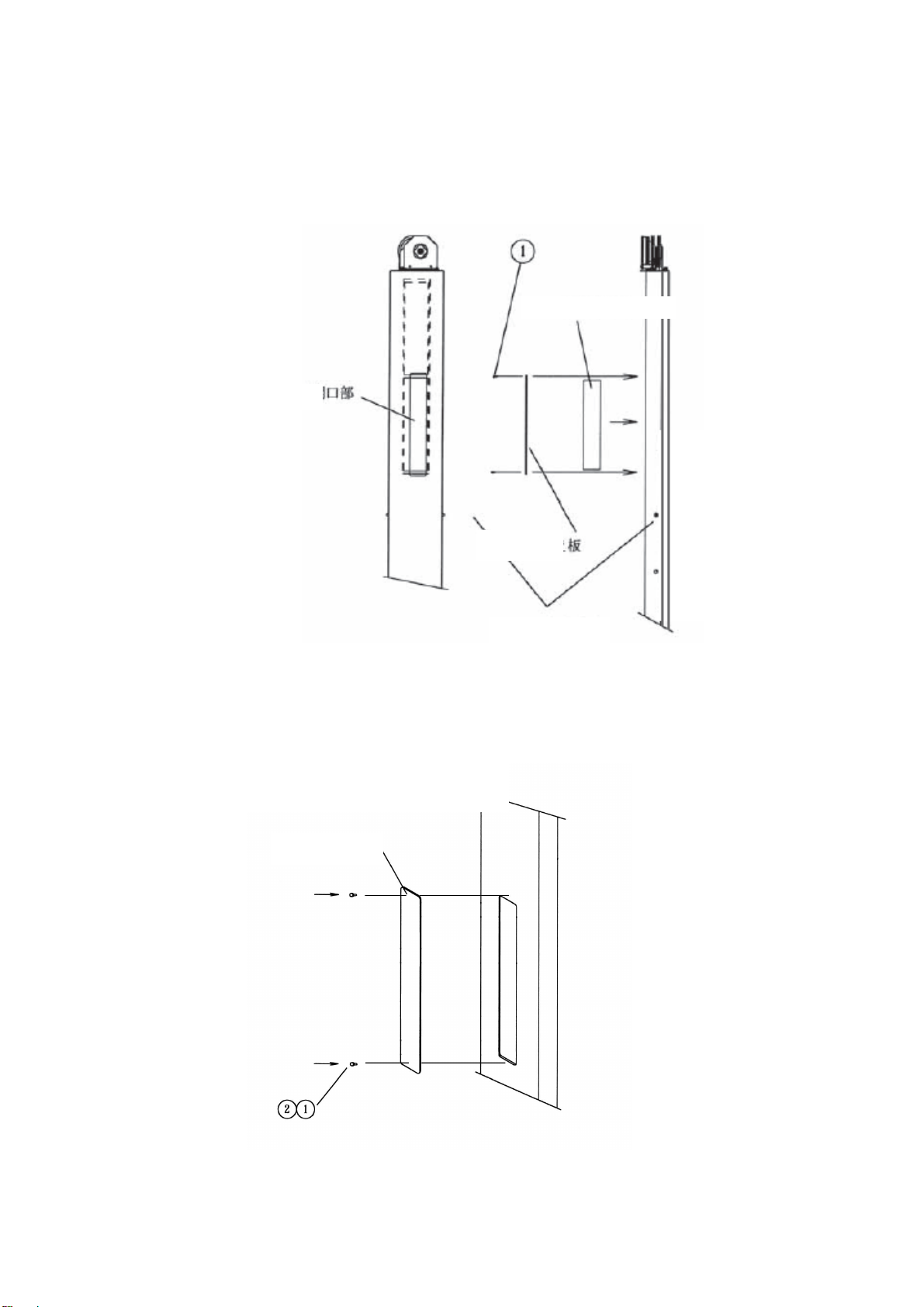

5．
．．
．Pull out the Steel Rod by removing a nylon washer and a nut, move
Sliding Unit up, then insert the Steel Rod to lower hole.
6．
．．
．Lift Sliding Unit, set 2 counter weight and adjusting weight(s) in upper
counter weight frame, then attach the cover.
Opening
Shaft
Nut
Nylon washer
(1): Screw M4 × 10 2 sets
Adjusting weight
Counter Weights (2)
Cover
Opening
Steel Rod

Bel-Cypher N
7．
．．
．Lower Sliding Unit, set 2 counter weight in lower counter weight frame,
then attach the cover.
8．
．．
．Attach pillar cover.
(1): Bind Screw M3 × 6 2 sets
(2): Nylon washer φ3 2 sets
Pillar cover
(1): Screw M4 × 10 2 sets
Opening
Counter Weights (2)
Screw M4 × 10 2 sets
Steel Rod
Cover

Bel-Cypher N
9 Move the equipment to where you place Bel-Cypher N, place two holes of th
e wall bracket on the screw thread of the concrete strike anchors.
Tighten M8 nuts.
Confirm that the apparatus is securely fixed.
When coach bolts (
((
(diameter = 8mm, length = 40mm)
))
)are used
① Move the apparatus to the place where the Bel-Cypher N is installed.
②Tighten coach bolts through holes of the mounting bracket.
If needed, drill holes prior to this step
③Confirm that the apparatus is securely fixed.

Bel-Cypher N

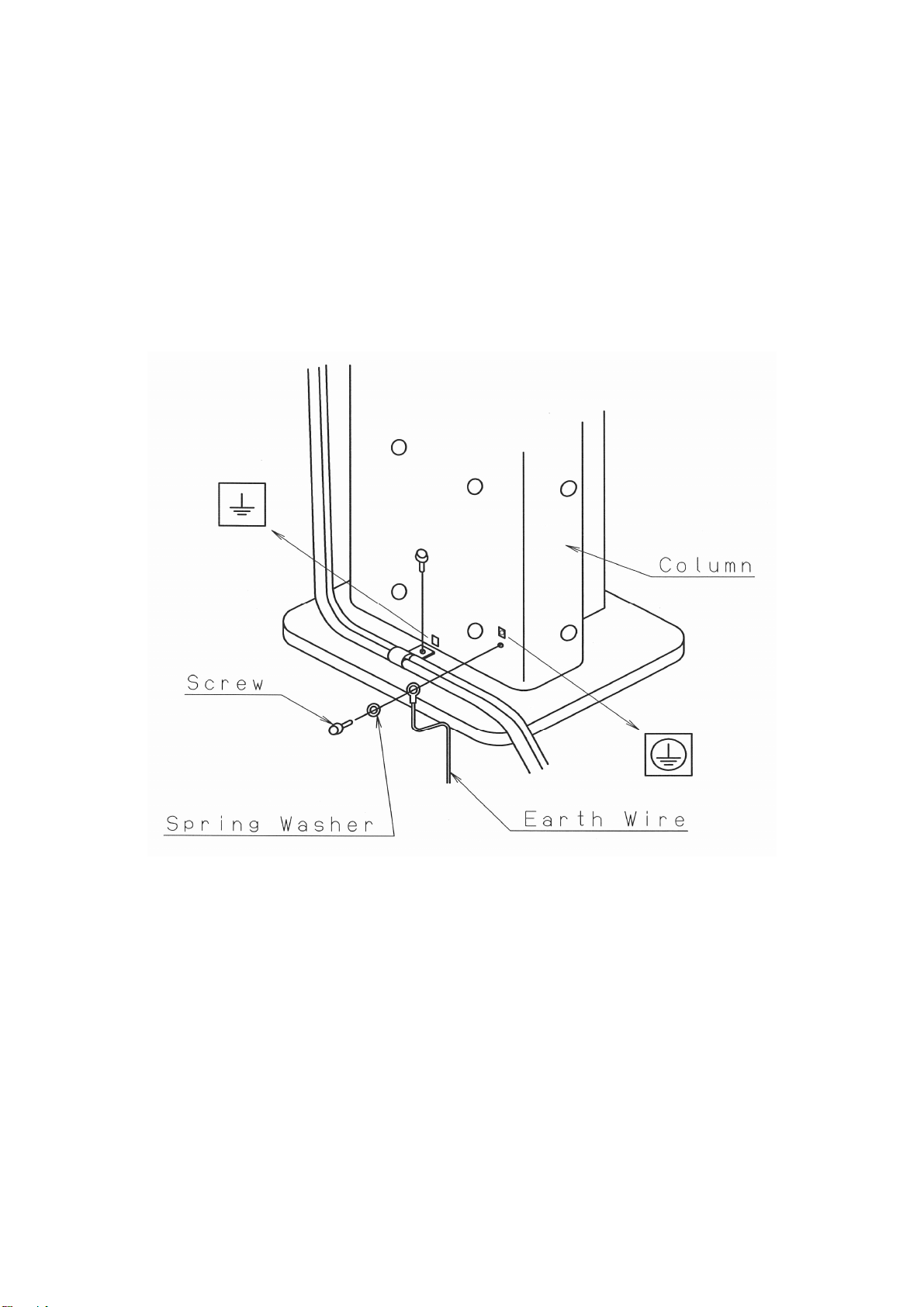

10 Method of installing the earth wire
Run the supplied earth wire from the hole located at the bottom of the column to the grounding terminal
in the X-Ray room. Connect Earth Wire to facility Earth Ground in accordance with National Electric
Code and local codes.
Secure the conductor with a screw and a spring washer. Refer to the figure below.
