Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
HD-973P
PRODUCT SKU
5175238
DRAWING Nº
5260242
CATEGORY
Four Post Li
REV
Version U
DATE
10.14.2022

DIMENSIONS ARE IN MM
☺
1
3
2

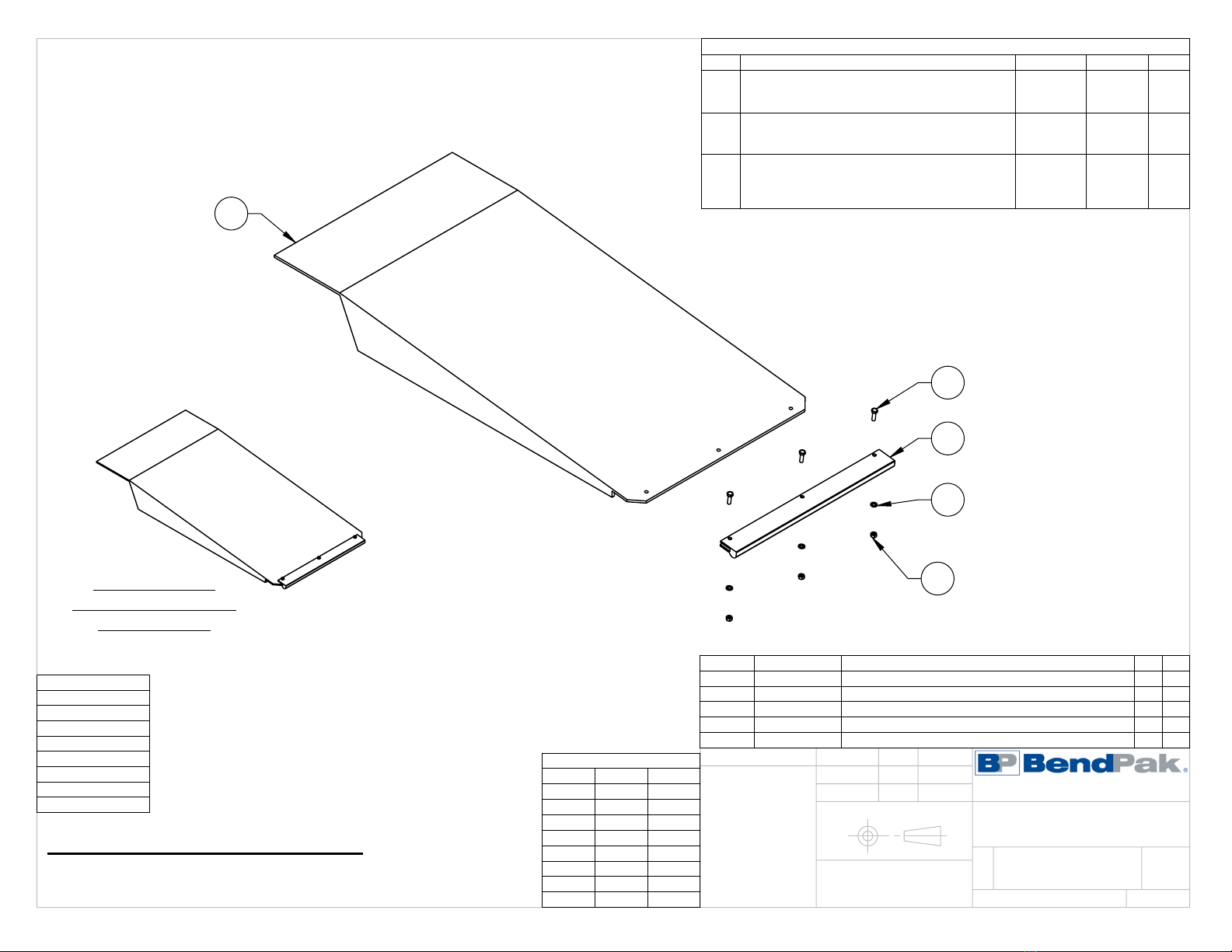

REVISION
REV DESCRIPTION DATE EDITED BY ECO#
R UPDATED BOM REVISION 12/13/2021 TM 01367
T UPDATED BOM REVISIONS 05/24/2022 TM 01414
U UPDATED BOM REVISIONS 10/11/2022 CA 01448

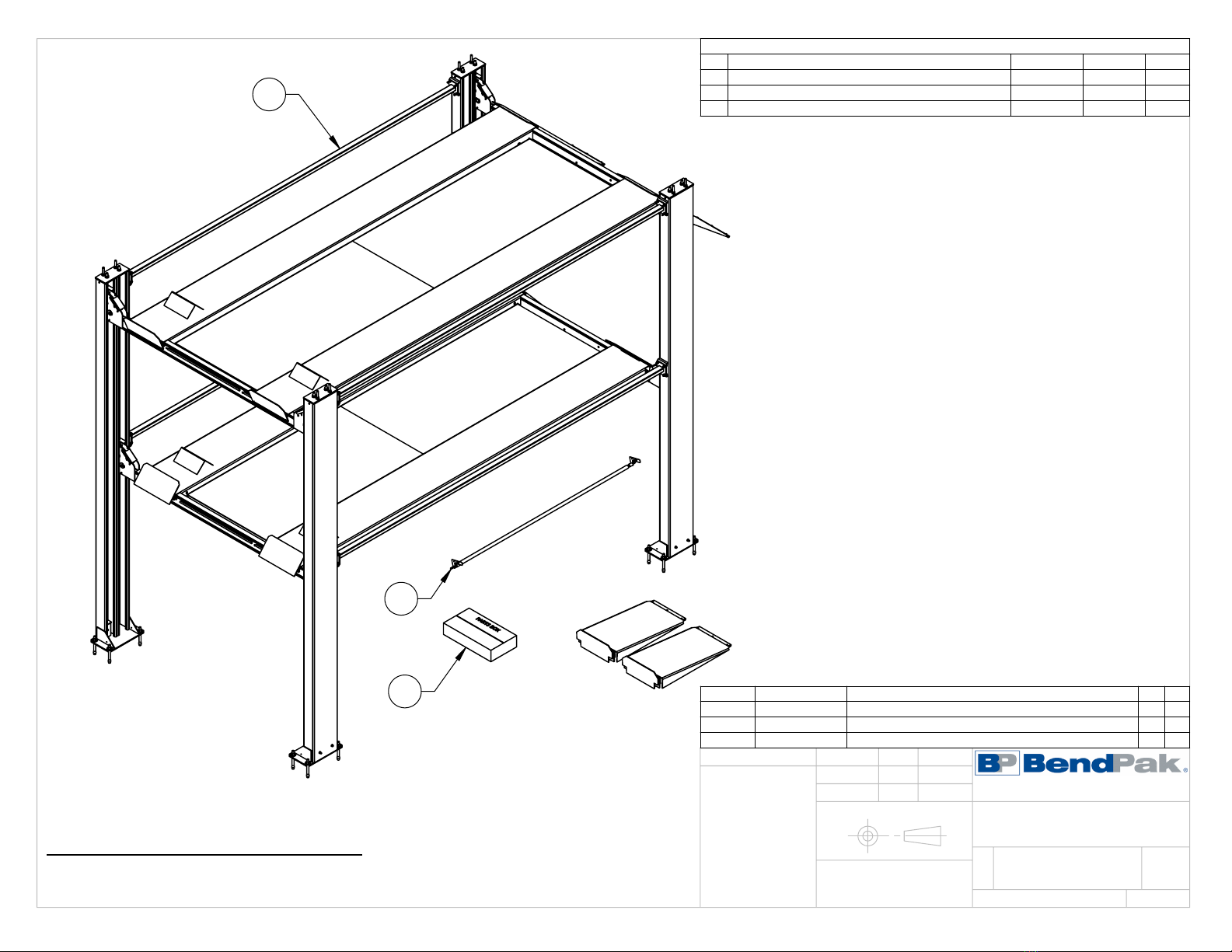

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245059 HD-973P LIFT SUPERSTRUCTURE 1 Q
2 5250081 HD-973P PARTS BOX 1 J
3 5215818 HD-973 MICRO SWITCH STOP BAR ASSEMBLY 1 A
SHEET 1 OF 5
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
U
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260242
HD-973P PRODUCTION
LIFT VER A
07/11/2018
DO NOT SCALE DRAWING
1:40
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.

DIMENSIONS ARE IN MM
☺
WHERE USED
HD-973P

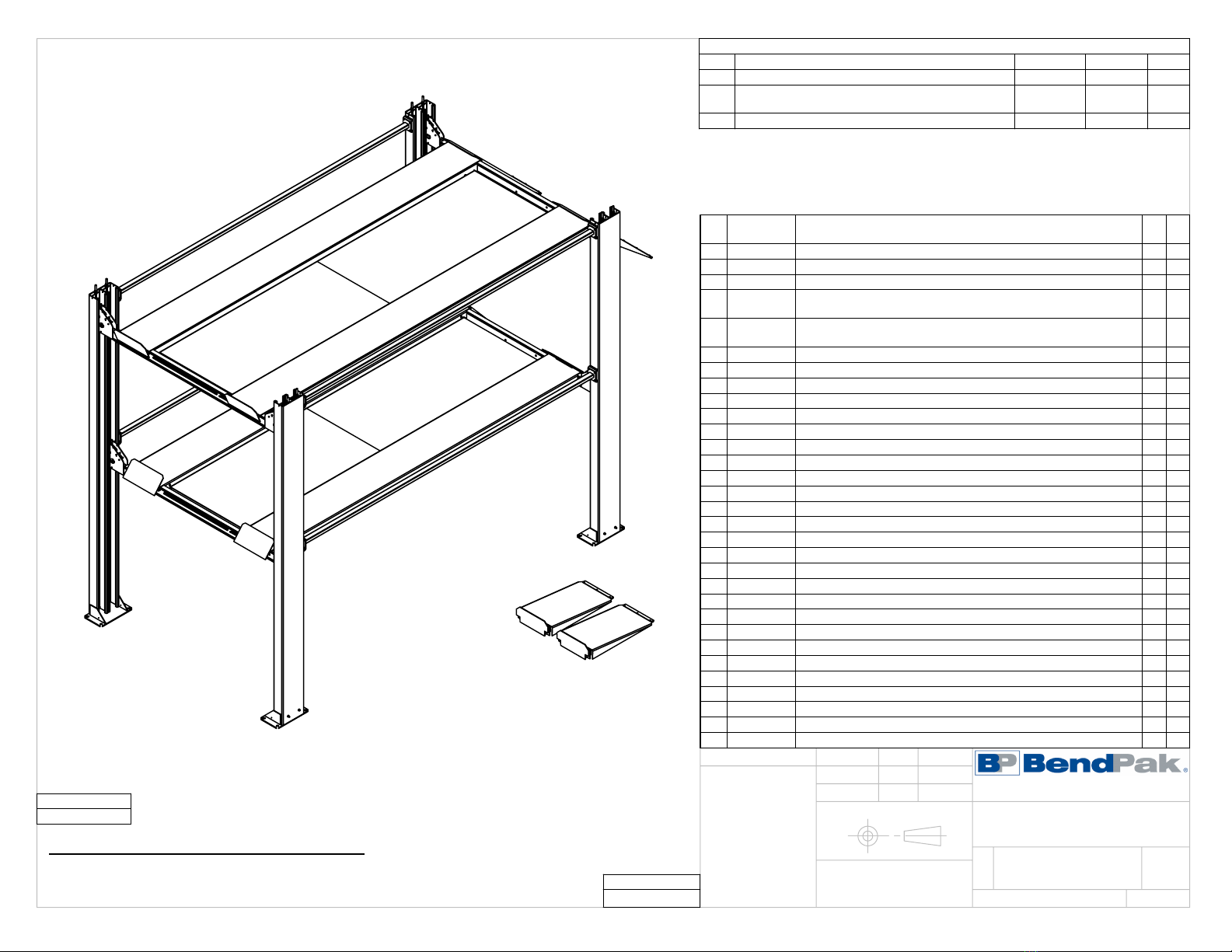

ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601274 HD-973P POWER SIDE POST WELDMENT 1 D
2 5601275 HD-973P OFF SIDE POST WELDMENT 2 C
3 5601299 HD-973P OFF SIDE POST WELDMENT, L.H. 1 B
4 5216155
HD-7/9/973P, PL-12000 CROSSTUBE ASSEMBLY, SMALL
WINDOW
2 A
5 5216156
HD-9/973P, PL-12000 CROSSTUBE ASSEMBLY, LARGE
WINDOW
1 A
6 5216157 HD-7W/973P CROSSTUBE ASSEMBLY, LARGE WINDOW 1 A
7 5600921 HD-7/973/7500 SAFETY LADDER WELDMENT 4 C
8 5601281 HD-973 LOWER RAMP SAFETY LADDER WELDMENT 4 C
9 5530167 HHB M10 x 1.5 x 45mm 4 -
10 5530748 HHB M10 x 1.5 x 100mmL 4 -
11 5746381 HD-7/7500/ 9 SPACER, SAFETY LADDER, 17.5mm LG 8 B
12 5545341 WASHER M10 x Ø20 FLAT 16 -
13 5535013 NUT M10 x 1.5 NL 8 -
14 5535021 NUT M16 x 2.0 8 -
15 5535008 NUT M16 x 2 NL 8 -
16 5545025 WASHER, M16 x 30mm FLAT 8 -
17 5215787 HD-973P LOWER POWER SIDE RAMP ASSEMBLY 1 J
18 5601271 HD-973P LOWER OFF SIDE RAMP WELDMENT 1 D
19 5215817 HD-973P UPPER POWER SIDE RAMP ASSEMBLY 1 H
20 5601295 HD-973P UPPER OFF SIDE RAMP WELDMENT 1 B
21 5600890 HD-7/7500/9, PL-12000 TIRE STOP PLATE WELDMENT 2 F
22 5601356 HD-973 TIRE STOP WELDMENT 2 B
23 5215131 HD-7/9 EXTENDED DRIVE UP RAMP ASSEMBLY 2 H
24 5215193 HD-7/9/7500BL DRIVE UP RAMP ASSEMBLY 2 G
25 5601296 HD-973P STIFFENER TUBE WELDMENT 4 B
26 5601293 HD-973P ALUMINUM LONG SOLID DECK WELDMENT 3 C
27 5601273 HD-973P ALUMINUM SHORT SOLID DECK WELDMENT 1 D
28 5701784 PLASTIC RAMP COVER, 1118mm 8 B
29 5701783 PLASTIC RAMP COVER, 1040.5mm 8 B
30 5174220 HD-9 ALUMINUM APPROACH RAMP ASSEMBLY 2 G
31 5735728 HD DROP IN TIRE STOP 2 A
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISIONS 12/10/2021 TM 01367
P
REPLACED 5215621 WITH 5215155, 5215622
WITH 5215156, 5215624 WITH 5215157
05/23/2022 TM 01414
Q UPDATED BOM REVISIONS 10/10/2022 CA 01448

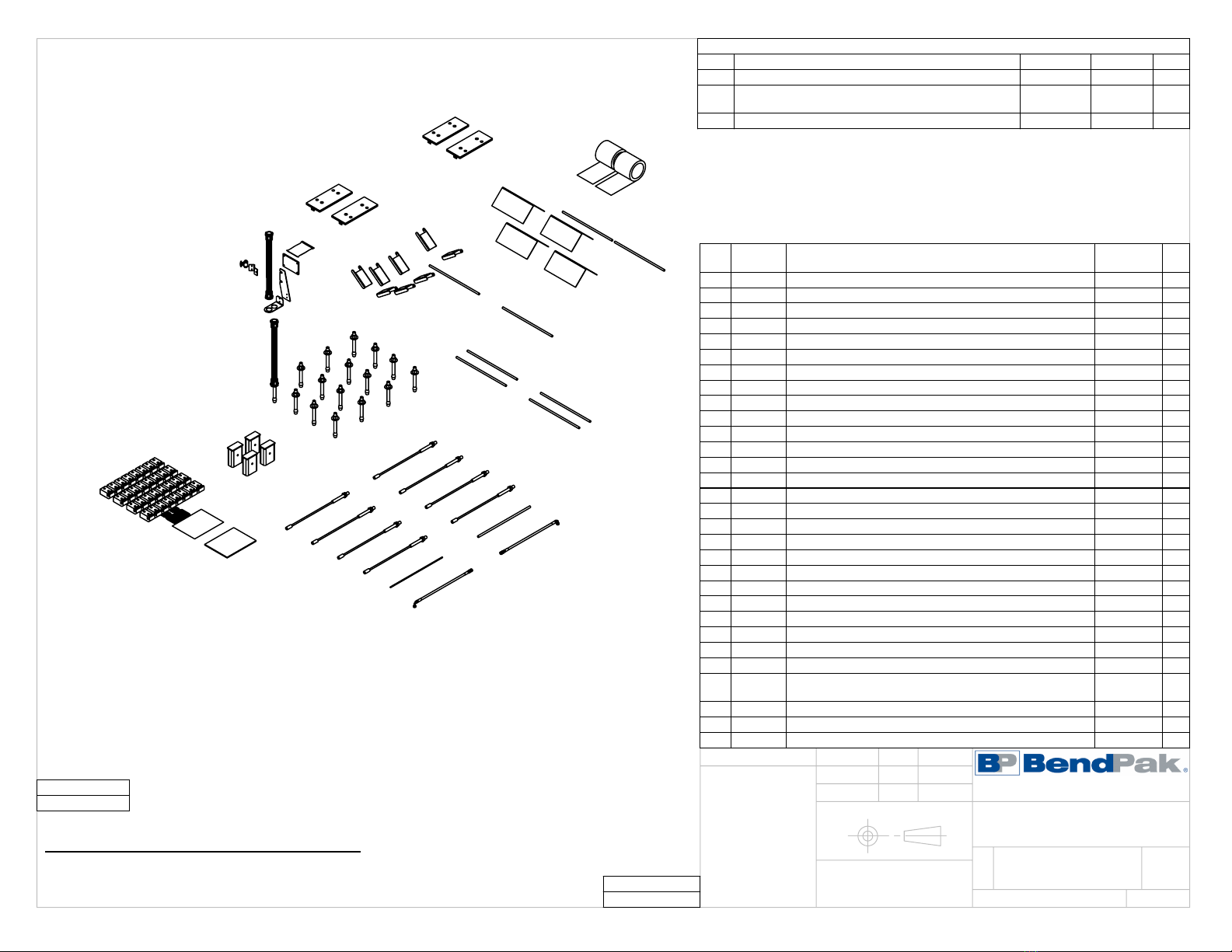

NEXT ASSEMBLY
5260242
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245059
HD-973P LIFT
SUPERSTRUCTURE
06/28/2018
DO NOT SCALE DRAWING
1:45
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
THREAD M16 HARDWARE ONTO LADDER BOLTS AS SHOWN 3.

A
B
6
1
4
23
24
3
18
5
27
17
19 26
20
2
25
28
29
22
30
31
21
DETAIL A
SCALE 1 : 16
13
11
12 10
7
8
9
DETAIL B
SCALE 1 : 4
15
16
14
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5245059
HD-973P LIFT
SUPERSTRUCTURE
1:40
SCALE:

DIMENSIONS ARE IN MM
☺
B
A
1
2
7
8
DETAIL B
SCALE 1 : 10
4
DETAIL A
SCALE 1 : 10
5
3
6
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601270 HD-973P LOWER POWER SIDE RAMP WELDMENT 1 F
2 5502037 CYLINDER ASSEMBLY Ø2.75 x 70" 1 D
3 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
4 5215123 HD-7500BL/9 TWIN SHEAVE ASSEMBLY 2 E
5 5600900 HD-7/7500/9 RAMP SHEAVE SHAFT WELDMENT 4 E
6 5530776 SHCS M8 x 1.25 x 20mm 4 -
7 5215910 HD-973 CYLINDER FLANGE ARM ASSEMBLY 1 B
8 5731309 CABLE RETAINER PLATE 1 A
NEXT ASSEMBLY
5245059
WHERE USED
HD-973P
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
G UPDATED BOM REVISION 07/14/2021 TM 01316
H UPDATED BOM REVISION 12/10/2021 TM 01367
J UPDATED BOM REVISION 09/23/2022 CA 01448
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
J
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215787
HD-973P LOWER POWER
SIDE RAMP ASSEMBLY
06/28/2018
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
A
B
7
6
1
2
11
10
DETAIL A
SCALE 1 : 10
4
9
DETAIL B
SCALE 1 : 10
5
8
12
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245059
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5601294 HD-973P UPPER POWER SIDE RAMP WELDMENT 1 E
2 5502035 CYLINDER ASSEMBLY Ø3.5 x 70 - SLOW 1 C
3 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
4 5601300 HD-7MZ/973 RAMP SHEAVE SHAFT WELDMENT 4 B
5 5575103 HD-7/973/7500PBX 76mm DIRECTION SHEAVE ASSEMBLY 2 E
6 5215819 HD-7MZ/973 PULL BOX ASSEMBLY 1 D
7 5215185 HD-7/7500/973 TWIN SHEAVE ASSEMBLY 2 C
8 5600301 HD-7/7500/973 DIRECTIONAL SHEAVE PIN WELDMENT 2 C
9 5530776 SHCS M8 x 1.25 x 20mm 4 -
10 5535357 NUT M6 x 1.0 NL 4 -
11 5530047 HHB, M6 x 1 x 30mmL 4 -
12 5505032 ROTOR CLIP Ø18mm SS 2 -
13 5745031 HD-7MZ/973 SHEAVE SPACER 2 A
WHERE USED
HD-973P
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F UPDATED BOM REVISOIN 03/26/2021 TM 01290
G UPDATED BOM REVISION 07/14/2021 TM 01316
H UPDATED BOM REVISION 12/10/2021 TM 01367
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215817
HD-973P UPPER POWER
SIDE RAMP ASSEMBLY
01/16/2019
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5215817
HD-973P UPPER POWER
SIDE RAMP ASSEMBLY
1:10
SCALE:

DIMENSIONS ARE IN MM
☺
1
21
DETAIL A
SCALE 1 : 6
6
17
37
8
2
13
16 4
5
14
18
9
15
10
12
20
19
11
22 ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601822 HD-7/9/973P CROSSTUBE WELDMENT, SMALL WINDOW 1 A
2 5746008 D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN 2 D
3 5575420 HD-7/7500/9 SAFETY ROLLER 2 C
4 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
5 5600160 HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT 2 G
6 5600760 D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT 2 C
7 5600044 4 POST LIGHT DUTY SLACK SAFETY WELDMENT 2 F
8 5540275 E RING Ø25mm OD DIN 6799 0250 8 -
9 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 2 -
10 5530005 HHB M6 x 1 x 70 6 -
11 5545005 WASHER, M6 x 12mm FLAT 4 -
12 5535357 NUT M6 x 1.0 NL 8 -
13 5540065 SPRING Ø13mm x 90mm, SLACK SAFETY 2 A
14 5505625 FEMALE ROD END M6 x 33 2 -
15 5550087 FTG ELB -04 COMP x -02 NPT 2 -
16 5540010 E RING Ø32mm OD DIN 6799 2 -
17 5505030 PUSH-ON CLIP Ø10mm SS 2 -
18 5530756 HHB M6 x 1.0 x 25mm 2 -
19 5755136 AIR CYLINDER SPACER 12mm 2 A
20 5755137 AIR CYLINDER SPACER 25mm 2 A
21 5755157 D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50 2 A
22 5535230 NUT 1/4-28 JN 2 -
NEXT ASSEMBLY
5245059 5245381
5245068 5245382
5245242 5245383
5245244 5245384
5245255 5245385
5245256
WHERE USED
HD-7W HD-9XW
HD-7PXW HD-9XL
HD-7PXWS HD-973P
HD-7PLT HD-973PX
HD-9
PL-12000DP
SERIES
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215621 04/29/2022 TM 01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216155
HD-7/9/973P, PL-12000
CROSSTUBE ASSEMBLY,
SMALL WINDOW
04/29/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 06/10/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
21
DETAIL A
SCALE 1 : 6
6
14
18
3
7
8
2
5
4
17
12
11
13
9
16
15
2019
10
22
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601821 HD-9/973P CROSSTUBE WELDMENT, LARGE WINDOW 1 A
2 5746008 D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN 2 D
3 5575420 HD-7/7500/9 SAFETY ROLLER 2 C
4 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
5 5600160 HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT 2 G
6 5600760 D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT 2 C
7 5600044 4 POST LIGHT DUTY SLACK SAFETY WELDMENT 2 F
8 5540275 E RING Ø25mm OD DIN 6799 0250 8 -
9 5530005 HHB M6 x 1 x 70 6 -
10 5545005 WASHER, M6 x 12mm FLAT 4 -
11 5535357 NUT M6 x 1.0 NL 8 -
12 5540065 SPRING Ø13mm x 90mm, SLACK SAFETY 2 A
13 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 2 -
14 5505625 FEMALE ROD END M6 x 33 2 -
15 5530756 HHB M6 x 1.0 x 25mm 2 -
16 5550087 FTG ELB -04 COMP x -02 NPT 2 -
17 5540010 E RING Ø32mm OD DIN 6799 2 -
18 5505030 PUSH-ON CLIP Ø10mm SS 2 -
19 5755136 AIR CYLINDER SPACER 12mm 2 A
20 5755137 AIR CYLINDER SPACER 25mm 2 A
21 5755157 D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50 2 A
22 5535230 NUT 1/4-28 JN 2 -
WHERE USED
HD-9
HD-9XW
HD-9XL
HD-973P
HD-973PX
PL-12000DP
SERIES
NEXT ASSEMBLY
5245059
5245068
5245242
5245255
5245381
5245382
5245383
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215622 04/29/2022 TM 01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216156
HD-9/973P, PL-12000
CROSSTUBE ASSEMBLY,
LARGE WINDOW
04/29/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 6/10/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
21
DETAIL A
SCALE 1 : 6
6
14
18
37
8
2
5
4
17
12
13
9
16
15
2019
10
11
22
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601823 HD-7W/973P CROSSTUBE WELDMENT, LARGE WINDOW 1 A
2 5746008 D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN 2 D
3 5575420 HD-7/7500/9 SAFETY ROLLER 2 C
4 5215122 HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY 2 E
5 5600160 HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT 2 G
6 5600760 D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT 2 C
7 5600044 4 POST LIGHT DUTY SLACK SAFETY WELDMENT 2 F
8 5540275 E RING Ø25mm OD DIN 6799 0250 8 -
9 5530005 HHB M6 x 1 x 70 6 -
10 5545005 WASHER, M6 x 12mm FLAT 4 -
11 5535357 NUT M6 x 1.0 NL 8 -
12 5540065 SPRING Ø13mm x 90mm, SLACK SAFETY 2 A
13 5502195 AIR CYLINDER, Ø19mm x 25 STROKE 2 -
14 5505625 FEMALE ROD END M6 x 33 2 -
15 5530756 HHB M6 x 1.0 x 25mm 2 -
16 5550087 FTG ELB -04 COMP x -02 NPT 2 -
17 5540010 E RING Ø32mm OD DIN 6799 2 -
18 5505030 PUSH-ON CLIP Ø10mm SS 2 -
19 5755136 AIR CYLINDER SPACER 12mm 2 A
20 5755137 AIR CYLINDER SPACER 25mm 2 A
21 5755157 D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50 2 A
22 5535230 NUT 1/4-28 JN 2 -
NEXT ASSEMBLY
5245059
5245068
5245244
5245256
5245384
5245385
WHERE USED
HD-7W
HD-7PXW
HD-7PXWS
HD-7PLT
HD-973P
HD-973PX
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215624 05/02/2023 TM 01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216157
HD-7W/973P CROSSTUBE
ASSEMBLY, LARGE WINDOW
05/02/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 06/10/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260242
ITEM
NO
PART
NUMBER
DESCRIPTION QTY. REV
1 5174027
HD-973P PARTS BAG
1 E
2 5595467
CABLE ASSEMBLY Ø10 x 5704mm ST
1 C
3 5595053
CABLE ASSEMBLY Ø10 x 7301mm ST
1 F
4 5595469
CABLE ASSEMBLY Ø10 x 10484mm ST
1 C
5 5595055
CABLE ASSEMBLY Ø10 x 12072mm ST
1 F
6 5595567
CABLE ASSEMBLY Ø10 x 5050mm ST
1 C
7 5595568
CABLE ASSEMBLY Ø10 x 6670mm ST
1 B
8 5595561
CABLE ASSEMBLY Ø10 x 9492mm ST
1 C
9 5595569
CABLE ASSEMBLY Ø10 x 11104mm ST
1 B
10 5570871 HYDRAULIC HOSE ASSEMBLY Ø6.4 x 4166mm 1 B
11 5570022 HYDRAULIC HOSE ASSEMBLY Ø6.4 x 3380mm 1 G
12 5520032 WIRE, AWG 14, CAROL, 2C 5800*mm -
13 5570795 1/4" POLY-FLO TUBING 40000*mm -
14 5216139 FLEX TUBE KIT, UP TO 2000mm 1 A
15 5216141 FLEX TUBE KIT, UP TO 3000mm 1 A
16 5700381 HD-973 FLEX TUBE BRACKET PLATE 1 A
17 5590175 PUSH BUTTON AIR VALVE 1 B
18 5715003 POWER UNIT VIBRATION DAMPENER 1 B
19 5745014 HD-7/7500/9, PL-12000 DRIVE UP RAMP PIN 8 B
20 5700365 DOUBLE FLEX TUBE ANGLE 1 A
21 5700072 WHEEL CHOCK 4 B
22 5530337 AB 3/4" x 6.3" 16 -
23 5601272 HD-973 POST TOP PLATE WELDMENT 4 D
24 5716630 HD-7/7500/9 CROSSTUBE COVER, PLASTIC 8 A
25 5716005
CROSSTUBE POLYETHYLENE SLIDE BLOCK
32 M
26 5700031 ZERO ANGLE MOUNTING BRACKET 1 C
27 5601305
HD-973 POST BASE PLATE TOP CROSSTUBE LANDING
PAD WELDMENT
4 A
28 5900076 HD-973 INSTALLATION AND OPERATION MANUAL 1 -
29 5210243 HD-973 CE PARTS BAG 1 A
30 5930195 ANTI-SLIP TAPE, 6” x 24ft 2 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
G UPDATED BOM REVISION 07/14/2021 TM 01316
H
ADDED 5930195, REPLACED 5570239 WITH
5216139 AND 5570055 WITH 5216141
05/04/2022 TM
01414
PRE A
J UPDATED BOM REVISION 10/11/2022 CA 01448
WHERE USED
HD-973P
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
J
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250081
HD-973P PARTS BOX
07/10/2018
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
HOSES AND CABLES IN REPRESENTATIONAL FORM 2.
(*) LENGTH FOR REFERENCE ONLY 3.

23
24
21
19
10
1
22
26
20
15
18
14
17
25
27
16
28
29
30
9
8
7
6
12
11
5
2
313
4
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
J
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5250081
HD-973P PARTS BOX
1:20
SCALE:

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5250081
5250336
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
C REPLACED 5550493 WITH 5550070 05/30/2019 TM 01084
D
REPLACED 5550070 WITH (1) 5550106, ADDED
5580012
11/22/2019 CA 01120
E REMOVED 5550025 07/14/2021 TM 01316
WHERE USED
HD-973P
HD-973P-G
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5505031 ROTOR CLIP Ø12mm SS 16 -
2 5530756 HHB M6 x 1.0 x 25mm 8 -
3 5535357 NUT M6 x 1.0 NL 8 -
4 5535001 NUT M8 x 1.25 NL 4 -
5 5545340 WASHER M8 x24 FLAT 4 -
6 5530010 HHB M8 x 1.25 x 25mm ZPL 4 -
7 5530009 HHB M12 x 1.75 x 90 CL8.8 16 -
8 5545201 WASHER, M12 SPRING LOCK 16 -
9 5545347 WASHER M12 x 24mm FLAT, CL 8.8 48 -
10 5535354 NUT, M12 x1.75 48 -
11 5550395 FTG TEE -04 COMP x -04 COMP x -04 COMP 8 -
12 5550089 FTG ELB -04 COMP x -06 NPT 3 -
13 5550106 FTG ELB -04JIC x 3/8” NPT 2 -
14 5545009 WASHER, M4 x 9mm FLAT 2 -
15 5530008 SHCS M4 x 0.7 x 12 BOC 2 -
16 5535010 NUT M4 X 0.7 NL 2 -
17 5545535 C WASHER SHIM FOR LIFTS 19 -
18 5530076 HHB M12 x 1.75 x 35mm 32 -
19 5545024 WASHER, M3 x 9mm FLAT 2 -
20 5530043 SHCS M3 x 0.5 x 30 2 -
21 5535020 NUT M3 x 0.5, NL CL8 2 -
22 5550486 FTG NPL -02 NPT x -04 F NPT 1 -
23 5550087 FTG ELB -04 COMP x -02 NPT 1 -
24 5530217 HHB M10 x 1.5 x 58 2 -
25 5535013 NUT M10 x 1.5 NL 2 -
26 5545200 WASHER M10 x Ø18 SL 2 -
27 5545341 WASHER M10 x Ø20 FLAT 2 -
28 5530115 BHS 6-32 x 1.25 2 -
29 5535190 HN 6-32 2 -
30 5525112 MICRO SWITCH COVER-5PA2 1 -
31 5525093 SPDT MICRO SWITCH w ROLLER;25A@125VAC 1 -
32 5520001 RUBBER GROMMET, 3/4 I.D. 2 -
33 5550064 16mm CUISHIONED LOOP STRAP 4 -
34 5530749 HSDS M6.3 x 1.8 x 20 4 -
35 5550068 FTG -04 NPT x -04 NPT x -04 NPT DIR VLV 1 -
36 5550147 FTG NPL -04 JIC x -04 NPT 2 -
37 5550093 FTG NPL -06 ORB x -04 NPT 1 -
38 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174027
HD-973P PARTS BAG
07/11/2018
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
OR 07/26/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
4
3
6
5
21
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
REMOVED 5535354, 5545201, 5545027,
AND 5530035, UPDATED BOM REVISION
11/23/2012 TM 00549
F REPLACED 5600246 WITH 5600722 12/21/2012 TM 00573
G
ADDED 5716054, 5530093, 5545005, AND
5535357, UPDATED BOM REVISION
09/13/2019 TS 01120
NEXT ASSEMBLY
ACCESSORY
5245059
5245068

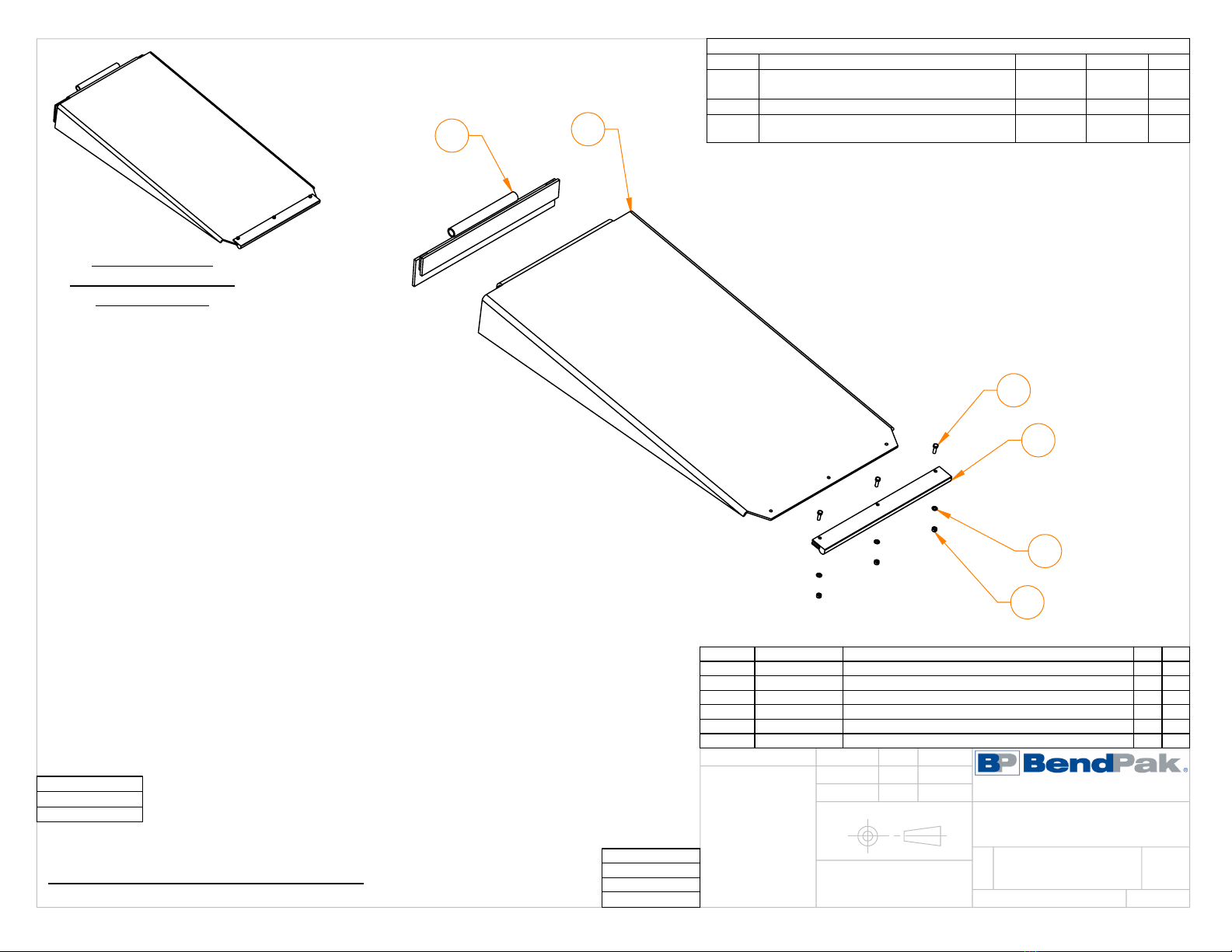

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600668 HD-9 ALUMINUM DRIVE UP RAMP WELDMENT 1 C
2 5600722 HD-9 DRIVE UP TIE PLATE WELDMENT 1 A
3 5716054 APPROACH RAMP EDGE GUARD 1 A
4 5530093 HHB M6 x 1 x 20 3 --
5 5545005 M6 FLAT WASHER 3 --
6 5535357 NUT M6 x 1.0 NL 3 --
WHERE USED
HD-9 SERIES
HD-973P SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174220
HD-9 ALUMINUM
APPROACH RAMP
ASSEMBLY
07/27/2010
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
CA 02/07/2020
ASSEMBLE ITEMS AS SHOWN 1.

DIMENSIONS ARE IN MM
☺
1
3
4
5
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F
F-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
06/01/2018
08/23/2018
CA
TM
00951
00972
G
UPDATED BOM REVISION AND TITLE TO REFLECT
WHERE USED
05/09/2019 TM 01084
H
REPLACED 5716149 AND 5530005 WITH
5716054, 5530093, AND 5545005, ADDED (1)
5535357, UPDATED BOM REVISION
09/13/2019 TS 01120
NEXT ASSEMBLY
5210055
5245059
5245068
5245144
5245163
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600209 HD-7/9 EXTENDED DRIVE UP RAMP WELDMENT 1 E
2 5716054 APPROACH RAMP EDGE GUARD 1 A
3 5530093 HHB M6 x 1.0 x 20mm 3 -
4 5545005 WASHER, M6 x 12mm FLAT 3 -
5 5535357 NUT M6 x 1.0 NL 3 -
WHERE USED
HD-7 SERIES
HD-9
HD-9AE
HD-9ST
HD-9STX
HD-9TG
HD-9XL
HD-9XW
HD-973 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215131
HD-7/9 EXTENDED DRIVE
UP RAMP ASSEMBLY
06/16/2008
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR 04/20/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
3
2
4
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600891 HD-7/9/7500 DRIVE UP RAMP WELDMENT 1 E
2 5716054 APPROACH RAMP EDGE GUARD 1 A
3 5530093 HHB M6 x 1.0 x 20mm 3 A
4 5545005 WASHER, M6 x 12mm FLAT 3 A
5 5535357 NUT M6 x 1.0, NL CL8 3 -
NEXT ASSEMBLY
5245059 5245380 5245392
5245068 5245381 5245393
5245144 5245382 5245395
5245163 5245383 5245396
5245166 5245384
5245243 5245385
5245244 5245386
5245256 5245388
5245257 5245391
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
E-001
E-006
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
08/22/2012
11/19/2012
04/19/2018
TM
TM
CA
00541
00562
00941
F
F-001
UPDATED BOM REVISION AND NEXT
ASSEMBLY
UPDATED NEXT ASESMBLY
06/01/2018
08/23/2018
CA
TM
00951
00972
G
REPLACED 5716149 AND 5530005 WITH
5716054, 5530093, AND 5545005, ADDED (1)
5535357, UPDATED BOM REVISION AND NEXT
ASSEMBLY
09/09/2019 TS 01120
WHERE USED
HD-7 SERIES
HD-9
HD-9ST
HD-9STX
HD-9XL
HD-9XW
HD-973 SERIES
HD-7500 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5215193
HD-7/9/7500BL DRIVE UP
RAMP ASSEMBLY
11/13/2008
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
OR 04/20/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
A
3
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
DETAIL A
SCALE 1 : 3
4
1
7
5
6
NEXT ASSEMBLY
5260242
5260656
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE 01/17/2019 TM 01039
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601297 HD-973 MICRO SWITCH STOP BAR HINGE ARM 1 A
2 5601298 HD-973 MICRO SWITCH STOP BAR WELDMENT 1 A
3 5300008 HD-973 STOP BAR CUSHION 1 A
4 5530760 HHB M10 x 1.5 x 38mm 2 --
5 5535013 NUT M10 x 1.5 NL 2 --
6 5530055 SSS M6x1x10 2 --
7 5755063 HD-973 STOP BAR HINGE ARM SPACER 1 A
WHERE USED
HD-973P
HD-973P-G
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215818
HD-973 MICRO SWITCH
STOP BAR ASSEMBLY
01/16/2019
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
CA 04/10/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
1
2
4
5
3
6
7
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601301 HD SERIES PULL BOX WELDMENT 1 B
2 5215185 HD-7/7500/973 TWIN SHEAVE ASSEMBLY 2 C
3 5600199 HD-7P/973 PULLBOX PIN WELDMENT 2 B
4 5716160 HD-7/973 PULL BOX SHEAVE WEAR RING 2 A
5 5716047 HD PULLBOX POLYETHYLENE SLIDE BLOCK 2 A
6 5530400 FHPS M6 x 1.0 x 12 2 --
7 5530058 FHPS M6 x 1.0 x 10 6 --
NEXT ASSEMBLY
5215817
5215851
WHERE USED
HD-973 SERIES
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B UPDATED BOM REVISION AND NEXT ASSEMBLY 07/26/2019 TS 01108
C REPLACED 5601302 WITH 5600199 11/06/2019 TM 01120
D UPDATED BOM REVISION 07/14/2021 TM 01316
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215819
HD-973 PULL BOX
ASSEMBLY
01/22/2019
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 07/26/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
13
2
5
4
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601466 HD-973 CYLINDER FLANGE ARM WELDMENT 1 B
2 5715031 HD-7500/9/973 CYLINDER CABLE BLOCK ARM SLIDE 2 B
3 5530244 FHPS M6 x 1 x 20 4 -
4 5535357 NUT M6 x 1.0 NL 4 -
5 5545005 M6 FLAT WASHER 4 -
NEXT ASSEMBLY
5215787
5215850
WHERE USED
HD-973 SERIES
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
PRODUCTION RELEASE, DERIVED FROM
5215820
04/07/2020 TM 01120
B UPDATED BOM REVISION 09/09/2020 OR 01207
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215910
HD-973 CYLINDER
FLANGE ARM ASSEMBLY
04/07/2020
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
3
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A
PRODUCTION RELEASE, DERIVED FROM
5570050, 5570052, 5570239
05/05/2022 TM
01414
PRE A
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570053 PE FLEX TUBE Ø34.5xØ29 2100mm* -
2 5555555 WQG1-M36/AD34.5 CONNECTOR 2 -
3 5535050 PLASTIC NUT M36 x 2 2 -
WHERE USED
D4-12 SERIES
HD-14T
HD-7500 SERIES
HD-7W
HD-7P
HD-9 SERIES
HD-973 SERIES
HDS-14 SERIES
HDSO-14 SERIES
HDS-18/27/40 SERIES
NEXT ASSEMBLY
5250058 5250175 5250289
5250059 5250184 5250290
5250079 5250185 5250294
5250081 5250187 5250295
5250082 5250188 5250336
5250143 5250189 5250337
5250144 5250191 5250338
5250164 5250193 5250349
5250167 5250194 5250364
5250168 5250195
5250169 5250278
5250172 5250286
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216139
FLEX TUBE KIT,
UP TO 2000mm
05/05/2022
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
OR 05/10/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
SHOWN IN REPRESENTATIONAL FORM ONLY 2.
(*)LENGTH FOR REFERENCE ONLY
