Bend-Pak LR-10000 User manual

BendPak, Inc. Corporate Oce
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Customer Service Desk / Warranty
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
customerservic[email protected]
Parts Orders
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Domestic Sales & Service
USA Sales Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
International Sales & Service
Oce Tel: [phone]
Exports Dept: 1-805-933-9970 EXT. 192
Ext. Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
bpkex[email protected]om
Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
LR-10000
PRODUCT SKU
5175232
DRAWING Nº
5260184 (Aer-2022)
CATEGORY
Low-Rise Scissor Li
REV
Version V
DATE
09.27.2022

DIMENSIONS ARE IN MM
☺
A
3
2
4
1
DETAIL A
SCALE 1 : 5
5
7
6

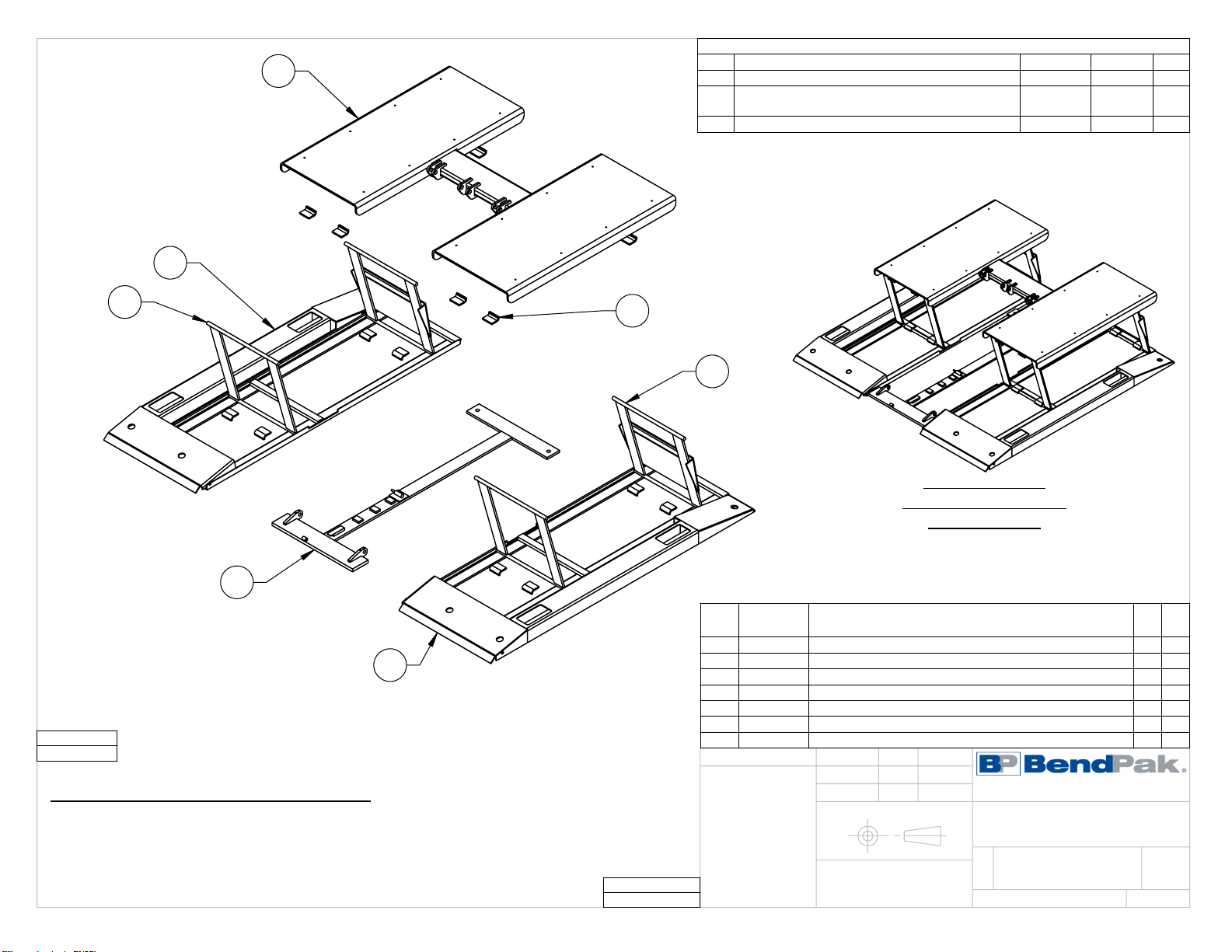

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5245046 LR-10000 LIFT SUPERSTRUCTURE 1 K
2 5250074 LR-10000 PARTS BOX 1 H
3 5601601 LR-10000 SAFETY RELEASE HANDLE WELDMENT 1 A
4 5701656 HYDRAULIC HOSE COVER 1372mm 1 A
5 5530107 HHB M14 x 2.0 x 40 4 -
6 5545010 WASHER M14 x 28 FLAT 4 -
7 5535107 NUT M14 x 2.0 NL 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
T UPDATE BOM REVISION 01/17/2022 OR 01379
U UPDATE BOM REVISION 01/21/2022 CA 01383
V
REPLACED 5535014 WITH 5535107, UPDATED
BOM REVISIONS
08/22/2022 TM 01433
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
V
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260184
LR-10000 PRODUCTION LIFT
02/06/2018
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.

DIMENSIONS ARE IN MM
☺
A
B
C
2
1
6
13
7
9
8
10
20
12
DETAIL A
SCALE 1 : 8
3
4
5
DETAIL B
SCALE 1 : 4
12
14
11
15
DETAIL C
SCALE 1 : 8
17
18
16
19
NEXT ASSEMBLY
5260184
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H REPLACED 5600001 WITH 5601768 01/17/2022 TM 01379
J UPDATED BOM REVISION 01/21/2022 CA 01383
K
REPLACED 5715035 WITH 5715048, 5530366 WITH
5530466, ADDED (4) 5535357, MOVED LOCK
HEIGHT PAGE TO TOP LEVEL DRAWING,
SWAPPED POSITION OF ELBOW AND TEE
CYLINDER FITTINGS, UPDATED BOM REVISION
07/29/2022 TM 01433
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601241 LR-10000 LIFT WELDMENT 1 F
2 5715048 DLR-6, LR-60 RAMP BOLT-ON RUBBER PAD 4 A
3 5746323 LR-10000 SAFETY CLEVIS PIN 1 B
4 5540114 C RING 7/8" ID TRUARC 5103-87 4 --
5 5540006 SNAP RING TRUARC 5103-100 2 --
6 5540004 C RING Ø19mm OD DIN M1800 0190 4 --
7 5715107 LR-10000 PLASTIC TRAY 4 B
8 5601768 POWER UNIT STAND WELDMENT 1 B
9 5502525 CYLINDER ASSEMBLY Ø2.0 x 17.75 2 J
10 5601243 LR-10000 SAFETY LOCKOUT BAR WELDMENT 1 C
11 5737062 LR-10000 SAFETY RELEASE CAM 1 C
12 5535357 NUT M6 x 1.0 NL 17 --
13 5601288 LR-10000 SAFETY BAR WELDMENT 1 B
14 5535013 NUT M10 x 1.5 NL 1 --
15 5575050 LR-10000 SAFETY CAM SPACER 1 A
16 5550067 FTG ELB -06 JIC x -04 NPT 1 --
17 5550066 FTG TEE -04 JIC x -04 NPT x -06 JIC 1 --
18 5215810 HYDRAULIC LINE ASSEMBLY Ø10 x 423mm DB 1 B
19 5550054 THREADED FITTING CAP; -04 JIC 1 --
20 5530466 ELEVATOR BOLT M6 x 1.0 x 30 16 --
WHERE USED
LR-10000
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245046
LR-10000 LIFT
SUPERSTRUCTURE
02/06/2018
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 08/26/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.

DIMENSIONS ARE IN MM
☺
A
4
5
6
7
8
12
10
3
13
14
1
DETAIL A
SCALE 1 : 2
9
11
NEXT ASSEMBLY
5260184
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5530456 AB 3/4" x 4 - 3/4" 10 -
2 5550103 FTG ELB -04 JIC -06 ORB 1 A
3 5570226 LR-10000 HYDRAULIC HOSE ASSEMBLY Ø6.4 x 3777mm SB 1 A
4 5215592 LR-10000 LIFT PAD BASE ASSEMBLY, 100mm 4 D
5 5215593 LR-10000 LIFT PAD EXTENSION ASSEMBLY, 100mm 4 D
6 5535001 NUT M8 x 1.25 NL 4 -
7 5545012 WASHER, M8x16x1.6mm FLAT 4 -
8 5530304 HHB M8 x 1.25 x 20 4 -
9 5530790 SSS M6 x 1 x 10 NL 2 -
10 5535357 NUT M6 x 1.0 NL 1 -
11 5601242 LR-10000 SAFETY RELEASE WELDMENT, FRONT 1 C
12 5900075 LR-10000 INSTALLATION MANUAL 1 -
13 5530365 AB 1/4" x 2 1/2" DRIVE 4 -
14 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F ADDED 5530365 09/26/2019 CA 01128
G REMOVED 5715001, ADDED 5580012 03/11/2020 CA 01137
H REMOVED 5505049 10/20/2020 TM 01221
WHERE USED
LR-10000
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250074
LR-10000 PARTS BOX
02/21/2018
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR 10/21/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
2
1
3
4
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5250074
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5620579 LR-10000 LIFT PAD BASE WELDMENT 1 D
2 5716187 LR-10000 RUBBER LIFT PAD, 100mm 1 D
3 5530022 BPHS M6 x 1 x 20 ZPL 4 -
4 5535357 NUT M6 x 1.0 NL 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
WAS BOLT ON NOW ADHESIVE STICKER,
REMOVED 5545012, 5530002, AND 5535357,
UPDATED BOM REVISIONS
08/14/2013 TM 00616
C
C-001
ADDED (4) 5530022 AND (4) 5535357, UPDATED
BOM REVISIONS
UPDATED NEXT ASSEMBLY
09/18/2015
03/22/2018
JM
TM
00726
00923
D
REMOVED GLUE NOTE, UPDATED TITLE TO
REFLECT MARKETING, UPDATED BOM REVISIONS
09/17/2018 TM 00996
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215592
LR-10000 LIFT PAD BASE
ASSEMBLY, 100mm
04/16/2103
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
CA
10/19/2018
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
2
1
3
4
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5250074
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5620580 LR-10000 LIFT PAD EXTENSION WELDMENT 1 D
2 5716188 LR-10000 RUBBER LIFT PAD, 100mm EXTENSION 1 D
3 5530022 BPHS M6 x 1 x 20 ZPL 4 -
4 5535357 NUT M6 x 1.0 NL 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
WAS BOLT ON NOW ADHESIVE STICKER,
REMOVED 5545012, 5530002, AND 5535357,
UPDATED BOM REVISIONS
08/14/2013 TM 00616
C
C-001
ADDED (4) 5530022 AND (4) 5535357, UPDATED
BOM REVISION
UPDATED NEXT ASSEMBLY
09/18/2015
03/22/2018
JM
TM
00726
00923
D
REMOVED GLUE NOTE, UPDATED TITLE TO
REFLECT MARKETING, UPDATED BOM
REVISIONS
09/17/2018 TM 00996
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215593
LR-10000 LIFT PAD
EXTENSION ASSEMBLY,
100mm
04/16/2103
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
CA
10/19/2018
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
12
NEXT ASSEMBLY
5245046
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE 11/13/2018 TS 01025
B
UPDATED TITLE TO REFLECT SIZE, UPDATED
BOM REVISION AND NEXT ASSEMBLY
04/05/2019 TM 01070
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5755062 HYDRAULIC LINE Ø10 x 423mm DB 1 B
2 5550198 FTG FN Ø10 x -06 JIC F 2 -
WHERE USED
LR-10000
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TS
5215810
HYDRAULIC LINE ASSEMBLY
Ø10 x 423mm DB
11/09/2018
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
CA 04/05/2019
ASSEMBLE ITEMS AS SHOWN 1.
SLIDE FLARE FITTINGS ON TO TUBE AS SHOWN BEFORE FLARING 2.
FLARE TUBE USING 37° FLARING TOOL ON BOTH ENDS 3.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

3777
3
21
NEXT ASSEMBLY
5250074
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 3711mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE 11/06/2018 TS 01025
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TS
5570226
LR-10000 HYDRAULIC HOSE
ASSEMBLY Ø6.4 x 3777mm SB
11/06/2018
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
CA 11/19/2018
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
ANGULAR: MACH 2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

6
7
4
5
2
1
3
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245046
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5620624 LR-10000 CYLINDER CLEVIS AND SAFETY WELDMENT 1 D
2 5620626 LR-10000 BASE WELDMENT, R.H. 1 C
3 5620625 LR-10000 BASE WELDMENT, L.H. 1 C
4 5620574 LR-10000 HINGE ARM WELDMENT 2 B
5 5620572 LR-10000 HINGE ARM SUBWELDMENT 2 B
6 5620575 LR-10000 RAMP WELDMENT 1 E
7 5700321 LR-10000 HINGE HOLDER 16 D
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D UPDATED BOM REVISION 02/25/2019 TM 01052
E
E-001
ADDDED 5737142, UPDATED BOM REVISION
ADDED 20% GLOSS PAINT NOTE
09/30/2019
03/12/2020
CA
CA
01128
01137
F REMOVED 5737142, UPDATED BOM REVISION 07/29/2022 TM 01433
WHERE USED
LR-10000
SHEET 1 OF 4
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5601241
LR-10000 LIFT WELDMENT
02/06/2018
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 08/25/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
DIMENSIONS SHOWN ARE AFTER PAINTING 4.
PAINT GRAY (RAL-7024) 20% GLOSS 5.
5620572 AND 5620574 MUST SWING FREELY 6.
NOTE: UNLESS OTHERWISE SPECIFIED.

4
9
3
13
12
1
11
2
6
8
5
10
7
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5620577 02/21/2018 TM 00923
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISIONS
09/17/2018 TM 00996
C UPDATED BOM REVISIONS 11/14/2018 TS 01025
NEXT ASSEMBLY
5601241
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5721027 LR-10000 INTERIOR BASE ANGLE L.H. 1 B
2 5721029 LR-10000 EXTERIOR BASE ANGLE L.H. 1 C
3 5735486 LR-10000 BASE HINGE ARM STOP BAR 2 B
4 5701492 LR-10000 BASE SIDE APPROACH RAMP, L.H. 1 B
5 5701256 LR-10000 BASE APPROACH RAMP, L.H. 1 C
6 5737061 LR-10000 BASE APPROACH RAMP GUSSET 1 B
7 5736671 LR-10000 BASE APPROACH RAMP GUSSET, LONG 1 B
8 5737060 LR-10000 BASE APPROACH RAMP SUPPORT 2 C
9 5736668 LR-10000 BASE APPROACH RAMP SUPPORT, LONG 2 B
10 5736670 LR-10000 ANCHOR PLATE 2 B
11 5701498 LR-10000 BASE SIDE TROUGH 1 B
12 5735489 LR-10000 BASE APPROACH RAMP SPACER 1 B
13 5735648 LR-10000 BASE APPROACH RAMP SPACER, SHORT 1 B
14 5737063 LR-10000 ANCHOR PLATE, LARGE 1 B
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
TM
5620625
LR-10000 BASE
WELDMENT, L.H.
02/19/2018
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 11/26/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

4
9
3
13
11
1
12
2
6
8
7
5
10
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5620578 02/21/2018 TM 00923
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISIONS
09/17/2018 TM 00996
C UPDATED BOM REVISIONS 11/14/2018 TS 01025
NEXT ASSEMBLY
5601241
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5721030 LR-10000 EXTERIOR BASE ANGLE R.H. 1 C
2 5721028 LR-10000 INTERIOR BASE ANGLE R.H. 1 C
3 5735486 LR-10000 BASE HINGE ARM STOP BAR 2 B
4 5701595 LR-10000 BASE SIDE APPROACH RAMP, R.H. 1 B
5 5701257 LR-10000 BASE APPROACH RAMP, R.H. 1 C
6 5737061 LR-10000 BASE APPROACH RAMP GUSSET 1 B
7 5736671 LR-10000 BASE APPROACH RAMP GUSSET, LONG 1 B
8 5737060 LR-10000 BASE APPROACH RAMP SUPPORT 2 C
9 5736668 LR-10000 BASE APPROACH RAMP SUPPORT, LONG 2 B
10 5736670 LR-10000 ANCHOR PLATE 2 B
11 5735489 LR-10000 BASE APPROACH RAMP SPACER 1 B
12 5701498 LR-10000 BASE SIDE TROUGH 1 B
13 5735648 LR-10000 BASE APPROACH RAMP SPACER, SHORT 1 B
14 5737063 LR-10000 ANCHOR PLATE, LARGE 1 B
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED.
TM
5620626
LR-10000 BASE
WELDMENT, R.H.
02/19/2018
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA 11/26/2018
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 1.
REMOVE ALL WELD SPLATTER 2.
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
ANGULAR: 0. =
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED

PART SPECIFICATION FORM (STANDARD)
BENDPAK Number:
5900075
MRP Description:
LR-10000 INSTALLATION MANUAL
Date:
08/18/2021
ECO :
---
1. Engineering Specification
Application:
INSTALLATION MANUAL
Detailed Description:
Print Settings
Unless otherwise specified, use these settings for
printing BendPak manuals:
Size:
A4 (210 to 297 mm), 8.5 by 11
inches (216 to 279 mm), or between
Color:
Black and White
Binding:
Saddle Stitched
Paper:
100 to 120 gsm (27 to 32 pound),
uncoated
2. Vendor Information (Or for Reference)
Approved Vendor
Vendor Part #
Contact #
Preferred Vendor
1)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
