Bestop Supertop Ultra User manual

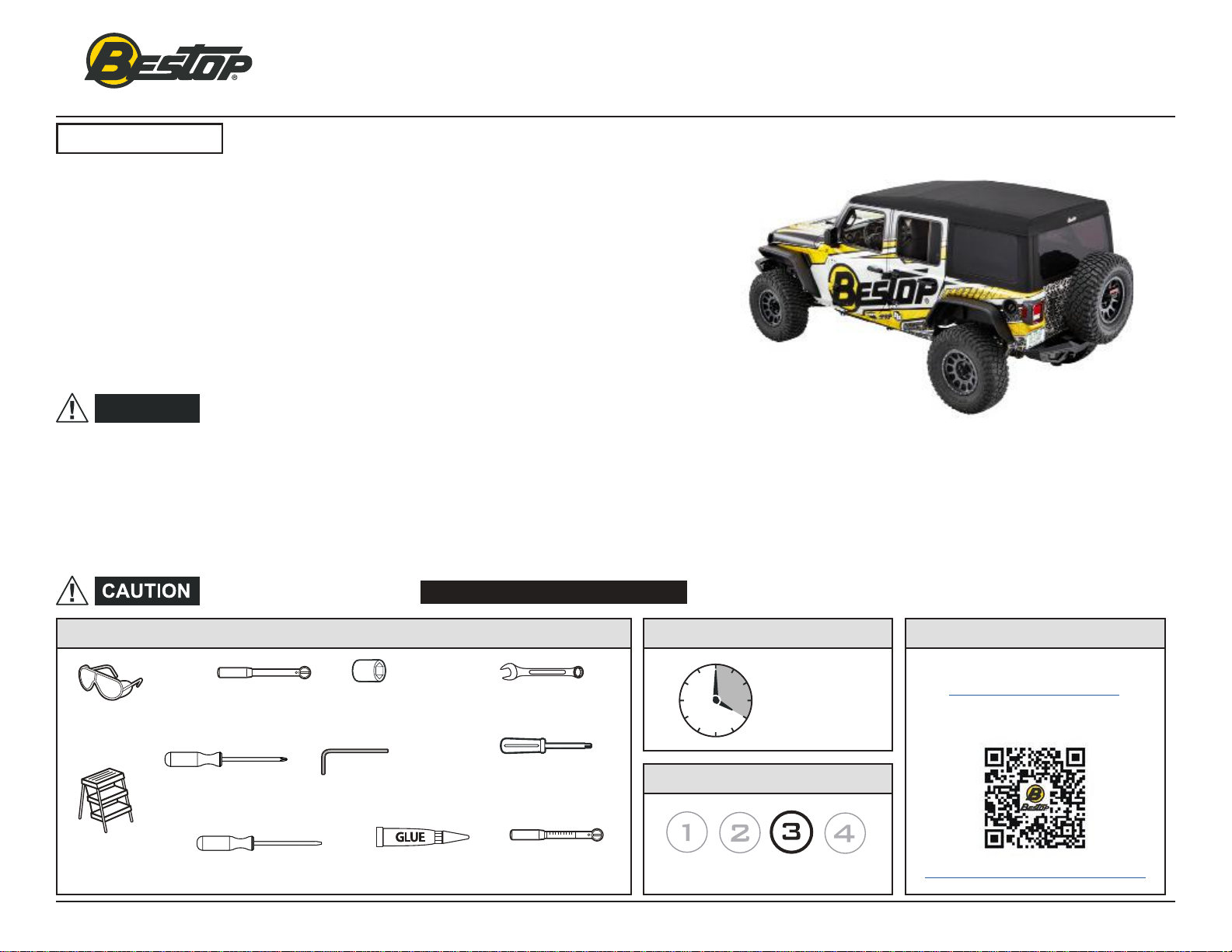

Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
P1 - 54725 Rev. B 0320 Installation Instructions - Supertop Ultra © 2020 Bestop, Inc.
Installation TimeTools
Skill Level
3 - Moderately Difcult
4 hours
Safety
Glasses
Step
Ladder
Support
We’re here to help! Go to:
https://www.bestop.com
and click on Need Help?
https://www.bestop.com/video-library
10mm Socket 10mm Wrench
Ratchet
- OR -
3mm-4mm-5mm
Allen Wrenches
Phillips Screwdriver
Flat Blade Screwdriver Super Glue
T8-T20-T25-T30-T40-
T50 Torx Drivers
Before you begin installing your new Supertop Ultra,
please read all the instructions thoroughly.
For a smooth t:
For easier installation, the top should be installed at a temperature above
72°F. Below this temperature, the fabric may contract an inch or more, making
it difcult to t the vehicle.
It is normal for the fabric to contract and wrinkle when stored in the shipping
carton. Within a few days after installation, the fabric will relax and the
wrinkles will disappear.
Do not rely in any way on the components of this
product to protect against injury or death in the event of an accident.
Never operate the vehicle in excess of manufacturer’s specications.
Read and follow, precisely, all installation instructions provided when
installing this product. Failure to do so may result in a poor t and could
place occupants of the vehicle in a potentially dangerous situation.
WEAR SEAT BELTS AT ALL TIMES
Safety glasses should be worn at all
times when installing this product.
WARNING
Installation Tips
Torque Wrench

Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
P2 - 54725 Rev. B 0320 Installation Instructions - Supertop Ultra © 2020 Bestop, Inc.
P1B - 54823 Rev. G 0416 Installation Instructions - Supertop NX Twill © 2016 Bestop, Inc.
Installation Instructions
Supertop NX Twill
Vehicle Application:
Jeep Wrangler Unlimited
2007-current
Part Number 54823

P3 - 54725 Rev. B 0320
© 2020 Bestop, Inc.
Parts List
- Required parts for installation - Page number in Installation Guide
Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
Installation Instructions - Supertop Ultra
Sections 1 to 3 Rear Door Rails, Upper and Lower; Front Door Rails
Sections 1 to 3 Parts Kit #574.62
Upper Rear Door Rail
Part #574.43 - Left
Qty. 1
Upper Rear Door Rail
Part #574.42 - Right
Qty. 1
Lower Rear Door Rail
Part #574.46 - Right
Part #574.47 - Left
Qty. 1
Pages 7 to 9 of Guide
Pages 7 to 9 of Guide
Parts Kit #574.62
M6x20mm
Flanged Button Head
Cap Screw
#517.48
Qty. 4
M8x1.25 x20mm
Flanged Button Head
Cap Screw
#573.09
Qty. 2
Lower Rear
Door Rail Grille
#579.00 - Right
Qty. 1
Lower Rear
Door Rail Grille
#579.01 - Left
Qty. 1
Upper Rear
Door Rail Grille
#578.96
Qty. 2
M8 x1.25x80
Screw
#532.23
Qty. 8
M3.5x6
Screw
#574.44
Qty. 20
M6 U-Clip
#537.49
Qty. 4
M8 Flat Washer
#515.84
Qty. 2
Front Door Rail
Part #574.32 - Right (shown)
Part #574.33 - Left
Qty. 1 of each

P4 - 54725 Rev. B 0320
© 2020 Bestop, Inc.
Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
Installation Instructions - Supertop Ultra
Parts List
- Required parts for installation - Page number in Installation Guide

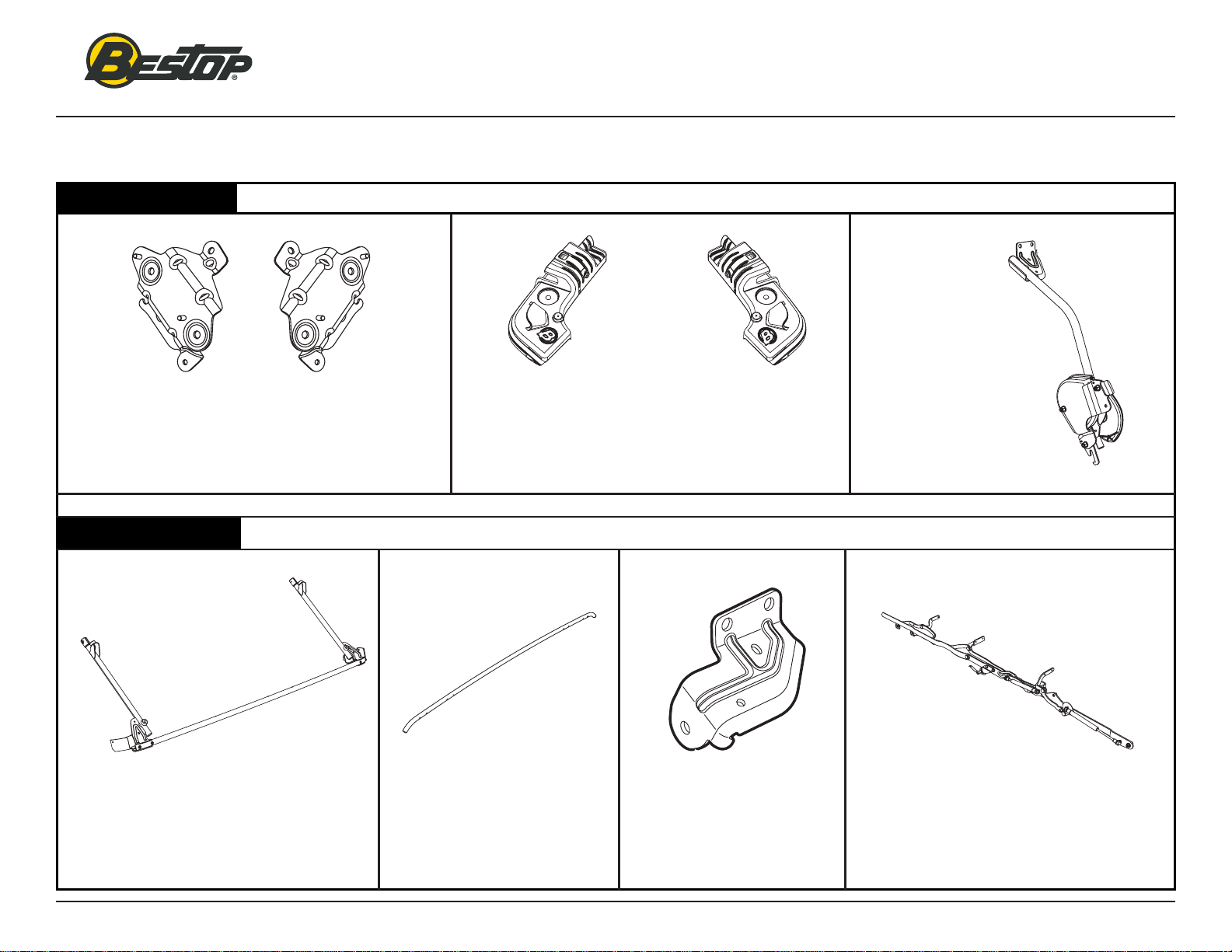

Sections 4 to 6 Sport Bar Brackets, Tailgate Bar Retainers, Lift Assist
Sections 7 to 9 #6 Bow, #5 Bow, #5 Bow Pivot Brackets, Side Bow Assemblies
#6 Bow Assembly
Part #589.25
Qty. 1
#5 Bow
Part #593.55
Qty. 1
Sport Bar Mounting Brackets
Part #590.02 - Right
Part #590.03 - Left
Qty. 1 of each
Pages 10 to 12 of Guide
Pages 13 to 15 of Guide
Tailgate Bar Retainers
Part #575.39 - Left
Part #575.38 - Right
Qty. 1 of each
Lift Assist Assembly
Part #589.98 - Right
Part #589.99 - Left
Qty. 1 of each
#5 Bow Pivot Bracket
Part #589.19 - Left (shown)
Part #589.18 - Right
Qty. 1 of each
Side Bow Assemblies
Part #585.72 - Left (shown)
Part #585.73 - Right
Qty. 1 of each

P5 - 54725 Rev. B 0320
© 2020 Bestop, Inc.
Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
Installation Instructions - Supertop Ultra
Parts List
- Required parts for installation - Page number in Installation Guide
vSections 10 to 12 Rear Door Rail Covers, #4 Bow, #3 Bow, #2 Bow
Sections 13 to 25 #1 Bow-Fabric Deck, Foam Seals, Tailgate Bar, Windows
Pages 16 to 18 of Guide
Pages 19 to 31 of Guide
#3 Bow
Part #583.01
Qty. 1
Foam Seals
Part #573.20 (right)
Part #573.21 (left)
Qty. 1 of each
#2 Bow
Part #582.99
Qty. 1
#1 Bow-Fabric Deck
Part #592.88
Qty. 1
Tailgate Bar
Part #575.33
Qty. 1
#4 Bow
Part #583.03
Qty. 1
Parts Kit #585.93
Rear Door Rail Covers
Part #589.48 - Right
Part #589.49 - Left (shown)
Qty. 1 of each
M6 x1.0 x 10mm
Flanged Allen Screw
Part #572.83
Qty. 4
Quarter Windows
Left and Right
Qty. 1 of each
Rear Window
Qty. 1

P6 - 54725 Rev. B 0320
© 2020 Bestop, Inc.
Installation Instructions
Supertop Ultra
Vehicle Application:
Jeep® JL Wrangler Unlimited 2019 - Current
Part Number 54725
Installation Instructions - Supertop Ultra
Parts List
- Required parts for installation - Page number in Installation Guide
All Sections Small Parts Kit #587.70 Multiple Pages
Parts Kit #587.70
M8 Shoulder Screw
Part #586.72
Qty. 2
T30 Torx
Shoulder Screw
Part #308.65
Qty. 2
Sheet Metal
Screw
Part #393.79
Qty. 17
M6x1.0 x 25
Flanged Torx Screw
Part #535.23
Qty. 12
M6 x1.0x 30
Flanged Torx Screw
Part #533.19
Qty. 8
Thick Plastic Bushing
Part #570.42
Qty. 2
Thin Plastic Bushing
Part #532.78
Qty. 2
M6 Flanged Nut
Part #591.47
Qty. 6
Screw-Binding Barrel
Part #599.01
Qty. 2
Lift Assist Tie-Down Strap
Part #590.76
Qty. 2
Grommet
Part #543.75
Qty. 2
M8x1.25x35
Button Head
Socket Cap
Screw/Washer
Part #532.17
Qty. 2
M8x1.25x28
Button Head
Socket Cap
Screw/Washer
Part #534.24
Qty. 4
M6 x1.0 x 10mm
Flanged Allen Screw
Part #572.83
Qty. 4

P7 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 7
Installation Instructions - Supertop Ultra
Section 1 Assemble Rear Door Rails
Left Side Shown
Step 1 537.49 574.42 574.43 574.46 574.47 517.48
Step 2
Step 1
Step 2
Tools
Attach the two (2) U-Clips #537.49
to the Upper Rear Door Rails
#574.42 (right) and #574.43 (left) in
the positions indicated. Make sure
to have the threaded barrel
of each U-Clip facing up.
Attach the Upper Rear Door Rail
#574.42 (right) to the Lower Rear
Door Rail #574.46 (right).
Attach the Upper Rear Door Rail
#574.43 (left) to the Lower Rear
Door Rail #574.47 (left).
Use two (2) #517.48 Button Head
Cap Screws (can be found in Small
Parts Kit #574.62) per assembly.
Screws thread up from the bottom
into the U-Clips.
Hardware
Upper Rear Door Rail
Part #574.42 - Right
Part #574.43 - Left
Qty. 1 of each
Lower Rear Door Rail
Part #574.46 - Right
Part #574.47 - Left
Qty. 1 of each
M6x20mm
Flanged Button Head
Cap Screw
#517.48
Qty. 4
4mm
Allen Wrench
M6 U-Clip
#537.49
Qty. 4

P8 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 8
Installation Instructions - Supertop Ultra

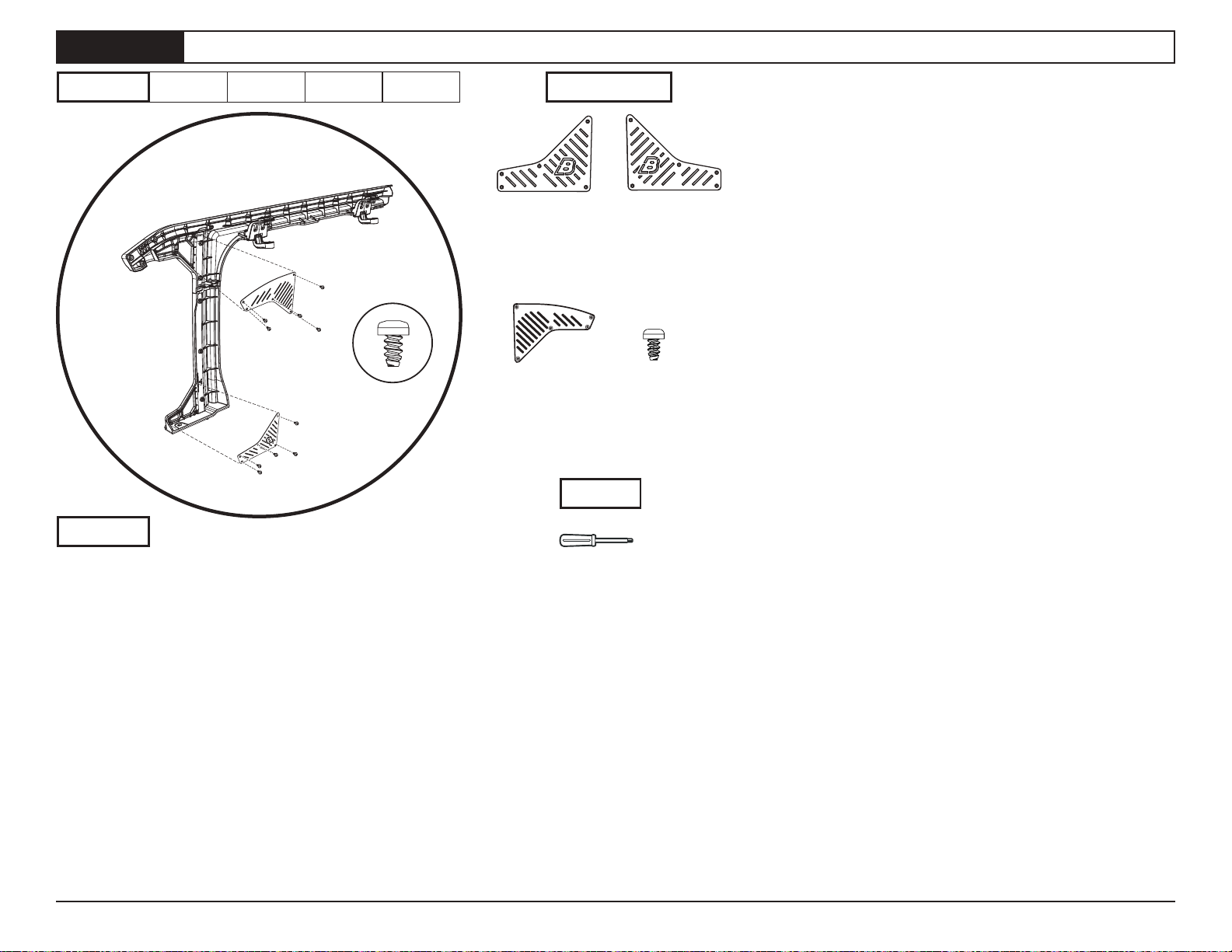

Attach Grilles to Rear Door Rail Assemblies
Section 2
Attach the Upper Rear Door Rail Grilles
#578.96 to each Rear Door Rail Assembly
using ve (5) #574.44 screws for each grille.
These grilles are the same on each side.
Attach the Lower Rear Door Grille #579.00
(right) to the Right Rear Door Rail Assembly,
using ve (5) #574.44 screws for each grille.
Attach the Lower Door Rail Grille #579.01
(left) to the Left Rear Door Rail Assembly,
using ve (5) #574.44 screws for each grille.
Step 1
Step 1
Tools
579.00 579.01 578.96 574.44
T8 Torx Driver
Hardware
Lower Rear
Door Rail Grille
#579.00 - Right
Qty. 1
Lower Rear
Door Rail Grille
#579.01 - Left
Qty. 1
Upper Rear
Door Rail Grille
#578.96
Qty. 2
M3.5x6
Screw
#574.44
Qty. 20

P9 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 9
Installation Instructions - Supertop Ultra
Attach Door Rail Assemblies
Section 3
Attach the Front Door Rails to the Jeep.
1Place each Front Door Rail #574.32
(left) and #574.33 (right) on the Jeep,
aligning the rail brackets with the through-
holes in the Jeep sport bar.
2Secure each Front Door Rail to the
sport bar using two (2) M8x1.25x80
Socket Cap Screws #532.23.
Insert the screws from the bottom and
tighten.
Attach the Rear Door Rail Assemblies to the Jeep.
Place each Rear Door Rail Assembly onto the Jeep
just behind the rear door.
Align the hole in the lower portion of the Assembly
with the threaded hole in the Jeep belt rail, the
alignment pin on the bottom of the Assembly with
the receiving hole in the top of the belt rail, and the
two integral brackets along the top of the Assembly
with the through-holes in the Jeep Sport Bar.
Insert two (2) M8x1.25x80 Screws #532.23 up from
the bottom of the integral brackets and tighten.
Use one (1) M8x1.25x20 screw #573.09 and one
(1) M8 Flat Washer #515.84 on each Assembly to
secure the Assembly to the Jeep belt rail.
Step 1 Step 2
Step 2
Tools
Step 1
532.23 532.23573.09 515.84 574.32 574.33
M8 x1.25x80
Screw
#532.23
Qty. 8
Rear Door Rail
Assemblies
Qty. 2
Hardware
1
2
Front Door Rail
Part #574.33 - Left
Part #574.32 - Right
Qty. 1
M8 x1.25x20
Screw
#573.09
Qty. 2
T40 Torx Driver
M8 Flat Washer
#515.84
Qty. 2

P10 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 10
Installation Instructions - Supertop Ultra
Remove Trim Panels; Attach Brackets to Sport Bar Downtubes
Section 4
Snap off the trim panel on the rear downtube of the
Sport Bar on each side. Attach the Sport Bar Mounting Brackets
#590.02 (right) and #590.03 (left) to the Sport
Bar downtubes as shown, using two (2) #534.24
M8 x1.25 x 28 Button Head Socket Cap Screw/
Washers per bracket.
Attach brackets to both left and right side sport bar
rear downtubes.
Step 1 Step 2
Step 2
Tools
Step 1
590.02 590.03
Hardware
Sport Bar Mounting
Brackets
Part #590.02 - Right
Part #590.03 - Left
Qty. 1 of each
T40 Torx Driver
M8x1.25x28
Button Head
Socket Cap
Screw/Washer
Part #534.24
Qty. 4

P11 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 11
Installation Instructions - Supertop Ultra

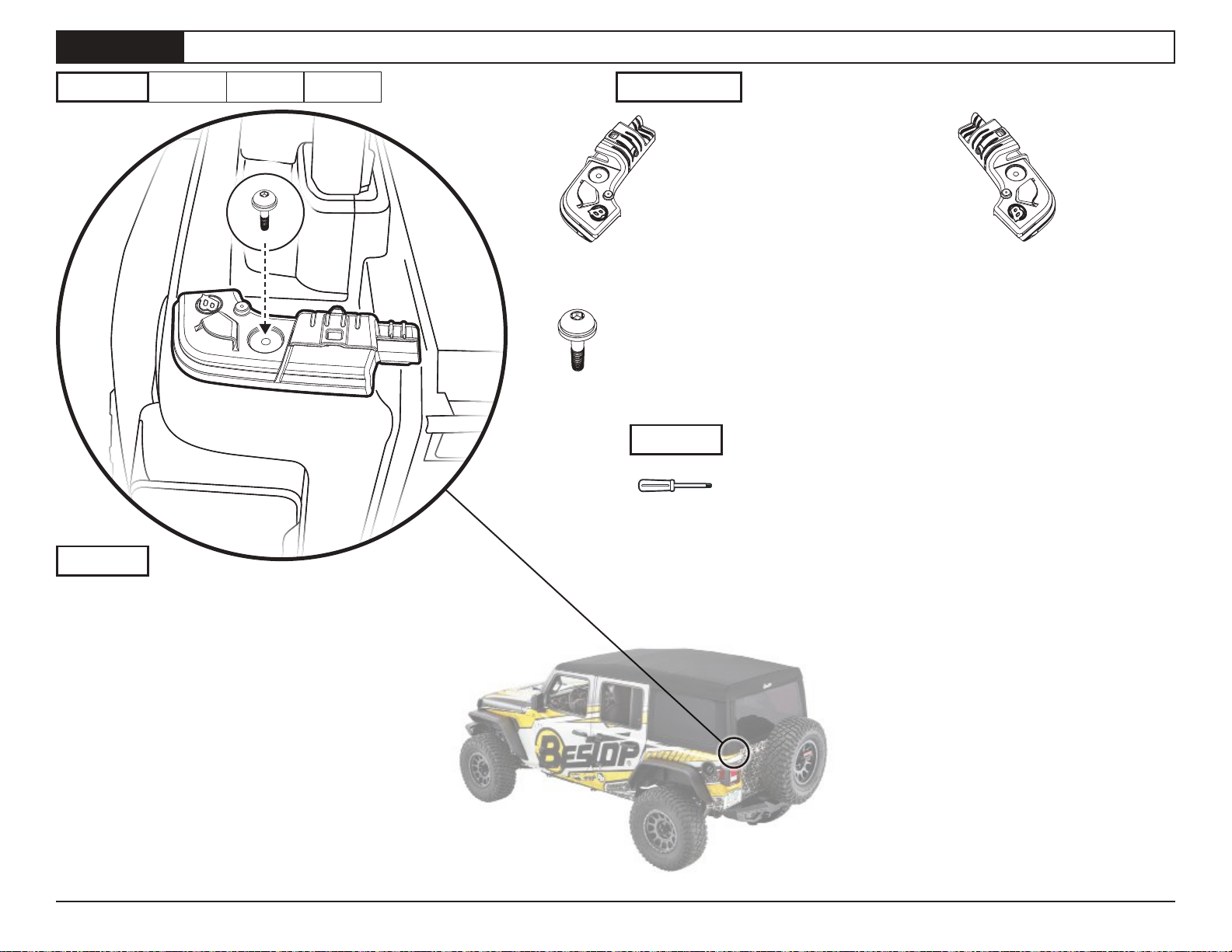

Install Tailgate Bar Retainers
Section 5
Tailgate Bar Retainer
Part #575.38 - Right
Qty. 1
Tailgate Bar Retainer
Part #573.39 - Left
Qty. 1
M8x1.25x 35
Button Head
Socket Cap Screw
#532.17
Qty. 2
Attach the Tailgate Bar Retainers #575.38 (right)

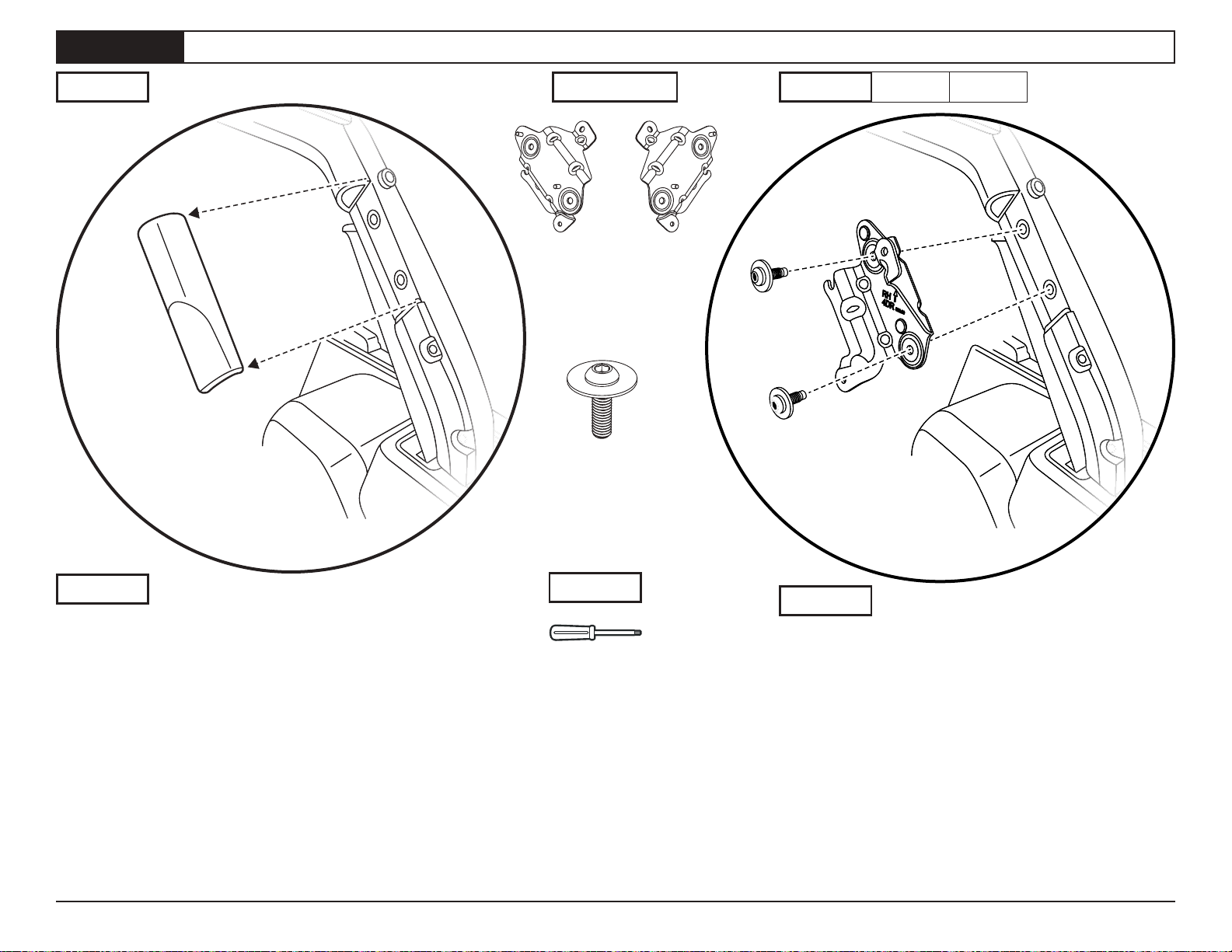

and #575.39 (left) to the Jeep Belt Rail, using one
(1) M8x1.25x38 Button Head Socket Cap Screw
#532.17 per retainer.
Insert the screws through the retainers, and into
threaded holes in the top of the Jeep belt rail, and
tighten.
Step 1
Step 1
575.38 575.39 532.17 Hardware
Tools
T50 Torx Driver

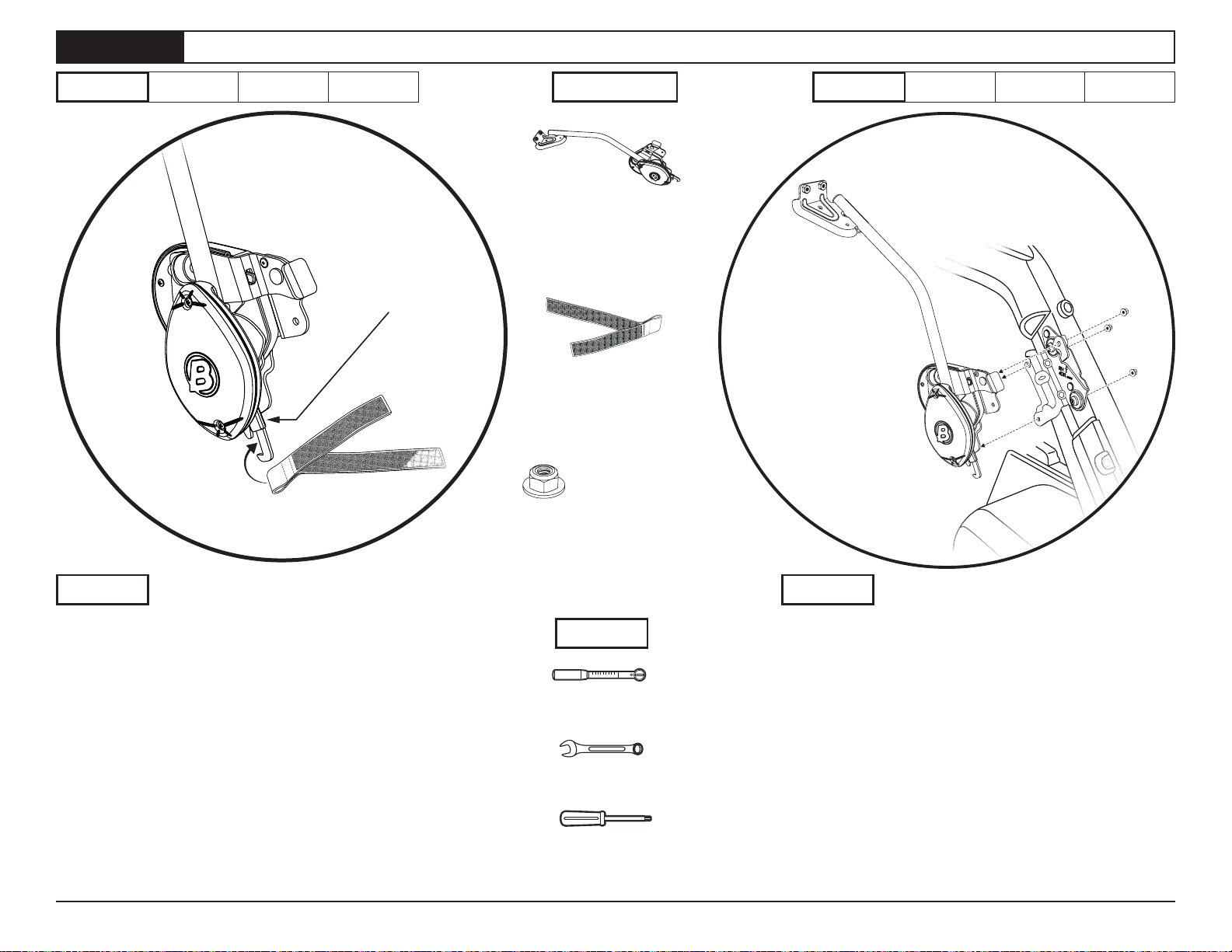

Attach the Right Lift Assist Assembly #589.98 to the
right side Sport Bar Mounting Bracket #590.02. Secure
the three (3) studs on the Lift Assist bracket using three
(3) M6 Flanged Nuts #591.47.
Repeat on the left side of vehicle.
Leave these fasteners only loosely attached at this time.
You will tighten them later in the installation process.
Before attaching the Lift Assist Assemblies #589.98 and
#589.99 to the Sport Bar Mounting Brackets, make sure
that the yellow Locking Lever is in the down and locked
position.
Slide the Lift Assist Tie-Down Straps #590.76 over the
hooked tabs at the bottom of each lift assist assembly.
P12 - 54725 Rev. B0320 © 2019 Bestop, Inc.
Page 12
Installation Instructions - Cable Bikini Top
Step 2Step 1
Step 2Step 2
Hardware
Attach Lift Assist Assemblies
Section 6
10mm Wrench
T25 Torx Driver
Tools
589.98589.98 589.99589.99 590.76 591.47
Lift Assist Assembly
Part #589.99 - Left
Part #589.98 - Right (shown)
Qty. 1 of each
M6 Flanged Nut
Part #591.47
Qty. 6
Lift Assist
Tie-Down Strap
Part #590.76
Qty. 2
Locking Lever in
down and locked
position
Torque Wrench

P13 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 13
Installation Instructions - Supertop Ultra

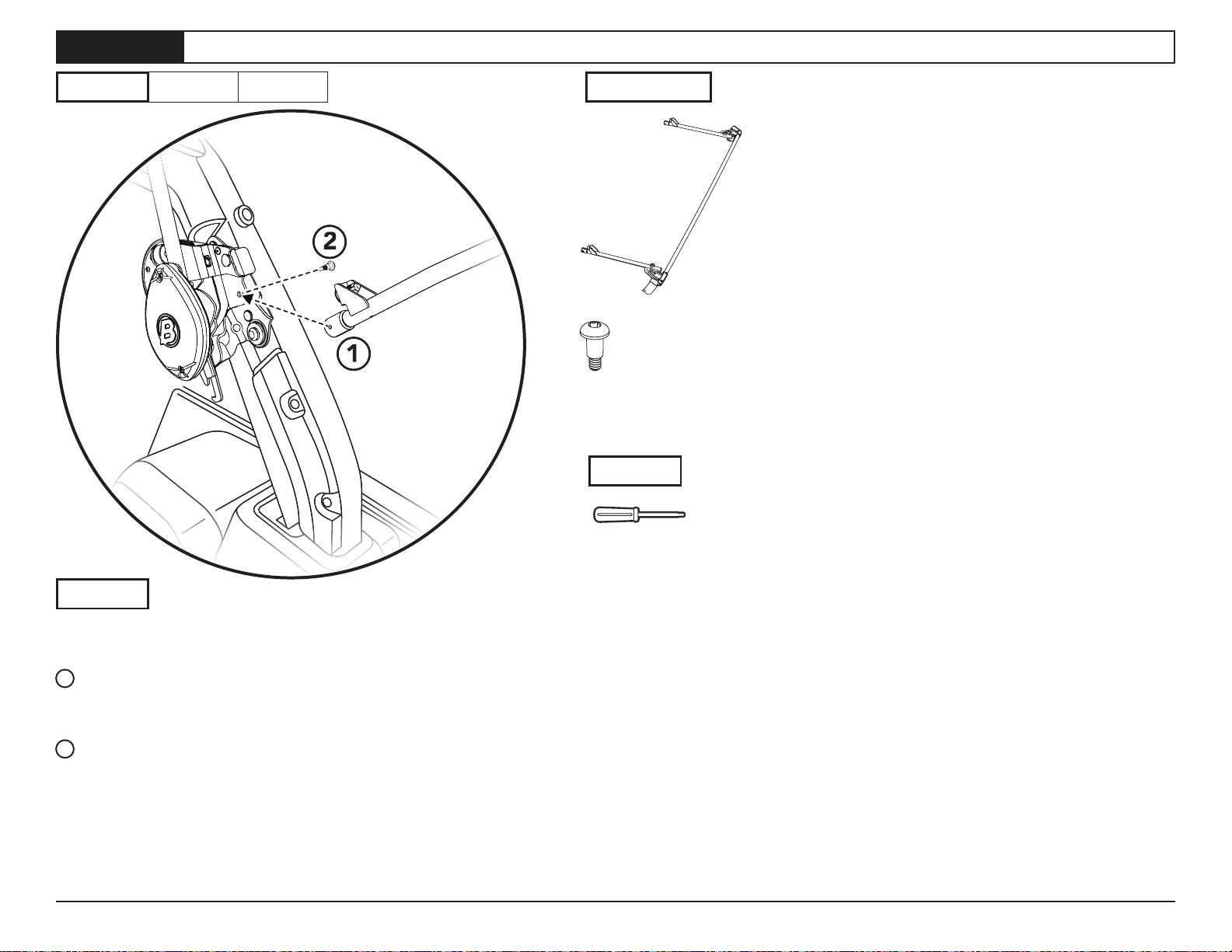

Attach the #6 Bow #589.25 to the Sport Bar
Mounting Brackets.
1Slide the slotted attachment knuckle at
the end of each #6 Bow arm over the ange
on the top of each Outer Bracket;
2Secure with one (1) T30 Torx Shoulder
Screw #308.65 per side.
Step 1
Step 1
589.25 308.65
#6 Bow Assembly
Part #589.25
Qty. 1
T30 Torx
Shoulder Screw
Part #308.65
Qty. 2
1
Hardware
Tools
T30 Torx Driver
Attach #6 Bow to Sport Bar Mounting Brackets
Section 7

P14 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 14
Installation Instructions - Supertop Ultra
Section 8
Attach the #5 Bow #593.55 to the tab on the
top of each Lift Assist Mechanism, using two (2)
M6x1.0x 30 Flanged Torx Screws #533.19 per
side.
NOTE: Make sure that the two outermost holes
at each end of the #5 Bow are facing the front of
the Jeep.
Step 1
Step 1
Attach #5 Bow to Lift Assist Assembly; Attach #5 Bow Pivot Brackets
593.55 533.19 Hardware
T30 Torx Driver
Tools
#5 Bow
Part #593.55
Qty. 1
M6 x1.0 x 30
Flanged Torx Screw
Part #533.19
Qty. 8
Attach the #5 Bow Pivot Brackets #589.19
(left) and #589.18 (right) to the #5 Bow.
Secure the Pivot Brackets to the #5 Bow using
two (2) M6 x 1.0 x 30.0 Flanged Button Head
Screws #533.19 for each bracket.
Step 2
Step 2
589.18 589.19
#5 Bow Pivot Bracket
Part #589.19 - Left (shown)
Part #589.18 - Right
Qty. 1 of each
Front of Vehicle
Front of Vehicle
Holes on front
side of #5 Bow

P15 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 15
Installation Instructions - Supertop Ultra
Slide Side Bow Assembly Rollers into Rear Door Rail Channels
Section 9
Step 1 585.72 585.73 Hardware
Side Bow Assemblies
Part #585.72 - Right
Part #585.73 - Left (shown)
Qty. 1 of each
Locate the roller on the outside of each Side Bow
Assembly #585.72 (right and #585.73 (left).
NOTE: tabs for attaching roof bows face to the
inside.
Insert the roller into the open end of the channel at
the rear on the inside of each Rear Door Rail, and
slide the Side Bow Assembly forward until it stops.
Step 1
Roller Detail
Slide Side
Bow Assembly
forward
Left Side
Shown

P16 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 16
Installation Instructions - Supertop Ultra

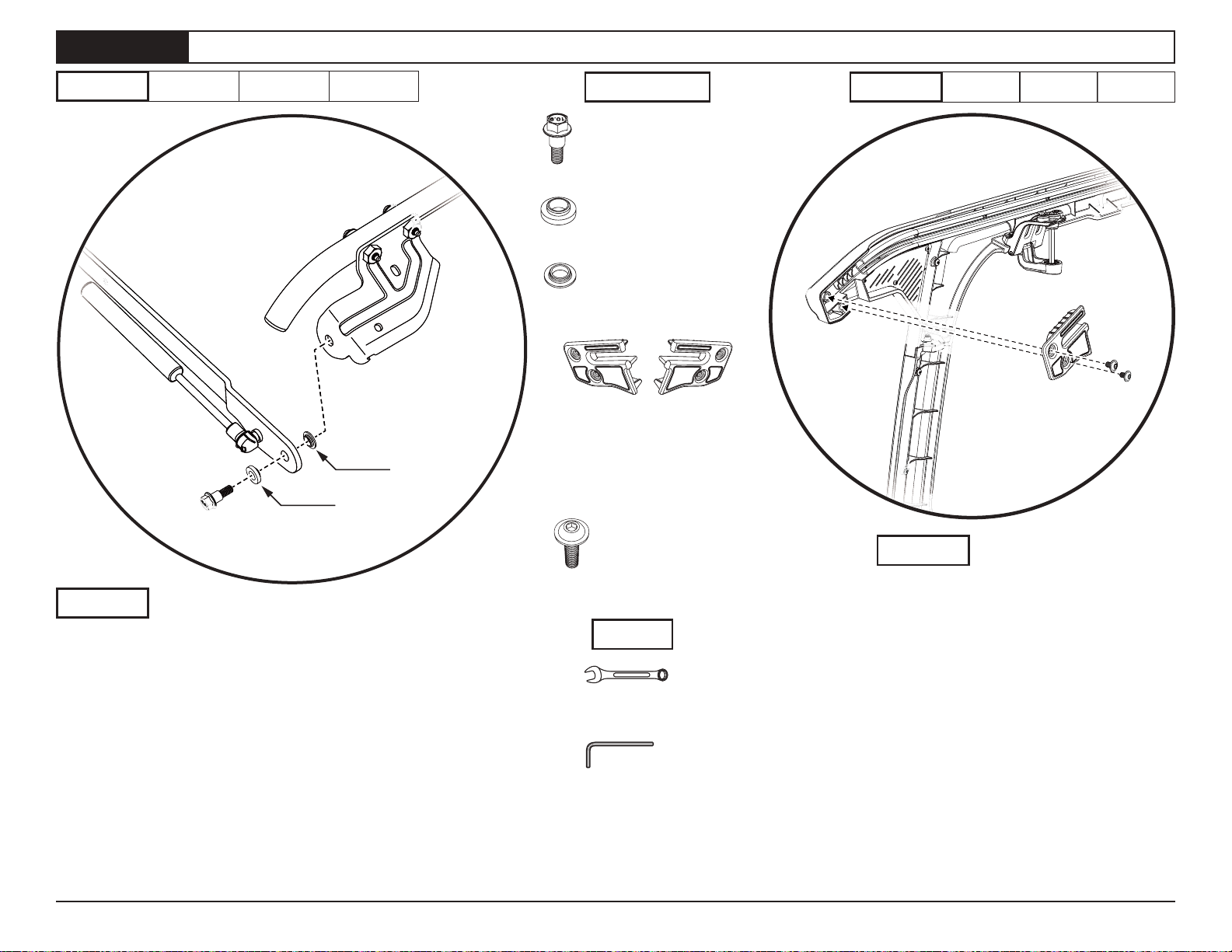

Attach the Rear Door Rail Cover Plates
#589.48 (right) and #589.49 (left) to each
Rear Door Rail Assembly using two (2)
#572.83 screws for each Cover Plate.
Left side shown.
Step 2
Tools
4mm Allen
Wrench
Rear Door Rail Cover Plates
Part #589.48 - Right
Part #589.49 - Left
Qty. 1 of each
M6 x1.0 x 10mm
Flanged Allen Screw
Part #572.83
Qty. 4
Attach Pivot Brackets to Side Bows; Attach Cover Plates to Rear Door Rail Assemblies
Section 10
Step 2 589.48 589.49 572.83 Hardware
Attach the pivot point at the rear of each Side
Bow Assembly to the Pivot Bracket on each end
of the #5 Bow.
Secure using one (1) Shoulder Screw #586.72,
one Thick Plastic Bushing #570.42, and one
Thin Plastic Bushing #532.78 per side.
The Thick Plastic Bushing goes to the outside.
Left side shown. Repeat on right side.
Step 2
Step 2
586.72 570.42 532.78
10mm Wrench
M8 Shoulder Screw
Part #586.72
Qty. 2
Thick Plastic Bushing
Part #570.42
Qty. 2
Thin Plastic Bushing
Part #532.78
Qty. 2
Thick
Bushing
Thin
Bushing

P17 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 17
Installation Instructions - Supertop Ultra
Section 11
Attach the #4 Bow #583.03 to the tabs on the
Side Bow Assembly (just above the Rear Door
Rails), using two (2) M6x1.0x 25
Flanged Torx Screw #535.23 per side.
Note that the #4 Bow is attached to the rear-
facing side of the tabs.
Attach the #3 Bow #583.01 to the tabs on the
Side Bow Assembly (just above the where the
Front Door Rails join the Rear Door Rails), using
two (2) M6x1.0 x25 Flanged Torx Screw #535.23
per side.
Note that the #3 Bow is located on the forward-
facing side of the tabs.
Step 1 Step 2
Step 1 Step 2
Attach #4 Bow to Side Bow Assembly; Attach #3 Bow to Side Bow Assembly
583.03 535.23 583.01 535.23
Hardware
T30 Torx Driver
Tools
Front of Jeep
Front of Jeep
M6x1.0 x 25
Flanged Torx Screw
Part #535.23
Qty. 8
#4 Bow (longer)
Part #583.03
Qty. 1
#3 Bow (shorter)
Part #583.01
Qty. 1

P18 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 18
Installation Instructions - Supertop Ultra
Section 12

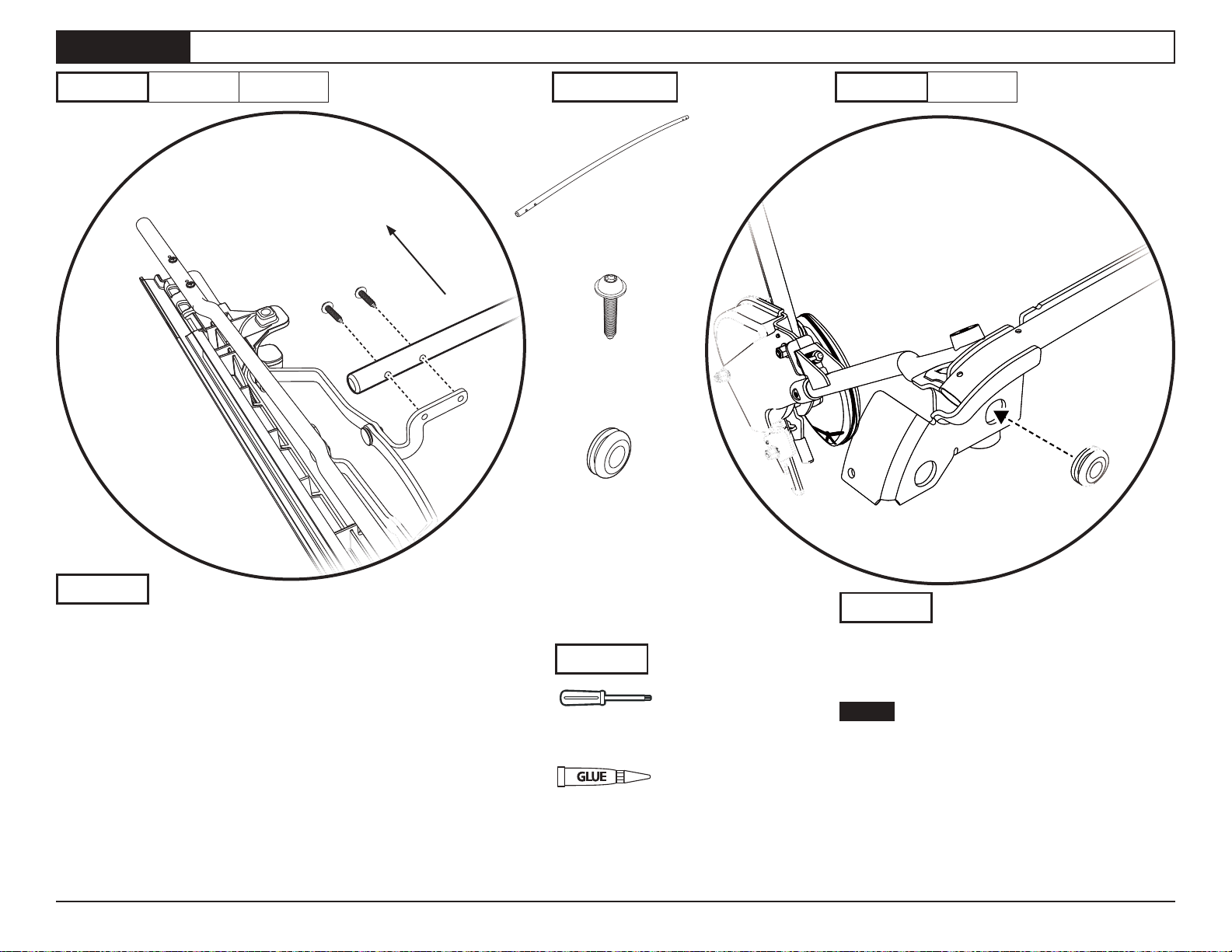

Attach the #2 Bow #582.99 to the tabs on the
Side Bow Assembly, using two (2) M6x1.0x 25
Flanged Torx Screws #535.23 per side.
Note that the #2 Bow attaches to the forward-
facing side of the tabs.
Install the Grommets #543.75 into the inboard
holes in the rear-facing anges at the ends of
the #6 Bow.
NOTE: Grommets must be bonded in place
with super glue or similar adhesive.
Step 1 Step 2
Step 1 Step 2
Attach #2 Bow to Side Bow Assembly; Install Grommets in #6-Bow Flanges
582.99 535.23 543.75
Hardware
T30 Torx Driver
Tools
Front of Jeep
#2 Bow
Part #582.99
Qty. 1
Grommet
Part #543.75
Qty. 2
M6x1.0 x 25
Flanged Torx Screw
Part #535.23
Qty. 4
Super Glue

P19 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 19
Installation Instructions - Supertop Ultra
Remove
these two
screws
Fold tab
back
Section 13
Place the #1 Bow-Fabric Deck
#592.88 on top of the windshield
header.
Lay the top fabric across the Jeep
hood, with the underside facing up.
On the underside of the #1 Bow-Fabric Deck,
remove the two screws on each side that hold
down the tabs, and fold each tab back.
Repeat on both sides of the #1 Bow.
Step 1 Step 2
Step 2
Step 1
Release Tabs ; Place #1 Bow & Fabric Deck on Windshield Header
592.88 Hardware
Tools
#1 Bow-Fabric Deck
Part #592.88
Qty. 1
(shown without fab-
ric deck)
T20 Torx Driver

P20 - 54725 Rev. B 0320 © 2020 Bestop, Inc.
Page 20
Installation Instructions - Supertop Ultra

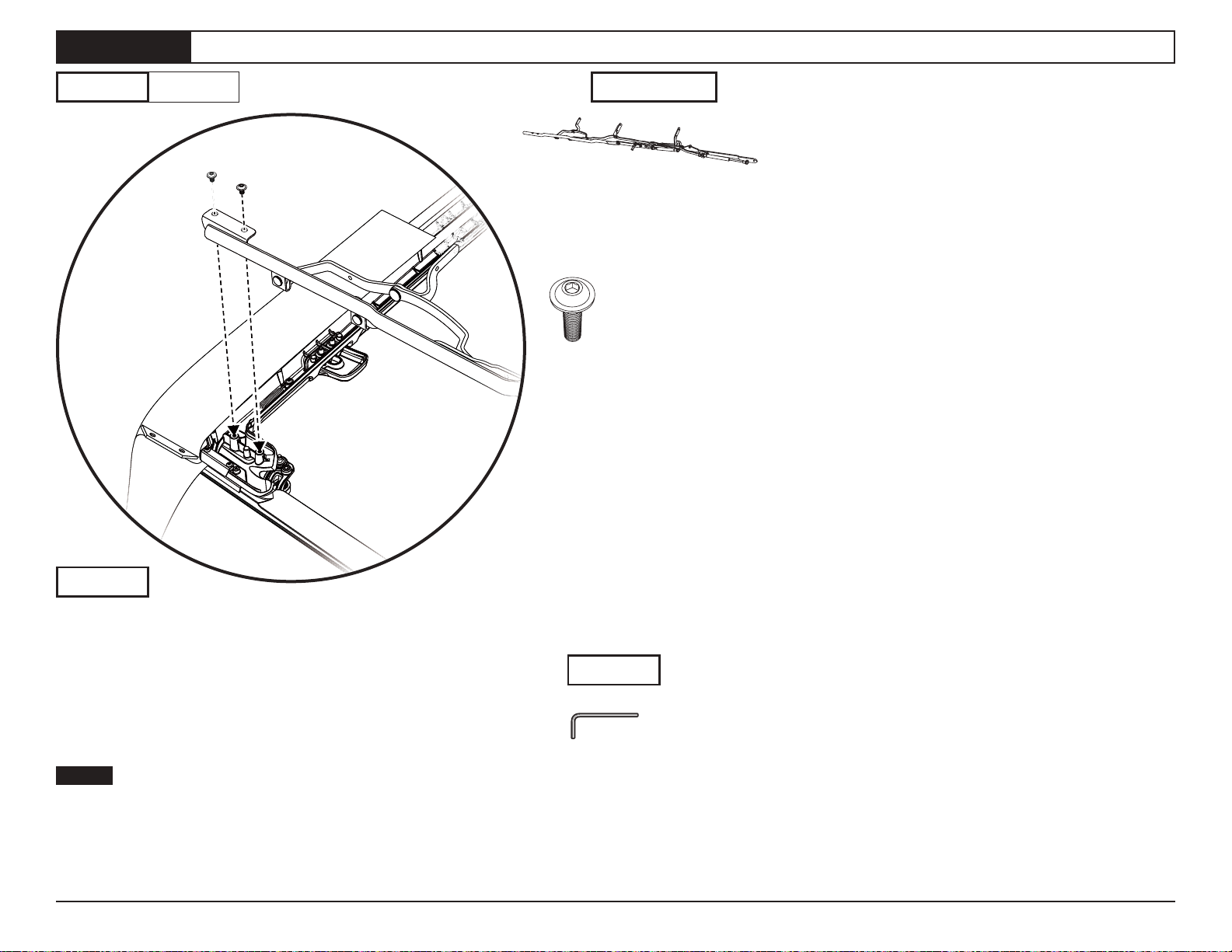

Attach the front bracket on each Side Bow
Assembly #585.72 (right) and #585.73 (left) to
the #1 Bow-Fabric Deck.
With the Fabric Deck ipped over the Jeep
hood, use two (2) #572.83 M6 x 1.0 x 10 Flanged
Button Head Screws on each side to attach the
welded bracket to the #1 Bow.
NOTE: You must push the #1 Bow-Fabric Deck
as far forward as possible to allow inserting the
screws to attach the Side Bows.
Step 1
Step 1
572.83 Hardware
Tools
Side Bow Assembly
Part #585.72 - Right
Part #585.73 - Left
Qty. 1 of each
Section 14 Attach Side Bow Assemblies to Header
4mm Allen
Wrench
M6 x1.0 x 10mm
Flanged Allen Screw
Part #572.83
Qty. 4
