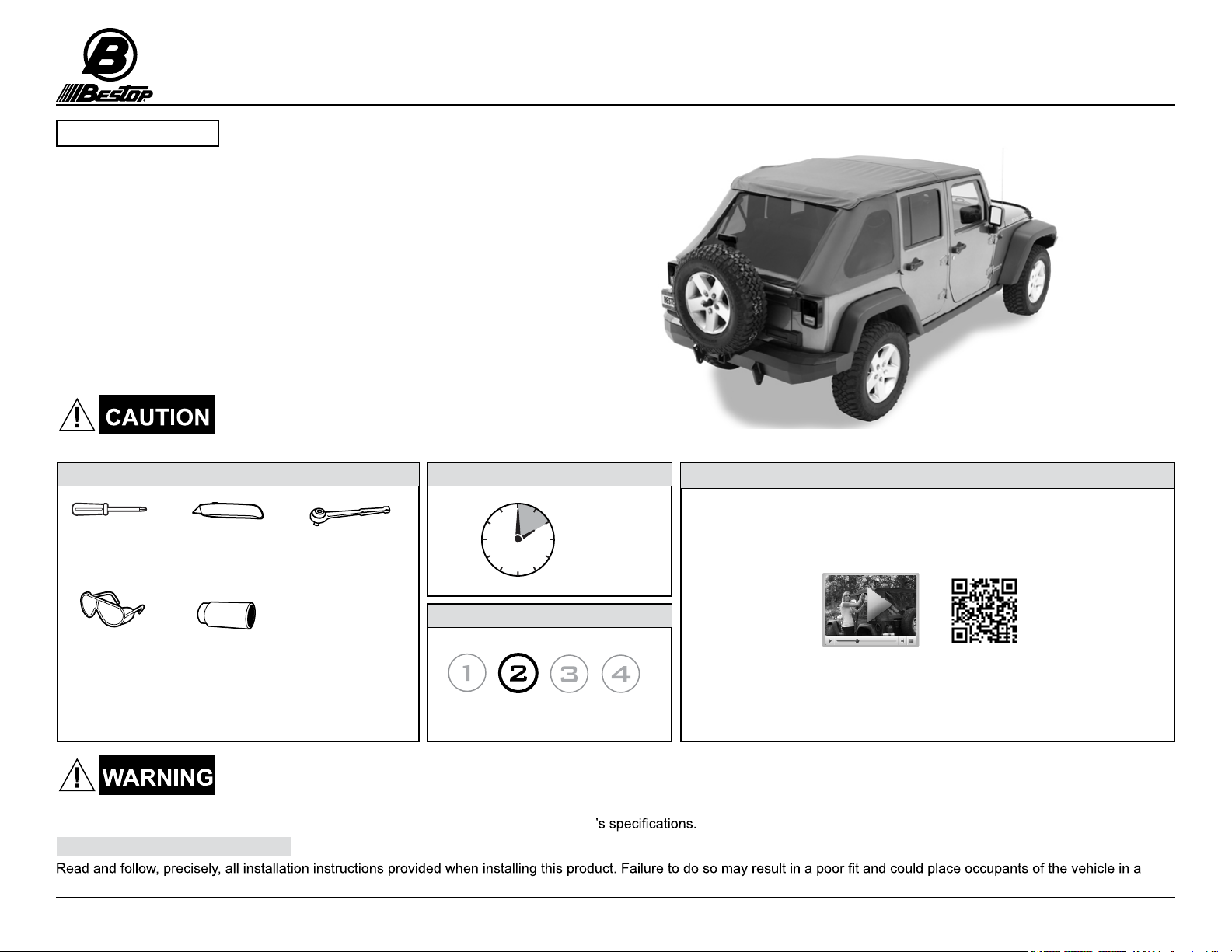

Bestop Trektop NX User manual

Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P1 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Before you begin installing your new Trektop NX, please read
all the instructions thoroughly, and watch the Bestop installation
video. (See Support section on this page)
For a smooth fit:
For easier installation, the top should be installed at a temperature above
72º F. Below this temperature, the fabric may contract an inch or more,
making it difficult to fit the vehicle.
It is normal for the fabric to contract and wrinkle when stored in the ship-
ping carton. Within a few days after installation, the fabric will relax and the
wrinkles will disappear.
Installation Tips
Safety glasses should be worn at all
times when installing this product.
This product is designed primarily to enhance the appearance of the vehicle and to shield the occupants from ordinary weather conditions. Do not rely in
any way on the components of this product to contain the occupants within the vehicle, or to protect against injury or death in the event of an accident, This product will not protect
the occupants from falling objects. Never operate the vehicle in excess of manufacturer
WEAR SEAT BELTS AT ALL TIMES
potentially dangerous situation.
Tools Installation Time
Skill Level
Support
We’re here to help!
Go to www.Bestop.com and
click “Contact Us”
See a video showing installation of this top at:
Or search Youtube for “Bestop Trektop NX install JK Unlimited (four door)”
http://www.youtube.com/watch?v=SiHjRyVdtqU
2 Hours
2 - Moderately Easy
Phillips
Screwdriver
13mm Socket
Utility Knife Ratchet
Safety
Glasses

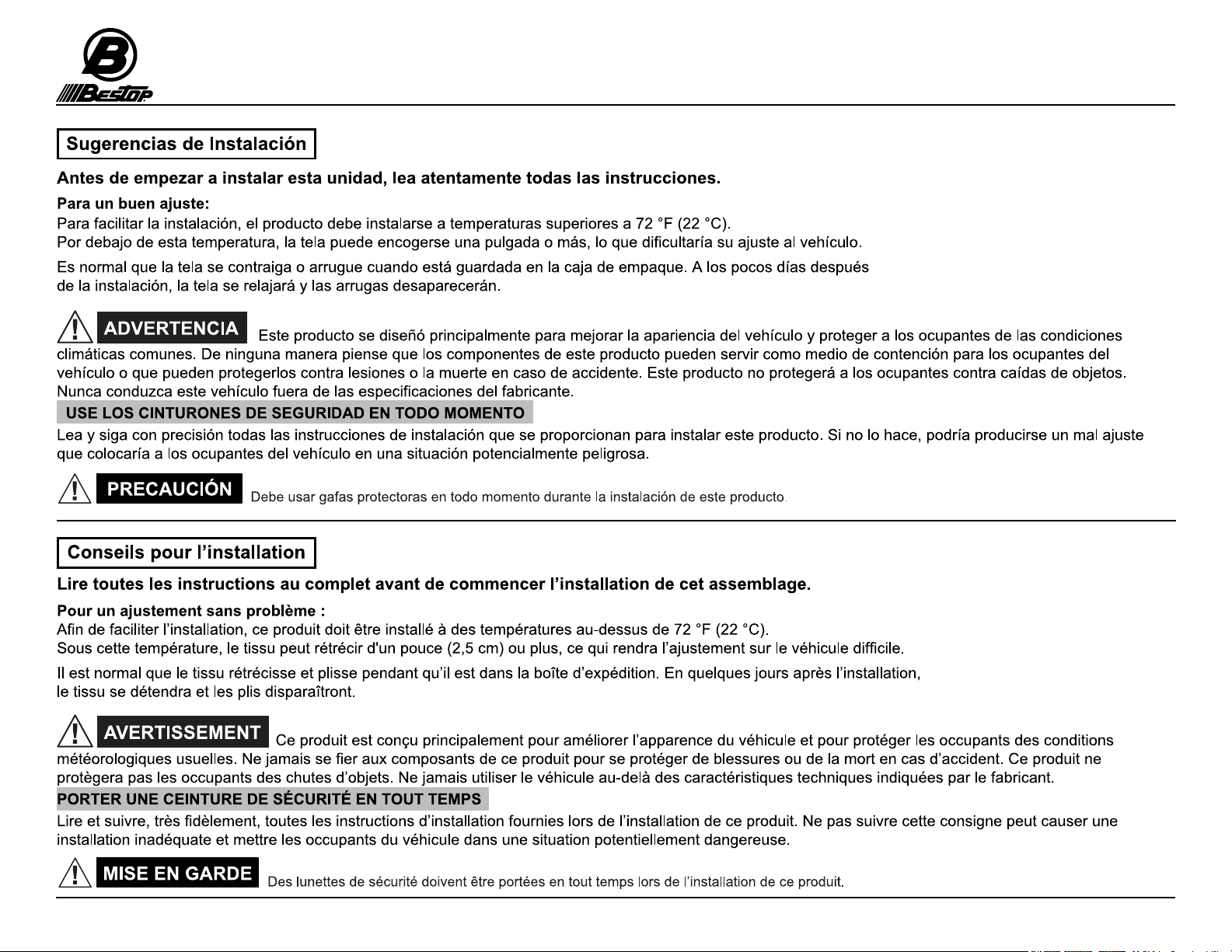

Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P2 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823

Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P3 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Parts List
- Required parts for each installation section - Page number in Installation Guide
Section 1 Rear Door Surrounds Page 6 of Guide
Rear Door Surround
Qty - 1
Part # 486.67 - Left
Rear Door Surround
Qty - 1
Part # 486.66 - Right
M8 x 75mm Knob
Qty - 4
Part # 478.90
Sections 2&3 Front Door Surrounds Pages 7 & 8 of Guide
Front Door Surround
Qty - 1
Part # 479.86 - Right
Front Door Surround
Qty - 1
Part # 479.87 - Left
Sunrider Bracket
Qty - 1 per side
485.50 Right (shown)
485.51 Left
M8 x 30mm Knob
Qty - 2
Part # 480.22

Installation Instructions
Trektop NX
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Parts List
- Required parts for each installation section - Page number in Installation Guide
Sections 6, 7, 8 & 9 Front & Rear Top Arches, Tailgate Bar Mounts & Side Bows Pages 13 to 18 of Guide
Front Top Arch
Qty - 1
Part # 483.24
Rear Top Arch
Qty - 1
Part # 483.27
Tailgate Bar Mount
Qty - 1
Part # 488.47 - Left
Tailgate Bar Mount
Qty - 1
Part # 488.46 - Right
#8 x 1/2” Screw
Qty - 8
Part # 393.79
Side Bow
Qty - 2
Part # 485.47
Installation Instructions - Trektop NX © 2016 Bestop, Inc.P4 - 56823 Rev. K 0116
Sections 4 & 5 Cable Brackets & Rear Bow Brackets Pages 10 to 12 of Guide
Cable Bracket Qty - 1
Part # 502.39 - Left
Cable Bracket Qty - 1
Part # 502.38 - Right
Rear Bow Bracket
Qty - 1
Part # 484.87 - Left
Rear Bow Bracket
Qty - 1
Part # 484.86 - Right

Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Parts List
- Required parts for each installation section - Page number in Installation Guide
Sections 10 to 15
Sections 16 to 21
Foam Seals, Middle Bow, Bow Clip & Rear Bow
Web Strap, Tailgate Bar, Fabric Top and Windows
Pages 19 to 24 of Guide
Pages 25 to 31 of Guide
Web Strap with
Snap Hook
Qty - 2
Part # 460.37
Middle Bow
Qty - 1
Part # 486.21
Foam Tape Strips
Qty - 2
Part # 417.43
Foam Seals
Qty - 1 per side
Part # 457.76 Right
Part # 457.77 Left
Bow Clip
Qty - 1,
Part # 479.22
Tailgate Bar
Qty - 1
Part # 489.46
Rear Bow
Qty - 1
Part # 486.18
Deck, Header Assembly, & Fabric Top
Right Side Window
Left Side Window
Rear Window
© 2016 Bestop, Inc.P5 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 6
Rear Door Surround
Qty - 1 per side
486.66 Right (shown)
486.67 Left

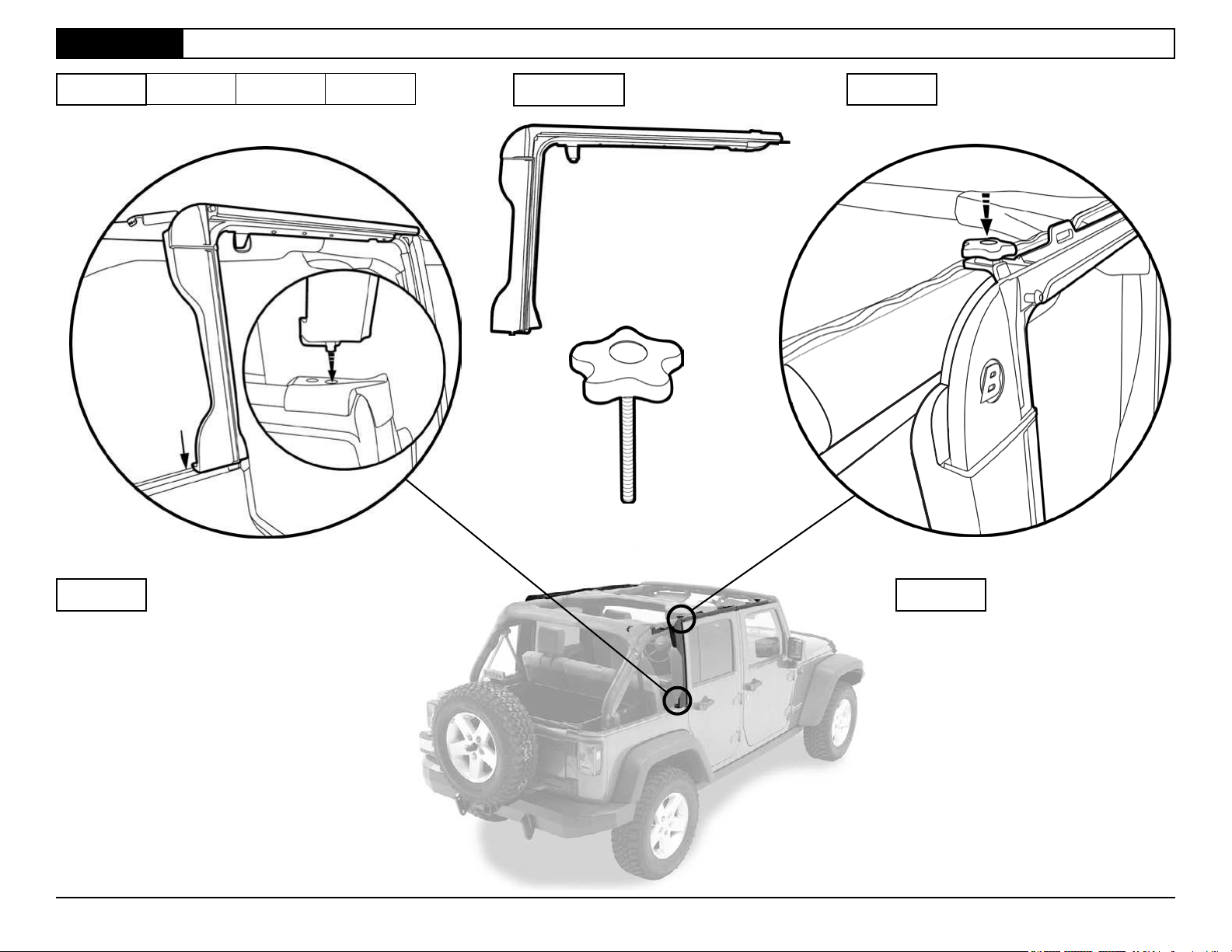

Install Rear Door Surrounds
Section 1
Step 1 Step 2486.66 486.67 478.90 Hardware
M8 x 75mm Knob
Qty - 1 per side
Part # 478.90
Insert the pin in the bottom of the Rear Door
Surround into the hole in the belt rail behind the
rear door opening. Press the channel along the top
of the Rear Door Surround around the horizontal
sport bar.
Repeat on the other side of the vehicle.
Open the Rear Door. Insert an M8 x 75mm Knob into the rear
position on the Door Surround.
Repeat on the other side of the vehicle.
Step 1 Step 2
© 2016 Bestop, Inc.P6 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 7

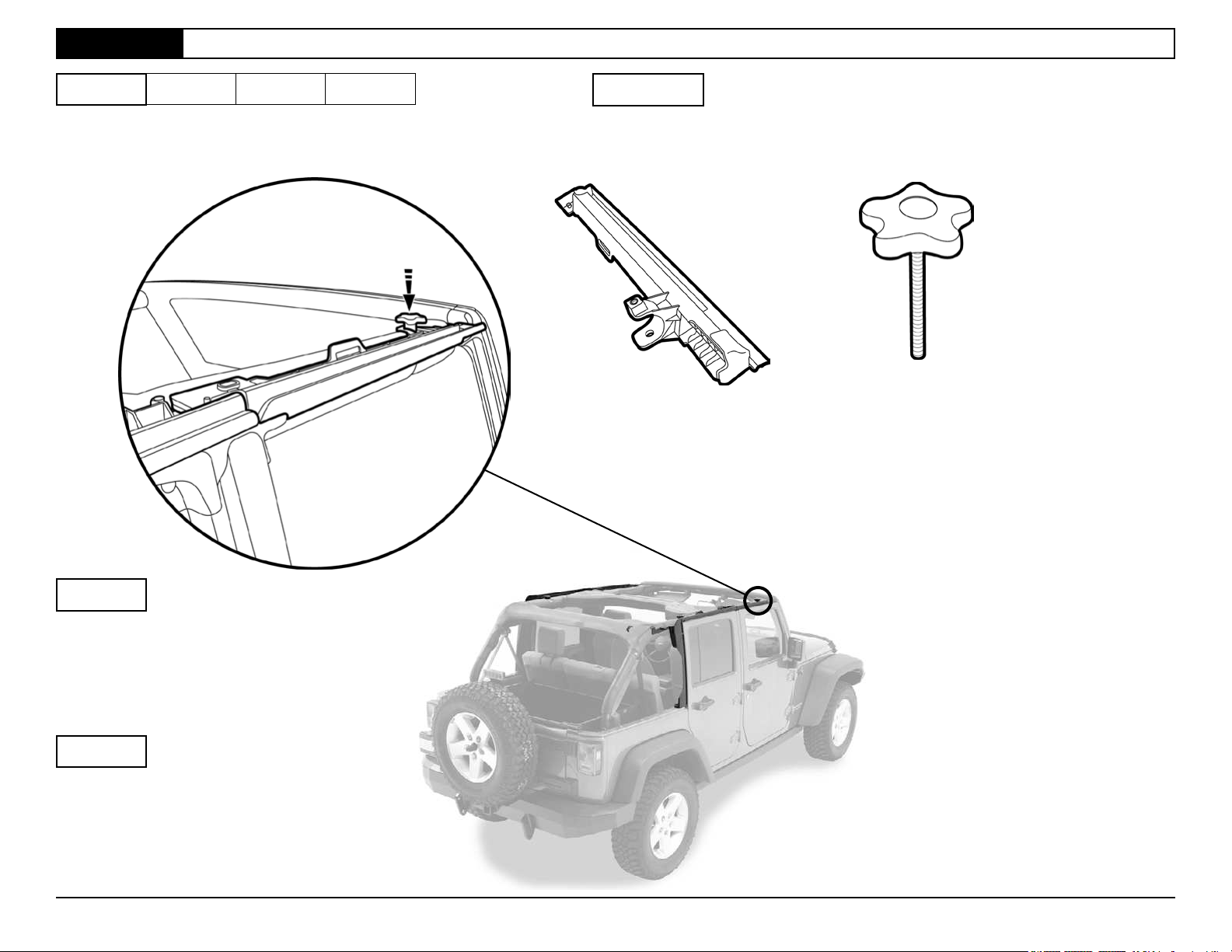

Install Front Door Surrounds
Section 2
Step 1 479.86 479.87 478.90 Hardware
Front Door Surround
Qty - 1 per side
479.86 Right (shown)
479.87 Left
M8 x 75mm Knob
Qty - 1 per side
Part # 478.90
Insert an M8 x 75mm Knob into the front
position on the Door Surround.
Repeat on the other side of the vehicle.
Step 1
Step 2
Position the Front Door Surround on the sport bar
above the passenger side door and press it into
place as with the rear.
Open the Front Door.
© 2016 Bestop, Inc.P7 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 8

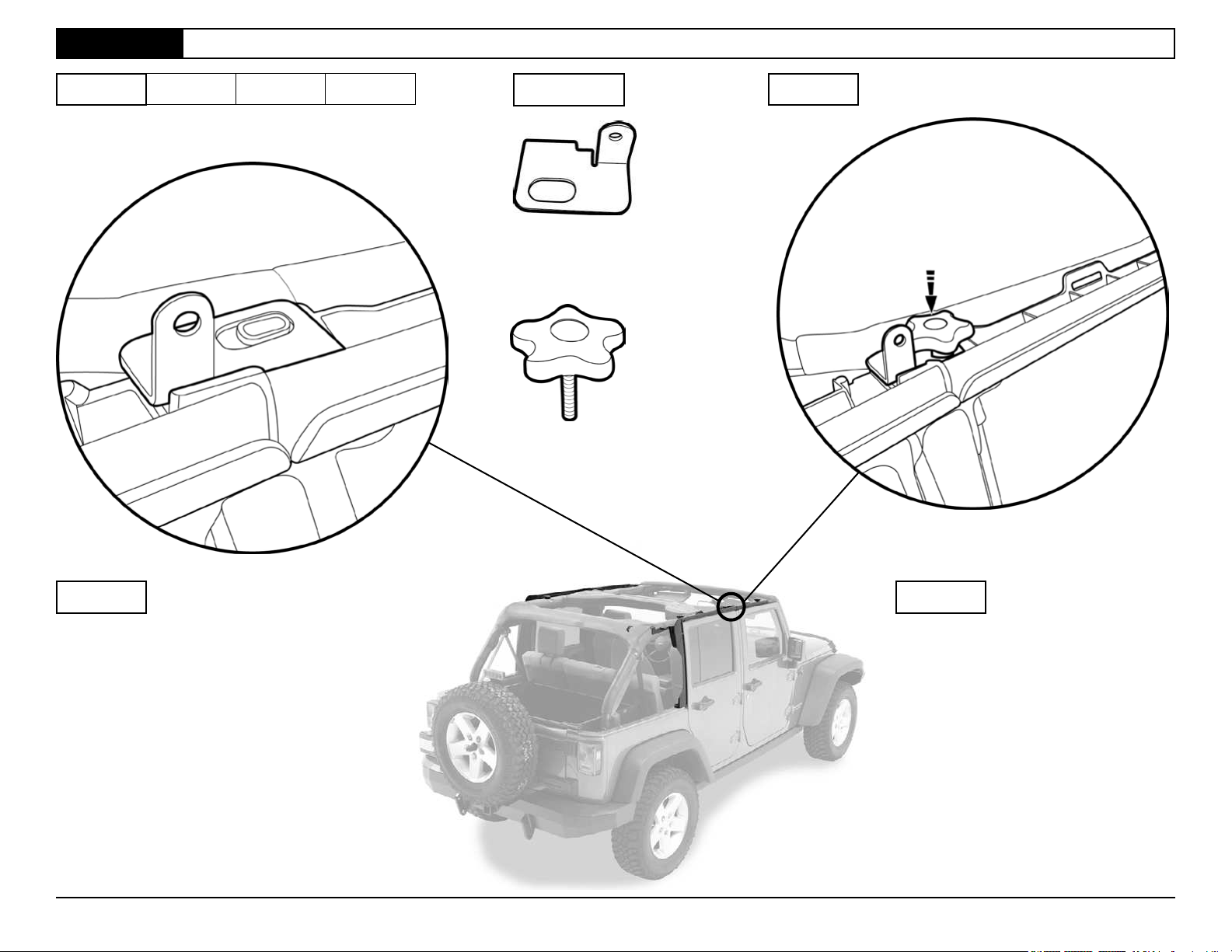

Install Sunrider Bracket
Section 3
Step 1 Step 2485.50 485.51 480.22 Hardware
Sunrider Bracket
Qty - 1 per side
485.50 Right (shown)
485.51 Left
M8 x 30mm Knob
Qty - 1 per side
Part # 480.22
Step 1 Step 2
Place the Right Sunrider Bracket over
the hole where the Front and Rear
Door Surrounds join.
Secure the Right Sunrider Bracket
with the M8 x 30mm Knob.
Repeat with the Left Sunrider Bracket.
© 2016 Bestop, Inc.P8 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 9
Install Cable Brackets
Section 4
Step 1 502.38 502.39 Step 2
Utility Knife
Step 1 Step 2
Unzip the upper rear and rear leg sport bar covers
and locate the upper sport bar bolt. Use a 13mm
socket and ratchet to remove the bolt and set it
aside to be reused.
Cut a horizontal slit the same width as the
Cable Bracket in the sport bar cover 1/4"
below the zipper and aligned with the bolt
hole.
© 2016 Bestop, Inc.P9 - 56823 Rev. K 0116
Ratchet
13mm
Socket

Installation Instructions - Trektop NX
Page 10
Install Cable Brackets (cont.)
Section 4
Step 3 502.38 502.39 Hardware
Cable Bracket
Qty - 1
Part # 502.39 - Left
Cable Bracket
Qty - 1
Part # 502.38 - Right
Step 3
Use the bolt that was removed to mount the
Cable Bracket to the sport bar through the
slit in the sport bar cover. Tighten the bolt.
Repeat on both sides of the vehicle.
© 2016 Bestop, Inc.P10 - 56823 Rev. K 0116
Ratchet
13mm
Socket

Installation Instructions - Trektop NX
Page 11
Install Rear Bow Brackets
Section 5
Step 1 Step 2484.86 484.87 Hardware
Rear Bow Bracket
Qty - 1
Part # 484.87 - Left
Rear Bow Bracket
Qty - 1
Part # 484.86 - Right
Step 1 Step 2
Locate the rear sport bar bolt. Use a 13mm socket
and ratchet to remove the bolt and set it aside to be
reused.
Loosely install the Rear Bow Bracket with
the sport bar bolt. Mark where the bracket
contacts the sport bar cover and remove the
bracket.
© 2016 Bestop, Inc.P11 - 56823 Rev. K 0116
Ratchet
13mm
Socket

Installation Instructions - Trektop NX
Page 12
Install Rear Bow Brackets (cont.)
Section 5
Step 3 Step 4484.86 484.87
Utility Knife
Step 3 Step 4
Cut a horizontal slit the same width as the
Rear Bow Bracket at this point.
Reinstall the Rear Bow Bracket through the
cover and tighten the bolt.
Zip all sport bar covers.
Repeat on both sides of the vehicle.
© 2016 Bestop, Inc.P12 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 13
Install Front Top Arch
Section 6
Step 1 Step 2483.24 Hardware
Front Top Arch
Qty - 1
Part # 483.24
Step 1 Step 2
Insert one end of the Front Top Arch into the slot
in the middle of the Front Door Surround on
the opposite side of the vehicle from you.
1 Push the near end of the bow inward as you
2 push up in the middle of the bow from
underneath to flex the bow and,
3 insert it into the slot on top of the Front
Door Surround on your side of the vehicle.
Remove and dispose of paper film.
© 2016 Bestop, Inc.P13 - 56823 Rev. K 0116
21
3

Installation Instructions - Trektop NX
Page 14

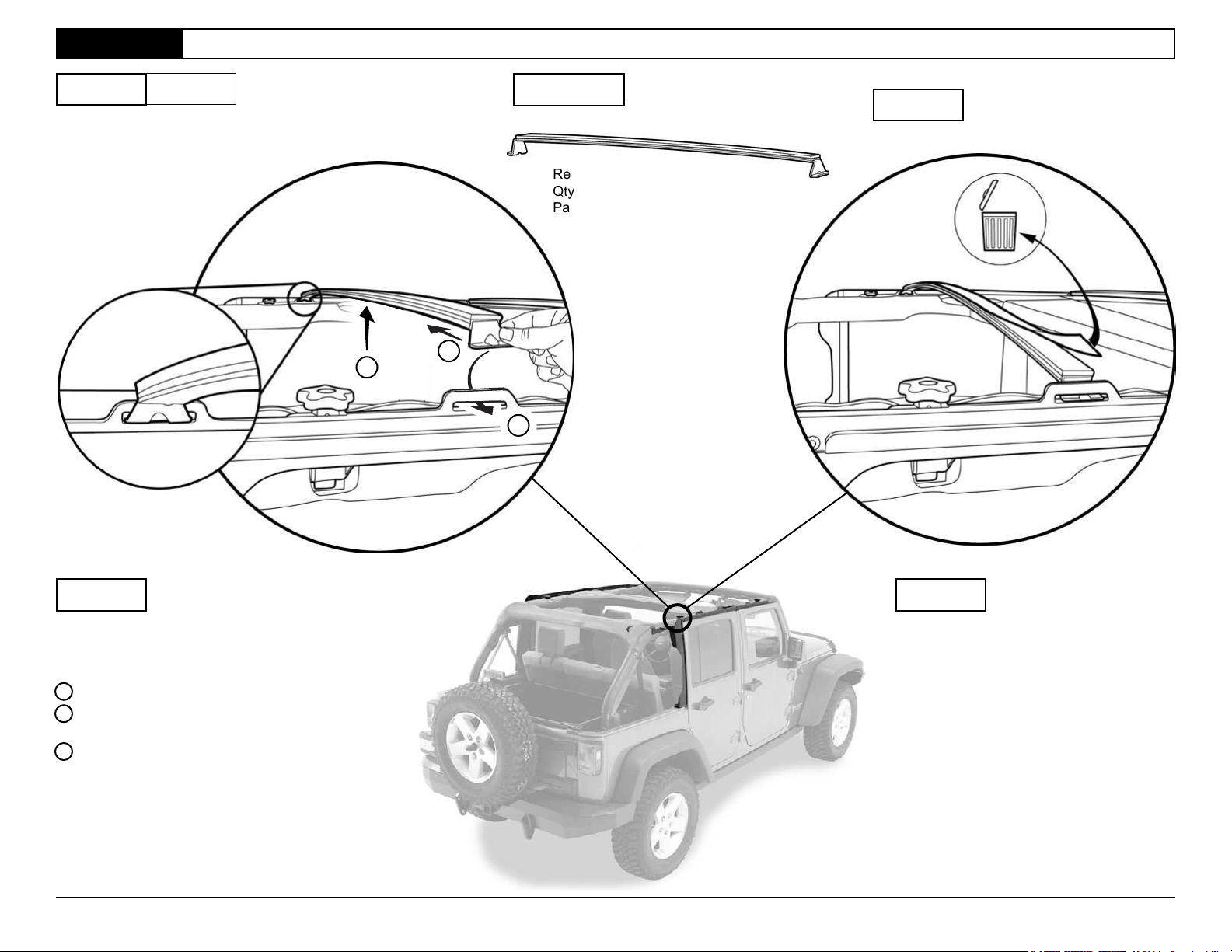

Install Rear Top Arch
Section 7
Step 1 Step 2 483.27 Hardware
Rear Top Arch
Qty - 1
Part # 483.27
Step 1 Step 2
Remove and dispose of paper film.
© 2016 Bestop, Inc.P14 - 56823 Rev. K 0116
Insert one end of the Rear Top Arch into the slot
in the middle of the Rear Door Surround on
the opposite side of the vehicle from you.
1 Push the near end of the bow inward as you
2 push up in the middle of the bow from
underneath to flex the bow and,
3 insert it into the slot on top of the Rear
Door Surround on your side of the vehicle.
1
3
2

Installation Instructions - Trektop NX
Page 15

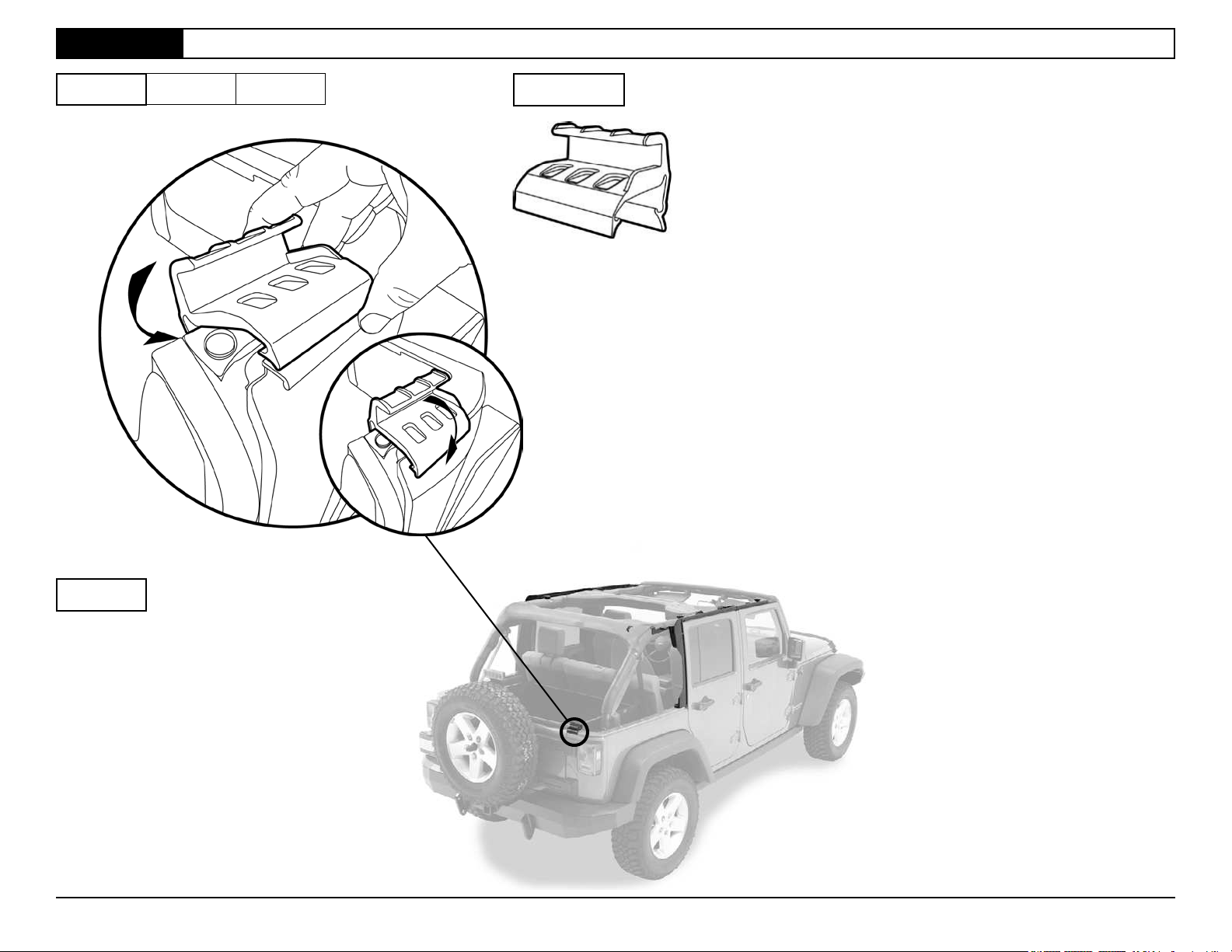

Install Tailgate Bar Mounts
Section 8
Step 1 488.46 488.47 Hardware
Tailgate Bar Mount
Qty - 1 per side
488.46 Right (shown)
488.47 Left
Step 1
Orient the Tailgate Bar Mounts on the vehicle.
Hook the bottom of one mount under the
ledge and roll the mount toward the outside
of the vehicle until it clips into place under the
belt rail. Repeat this with both Tailgate Bar
Mounts.
© 2016 Bestop, Inc.P15 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 16
CRITICAL STEP - Attach Side Bows to Header/Fabric Assembly
Section 9
Step 1 Step 2 485.47 Hardware
Side Bow
Qty - 1 per side
Part # 485.47
Step 1 Step 2
Lay the deck, Header Assembly and fabric top
upside down on a clean surface.
Remove the screws on both left and right sides of
the Header Assembly and set aside to be reused.
Insert Side Bows into the Header
Assembly on each side.
Pivot quick release knobs to face toward
the inside of the assembly, and align the
holes in the Side Bow with the holes in
the Header Assembly.
© 2016 Bestop, Inc.P16 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 17
CRITICAL STEP - Attach Side Bows to Header/Fabric Assembly (cont.)
Section 9
Step 3 393.79 Hardware
#8 x 1/2” screw
Qty - 4 per side
Part # 393.79
Step 3 Step 4
Once the holes are aligned, use two (2) #8x1/2”
screws to mount the Side Bow to the lower side
of the Header Assembly.
Repeat on both sides of the vehicle.
1 Flip the Header Assembly over.
2 Be sure the fabric lays flat after you
flip the header assembly over to expose
the upper screw holes.
3 Insert two (2) #8x1/2” screws on the
upper side of the header assembly.
Repeat on both sides of the vehicle.
© 2016 Bestop, Inc.P17 - 56823 Rev. K 0116
Flip the Header
Assembly over
Lay the fabric flat and make
sure the fabric remains fully
inserted into header assembly
2
3
1
- Critical Step -
Use 4 screws per side
2 screws on lower side
2 screws on upper side

Installation Instructions - Trektop NX
Page 18
CRITICAL STEP - Attach Side Bows to Header/Fabric Assembly (cont.)
Section 9
Step 5
Step 5

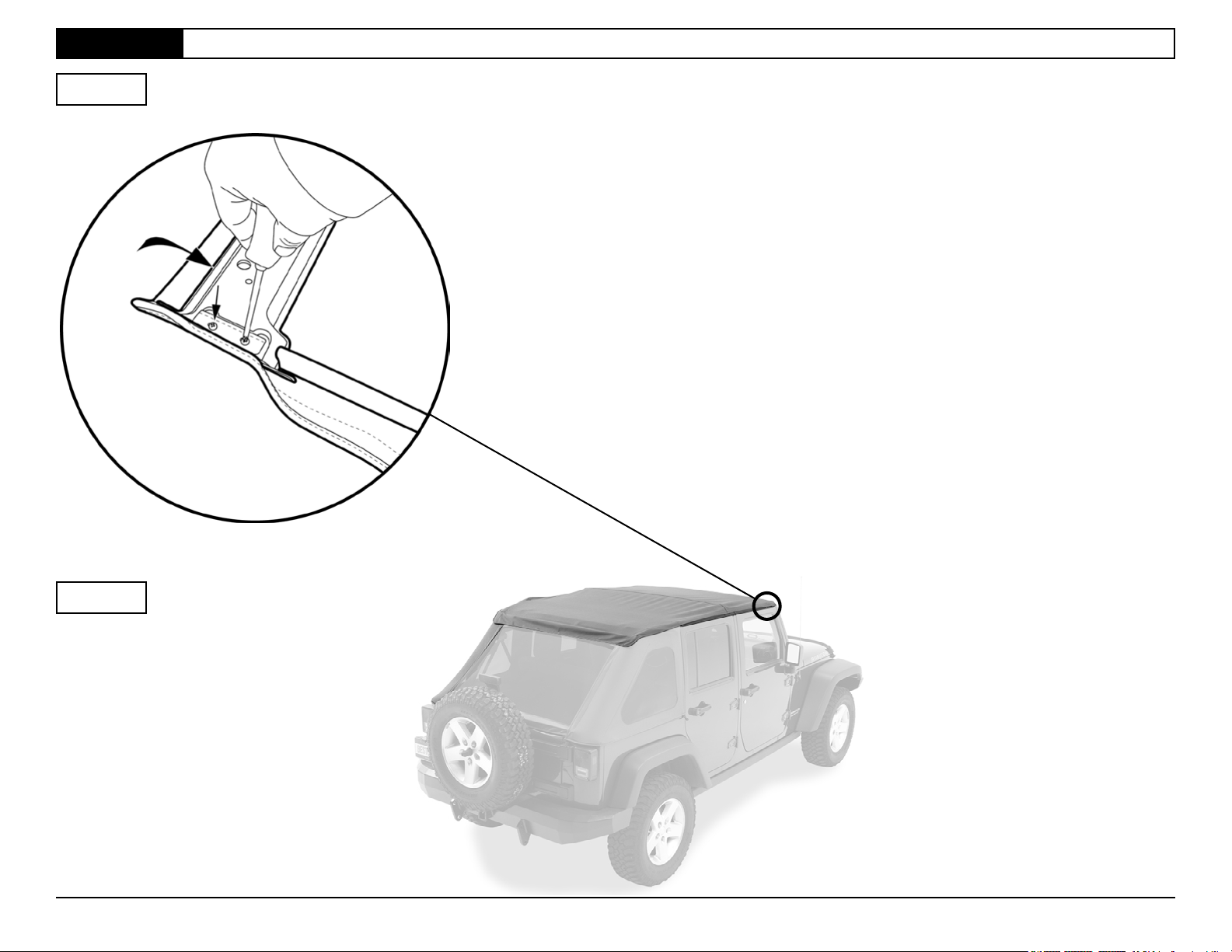

Flip the Header Assembly back over
and reinstall the screws removed
in Step 1.
Repeat on the both sides of
the Header Assembly.
© 2016 Bestop, Inc.P18 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 19

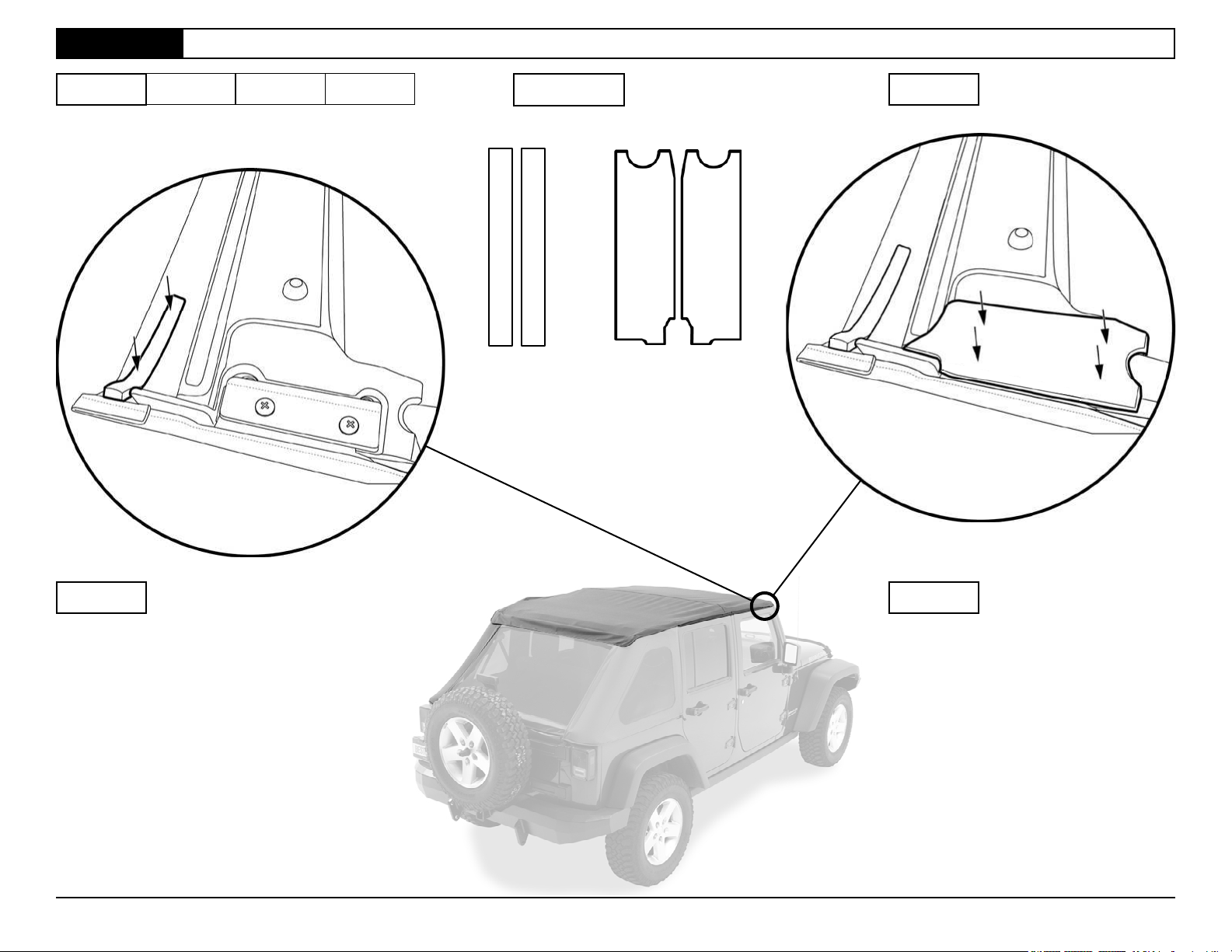

Install Foam Tape Strips and Foam Seals
Section 10
Step 1 Step 2417.43 457.76 457.77 Hardware
Foam Tape Strips
Qty - 1 per side
Part # 417.43
Foam Seals
Qty - 1 per side
#457.76 Right
# 457.77 Left
Peel the backing off the Foam Seal
and install it on the passenger side
of the Header.
Step 1 Step 2
Peel the backing off the Foam Tape Strips
and install them on each side of the
Header.
© 2016 Bestop, Inc.P19 - 56823 Rev. K 0116

Installation Instructions - Trektop NX
Page 20

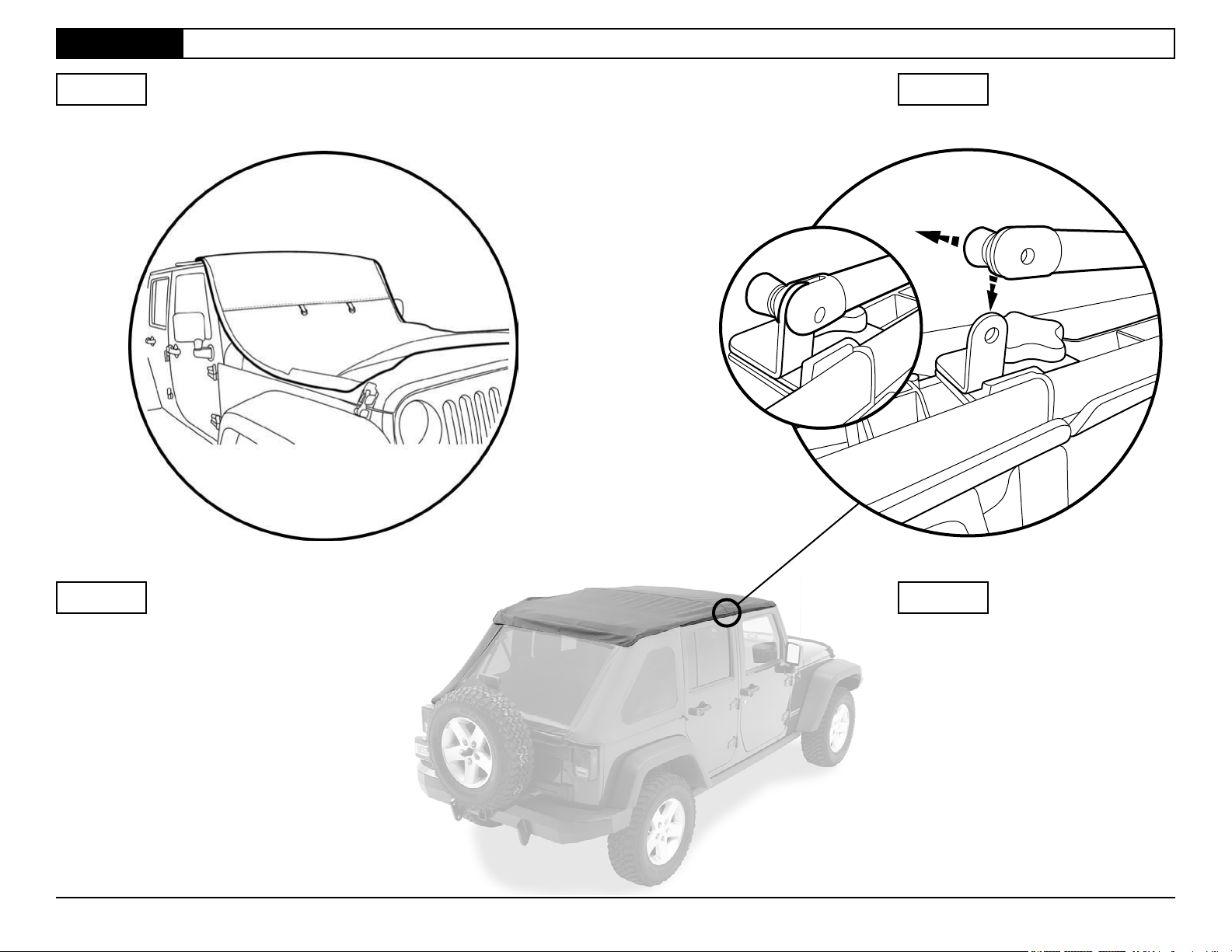

Mount Header Assembly to Sunrider Bracket
Section 11
Step 1 Step 2
Step 1 Step 2
Fold the Top Fabric toward the front of the
Header. Place the Header Assembly on
vehicle, with the backing up and the Side
Bows on top of the Door Surrounds.
Pull back on the quick release knob on the
Side Bow and slide the Side Bow over the
Sunrider Bracket. Repeat on the other side
of the vehicle.
© 2016 Bestop, Inc.P20 - 56823 Rev. K 0116
