Bestop TREKTOP NX GLIDE User manual

Installation Instructions
TREKTOP NX GLIDE 2-Door
Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P1 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Before you begin installing your new Trek Top Glide,
please read all the instructions thoroughly.
For easier installation, the top should be installed at a temperature above 72°F. Below this
temperature, the fabric may contract an inch or more, making it difcult to t the vehicle.
It is normal for the fabric to contract and wrinkle when stored in the shipping carton.
Within a few days after installation, the fabric will relax and the wrinkles will disappear.
Do not rely in any way on the components of this
product to protect against injury or death in the event of an accident.
Never operate the vehicle in excess of manufacturer’s specications.
Read and follow, precisely, all installation instructions provided when
installing this product. Failure to do so may result in a poor t and could
place occupants of the vehicle in a potentially dangerous situation.
WEAR SEAT BELTS AT ALL TIMES
Support
Installation TimeTools
Skill Level
Safety glasses should be worn at all
times when installing this product.
We’re here to help!
Go to www.Bestop.com and
click on “Contact Us”
WARNING
Installation Tips
3 - Moderately Difcult
4 hours
Drill Driver &
#2 Phillips Bit
#2 Phillips
Screwdriver
T30 Torx
Driver
Vise-Grips
Safety
Glasses
Adjustable
Wrench

Installation Instructions
TREKTOP NX GLIDE 2-Door
Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P2 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
P1B - 54823 Rev. G 0416 Installation Instructions - Supertop NX Twill © 2016 Bestop, Inc.
Installation Instructions
Supertop NX Twill
Vehicle Application:
Jeep Wrangler Unlimited
2007-current
Part Number 54823

Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P3 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Installation Instructions
TREKTOP NX GLIDE 2-Door

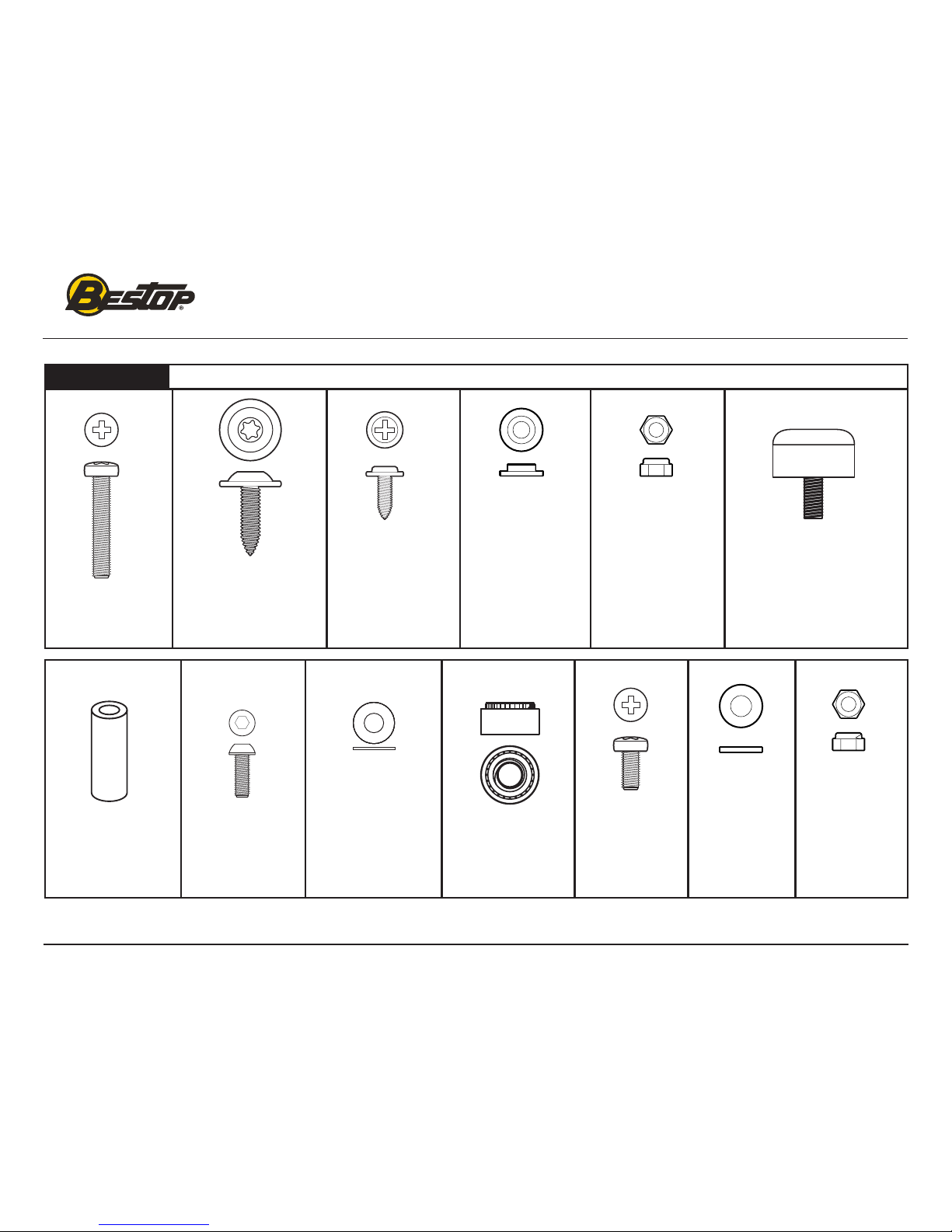

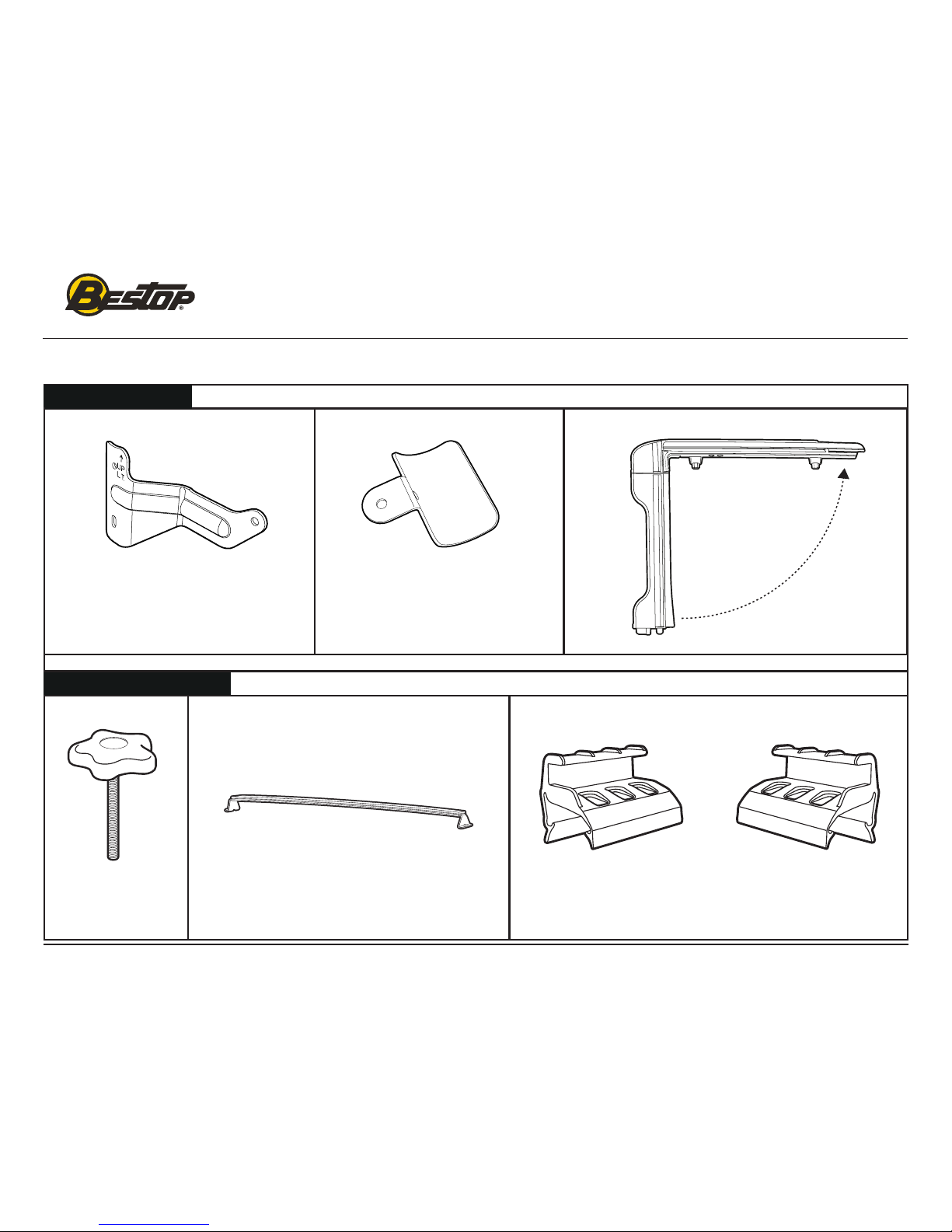

Parts List
- Required parts for installation
1/4” Flat Washer
Part #538.71
Qty. 4
M5 x 30mm Screw
Part #308.87
Qty. 4
Bow Mount Screw
Part #308.64
Qty. 4
Plastic Bushing
Part #473.40
Qty. 4
M5 Nylon Lock Nut
Part #308.62
Qty. 2
Press-In Nut
Part #538.97
Qty. 2
M3 Machine
Screw
Part #545.15
Qty. 4
M3 Flat
Washer
Part #545.13
Qty. 4
M3 Nylon
Lock Nut
Part #545.14
Qty. 4
Rubber Tube
Part #544.58
Qty. 2
Button Head
Socket Cap Screw
Part #538.99
Qty. 2
#8-32 Threaded Stud
Bumper
Part #538.96
Qty. 2
Pan Head
Washer Screw
Part #393.79
Qty. 20
Multiple Pages
All Sections Hardware and Fasteners

Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P4 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Installation Instructions
TREKTOP NX GLIDE 2-Door
Parts List
- Required parts for installation
Pages 6-8 of Guide
Pages 8 -10 of Guide
Bow Mount BracketPart
#529.83 - Left
Part #529.84 - Right
Qty. 1 of each
Door Rail
Part #479.82 - Right
Part #479.81 - Left
Qty. 1 of each
Tailgate Bar Mount - Left
Part #539.57
Qty. 1
Tailgate Bar Mount - Right
Part #539.56
Qty. 1
M8 x 75mm Knob
Part #478.90
Qty. 4
Top Arch
Part #483.24
Qty. 1
Sections 1and 2 Bow-Mount Brackets, Pin Point Brackets & Door Rails
Sections 2 through 4 Knobs, Top Arch & Tailgate Bar Mount Brackets
Pin-Point Bracket
Part #539.20
Qty. 2

Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P5 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Installation Instructions
TREKTOP NX GLIDE 2-Door
Parts List
- Required parts for installation
Rear Bow Assembly
Part #547.30
Qty. 1
Side Bow - Left
Part #486.53
Qty. 1
Side Bow - Right
Part #486.52
Qty. 1
#2 Bow Assembly
With Attached Stay-Straps
Part #541.20
Qty. 1
Sections 5 through 9 Side Bows & #2 Bow Assembly
Sections 10 through 14 Rear Bow Assembly and Cable Pockets Pages 17 through 21 of Guide
Pages 11 through 16 of Guide
Cable Pocket
Qty. 1
Part # 544.22 - Right
Cable Pocket
Qty. 1
Part # 544.23 - Left

Vehicle Application:
Jeep® JK Wrangler 2007-2018
Part Number 54922
P6 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Installation Instructions
TREKTOP NX GLIDE 2-Door
Parts List
- Required parts for installation
Tailgate Bar
Part #538.76
Qty. 1
Deck, Header Assembly & Fabric Top
Driver Side Window
Passenger Side Window
Rear Window
Pages 23 through 29 of Guide
Page 22 of Guide
Sections 16 through 21 Tailgate Bar, Fabric & Windows
Section 15 Foam Tape Strips and Foam Seals
Foam Tape Strips
Part #417.43
Qty. 2
Foam Seals
Part #457.76 - Right
Part #457.77 - Left
Qty. 1 per side

Section 1
P7 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Step 1 529.83
Bow Mount Screw
Qty. 2 per side
Part # 308.64
Right Side
Bow Mount Bracket
Qty. 1 per side
Part # 529.83 - Left
Part # 529.84 - Right
Step 2
Step 1 Step 2
Unzip the protective covers on the front sport
bar down-tubes and locate the two threaded
holes on the side of each sport bar down-tube.
Screw the Right Bow-Mount Bracket #529.84
to the right-side sport bar down-tube using
two (2) Bow-Mount Screws #308.64.
Screw the Left Bow-Mount Bracket #529.83 to
the left-side sport bar down-tube using two (2)
Bow-Mount Screws #308.64.
Locate the Pin Point Bracket #539.20 over the
existing hole in the rear downtube of the sport
bar. Make sure the Pin Point Bracket wraps
around the outside of the sport bar.
Fasten the Pin Point Bracket to the sport bar
using one (1) Button Head Socket Screw #538.99,
two (2) 1/4” Flat Washers #538.71, one (1) Rubber
Tube #544.58, and one (1) Press-In Nut #538.97
per side.
Make sure that the Press-In Nut has the ridged
side facing the Rubber Tube.
Tighten the Button Head Socket Screw to rmly
seat the Pin Point Bracket to the sport bar, and
replace the sport bar cover.
Rubber Tube
Part #544.58
Qty. 2
1/4” Flat Washer
Part #538.71
Qty. 4
Press-In Nut
Part #538.97
Qty. 2
Pin-Point Bracket
Part #539.20
Qty. 2
Right Side
529.84 308.64 539.20 538.97 544.58 538.71
Button Head
Socket Cap Screw
Part #538.99
Qty. 2
Page 7

P8 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Right Side
Step 2 478.90 Step 1 479.81
Install Door Rails
Section 2
Door Rail
Qty. 1 per side
Part # 479.82 - Right (shown)
479.81 Left
M8 x 75mm Knob
Qty. 2 per side
Part # 478.90
Right Side
Step 1 Step 2
Locate the Right Door Rail. Attach the Right
Door Rail assembly to the Jeep belt rail behind
the right side door, inserting the alignment pin
on the bottom of the Door Rail assembly into
the hole in the top of the belt rail.
Repeat for left side.
Secure Left and Right Rear Door Rails to the
Jeep Sport Bar using (2) M8x75mm Knobs per
side. The knobs go through the tabs on each
Door Rail, and screw into the threaded holes.
479.82
Page 8

P9 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Step 2Step 1 486.55
Install Top Arch
Section 3
Top Arch
Qty. 1
Part #483.24
#483.24
Right Side
Right Side

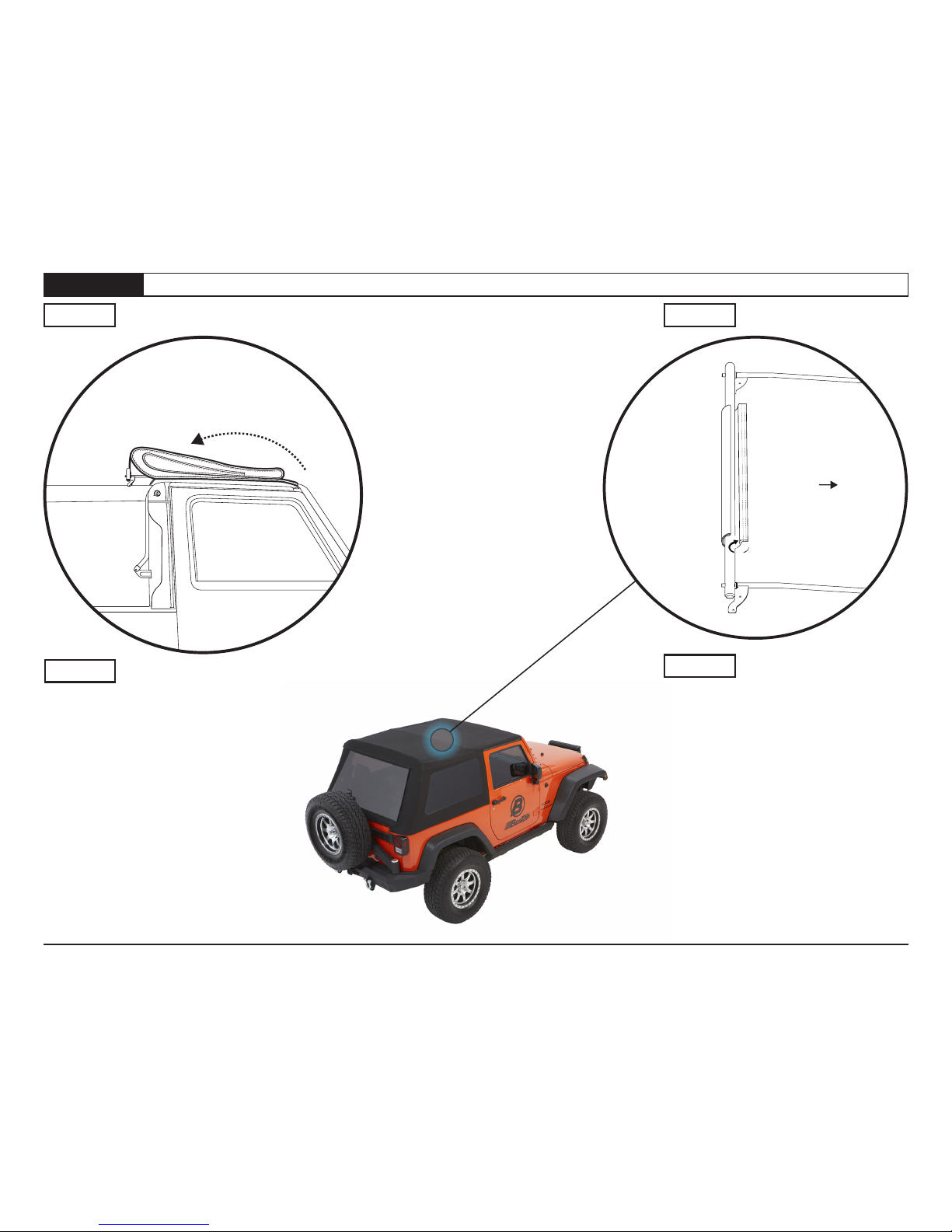

Step 1
Step 2
Insert the Top Arch #483.24 into the slotted
tab on the Door Rail. Insert one end of the
arch, and ex the arch to insert the other end
into the tabbed slot on the opposite side of
the Jeep.
Remove and discard the protective peel-off
strip on the top surface of the Top Arch.
Page 9

P10 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Step 1 539.56
Install Tailgate Bar Mounts
Section 4
Clip Tailgate Assy - Left
Qty. 1
Part # 539.57
Clip Tailgate Assy - Right
Qty. 1
Part # 539.56
1
2
Right Side

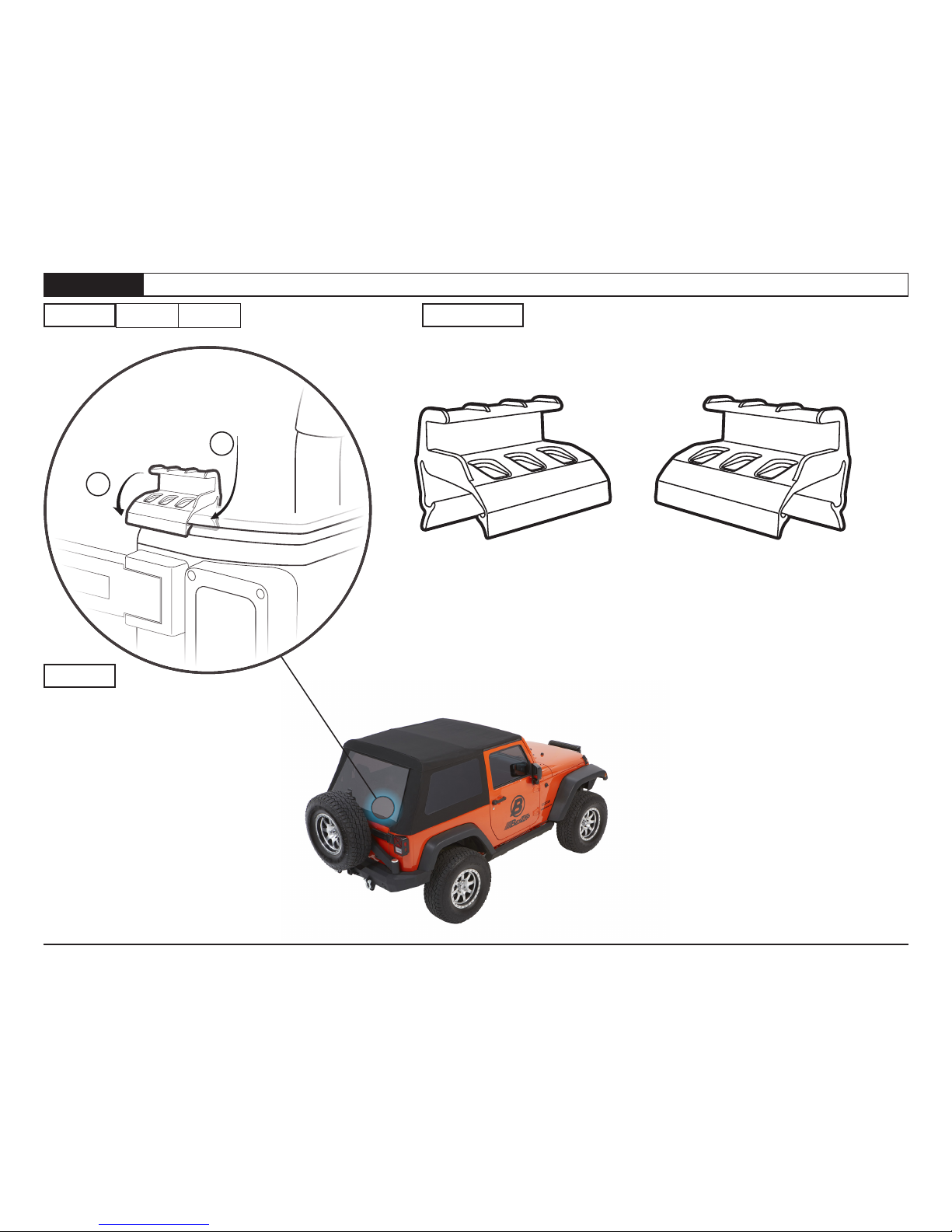

Step 1
Locate the left and right Tailgate Bar Mounts.
Each mount snaps onto the Jeep belt rail just
outboard of the tailgate opening.
Snap each mount into place by hooking the
inner catch portion of the mount under the
belt rail on the inside, and then rolling the
mount downward until it snaps into place
under the bottom edge of the outside belt
rail.
539.57
Page 10

P11 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Step 1 Header/Fabric Assembly
Attach Side Bows to Header/Fabric Assembly
Section 5
1
2
Right Side
Side Bow
Qty. 1
Part # 486.53 - Left
Side Bow
Qty. 1
Part # 486.52 - Right
Spring Catches
Face In

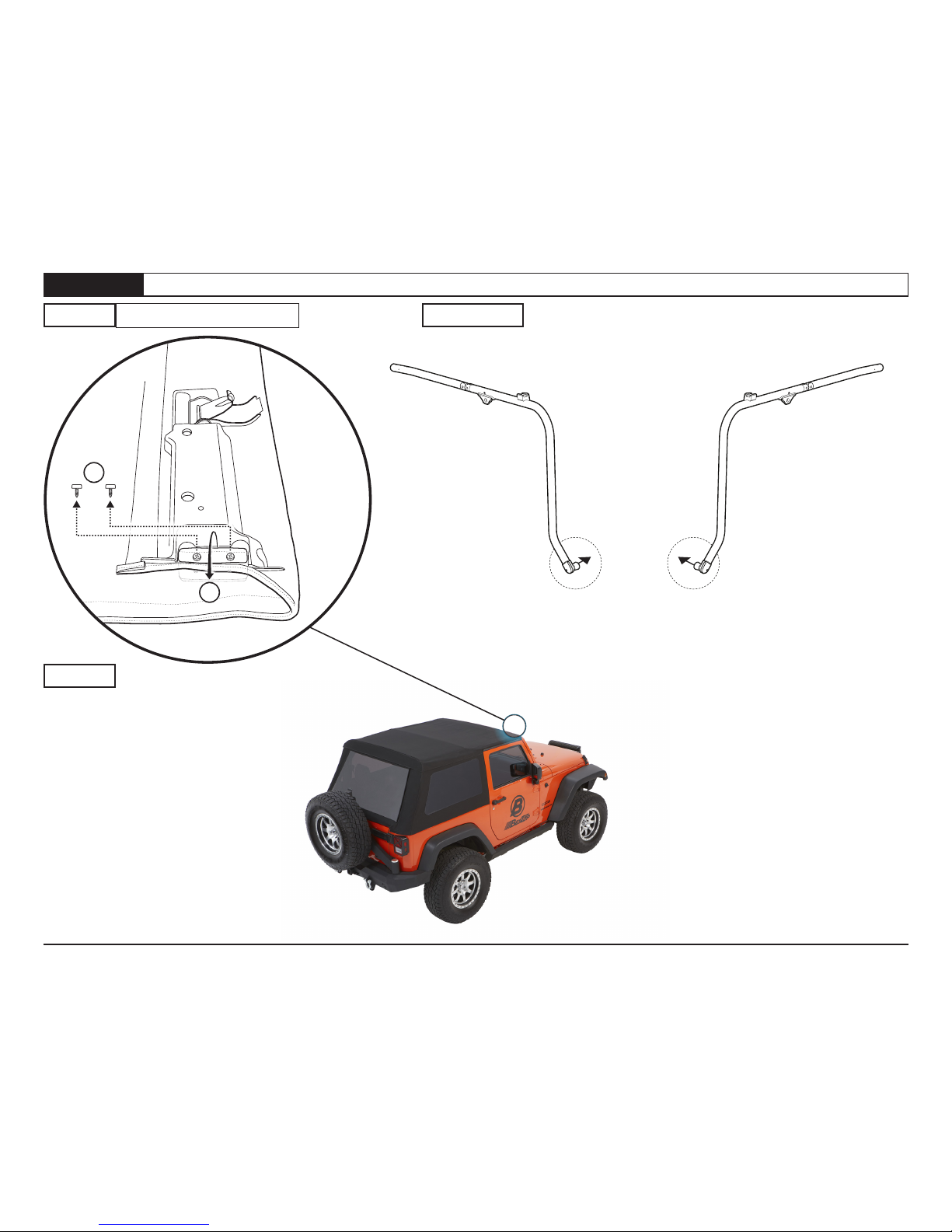

Step 1
Lay the Header/Fabric Assembly out with
inside of fabric facing up. You may want to use
the shipping box to keep the fabric off the
ground.
Remove and set aside the two screws holding
the protective ap down on the inside of
the header. Fold the protective ap back to
expose the screw holes used for attaching the
Right Side Bow.
Repeat on left side of Header/Fabric
Assembly.
Page 11

P12 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Step 2 (cont.)
Step 3 Header/Fabric Assembly
Step 2 486.52
Attach Side Bows to Header/Fabric Assembly (cont.)
Section 5
1
2
Right Underside
Right Underside
2
1
Right Topside
3
Pan Head
Washer Screw
Qty. 4 per side
Part # 393.79

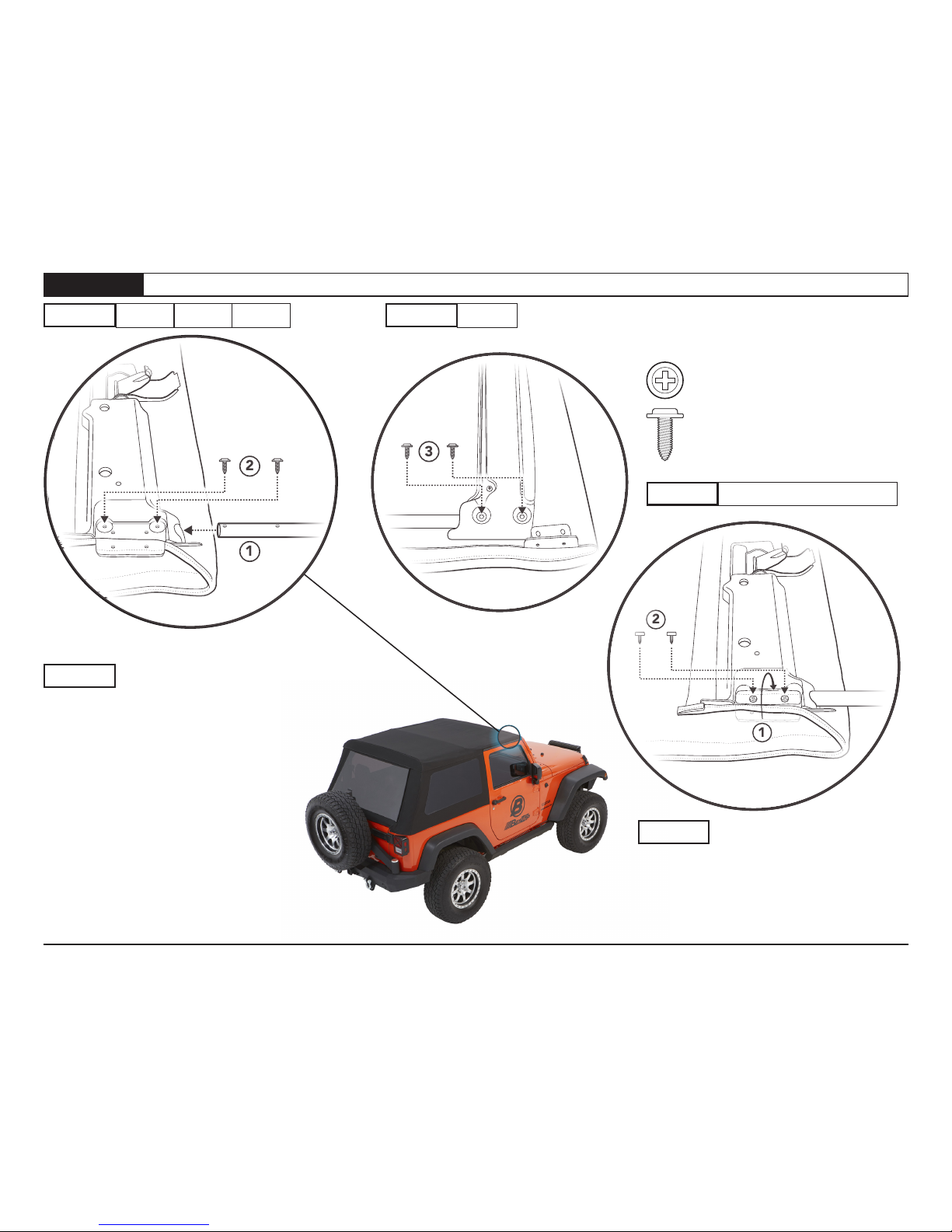

Step 2
Step 3
Insert the end of the Right Side Bow #486.52
into the hole in the right side of the Header/
Fabric Assembly, aligning the two holes in
the tubing with the two holes in the header.
Make sure that the Spring Catch faces in.
Secure the Right Side Bow in place with
four (4) #8 x 1/2” Pan Head Washer Screws
#393.79: two from the underside of the
Header/Fabric assembly, and two from the
topside.
Repeat on left side, using Left Side Bow.
Replace the protective aps on both sides,
and re-insert the screws you set aside, two for
each side.
486.53 393.79
Right Underside
Right Underside
Right Topside
Page 12

P13 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Step 2 Side Bow Assembly Step 1 Fabric/Header/Side Bow Assembly
Section 6 Place Fabric/Header/Side Bow Assembly onto Jeep
1
2
Right Side Right Side
Step 1
Step 2
Lift Fabric/Header/Side Bow Assembly onto
top of Jeep, with the Header sitting on top of
the Jeep windshield, and the fabric draped
forward over the Jeep hood.
You may want to protect the nish of the Jeep
by putting a blanket across the Jeep hood.
Extend the Side Bows out straight and lay the
Side Bows on top of the Door Rails.
Release the spring-loaded catch at the end of
the bow leg by pulling out on the knob.
Slide the slotted end of the catch over the leg
of the Bow Mount Bracket, and release the
catch so that it snaps into place in the hole.
Repeat on the left side.
Page 13

P14 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Hardware
Install Bow Mount Brackets
Step 2Step 1 541.20
Install #2 Bow Assembly
Section 7
Right Side
Right Side
#2 Bow Assembly
With attached stay-straps
Qty. 1
Part # 541.20
Plastic Bushing
Qty. 2 per side
Part # 473.40
M5 Nylock Nut
Qty. 1 per side
Part # 308.62
M5 x 30 Screw
Qty. 1 per side
Part # 308.87
Step 1 Step 2
Locate the #2 Bow Assembly #541.20 with
attached stay straps. Place the #2 Bow
Assembly on top of the side bows, with the
legs of the #2 Bow resting on the plastic
spacers on top of each side bow tubing. Align
the holes in the end of each #2 Bow leg with
the holes in the side bows.
Secure the #2 Bow Assembly to the side
bow using one (1) M5x30 screw #308.87, two
(2) plastic bushings #473.40, and one (1) M5
Nylon Lock Nut #308.62 per side, in the order
shown in the diagram above.
Repeat on the left side.
473.40 308.62
308.87
Page 14

P15 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
1
2
Step 1 Header/Fabric/Side Bow Assembly
Step 1
Secure Header/Fabric/#2 Bow/Side Bow Assembly to Door Rails
Section 8
Right Side
Right Side Detail
Align the Header/Fabric/Bow Assembly so
that the locking ange with brass bushing is
positioned above the spring-loaded locking
lever assembly in the top of the door rail.
While pushing in the latch release lever on the
underside of the door rail, slide the Header/
Fabric/Bow Assembly down so that the
locking ange aligns with the spring-loaded
locking pin.
Release the latch lever so that the locking pin
engages the brass bushing.
Repeat on the left side.
Page 15

P16 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Section 9 Pull Top Fabric Back and Attach Bow Flaps to #2 Bow
Step 1 Step 2
Step 2
Bring the Top Fabric from the hood of the
Jeep back, and fold the top fabric partway
back across the top of the Jeep, so that the
long fabric bowaps sit just in front of the #2
bow.
Step 1
Right Side
Front
Wrap the aps located just in front of
the #2 Bow under the bottom of the
#2 Bow, from front to back, and secure
by attaching the hook and loop fabric
together along the length of the aps.
Page 16

P17 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Step 1 Step 2
Section 10 Attach Bumpers to Rear Bow Legs & Attach Rear Bow to Pin Point Bracket
Step 1
Attach a Rubber Bumper #538.96
to the underside of each rear leg of
the Rear Bow Assembly, #547.30.
Step 2
Right Side
Rear Bow Assembly
Qty. 1
Part # 547.30
#8-32 Threaded Stud
Bumper
Part #538.96
Qty. 2
Hardware 547.30538.96
1
2
Attach the Rear Bow Assembly #547.30
to the Pin Point Bracket on the rear
downtube of the sport bar by pulling out
on the spring catch release knob, and
sliding the catch over the protruding tab
of the Pin Point bracket as shown in the
diagram above.
Repeat for the left side.
Right Side
Page 17

P18 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Step 1
Section 11 Drape Top Fabric Over Jeep & Open Sunrider; Attach Stay Strap to Rear Bow
Step 2
Step 1
Step 2
Pan Head
Washer Screw
Qty. 2 per side
Part # 393.79
Hardware
Locate the loose end of the right side Stay
Strap. Wrap the Stay Strap over the top of the
right side of the Rear Bow, and attach it to the
Rear Bow Assembly with two (2) #8x1/2” Pan
Head Washer Screws #393.79 per side, using
the outer two pre-drilled holes in the Rear Bow
Assembly.
Attach the Stay Strap to the Rear Bow “Flag”
using one (1) M3 Machine Screw #545.15, one
(1) M3 Flat Washer #545.13 and one (1) M3
Nylon Lock Nut #545.14. Use the hole closest
to the tube.
Repeat for left side Stay Strap.
393.79 545.13 545.14
545.15
Lift up the fabric and drape it back over
the top of the Jeep, pulling it over the
top of the Rear Bow Assembly and Stay
Strap connecting to the #2 Bow.
Open the Sunrider. Fold the Sunrider
back from the front pivot point, resting
the front portion of the top on the rear
portion.
When folding the Sunrider back, be sure
to push the fabric in at location 1as
shown above, so that with the Sunrider
folded all the way back, the fabric ends
up with a double-fold, as shown.
M3 Machine
Screw
Part #545.15
Qty. 4
M3 Flat
Washer
Part #545.13
Qty. 4
M3 Nylon
Lock Nut
Part #545.14
Qty. 4
1
Folded Top
Fabric will have
a Double-Fold
Page 18

P19 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount BracketsAttach Bow Flap to Rear Bow; Attach Small Flap to Rear Bow
Section 12
Step 1 Hardware Step 2
Attach the long fabric aps on the
inside of the fabric top to the Rear Bow
Assembly. Wrap the ap around the
back side and underneath the Rear Bow,
and secure the ap to the front side
of the Rear Bow using six (6) Pan Head
Washer Screws #393.79.
Step 1
Step 2
Pan Head
Washer Screw
Part # 393.79
Qty. 8
Locate the small fabric ap at each rear
corner of the fabric top, and attach
the ap to the inner hole in the Rear
Bow Assembly, using one (1) Pan Head
Washer Screw #393.79 per side.
393.79
Page 19

P20 - 54922 Rev. D 0618 Installation Instructions - TREKTOP NX GLIDE 2-Door © 2018 Bestop, Inc.
Install Bow Mount Brackets
Hardware Step 2 Step 1 544.22
Open Sunrider and Slide Cable Pockets over Cable Springs
Section 13
Make sure that the Sunrider is still open.
Thread the right side Cable Spring
through the Right Cable Pocket #544.22
as shown, and move the Cable Pocket
along the cable to get it out of the way.
Repeat on the left side of the Jeep with
the #544.23 Cable Pocket.
Step 1 Step 2
Cable Pockets
Qty. 1 of each
Part # 544.22 - Right
Part # 544.23 - Left
544.23
Page 20
