BH FITNESS LK590 User manual

OWNER’S MANUAL
Important: Read all instructions carefully before using this product. Retain this owner’s manual for future reference.
BH North America | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0013 | www.BHFitnessUSA.com

TABLE OF CONTENTS
Title Page
Introduction 03
Warnings and Labels 04
Safety Information 05
Exercise Instruction 06
Training Guidelines 07
Suggested Stretches 11
Assembly Instructions 13
Maintenance 20
Console Overview 22
Console Operations 23
Exploded View Drawing 28
Parts List 29
Warranty 31

3
CONGRATULATIONS
Congratulations on your purchase of BH Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers around the world have come to expect from
BH Fitness.
If you have any questions, concerns or product issues, please call our Customer Service
Team at 1-866-325-2339 or email us at [e-mail].
Carefully read through the instructions contained in this manual. ey provide you
with important information about assembly, safety, tness and use of the treadmill.
Please read ALL the safety information contained on the following page.

4
WARNINGS AND LABELS
is product must be grounded. If it malfunctions or breaks down, grounding will provide a path of least
resistance for electric current to reduce the risk of electric shock.
is cord must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger – Improper use can result in a risk of electric shock or re. Check with a qualied electrician to
ensure the product is properly grounded. Do not modify the cord provided with the product – if it does
not t the outlet, have a proper outlet installed by a qualied electrician.
is product is designed for use with 110V-120V power. e unit is equipped with a NEMA 5-15 plug as
illustrated in the gure above. No adapter should be used with the product.
Ground Pin
Grounded
Outlet

5
SAFETY INFORMATION
PRECAUTIONS
is treadmill has been designed and constructed to provide maximum safety.
Nevertheless, certain precautions should be taken when using exercise equipment.
Read the entire manual before assembling and using the treadmill. Please observe the
following safety guidelines:
1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised
in the room where the treadmill is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this treadmill
STOP the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the treadmill on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the openings and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the
treadmill. Always wear athletic shoes when using the treadmill and tie the laces securely.
6. is treadmill must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by BH Fitness.
7. Do not place sharp objects near the treadmill.
8. Any person with physical or coordination limitations should not use the treadmill without the
assistance of a qualied person or doctor.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the treadmill if it is not working correctly.
11. Before using the treadmill, thoroughly inspect the equipment for proper assembly.
12. Keep clear a perimeter of 3 feet (1 meter) around the treadmill before operating.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this treadmill.
16. is treadmill was designed for a maximum user weight of 400 lbs (182 kgs)
17. e treadmill can only be used by one person at a time.
18. Do not use this treadmill outdoors.
19. Do not use the treadmill if the main electrical cord becomes damaged or frayed. Keep the main
electrical cord away from any hot surfaces.
Caution: Consult your doctor before beginning to use the treadmill or any exercise
program. Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

6
Use of the treadmill oers various benets; it can improve tness, muscle tone and when
used in conjunction with a calorie controlled diet, it could help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to
undergo a complete physical examination.
2. Exercise at recommended level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your
doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose
clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Step onto the equipment slowly and securely.
7. Secure safety clip to clothing.
8. Select the program or workout option that is most closely aligned with your
workout interests.
9. Start slowly and work your way up to a comfortable pace.
10.Be sure to cool down after your workout.
EXERCISE INSTRUCTION

7
TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual.
Listed among its benets are:
• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory eciency
• Decreased risk of coronary heart disease
• Changes in body metabolism, e.g. losing weight
• Delaying the physiological eects of age
• Reduction in stress, increase in self-condence, etc.
ere are several components of physical tness and each is dened below.
STRENGTH
e capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.
MUSCULAR ENDURANCE
e capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of
your legs to carry you 10 km without stopping.
FLEXIBILITY
e range of motion of your joints. Improving exibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or
soreness.
CARDIO-RESPIRATORY ENDURANCE
e most essential component of physical tness. It is the ecient functioning of the heart and
lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic
energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic
or energy-generating process. Many types of exercise are aerobic, and by denition are performed at
moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING
Is an exercise intense enough to trigger anaerobic metabolism. is means “without oxygen” and
is the output of energy when the oxygen supply is insucient to meet the body’s long term energy
demands. (For example, a 100 meter sprint.)

8
OXYGEN UPTAKE
e eort that you can exert over a prolonged period of time is limited by your ability to deliver
oxygen to the working muscles. Regular vigorous exercise produces a training eect that can increase
your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability
of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
is is the minimum level of exercise which is required to produce signicant improvements in any
physical tness parameter.
OVERLOAD
is is where you exercise above your comfort level. e intensity, duration and frequency of exercise
should be above the training threshold and should be gradually increased as the body adapts to the
increasing demands. As your tness level improves, the training threshold should rise. Working
through your program and gradually increasing the overload factor is important.
PROGRESSION
As you become more t, a higher intensity of exercise is required to create an overload and therefore
provide continued improvement.
SPECIFICS
Dierent forms of exercise produce dierent results. e type of exercise that is carried out is specic
to the muscle groups being used and to the energy source involved. ere is little transfer of the
eects of exercise, i.e. from strength training to cardiovascular tness. at is why it is important to
have an exercise program tailored to your specic needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benets you have
gained. Regular workouts are the key to success.
WARM-UP
Every exercise program should start with a warm-up where the body is prepared for the eort to
come. It should be gentle and preferably use the muscles group to be involved later. Stretching
should be included in both your warm-up and cool down, and should be performed after 3-5
minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
is involves a gradual decrease in the intensity of the exercise session. Following exercise, a large
supply of blood remains in the working muscles. If it is not returned promptly to the central
circulation, pooling of blood may occur in the muscles.

9
HEART RATE
As you exercise, your heart beat increases. is is often used as a measure of the required intensity of
an exercise. You need to exercise hard enough to condition your circulatory system, and increase your
pulse rate, but not enough to strain your heart.
Your initial level of tness is important when developing an exercise program for you. When starting,
you can get a good training eect with a heart rate of 110-120 beats per minute (BPM). If you are
more t, you will need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your
maximum. If you nd this is too easy, you may want to increase it, but it is better to lean on the
conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your
heart, like other muscles, loses some of its eciency. Some of its natural loss is won back as tness
improves. e following table is a guide to those who are “starting tness.”
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute 138 132 132 126 120 114 114 108 108
PULSE COUNT
e pulse count (on your wrist or carotid artery in the neck, taken with two index ngers) is done
for ten seconds, taken a few seconds after you stop exercising. is is for two reasons: (a) 10 seconds
is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are
exercising. Since heart rate slows as you recover, a longer count isn’t as accurate.
e target is not a magic number, but a general guide. If you’re above average with your tness, you
may work comfortably a little above that suggested for your age group. e following table is a guide.
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120
Don’t push yourself too hard to reach the gures on this table. It can be very uncomfortable if you
over exercise. Let it happen naturally as you work through your program. Remember, the target is a
guide, not a rule, a little above or below is just ne.
Two nal comments: (1) don’t be concerned with day to day variations in your pulse rate, being
under pressure or not enough sleep can aect it; (2) your pulse rate is a guide, don’t become a slave
to it.

10
MUSCLE SORENESS
For the rst week or so, muscle soreness may be the only indication you have that you are on an
exercise program. is, of course, does depend on your overall tness level. A conrmation that you
are on the correct program is a very slight soreness in most major muscle groups. is is quite normal
and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you have
increased your program too rapidly.
If you experience PAIN during or after exercise, your body is telling you something. Stop exercising
and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be
light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you
normally would gives you no advantage. e extra weight you lose is body uid and will be replaced
with the next glass of water you drink. It is advisable to wear a pair athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not break o
halfway through and then restart at the same place later on without going through the warm-up stage
again. e rest period required between exercises may vary from person to person.

11
Head Rolls
Rotate your head to the right for one count while feeling the stretch
up the left side of your neck. Next, rotate your head back for one
count, stretching your chin to the ceiling. Rotate your head to the
left for one count, and nally, drop your head to your chest for one
count.
Shoulder Lifts
Lift your left shoulder up toward your ear for one count. en lift
your right shoulder up for one count as you lower your left shoulder.
Side Stretches
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for one
count. Feel the stretch up your left side. Repeat this action with your
right arm.
Quadriceps Stretch
With one hand against a wall for balance, reach behind you and pull
your left foot up. Bring your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with right foot up.
SUGGESTED STRETCHES

12
Inner igh Stretch
Sit with the soles of your feet together with your knees pointing
outward. Pull your feet as close into your groin as possible. Gently
push your knees towards the oor. Hold for 15 counts.
Toe Touches
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down as far
as you can and hold for 15 counts.
Hamstring Stretches
Sit with your right leg extended. Rest the soles of your left foot
against your right inner thigh. Stretch toward your toes as far as
possible. Hold for 15 counts. Relax and then repeat with left leg
extended.
Calf/Achilles Stretches
Lean against a wall with your right leg in front of the left and your
arms forward. Keep your left leg straight and the right foot on the
oor; then bend the right leg and lean forward by moving your hip
toward the wall. Hold, then repeat on the other side for 15 counts.
SUGGESTED STRETCHES

13
ASSEMBLY INSTRUCTIONS

14
H
ITEM Description Qty
A Computer Console 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Hand Rail Fixture 1
F Left Motor Lateral Cover 1
G
Right Motor Lateral
Cover 1
H MP3 Cable 1
ITEM Description Qty
Nylock Nut
M8xP1.25
b
Truss Philips Screw
M5xP0.8x15
6
c Truss Hex Screw (Ø13) 12
d
T-shaped Wrench
8mmx200mm
1
e
L-shaped Hex Wrench
5mmx30mmx120mm
1
f
Bushing Spanner +
Screwdriver (13mm)
1
g Bottled Silicon DC-1000 1
hPower Cord Switch Cover 1
i
Truss Philips Screw
M4xP0.7x10
2
j
Knockdown Truss Hex
Screw(∮13)
M8xP1.25x90
2
k Bottle 1
a
4
ITEM Description Qty
A Computer Console 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Hand Rail Fixture 1
F Left Motor Lateral Cover 1
G
Right Motor Lateral
Cover
1
H MP3 Cable 1
ITEM Description Qty
Nylock Nut
M8xP1.25
b
Truss Philips Screw
M5xP0.8x15 6
c Truss Hex Screw (Ø13) 12
d
T-shaped Wrench
8mmx200mm 1
e
L-shaped Hex Wrench
5mmx30mmx120mm 1
f
Bushing Spanner +
Screwdriver (13mm) 1
g Bottled Silicon DC-1000 1
hPower Cord Switch Cover 1
i
Truss Philips Screw
M4xP0.7x10 2
j
Knockdown Truss Hex
Screw(∮13)
M8xP1.25x90
2
k Bottle 1
a 4

15
STEP 1
Insert the left & right Uprights (C &
D) into the support bracket on the
Frame (B). Tie the Control Cable to
the Guide read coming out from the
bottom of the Upright (D). Pull the
Control Cable through the opening
with the Guide read to the top of
the Upright (D). Be careful not to
damage the wire. Insert the screws (b
and d), spring washer(f) and washer(e)
as shown in the drawing and DO NOT
TIGHTEN UNTIL STEP 2.
STEP 2
Place the Hand Rail Fixture (E) on top
of the left and right Uprights. Using
the Guide read, pull the Control
Cable through the opening of the
bottom and out the top center of the
Hand Rail Fixture. Tighten the nylock
nuts (a). en TIGHTEN SCREWS
(b and d) from STEP 1. Now secure
the left and right Uprights. Assemble
the left and right motor side covers (F
and G) and tighten with screw (b).
Guide Thread
Guide Thread
Control Cable
Control Cable

16
STEP 3

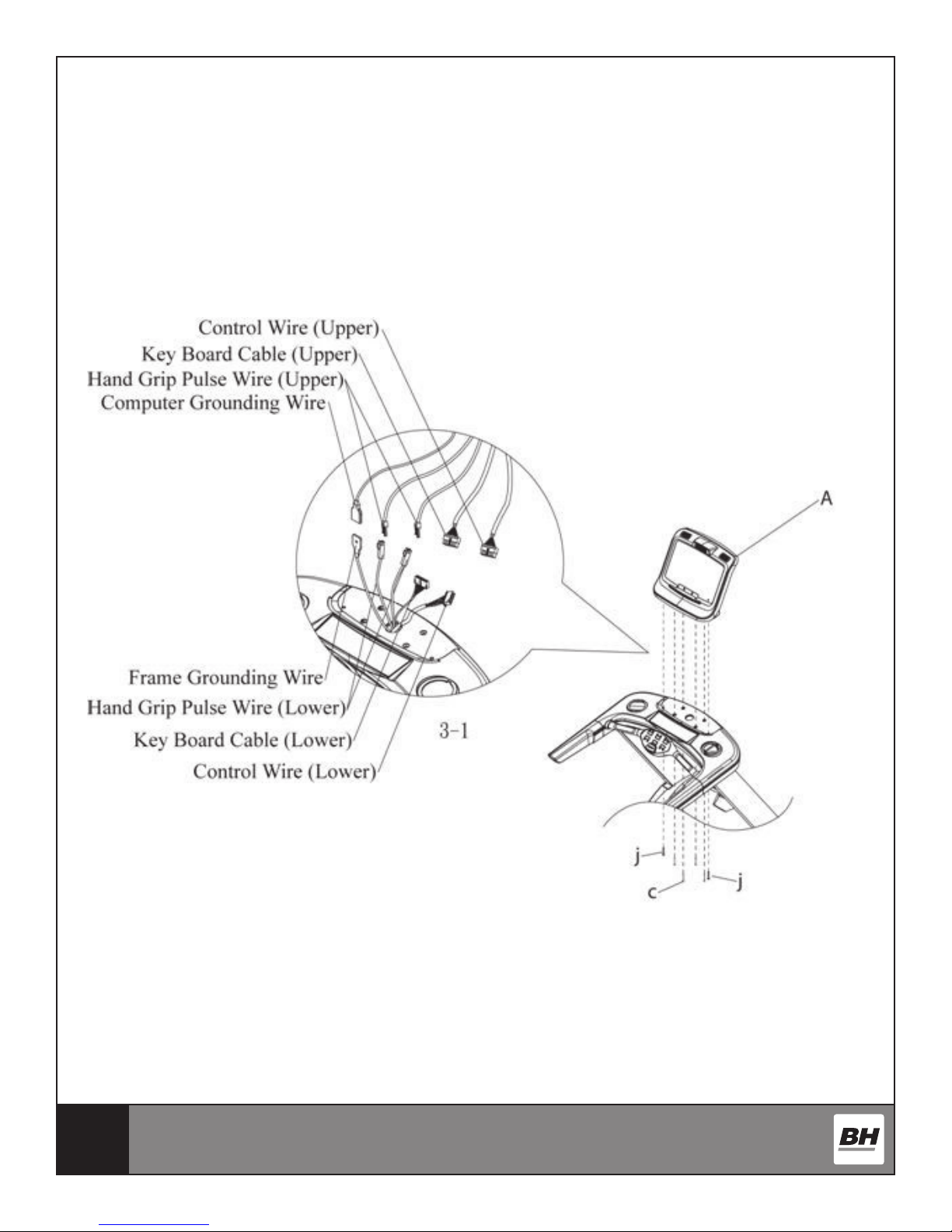

Place the Console (A) above the Hand
Rail Fixture and mate all connectors as
shown in the gure below, then tighten
with bolts (c and j). Be careful not to
damage the wires. You can distinguish
the control wire by the red mark.

17
STEP 4
Place Water Bottle Holders into the
Hand Rail Fixture and twist to lock.
Water Bottle Holders
STEP 5
Ensure the treadmill is properly leveled
by adjusting the leveling feet at the
rear of the treadmill. Make sure the
treadmill is installed on a level surface.

18
WATER BOTTLE HOLDER ASSEMBLY
e water bottle holder assembly
is designed to hold water bottles
and small items, such as a MP3
player or a cell phone. e water
bottle holders may be removed
for cleaning. Hand wash only
using a mild soap solution.
Water Bottle
Holders
Turn the water bottle holder to the right for removal.
Turn the water bottle holder to the left for removal.

19
Water Bottle
Holders
EMERGENCY STOP
is treadmill is equipped with an emergency stop. e emergency stop button is shown in
the drawing below. ere are two ways to trigger the emergency stop:
1) Press the emergency stop button to stop the treadmill.
To reactivate the treadmill, push the emergency switch back into the treadmill.
2) Pull the nylon cord and the emergency switch will pop out
from the treadmill, stopping the treadmill.

20
MAINTENANCE
LUBRICATION
Use the Allen Wrench to loosen the bolt inside the End Cap, giving the belt ample slack.
Lift the belt up and apply a thin, even strip of silicone lubricant to the center of the deck.
en re-tension the belt, and adjust the running belt according to the steps on next page.
IF YOU HAVE ANY QUESTIONS CONCERNING PROPER MAINTENANCE
PROCEDURES, PLEASE CALL CUSTOMER SERVICE AT 1-866-325-2339.
Running Deck
Average
Usage
4 mile/hr below 1 year
4~8 mile/hr 6 months
8 mile/hr above 3 months
Note: In a commercial environment, it is
recommended to inspect and lubricate the
treadmill every other month.
