BH Fitness TS5
Treadmill Owner’s Manual
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.BHFitnessUSA.com

2
INTRODUCTION:
Congratulations for selecting BH FITNESS as your new fitness resource.
BH FITNESS treadmills offer many exercise programs that benefit users of all
levels and ages. Your new treadmill is designed to make your workouts more
effective and enjoyable.
Please read this entire manual carefully before using your treadmill. This
will allow you to get a full understanding of all the features your BH FITNESS
treadmill provides. If you have any questions or concerns, please contact BH
FITNESS or any authorized BH FITNESS distributors in your area.
BH FITNESS
BEFORE YOU BEGIN
It is very important to become familiar with the frequently used components of
your treadmill.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

3
TABLE OF CONTENTS
SECTION PAGE
1. IMPORTANT SAFET Y INSTRUCTIONS ..................................................... 4
2. ASSEMBLY IN STRUCTIONS....................................................................... 6
3. TREADMILL AND CONSOL E.......................................................................11
4. WORKOUT PROGRAMS .............................................................................15
5. CALCULATING YOUR TARGET HEART RATE ...........................................19
6. PREVENTIVE MAINTENANCE.....................................................................20
7. TROUBLESHOOTING ..................................................................................21
8. WARRANTY...................................................................................................31
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

4
SECTION 1
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the treadmill.
User Safety:
Before using this or any other exercise equipment consult your family physician or health care
professional in order to develop a well-planned exercise program to fit your health needs. If you
encounter any pain or breathing discomfort while working out, STOP!, and consult a physician
before continuing.
1. Close supervision is necessary when this unit is used by or near children. Children are curious
and vulnerable to accidents. Do not use the unit as a toy.
2. Do not wear loose or dangling clothing while using the treadmill.
3. Maximum user weight is 350 lbs (159kg) for the TS5 treadmill.
4. Only one person can use the unit at a time.
5. Keep hands away from moving parts.
6. The owner is responsible for explaining safety instructions to each user.
Treadmill Safety:
WARNING: To reduce the risk of fire, electric shock, injury to persons or
inflicting the harm of a burn:
7. Turn all the controls to the off position prior to removing the electrical plug from the outlet. The
on/off switch is located on the right, front of the unit.
8. Never leave the unit unattended while plugged in. Unplug the unit from the electrical power
before leaving the room, when unused and before servicing or adding or removing parts.
9. Unplug the treadmill prior to cleaning to reduce the risk of electric shock, serious burns, and the
risk of injuries.
10. Never operate this unit if it has a damaged electrical cord or plug. Do not operate this unit if it is
not working properly. Do not operate this unit if it has been dropped or damaged. Do not operate
this unit if it has been immersed into water. Return the unit to a service center for examination
and repair.
11. Do not pull or carry the unit by the electrical cord. Do not use the cord as a handle.
12. Keep the electrical cord away from heated surfaces.
13. Connect this Treadmill to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only.
14. Call your service center or BH Fitness with your concerns before taking your treadmill in for
repair.
15. Do not place sharp objects near the unit. Never drop or insert any object into any opening.
16. Do not use outdoors.
17. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
18. Use the unit only as described in this manual. Only use attachments recommended by the
manufacturer.
19. For safety, keep a minimum clearance of 18” on the front and each side and 24” at the rear of
the treadmill. Place the unit on a flat stable surface.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

5
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
GROUNDING INSTRUCTIONS
This unit must be grounded. If it malfunctions or breaks down, grounding reduces
the risk of electric shock by providing a path of least resistance for electric
currents. This unit is equipped with a cord that has an equipment-grounding
conductor and a grounding plug. Insert the plug into a dedicated 110-120 VAC~
electrical outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not use an adapter or extension cord with this
unit.
WARNING! – An improper connection of the grounding conductor can result in
a risk of an electrical shock. Check with a qualified electrician if you are in doubt
as to whether the unit is properly grounded. Do not modify the plug provided to
you. If it does not fit the outlet, have a proper outlet installed by a qualified
electrician.
Please save these instructions
GROUNDING METHODS
GROUNDED
GROUNDING PIN
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

6
SECTION 2
ASSEMBLY INSTRUCTIONS
ITEM DESCRIPTION QTY
A Computer Set 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Console Welding-Base 1
F Left Handrail Cover 1
G Right Handrail Cover 1
H Left Handrail 1
I Right Handrail 1
J Cup/Bottle Holder Cover 1
K Computer cover 1
L Bottle 1
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

7
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
ITEM Description Qty
a Bolt M8xP1.25x40 2
b Bolt M8xP1.25x75 4
c Bolt Cover 6
d Bolt M8xP1.25x60 4
eScrewØ5x252
fScrewØ4x122
gNutM54
h Bolt M6x15L 2
iScrewØ4x162
j Allen Wrench 6mm 1
kT-Wrench1
l Power Cord 1
m Safety Key/Clip 1
n SILICON 1
o Bolt M4xP0.7x8 4
p Hex Wrench + Screwdriver 1.0mm 1
ASSEMBLY INSTRUCTIONS (cont’d)

8
A minimum of two people are
required to assemble this treadmill.
READ all instructions thoroughly
BEFORE assembling the treadmill.
.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

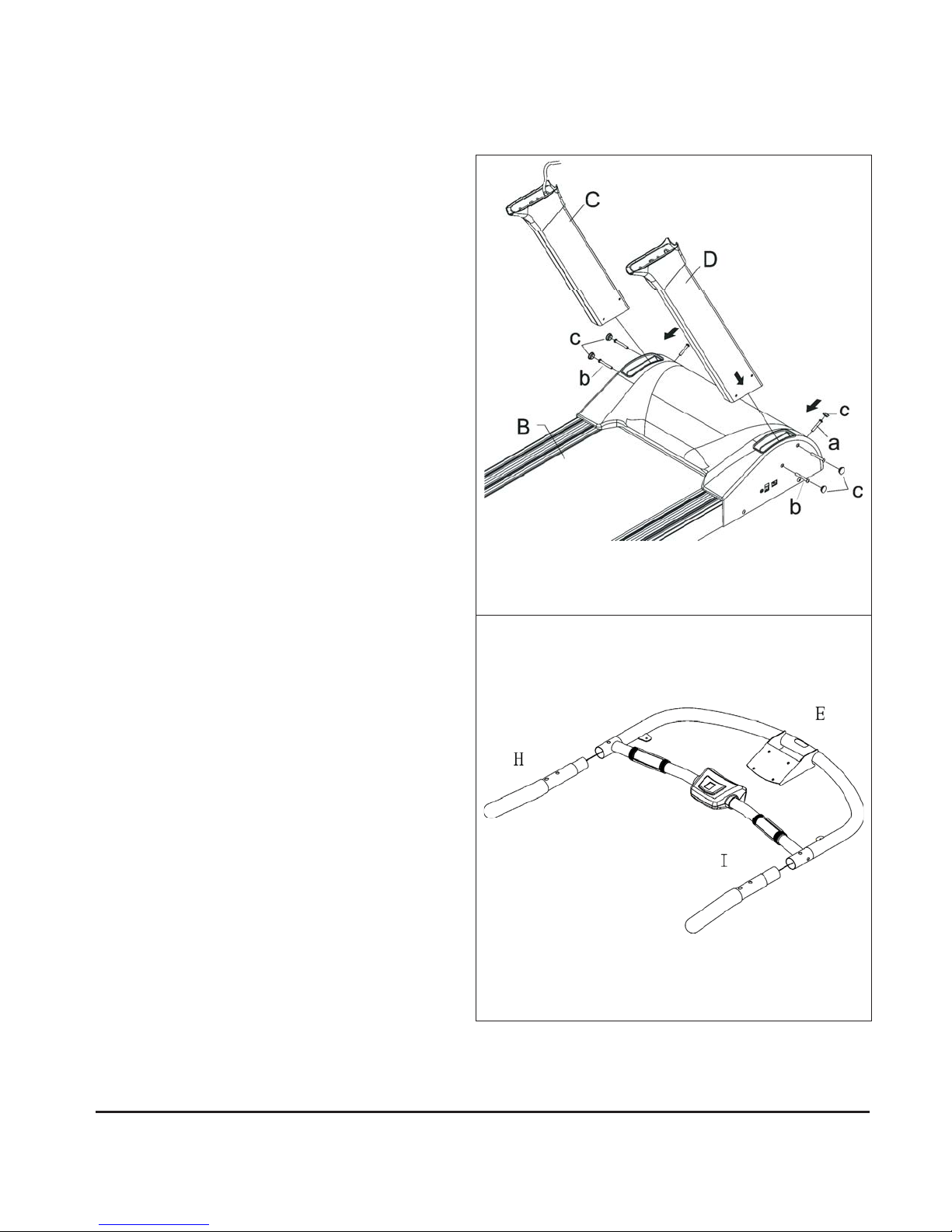

1. Tie the lead wire from within the
bottom left upright (C) to the
interface cable (coiled inside
the motor cover opening)
From the top of the upright, pull
the interface cable up and out of
the opening.
Insert the uprights into the slots
on the frame (B) and secure using
bolts (a & b).
Plug the holes with plastic caps (c)
ASSEMBLY INSTRUCTIONS (cont’d)
2. Insert handrails (H, I) into the
computer console welding base(E).
Make sure that the hole pattern of
the handrails match that of the base
(E) before inserting bolts and
tightening.

9
E
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
ASSEMBLY INSTRUCTIONS (cont’d)

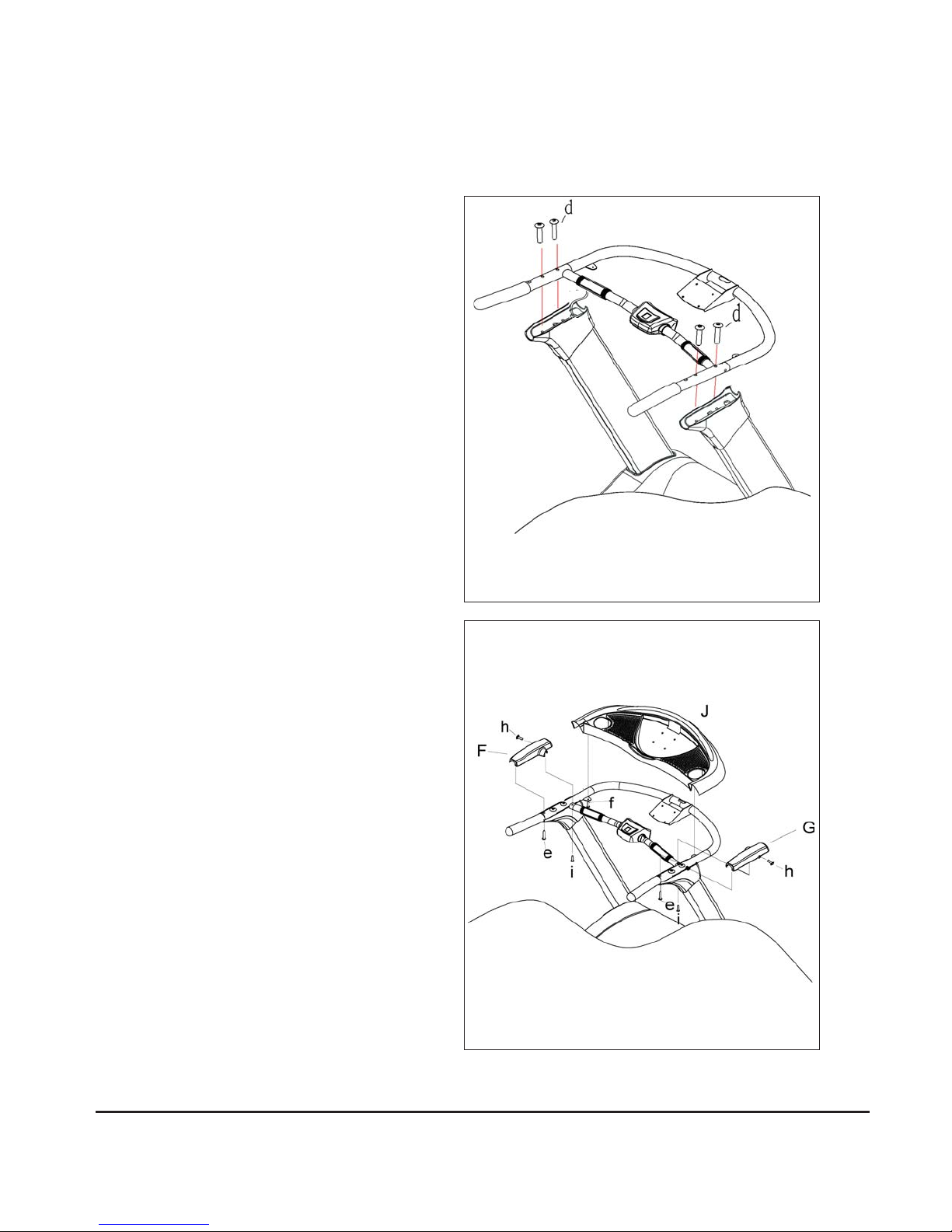

3. Feed the I/O interface cable from the
upright computer console
welding base (E) at the handrail
opening until it reaches the center
center of the base (E). Then pull the
I/O interface connector out until there
is no excess cable
Place the base (E) on the upright and
tighten using socket bolts (d)
Make sure not to pinch the interface
cable in the process.
through the
4. Place the cup/bottle holder (J) on the
console welding base (E). Tighten
with screws (f).
Attach the Left/Right handrail covers
(F, G) and secure in place with sheet
metal screws (e, i) and machine screw
(h).

10
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
ASSEMBLY INSTRUCTIONS (cont’d)

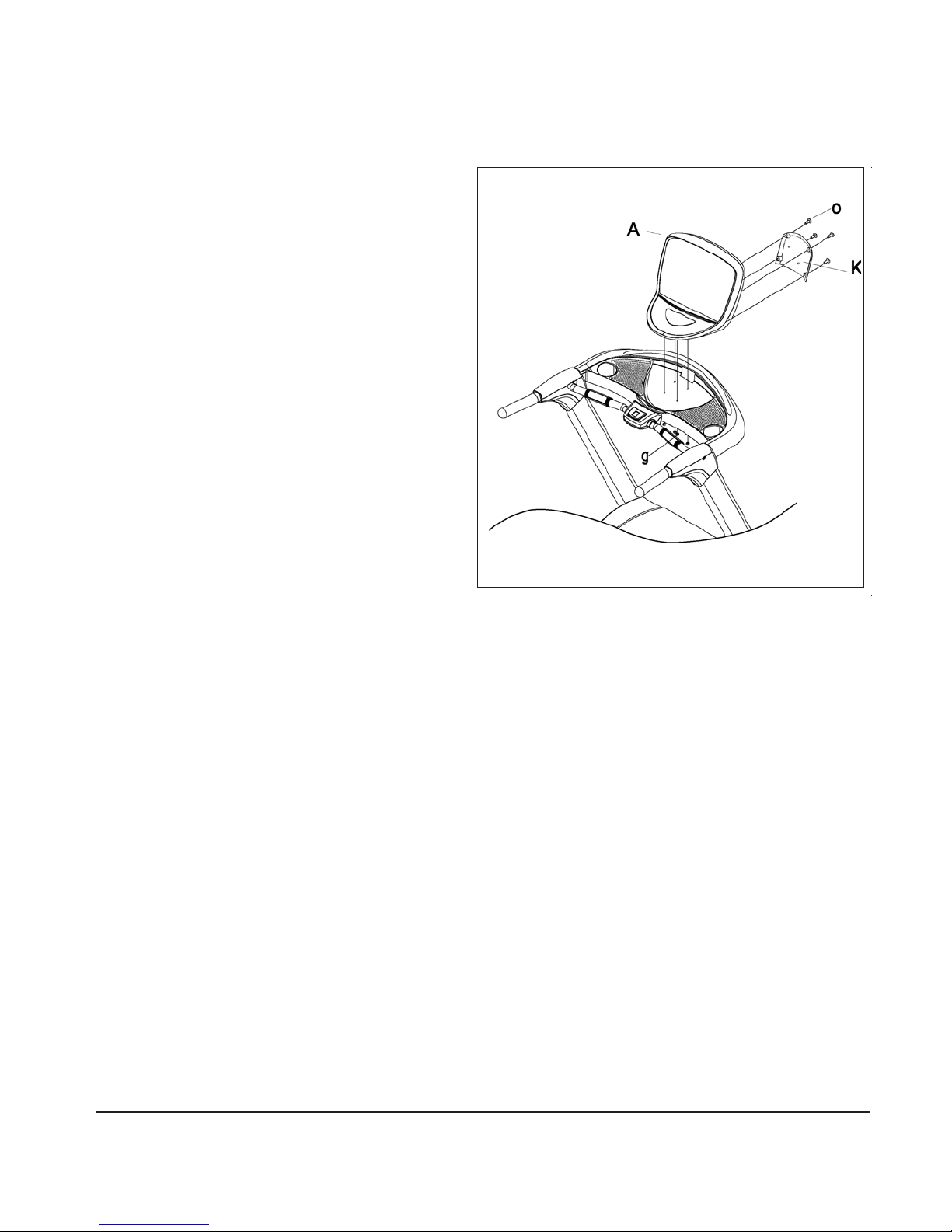

5. Place console (A) on the cup/bottle
holder (J). Mate all connectors:
Handpulse, Emergency Stop & I/O
Interface before securing the console
in place with 4 nuts (g) under the cup
holder. Attach the rear console cover
(K) with machine screws (o).

11
SECTION 3
TREADMILL AND CONSOLE
MOVING THE TREADMILL
Use the front wheels to move the treadmill. Elevating the treadmill
(incline) may help make the wheeling of the unit easier. Always be
sure to use proper lifting form / technique. Grasp the end caps with
two hands and slowly lift deck up until you are in an upright position.
Keep the treadmill at that angle and wheel the unit as required.
SAFETY KEY & CLIP
BH Fitness treadmill is equipped with a safety key that will disable
the treadmill if it is not in place. User should attach the clip end to
clothing. The magnet end goes into the recess in the center of
the console. If at any time you need to stop the treadmill, pull the
safety key quickly off the console. This will cut all power to the
treadmill and it will come to a complete stop. To restart the treadmill,
place the safety key back in place. Previously input program and data
will have to be re-entered.
BEFORE STARTING
Straddle the running belt and stand on the side rails. Insert the safety
key and attach the clip to your clothing. Do not stand on the walking
belt while starting or stopping the treadmill.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5

12
TS5

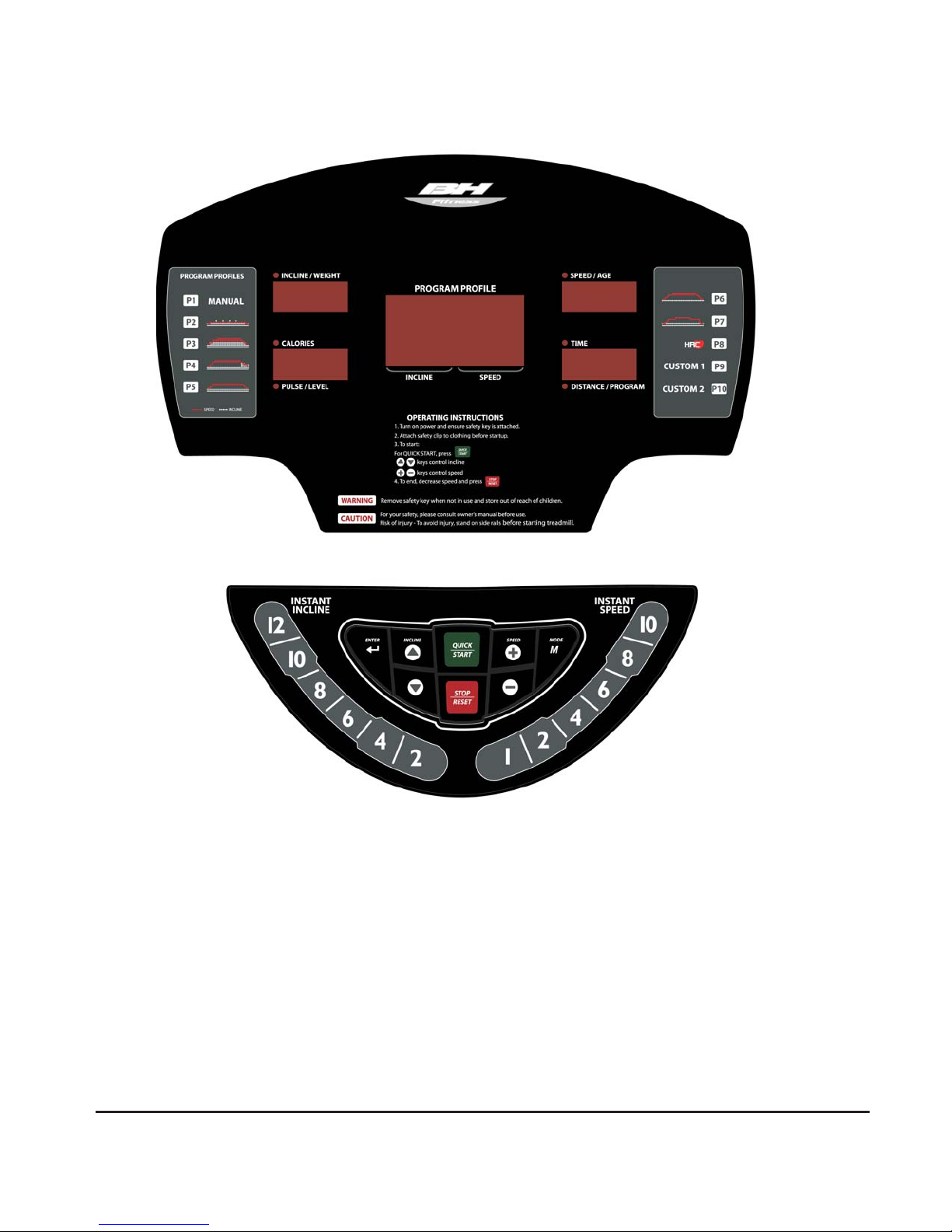

KEY FUNCTIONS
QUICK/START – This key is used to begin any treadmill program or
QUICK/START.
MODE – This key is used to access the program mode.
STOP/RESET – This key is used to stop the treadmill at any time. In
the standby position, press the Stop key for 5 seconds
to set the incline to zero from an elevated position.
ENTER – This key is used to confirm the value of the current selection.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
TREADMILL AND CONSOLE (con’t)

13
INSTANT SPEED/ELEVATION KEYS – You can change the speed or
elevation of the treadmill by pressing the numeral Instant Key buttons.
CONSOLE FEEDBACK
TIME – This will read the number of minutes left in the program that
you have selected. In QUICK START it will read the number
of minutes that you have been exercising.accumulated
CALORIES – This reading is the amount of body heat in calories
burned during your workout. As with all exercise
equipment, this is an estimated value.
INCLINE – Incline will display as a percent of grade.
Note : Important information about Incline:
1. While the treadmill is elevated and the is removed, puttingsafety key
the safety key back would not automatically return the incline to zero.
PULSE – Pulse will display in Beats Per Minute (BPM).
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
These keys are used to adjust the elevation of the treadmill.
These keys are used to adjust the speed of the treadmill.
Note: To switch between the metric system (kilometers) and the
English system (miles), press and hold the key for 5 secondsENTER
at the Start/Ready position after power on. The window will display
either MLS (English) or KMS (metric). Use the Incline or Speed
keys to select. Press the key to accept the selectionENTER
TREADMILL AND CONSOLE (con’t)
SPEED – This is how fast the treadmill moves in Miles Per Hour (MPH).
DISTANCE – Total distance traveled during your workout in miles.
To activate and return the incline to zero, press QUICK START.
To activate and return the incline to zero, press QUICK START.
2. While the treadmill is elevated and is removed, putting thepower
safety key back would not automatically return the incline to zero.

14
USING HEART RATE
Note
: See page 19 for Target Heart Rate calculations.
PULSE GRIP – To periodically check your heart rate, grasp the hand-
grip sensors at the base of the console. The PULSE LED will flash and
after about 9 seconds your heart rate will be shown in the pulse window.
QUICK START
TO STOP
1. Step off running belt onto the side rails.
2. Press STOP/RESET. The running belt will come to a stop.
Note: For an immediate stop, pull the safety key out of the safety key recess
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
TREADMILL AND CONSOLE (con’t)
and power to the treadmill will be interrupted abruptly; the belt will roll
to a complete stop.
1. Apply power to the unit by turning the treadmill power switch to ON and
Weight should flash (150lbs.) on the console. If the treadmill is already on
displaying Stop on the console, momentarily remove the safety key and
place it back in place. This will reset the console and Weight (150 lbs.)
should flash. This parameter is used to calculate calories consumed during
the workout.
2. If caloric calculation is not of concern, press
workout
3. Otherwise, adjust weight using keys and press ENTER
to confirm
4. Press QUICK/START and the belt starts rolling at 0.5 MPH
5. Adjust Speed with the or any of the instant Speed keys
6. Adjust Incline with the or any of the instant Incline keys
ignore the weight flashing and
QUICK START to begin the
or

15
SECTION 4
WORKOUT PROGRAMS
Your BH FITNESS treadmill will provide both manual controlled and
factory installed preset workout programs.
In MANUAL, you control the speed and/or elevation at your
discretion. For QUICK START exercise with Time setting, refer to
Manual Program.
In PRESET programs, the speed and/or elevation will change in
accordance with the program’s profile (as illustrated on the following
pages).
In any program, pressing the Stop key will pause the current program.
To resume the current program press the Start key. To exit the current
program and return to the standby mode, press the Stop key again.
MANUAL PROGRAM (P-01) SETUP
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
or
1. Apply power to the unit by turning the treadmill power switch to ON and
Weight should flash (150lbs.) on the console. If the treadmill is already on
displaying Stop on the console, momentarily remove the safety key and
place it back in place. This will reset the console and Weight (150 lbs.)
should flash. This parameter is used to calculate calories consumed during
the workout.
2. Press MODE key and P-01 will be flashing.
3. Press Enter to accept. Time will be flashing.
4. Adjust Time with then press ENTER to accept
5. Press QUICK/START and the belt starts rolling at 0.5 MPH
6. Adjust Speed with the or any of the instant Speed keys
7. Adjust Incline with the or any of the instant Incline keys

16
PROGRAM (P-02 through P-07) SETUP
1. In idle mode, press MODE key and Program P-01 light will be flashing.
2. Browse program P-02 with the keys.
3. P ress ENTER to accept a program and L-01 will flash in Pulse/Level window.
4. Adjust Level with the keys.
7. Press ENTER to accept andpress QUICKSTART to begin the program workout.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
WORKOUT PROGRAMS (cont’d)
or
or
P-02 - 9-Hole
P-03 - Hill Climb
P-04 - Hill Run
P-05 - Interval
P-06 - Rolling
P-07 - Weight Loss
P-08 - HRC (Heart Rate Controlled)
Program parameters are detailed in the tables at the end of the document
PROGRAM P-02 SETUP
5. Press ENTER to confirm and begin the workout.
NOTE:
P-02 is also called 9-Hole program where the exercise is based on the length of
a 9-hole (2.2 miles). Speed and Incline change according to the level
(refer to tables). As soon as the distance reaches 2.2 miles, the program ends.
golf course
PROGRAM P-03 through P-07 SETUP
1. In idle mode, press MODE key and Program P-01 light will be flashing.
2. Browse programs P-03 through P-07 with the keys.
3. Press ENTER to accept a program and L-01 will flash in Pulse/Level window.
4. Adjust Level with the keys.
or
or
5. Press ENTER to confirm and Time will flash.
6. Adjust Time with the or keys.
8. Speed and Incline can be changed during the workout using or
keys respectively.
6. Speed or Incline can be changed during the workout using or
keys respectively.

17
PROGRAM (P-08) (HRP – Heart Rate Program)
Note : P-08 requires a Chest Strap, such as POLAR T41
.Transmitter, not included but sold separately.
Note : See Page 19 for Target Heart Rate instructions
3. Press MODE key and Program P-01 light will be flashing.
4. Browse to P-08 program using the
5. Press ENTER and Age will be flashing.
6. Adjust Age with the
7. Press ENTER to accept and BPM (Beats Per Minute) will be flashing
8. Adjust BPM with the
9. Press ENTER and Time will be flashing.
10. Adjust Time with the
11. Press QUICKSTART to begin the workout.
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
TS5
WORKOUT PROGRAMS (cont’d)
2. Adjust weight using the keys and press ENTER.
1. At power up, default weight (150 lbs.) flashes.
or
keys.
or
keys.
or
keys.
or
keys.
or
P8 - Heart Rate Controlled (HRC) program based on AGE, PULSE, and TIME
inputs. User must constantly provide heart rate or the program stops.
Therefore, it is best to wear a wireless heart rate strap while exercise with
this program.

18
WORKOUT PROGRAMS (cont’d)
CUSTOM PROGRAMS (P-09 and P-10) SETUP
4. Press MODE key and Program P-01 light will be flashing.
5. Use the
6. Press ENTER to accept P-09 or P-10 and Time will be flashing.
7. Adjust time with the
8. Press ENTER and the display will show S=01 (segment #1).
9. Adjust the speed of this segment with the keys or instant
speed keys.
10. Adjust the incline of this segment with the keys or instant
incline keys.
11. Press ENTER and Display will show S=02 (segment #2).
12. Repeat steps above for all segments (30 segments) or stop anytime.
13. Press QUICK/START at anytime to finish data entry and begin workout
Note : You can program up to 30 exercise level segments or stop at
any segment as desired; the remaining segments will be run at default
incline and speed of 0% and 0.5 MPH respectively.
You can also edit the segment you are currently exercising
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
3. To set new weight value, momentarily remove and return the safety key
or recycle the power switch. The default weight (150 lbs.) should be
flashing in the window.
2. Adjust weight using the keys and press ENTER.
or
keys to navigate to P-09 or P-10.
or
keys.
or
1. At power up, default Weight (150 lbs.) flashes.

19
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
SECTION 5
CALCULATE YOUR TARGET HEART RATE
Heart Rate (HR) training has become one of the most popular forms of
monitoring your workouts. Nothing tells you how your body is feeling like your
own heart. By using your heart rate to tell you how hard to train, you can
maximize your workout results.
STEP ONE
Determining your Maximum Heart Rate:
The standard calculation for determining your maximum heart rate, Beats Per
Minute (BPM), is to take your age and subtracting it from the number 220.
Example: If you are 30 years of age, your maximum heart rate is:
220 – 30 = 190 BPM.
STEP TWO
Select your ideal workout HR Zone:
Once you have your maximum heart rate you can use it to determine your target
HR Zone based on your fitness goal(s).
Recent studies have shown:
60-70% of your maximum HR will allow you to loose weight.
70-80% of your maximum HR will improve your aerobic fitness.
80-85% of your maximum HR will increase your athletic performance.
Note : DO NOT exceed 85% of your maximum heart rate.
STEP THREE
Calculate your ideal Target HR:
Using the above percentages, you can calculate your ideal target Heart Rate for
your specific goal.
As an example, the average 30 year old can:
Maximize burn fat / weight loss, by maintaining ~123 BPM during a workout
190 * 0.65 =123 BPM.
Improve aerobic fitness, by maintaining ~142 BPM during a workout
190 * 0.75 =142 BPM.
Remember to consult your family physician or health care professional to
develop a well-planned exercise program to fit your health needs.

PREVENTIVE MAINTENANCE
The running belt can shift to one side or simply ‘skid
over’ when running. Run the machine at 3 mph for a
few minutes to determine which side the belt is
drifting towards, left or right. Center the belt using
the 8 mm Torque wrench.
If the belt is drifting left.
i) Turn the treadmill off and unplug from the machine.
ii) Tighten the left hexagonal head socket a ¼ turn
(clockwise).
iii) Loosen the right hexagonal head socket a ¼ turn
(counterclockwise).
iv) Run the belt at 3 mph again for a few minutes.
If the belt drifts to the left, repeat steps.
If the belt is drifting right.
i) Turn the treadmill off and unplug from the machine.
ii) Tighten the right hexagonal head socket a ¼ turn
(clockwise).
iii) Loosen the left hexagonal head socket a ¼ turn
(counterclockwise).
iv) Run the belt at 3 mph again for a few minutes.
If the belt drifts to the right, repeat steps.
Once the running belt has been adjusted, closer to
the center, the treadmill can be powered on again.
WARNING!
Do not use cleaner under the running belt.
i) Use 8 mm Torque wrench to loosen the hexagonal
head socket in the end caps. Remove excessive
accumulations of dust, dirt, and other substances
from running deck. ONLY use a clean soft cloth.
ii) Gently pull up the side of the running belt.
Dispense a thin layer of the lubricant on deck, and
spread evenly. DO NOT over lubricate.
iii) Center the belt (using the instructions above), and
tighten the hexagonal head socket.
Check belt condition and if necessary adjust using
the instructions above.
Rear Roller
Hexagonal
Head Socket
Use8mm
Torque wrench
for T8 Sport
4 Miles or less / hr = lube every 1 year
4~8 Miles / hr = lube every 6 months
8 Miles or more / hr = lube every 3 months
Suggested lubrication table
It is recommended that the deck be lubricated
regularly according to the frequency of usage.
Refer to the suggested schedule in the table below .
20
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone [phone] • Fax [phone]
TS5
SECTION 6
