BH FITNESS S5Ti User manual

ssii

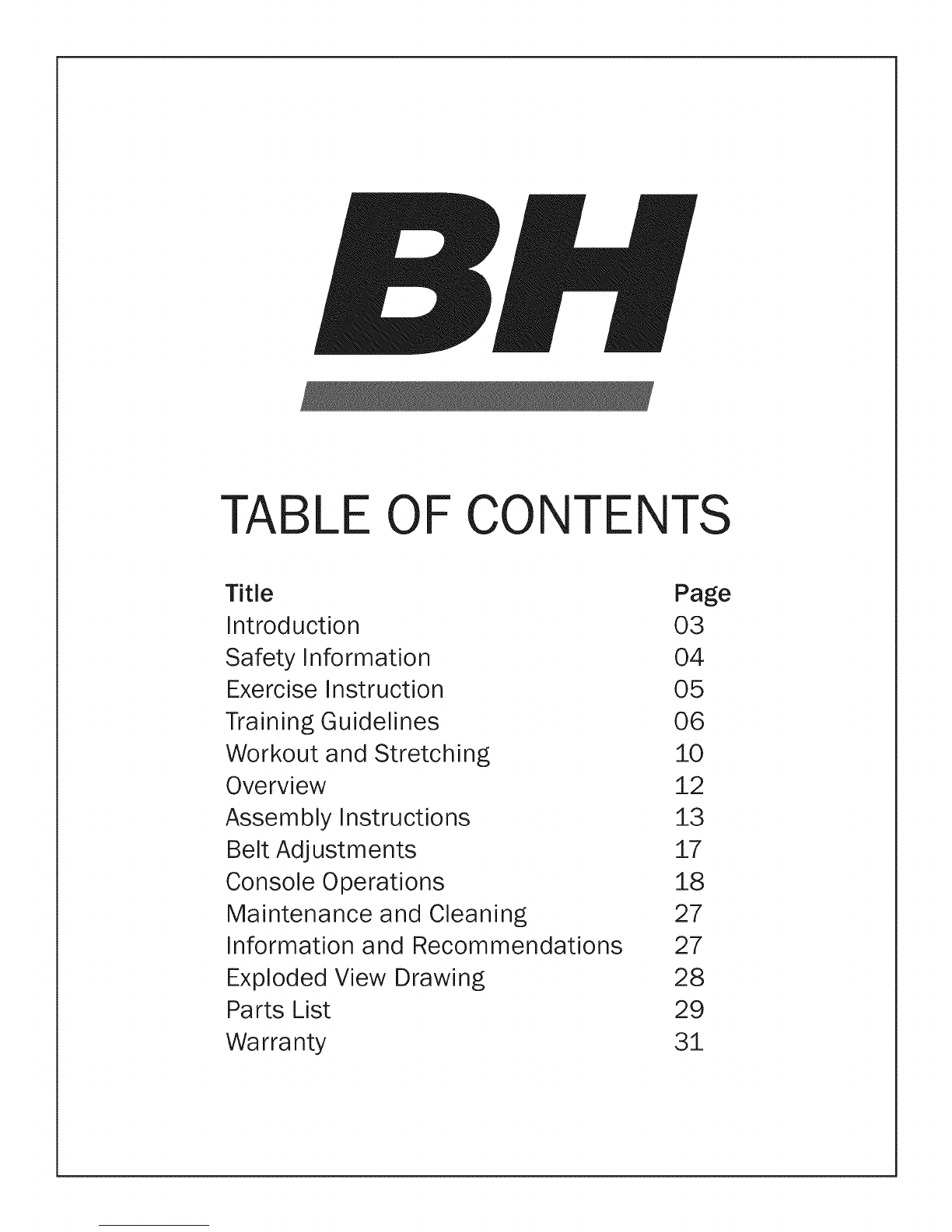

TABLE OF CONTENTS
Title Page
Introduction 03
Safety Information 04
Exercise Instruction 05
Training Guidelines 06
Workout and Stretching 10
Overview 12
Assembly Instructions 13
Belt Adjustments 17
Console Operations 18
Maintenance and Cleaning 27
Information and Recommendations 27
Exploded View Drawing 28
Parts List 29
Warranty 31

CONGRATULATI ONS
Congratulations on your purchase of BH Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers across North America have come to expect
from BH Fitness.
If you have any questions, concerns or product issues, please call our Customer Service
at 1-866-325-2339 or email us at [email protected].
Carefully read through the instructions contained in this manual. 3hey provide you
with important information about assembly, safety, fitness and use of the machine.
Please read ALL the safety information contained on the following page.

SAFETY INFORMATION
PRECAUTIONS
_he machine has been designed and constructed to provide maximum safety. Nevertheless,
certain precautions should be taken when using exercise equipment. Read the whole
manual before assembling and using the machine. Please observe the following safety
precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this
machine STOP exercising. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get
caught in the machine. Always wear athletic shoes when using the machine and tie the
laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by BH Fitness.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without
the assistance of a qualified person or doctor.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Maintain a clearance of 18 inches in front and to the sides as well as 24 inches to the rear.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. _his machine was designed for a maximum user weight of 400 lbs (181 kg)
17. _he machine can only be used by one person at a time.
Caution: Consult your doctor before beginning to use the machine or any exercise
program. Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

EXERCISE INSTRUCTION
Use of the machine offers various benefits; it will improve fitness, muscle tone and when
used in conjunction with a calorie controlled diet, it will help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to
undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your
doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose
clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Step on to the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your
workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.

TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual.
Listed among its benefits are:
* Increased capacity for physical work (strength endurance)
* Increased cardiovascular (heart and arteries/veins) and respiratory efficiency
* Decreased risk of coronary heart disease
* Changes in body metabolism, e.g. losing weight
* Delaying the physiological effects of age
* Reduction in stress, increase in self-confidence, etc.
_here are several components of physical fitness and each is defined below.
S TRENG TH
The capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.
M USCULA R END URA NCE
The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of
your legs to carry you 10 km without stopping.
FLEXIBILITY
The range of motion of your joints. Improving flexibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or
soreness.
.)
CARD I0- RESI IRA TO R TEND URANCE
The most essential component of physical fitness. It is the el_cient functioning of the heart and
lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic
energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic
or energy-generating process. Many types of exercise are aerobic, and by definition are performed at
moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING"
Is an exercise intense enough to trigger anaerobic metabolism. This means "without oxygen" and
is the output of energy when the oxygen supply is insul_cient to meet the body's long term energy
demands. (For example, a 100 meter sprint.)

OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to deliver
oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase
your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability
of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
THE TRAINING" THRESHOLD
This is the minimum level of exercise which is required to produce significant improvements in any
physical fitness parameter.
0 VERLOAD
This is where you exercise above your comfort level. The intensity, duration and frequency of exercise
should be above the training threshold and should be gradually increased as the body adapts to the
increasing demands. As your fitness level improves, the training threshold should rise. Working
through your program and gradually increasing the overload factor is important.
PROURF.SSI()N
As you become more fit, a higher intensity of exercise is required to create an overload and therefore
provide continued improvement.
SPECIFICS
Different forms of exercise produce different results. The type of exercise that is carried out is specific
to the muscle groups being used and to the energy source involved. There is little transfer of the
effects of exercise, i.e. from strength training to cardiovascular fitness. That is why it is important to
have an exercise program tailored to your specific needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benefits you have
gained. Regular workouts are the key to success.
WARM- {J7)
Every exercise program should start with a warm-up where the body is prepared for the effort to
come. It should be gentle and preferably use the muscles group to be involved later. Stretching
should be included in both your warm-up and cool down, and should be performed after 3-5
minutes of low intensity aerobic activity or callisthenic type exercise.
WARM DOWN OR COOL DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large
supply of blood remains in the working muscles. If it is not returned promptly to the central
circulation, pooling of blood may occur in the muscles.

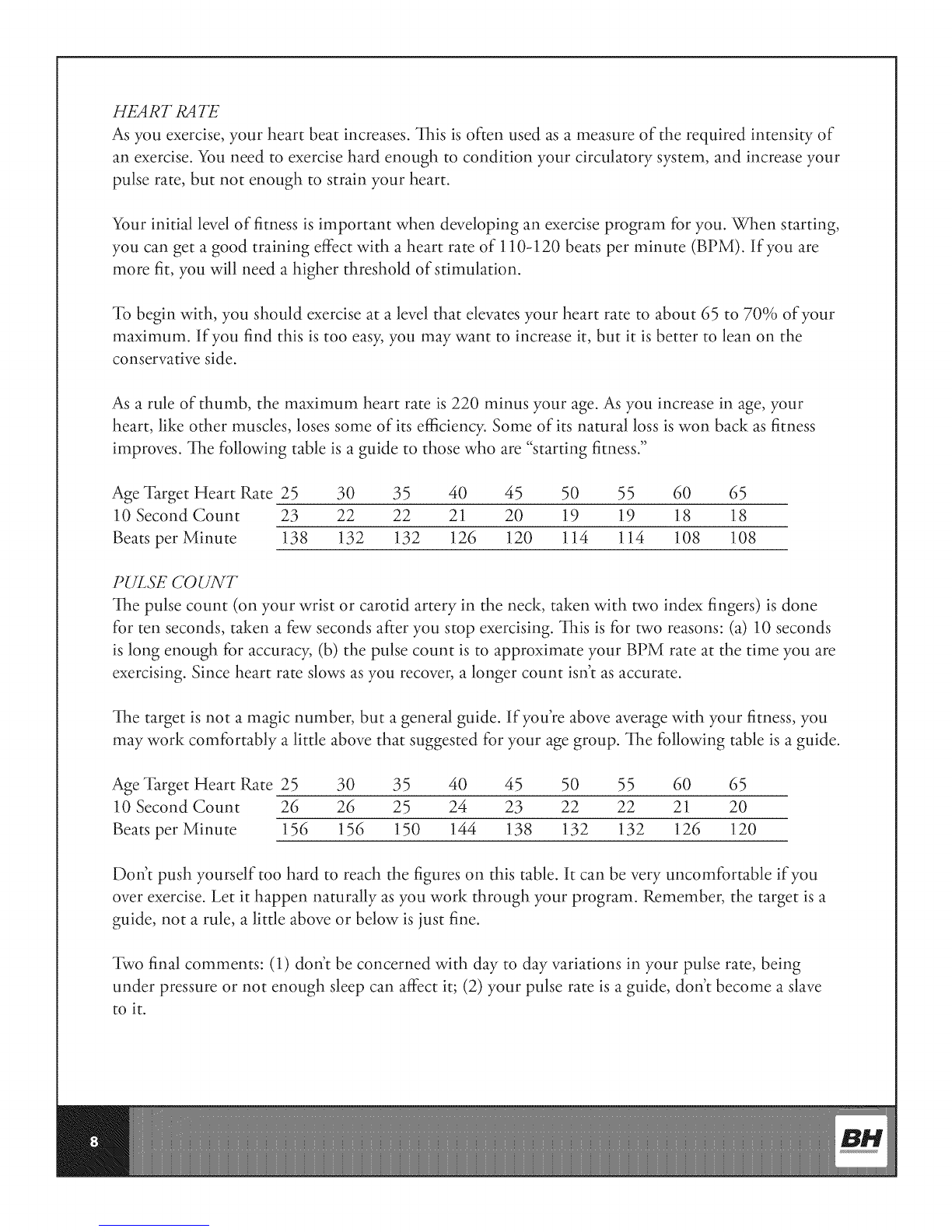

HEART RATE
As you exercise, your heart beat increases. This is often used as a measure of the required intensity of
an exercise. You need to exercise hard enough to condition your circulatory system, and increase your
pulse rate, but not enough to strain your heart.
Your initial level of fitness is important when developing an exercise program for you. When starting,
you can get a good training effect with a heart rate of I 10-120 beats per minute (BPM). If you are
more fit, you will need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your
maximum. If you find this is too easy; you may want to increase it, but it is better to lean on the
conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your
heart, like other muscles, loses some of its efficiency: Some of its natural loss is won back as fitness
improves. The following table is a guide to those who are "starting fitness."
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute 138 132 132 126 120 114 114 108 108
PULSE (20UNT
The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done
for ten seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds
is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are
exercising. Since heart rate slows as you recover, a longer count isn't as accurate.
The target is not a magic number, but a general guide. If you're above average with your fitness, you
may work comfortably a little above that suggested for your age group. The following table is a guide.
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120
Don't push yourself too hard to reach the figures on this table. It can be very uncomfortable if you
over exercise. Let it happen naturally as you work through your program. Remember, the target is a
guide, not a rule, a little above or below is just fine.
Two final comments: (1) don't be concerned with day to day variations in your pulse rate, being
under pressure or not enough sleep can affect it; (2) your pulse rate is a guide, don't become a slave
to it.

MUSCLE SORENESS
For the first week or so, muscle soreness may be the on]y indication you have that you are on an
exercise program. This, of course, does depend on your overall fitness level. A confirmation that you
are on the correct program is a very slight soreness in most major muscle groups. This is quite normal
and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you have
increased your program too rapidly:
If you experience PAIN during or after exercise, your body is telling you something. Stop exercising
and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be
light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you
normally would gives you no advantage. The extra weight you lose is body fluid and will be replaced
with the next glass of water you drink. It is advisable to wear a pair athletic shoes.
BREA THING" D URING EXE.RCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not break off
halfway through and then restart at the same place later on without going through the warm-up stage
again. The rest period required between exercises may vary from person to person.

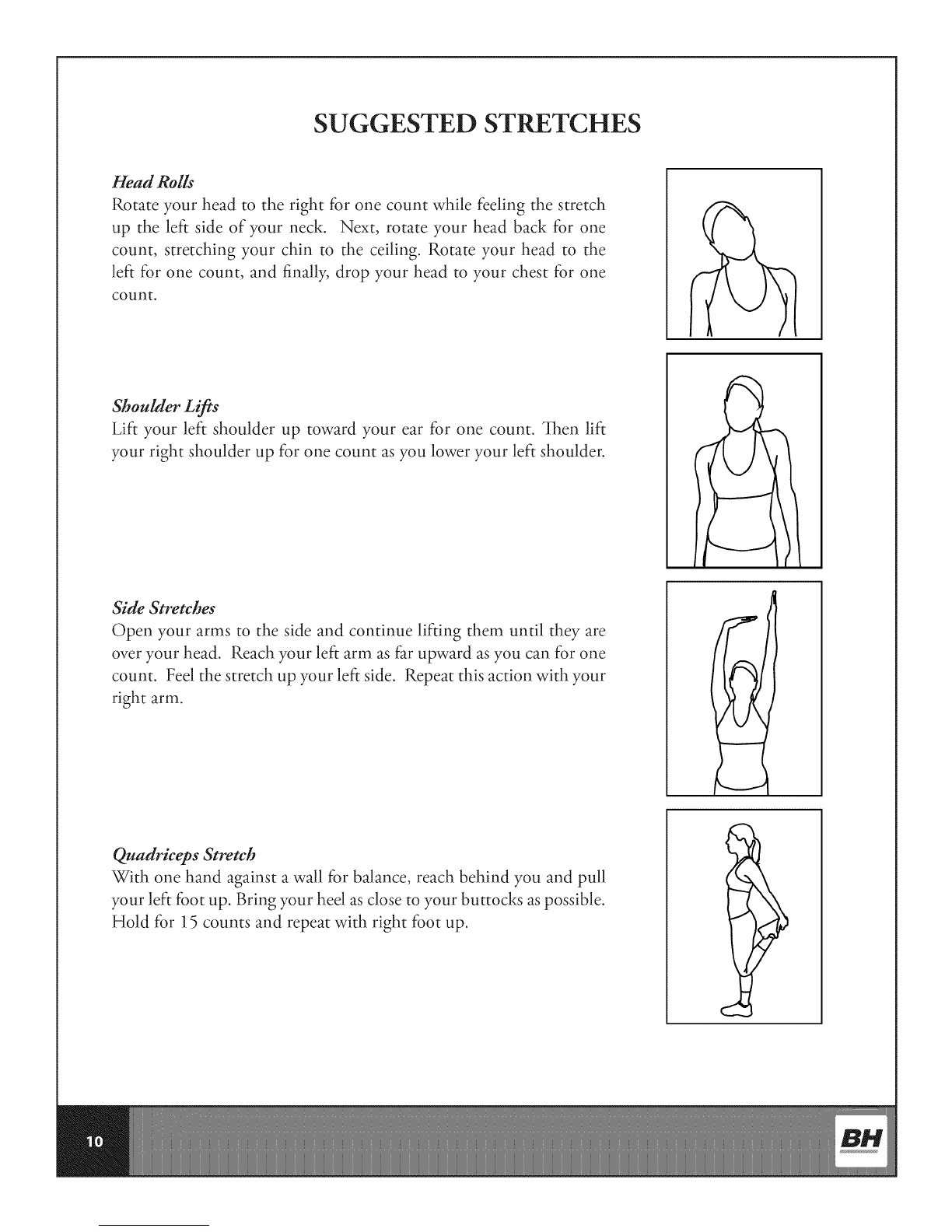

SUGGESTED STRETCHES
Head Rolls
Rotate your head to the right for one count while feeling the stretch
up the left side of your neck. Next, rotate your head back for one
count, stretching your chin to the ceiling. Rotate your head to the
left for one count, and finally; drop your head to your chest for one
count.
Shoulder Lifts
Lift your left shoulder up toward your ear for one count. Then lift
your right shoulder up for one count as you lower your left shoulder.
Side Stretches
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for one
count. Feel the stretch up your left side. Repeat this action with your
right arm.
Quadriceps Stretch
With one hand against a wall for balance, reach behind you and pull
your left foot up. Bring your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with right foot up.

SUGGESTED STRETCHES
Inner Thigh Stretch
Sit with the soles of your feet together with your knees pointing
outward. Pull your feet as close into your groin as possible. Gently
push your knees towards the floor. Hold for 15 counts.
Toe Touches
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down as far
as you can and hold for 15 counts.
Hamstring Stretches
Sit with your right leg extended. Rest the soles of your left foot
against your right inner thigh. Stretch toward your toes as far as
possible. Hold for 15 counts. Relax and then repeat with left leg
extended.
CalflAchilles Stretches
Lean against a wall with your right leg in front of the left and your
arms forward. Keep your left leg straight and the right foot on the
floor; then bend the right leg and lean forward by moving your hip
toward the wall. Hold, then repeat on the other side for 15 counts.

OVERVIEW
/ /
// //
/' // //
/ //
/ //
/,'
/ // //
/ //
/
/ / /
/ /
//
/ /
/ /
/ /
/
/
/
/
/
/
/
/
/
/
/................. ,,"U _
//' //
/ ////, //'
/ / //
/' / /
/// /
/
/ // /
/
/' / /
/' // /
/' //
/'
/
/ /
/' /
// ///
/'
/
// //'
/s
//' /'
/ // //
// //
/
/'
/
/
Theassemblyof this ?roduct requirestwo or more?eo?le. When assemblingthe u?rights, one
personshould hold the ,prights toprevent themfrom falling.

ASSEMBLY INSTRUCTIONS
STEP 1 (this step will require two people)
Take the treadmill and the parts from the carton. Take the right upright post and connect
the wire on the bottom of the post with the wire in the bracket at the front right of the
machine. After connecting the wires, slide the right upright post into the right bracket.
Make sure not to pinch the wires. Take the left upright post and place it in the left bracket.
Secure the posts with 6 pcs ofM8xl 5 screws. Leave them hand tight.
Left Upright Post_
/
/
/
// i
/ /
/
/
/
/
/
/
// //
i
// c, ///
/ /
//" ////" i /
/
/
/
i
i
i
/
i
i
i
i
i
i
i
/
/
/
// //
//
/
/
/
/i //
/
/
i
i
/
/
/
/
/
/i // m
/i /'
Right Upright Post
//

STEP 2
Connect wires from the console to the wires from the console tray. After connecting
the wires, tuck them into the console. Secure the console housing with 4pcs ofM6"25
screws. Make sure not to pinch the wires when tightening down the console.
Console
Console Tray
/

STEP 3 (this step will require two people)
Connect the wire in the right upper end of the upright post with the wire from the bottom
right console tray bracket. Slide the left and right console tray brackets into the upright
posts. Align the holes in the console tray brackets with the upright post holes and secure
them with 6pcs ofM8*l 5 screws.
TIP: If you are having trouble getting the console tray into the upright posts, make sure
that the screws at the bottom of the upright posts are loose, q_is gives some play in the
upright posts and you can seat the console tray more easily.
Console Tray
/
......../ / /
//
/_ 0 ////,
9;
Left Upright Post_ // //'///
/ // /
/
/ /
/
/ / /
/ , t
// // //
/ // //
/
/ // //
/
/ ///
// /
/// ///,//
/
/ /
/
/ // ii .....
/ /' /'
/
// // //
/ / / m
// // /'
/ / /
/ /////
/ / /'
/ ////
// // //
// // //
/ /' /
/ ////
// / /
Right Upright Post

STEP 4
Tighten the screws on the upright posts where they connect to the frame and console
tray. _here should be 12 total screws. Once you have done that, installation is complete.
/
/
/
/ /

BELT ADJUSTMENTS
To adjust the running belt, stop the treadmill,
then use the Hex Wrench and adjust the Hex
Screw located in the Rear End Cap. Ifthe running
belt is moving towards the left side, tighten the
left Hex Screw about 114 turn (clockwise); if the
running belt is moving towards the right side,
tighten the right Hex Screw about 114 turn
(clockwise); Turn the treadmill on after it has
been adjusted. If you find that the belt has not
moved to the proper position, please repeat the
steps above. Don't use the treadmill until the
running belt returns to the center position.
_he position of running belt might not stay
precisely in the center, it can and will shift
slightly towards the left and right sides, however,
you do not need to adjust the belt if it is not
rubbing against the side rails.
Depending on the usage of the product, please
apply silicon according to the chart to the right.
Use the Hex Wrench to unscrew the bolt inside
the Rear Roller. _hen pull the belt up and put
some silicon to the center of the board. After
that, adjust the belt to the center of the deck,
followed by tightening the screw to the original
set.
When the belt is sliding, please follow the above
method to lubricate the running board.
Silicon Chart
KGS/LBS Speed Interval
6KM/hr Below 1year
6-12KM/hr 6 months
KGS 12KM/hr Above 3 months
4mite/hr Below 1year
4-8mite/hr 6 months
LBS 8mite/hr Above 3 months
Note: This maintenance is intended for household
use. If used for business, it is suggested to
examine the product every other month.

CONSOLE OPERATIONS
GETTING STARTED: SWITCHING FROM MPH TO KM AND VICE VERSA
1. When taking out the safety key, E-07 will appear on the screen. Press the PROGRAM
and MODE button at the same time.
2. MPH (M) and KM (KM) will appear on the screen. Choose according to preferences.
3. Release the PROGRAM and MODE buttons. Xhe screen will light up and the E07
will once again, appear on screen.
4. Place the safety key back in the treadmill to start the machine operation.
QUICK START
1. Xhe LCD will display the following:
Distance,Time, Speed, Calories, Heartbeat, Incline.
2. To QUICK START: Stop > Program > Press aW of these buttons: Speed+, Speed-,
Incline+, Incline-, Fan, ECO, Instant speed keys button: 216110M/H, and
Instant incline keys: 4,8,12%.
BUTTON DESCRIPTIONS
A. P01 -P02-P03-P04-P05-P06-P07-P08-P09-P 10-P 11-P 12-HRC-Program: When
treadmill stops, press 'Program' to choose 'Manual-P01-P02-P03-P04-P05-
P06-P07-P08-P09-P 10-P 11-P 12-HRC-Body fat' programs in a circle.
B. Mode: please refer to below 'body fat function' description.
C. Stop: Stop the treadmill.
D. Speed+: While setting a program, this button will increase a setting value and
when the motor is running, it is used to increase the running speed.
E. Speed-: While setting a program, this button will decrease a setting value and
when the motor is running, it is used to decrease the running speed.
G. Incline+: Increases the incline angle
H. Incline-: Decreases the incline angle
I. Instant SPEED keys: provides an instant and easy speed change to 216110M/H
J. Instant INCLINE keys: provides an instant and easy incline change to 4,8,12%.
K. Fan: turns fan off/on
L: Start: on/off ECO function.

CHOOSING AND STARTING A PROGRAM
1.Program description:
A. One Manual program:
Normal, time count-down, caloriescount-down, distance count-down.
B. P01,P02,P03,P04,P05,P06,P07,P08,P09,Pl 0,Pl 1,Pl 2:12 pre-set programs.
C. One body fat program.
D. One HRC program.
2. How to start:
A. Place the safety key in place. _he LCD screen will light up for 2 seconds, the
beeper will then make a sound. You can now enter into the
Manual Program mode.
B. Press 'START'. To start without any settings, press "QUICK START", and the
time window will display: 3-2-1, then the treadmill starts.
MANUAL PROGRAM MODE
1. Entering into the manual mode:
A. Press the ON switch. Manual mode is the default mode setting, so it will be the
first screen you will encounter.
2. Time, Distance, and Calorie Setting:
A. When entering into the manual program, the time window will display 0:00
B. Under the Manual program, press 'Mode' to enter into Time count-down
mode. _he time window flashes and the initial value is 30:00. Press 'Speed+/
Speed-' to set the desired exercise time. The range is 5:00-99:00 minutes.
C. Under the TIME count-down mode, press 'Mode'. This takes you to the
CALORIES count-down mode. The initial calorie value is 50kal. Press the
'Speed+/Speed-' to set the calories range: 5-999 calories.
D. Under the CALORIES count down mode, Press 'Mode'. This takes you to the
DISTANCE count-down mode, and the initial value is 1 mile.
Press 'Speed+/Speed-' to set the desired distance. The range is 1-99 miles.
3. Operating the Manual Mode:
A. Press start, after 3 seconds, the machine will start at an initial speed of 0.6MPH.
B. Press Speed+l- to adjust the speed.
C. Press Incline+/- to adjust incline.
D. Press the "STOP" button to stop the treadmill.
E. Press INSTANT SPEED keys to set speed.
E Press INSTANT INCLINE keys to set incline.
G. For an emergency stop or to stop immediately, pull off the safety key. The screen

will display: E07 while the beeperwill make asound. _his machine will come
to acomplete stop within 3 seconds.
H. When the count down hits zero for time, speed,calories, and distanceall halt
and the display will read "END". _his meansthat the countdown
is complete.
PROGRAM
1. Initial time is 30:00, time range:5:00-99:00 minutes. Pressspeed+/- button
to adjust time.
2. Press'start', and the treeadmill starts at the preset speed.
3. Press speed+l- to adjust speed.
4. Press incline+/- to adjust incline.
5. Press the instant speed keys to set speed instantly.
6. Press the instant incline keys to set incline instantly.
7. Each program is divided into 10 segments, every segment lasts 1/10 of total time.
8. _he machine will make a sound when entering into the next segment.
9. Press the stop key to stop the treadmill.
10.When the time counts down to zero, the speed will slow down to zero, and the console
will display 'End'.
BODY FAT PROGRAM
1. When on the main screen, press the 'PROGRAM' key to navigate to the BODY FAT
function.
2. _he distance window will display the setting value, and the calories window will display
the parameter.
3. SETTING GENDER: After entering into body fat function, calories window will dis-
play: 01 (gender: male), and can be changed into 02 (gender: female) by pressing the UP/
DOWN Speed buttons.
4. SETTING AGE &CALORIES: Press Mode to set age, calories window will display:02,
distance window will display 25 (years old), _hese can all be adjusted by pressing the UP/
DOWN Speed buttons.
5. SETTING HEIGHT: Press Mode to set height, calories window will display: 03,
distance window will show: 68(inches), press the UP/DOWN Speed buttons to adjust
height (40-80inches).
6. SETTING WEIGHT: Press Mode to set weight, calories window will display: 04,
distance window will show 154 pounds, press the UP/DOWN Speed buttons to adjust
the weight (44-330 pounds)
7. BODY FAT RATE: Press Mode to enter into body fat function, calories window will
