Binks E20-1108 User manual

Replaces
Part Sheet
77-0000
Part
Sheet
77-2980
ELECTRONIC MIX SOLUTIONS
Plural Component Mixing System
Operation Manual

2BINKS EMS | OPERATION MANUAL
PART NUMBERING 1.1
SPECIFICATIONS 2.1
FEATURES 2.2
DIMENSIONS
Overall Dimensions—Wall Mount 3.1
Overall Dimensions—Floor Stand 3.2
INSTALLATION

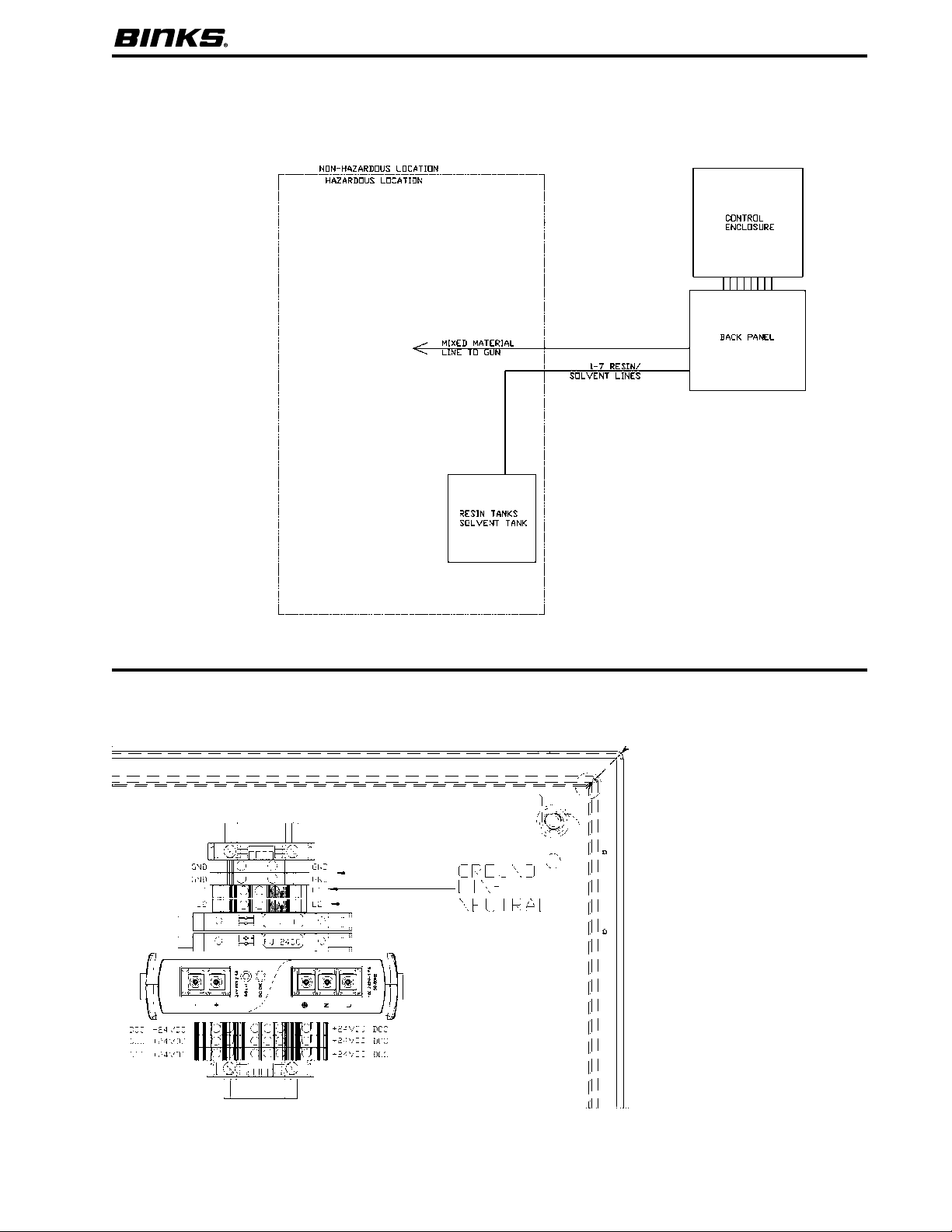

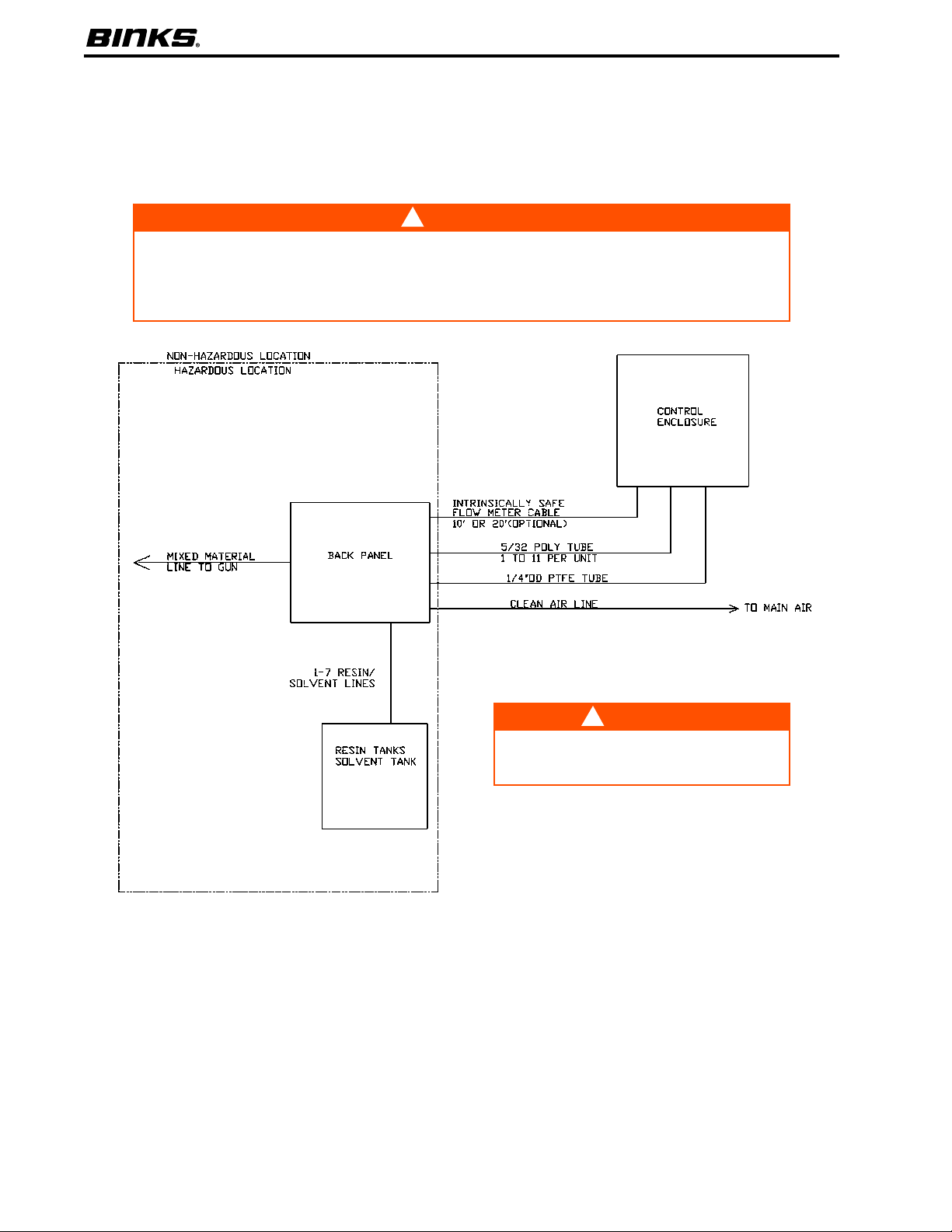

Installation Diagram for Hazardous
Location 4.1
Installation Diagram for Non-Hazardous
Location 4.2
Connecting Direct Power 4.3
COMPONENT OVERVIEW 5.1

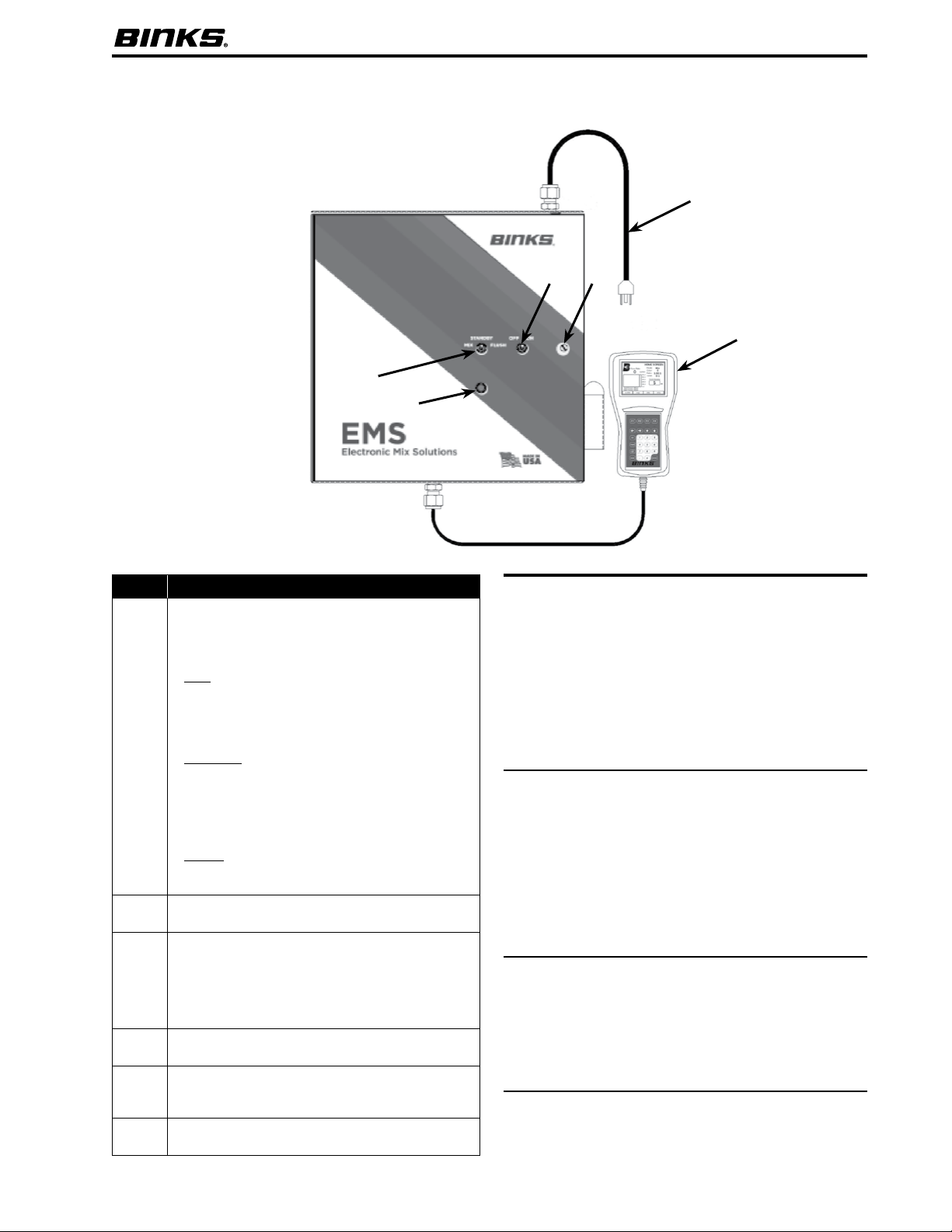

Control Enclosure Exterior 5.2
Utility Switch Modes 5.3

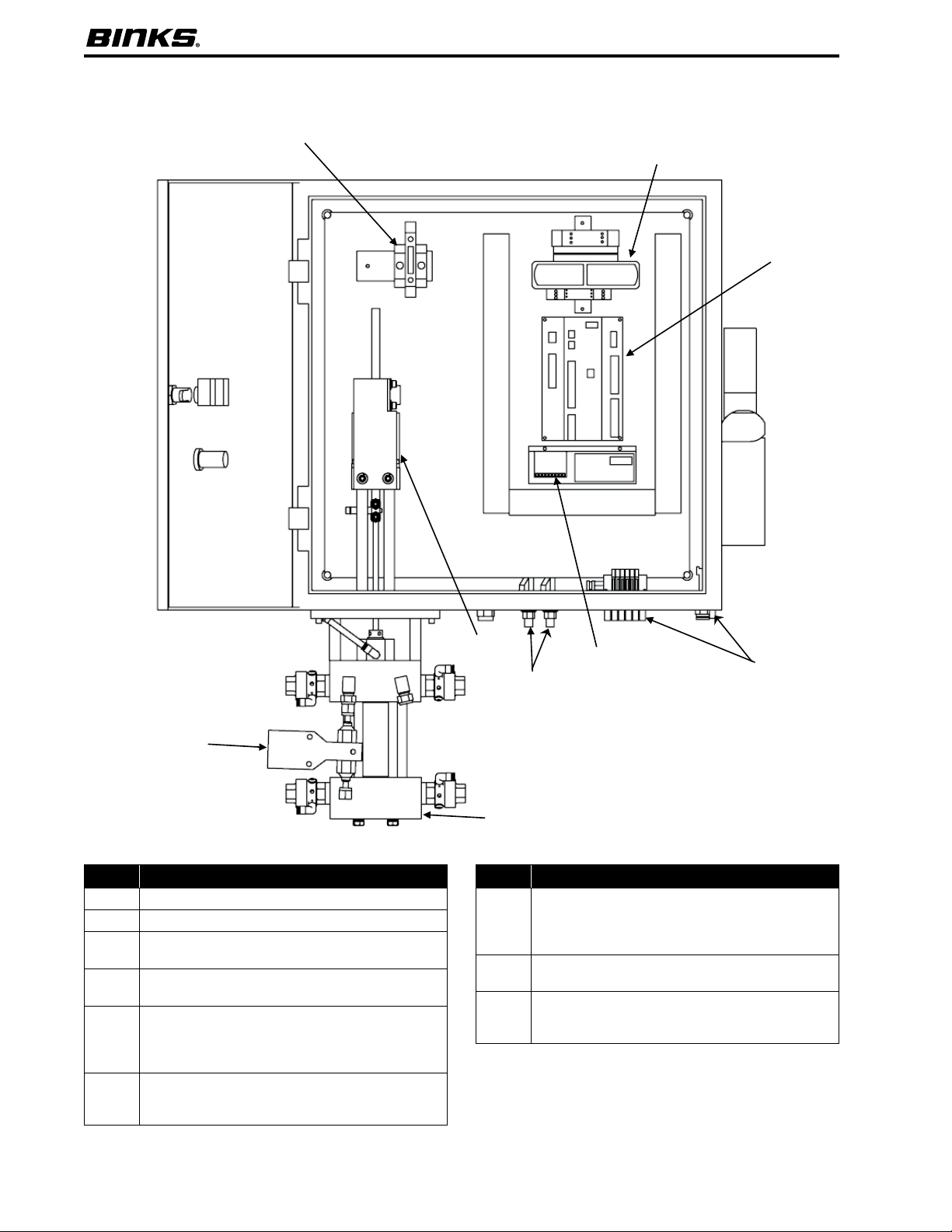

Control Enclosure Interior 5.4

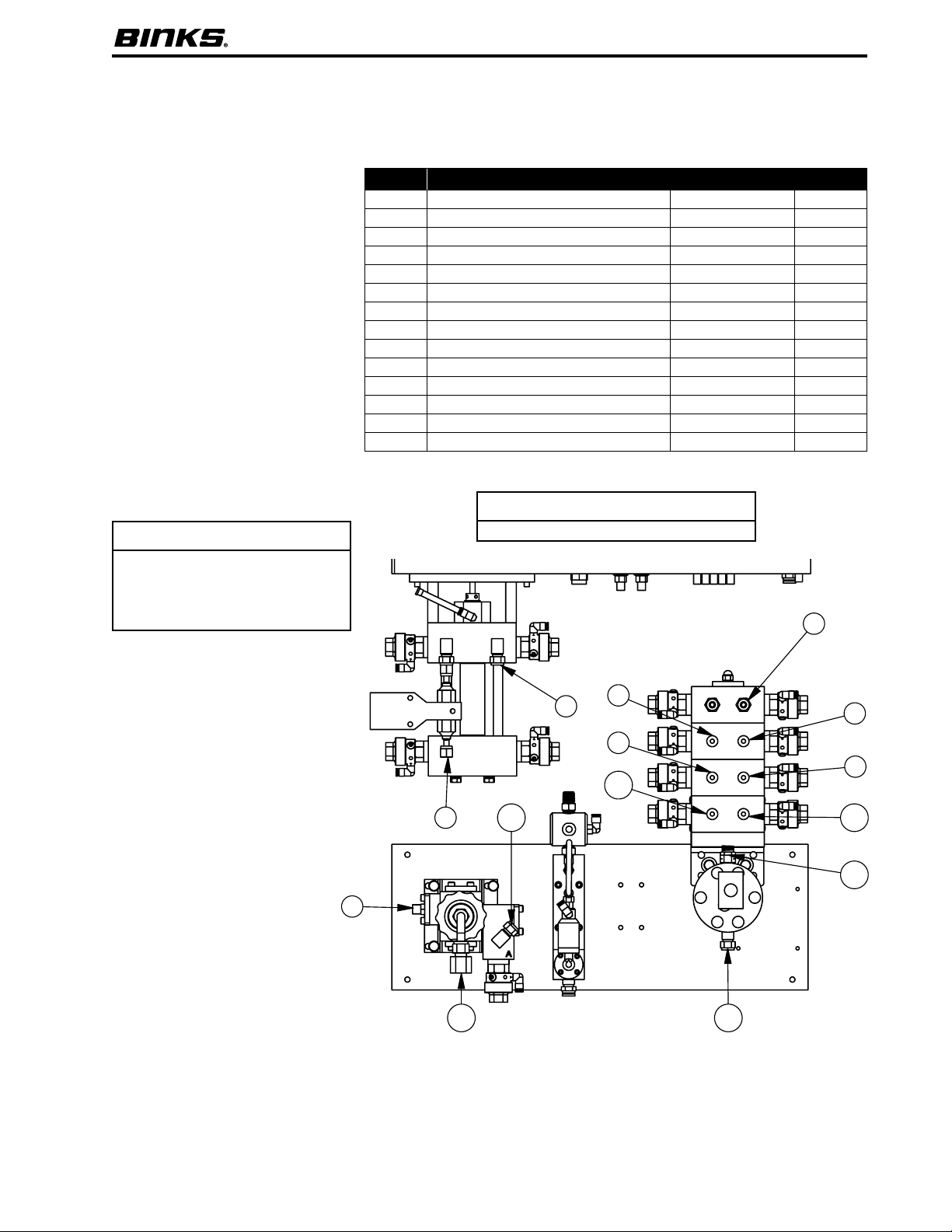

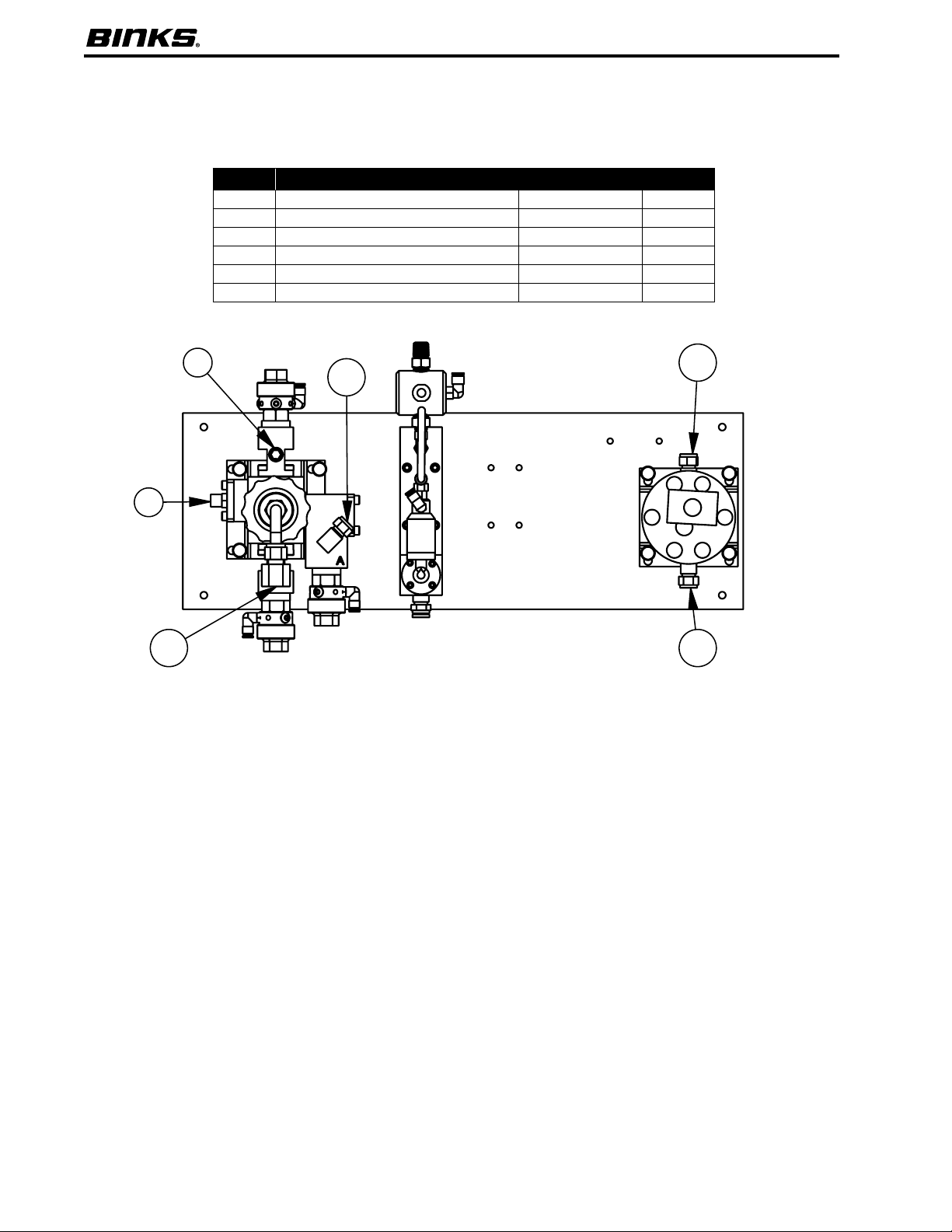

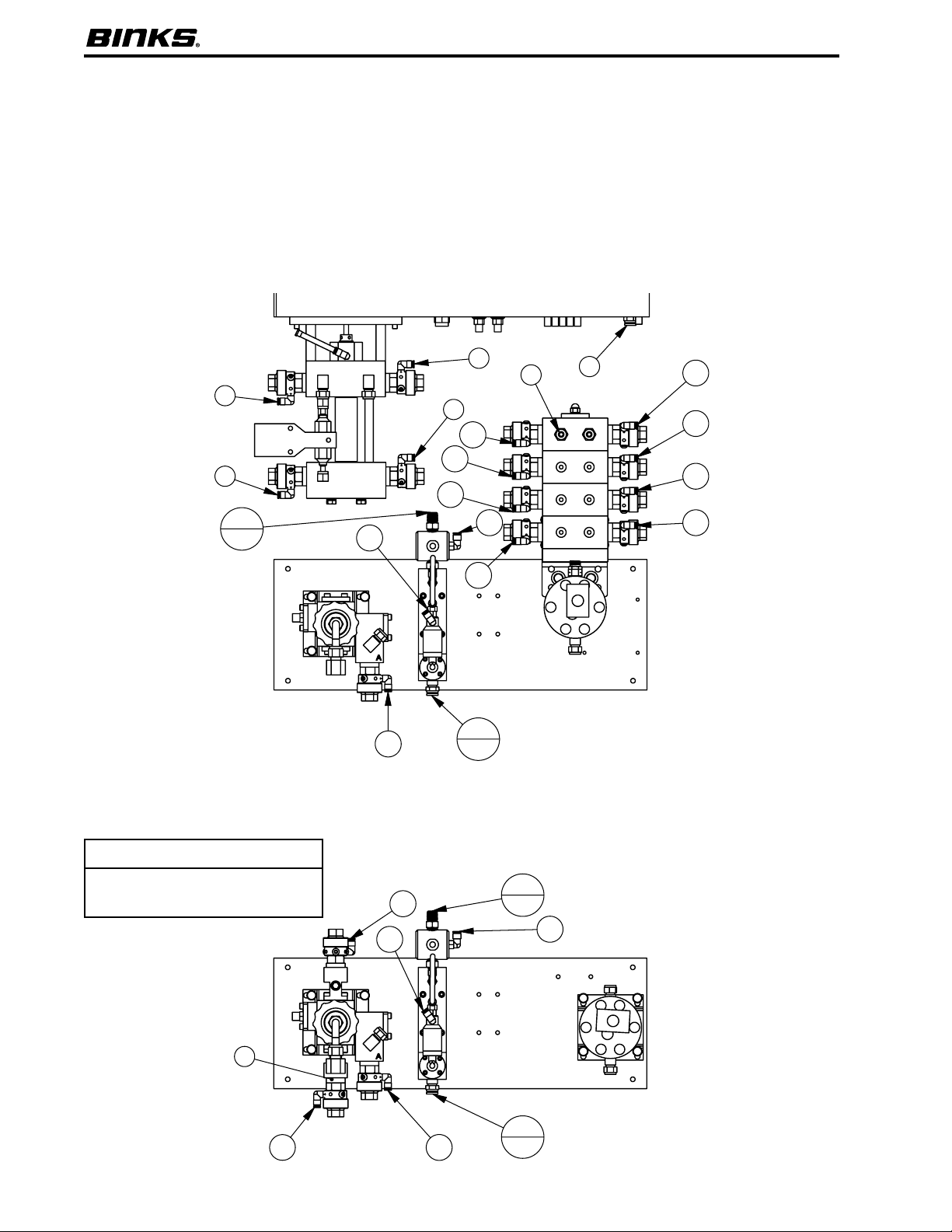

Fluid Panel 5.5
AIR CONNECTIONS 6.1
Air Connection Descriptions 6.2
FLUID CONNECTIONS 7.1
Fluid Connection Descriptions 7.2
PENDANT GUIDE 8.1
Home Screen 8.2
Color Change Screen 8.3
Usage Screen 8.4
Prime Screen 8.5
Alarm Screen 8.6
Alarm History 8.7
Alarm Help Screen 8.8
PENDANT GUIDE (continued)
Power ON 8.9
Password Prompt 8.10
System Screen 8.11
Set Ratio Screen 8.12
Load Sequence 8.13
Calibration Resin+Hardener 8.14
Calibration Resin Only 8.15
Alarm Enables 8.16
Advanced Settings 8.17
Dispense Pump Pressure 8.18
Dispense Pump Calibration 8.19
Passwords 8.20
Gun Flush Box Enable 8.21
STARTUP GUIDE 9.1
Power Up Procedure 9.2
Flow Meter Calibration and Ratio Check 9.3
Dispense Pump Troubleshooting Checklist 9.4
DAILY OPERATING GUIDE 10.1
Daily Start Up Procedure 10.2
Loading a Color 10.3
Color Change Procedure 10.4
Standby Procedure 10.5
Flushing Setup 10.6
End of Day Flushing Procedure 10.7
System Depressurization Procedure 10.8
GLOSSARY 11.1
Table of Contents

3BINKS EMS | OPERATION MANUAL
WARNING
!
In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows:
CAUTION
Hazards or unsafe practices which could
result in minor personal injury, product
or property damage.
!
WARNING
Hazards or unsafe practices which could
result in severe personal injury, death or
substantial property damage.
!
NOTE
Important installation, operation or
maintenance information.
Read the following warnings before using this equipment.
READ THE MANUAL
Before operating finishing equipment, read and
understand all safety, operation and maintenance
information provided in the operation manual.
WEAR SAFETY GLASSES
Failure to wear safety glasses with side shields
could result in serious eye injury or blindness.
OPERATOR TRAINING
All personnel must be trained before operating
finishing equipment.
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to
rupture, malfunction, or start unexpectedly and
result in serious injury.
KEEP EQUIPMENT GUARDS IN PLACE
Do not operate the equipment if the safety
devices have been removed.
PROJECTILE HAZARD
You may be injured by venting liquids or gases
that are released under pressure, or flying debris.
DE-ENERGIZE, DEPRESSURIZE, DISCONNECT
AND LOCK OUT ALL POWER SOURCES DURING
MAINTENANCE
Failure to De-energize, disconnect and lock out
all power supplies before performing equipment
maintenance could cause serious injury or death.
FOR FURTHER SAFETY INFORMATION REGARDING BINKS AND DEVILBISS EQUIPMENT, SEE THE
GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT.
PROP 65 WARNING
WARNING: This product contains chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
CA PROP
65
HIGH PRESSURE CONSIDERATION
High pressure can cause serious injury. Relieve all
pressure before servicing. Spray from the spray
gun, hose leaks, or ruptured components can
inject fluid into your body and cause extremely
serious injury.
STATIC CHARGE
Fluid may develop a static charge that must be
dissipated through proper grounding of the
equipment, objects to be sprayed and all other
electrically conductive objects in the dispensing
area. Improper grounding or sparks can cause a
hazardous condition and result in fire, explosion
or electric shock and other serious injury.
PLURAL COMPONENT MATERIALS HAZARD
Because of the vast number of chemicals that could
be used and their varying chemical reactions, the
buyer and user of this equipment must determine
all facts relating to the materials used, including
any of the potential hazards involved.
NOISE HAZARD
You may be injured by loud noise. Hearing
protection may be required when using this
equipment.
FIRE AND EXPLOSION HAZARD
Improper equipment grounding, poor ventilation,
open flame or sparks can cause hazardous
conditions and result in fire or explosion and
serious injury.
PINCH POINT HAZARD
Moving parts can crush and cut. Pinch points are
basically any areas where there are moving parts.
KNOW WHERE AND HOW TO SHUT OFF THE
EQUIPMENT IN CASE OF AN EMERGENCY
PRESSURE RELIEF PROCEDURE
Always follow the pressure relief procedure in the
equipment instruction manual.
TOXIC FLUID & FUMES
Hazardous fluid or toxic fumes can cause serious
injury or death if splashed in the eyes or on the skin,
inhaled, injected or swallowed. LEARN and KNOW
the specific hazards or the fluids you are using.

4BINKS EMS | OPERATION MANUAL
1.1 System Part Numbering
E20-161302
Dispense Pump
1 – 200 cc/min max
2 – 400 cc/min max
3 – 200 cc/min pump with
High Ratio Kit
4 – 400 cc/min pump with
High Ratio Kit
5 – 200 cc pump with
Coriolis Meter
6 – 400 cc pump with
Coriolis Meter
7 – 200 cc pump, Coriolis,
High Ratio
8 – 400 cc pump, Coriolis,
High Ratio
Color Valve System
0 – 1 Color Manual Flush
1 – 1 Color Programmable Flush
2 – 2 Color
3 – 3 Color
4 – 4 Color
5 – 5 Color
6 – 6 Color*
* 6 color not available with
dual flush boxes.
Dispense Pump
Flow Sensor
0 – None
1 – Flow Sensor
Mounting Option
1 – Wall
2 – Stand
Intrinsically Safe
0 – No
1 – Yes with 25’ cable
2 – Yes with 50’ cable
3 – Yes with 100’ cable
Note: all IS units include
in-booth fluid panel
Number of Guns
1 – One Gun
2 – Two Guns
3 – One Gun with Gun Flush Box
4 – Two Guns with Gun Flush Boxes
Note: Does not include 5/32” tubing for
flush box pneumatic connections.
Must designate gun when ordering
flush box(es).
If the example number shown above – E20-161302 – was ordered the customer would receive the following:
E20 system with 200cc Dispense Pump, 6 colors, with a Dispense Pump flow sensor, one gun with gun flush box,
no intrinsic safety, mounted to a stand.
Accessories for Binks EMS (may be added at factory):
nBeacon Light. For 360 degree visibility of in-use / alarm indication
nPre-wired solenoid stacks for future system expansion
nSolvent Flow Meter. Measure the volume of solvent used for flushing
Part
Number E20-1108 E20-1109 E20-1112 E20-1113 E20-1117 E20-1162
Description
Solenoid
Stack
A11-A15
Solenoid
Stack
A16-A19
Gun In Box
Pressure
Switch 1
Gun In Box
Pressure
Switch 2
Solvent Meter Beacon Light

5BINKS EMS | OPERATION MANUAL

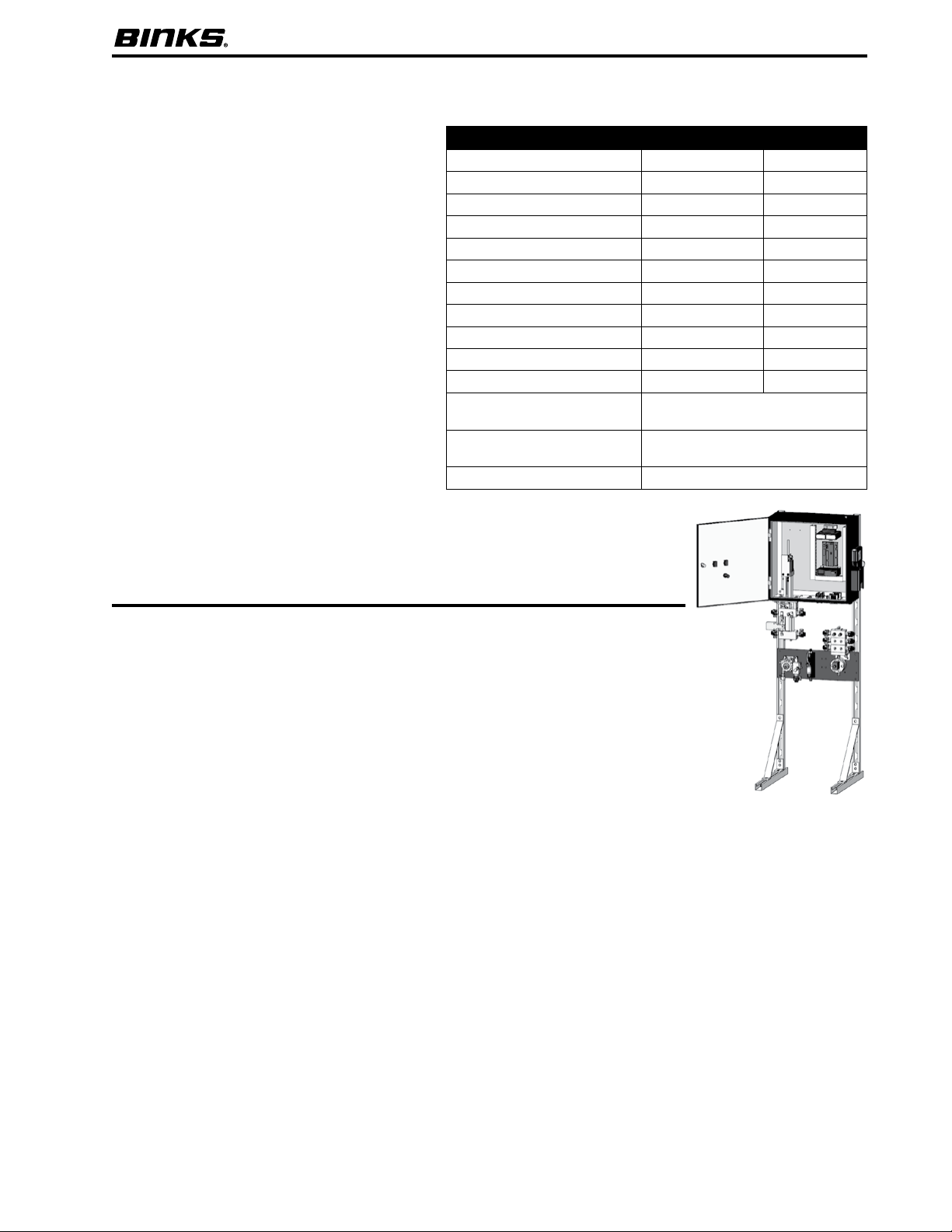

2.1 Technical Specifications
ELECTRONIC MIX SOLUTIONS
The Binks EMS system is designed to accurately
mix most two component paints. It will supply any
low- pressure manual or automatic spray gun and
can easily handle very low flow rates or high ratio
materials (greater than 20:1). The system uses real
time metering to accurately dispense and mix the
resin and hardener on-ratio regardless of varying flow
rate as seen in real world paint applications such as
feathering or rapid triggering with manual guns.
Binks EMS units are configurable with many
popular options such as use with up to 6 colors,
programmable flushing, a Dispense Pump flow
sensor, in-booth fluid panel capability, and gun flush
boxes. The system can provide accurate resin and
hardener dispensing from 1:1 to 100:1 ratios. The
high flow capability mated with the control hardware
and software allows use with two spray guns
simultaneously.
The system is easily set up and operated with front
panel switches and a 24-key control pendant with a 3.8 inch
monochrome screen. Manipulation of system parameters is
restricted via password protection.
TECHNICAL SPECIFICATIONS
Max Working Air Pressure 130 psi 9 bar
Optimal Working Air Pressure 75–100 psi 5.2–6.9 bar
Max Inlet Fluid Pressure 250 psi 17.2 bar
Max Dispense Pump Flow Rate 6.8 or 13.6 oz/min 200 or 400 cc/m
Min Dispense Pump Flow Rate 0.7 or 1 oz/min 2 or 30 cc/min
“A” Side Flowmeter Range 2.4–67.6 oz/min 70–2000 cc/min
Operating Temperature Range 41–122 Fahrenheit 5–50 Celsius
Weight of the Unit 100–150 lbs. 45–68 Kg
Viscosity Range of Fluid 20–3000 cPs
Mixing Ratio Range 1:1–100:1
Ratio Tolerance Range Up to +/- 1%
Wetted Parts 300 series stainless steel, PTFE,
perfluoroelastomer, FEP
External Power Requirements 95-132 VAC, 50–60Hz. 8 Amp,
14 AWG power supply wire gauge
Environmental Indoor use, pollution degree (2)
THE BINKS EMS HAS UNIQUE FEATURES
THAT YIELD SUPERIOR MIXING PERFORMANCE:
Continuous Flow—The mix manifold is designed to
optimize mix quality and minimize internal volume by
receiving Resin (Component A) and Hardener (Component
B) continuously—not in alternating “doses”.
Accurate Dispensing—Control and positioning of the
metering Dispense Pump is precise. An electronically
controlled stepper motor with internal worm gear and shaft
allow for adjustable dispense speeds while maintaining
accuracy.
Ease of Use—The control Pendant is simple to learn, and
efficient to use. It allows easy control of the unit, along with
real time data feedback and in-depth troubleshooting when
alarms occur.
Versatile Configurations— The machine has the ability
to accept up to six different resins, and can be configured
with manual or programmable flushing. It also allows the use
of up to two Gun Flush Boxes.
Intrinsically Safe Option— An intrinsically safe option
enables the fluid panel to be mounted in a spray booth. This
minimizes the waste produced by color changes.
Programmable Flushing—
Set unique flushing options
specific to material needs.
Mounting Options—
The control enclosure can be mounted to a pedestal floor
stand for mobility, or it can be ordered with a wall mount to
be plumbed into an existing workspace.
Low Flow Capability—The design of the Dispense
Pump allows for low hardener flow rates. Very high mix
ratios at low flow rates can be achieved. The standard 200cc
Dispense Pump can accurately dispense hardener as low as
2cc per minute.
Alarm Warnings—The built in alarm system warns the
user of system errors and suggests possible solutions. Help
screens provide troubleshooting information to remedy
system alarms.
Modular Design—All fluid panel sub-assemblies are easily
and quickly removed for maintenance and repair.
2.2 Features
System shown:
E20-141102

6BINKS EMS | OPERATION MANUAL

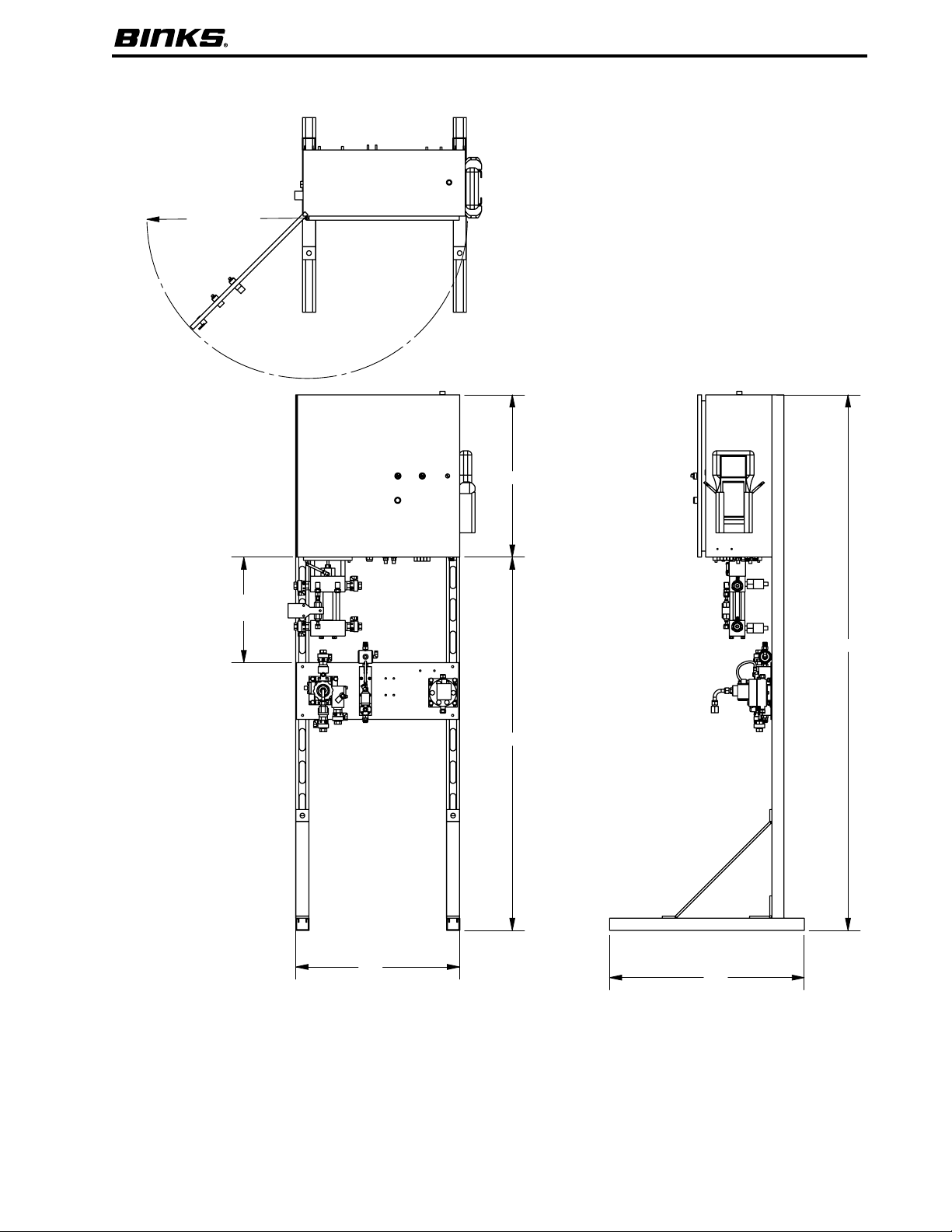

3.1 Overall Dimensions—shown with standard wall mount
4"
12"
TYPICAL
11"
48"
20" RADIUS
Wall mounting requirements:
nEnsure wall is able to support weight of complete system, including air and fluid
hoses and other connected devices. (Minimum 200 lbs. [91 kg])
nEnsure clearance for electrical and fluid connections to unit, and door swing radius.
nBolt frame sections to wall or panel using minimum 4 each of 3/8” lag screws or
cap screws with flat washers.

7BINKS EMS | OPERATION MANUAL
20"
20"
46.0"
12"
TYPICAL
66.0"
24"
20" RADIUS
3.2 Overall Dimensions—shown with optional floor stand
Floor stand requirements:
nBolting stand to floor or platform is highly recommended. Use minimum 4 each of
3/8” lag screws or anchors with flat washers.

8BINKS EMS | OPERATION MANUAL
4.1 Installation Diagram for Hazardous Locations
!
WARNING
Before performing electrical, air, and fluid connections to the Binks EMS, be sure to understand and verify all
requirements for installation, including but not limited to: electrical codes, OSHA requirements, NFPA requirements,
and all applicable local codes and ordinances.
Read and understand all operating manuals for connected equipment. Do not supply the Binks EMS with higher fluid
or air pressures than recommended in the technical specifications section of this manual.
INTRINSICALLY SAFE INSTALLATION REQUIREMENTS
All electrical work must be completed by a qualified
electrician and comply with all local and national codes and
regulations. Fused power disconnect switch is not included
with system but is required for installation.
Control enclosure cannot be placed in a hazardous location.
Power requirements for the Binks EMS are 95-132 VAC 50-
60Hz 15 Amp 8-14 AWG.
The installation is required to meet the standards of the
National Electric Code, NFPA requirements, and all other
locally enforced codes.
Multiple earthing of components is allowed only if high
integrity equipment potential system realized between the
points of bonding.
!
WARNING
Do not use equipment not approved for hazardous
locations. Do not modify system equipment as this
may impair intrinsic safety.
Class 1, Div 1, Group D, T3 (US and Canada)
Class 1, Zone 1, Group IIA, T3 (ATEX only)

9BINKS EMS | OPERATION MANUAL
4.2 Installation Diagram for Non-Hazardous Locations
Wall or stand-mounted systems
4.3 Connecting Direct Power
If direct connection to power
disconnect is preferred over
3-prong power cord, connect power
as follows:
1. Use existing 7/8” diameter hole
on top right of control enclosure
as the power port.
2. Use a compatible cord grip /
strain relief.
3. Connect power cord to the
appropriate terminals as shown
at left.
4. For the complete electrical
schematic please see the
electrical diagram section in the
Binks EMS Maintenance and
Repair Manual 77-2981.
Top right corner view of control enclosure interior

10 BINKS EMS | OPERATION MANUAL
5.1 Component Overview
1
6
2
3
4
5
7
ITEM DESCRIPTION
1Control Pendant with 3.8” monochrome screen
and 24 key input.
2
Color Stack. A series of valves and manifold
blocks for up to 6 different resin colors,
compressed air push and solvent flush valves.
3Gear flow meter with up to 2000 cc / min output.
Coriolis flow meter is optional.
4
Air Flow Switch. Gun atomizing air flow through
these switches will tell the controller to look for
resin flow. If used with flush boxes, the switches
will connect to an upstream valve to shut off
atomizing air for flushing.
ITEM DESCRIPTION
5
Mix Manifold. Three versions available:
nMix Manifold for Multicolor—used with multi-
color valve stack (shown)
nProgrammable Flush for single color systems
nManual flush for single color systems
6
Dispense Pump. Driven by the motor in the
control enclosure, the Dispense Pump flows
the calculated volume of hardener to the mix
manifold to provide the correct ratio.
7Floor Stand (optional) E21-0033

11BINKS EMS | OPERATION MANUAL
5.2 Control Enclosure Exterior
ITEM DESCRIPTION
1
Utility Switch: This switch controls the current
mode of the unit. This switch must be in a
particular mode for proper functionality. See 5.3
Utility Switch Modes for additional information.
nMIX: The primary use of this mode is to spray
mixed materials. This mode will also flush and
load colors when equipped with programmable
flush. To perform a color change, the machine is
required to be in mix mode.
nSTANDBY: Neutral position. The primary use of
this mode is to load materials into the system, or
for short breaks. The system will not supply mixed
material simultaneously, but both can be loaded
individually. The PRIME function requires the
system to be in this mode.
nFLUSH: The solvent and air valves will start to
chop on alternating intervals on systems with
Programmable Flush.
2Power Switch: Turn switch to the off position to
power down the system.
3
Alarm: When system is in alarm status, an audible
/ visual signal is enabled. The Pendant will display
Alarm as the current mode until the Alarms have
been reset. The mute button on the pendant will
disable the audible / visual signal, however the
system will remain in alarm status until reset.
4Enclosure Latch: Open or close the cabinet with a
screwdriver or coin.
5
Power Cord: 25 foot power cord with 3-prong
plug for connection to 120VAC. May be removed
for hard-wire connection.
6Pendant: 3.8” monochrome display with 24 key
membrane key pad. 7 foot cable.
5.3 Utility Switch Modes
The Utility switch on the front of the enclosure controls the
current mode of the unit. Each mode is used for separate
functions and procedures. The list below identifies all uses
for the different modes.
MIX MODE
nWhen spraying mixed material
nFor loading a color
nResin+Hardener Calibration
nResin Only Calibration
nView and clear Usage data
nView and reset Alarm History - all alarms are active in this
mode
nAll other tasks not encompassed by STANDBY mode
STANDBY MODE
nPrime hardener and resin to the unit
nPendant Setup and setting changes
nShort breaks and work stoppages
nView and reset Alarm History
nView and clear Usage data
FLUSH MODE
nFlush of fluid lines using an Air/ Solvent chop if the system is
equipped with programmable flush
nAccessed manually at any time
5
6
1
3
42

12 BINKS EMS | OPERATION MANUAL
5.4 Control Enclosure Interior and Dispense Pump
ITEM DESCRIPTION
1Power Supply. 24vDC
2PLC Board. Main control board for the Binks EMS.
3Solenoid Stacks. The electric to pneumatic signal
devices used to control the poppet valves.
4Stepper Motor Drive / Control supplies power
to the stepper motor.
5
Pressure Switches convert pneumatic signals
from the fluid panel and gun boxes to electric
signals for use by the PLC board. Used with Gun
Flush Boxes.
6
Stepper Motor drives the Dispense Pump. The
motion of the pump is controlled by the PLC Board
and the Stepper Motor Drive / Control.
ITEM DESCRIPTION
7
Dispense Pump. Driven by the motor in the
control enclosure, the Dispense Pump flows the
correct volume of hardener to the mix manifold to
provide the correct ratio.
8Dispense Pump Flow Sensor. Optional sensor to
signal liquid flow / no flow condition.
9
Intrinsically Safe Barrier. Optional equipment
to allow the fluid panel to be mounted in a
hazardous location (such as a paint booth).
91
2
3
4
5
6
7
8

13BINKS EMS | OPERATION MANUAL
5.5 Fluid Panel
ITEM DESCRIPTION
1
Color Stack. Included only if ordered with a
multicolor system. Flushing air, solvent, and the
resin inlet ports for each color are located here.
Shown is a 5 color system.
2
Poppet Valve. A pneumatically controlled valve
that opens and closes fluid passageways when
provided a signal from the corresponding trigger
line.
3
Flow Meter. The resin flow measuring device
used to calculate and control the rate of
movement of the Dispense Pump.
4
Fluid Back Panel. The mounting plate used
to secure the components to the wall or stand
mount.
ITEM DESCRIPTION
5
Air Flow Switches. Senses the atomizing air
when the spray gun is triggered. One Air Flow
Switch is used for each spray gun.
6
Mix Manifold. The location of Resin and
Hardener mixing. Combines the two materials and
sends the resulting mixture out to the spray gun.
Shown is the Programmable Flush Mix Manifold
for multicolor systems. Flush valves are located
here on single color systems.
7
Air Cut Off Valve. Used on the Air Flow Switch
when equipped with a Gun Box. Valve is opened
when signal is received from Gun Box.
7
6
1
2
3
4
5

14 BINKS EMS | OPERATION MANUAL
6.1 Air Connections
Clean, dry (-40F dew point), regulated compressed air is
recommended for use with all pneumatic components in this
system. Air filters, coalescers, regulators, and dryers are not
included with the system. Consult your Binks representative
for details concerning air control equipment.
Air pressure for the control enclosure should range from 75-100
psi (5 to 7 bar) for proper actuation of the system poppet valves.
Air pressure for spray gun atomizing air should be greater
than 20 psi (1.5 bar) for proper function of the air flow
switches.
Multicolor System
Single Color Fluid Panel
NOTE
Single Color Manual Flush systems will
not use A11 or A12 air connections.
Poppet valves are replaced by ball valves.
A6
A8
A7
A9
A5 A1
A12
A14
A16
A18
A17
A27
A15
A13
A11
A2
GUN1
A21
A10
A3
GUN1
A10
A12
A21
A3
GUN1
A11
A4
A27
A2
GUN1

15BINKS EMS | OPERATION MANUAL
6.1 Air Connections (cont.)
A25 A26
A11
A23 A24
A21 A22
A6
A28
A1
A20
A7 A8 A9 A10
A19
A18
A17
A16
A12 A13 A14 A15
Bottom view of control enclosure
NUMBER TYPE DESCRIPTION (HOSE LABEL) CONNECTING
THREAD
HOSE ID /
TUBE OD
A1 Hose Main air inlet 1/4 nps male 5/16”
A2 Hose Inlet to air flow switch gun 1 1/4 nps male 5/16”
A3 Hose Outlet from air flow switch gun 1 1/4 nps male 5/16”
A4 Hose Flushing air to mix manifold 1/4 nps male 5/16”
A5 Hose Flushing air to color stack 1/4 nps male 5/16”
A6 Poly Dispense pump top inlet trigger 5/32"
A7 Poly Dispense pump bottom inlet trigger 5/32"
A8 Poly Dispense pump top outlet trigger 5/32"
A9 Poly Dispense pump bottom outlet trigger 5/32"
A10 Poly Resin Enable trigger 5/32"
A11 Poly Flush air trigger 5/32"
A12 Poly Flush solvent trigger 5/32"
A13 Poly Color 1 trigger 5/32"
A14 Poly Color 2 trigger 5/32"
A15 Poly Color 3 trigger 5/32"
A16 Poly Color 4 trigger 5/32"
A17 Poly Color 5 trigger 5/32"
A18 Poly Color 6 trigger connection or
Gun Flush Box trigger 2 connection 5/32"
A19 Poly Gun Flush Box trigger 1 connection 5/32"
A20 Poly Not in use 5/32"
A21 Poly Air flow switch 1 signal connection 5/32"
A22 Poly Air flow switch 2 signal connection 5/32"
A23 Poly Gun In Box 1 signal connection 5/32"
A24 Poly Gun In Box 2 signal connection 5/32"
A25 Poly Not In Use ——
A26 Poly Not In Use ——
A27 Poly Optional atomization air shut-off signal 1/4"
A28 N.C. Solenoid Exhaust Port 1/4"

16 BINKS EMS | OPERATION MANUAL
6.2 Air Connection Descriptions
A1 Main air to the system cabinet; powers all
solenoids and flush boxes if equipped. 1/4” NPS
male connection. Make sure air supplied to the
cabinet is clean and is between working pressures.
A2 GUN 1 Atomizing air inlet to gun 1. 1/4” NPS
male connection. Requires clean, regulated air from
20 to 100 psi (1.5 to 7 bar) as appropriate for paint
atomization.
A2 GUN 2 Atomizing air inlet to gun 2. 1/4” NPS
male connection. Requires clean, regulated air from
20 to 100 psi (1.5 to 7 bar) as appropriate for paint
atomization.
A3 GUN 1 Atomizing air outlet (to gun 1). 1/4” NPS
male connection. Connect air hose to air inlet of
spray gun 1.
A3 GUN 2 Atomizing air outlet (to gun 2). 1/4” NPS
male connection. Connect air hose to air inlet of
spray gun 2.
A4 Air Flush to mix manifold. Equipped with a
check valve at the inlet. Connect air supply to ball
valve.
A5 Air Flush to color stack. Equipped with a check
valve.
A6 Top inlet poppet valve and solenoid connection.
A7 Bottom inlet poppet valve and solenoid
connection.
A8 Top outlet poppet valve and solenoid
connection.
A9 Bottom outlet poppet valve and solenoid
connection.
A10 Resin Enable poppet valve and solenoid
connection.
A11 Air enable poppet valve and solenoid
connection. This connection is made on the color
stack when multiple colors are ordered or on the
mix manifold when auto flush is ordered with one
color.
A12 Solvent enable poppet valve and solenoid
connection. This connection is made on the color
stack when multiple colors are ordered or on the
mix manifold when auto flush is ordered with one
color.
A13 Color 1 poppet valve and solenoid connection.
A14 Color 2 poppet valve and solenoid connection.
A15 Color 3 poppet valve and solenoid connection.
A16 Color 4 poppet valve and solenoid connection.
A17 Color 5 poppet valve and solenoid connection.
A18 Color 6 poppet valve and solenoid connection
or Gun Flush Box trigger 2 signal.
A19 Gun Flush Box 1 trigger signal.
A20 Not In use
A21 Air flow switch gun 1 “flow detected” signal
and pneumatic/electric switch.
A22 Air flow switch gun 2 “flow detected” signal
and pneumatic/electric switch.
A23 Gun in box gun 1 signal lets the system know
that the gun is locked in the box and is ready to
flush or load.
A24 Gun in box gun 2 signal lets the unit know that
the gun is locked in the box and is ready to flush or
load.
A25 Not in use.
A26 Not in use.
A27 Optional atomization air shut-off signal
A28 Air exhaust port to allow air from solenoids to
vent. No connection needed.

17BINKS EMS | OPERATION MANUAL
7.1 Fluid Connections
FLUID SUPPLY
Material resins and hardeners may be
supplied to the Binks EMS via pressure
tanks, circulating systems, or pumping
systems. Fluid must be delivered
free from pressure spikes and surges,
and entrained air must be avoided. If
feeding directly from a pump, a fluid
regulator is recommended upstream
from the flow meter (or color stack for
multi-color units).
Fluid supplied to the Binks EMS must
also be free of contaminants and solid
particles that may clog or jam the
flow meter gears or other downstream
components. Typical filtration for
paint resins is 100 mesh or smaller.
Contact your Binks representative for
information regarding fluid supply and
conditioning equipment.
NOTE
The inlet fluid pressure of the
Dispense Pump should always be
maintained 5 to 10% above the
outlet pressure. This ensures proper
operation of the Dispense Pump.
For compression fittings with ferrules,
tighten the ferrule nut 1 to 1.5 turns
past finger tight. Do not over tighten, as
exceeding 1.5 turns will likely cause the
ferrules to cut through the tubing.
For pipe threads (NPT) use PTFE tape
or other pipe thread sealant for stainless
steel connections. If using tape, wrap
clockwise two to three times around the
threads. Ensure tape does not protrude
beyond threads. If using liquid sealant,
apply sealant bead completely around
2nd male thread.
NUMBER DESCRIPTION CONNECTION TYPE TUBE OD
F1 Dispense Pump Inlet 3/8" NPS male —
F2 Dispense Pump Outlet 1/4" Compression 1/4"
F3 Mix manifold inlet from Dispense Pump 1/4" Compression 1/4"
F5 Solvent Inlet (Color Stack) 3/8" NPS male —
F6 Color 1 Inlet 3/8" NPT female —
F7 Color 2 Inlet 3/8" NPT female —
F8 Color 3 Inlet 3/8" NPT female —
F9 Color 4 Inlet 3/8" NPT female —
F10 Color 5 Inlet 3/8" NPT female —
F11 Color 6 Inlet 3/8" NPT female —
F12 Outlet of color stack (multi-color) 3/8" Comp. 3/8"
F13 Flow meter outlet to Mix Manifold 3/8" Comp. 3/8"
F14 Resin inlet for mix manifold 3/8" Comp. 3/8"
F15 Mix manifold outlet to static mixer 3/8" Compression —
Multicolor System
NOTE
Optional Dispense Pump Flow Sensor Shown
F3
F15 F13
F1
F2
F5
F12
F10
F8
F6
F7
F9
F11F14

18 BINKS EMS | OPERATION MANUAL
7.1 Fluid Connections (cont.)
NUMBER DESCRIPTION CONNECTION TYPE TUBE OD
F3 Mix manifold inlet from Dispense Pump 1/4" Compression 1/4"
F4 Solvent Inlet (Mix Manifold) 3/8" NPS male —
F14 Resin inlet for mix manifold 3/8" Comp. 3/8"
F15 Mix manifold outlet to static mixer 3/8" Compression —
F16 Flow meter inlet (1 color) 3/8" NPS male —
F17 Flow meter outlet (1 color) 3/8” Compression —
Single Color Fluid Panel
F17
F16
F14
F4
F3
F15

19BINKS EMS | OPERATION MANUAL
7.2 Fluid Connection Descriptions
F1 Inlet to Dispense Pump. Fitting is 3/8” NPS
male. Thread in upper block is 1/8 NPT female.
Connect hardener/catalyst supply directly to inlet
of Dispense Pump or Dispense Pump Flow Sensor
if equipped. If feeding directly from a pump a
fluid regulator between the pump and resin flow
meter / color stack is recommended. Contact your
Binks representative for more information on fluid
regulators and related manuals.
NOTE
Multicolor System illustration (Section 7.1) shows optional
Dispense Pump Flow Sensor. This is a recommended
option if pressure tanks are used to supply hardener/
catalyst to Dispense Pump. Dispense Pump Flow Sensor
will alarm Binks EMS when pressure tank runs out of
hardener / catalyst or if a supply valve is closed.
F2 Dispense Pump outlet. Outlet thread on
Dispense Pump body is 1/8 NPT. 1/4’’ OD compression
fitting is used. 1/4’’ OD FEP tube travels from here
into F3 (mix manifold hardener/catalyst inlet).
F3 Mix Manifold hardener / catalyst inlet. 1/4” OD
compression fitting. Connects to Dispense Pump
outlet F2.
NOTE
The check valve is required for proper operation.
Programmable Flush version with poppet valves includes
a 3/8” NPS fitting.
F4 Solvent inlet (single color). Shown with
automatic flushing valves. Used only on single-color
systems. Manual version is supplied with a ball valve,
check valve, and a 3/8” NPS male fitting to connect
to solvent supply.
F5 Solvent inlet (color stack). When multiple colors
are used the flush solvent inlet is located at the
top right side of the color stack. A 1/4” NPT male
threaded check valve is supplied in the inlet of the
color stack. Attach solvent supply line to the
3/8” NPS male adapter.
F6-F11 represent the optional number of colors
(1-6), (1-5 if two gun flush boxes are used). Port
threads are 3/8” NPT female. Plugs will be supplied
in back.
F12 Outlet of the color stack, inlet for the flow meter.
When multicolor unit is purchased the flow meter is
mounted directly to color stack to ensure the least
amount of material used when flushing or loading.
Fittings supplied are 1/4" NPT to 3/8” tube stub.
F13 Flow meter outlet. Thread on flow meter is
1/4” NPT female. 3/8” OD compression fitting is
supplied. Fluid flows from here to the resin inlet of
the mix manifold (F14).
F14 Resin inlet to Mix Manifold at the Resin
Enable Valve. Thread at the block inlet is 1/4” NPT.
Equipped with a 1/4” NPT to 3/8” OD compression
fitting for connection to F13.
F15 Mix manifold outlet. 3/8” compression.
Connected to static mixer assembly (E21-0003 or
E21-0003-HR). The end of the static mixer will have
a 3/8” NPS male connector. Connect the spray gun’s
fluid hose to this fitting.
F16 Flow meter inlet. For a 1-color system, the flow
meter is mounted directly to the back panel. The
fluid inlet to the flow meter is 1/4” NPT thread and
is equipped with a 3/8” NPS male connection.
F17 Flow meter outlet. For a 1 color unit ,the flow
meter is mounted directly to the fluid panel. The
fluid outlet from the flow meter is 1/4” NPT thread
and is equipped with a 3/8” OD compression fitting.

20 BINKS EMS | OPERATION MANUAL
8.1 Pendant Guide
1
2
3
4
6
5
7
The Pendant is used to control the Binks EMS. It allows
changes in ratio values and system settings for unique
functionality. A thorough understanding is required in order
to use the full capability of the Binks EMS. The following
pages identify the various Pendant buttons and screens, and
describe their corresponding functions. Read through this
guide to understand how to use the Pendant.
PENDANT KEYPAD
The Keypad is used to enter values into the Pendant and
navigate screens. Below is a description of the function of
each button on the keypad.
1. Home This button can be pushed at any time to
return the display back to the Home Screen.
2. Mute Silence a sounding alarm. This button
will NOT reset the alarm, it will only silence the
buzzer until the alarm has been reset.
3. Color Used to perform color changes and
programmed flush sequences.
4. ESC This is used to cancel an entry in the SETUP
menus.
5. Arrow keys These buttons will allow navigation
through the SETUP screens.
6. F- keys When an option is listed on the bottom
of the screen, it corresponds with the F- keys
located directly below the icon.
7. Enter The button used to accept a value after it
has been typed into a field.
