BiOptic Qsep 400 Operating and maintenance manual

Installation Quick Start
Bio-Fragment Analyzer: Qsep400 Document No.: F0028
Ver.: ENG-E
Page: 1/3
Packing List &
Installation Quick Start
Portable Air Pump
Markers
C405102 &C405101
(S1 & S2 Cartridge Kit)
(4-channel)

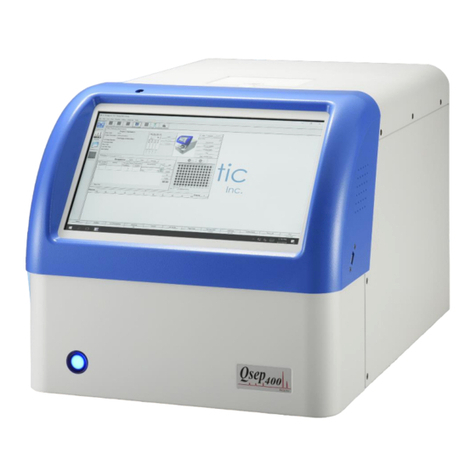

Qsep400
Qsep400
Buffer Tray
Qsep400
Power Adaptor
Software Key
Qairbox &Power Adaptor
C405102 &C405101
(S1 & S2 Cartridge Kit)
(4-channel)
Markers
*Two persons or proper transportation tool (trolly) is needed to move/transport the equipment.

4. Push the sample plate holder to the right and remove the fixture.
**Before moving the instrument, the sample plate holder needs to
be secured by the fixture to avoid system damage. Please keep the
fixture and screws for later use.
5. a. Carefully remove the blue tape and the wrap around the front panel.
b. Remove the sticker covering the power entry and plug in the power
adaptor.
Qsep400 Installation Quick Start
Bio-Fragment Analyzer: Qsep400 Document No.: F0028
Ver.: ENG-E
Page: 2/3
** Please follow the instructions to remove the fixture and packing materials before
inserting the power plug to avoid serious damage of the instrument.
Fixture
Screws
1. Open the box and remove all the documents, accessories and
upper cushioning material.
2. Gently move the instrument out of the box.
3. Hold and lift the blue frame of the front panel and unscrew the
fixture securing screws.
**Sample plate holder is secured by the fixture. Remove the
fixture before plugging in the power adaptor and starting the
instrument or it may cause system damage.
a. b.
Fixture Securing Screws
Lift Up

*DO NOT switch on the instrument
immediately after powering off
Wait at least 5 seconds
Qsep400 Installation Quick Start
Bio-Fragment Analyzer: Qsep400 Document No.: F0028
Ver.: ENG-E
Page: 3/3
2. Plug the power cord into Qsep400
(Please make sure the label on
the power cord is labeled Qsep400)
3. Plug the other side of the air tube
into Qsep400
Your Qsep400 is READY TO USE
Turn on the power of Qsep400 and portable air pump
1. Unpack portable air pump and tighten the air tube with connector
Connector
Re-pack Qsep400 before moving
1. Remove buffer tray, samples and cartridge from the instrument
2. Click “Lock” and sample tray will move to initial position
3. Turn off Qsep400 and hold the front panel
4. Pull the sample tray to left side and lock the fixture
