Thanks for buying a BISSELL Steam Mop
2 www.bissell.com
We’re glad you purchased a BISSELL Steam Mop. Everything we know about
floor care went into the design and construction of this complete,
high-tech home cleaning system.
Your Steam Mop is well made, and we back it with a limited one-year
warranty. We also stand behind it with a knowledgeable, dedicated
Consumer Services department, so, should you ever have a problem, you’ll
receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is
a global leader in the design, manufacture, and service of high quality
homecare products like your Steam Mop .
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer
ug120-4008_1867E_807.indd 2ug120-4008_1867E_807.indd 2 8/20/07 10:13:00 AM8/20/07 10:13:00 AM

3
www.bissell.com
When using an electrical appliance, basic
precautions should be observed, including
the following:
READ ALL INSTRUCTIONS
BEFORE USING YOUR
UPRIGHT DEEP CLEANER.
Always connect to a properly Earthed
outlet. Unplug from outlet when not in
use and before conducting
maintenance or troubleshooting.
WARNING: To reduce the
risk of fire, electric shock, or injury:
■Use indoors only
■Do not immerse
■Use only on surfaces moistened by
cleaning process
■Do not leave machine when it is plugged in
■Do not service machine when it is plugged in
■If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent in order
to avoid a hazard
■Do not use machine if it has been dropped,
damaged, left outdoors or dropped into water
■Do not expose to rain, store indoors
■Do not pull or carry by cord, use cord as a
handle, close door on cord, pull cord around sharp
corners or edges, run appliance over cord, or
expose cord to heated surfaces
■Do not carry the appliance while in use
■Do not unplug by pulling on cord; unplug by
grasping plug not the cord
■Do not handle plug or appliance with wet hands
■Do not put any object into appliance openings, use
with blocked opening or restrict air flow
■Do not expose hair, loose clothing, fingers or body
parts to openings or moving parts
■Do not pick up hot or burning objects
■Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc.) or use
in the presence of explosive liquids or vapours
■Do not use appliance in an enclosed space filled with
vapours given off by oil base paint, paint
thinner, some moth proofing substances,
flammable dust, or other explosive or toxic vapours
■Remove plug from electrical outlet before cleaning
or maintaining the appliance
■Not intended for use by young children or infirm
persons without supervision
■Young children should be supervised to ensure
that they do not play with the appliance
■Do not pick up toxic material (chlorine bleach,
ammonia, drain cleaner, petrol, etc.)
■Do not modify the Earthed plug
■Do not allow to be used as a toy
■Do not use for any purpose other than described
in this User’s Guide
■Use only manufacturer’s recommended
attachments
■Use only cleaning products formulated by
BISSELL for use in this appliance to prevent
internal component damage
■Keep openings free of dust, lint, hair, etc.
■Keep appliance on a level surface
■Turn off all controls before unplugging
■Be extra careful when cleaning stairs
■Pay close attention when working
around children
SAVE THESE
INSTRUCTIONS.
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
WARNING: This appliance must
be Earthed
.
IMPORTANT FOR OPERATION ON
A 220-240 VOLT A.C. 50/60 Hz POWER
SUPPLY ONLY.
If your appliance is fitted with a nonrewireable
BS 1363 plug it must not be used unless a 13
amp (ASTA approved to BS 1362) fuse is fitted in
the carrier contained in the plug. Spares may be
obtained from your BISSELL supplier. If for any
reason the plug is cut off, it must be disposed
of, as it is an electric shock hazard should it be
inserted into a 13 amp socket.
IMPORTANT SAFETY INSTRUCTIONS
ug120-4008_1867E_807.indd 3ug120-4008_1867E_807.indd 3 8/20/07 10:13:00 AM8/20/07 10:13:00 AM

4 www.bissell.com
Product view
Optional Accessories:
Mop Pads - 2 pack
Strain Reliever
Handle™
Trigger
Water
Tank
Lower Cord
Wrap
Water
filter
Mop Pad
Toggle
Ready Light
Swivel Head
MicrofiberMop Pad
Quick Release™
Cord Wrap
Carrying Handle
Power Cord
Storage Hook
With Screws
ug120-4008_1867E_807.indd 4ug120-4008_1867E_807.indd 4 8/20/07 10:13:01 AM8/20/07 10:13:01 AM

5
www.bissell.com
This user’s guide has been designed to help you
get the maximum satisfaction from your BISSELL
Steam Mop hard floor cleaner. You’ll find assembly
and operating instructions, safety precautions, as
well as maintenance and troubleshooting
instructions. Please read this user's guide
thoroughly before assembling your Steam Mop.
Pay particular attention to the product
diagram, assembly instructions, and part names.
Locate and organize all parts before assembly.
Familiarize yourself with the parts and where
they go. Following this user’s guide will greatly
enhance your ability to get the most performance
from your BISSELL Steam Mop for many years.
Your Steam Mop assembles quickly and easily.
The only thing you will need for assembly is a
Phillips head screwdriver.

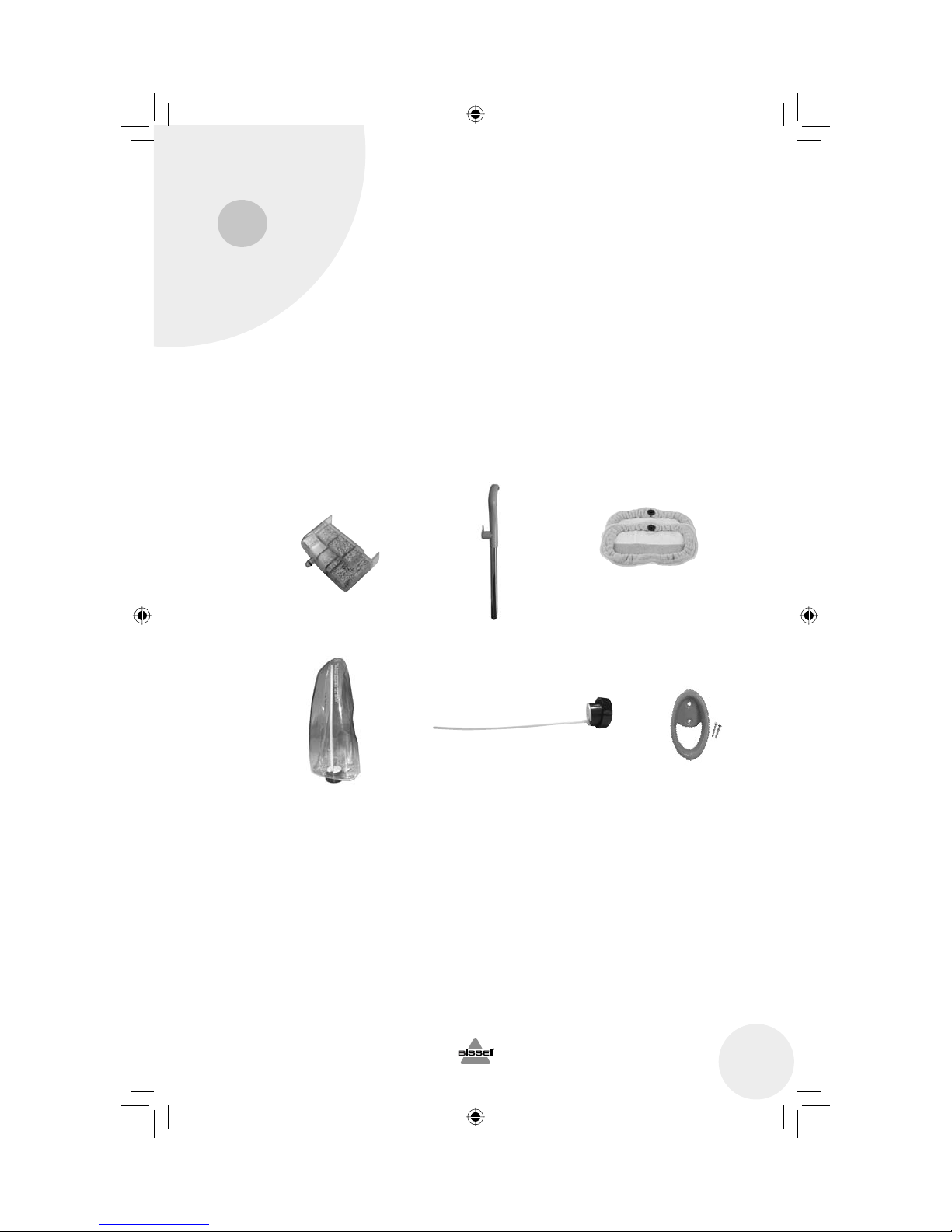

Your Steam Mop is packaged with the
following items:
Handle Assembly
Lower Body with Water filter
Swivel Head
Water Tank
1 large Philips Head Screw
1 small Philips Head Screw
2 Mop Pads
How to use this guide
Handle Assembly
Large Screw
Lower Body
Swivel Head
Water Tank
2 Mop Pads
Small Screw
ug120-4008_1867E_807.indd 5ug120-4008_1867E_807.indd 5 8/20/07 10:13:04 AM8/20/07 10:13:04 AM

1. Attach lower body to swivel head.
2. Secure swivel head with small Phillips head
screw. Tighten until secure.
3. Slide handle assembly down into lower body
until it will go no further.
4. Secure the handle by placing the large
Phillips head screw through the screw
opening in the lower body and into the rear
of the handle assembly. Tighten with
screwdriver until secure.
5. Slide water tank onto lower body by lining up
vertical glides and gently sliding tank into place.
Steam Mop assembly is now complete.
Water tank
The water tank is located on the back of the
Steam Mop. It can be refilled with water any time
during use. Distilled or demineralized water may
be used in place of tap water.
Do not use chemicals with your Steam Mop.
Water filter
This water water filter removes minerals and other
impurities from tap water, preventing water depos-
its from damaging your Steam Mop. It should be
replaced when the bright green grains turn blue. To
maximize performance of the water water filter, dis-
tilled water may be used.
Ready light
The ready light will glow when tap water has
been converted to steam and the Steam Mop is
ready to use.
Trigger
Press to release steam.
Swivel head
Allows you to clean in tight spaces and under cabinets.
Microfiber Mop pad
Reuseable microfiber mop pad is machine
washable and safe for all hard floor surfaces.
Special features
6 www.bissell.com
Tip:
Do not attempt to use
your Steam Mop without
water in the tank.
Assembly
12
34
5
ug120-4008_1867E_807.indd 6ug120-4008_1867E_807.indd 6 8/20/07 10:13:10 AM8/20/07 10:13:10 AM

Operation
7
www.bissell.com
Getting ready
The mop pad may have already come attached
to the swivel head, if not follow steps 1A and
1B below.

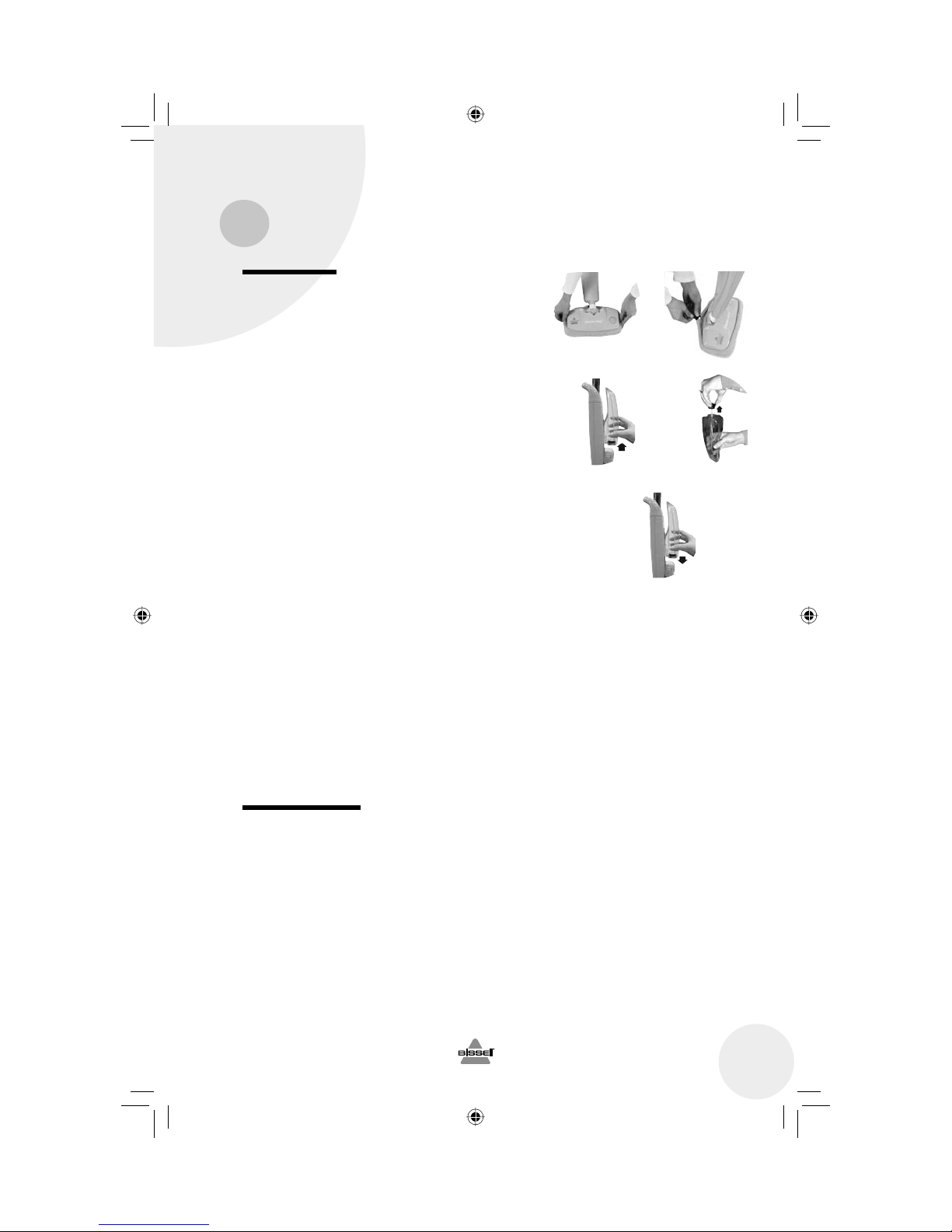

1. Attach mop pad.
A. Set swivel head in mop pad, making sure
toggle is located on the back.
B. Tighten mop pad by pulling on elastic cord
while pressing on toggle.
2. Fill the water tank.
A. Remove tank by lifting straight up and away
from unit.
B. Unscrew cap at bottom of water tank and
remove the insert assembly.
C. Fill water tank with water. For best results,
water should be at room temperature.
D. Replace insert assembly and cap, tighten
until snug.
E. Replace water tank by lining up vertical
guides and gently sliding tank into place.
3. Twist the Quick Release cord wrap clockwise to
unwrap the power cord completely and plug into a
proper outlet as described on the Important Safety
Instructions, page 3.
4. The ready light will illuminate when the Steam Mop
is ready for use.
Before you clean
Thoroughly sweep or vacuum floor prior to cleaning
with the Steam Mop.
1A 1B
2A 2B
2E
ug120-4008_1867E_807.indd 7ug120-4008_1867E_807.indd 7 8/20/07 10:13:13 AM8/20/07 10:13:13 AM

8 www.bissell.com
Cleaning hard floors
Your Steam Mop is designed to clean hard floor
surfaces such as ceramic tile, vinyl, laminate, marble,
stone and sealed hard wood floors. Use of your
Steam Mop on waxed or some unwaxed floors may
result in a diminished glossiness. The Steam Mop is
not for use on unsealed wood floors. For best results
test in an inconspicuous area or check the care
instructions from your flooring manufacturer.
1. When the ready light illuminates, begin cleaning
by slowly passing over surface while pressing
trigger to emit steam.
2. To sanitize an area of your floor, leave the
Steam Mop over area for a minimum 15
seconds, but no longer than 20 seconds. For
larger areas, overlap swivel head placement.
3. When the Steam Mop stops emitting steam,
simply remove the water tank, refill and
continue cleaning.
When you're done
1. Unplug power cord from outlet.
2. Carefully remove mop pad from swivel head, as
mop pad and lower assembly will be hot.
3. Any water remaining in the water tank should
be emptied prior to machine storage.
4. Mop pad can be machine washed in hot water.
Tumble dry on low heat or air dry.
5. Wrap power cord around Quick Release cord
wrap on side of Steam Mop.
6. Wipe all surfaces of Steam Mop with a soft
cloth. Store upright in a protected, dry area.

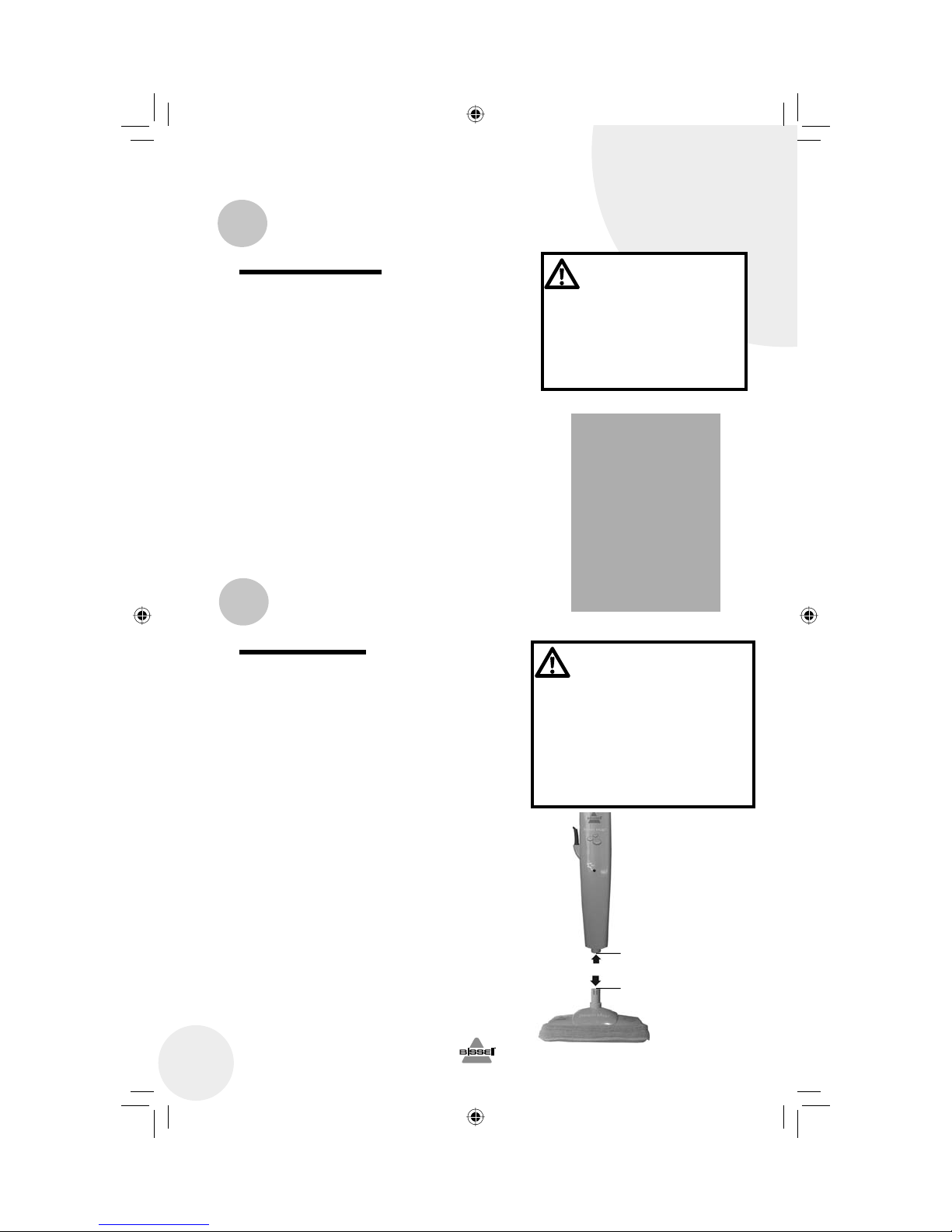

NOTE: If steam output is reduced, the nozzle
may be blocked. To remedy, unplug unit,
remove swivel head from lower body and pour
vinegar through center tube of swivel head
“neck”. Clear nozzle by inserting a paper clip
into the brass spray tip located in bottom of
lower body.
Operation
CAUTION:
Upright storage of the
Steam Mop with a wet mop
pad may result in the
formation of white marks on
your floor. To remove the
white marks, clean area
with vinegar.
WARNING:
Never put descaling,
aromatic, alcoholic, or
detergent products into
the steam cleaner, as
this may damage it or
make it unsafe for use.
Tip:
During first use, it may
take several seconds for
the Steam Mop to begin
steaming. The water
needs to flow through the
water filter to the heater.
This delay will only occur
during initial use or when
using a new water filter.
Maintenance and care
Brass Spray Tip
Swivel Head Neck
ug120-4008_1867E_807.indd 8ug120-4008_1867E_807.indd 8 8/20/07 10:13:15 AM8/20/07 10:13:15 AM

9
www.bissell.com
Troubleshooting
Reduced steam or no steam.
Possible Cause Remedies
1. Water tank empty 1. Fill tank
2. Depleted water water filter 2. Replace water filter
3. Blocked steam nozzle 3. Refer to NOTE on bottom of page 8
Other maintenance or service not included in the manual should be performed by an
authorized service representative.
Thank you for selecting a BISSELL product.
Please do not return this product to the store.
Tip:
Using distilled or demineralized
water will maximize the
performance of your water filter.
Tip:
Be sure to use only a BISSELL
water water filter in your Steam
Mop.
Replacing the water filter
If you fill your Steam Mop cleaner with normal tap
water, it is essential to check the water filter and
replace it when it is no longer effective. Change the
water filter when the bright green grains turn blue.
If the water filter is not changed at the appropriate
time, calcium deposits will accumulate on the
heating element, causing damage or reduced
performance.
Using distilled or demineralized water will
maximize the performance of your water filter.
To order a replacement water water filter refer to
the replacement parts section on page 11.
Maintenance and care
ug120-4008_1867E_807.indd 9ug120-4008_1867E_807.indd 9 8/20/07 10:13:16 AM8/20/07 10:13:16 AM

10 www.bissell.com
BISSELL Consumer Services
If your BISSELL product should require service:
In the UK, Australia or New Zealand, call BISSELL Consumer Services at the numbers below and we will give you
the location of a BISSELL Authorized Service Center in your area. For all other countries, contact your local in
country distributor for questions, service, or repair.
If you have questions about your warranty or need replacement parts please contact the numbers below.
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of unit available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
Note: Please keep your original sales receipt. It provides proof of date of purchase in the event of a
warranty claim. See Warranty on page 12 for details.
Please do not return this product to the store.
For UK inquiries:
Monday - Thursday 9 am — 5 pm
Friday 9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: [phone]
For all other inquiries:
Monday - Friday 8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, MI 49501 USA
Telephone: [phone]
Fax: [phone]
For Australian inquiries:
Monday - Friday 9 am — 5 pm
BISSELL AUSTRALIA PTY LIMITED
Unit 35
15 Ricketts Road
Mount Waverley, Victoria 3149
Australia
Telephone: [phone]
For New Zealand inquiries:
Monday - Friday 9 am — 5 pm
Parex Industries Ltd.
103 Central Park Drive
Henderson
Auckland
New Zealand
Telephone: [phone]
ug120-4008_1867E_807.indd 10ug120-4008_1867E_807.indd 10 8/20/07 10:13:17 AM8/20/07 10:13:17 AM

11
www.bissell.com
Replacement parts - BISSELL Steam Mop
Item Part No. Part Name
1 018-5600 Water Water filter
2 203-2167 Handle Assembly with Screw
3 203-2158 Microfiber Mop Pads - 2 pack
4 203-2159 Water Tank with Cap and Insert
5 603-2046 Cap and Insert Assembly
6 203-2168 Storage Hook with Screws
123
456
ug120-4008_1867E_807.indd 11ug120-4008_1867E_807.indd 11 8/20/07 10:13:17 AM8/20/07 10:13:17 AM

12 www.bissell.com
Warranty - BISSELL Steam Mop
©2007 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 120-4008
Rev 8/07
Visit our website at:
www.bissell.com
This warranty gives you specific legal rights, and you may also have other rights which may vary from country
to country. If you need additional instruction regarding this warranty or have questions regarding what it may
cover, please contact BISSELL Consumer Services by telephone, or regular post as described below, or
contact your local in country distributor.
Limited One Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL Homecare, Inc., will replace (with
new or remanufactured components), at BISSELL’s option, free of charge from the date of purchase by the
original purchaser, for one year any defective or malfunctioning part do to manufacturers defect.
This warranty applies to product used for personal, and not commercial or rental service. This warranty does
not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction
caused by negligence, abuse, or use not in accordance with the User’s Guide is not covered.
BISSELL HOMECARE INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT.
BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.
*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES
EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE
BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS
DESCRIBED ABOVE.
For UK inquiries:
Monday - Thursday 9 am — 5 pm
Friday 9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: [phone]
For all other inquiries:
Monday - Friday 8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, MI 49501 USA
Telephone: [phone]
Fax: [phone]
For Australian inquiries:
Monday - Friday 9 am — 5 pm
BISSELL AUSTRALIA PTY LIMITED
Unit 35
15 Ricketts Road
Mount Waverley, Victoria 3149
Australia
Telephone: [phone]
For New Zealand inquiries:
Monday - Friday 9 am — 5 pm
Parex Industries Ltd.
103 Central Park Drive
Henderson
Auckland
New Zealand
Telephone: [phone]
ug120-4008_1867E_807.indd 12ug120-4008_1867E_807.indd 12 8/20/07 10:13:22 AM8/20/07 10:13:22 AM
