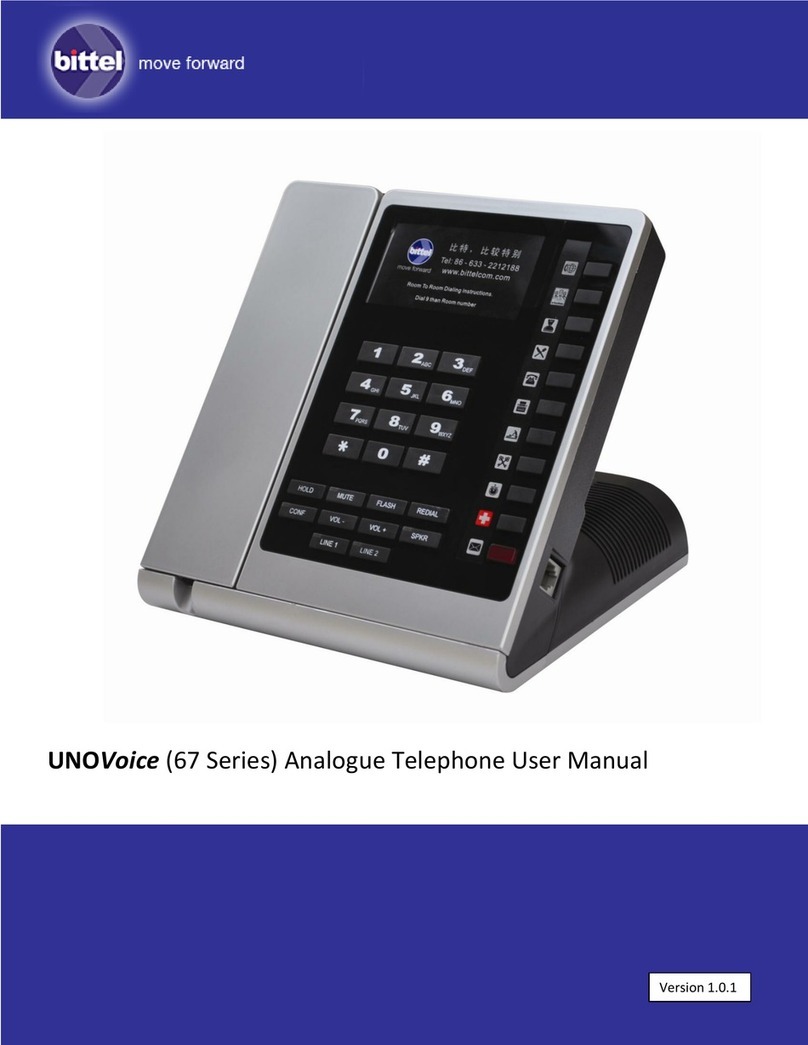

Quick Start Guide
UNO Voice (67 Series)

Thanks for purchasing a Bittel UNO Voice!
We’ve designed UNO to be easy to use, and easy
to set up. Follow the instructons in this guide to get
your UNO product in service as fast as possible.
Some of UNO’s great features:
• Up to ten (10) programmable speed dial keys
that can be programmed by one of Bittel’s
optional master speed dial cloners.
• An easy-to-install faceplate, for displaying
hotel information, dialing instructions, etc.
• Message waiting compatibility with all
major hospitality PBXs
• Hearing aid compatible handset
• ADA-compliant speaker and handset
volume control
• Adjustable ringer volume, with separate volume
settings for each line (two-line models)
• Busy signal auto-disconnect
• Last number redial, with auto-deletion of last
 numberdialedafterve(5)minutes
• Hands-free speakerphone
• Conference (two-line models)
UNPACKING AND INSTALLATION
Connecting the Two Cases
WhenyourstunpackyourUNO,thetwocases
need to be assembled, and the connecting cable
between the cases connected.
1. Find the tabs in the upright case, and the
corresponding holes in the bottom base,
and align them.
2. Insert tabs of upright case into holes on bottom
base, and press the two cases together.
3. Slide the bottom base upward until the tabs
in the upright case fully engage the holes in
the base. You should feel the two cases “snap”
or lock together.

Connect the Handset Cord
1. Plug one end of the coiled handset cord into
the jack on the handset.
2. Plug the other end of the handset cord into the
jack marked HANDSET on the underside of the
UNO.
3. Insert the cable into the channel on the
underside of the UNO so the cable emerges
out the side of the unit.
Connect the Line Cord
1. Plug one end of the supplied line cord into a
wall-mounted telephone jack.
2. Plug the other end of line cord into the jack
labeled LINE on the underside of the UNO.
3. Insert the cable into the channel on the
underside of the UNO so the cable emerges
out the back of the unit.
USING YOUR UNO
To Place a Call
1. Pick up the handset, or press SPEAKER, and
dial a number on the dial pad, or
2. Pick up the handset, or press SPEAKER, and
press the desired speed dial keys on the right
hand side of the UNO.
2. Locate the multi-conductor connecting cable
on the underside of the UNO. Taking care to
align the connector correctly, plug the
connector on the cable into the multi-pin jack
on the base unit securely.
Programming the Speed Dial Keys
To program the speed dial keys, follow these steps
below.
NOTE: Make sure that the phone is in an “on-hook”
state (not active, with handset in the cradle, and
speakerphone not engaged).
1. Press the HOLD key.
2. Enter the phone number or dial string to be
saved to memory.
3. Press the HOLD key again.
4. Press the speed dial key to be programmed.
To insert a pause into a number or dial string, press
REDIAL during this process.
This completes the programming procedure for
this key. To program additional speed dial keys,
repeate the procedure as above.
Programming the Flash Duration
CAUTION: Do not make changes to Flash duration
unless you are certain that this is required. Only
change Flash duration if required for proper PBX
interaction with UNO.
Standard Flash duration is 600 ms.
1. Press the HOLD key.
2. Depending on the desired Flash duration, press
the corresponding key as referenced here:
1 – 100 ms 7 – 700 ms
2 – 200 ms 8 – 800 ms
3 – 300 ms 9 – 900 ms
4 – 400 ms 0 – 1000 ms
  5–500ms  *–1100ms
6 – 600 ms # – 1200 ms
(In other words, pressing the “3” key will
program the Flash for a 300 ms duration, etc.)
3. Press the HOLD key.
4. Press the FLASH key.
Flash is now programmed to the duration selected.

REQUIREMENTS OF PART 68 FCC RULES
This equipment complies with Part 68 of the FCC Rules and
the requirements adopted by ACTA. On the bottom of this
telephone is a label that contains, among other information, a
productidentierintheformatUS:AAAEQ##TXXXX.Ifrequest-
ed, this number must be provided to the telephone company.
The USOC Jack for this equipment is RJ11C.
A plug and jack used to connect this equipment to the prem-
ises wiring and telephone network must comply with the appli-
cable FCC Part 68 rules and requirements adopted by ACTA.
A compliant telephone cord and modular plug are provided
with this telephone. It is designed to be connected
to a compatible modular jack that is also compliant.
See installation instructions for details.
The Ringer Equivalence Number (REN) is used to determine
thenumber of devices that may be connected to a telephone
line. Excessive RENs on a telephone line may result in the
devices not ringing in response to an incoming call. In most
butnotallareas,thesumofRENsshouldnotexceedve
(5.0).Tobecertainofthenumberofdevicesthatmaybe
connected to a line, as determined by the total RENs, contact
the local telephone company. For products approved after July
23, 2001, the REN for this product is a part of the product
identierthathastheformatUS:AAAEQ##TXXXX.Thedigits
represented by ## are the REN without a decimal point (e.g.,
03 is a REN of 0.3). For earlier products, the REN is separately
shown on the label.
If this telephone causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance
notice is not practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of
yourrighttoleacomplaintwiththeFCCifyoubelieveitis
necessary.
The telephone company may make changes in its facilities,
equipment, operations or procedures that could affect the
operation of the equipment. If this happens, the telephone
company will provide advance notice in order for you to make
thenecessarymodicationstomaintainuninterruptedservice.
If trouble is experienced with this equipment, for repair or
warranty information, please contact Bittel at [phone].
If the equipment is causing harm to the telephone network,
the telephone company may request that you disconnect the
equipment until the problem is resolved. There are no user
serviceable parts contained in this equipment. Connection to
party line service is subject to state tariffs. Contact the state
public utility commission, public service commission or corpo-
ration commission for information.
This telephone is hearing aid compatible.
Numbersofallthedevicesdoesnotexceed5.
REN: Z
INDUSTRY OF CANADA REQUIREMENTS
NOTICE: This equipment meets the applicable Industry
CanadaTerminalEquipmentTechnicalSpecications.Thisis
conrmedbytheregistrationnumber.Theabbreviation,IC,
beforetheregistrationnumbersigniesthatregistrationwas
performed based on a Declaration of Conformity indicating
thatIndustryCanadatechnicalspecicationsweremet.It
does not imply that Industry Canada approved the equipment.
Before installing this equipment, users should ensure that it
is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairstocertiedequipmentshouldbecoordinatedby
a representative designated by the supplier. Any repairs or
alterations made by a user to this equipment, or equipment
malfunctions, may give the telephone communications
company cause to request the user to disconnect the
equipment. Users should ensure for their own protection,
that the electrical ground connections of the power utility,
telephone lines and internal metallic water pipe system, if
present, are connected together. This precaution may be
particularly important in rural areas.
CAUTION: Users should not attempt to make such connec-
tions themselves, but should contact the appropriate electric
inspection author ity, or electrician, as appropriate.
NOTICE: The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that
the sum of the Ringer Equivalence.
WARRANTY AND RMA INFOMRATION
This unit is covered by a one-year warranty from the date of
purchase. For complete warranty information, and to complete
a product return for repair or replacement, please visit
www.bittelamericas.com.
CONTACTING BITTEL AMERICAS
To contact Bittel Americas directly:
Telephone: [phone]
Fax:  1-408-972-1115
email: [email protected]
Web: www.bittelamericas.com
Address: 188 Martinvale Lane
  SanJose,CA95119
USA
Contents © Copyright 2010 Bittel Technology, Inc. All Rights Reserved.
