BIXOLON BGT-100P User manual

Unified POS Utility Manual
Thermal Printers
Rev. 1.13
BGT-100P Printer
BGT-102P Printer
SRP-Q300 / SRP-Q302
SRP-S300
SRP-380 / SRP-382
SRP-F310II
SRP-F312II
SRP-F313II
SRP-350plusIII
SRP-352plusIII
SRP-350III / SRP-352III
SRP-350IIOBE
SRP-330
SRP-330II / SRP-332II
SRP-340II / SRP-342II
STP-103III
SPP-100II
http://www.bixolon.com

Rev. 1.13
- 2 -
■Table of Contents
1. Foreword ........................................................................................................................3
2. Operating System (OS) Environment...........................................................................3
3. Usage Preparation.........................................................................................................4
4. Unified POS Utility Usage .............................................................................................5
4-1 VMSM.........................................................................................................................5
4-1-1 Getting the Memory Switch Status of the Printer..........................................5
4-1-2 Setting the memory switch status of the Printer...........................................6
4-1-3 Paper Save Mode ........................................................................................9
4-1-4 Serial communication Setting.......................................................................9
4-1-5 Bluetooth configuration...............................................................................10
4-1-6 Maintenance counter..................................................................................11
4-2 NV Image Tool..........................................................................................................12
4-2-1 NV Function Option....................................................................................12
4-2-2 Image List Management.............................................................................13
4-2-3 Correction image........................................................................................13
4-2-4 Download the image ..................................................................................14
4-2-5 Print the image...........................................................................................15
4-3 Using the Command Test Editor...............................................................................16

Rev. 1.13
- 3 -
1. Foreword
The Unified POS Utility can be used for various purposes.
Details on the usage of each function are described as follows.
1) VMSM(Virtual Memory Switch Manager)
This function is used to set the virtual memory switch used for the thermal printer
suitable for the user’s environment.
2) NV Image Tool(Non-Volatile Image Tool)
This function helps you to download user-defined images to the flash memory in the
printer and to recall and print those images with fast speed.
3) Command Test Editor
This function is used to test printing-related commands and create a brief label sample
for test printing.
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and
quality of all our products. In following, product specifications and/or user manual content
may be changed without prior notice.
2. Operating System (OS) Environment
The following operating systems(OS) are supported for usage.
Microsoft Windows XP SP3 (32bit, 64bit)
Microsoft Windows Server 2003 SP1 (32bit)
Microsoft Windows Server 2003 (64bit)
Microsoft Windows VISTA (32bit, 64bit)
Microsoft Windows Server 2008 (32bit, 64bit)
Microsoft Windows Server 2008 R2 (64bit)
Microsoft Windows 7 (32bit, 64bit)
Microsoft Windows 8 (32bit, 64bit)
Microsoft Windows Server 2012 (64bit)
Microsoft Windows 10 (32bit, 64bit)

Rev. 1.13
- 4 -
3. Usage Preparation
1) Printer and PC Connection.
Connect the printer and PC via the interface cable.
(The interfaces available for usage are Serial, Parallel, USB and Ethernet.)

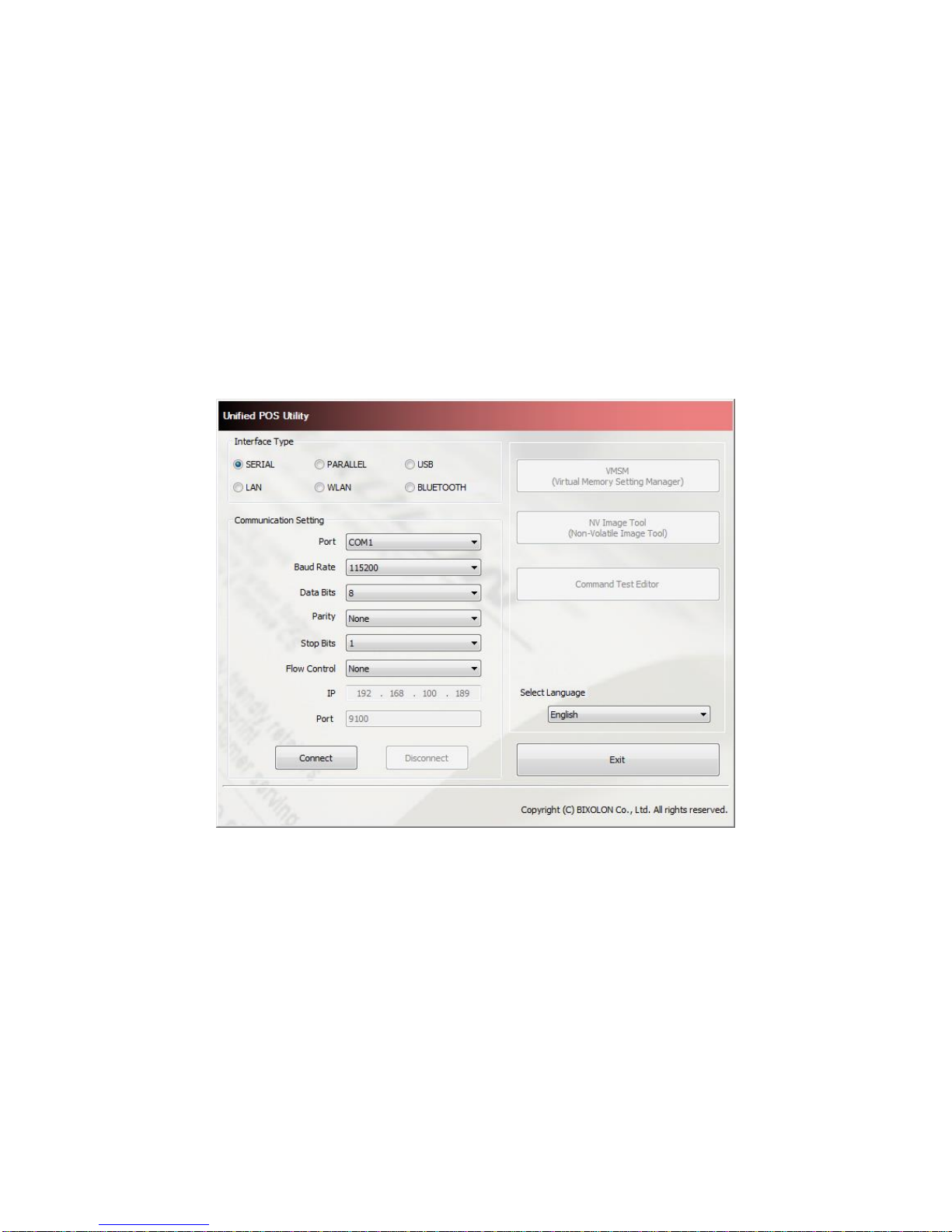

2) Unified POS Utility Program Execution.
The program can be installed from the accompanying CD, and Latest file versions can
be downloaded from the BIXOLON website. (http://www.bixolon.com)
3) Select the interface type and communication conditions.
4) Click on the “Connect” Button. If the conection is successful, the inactive buttons
become active with the message “The printer is connected”.
If the connection fails, the following error message appears. “Cannot open port”.

Rev. 1.13
- 5 -
4. Unified POS Utility Usage
4-1 VMSM
This function is used to set the virtual memory switch used for the thermal printer suitable
for the user’s environment.
If the Communication Setting is OK, click the “VMSM” button.

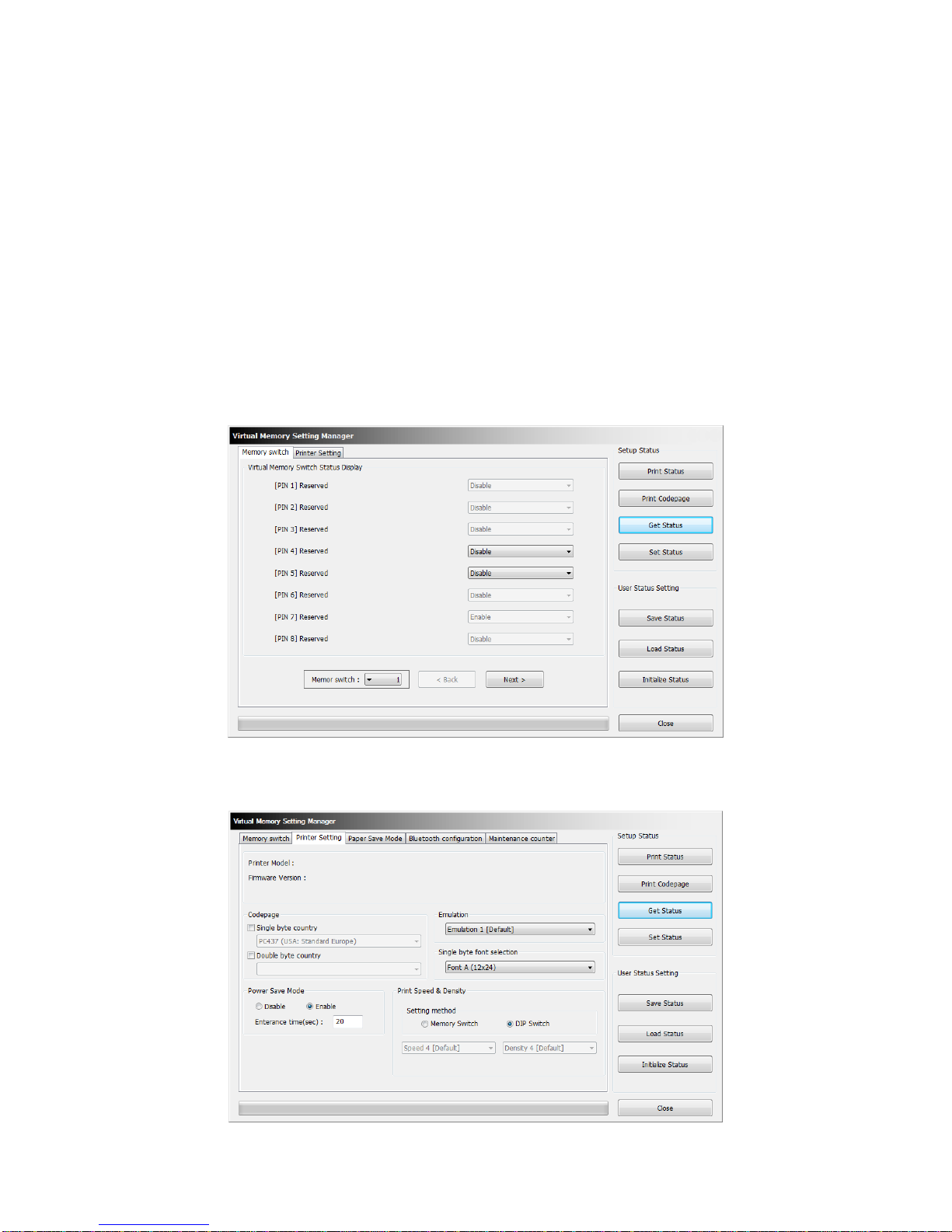

4-1-1 Getting the Memory Switch Status of the Printer
1) Click the “Get Status” button. It gets the status of the Printer Setting.
2) The “Memory switch” Tab in the Printer Status window displays the current virtual
memory switch settings of the printer, and allows new settings to be defined.
3) The “Printer Setting” Tab displays printer information, and code page information, and
allows new settings to be defined.

Rev. 1.13
- 6 -
4-1-2 Setting the memory switch status of the Printer
After getting the memory switch status of the printer, the status of the printer can be
modified.
1) “Get Status”
Pressing this button displays the current memory switch settings read from the printer.
2) “Set Status”
Pressing this button allows the user to designate switch settings of the printer.
3) “Save Status”
Pressing this button saves the current memory switch settings to file.
4) “Load Status”
Pressing this button loads and displays the previously-saved memory switch settings file.
5) “Initialize Status”
Pressing this button resets the memory switch settings.

Rev. 1.13
- 7 -
6) Code page
The user may select and set the code page.
7) Cutter Depth Adjustment
Supported Model : SRP-380/382, SRP-S300, SRP-Q300/Q302
You can set the paper width which is not cut when using a partial cut operation.

Rev. 1.13
- 8 -
8) 90 Degree Rotation Mode
Supported Model : SRP-S300L(Liner-free Model), SRP-S300T
Texts prints with 90 degree rotation. (eg: N to Z)
9) Back-Feeding Mode
Supported Model : SRP-S300L(Liner-free Model), SRP-S300T
Reverse feeds the paper to the specific position before the start of printing.
10) Automatic feed in idle mode
Supported Model : SRP-S300L(Liner-free Model), SRP-S300T
Feeds the paper at every specified time interval when the printer is in the sleep mode.
11) Black Mark cut position
Supported Model : SRP-S300L(Liner-free Model), SRP-S300T
Cut after feeding the paper to the default cutting position or black-mark position.

Rev. 1.13
- 9 -

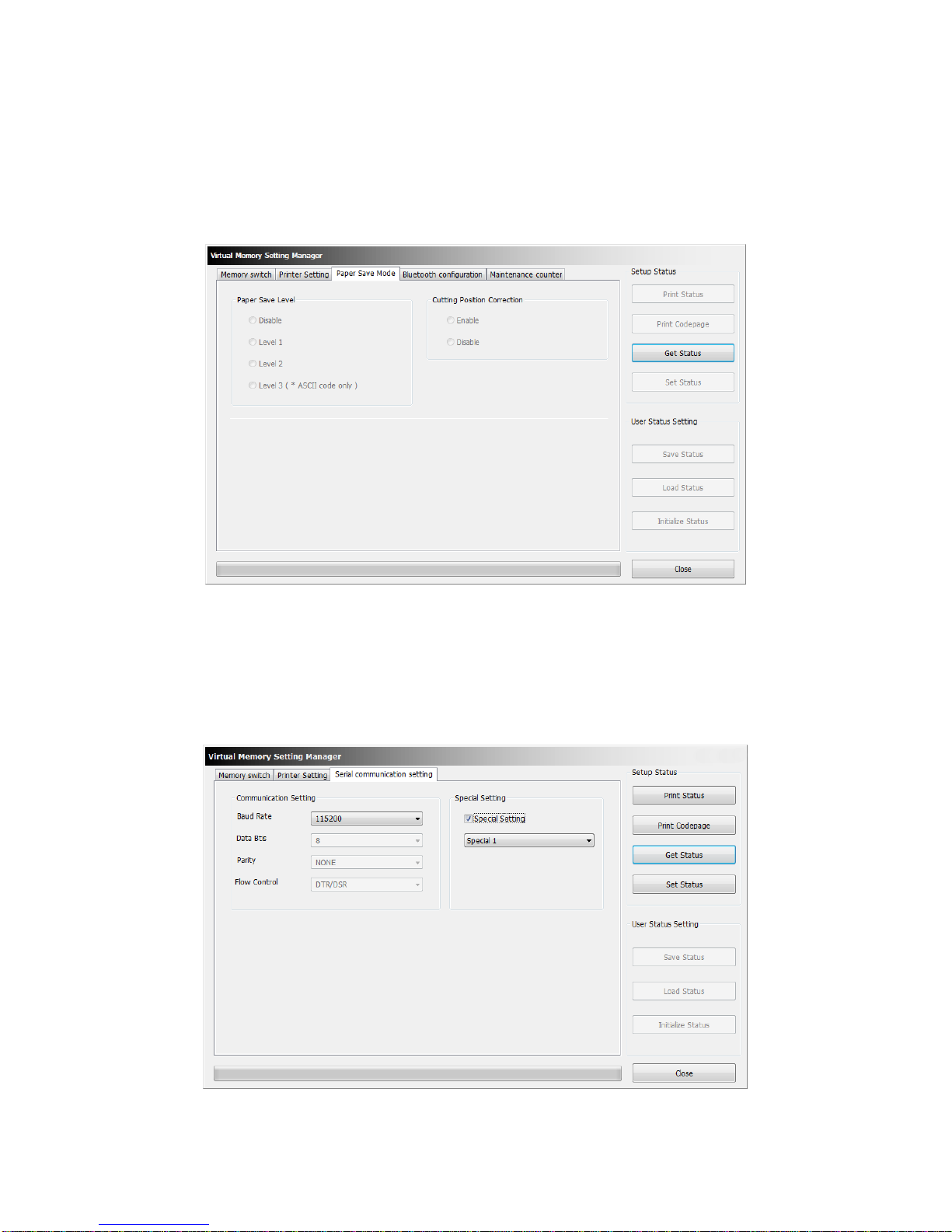

4-1-3 Paper Save Mode
Supported Model
- SRP-350III/352III, SRP-350plusIII/352plusIII, SRP-F310II/F312II/F313II, SRP-380/382,
BGT-100P/102P, SRP-330II/332II, SRP-340II/342II, SRP-S300, SRP-Q300/Q302
You can select the levels of “Paper Save” and the feature of “Cutting Position Correction”
in the “Paper Save Mode” section (tab).
4-1-4 Serial communication Setting
Supported Model : SPP-100II
Serial Communication and Special Function setting can be enabled in Serial
Communication Setting Tab.

Rev. 1.13
- 10 -

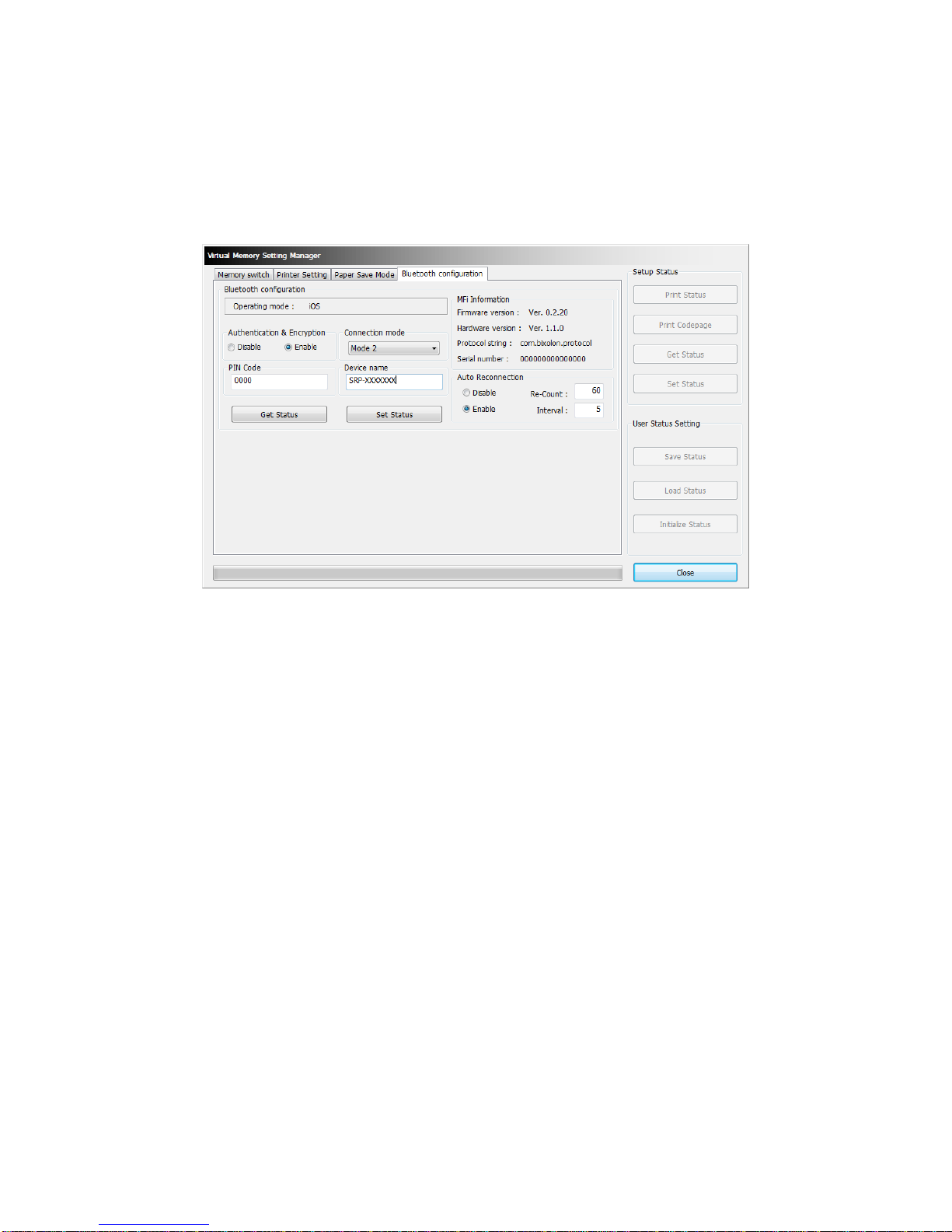

4-1-5 Bluetooth configuration
Supported Model
- SRP-350IIOBE, SRP-350plusIII/352plusIII, SRP-F310II/F312II/F313II, SRP-380/382,
SRP-S300, SRP-Q300/Q302
Bluetooth setting can be changed by Bluetooth Configuration Tab.
In case of Serial(Bluetooth) communication, it is not able to check Bluetooth configuration.
■Authentication & Encryption
Sets or cancels Authentication & Encryption mode when connecting via Bluetooth
* If Authentication & Encryption mode is disabled, connection to a device can be done
without a PIN Code.
■Connection Mode
Sets Mode1, Mode2, or Mode3 when connecting via Bluetooth.
- Mode1: connection possible only with the first device with which connection succeeds
- Mode2: connection with all Bluetooth enabled devices possible via use of a PIN Code
- Mode3: connection possible only with the first device with which connection succeeds
and searching or use of connected device possible
■PIN Code
Changes the PIN Code required for Bluetooth connections.
(maximum 12 characters long)
■Device Name
Changes the device name produced when establishing a Bluetooth connection.
(maximum 12 characters long)
■MFi Information
In case of iOS mode, MFi information will be displayed.
■Auto Reconnection
Retry setting on Bluetooth can be enabled when Bluetooth connection is released.

Rev. 1.13
- 11 -
4-1-6 Maintenance counter
Supported Model : SRP-F310II/F312II/F313II, SRP-380/382, SRP-Q300/Q302
You can check the number of auto cut operation and amount of paper feed which have
been performed by the printer.

Rev. 1.13
- 12 -
4-2 NV Image Tool
This function helps you to download user-defined images to the flash memory in the printer
and to recall and print those images with fast speed.
If the Communication Setting is OK, click the “NV Image Tool” button.
4-2-1 NV Function Option
If the Printer is supported two-color mode, mono (NV bit image) or two-color (NV graphics)
mode can be selected.

Rev. 1.13
- 13 -

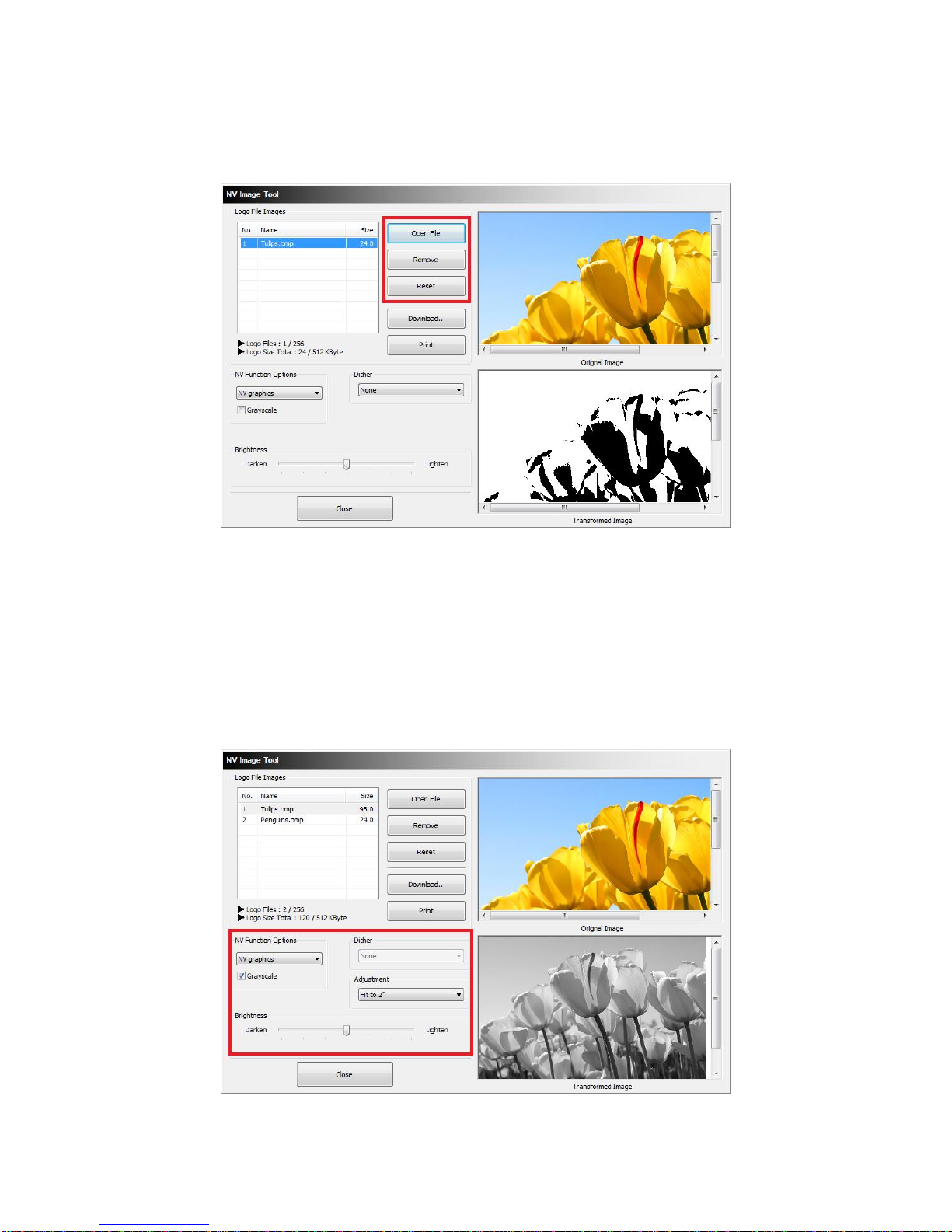

4-2-2 Image List Management
The images can be opened, added, deleted in the Image list box using three buttons in
Bitmap selection. Only bmp type of image is available to download.
4-2-3 Correction image
You can get the correction image by selecting a ‘Dither’, ‘Brightness’, ‘Grayscale’ and
‘Adjustment’ option.
Supported model by ‘Adjustment’ : SRP-380/382, SRP-S300, SRP-Q300/Q302
Supported model by ‘Grayscale’
- SRP-350plusIII/352plusIII, SRP-F310II/F312II/F313II, SRP-380/382, BGT-100P/102P,
SRP-330II/332II, SRP-S300, SRP-Q300/Q302

Rev. 1.13
- 14 -
4-2-4 Download the image
1) When the “Download” button is clicked, pop-up window and the steps are different
based on printer model.
2) After all images stored on the corresponding printer are deleted, the image matching the
selected resolution level is downloaded. The image is assigned a number according to
the image list displayed on the screen.

Rev. 1.13
- 15 -
4-2-5 Print the image
1) The “Print” button in the main screen can be used on each printer model to print and
test a stored image.
2) After selecting the image to print following the recall of the addresses of all currently
stored images, press the “Print” button to print.

Rev. 1.13
- 16 -

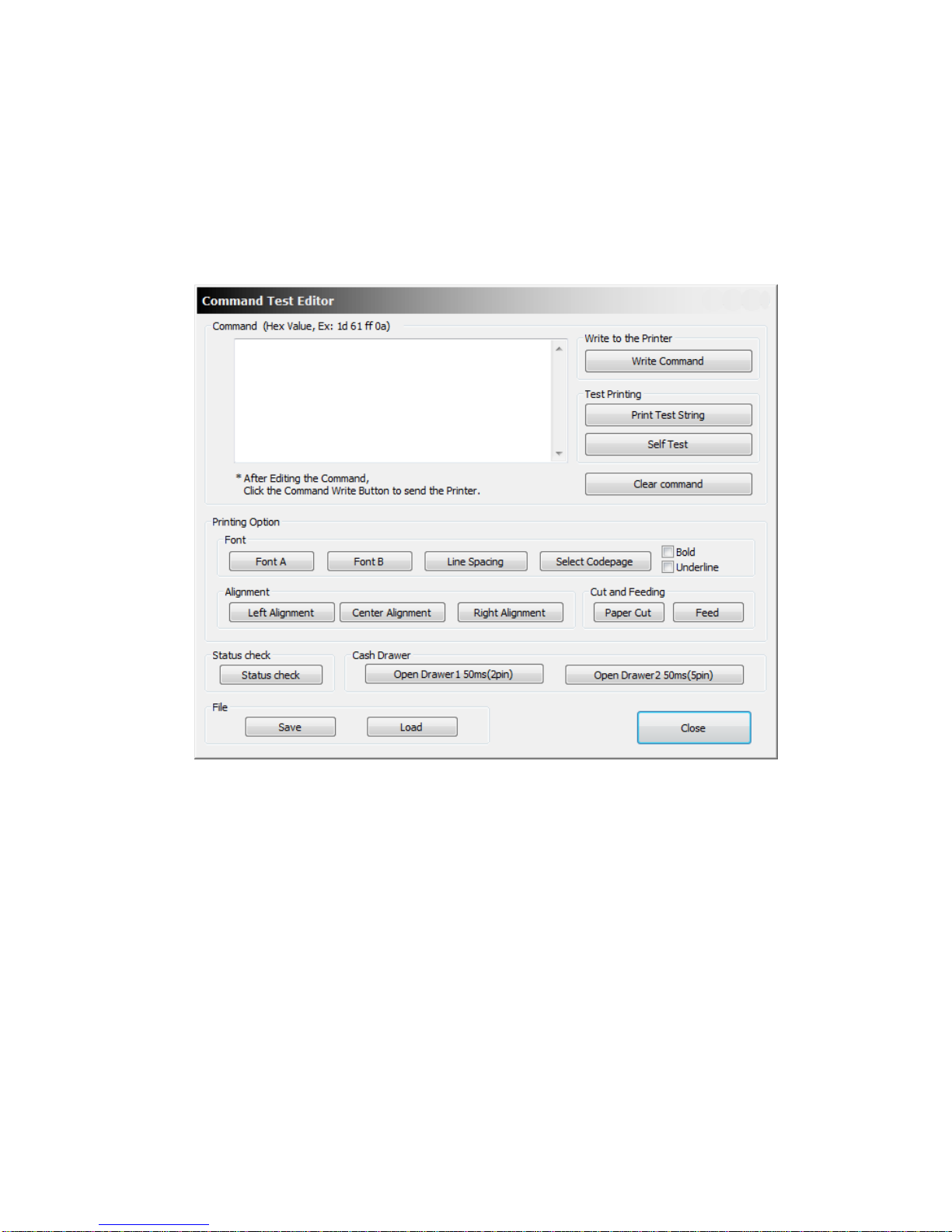

4-3 Using the Command Test Editor
1) If the Communication Setting is OK, click the “Command Test Editor” button.
2) If the “Command Test Editor” button is pressed, the following dialog box will appear.
Using this Dialog, the user can write and edit the command and send to the printer.
Each button of “Printing Option” and “Etc” group can insert commands to edit box.
Also “Write Command” button can transfer these commands to the printer. To verify the
result of sending the command can use the “Print Test String” button.
