Black Horse Model Excel 2000 Owner's manual

SPECIFICATION


Wingspan : 1,530 mm 60.24 in.


Length : 1,340 mm 52.76 in.


Weight : 2.5 kg 5.5 Lbs.


Radio : 04 channels.


Servo : 04 servos.


Engine : 40-46 2 stroke
52 4 stroke
Instruction Manual book
MadeinVietnam.

EXCEL 2000.
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your EXCEL 2000. Use the parts listing below to
identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenew pilotonhiswaytosuccessfulR/C flight.Theywillalso beable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournew airplane,donot
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the
aircraftand toprotect thetable. Keepa couple
of jars or bowls handy to hold the small parts
after you open the bag.
Pleasetrialfitalltheparts. Makesureyouhave
the correct parts and that they fit and are
alignedproperly beforegluing!Thiswillassure
proper assembly.EXCEL 2000 ARF is hand
made from natural materials, every plane is
unique and minor adjustments may have to
be made. However, you should find the fit
superior and assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the
following: paint thinner, C/A glue accelerator,
C/A glue debonder and acetone. Do not let
these chemicals come in contact with the
colors on the covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Some more parts .....
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION.
NOTE.

Instruction Manual.
3
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Wear safety glasses.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Do not stand in line with the side of the
propeller.
+ Make engine adjustments from behind the
propeller only. Do not reach around the
spinningpropeller.
SAFETY PRECAUTION.

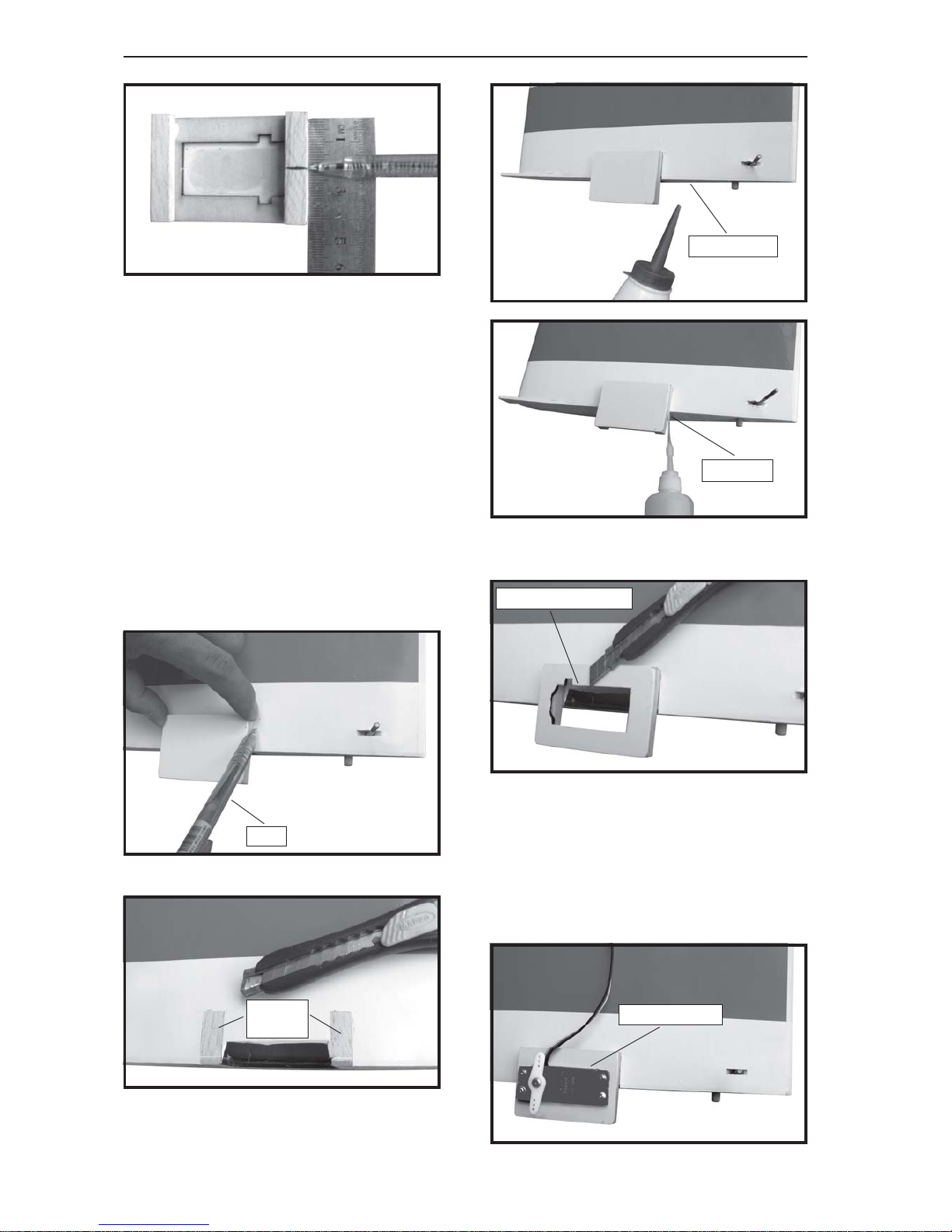

 1) Install the rubber grommets and brass
eyelets onto the aileron servo.
Because the size of servos differ, you
mayneed toadjustthe sizeofthe precutopen-
inginthe mount. Thenotch inthesides ofthe
mount allow the servo lead to pass through.
SERVO INSTALLATION.
Servomount.

EXCEL 2000.
4
5) Using Kwik Bond 5 Minute Epoxy, glue
the servo mount into place. Remove any ex-
cess epoxy using a paper towel and rubbing
alcohol. Use pieces of masking tape to hold
the tray in place until the epoxy fully cures.
2) Place the mount onto the wing haft,
aligning the cutout in the mount with the cut-
out in the wing. The two notches in the mount
should face the leading edge of the wing.
 3) While holding the servo mount firmly in
place, trace around it using a pen.
4) Remove the mount, and using a model-
ing knife, carefully remove the covering from
inside the outline you drew.
Pen.
Remove
covering.
Epoxyglue.
C/Aglue.
6)Using amodelingknife, carefullyremove
the covering from servo mount.
Remove covering.
 7) Install the aileron servo into the servo
mount, withthe outputshaft towardsthe lead-
ing edge of the wing, using the wood screws
provided with your radio system. Drill 1/16”
pilotholesthrough themount beforeinstalling
the screws. This will prevent the wood from
splitting.
Aileronservo.

Instruction Manual.
5
 2) Testfit thedihedral braceinto eachwing
half. The brace should slide in easily. If not,
use 220 grit sandpaper with a sanding block
and sand down the edges and ends of the
brace until it fits properly.
WINGASSEMBLY.
 1) Location the aluminium wing dihedral
brace.
Epoxyglue.
Bottom side.
Aluminium.
 3) Apply masking tape at the wing join to
hold the wing halves together securely.
INSTALLING THE AILERON LINKAGE.
1) Thread one nylon adjustable control
hornonto eachaileron torquerod. Thread the
horns on until they are flush with the ends of
the torque rods.
2) Thread one nylon clevis at least 5/16”
onto each of the two 2mm x 100mm threaded
wires.
3) Withthe aileronservo centered,install
theservo armonto theservo. The armshould
beinstalledso itisparallelwith thetrailingedge
of the wing.
Maskingtape.

EXCEL 2000.
6
4) Slide the pushrod wires following pic-
tureabove.
Cut.
INSTALLING THE ENGINE MOUNT.
INSTALLING THE STOPPER ASSEMBLY
1) The stopper has been pre-assembled
at the factory.
2) Using a modeling knife, cut one length
ofsilicon fuelline(thelengthofsiliconfuel line
iscalculatedbyhowtheweightedclunkshould
restabout 8mmaway fromtherearofthetank
andmove freelyinside thetank). Connectone
end of the line to the weighted clunk and the
other end to the nylon pick up tube in the
stopper.
3) Carefully bend the second nylon tube
up at a 45 degree angle (using a cigarette
lighter). This tube will be the vent tube to the
muffler.
4)Carefully bendthe thirdnylon tubedown
ata 45degreeangle (usingacigarettelighter).
This tubewill bevent tubeto thefuelingvalve.

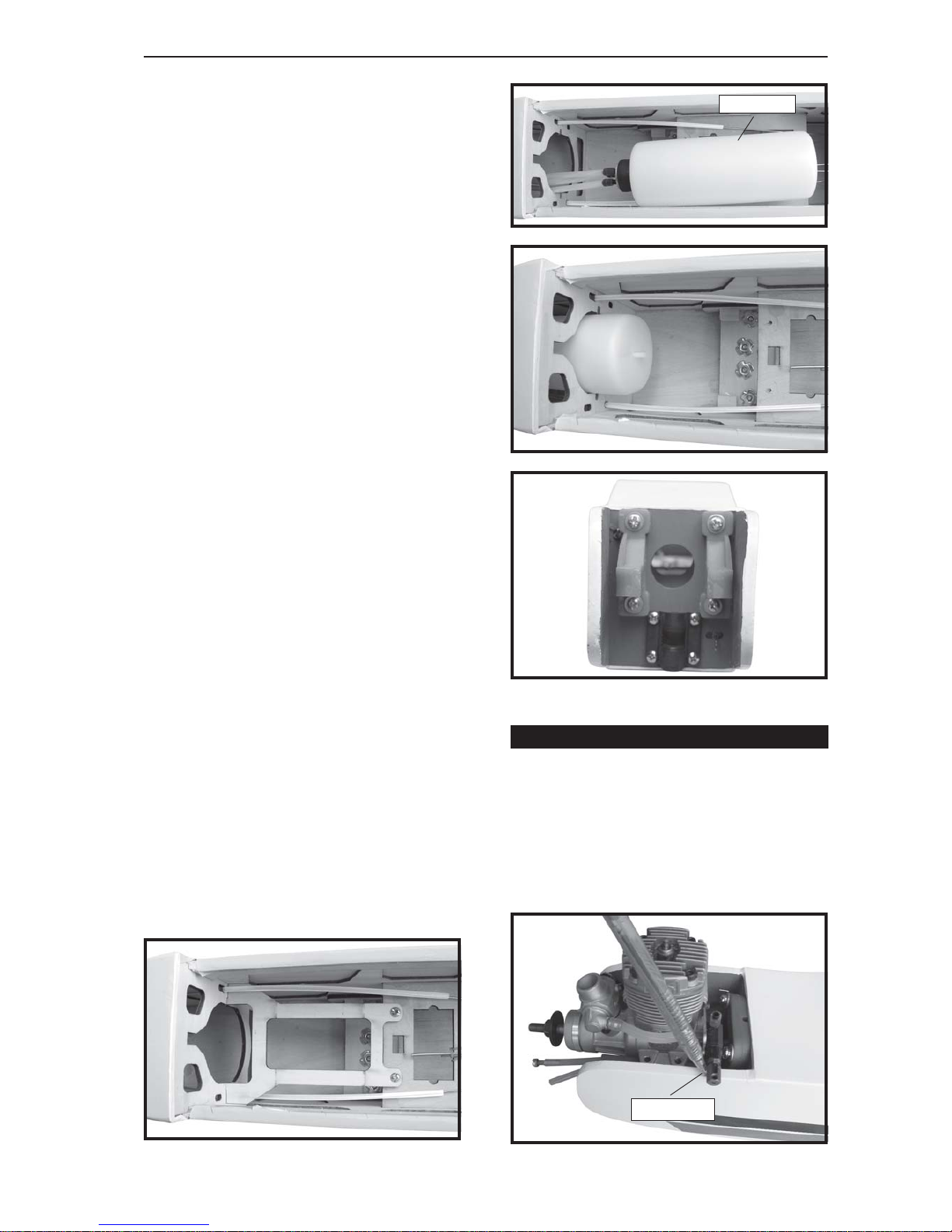

FUEL TANK.
When the stopper assembly is installed
in the tank, the top of the vent tube should
rest just below the top surface of the tank.
It should not touch the top of the tank.

Instruction Manual.
7
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
9) To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank, whereit exitsthefuselage behindthe
enginemountingbox andtotherearofthetank
at the forward bulkhead.
Do not secure the tank into place
permanently until after balancing the
airplane. You may need to remove the tank
to mount the battery in the fuel tank
compartment.
8) Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontofthetankshould justabout
touch the back of the firewall.
6) When satisfied with the alignment of
thestopperassemblytightenthe3mmx20mm
machine screw until the rubber stopper
expands and seals the tank opening. Do not
over tighten the assembly as this could cause
the tank to split.
7) Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
Fueltank.
5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. Ifflashing is present, make
sure none of it falls into the tank.
Locate the long piece of wire used for the
throttlepushrod. Oneendofthewire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhentheengine isfittedonto
theengine mount.Fittheengineto theengine
mount using the screws provided.
INSTALLING THE ENGINE.
Markpoint.

EXCEL 2000.
8
NOSE GEAR INSTALLATION.
Adjust the nose gear steering arm until the
arm is parallel with the fire wall.
Installing steering arm as follow
Steering arm.

Instruction Manual.
9
Steering arm.
INSTALLING THE SPINNER.
Installthe spinnerbackplate,propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
 1) Using a modeling knife, remove the
coveringfromover thetwomaingearmounting
slots located in the bottom of the fuselage.

2) Using the two landing gear straps as a
guide,mark thelocations ofthe four mounting
screws onto the fuselage surface.

3) The landing gear wire is held in place
using two nylon landing gear straps and four
wood screws.
MAIN GEAR INSTALLATION.

EXCEL 2000.
10

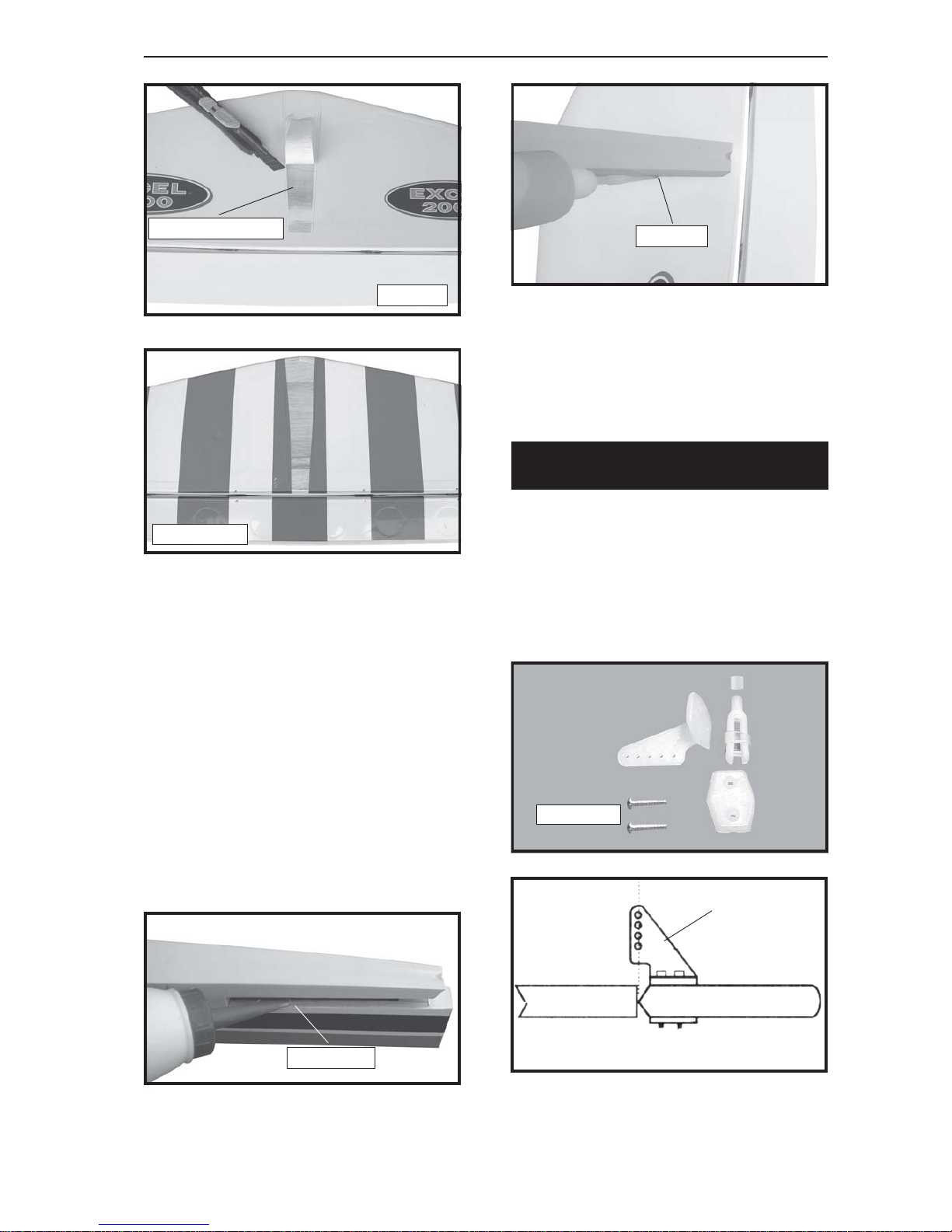

HORIZONTAL STABILIZER.
 1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the
trailingedge, andplaceamark.Use atraingle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
thismarkdown theback ofthe trailingedge of
the stabilizer.
Center line.
 3) Slide the stabilizer into place the
fuselage. Use a pen and draw lines onto the
stabilizerwhereitandthefuselage sidesmeet.
Remove covering.
 2) Usinga modelingknife,carefullyremove
the covering from over the vertical stabilizer
mounting slot in the top of the fuselage.
The top of the stabilizer does not have
the hinge pins exposed.
Pen.
 4) Remove the stabilizer. Using the lines
youjustdrew asa guide,carefully removethe
covering from between them using a model-
ingknife.
ELEVATOR SERVO INSTALLATION.
See pictures below:
Elevator servo.

Instruction Manual.
11
Remove covering.
 5) When you a sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
topandbottomofthe stabilizermounting plat-
form sides in the fuselage. Slide the stabilizer
in place and realign. Double check all of your
mea-surements once more before the epoxy
cures. Hold the stabilizer in place with T-pins
or masking tape and remove any excess ep-
oxy using a paper towel and rubbing alcohol.
When cutting through the covering to re-
move it, cut with only enough pressure to
only cut through the covering itself. Cut-
ting into the balsa structure may weaken
it.
Top side.
Bottom side.

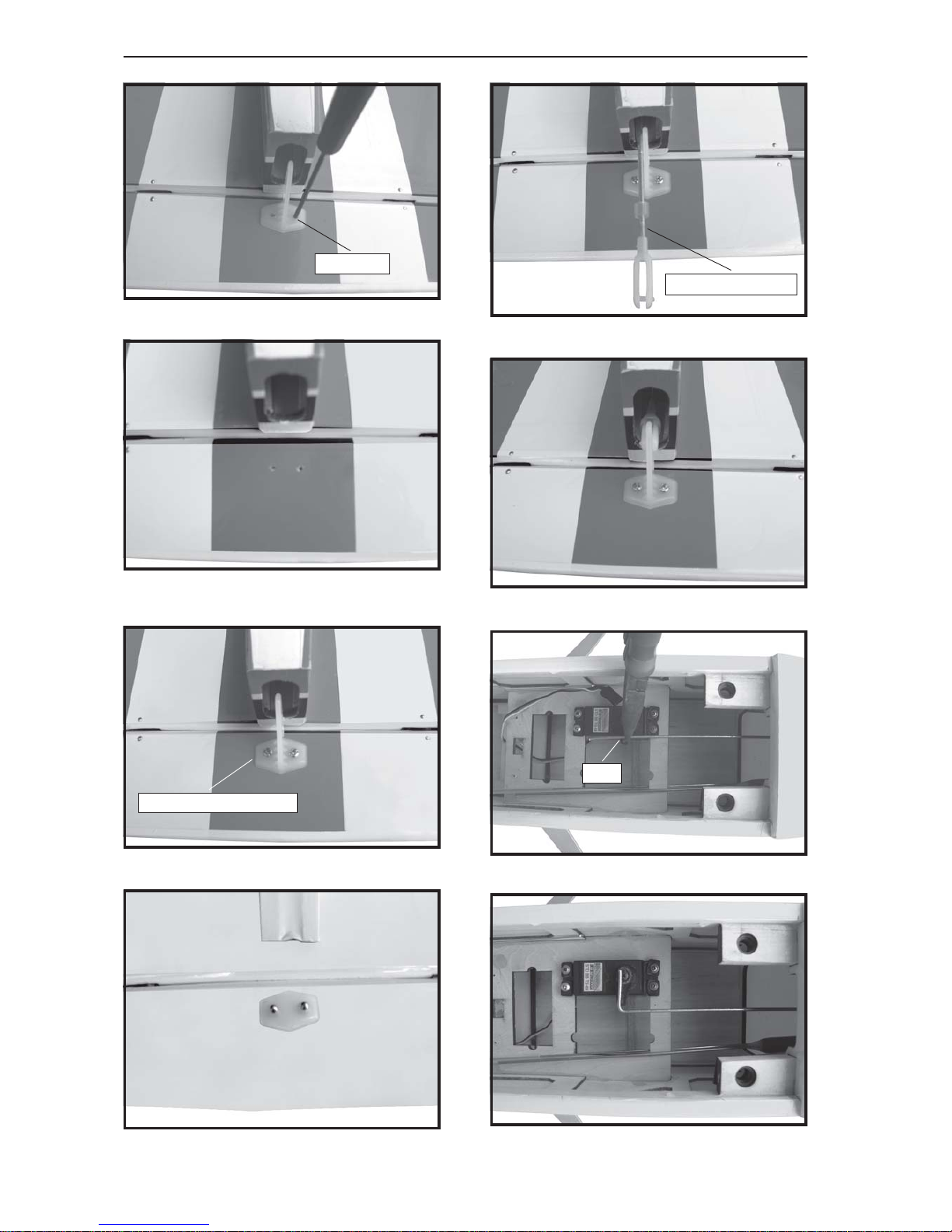

ELEVATOR CONTROL HORN
PUSHROD INSTALLATION.
1) Locate the two nylon control horns, two
nylon control horn backplates and four M2 x
12mm machine screws.
2)Position theelevatorhorn onthe bottom
side of elevator. The clevis attachment holes
should be positioned over the hinge line.
ControlHorn.
MountingScrews. MountingPlate.
C/Aglue.
 6) After the epoxy has fully cured, remove
the masking tape or T-pins used to hold the
stabilizer in place. Carefully inspect the glue
joints. Use more epoxy to fill in any gaps that
may exist that were not filled previously and
clean up the excess using a paper towel and
rubbingalcohol.
 3) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the elevator halves.
Epoxyglue.
2 x 16mm.

EXCEL 2000.
12
Drillhold.
Elevator control horn.
Elevator pushrod.
Cut.

Instruction Manual.
13
VERTICAL STABILIZER INSTALLATION.
Elevator servo.
Remove covering.
 2) While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
 1) Slide thevertical stabilizerinto theslot
in the top of the fuselage. The bottom edge of
the stabilizer should also be firmly pushed
against the top of the horizontal stabilizer.
 3) Remove the vertical stabilizer. Using
a modeling knife, remove the covering from
below the lines you drew. Also remove the
covering from the bottom edge of the stabi-
lizer and the bottom and top edges of the filler
block. Leavethecovering inplaceonthesides
of the filler block.
When cutting through the covering to re-
moveit,cut withonlyenough pressureto only
cut through the covering itself. Cutting into
the balsa structure may weaken it.
 4) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
thevertical stabilizerisaligned 90ºto thehori-
zontal stabilizer.
Pen.
Remove covering.
Epoxyglue.

EXCEL 2000.
14

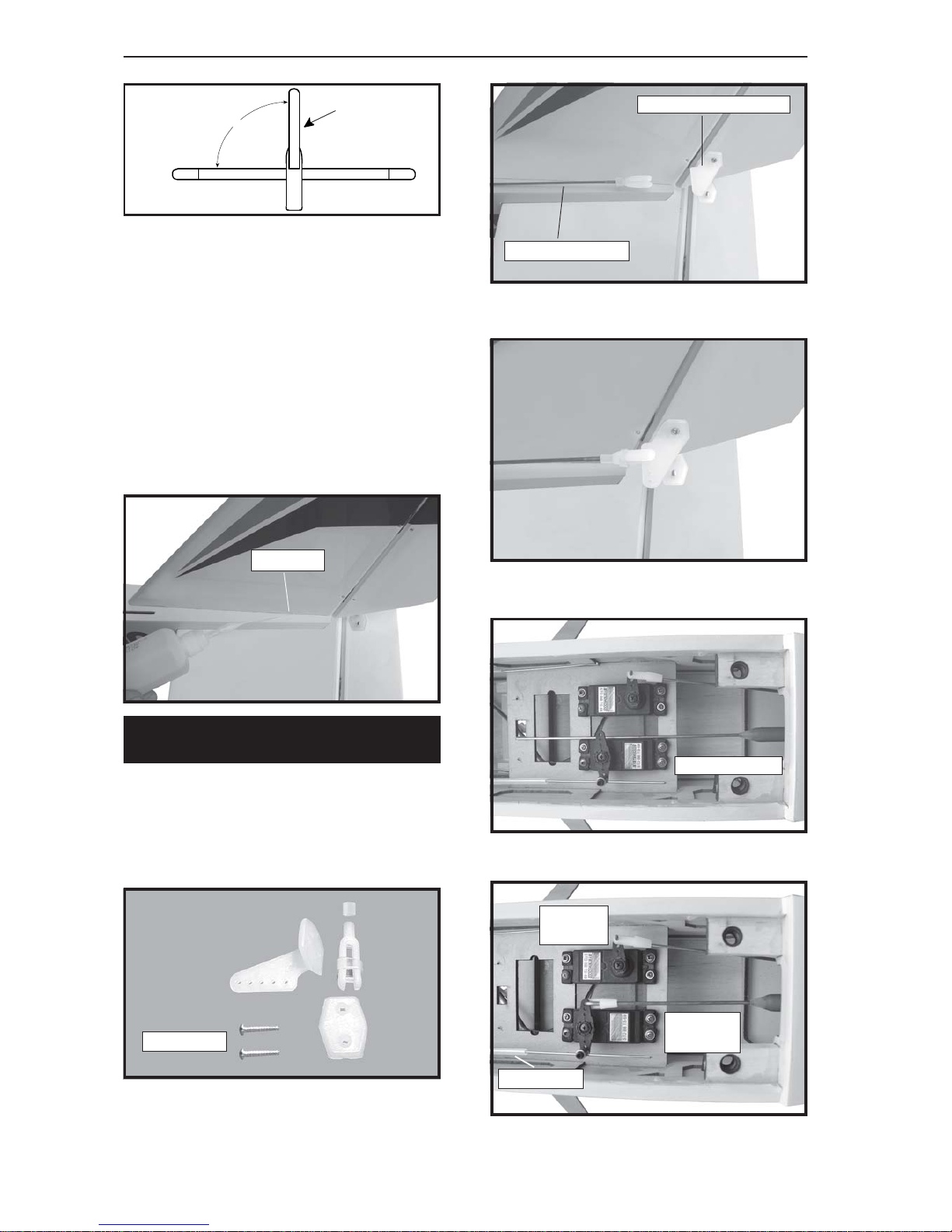

5) When you are sure that everything is
alignedcorrectly,mixupagenerousamountof
Flash30MinuteEpoxy. Applyathinlayertothe
mounting slot in the top of the fuselage and to
the sides and bottom of the vertical stabilizer
mountingarea. Apply epoxytothe bottomand
top edges of the filler block and to the lower
hinge also. Set the stabilizer in place and re-
align. Double check all of your measurements
once more before the epoxy cures. Hold the
stabilizer in place with T-pins or masking tape
and remove any excess epoxy using a paper
towel and rubbing alcohol. Allow the epoxy to
fully cure before proceeding.
90º Vertical
Stabilizer.
Horizontal
Stabilizer.
RUDDER CONTROL HORN
- PUSHROD INSTALLATION.
1) Locate the two nylon control horns, two
nylon control horn backplates and four M2 x
12mm machine screws.
2) Position the rudder horn on the bottom
side of rudder.
 3) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the rudder halves.
C/Aglue.
Rudder control horn.
Rudder pushrod.
Rudder servo.
Rudder
pushrod.
Elevator
pushrod.
Nose gear.
2 x 16mm.

Instruction Manual.
15
Throttle
servo.
Elevator
servo.
Rudder
servo.
INSTALLING THE SWITCH.
 1)Cutouttheswitchholeusingamodeling
knife. Use a 2mm drill bit and drill out the two
mounting holes through the fuselage side.

2) Secure the switch in place using the
two machine screws provided with the radio
system.
Switch.
 3) Donotpermanently securethe receiver
and battery until after balancing the model.

1) Plug the servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch.

2) Wrap the receiver and battery pack in
the protective foam to protect them from
vibration.

4)Using a 2mmdrill bit,drilla holethrough
the side of the fuselage, near the receiver, for
the antenna to exit.
INSTALLING THE RECEIVERAND BATTERY.
Plywood tray.
Battery.
Tie wrap.
Battery.

EXCEL 2000.
16
 1)It iscriticalthatyourairplanebebalanced
correctly. Improper balance will cause your
plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED
90mm BACK FROM THE LEADING EDGE
OF THE WING.
BALANCING.
 2) Turn the airplane upside down. Place
yourfingers onthe maskingtape andcarefully
lift the plane .
CG
90MM.
ATTACHMENT WING-FUSELAGE.
See pictures below:
Receiver. Tie wrap.
 1) We highly recommend setting up a
plane using the control throws listed.
 2) The control throws should be measured
at the widest point of each control surface.
 3) Check to be sure the control surfaces
move in the correct directions.

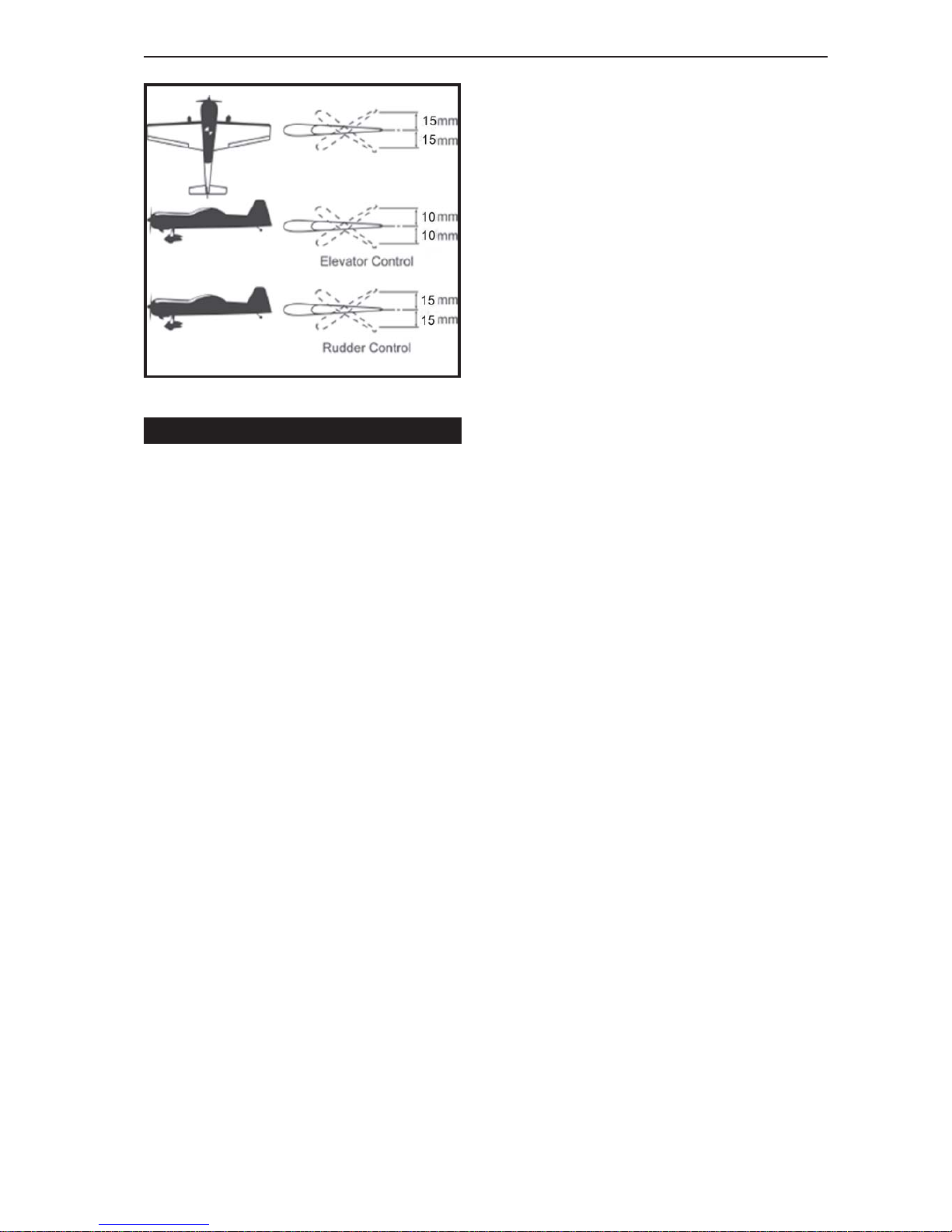

CONTROL THROWS.
Ailerons : 15mm up 15mm down.
Elevator : 10mm up 10mm down.
Rudder : 15mm right 15mm left.
finishing

Instruction Manual.
17
 1) Completely charge your transmitter and
receiverbatteries beforeyour firstdayofflying.
 2) Check every bolt and every glue joint in
your plane to ensure that everything is tight
and well bonded.
 3) Double check the balance of the
airplane.
 4) Check the control surface.
 5) Check the receiver antenna . It should
be fully extended and not coiled up inside the
fuselage.
 6) Properly balance the propeller.
We wish you enjoy.
PRE-FLIGHT CHECK.
Aileron Control
