Black Horse Model renegade bh66 Owner's manual

Instruction Manual book


RecommendedR.C:4channelswith
4-5 servos.


Propeller : 13 x 6.


Speed Control: 60A.


ElectricMotor: AXI 2826/10.


Battery:4-5Cells-Li-Poly-14.8-18.5v- 5.000mAh-20c.
SPECIFICATION
MadeinVietnam.


Wingspan : 1,580mm. 62.20 in.


Length : 1,255 mm. 49.41in.


Weight : 2.5kg. 5.50lbs.
PartsListingrequired(not included).


Radio : 4 channels.


Servo : 4-5 servos.


Glow Engine : 46-55 cu.in. 2 stroke.

RENEGADE - ITEM CODE:BH66 Instruction Manual
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your RENEGADE. Use the parts listing below to
identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenew pilotonhiswaytosuccessfulR/C flight.Theywillalsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournew airplane, donot
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craftand toprotectthetable.Keep acouple of
jars or bowls handy to hold the small parts af-
ter you open the bag.
Pleasetrialfitalltheparts. Makesureyouhave
the correct parts and that they fit and are
alignedproperly beforegluing!Thiswillassure
proper assembly. RENEGADE ARF is hand
made from natural materials, every plane is
unique and minor adjustments may have to
be made. However, you should find the fit su-
perior and assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paintthinner,C/Aglueaccelerator,C/Aglue
debonderandacetone. Donotletthesechemi-
cals come in contact with the colors on the
covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION.
NOTE.

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
3
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplug clipmustbesecurely attached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Donot standinline withthe sideof thepropel-
ler.
+ Make engine adjustments from behind the
propeller only. Do not reach around the spin-
ningpropeller.
SAFETY PRECAUTION.
REPLACEMENT LARGE PARTS
B. Wing panel.
C. Fuselage.
A.Cowling.
D . Horizon stabilizer.
F. Aluminium wing dihedral brace.
E. Vertical stabilizer
REPLACEMENT SMALL PARTS
A.
B.
C.
B.
D.
E.
 1. Install the rubber grommets and brass
eyelets onto the aileron servo.
INSTALLING THE AILERON SERVOS.
Bottom side
Bottom side
F.
G.
G. Decal sheet.

RENEGADE - ITEM CODE:BH66 Instruction Manual
4
Bottom side
C/Aglue
C/Aglue
Bottom side
Bottom side
C/Aglue
Bottom side
 2.Usinga modelingknife,remove thecov-
ering servo tray.
3. Drill 1,5mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo. Install servo into ai-
leron servo tray as same as picture below.
Remove covering
Servo tray
4. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
Secure
Thread
5. Instal servo tray with aileron servo into
the wing as same as picture below.

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
5
Electric wire
2 x 10 mm.
Secure
Repeat the procedure for the other wing
half.
Bottom side
INSTALLINGTHEAILERON CONTROLHORN.
ControlhornofAileron
1. Using a ruler & pen to draw a straight
line as below picture.
Markpoint
Nilon control clasp. M3locknut.
3x35mm.

RENEGADE - ITEM CODE:BH66 Instruction Manual
6
 3. Drillthrough 6mm(diameter)the aileron
using the control horn as a guide and screw
the control horn in place.
2. Locate nylon control horn, nylon con-
trol horn backplates .
Bottom side
Bottom side
Drilla hole
6mmdiameter.
C/Aglue
Bottom side
C/Aglue
Top side
4. Install control horn as same as picture
below.
1. Working with the aileron linkage for
now, thread one clevis onto one of the
threaded wires.
INSTALLING THE AILERON
LINKAGES.

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
7
2. Attach the clevis to the outer hole in the
control horn.
3. Plug the aileron servo into the receiver
andcentertheservo.Installthe servoarmonto
the servo. The servo arm should be perpen-
dicular to the servo and point toward the mid-
dle of the wing.
M2locknut.
M2clevis.
Snapkeeper.
4. Locate one nylon servo arm, and using
wire cutters,remove all but one of the arms.
Using a 2mm drill bit, enlarge the third hole
out from the center of the arm to accommo-
date the aileron pushrod wire.
5. Using pliers, carefully make a 90 degree
bend down at the mark made. Cut off the ex-
cess wire, leaving about 4mm beyond the
bend.
6.Insert the90degree bend down through
the hole in the servo arm. Install one nylon
snap keeper over the wire to secure it to the
arm. Installthe servoarm retainingscrew and
remove the masking tape from the aileron.
Bendand cut after
Repeat the procedure for the other wing
half.
Bottom side
Removecovering
JOINING THE WING HALVES.
1. Locate the aluminium wing dihedral
brace.
 2. Usingamodeling knife,removethe cov-
ering wing.

RENEGADE - ITEM CODE:BH66 Instruction Manual
8
 3. Test fit the dihedral brace into each wing
half. The brace should slide in easily.
Epoxyglue
Maskingtape.

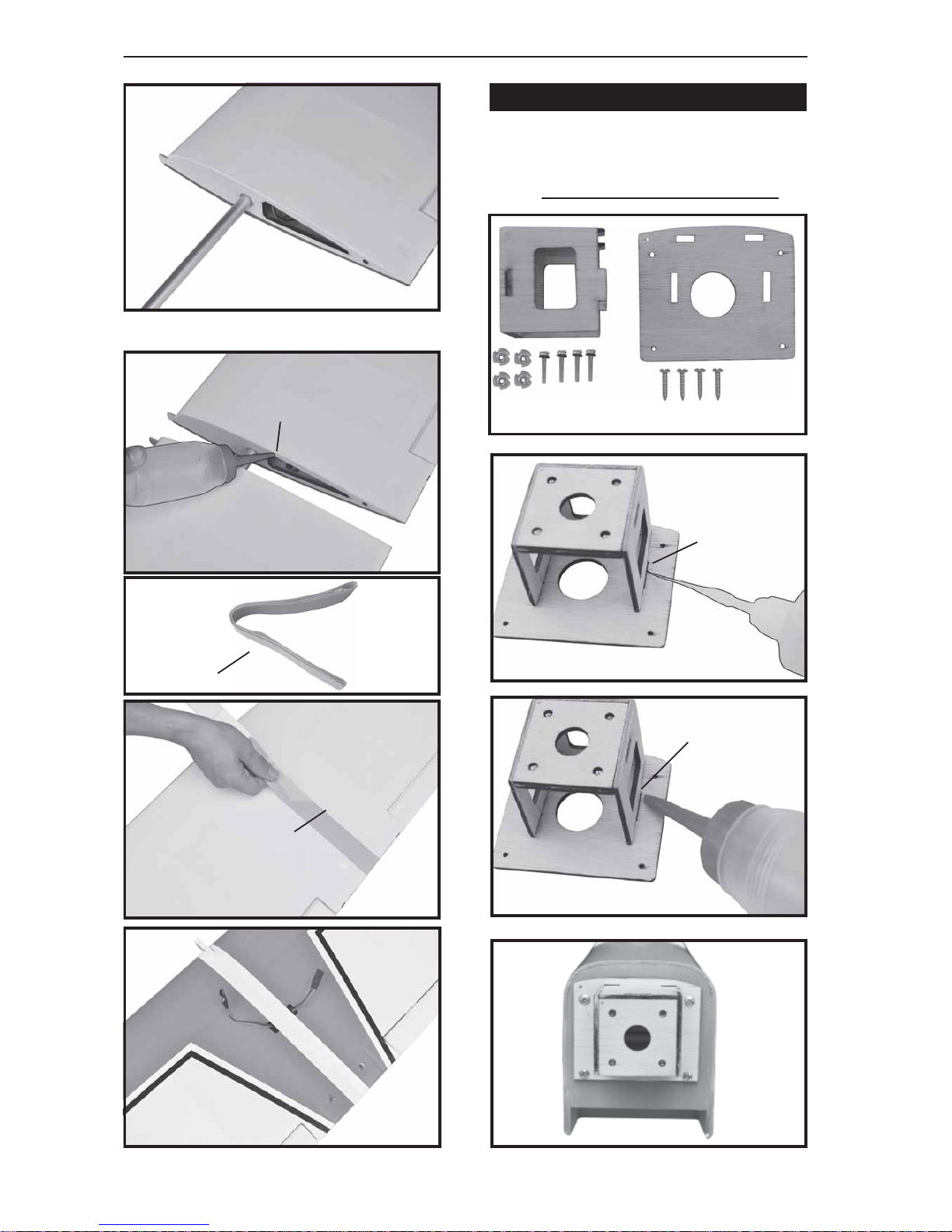

INSTALLING THE ENGINE MOUNT.
THERE ARE TWO OPTIONS:
1. ELECTRIC MOTOR
2. ENGINE MOUNT.
1. OPTION 1: ELECTRIC MOTOR.
C/Aglue
3 x 15mm 3x 15mm
Epoxyglue
Maskingtape.
Bottom side
Top side

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
9

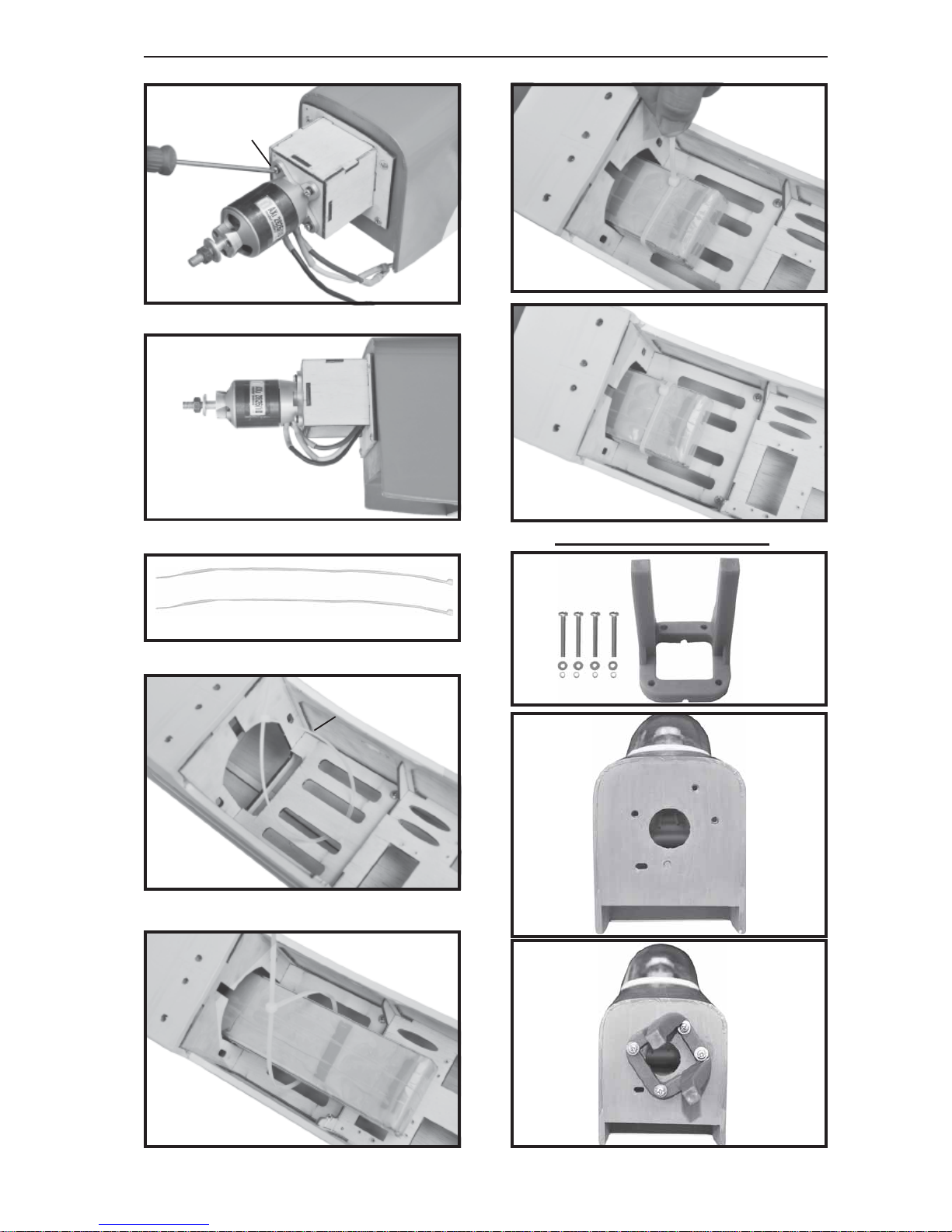

2. OPTION 2: ENGINE MOUNT.
Secure
4 x 25mm
Tie wrap
Tie wrap

RENEGADE - ITEM CODE:BH66 Instruction Manual
10
INSTALLING THE STOPPER ASSEMBLY
FUEL TANK.
1. The stopper has been pre-assembled at
the factory.
2. Using a modeling knife, cut one length of
siliconfuelline (thelength ofsilicon fuel lineis
calculated by how the weighted clunk should
restabout 8mmawayfromtherearofthe tank
andmove freelyinside thetank). Connectone
end of the line to the weighted clunk and the
otherend tothenylonpickup tubein thestop-
per.
4. Carefully bend the third nylon tube down
ata 45degreeangle (usinga cigarettelighter).
This tubewill bevent tubeto thefueling valve.
When the stopper assembly is installed
in the tank, the top of the vent tube should
rest just below the top surface of the tank.
It should not touch the top of the tank.
5. Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. Ifflashing is present, make
sure none of it falls into the tank.
3. Carefully bend the second nylon tube up
ata 45degreeangle (usinga cigarettelighter).
This tube will be the vent tube to the muffler.
Vent tube
Fuelfilltube
Fuel pick- up tube
6. When satisfied with the alignment of the
stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pandsand sealsthetankopening.Do notover
tighten the assembly as this could cause the
tank to split.
8. Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontofthetankshould justabout
touch the back of the firewall.
7. Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
9. To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank, whereit exitsthefuselagebehindthe
enginemountingbox andtotherearofthetank
at the forward bulkhead.
Secure

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
11
Do not secure the tank into place perma-
nently until after balancing the airplane.
You may need to remove the tank to mount
the battery in the fuel tank compartment.
Fueltank
Locate the long piece of wire used for the
throttlepushrod. Oneend ofthewire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhentheengine isfittedonto
theengine mount.Fitthe engineto theengine
mount using the screws provided.
INSTALLING THE ENGINE.
100mm
Markpoint
Drill a
hole 2mm

RENEGADE - ITEM CODE:BH66 Instruction Manual
12
Pushrod wire
3 x 20mm
Secure
Pushrod wire
COWLING.
1. Slide the fiberglass cowl over the en-
gineand lineup theback edgeofthecowlwith
the marks you made on the fuselage.
Right side
Trim and cut
Bottom side
2. While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftoftheengine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
3. Slide the cowl back over the engine
andsecure itin placeusingfourwoodscrews.
See picture below.

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
13
Right side
Bottom side
Front view
4. Installthemufflerandmufflerextension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
andfuel fillervalve.
3 x 12mm
INSTALLING THE SPINNER.
Installthe spinnerbackplate,propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 15mm wood screws.
3 x 15mm
Secure
Right side
Machine screw.

RENEGADE - ITEM CODE:BH66 Instruction Manual
14
SERVO INSTALLATION.
ELEVATOR INSTALLATION.
2. Mount the servo to the tray using the
mountingscrews providedwithyourradiosys-
tem.
1. Install the rubber grommets and brass
colletsintotheelevatorservo.Test fitthe servo
into the servo tray.
HORIZONTAL STABILIZER.
C/Aglue
C/Aglue
C/Aglue
C/Aglue

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
15
See pictures below:
1. Draw a center line onto the horizontal
stabilizer. Then slide the horizontal into the
fuselage.
Center line
2 Using a modeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
Remove covering
3. Mark the shape of the vertical on the left
and right sides onto the horizontal stabilizer
using a felt-tip pen
Markline
4. Remove the stabilizer. Using the lines
youjustdrew asa guide,carefully removethe
coveringfrom betweenthem usingamodeling
knife.
When cutting through the cover-
ingto removeit, cut withonly enoughpres-
sure to only cut through the covering it’s
self. Cutting into the balsa structure may
weaken it. This could lead to possible fail-
ure during flight
Remove covering
5. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topand bottomofthestabilizermounting area
and to the stabilizer mounting platform sides
inthefuselage.Slidethe stabilizerinplace and
re-align. Double check all of your measure-
ments one more time before the epoxy cures.
Remove any excess epoxy using a paper
towel and rubbing alcohol and hold the stabi-
lizer in place with T-pins or masking tape.
Epoxyglue Left side

RENEGADE - ITEM CODE:BH66 Instruction Manual
16
Epoxyglue
6.After the epoxy has fully cured, remove
the masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
clean up the excess using a paper towel and
rubbingalcohol.
C/Aglue
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
ELEVATOR CONTROL HORN INSTALLA-
TION.
Remove
covering
3x35mm.
M3locknut.
Nilon control clasp.
Drill a hole
6 mm diameter
Markpoint

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
17
C/Aglue
C/Aglue
Elevator
pushrod

RENEGADE - ITEM CODE:BH66 Instruction Manual
18
Bend and
cut after
Elevatorservo
Elevator
pushrod
VERTICAL INSTALLATION.
Rudder servo install as same as method of
elevator servo. See picture below:
C/Aglue
C/Aglue
Control clasp.
Removecovering
1. Using a modeling knife cut away the
coveringfromthe fuselage fortherudder and
remove it.

RENEGADE - ITEM CODE:BH66. INSTRUCTION MANUAL
19
2. Slide the rudder into the fuselage as
same as picture below.
Markline

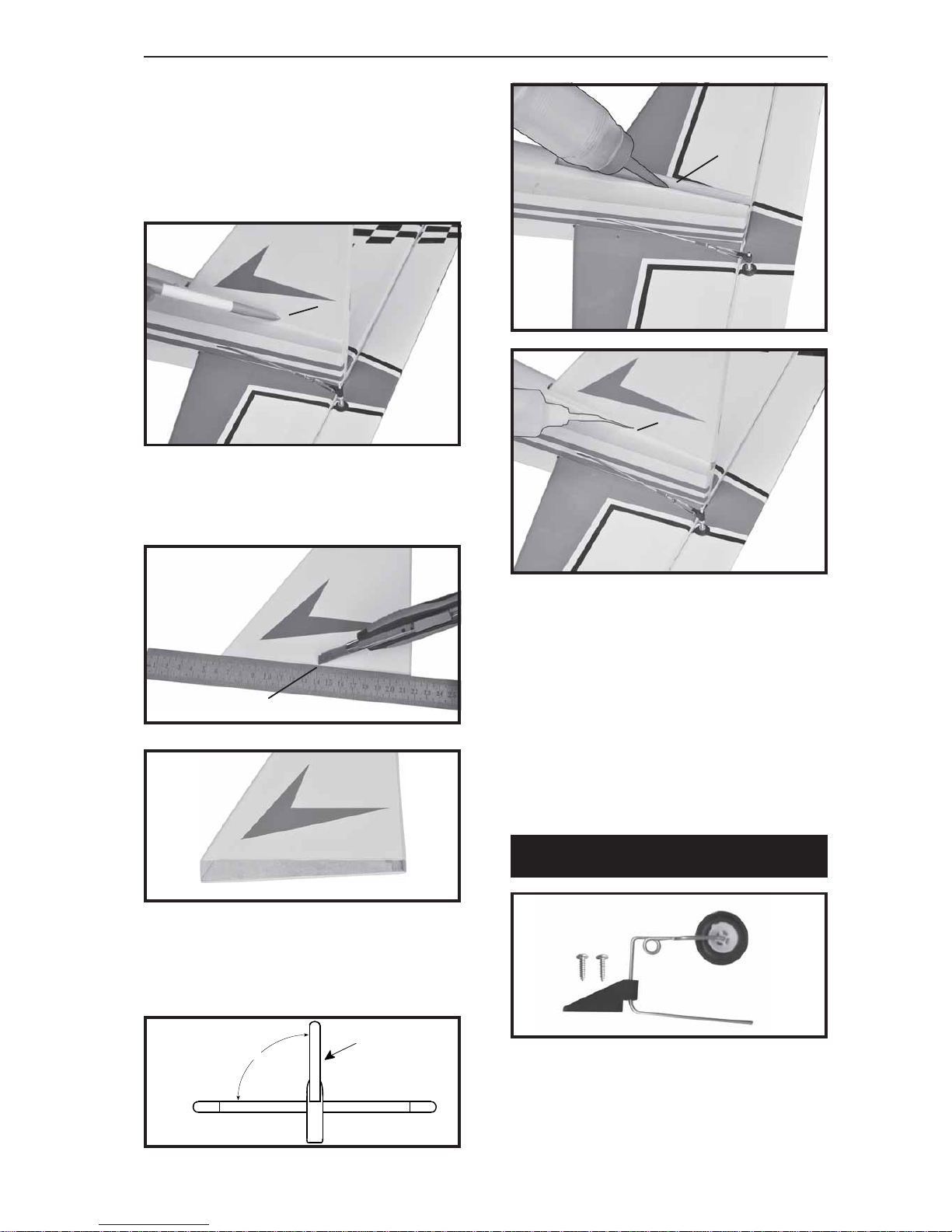

3. While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
4. Remove the stabilizer. Using a model-
ing knife, remove the covering from below the
linesyou drew. Also removethe coveringfrom
the bottom edge of the stabilizer.
Remove covering
5. Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
thevertical stabilizerisaligned 90ºto thehori-
zontal stabilizer.
90º Vertical
Stabilizer.
Horizontal
Stabilizer.
6) When you are sure that everything is a
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
slot in the mounting platform and to the verti-
cal stabilizer mounting area. Apply epoxy to
the lower rudder hinge. Set the stabilizer in
place and re-align. Double check all of your
measurements once more before the epoxy
cures. Remove any excess epoxy using a
paper towel and rubbing alcohol and hold the
stabilizerin placewithT-pins ormasking tape.
Allow the epoxy to fully cure before proceed-
ing.
Epoxyglue
C/Aglue
 1. Set the tail wheel assembly in place
on the plywood plate. The pivot point of the
tail wheel wire should be even with the rud-
derhingelineandthetailwheelbracketshould
be centered on the plywood plate.
MOUNTING THE TAIL WHEEL
BRACKET.
3x12mm.

RENEGADE - ITEM CODE:BH66 Instruction Manual
20
 2. Using a pen, mark the locations of the
two mounting screws. Remove the tail wheel
bracket and drill 1mm pilot holes at the loca-
tions marked.
Markpoint
Secure
C/Aglue
C/Aglue
Right side
Left side
