Black Stone 1863 User manual

North Atlantic Imports LLC | 1073 West 1700 North, Logan UT 84321 | Blackstoneproducts.com
36" GRIDDLE
COOKING STATION
Parts & Assembly
MODEL 

Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
36” Griddle Cooking Station | Parts & Assembly

PARTS & ASSEMBLY

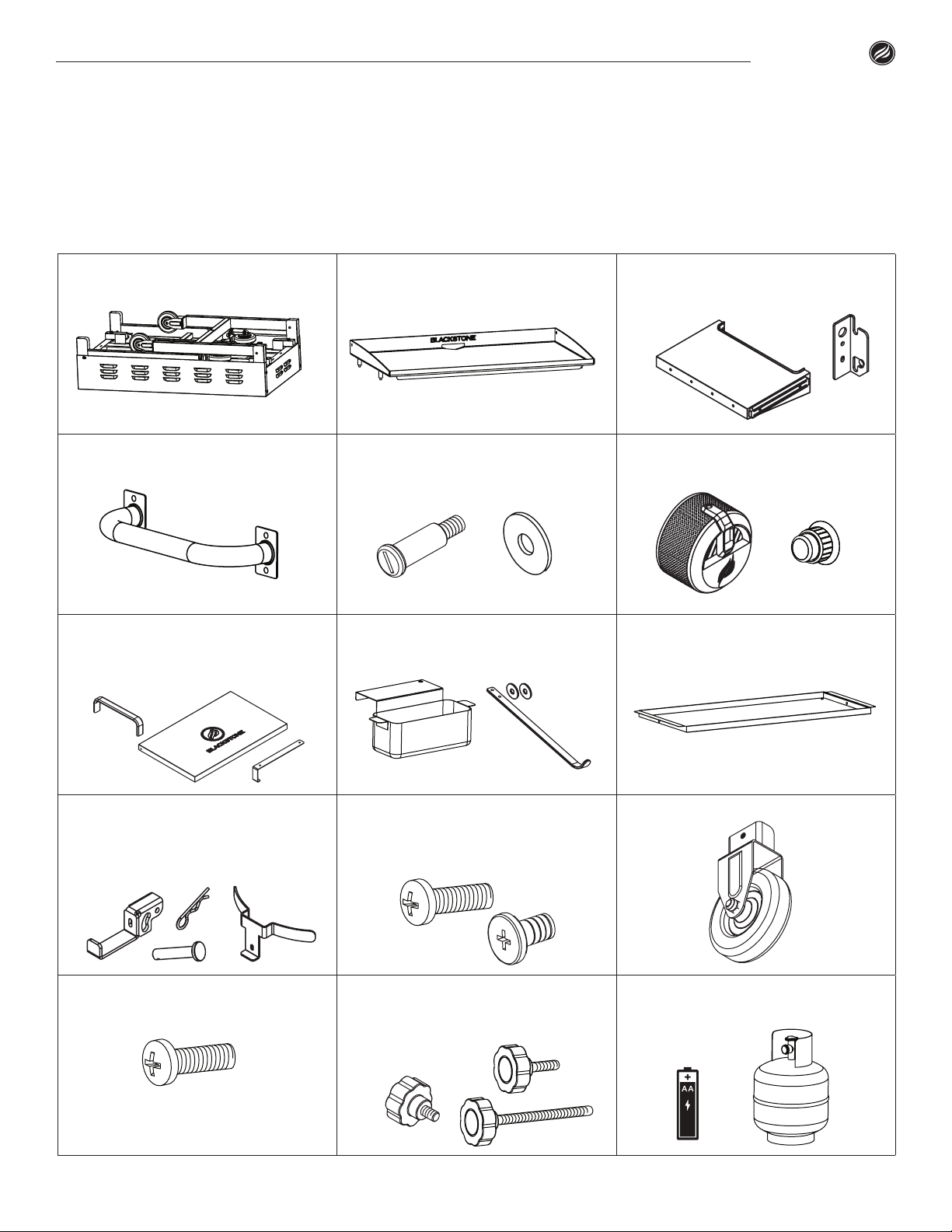

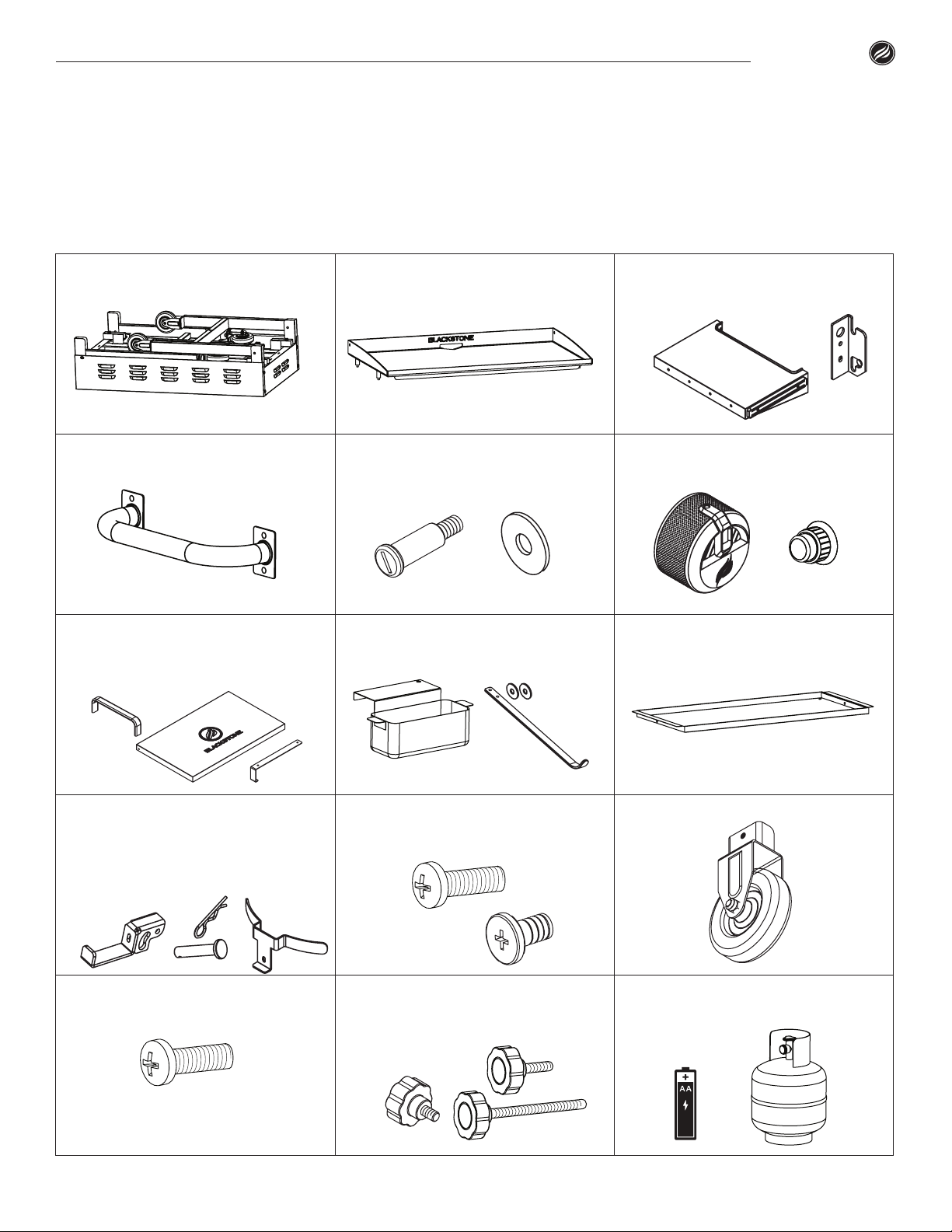

ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle top (1 piece) 03. Side shelves (2 pieces) & Side
shelf plates (4 pieces)
04. Side Handle (1 piece) 05. Side shelf pegs (8 pieces)
& peg washers (8 pieces) 06. Control knobs (4 pieces) & Ignition Button (1 piece)
07. Hard cover handle (2 pieces)
& Hard cover (1 piece) & Hard
cover hook (2 pieces)
08. Grease cup (1 piece) & Paper
towel holder (1 piece) 09. Bottom Tray (1 piece)
10. Upper propane tank hanger
(1 piece) & cotter pin (1 piece)
& shear pin (1 piece) & Lower
propane tank holder (1 piece)
11. M6x12 bolt (13 pieces) & M8
screws (8 pieces) & M6x16
bolt (1 piece)
12. Wheels (2 pieces)
13. M4X10 Bolts (4 pieces) 14. Small Thumb Screw (2 pieces)
& Medium Thumb Screw
(1 piece) & Large Thumb
Screw (1 piece)
NOT INCLUDED - 20lb LP Gas Tank
& AA Battery
36” Griddle Cooking Station | Parts & Assembly
01

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench

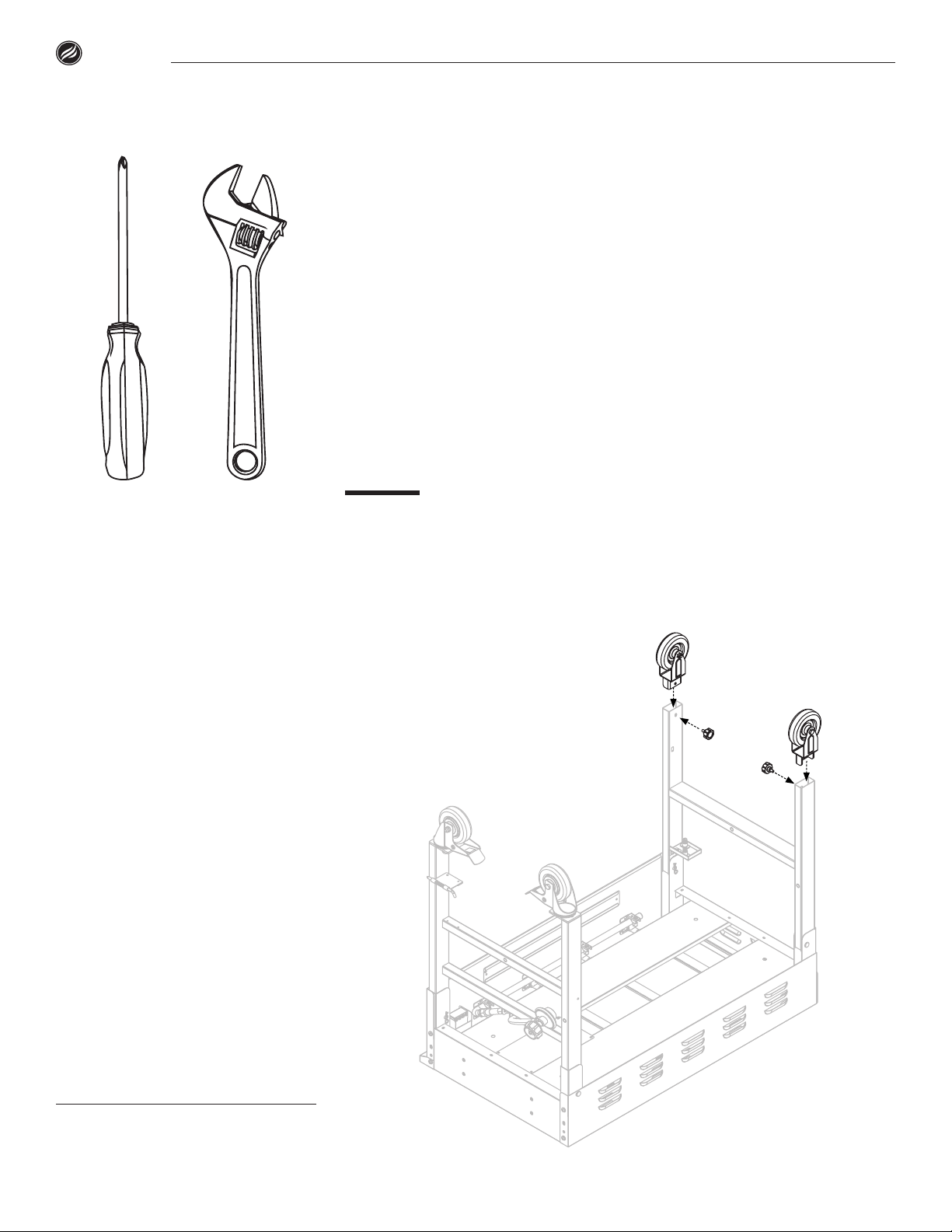

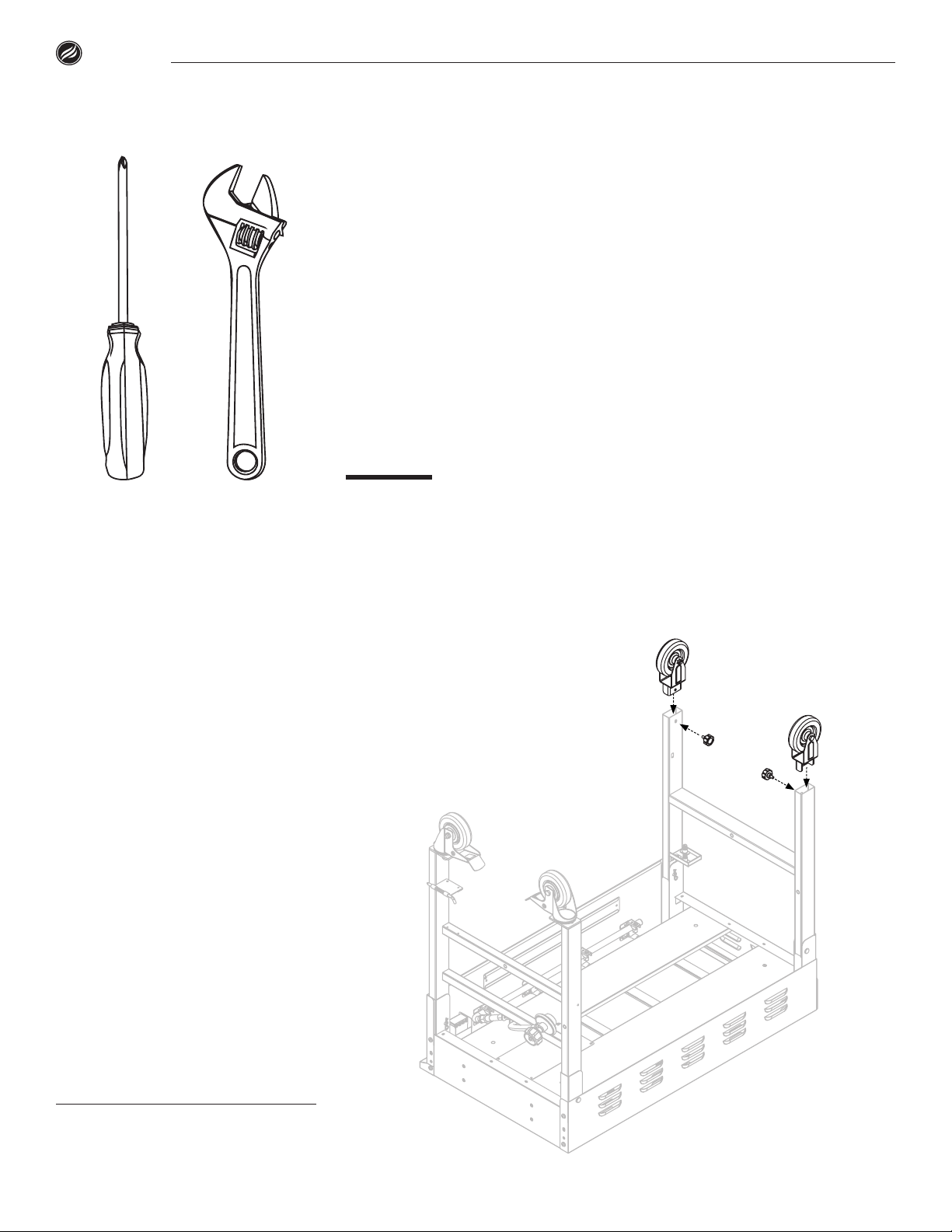

STEP 01
Remove the griddle body from the packaging and lay it upside down on a
smooth, at surface with the help of another person.
Unfold the legs and install the two (2) wheels to the assembly wtih two (2)
small thumb screws.
36” Griddle Cooking Station | Parts & Assembly
02

!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.

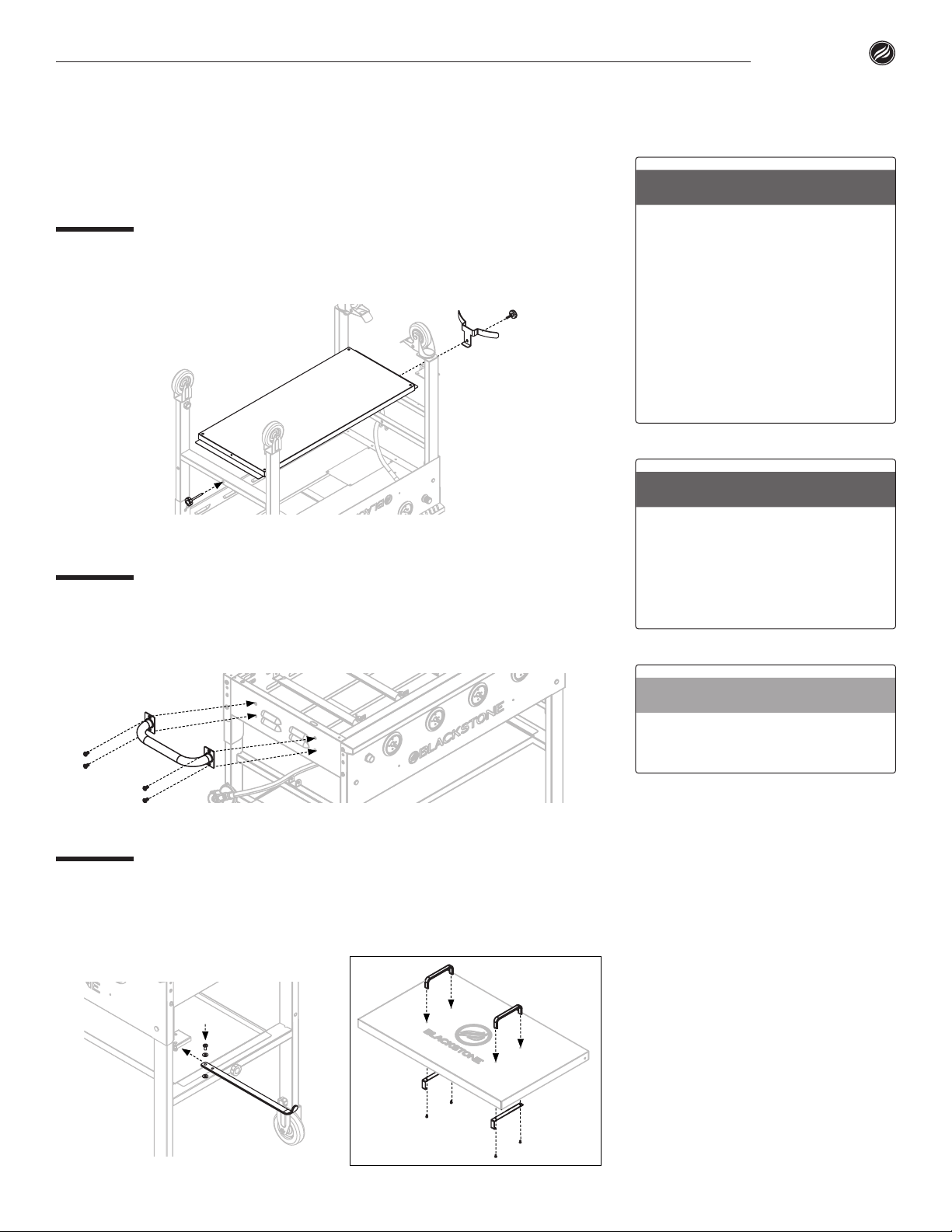

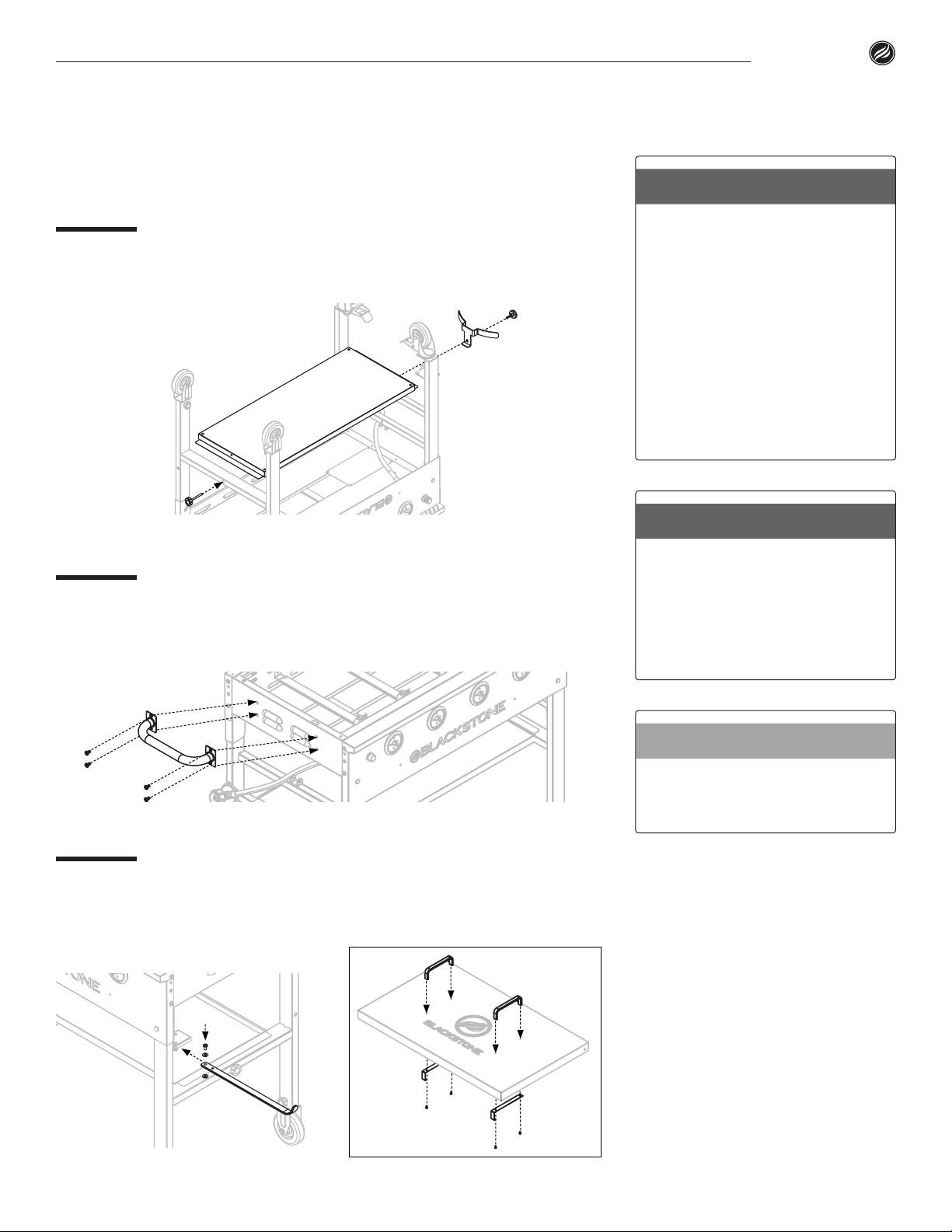

STEP 02
Attach the bottom tray on the le with one (1) large thumbscrew. Secure the
tray and lower tank holder on the right with one (1) meduim thumbscrew.
STEP 03
With the help of another person, place the griddle on its wheels. Install the
griddle handle to the le side of the griddle body with four (4) M6X12 bolts
from the outside of the body.
STEP 04
Attach the paper towel holder to the bracket on the right side of the griddle
unit with one (1) M6X16 bolt and two (2) washers. Attach the hard cover
handles and hooks with four (4) M4X10 bolts screwed in from the bottom.
36” Griddle Cooking Station | Parts & Assembly
03

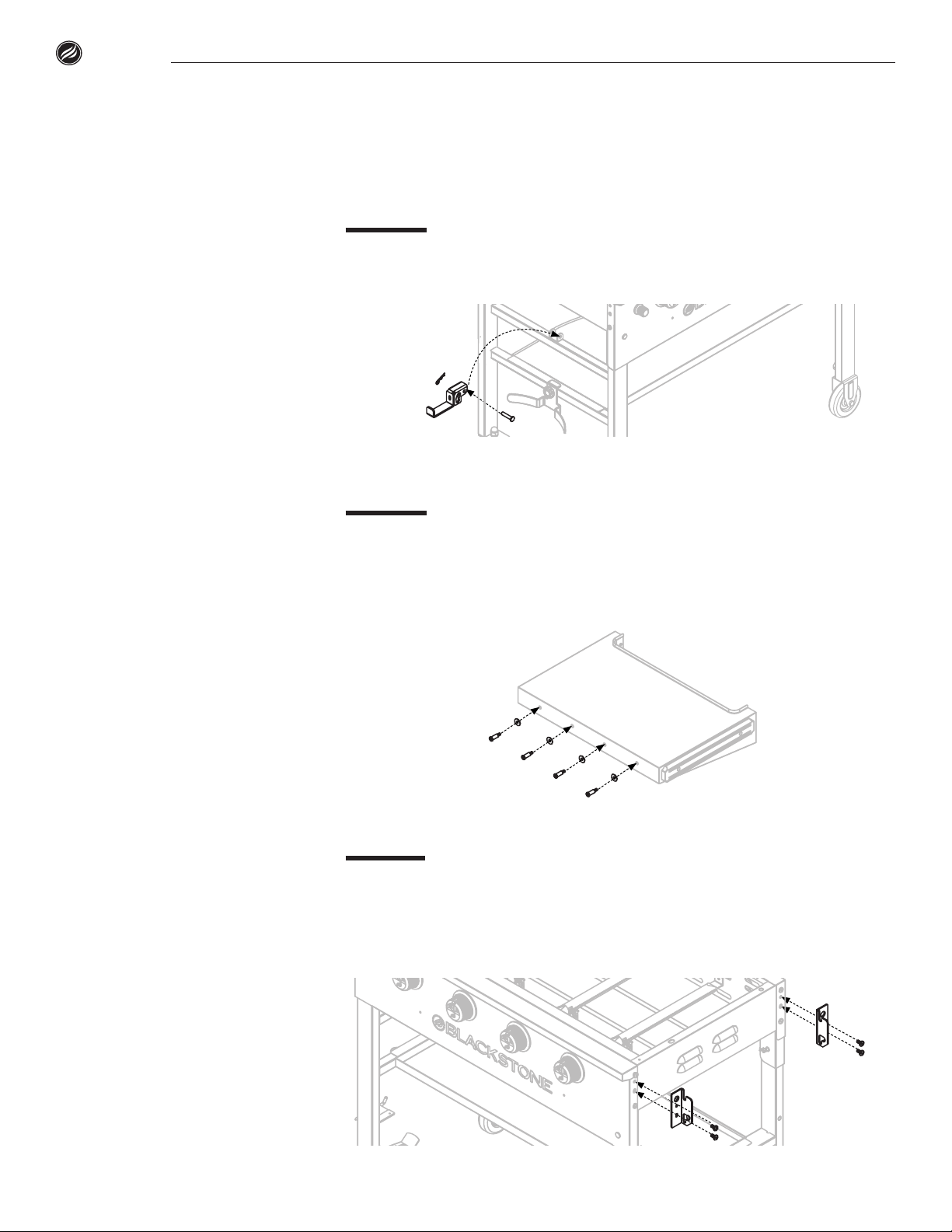

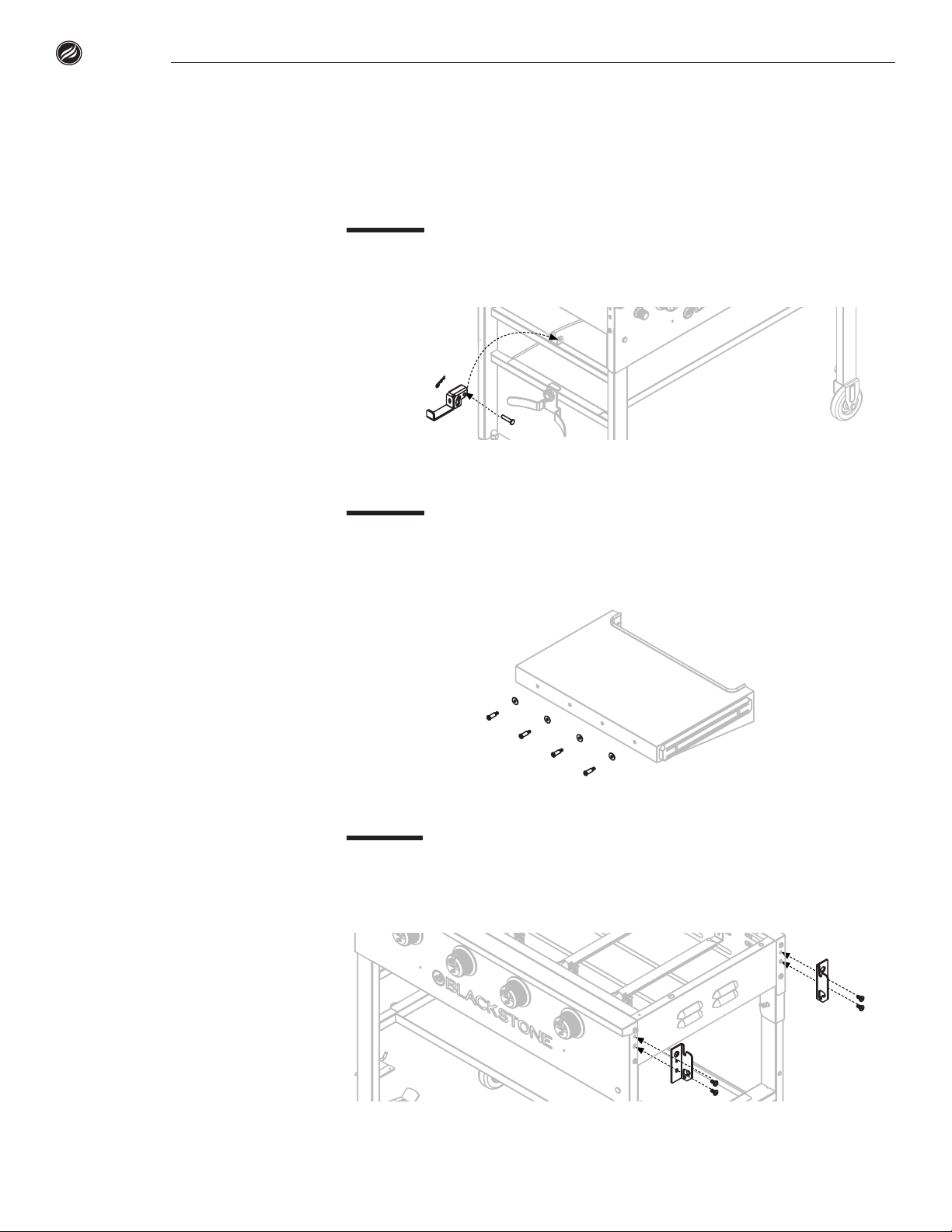

STEP 05
Place the upper propane tank hanger between the brackets and then secure it
to the unit with one shear pin and one cotter pin.
STEP 06
Attach the four (4) side shelf pegs and four (4) peg washers to the le side
shelf by screwing them into the precut holes. Repeat this step with the right
side shelf using four (4) side shelf pegs and four (4) peg washers.
STEP 07
Using four (4) M6X12 screws, attach two (2) shelf xing plates to the right
side of the griddle unit. Repeat this step on the le side of the griddle unit
with two (2) shelf xing plates and four (4) M6X12 screws.
36” Griddle Cooking Station | Parts & Assembly
04

NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
[e-mail]

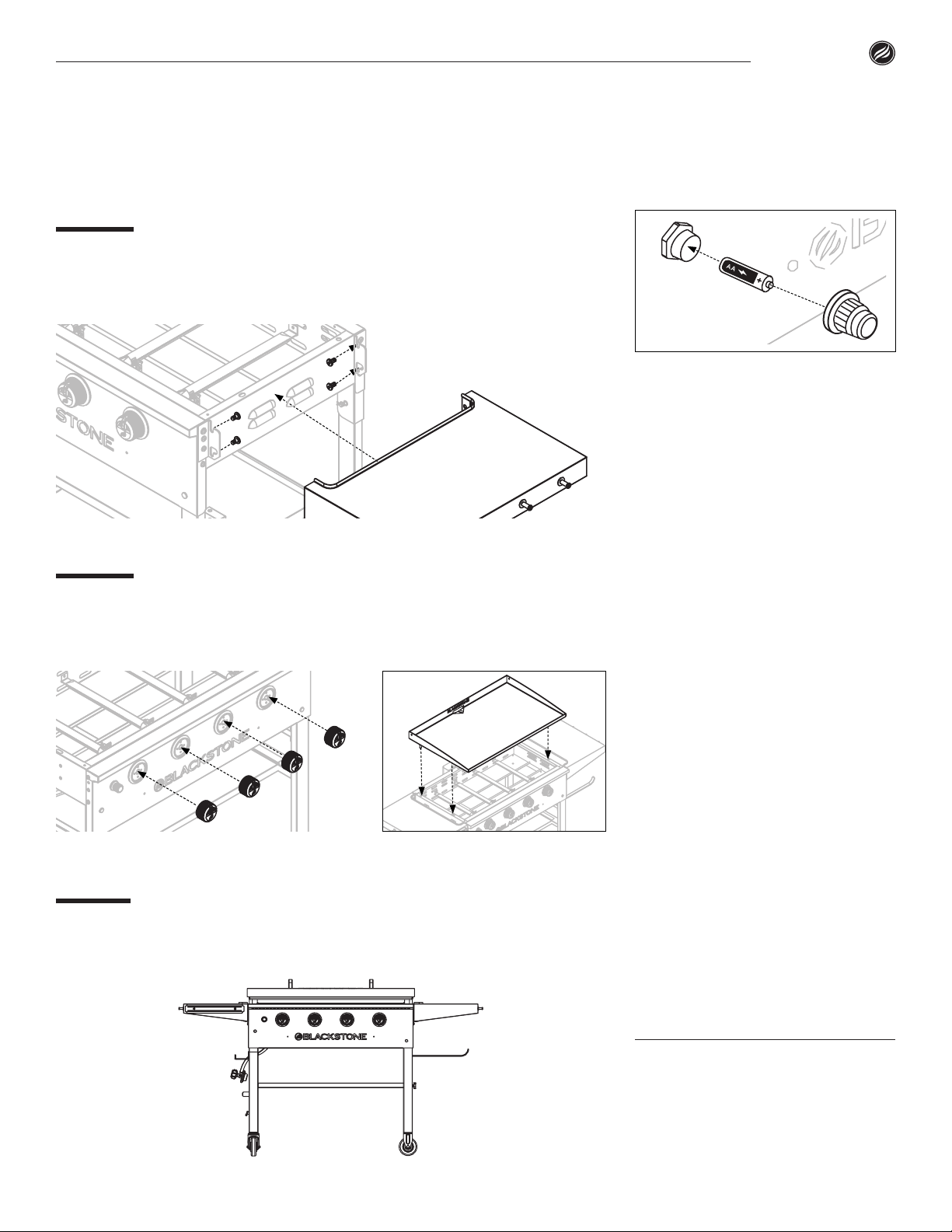

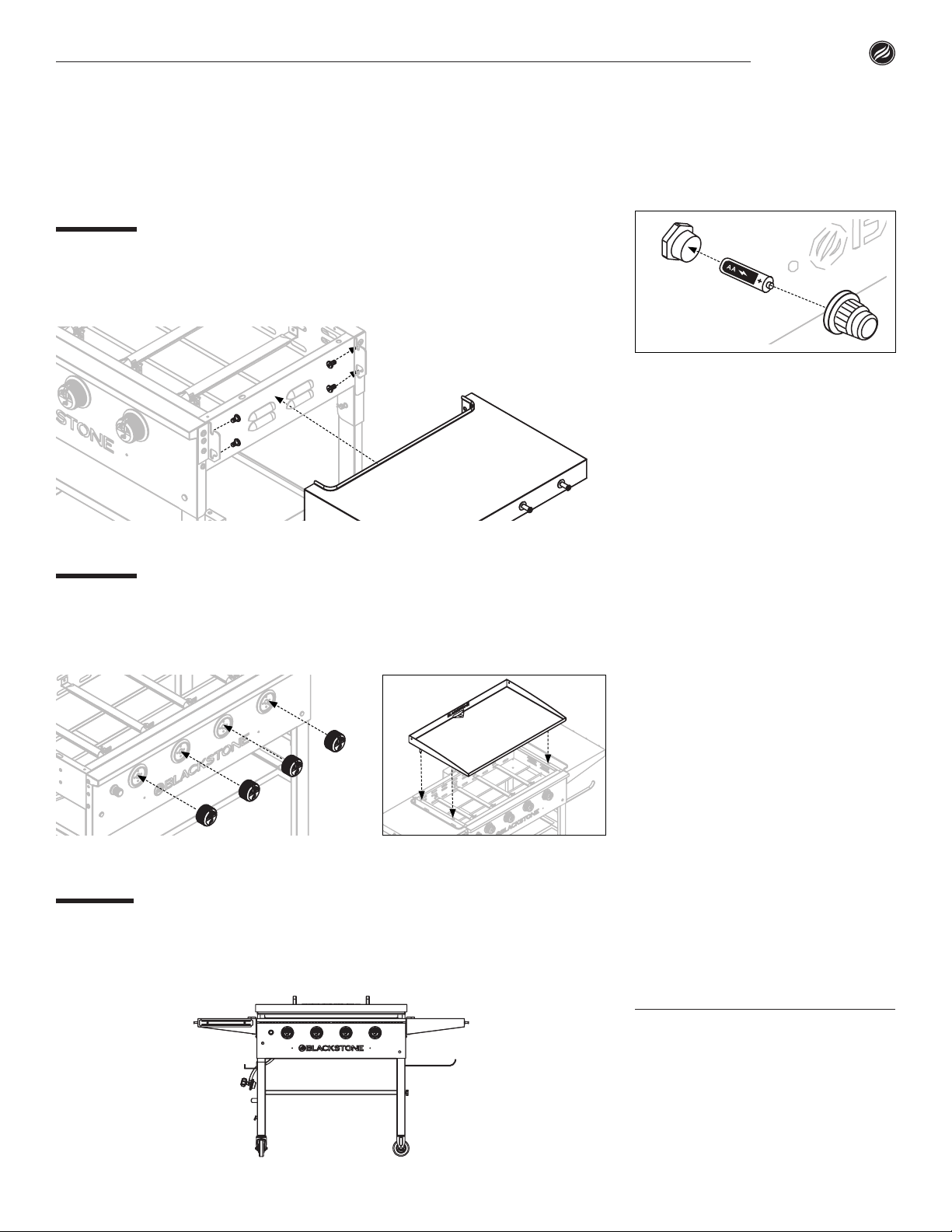

STEP 08
Using four (4) M8 screws, attach the side shelf to the shelf xing plates on the
right side of the griddle unit. Repeat this step on the le side of the griddle
unit with four (4) M8 screws.
STEP 09
Push the four (4) control knobs on the front of the unit. With the help of
another person, place the griddle top by aligning the pegs with the precut
holes in the unit.
STEP 10
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone 36” Cooking Station!
To assemble the igniton button,
insert one AA battery (not included)
into the battery socket with the
positive terminal facing out, and
then screw on the Ignition Button
until tight, being careful not to
over tighten.
36” Griddle Cooking Station | Parts & Assembly
05

North Atlantic Imports LLC | 1073 West 1700 North, Logan UT 84321 | Blackstoneproducts.com

36" PLANCHA
ESTACIÓN DE COCINA
MODELO 
Piezas y ensamblaje
North Atlantic Imports LLC | 1073 West 1700 North, Logan UT 84321 | Blackstoneproducts.com

Antes de continuar, asegúrese
de leer y comprender el Manual
del propietario incluido con
su plancha.
Se pueden producir incendios
o explosiones peligrosas si se
ignoran las instrucciones.
Es responsabilidad del
consumidor ver que la plancha
esté correctamente ensamblada,
instalada y mantenida. Si no se
siguen las instrucciones de este
manual, se podrían producir
lesiones corporales y/o daños
a la propiedad.
LLAVE DE ALERTA DE
SEGURIDAD
Lea y siga todos los avisos que
se encuentran en el manual.
INSTALADOR/ENSAMBLADOR:
Entréguele estas instrucciones al consumidor.
CONSUMIDOR:
Guarde este manual para futuras referencias.
PARA REGISTRAR su producto Blackstone, vaya
a www.blackstoneproducts.com/register-griddle
Número de modelo__________________________
Número de serie ____________________________
Fecha de compra ___________________________
!PELIGRO
Indica una situación de peligro
inminente que, si no se evita,
causará la muerte o lesiones graves.
!ADVERTENCIA
Indica la posibilidad de lesiones
corporales graves si no se siguen
las instrucciones.
!PRECAUCIÓN
Indica una situación
potencialmente peligrosa que,
si no se evita, puede resultar
en una lesión moderada.
36” Plancha Estación De Cocina | Piezas y montaje
