Black Stone 2238 User manual

BLACKSTONEPRODUCTS.COM/SUPPORT
ENGLISH
SAFETY ALERT KEY
DANGER
Indicates a hazardous situation
that, if not avoided, will result in
death or serious injury.
CAUTION
Indicates a hazardous situation
that, if not avoided, could result
in minor or moderate injury.
WARNING
Indicates a hazardous situation
that, if not avoided, could result
in death or serious injury.
NOTICE
Indicates information considered
important, but not hazard-
related (e.g. messages related to
property damage).
OWNER’S MANUAL
IMPORTANT:
This instruction manual contains important
information necessary for the proper assembly and safe
use of the appliance.
Read and follow all warnings and instructions before
assembling and using the appliance.
Follow all warnings and instructions when using
the appliance.
Keep this manual for future reference.
Installer/Assembler: Leave these instructions with the consumer.
For the latest version of this manual,
scan this code or visit
BlackstoneProducts.com/support
| CONTACT CUSTOMER SUPPORT BEFORE RETURNING APPLIANCE TO RETAILER.
MODEL: v02
LEGGERO PIZZA OVEN
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLY GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USING YOUR BLACKSTONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | IMPORTANT SAFETY INFORMATION
GAS APPLIANCE SAFETY
• The use of alcohol, prescription, or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely
operate the appliance.
• Keep children and pets away from the appliance at all times.
• Have a type BC or ABC fire extinguisher readily available.
DO NOT USE FOR PURPOSES OTHER THAN INTENDED.
• DO NOT use for commercial cooking.
• DO NOT use this appliance as a heater.
WARNING
Improper installation, use, adjustment, alteration, service,
modification, or maintenance can cause injury or property
damage. Refer to this manual.
INSTALLATION MUST CONFORM WITH LOCAL CODES.
In the absence of local codes, installation must conform with
either ANSI Z223.1/NFPA 54, CSA B149.1, or CSA B149.2.
FOR OUTDOOR USE ONLY.
WARNING
•DO NOT store or use gasoline or other flammable liquids
or vapors in the vicinity of this or any other appliance.
•An LPG cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
DANGER
•NEVER operate this appliance unattended.
•If a fire should occur, keep away from the appliance and
immediately call your fire department. DO NOT attempt
to extinguish an oil or a grease fire with water.
Failure to follow these instructions could result in fire or
property damage, personal injury or death.
DANGER
If you smell gas:
•Shut o gas to the appliance.
•Extinguish any open flame.
•Open hood (if applicable).
•If odor continues, keep away from the appliance
and immediately call your gas supplier or your fire
department.
Failure to follow these instructions could result in fire or
property damage, personal injury or death.
ELECTRIC APPLIANCE SAFETY
TO PROTECT AGAINST ELECTRIC SHOCK:
• DO NOT immerse cord or plugs in water or other liquid.
• Unplug from the outlet when not in use and before cleaning. Allow
to cool before putting on or taking o parts.
• DO NOT use an outdoor cooking gas appliance for purposes other
than intended.
• DO NOT operate this appliance with a damaged cord, plug, or after
the appliance malfunctions or has been damaged in any manner.
Contact the manufacturer for repair.
• DO NOT let the cord hang over the edge of a table or touch
hot surfaces.
• Keep any electrical supply cord and the fuel supply hose away from
heated surfaces.
• When connecting, first connect plug to the appliance then into
the outlet.
USE ONLY A GROUND FAULT INTERRUPTER (GFI) PROTECTED CIRCUIT
WITH THIS APPLIANCE.
• This appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with
NFPA 70 Canadian Electrical Code, Part I.
• DO NOT remove the grounding plug or use with an adapter
of 2 prongs.
• Use only extension cords with a 3 prong grounding plug, rated for
the power of the equipment, and approved for outdoor use with a
W-A marking.
PELLET GRILL SAFETY
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET FUEL-BURNING APPLIANCE. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
SAVE THESE INSTRUCTIONS.
• Burning wood gives o carbon monoxide which can cause death.
• DO NOT burn wood chips inside homes, vehicles, tents, garages or
any enclosed areas.
• Use only outdoors where it is well ventilated.
MODEL:
IMPORTANT SAFETY INFORMATION

BLACKSTONEPRODUCTS.COM/SUPPORT
ENGLISH
| OWNER’S MANUALWARRANTY
Register your appliance at
BlackstoneProducts.com/register
The North Atlantic Imports LLC 1-Year Warranty covers replacement
parts up to one year after the date of purchase.
TO ENABLE THIS WARRANTY, YOU WILL NEED TO PROVIDE:
☞
☞Your appliance’s Serial Number

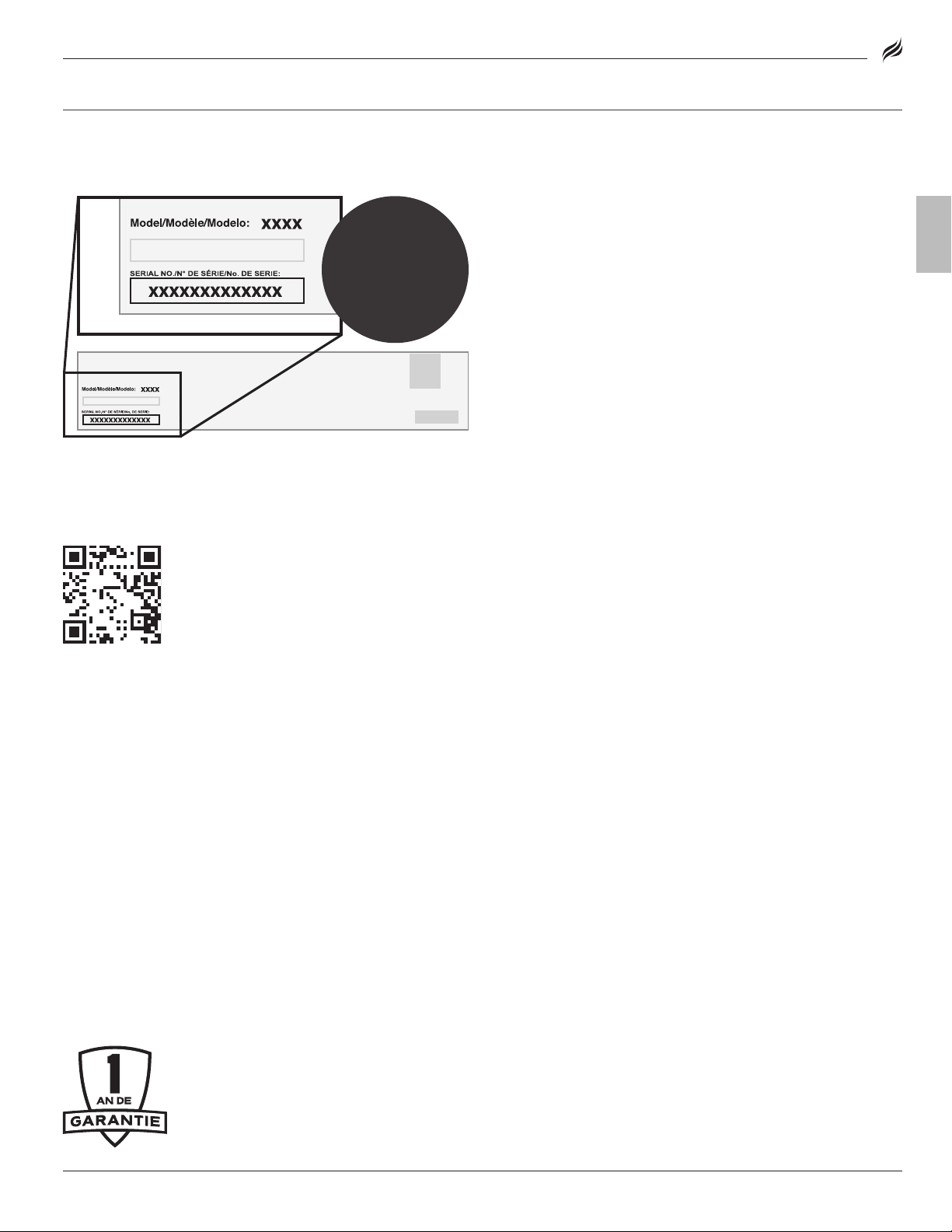

The Serial Number can be found on your appliance’s
Manufacturer Label.
(The Manufacturer Label is a large silver sticker found on the body of your
(The Manufacturer Label is a large silver sticker found on the body of your
appliance.)
appliance.)
WARRANTY OVERVIEW
North Atlantic Imports, the manufacturer, will warranty for one year
from purchase all parts, workmanship, and finishes. It will be the
manufacturer’s option as to whether to repair or replace any of the
above items. All warranties are limited to the original purchaser
only. This warranty does not cover any liability on the part of North
Atlantic Imports, its agents or employees, for any indirect or conse-
quential damages for breach of warranty. The purchaser must follow
the manufacturer’s usage instructions.
Under no circumstances is the manufacturer responsible for
damages from the failure to operate the cooking station properly. It is
the responsibility of the purchaser to establish the warranty period
by verifying the original purchase date with original sales receipt.
DETAILED ExPLANATION OF THE WARRANTY
North Atlantic Imports LLC warrants to the owner that the product
covered by this agreement is free from defects in material and work-
manship under normal use and service for which it was intended if,
but only if, it has been operated in accordance with North Atlantic
Imports LLC instructions exclusively for domestic use, and not for
private or public club, institutional or commercial purposes.
North Atlantic Imports LLC’s obligation under this warranty is limited
to replacing or repairing, free of charge, any part or parts that
may prove, to the satisfaction of North Atlantic Imports LLC, to be
defective under normal home use and service within the following
stated periods of time from the date of purchase; for one year from
purchase, all parts, finish, and workmanship. Should any failure
to conform to this warranty become apparent during applicable
warranty periods stated above, the original purchaser must notify
North Atlantic Imports LLC of breach of warranty within the appli-
cable warranty period.
North Atlantic Imports LLC shall upon notice and compliance by the
original purchaser with such instructions, correct such nonconfor-
mity by repair or replacement of the defective part or parts.
Correction in the manner provided above shall constitute a fulfill-
ment of all obligations of North Atlantic Imports LLC with respect to
the quality of the product.
North Atlantic Imports LLC does not warrant this equipment to meet
the requirement of any safety code of any state, municipality or other
jurisdiction, and the original purchaser assumes all risk and liability
whatsoever resulting from the use thereof, whether used in accor-
dance with North Atlantic Imports LLC instructions or otherwise.
This warranty does not cover and is intended to exclude any liability
on the part of North Atlantic its agents, servants or employees
whether under this warranty or implied by law for any indirect or
consequential damages for breach on any warranty. The purchaser
must establish all applicable warranty periods pursuant to this
warranty by verifying the original purchase date by producing the
dated sales receipt. This warranty shall not apply to this product or
any other part thereof which has been subject to accident, negli-
gence, alteration, abuse, or misuse or which has been repaired or
altered without North Atlantic written consent, outside of North
Atlantic Imports LLC factory. The full manufacturer warranty is
not valid for griddles purchased from unlicensed, third-party
resellers, purchased at a discount due to missing or damaged
parts, or purchased as a floor model; at the discretion of North
Atlantic Imports.
North Atlantic Imports LLC makes no warranty whatsoever in respect
to accessories or parts not supplied with it. This warranty shall
apply only within the boundaries of the United States of America and
Canada. This warranty gives the original purchaser specific rights,
and the original purchaser may also have other rights, which vary
from state to state.
������������������������������������������
��������������������������
���������������������������������
����������������������������������������
��������������������������������������
����������������������������������
���������������������������������������
���������������������������
������������������������������������
��������������������������������������
����������������������������������������
����������������������������������������
��������������������������
������������������������������������������
�����������������������������
����������������������������������
�����������������������������������������
����������������������������������������
������������������������������������������
����������������������������
����������������������������
����������������������������������������������������
�������������������������������������������������
��������������������������������
���������������������������������������
���������������������������������������������������
����������������������������������������������������
������������������������������������������������������
��������������������������������
��������������������������������������������
��������������������������������������������������
�������������������������������������������������
������������������������������������������������������
��������
����������������������������������������������������
����������������
����������������
����������������
����������������
�����������������������������������
����������������
������������������������
��������������������������������
��������������������������������
������������
������������������������������������������
��������������������������
���������������������������������
����������������������������������������
��������������������������������������
����������������������������������
���������������������������������������
���������������������������
������������������������������������
��������������������������������������
����������������������������������������
����������������������������������������
��������������������������
������������������������������������������
�����������������������������
����������������������������������
�����������������������������������������
����������������������������������������
������������������������������������������
����������������������������
����������������������������
����������������������������������������������������
�������������������������������������������������
��������������������������������
���������������������������������������
���������������������������������������������������
����������������������������������������������������
������������������������������������������������������
��������������������������������
��������������������������������������������
��������������������������������������������������
�������������������������������������������������
������������������������������������������������������
��������
����������������������������������������������������
��������
��������
��������
��������
��������
����������������
����������������
����������������
����������������
�����������������������������������
����������������
������������������������
��������������������������������
��������������������������������
������������
☞
FREE
MOBILEFRIENDLY
COOKBOOK
when you register
MODEL:
WARRANTY

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODEL:
ASSEMBLY GUIDE
PARTS
QTY
1.1a Upper front panel
1.1b
Lower front panel
1.1c
Control knob bezel
1.2a
Base panel cover
1.2b
Lower rear panel
1.2c
Upper rear panel
1.3a
Oven lid
1.3b
Thermometer
1.4a Bottom plate
PARTS
QTY
1.4b Sealing plate
1.4c
Inner cap
1.4d
Inner cover rear
plate
1.5a
Gas line
1.5b
Burner
1.6a
Ignitor
1.6b
Ignition needles
PARTS
QTY
1.6c Thermoelectric
couple
1.7a
Battery box
1.7b
Battery box cover
1.7c
Motor button
1.7d
Motor
1.8a
Motor heat shield
1.8b
Motor support
PARTS
QTY
1.8c Shaft connecting
block
1.8d
Coupling
1.8e
Stop plate
1.8f
Shaft bearing sleeve
1.9a
Turntable support
1.9b
Turntable
2.1
Nameplate
4.1
Foot base

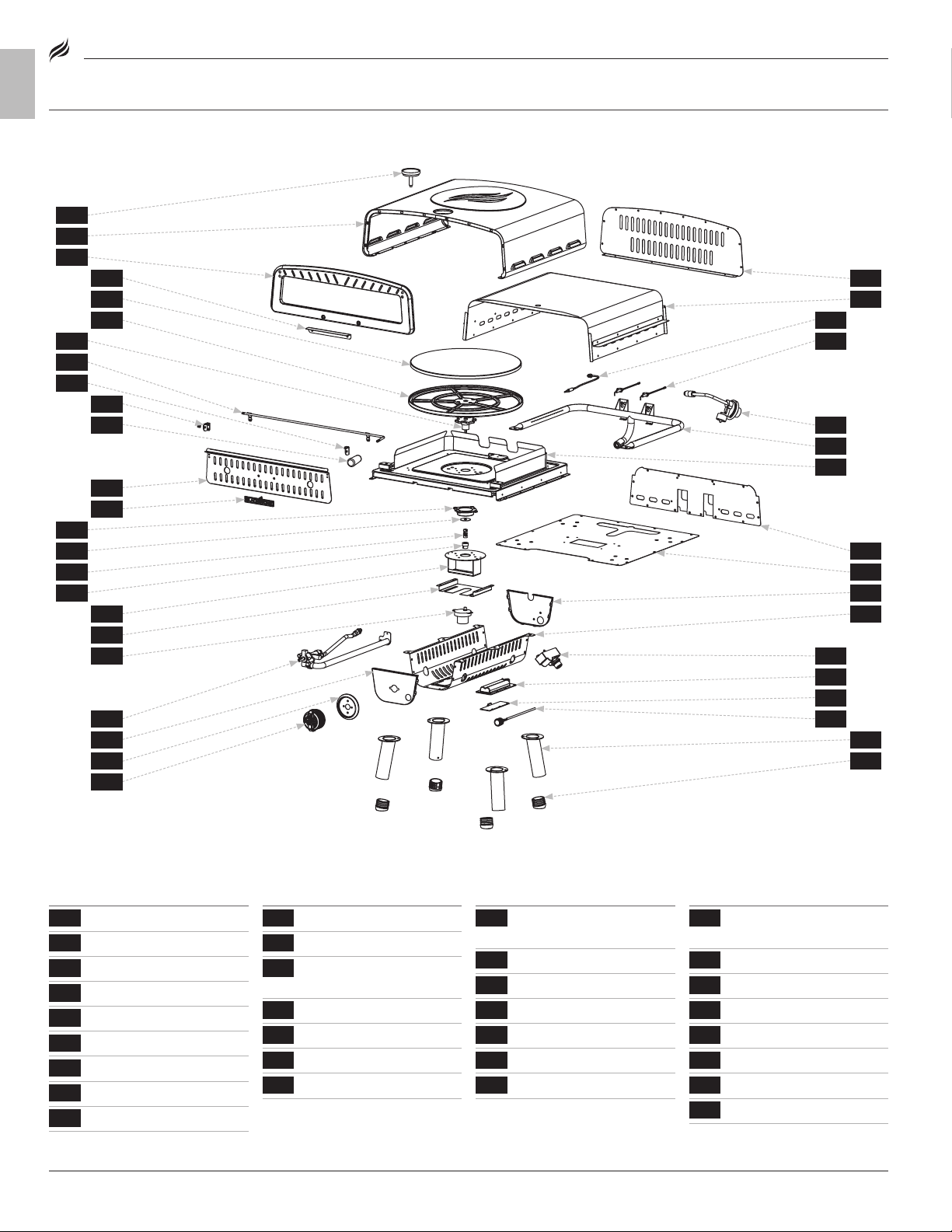

ExPLODED VIEW
PARTS LIST
9
1.1a
1.8d
1.5a
1.3a
4.1
1.7b
1.2a
1.9a 1.6b
1.4b
1.8a
1.1b
1.8e
1.5b
1.3b
1.7c
1.2b
1.9b 1.6c
1.4c
1.8b
1.1c
1.8f
1.6a
1.4a
1.7d
1.2c
2.1
1.7a
1.4d
1.8c
7
4
10
2
8
5
3
6
12

BLACKSTONEPRODUCTS.COM/SUPPORT
ENGLISH
| OWNER’S MANUALASSEMBLY GUIDE

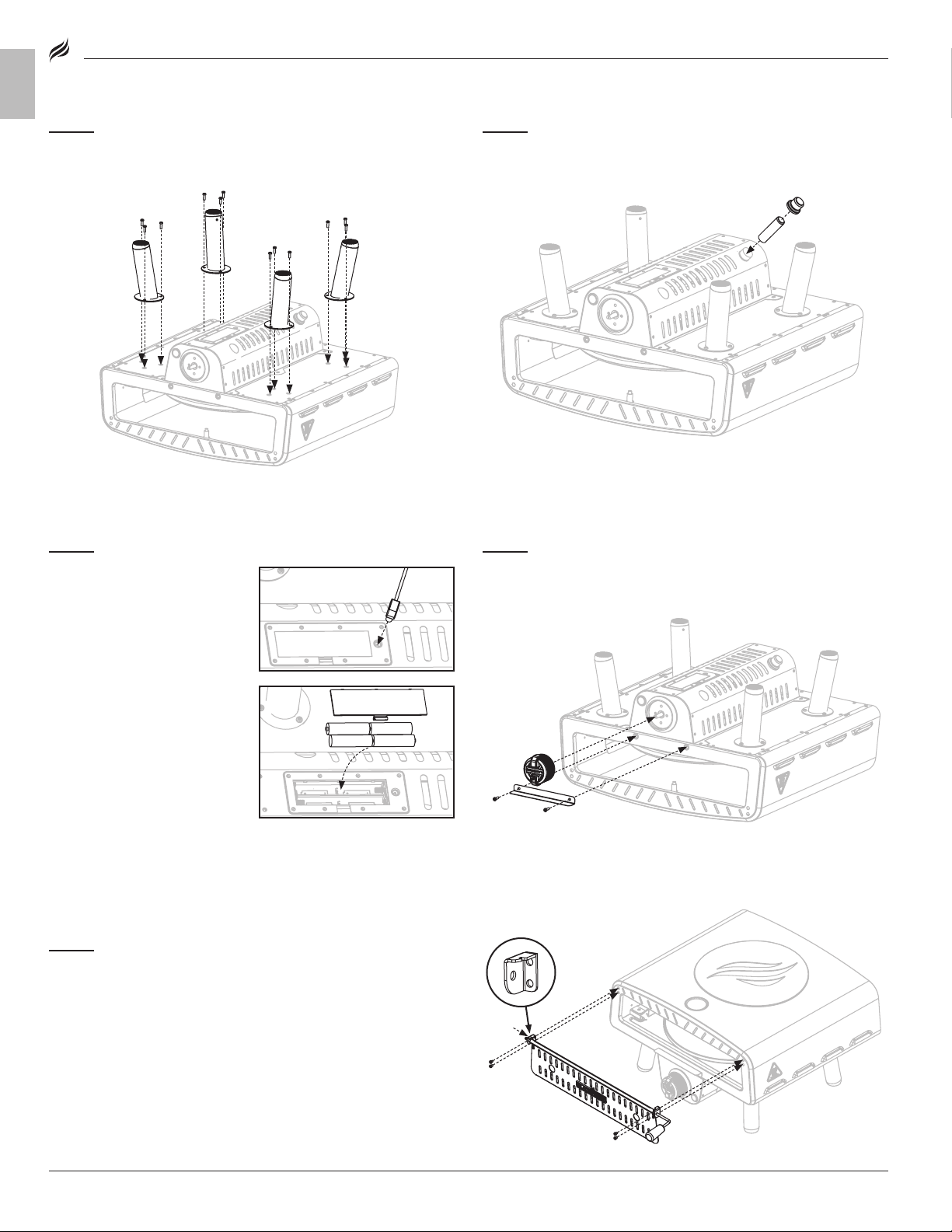

ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
CAUTION
Sharp edges. Wear gloves while assembling.
NOT INCLUDED (OPTIONAL):
Two (2) D batteries
ELECTRIC REQUIREMENTS:
120V 60Hz
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar toLPG cylinder must include collar to
protect LPG cylinder valve.protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar toLPG cylinder must include collar to
protect LPG cylinder valve.protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
MODEL:
1 Oven body
(1 piece)
2 Oven door
(1 piece)
3 Pizza stone
(1 piece)
4 Legs (4 pieces) 5 Bale panel
(1 piece)
6 Control knob
(1 piece)
7 Door shaft
(1 piece)
8 Door shaft seat
(L) (1 piece)
9 Door shaft seat
(R) (1 piece)
10 Door handle
(1 piece)
11 Power cord
(1 piece)
12 Regulator
(1 piece)
[a.]M3x6 screws
(4 pieces) [b.]M3 lid nuts
(4 pieces) [c.]M4x16 bolts
(18 pieces) [d.]Spring (1 piece) [e.]M5 lid
nut (1 piece)
STEP 01 Use four (4) M3x6 bolts [a.]and four (4) M3 lid nuts [b.]to
attach the door shaft to the oven door.
STEP 02 Slide the door shaft seat (R) onto the door shaft.
Screw the door handle onto the door shaft.
[a.]× 4
[b.]× 4
Table of contents
Languages:
Other Black Stone Kitchen Appliance manuals

Black Stone
Black Stone 6960 User manual

Black Stone
Black Stone ON THE GO 6968 User manual

Black Stone
Black Stone GRIDDLE 1554 User manual

Black Stone
Black Stone 6961 User manual

Black Stone
Black Stone 1868 User manual

Black Stone
Black Stone 5020 User manual

Black Stone
Black Stone 1885 User manual

Black Stone
Black Stone 1783 User manual

Black Stone
Black Stone 6824 User manual

Black Stone
Black Stone PATIO 1962 User manual
