BT Drive Free 311
This Bluetooth hands-free system was developed specically for users who
want to use their cell phone while driving.The BT Drive Free 311 is equipped
with an LCD display for the display of phone numbers or names of callers.The
device supports voice output (text to speech) in 5 dierent languages as well
as phone book synchronisation with cell phones.You receive voice announce-
ments about the device status and hear the name or the phone number of
the caller in case of an incoming call. With the advanced CVC technology for
echo cancelling and noise suppression, the BT Drive Free 311 oers excellent
hands-free quality and ensures convenient and safe phone calls while driving.

17
ENGLISH
Bluetooth technology
BluetoothTM is a registered trademark of Bluetooth SIG, lnc. Bluetooth is a
wireless communication technology with short range. It enables wireless
connections between all compatible portable and stationary communication
devices. The technology is based on a radio connection that ensures a fast
and reliable transmission of voice and data information.
Bluetooth refers to a worldwide standard for operating in the internation-
ally recognised ISM frequency band (Industrial Scientic & Medical). Within
the ISM band (2.4 GHz to 2.485 GHz), the Bluetooth transmission operates
1600 times per second between 79 dierent frequencies with a data transmis-
sion range of approx. 10 metres.
Safety and general information
– Carefully read the operating instructions and follow the instructions.
– To avoid any damages and malfunctions, do not drop the device from
an elevated height.
– Protect the device against humidity, water and other liquids. If the device
should have been exposed to water, humidity or other liquids, do not use
it since it may lead to damages of the device and to injuries from electrical
shock or explosion.
– Do not expose the device to extreme heat sources, such as direct sunlight.
This could cause explosions as well as reduce the performance and/or
service life of the battery.
– Do not make any changes or repairs to the device and do not attempt to
disassemble it. (Particularly not on the battery since the risk of explosion
exists.) It will immediately void the warranty.
– Do not place any heavy objects on the device.
– Use only the supplied charger.
– Repairs and service work may be performed only by a qualied service
centre or the manufacturer.
– In case of extended non-use or thunderstorms, disconnect the device
from the power supply.

18
Disposal notes
Use the return and collection systems available to dispose of the old
device.
Do not discard any batteries in the household trash; instead, return
them to the corresponding collection sites.
Scope of delivery
The scope of delivery includes:
– BT Drive Free 311
– Lithium-ion battery
– 12-volt DC vehicle charger adapter
– USB charger cable
– Operating instructions
– Mounting clip for the sun visor
Installation at the sun visor
Sun visor flipped up towards the
vehicle roof.
Sun visor ipped down towards the
windshield.

19
ENGLISH
Overview
1 2 876
5
4
3
9
10
Loudspeaker
LCD display
Increase volume (+)
MF button (multifunction button)
Decrease volume (–)
Mounting clip for the sun visor
Charging socket (5-pin mini USB)
MODE button
Battery compartment
Microphone
Display symbols
Volume display
Incoming call
Active call
Device is switched on
Device is in registration mode
Connection with a cell phone
Audio streaming connection for music playback
Battery status

20

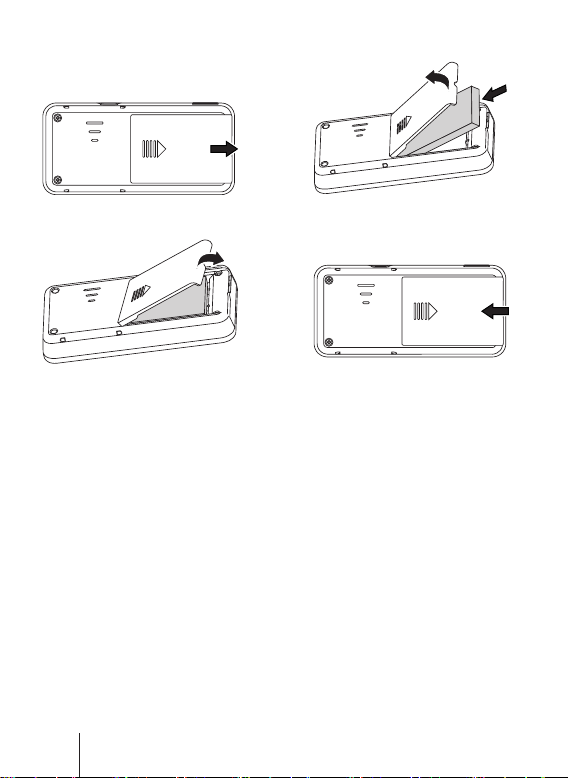

Inserting the battery
2
5
1
3
4
Battery information
The device is equipped with a lithium-ion battery. The battery is compatible
with the Nokia battery BL-5B. The full performance of a new battery is not
achieved until after two or three complete charging-discharging cycles. The
battery can be charged and discharged several hundred times, but it looses
its capacity over time.
Disconnect the BT Drive Free 311 from the power supply as soon as the bat-
tery is fully charged, since overcharging would reduce the service life of the
battery. A charged battery looses its capacity if it is not used.
Important: Ensure that the battery is fully charged if you do not use the device
for a longer period of time. To avoid a complete discharge of the battery, the
BT Drive Free 311 should be charged at least every 2 months.

21
ENGLISH
Charging the battery
The BT Drive Free 311 is operated with a rechargeable battery. Charge the
battery completely before its rst use. Read the section "Battery information"
before starting the charging process.
Connect the BT Drive Free 311 with the vehicle charging adapter via the
USB cable. Connect the vehicle charging adapter with the cigarette lighter.
The BT Drive Free 311 can also be charged with the USB cable connected to
the computer.
During the charging process, the display shows "Charging". The complete
charging of the battery takes approx. 3 hours. If "Battery Full" is displayed,
the battery is fully charged and the BT Drive Free 311 must be disconnected
from the charger.
A completely charged battery supports a talk time of up to 10hours and a
standby time of up to 480 hours. In case of a weak battery, the display shows
"Battery Low" and you will hear a voice announcement every 30 seconds. If
the battery charge becomes too low, the BT Drive Free 311 automatically
switches o.
Switching on/o
Switching on
To switch the device on, hold the MF button pressed for 3 seconds until the
display shows "Welcome" and a voice announcement is heard. After switching
on, the BT Drive Free 311 automatically connects with the last connected cell
phone. As soon as the connection is established, the name of the cell phone
is briey shown on the display and you hear a voice announcement. Next,
the BT Drive Free 311 changes to standby mode.

22
Standby mode
After approx. 20 seconds after the last activity, the device switches to standby
mode. The display shows "BT DF 311" without background illumination. The
illumination is switched on with every button activity or by an incoming call.
Switch-o
To switch the device o, hold the MF button pressed for 5 seconds until the
display shows "Power O" and a voice announcement is heard.
Note: If no connection exists to a cell phone, the BT Drive Free 311 automati-
cally switches o after 10 minutes.
Selecting the language
The BT Drive Free 311 supports voice output (text to speech) in 5languages
(English, French, Italian, German and Spanish). You receive voice announce-
ments about the device status and hear the name or the phone number of
the caller in case of an incoming call.
To select a dierent language, hold the MODE button pressed for 3 seconds
in standby mode without Bluetooth connection. You will hear an announce-
ment in the selected language. Repeat the operating step to select the desired
language in the following order: English, French, Italian, German and Spanish.
Adjusting the volume for voice announcements
In standby mode without Bluetooth connection, you can adjust the volume
for voice announcements with the buttons "+" and "–".
Registering (pairing) and connecting with the cell phone
Before you can use the BT Drive Free 311, you must register and connect it
with a Bluetooth-ready cell phone. The BT Drive Free 311 can be registered
with two phones, but only connected with one phone.
– Hold the BT Drive Free 311 within range of a Bluetooth-ready cell phone;
the distance should not exceed a metre.
– The BT Drive Free 311 must be switched o.
– Hold the MF button pressed for at least 5 seconds until the display shows
"Pairing" and a voice announcement is heard. The device is in registra-
tion mode
– Activate the Bluetooth function of the cell phone and start the search for
Bluetooth devices. (For further details, please read the operating instruc-
tions of your cell phone.). After the search process, the display of the cell
phone shows a list of devices.

23
ENGLISH
– Select "BT DF 311".
– If necessary, enter the PIN code "0000" and follow the instructions on
the display of the cell phone. After successful pairing, the display of the
BT Drive Free 311 shows "Paired" and you hear a voice announcement.
(Note: The PIN code is preprogrammed and cannot be changed)
– After pairing, the cell phone automatically connects with the BT Drive
Free 311. For some cell phones, you have to manually conrm the connec-
tion. As soon as the connection is established, the name of the cell phone
is briey shown on the display and you hear a voice announcement. Next,
the BT Drive Free 311 changes to standby mode.
Note: If the pairing cannot be completed within 2 minutes, the pairing mode
is switched o and the display shows "Pairing fail". The BT Drive Free 311 then
changes to standby mode without Bluetooth connection. Switch o the
device and repeat the pairing.
Copying the phone book
You can copy a single phone book entry or the phone book to the
BT Drive Free 311. (Note: Not all cell phones support the transfer of the
phone book.)
Copying a phone book entry
– In standby mode, briey press the MODE button.The display shows "Wait-
ing", and you hear a voice announcement.
– Open the phone book of the cell phone. Select a contact for copying.
– Send the selected contact via Bluetooth to the device name "BT DF 311".
The cell phone establishes a connection to the BT Drive Free 311 and
copies the contact.
Copying a phone book
– Connect the BT Drive Free 311 with the cell phone before copying the
phone book.
– In standby mode, press and hold the MODE button for 4 seconds. The
display shows "Download Start", and you hear a voice announcement.
The transfer of the phone book starts.The number of transferred contacts
is continuously shown on the display. After the transfer of the phone
book is complete, the display shows "Completed" and you hear a voice
announcement.
Note: Every time you transfer a phone book, the contacts of the previous
phone book are deleted.

24
Using the BT Drive Free 311
After the pairing and the phone book transfer have been completed suc-
cessfully and the battery has been charged, the following functions can be
executed:
Making a call
–Voice dialling
The connected cell phone must support voice dialling and the function
must be activated. The voice commands for the contacts must have been
saved in the cell phone.You nd the pertinent information in the operating
instructions of the cell phone.
To activate voice dialling, briey press the MF button in standby mode.
You hear two short tones and the display shows "Voice Dial". Say the voice
command as it has been recorded for this contact in the cell phone. After
the voice command has been recognized, the cell phone dials the number
associated with it.
–Redialling the last number
In standby mode, press the MF button twice. The display shows "Redial"
and the last dialled number is dialled again.
–Calling a contact from phone book
This function is only available if the phone book of the connected cell
phone has been transferred to the BT Drive Free 311. In standby mode, hold
the "–" button pressed for 3 seconds to open the phone book. The display
shows the rst phone book entry. If the phone book was not transferred,
the display shows "Not Found". Select an entry with the buttons "+" and
"–". Briey press the MF button to call the displayed number.
–Calling an entry from the call list
The BT Drive Free 311 stores the last 10 rejected or unanswered calls in
a call list. In standby mode, hold the "+" button pressed for 3 seconds to
open the call list. The display shows the rst entry. If no call was stored,
the display shows "Not Found". Select an entry with the buttons "+" and
"–". Briey press the MF button to call the displayed number.

25
ENGLISH
Answering a call
With an incoming call, the name of the caller is announced and shown on
the display, if this contact was transferred to the phone book of the BT Drive
Free 311. If no name is stored in the phone book, the phone number is
announced and displayed. To answer the call, briey press the MF button.
Ending a call
To end a call, briey press the MF button. The display shows "End Call" and
you hear a voice announcement.
Rejecting a call
To reject a call, hold the MF button pressed for 2 seconds. You hear a tone
and the display shows "Rejected".
Transferring a call
To transfer a call from the BT Drive Free 311 to the cell phone, hold the MF
button pressed for 2 seconds until you hear a tone and the display shows
"Transfer". Repeat the operating step to transfer the call back to the BT Drive
Free 311.
Adjusting the volume
During a phone call, you can adjust the volume with the buttons "+" and
"–". The volume can be adjusted in 15 increments. You hear a tone once the
minimum or maximum volume has been reached.
Muting the microphone
To mute the microphone during a call, press the MODE button. You hear 2
tones and the display shows "Mute mode". During the muting, you hear a
tone every 5 seconds. Press the MODE button again to cancel the muting.
Conducting a private call
During the call, hold the MODE button pressed for 2 seconds until you hear
2 tones. The volume of the loudspeaker will be greatly reduced and you can
use the BT Drive Free 311 like a regular phone. Repeat the operating step if
you want to use the BT Drive Free 311 again as hands-free system.
Audio streaming
The BT Drive Free 311 supports the A2DP function. With an audio streaming
connection, you can playback the music titles stored on the cell phone via
the BT Drive Free 311. In case of a call, the music playback is interrupted and
continued again after the call.

26
Resetting the BT Drive Free 311
You can restore the original factory settings of the BT Drive Free 311. In doing
so, all paired cell phones, the phone book and the call list are deleted and
English is set for voice announcements.
– In standby mode without Bluetooth connection, hold the buttons "+" and
"–" pressed at the same time for 5 seconds until the display shows "Erasing".
The process starts and is completed once the display shows "Erased" and
you hear a voice announcement.
– The BT Drive Free 311 automatically switches o.
Fault removal
If a connection between the BT Drive Free 311 and a cell phone cannot be
established, observe the following:
– Ensure that the battery is charged.
– Ensure that the Bluetooth function of the cell phone is activated.You nd
more detailed information in the operating instructions of the cell phone.
– Check whether the BT Drive Free 311 is connected with the cell phone.
– Ensure that the distance between the BT Drive Free 311 and a connected
cell phone is less than 10 metres and no obstacles (such as walls or elec-
tronic devices) are located between the devices. Obstacles can interfere
with the transmission or reduce the range.
– If these steps do not lead to a solution of the problem, remove the battery
for several minutes. If need be, contact the Service Centre of your dealer.
– The BT Drive Free 311 meets the Bluetooth specication v2.1 + EDR. The
awless function between the BT Drive Free 311 and Bluetooth-ready cell
phones from dierent manufacturers and of dierent types cannot be
guaranteed since it depends on the compatibility.

27
ENGLISH
Declaration of conformity
The Blaupunkt AudioVision GmbH & Co. KG declares that this product complies
with the basic requirements and the other relevant regulations of the direc-
tive 1999/5/EC. The declaration of conformity can be found on the Internet
under www.blaupunkt.com.
Warranty
We provide a manufacturer's warranty for products bought within the Euro-
pean Union. For devices purchased outside the European Union, the warranty
terms issued by our respective responsible domestic agency are valid. The
warranty terms can be called up from www.blaupunkt.com.
Technical data
Bluetooth specication Version 2.1 + EDR
Supported Bluetooth proles Headset, hands-free and phone book
proles
Frequency range 2.402 to 2.480 GHz ISM band
Bluetooth range Up to 10 metres (Class 2)
Dimensions 115 (L) x 55 (W) x 18 (H) mm
Weight 80 g
Battery charging time approx. 3 hours
Talk time Up to 10 hours
Standby time Up to 480 hours
Battery type Lithium-ion, 3.7 V, 650 mAh, replace-
able (compatible with Nokia battery
BL-5B)
Charger 5 V - 6 V DC, 300 mA
Subject to change!

150
FCC-Statements
All following FCC statements are valid for the Industry Canada Standard
(IC) as well.
General
Interference Warning: (according to FCC part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation
Caution: (pertaining to FCC part 15.21)
Modications not expressly approved by this company could void the user’s
authority to operate the equipment.

07/11 450 170 - de, gb, fr, es, pt, it, nl, sf, pl, hu, ro, bg
Blaupunkt AudioVision GmbH & Co. KG
Robert-Bosch-Str. 200
D-31139 Hildesheim
5 101 040 001
