Blaupunkt BT DRIVE FREE 411 Specification sheet

www.blaupunkt.com
Communication
BT Drive Free 411 1 021 104 411

2
Contents
BT Drive Free 411.................................................................................................................3
Bluetooth technology........................................................................................................3
Safety and general information .....................................................................................4
Disposal notes ......................................................................................................................5
Scope of delivery.................................................................................................................5
Installation on the steering wheel ................................................................................5
Overview ................................................................................................................................6
Battery information ............................................................................................................6
Charging the battery..........................................................................................................7
Switching on/o..................................................................................................................8
Registering (pairing) and connecting with the cell phone ..................................8
Multi-connection function...............................................................................................9
Establishing a connection with two cell phones ....................................................9
Using the BT Drive Free 411.......................................................................................... 10
Resetting the BT Drive Free 411.................................................................................. 12
Light indicators and signal tones ............................................................................... 12
Fault removal ..................................................................................................................... 13
Declaration of conformity............................................................................................. 13
Warranty .............................................................................................................................. 13
Technical data.................................................................................................................... 14

3
BT Drive Free 411
This wireless Bluetooth hands-free system was developed specically for
users who want to use their cell phone while driving. The BT Drive Free 411 is
conveniently attached to the steering wheel. The multi-connection function
allows the simultaneous use of the BT Drive Free 411 with two cell phones. Its
improved microphone system and DSP technology for echo cancelling and
noise suppression achieve an excellent hand-free quality.
Bluetooth technology
BluetoothTM is a registered trademark of Bluetooth SIG, lnc. Bluetooth is a
wireless communication technology with short range. It enables wireless
connections between all compatible portable and stationary communication
devices. The technology is based on a radio connection that ensures a fast
and reliable transmission of voice and data information.
Bluetooth is oriented to the worldwide applicable standard for operating in
the internationally recognised ISM frequency band (Industrial Scientic &
Medical). Within the ISM band (2.4 GHz to 2.48 GHz), the Bluetooth transmis-
sion operates 1600 times per second between 79 dierent frequencies with
a data transmission range of up to 10 metres (Class 2).

4
Safety and general information
– Carefully read the operating instructions and follow the instructions.
– Observe all locally applicable laws for the use of cell phones and hands-free
systems while driving. Operate the BT Drive Free 411 only if the trac situ-
ation allows it and you are not creating a risk for other trac participants.
– To avoid any damages and malfunctions, do not drop the device from
an elevated height.
– Protect the device against humidity, water and other liquids. If the device
should have been exposed to water, humidity or other liquids, do not use
it since it may lead to damages of the device and to injuries from electrical
shock or explosion.
– Do not expose the device to extreme heat sources, such as direct sunlight.
This can cause explosions as well as reduce the performance and/or service
life of the battery.
– Do not make any changes or repairs to the device and do not attempt to
disassemble it. (Particularly not on the battery since the risk of explosion
exists.) It will immediately void the warranty.
– Do not place any heavy objects on the device.
– Use only the supplied charger.
– Repairs and service work may be performed only by a qualied service
centre or the manufacturer.
– In case of extended non-use or thunderstorms, disconnect the device
from the power supply.

5
Disposal notes
Use the return and collection systems available to dispose of the old
device.
Scope of delivery
The scope of delivery includes:
– BT Drive Free 411
– 12-volt DC vehicle charger adapter
– USB charger cable
– Operating instructions

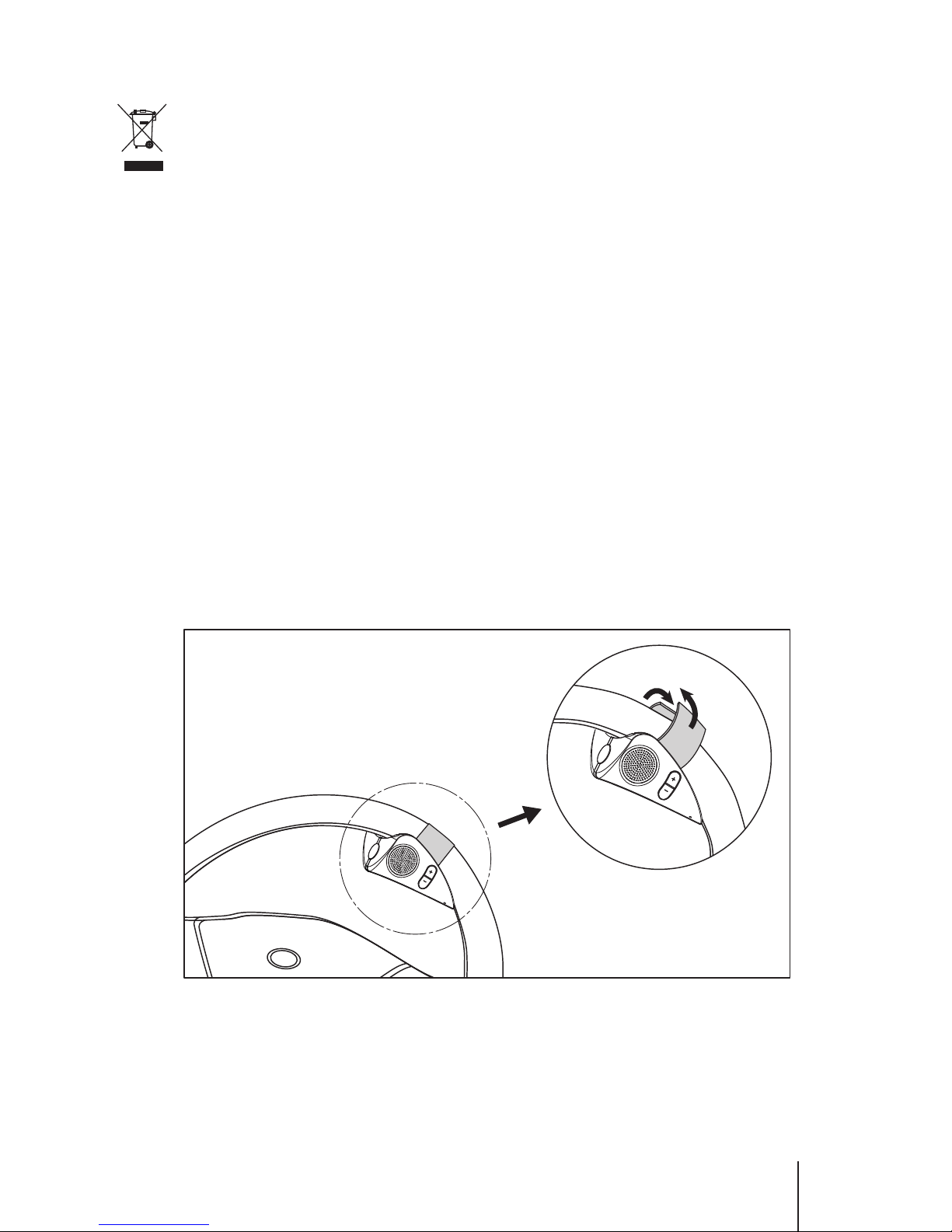

Installation on the steering wheel
Fasten the BT Drive Free 411 to the steering wheel using the Velcro strap.
Firmly pull the Velcro strap together so that the device will not loosen while
driving. Attach the BT Drive Free 411 to the inside circle of the steering wheel
and select a position so that it does not interfere with steering the vehicle.
Warning: The BT Drive Free 411 may not be positioned within the deploy-
ment area of an air bag.

6

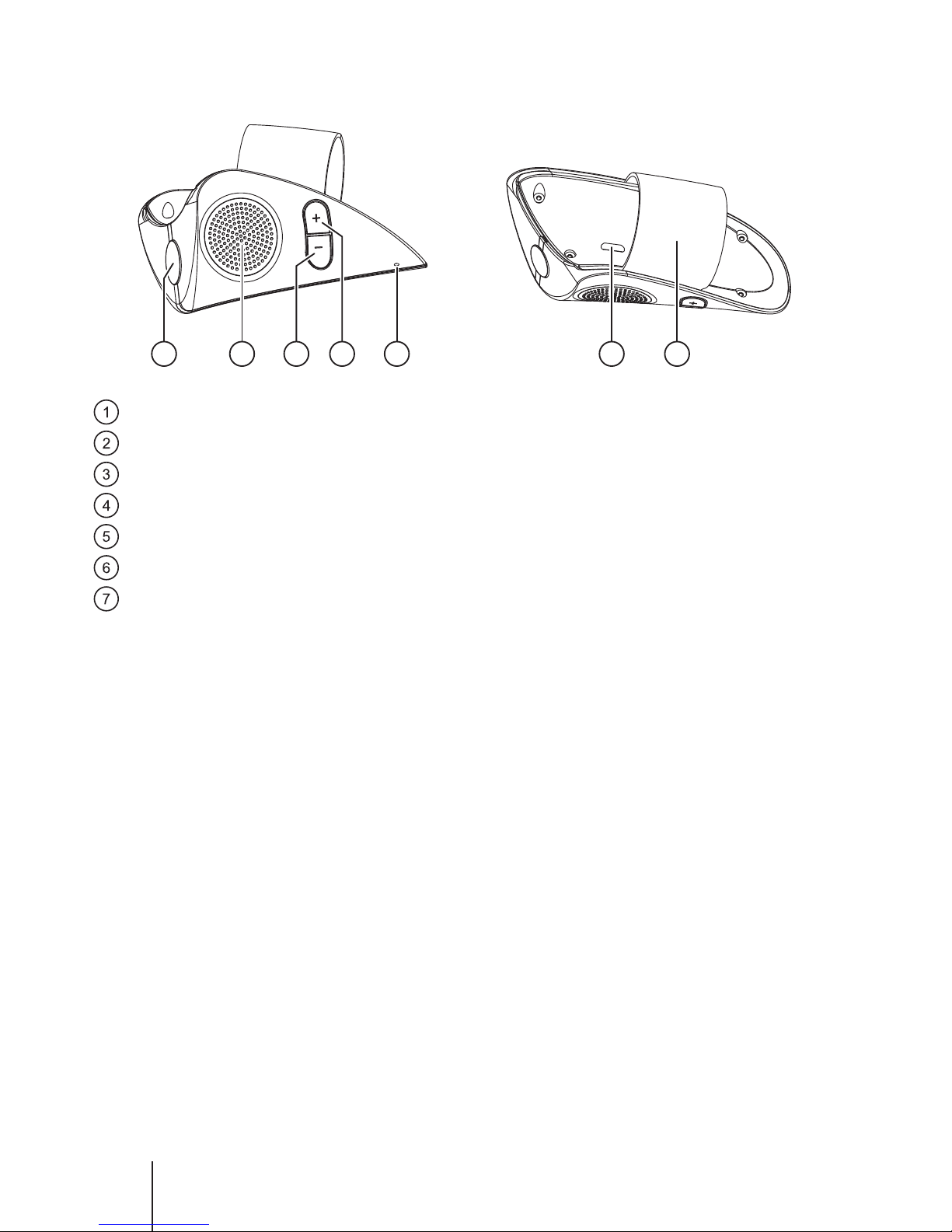

Overview
1 2 3 4 5 6 7
MF button (illuminated multifunction button)
Loudspeaker
Decrease volume (–)
Increase volume (+)
Microphone
Charging socket (micro USB port)
Velcro strap for fastening to the steering wheel
Battery information
The device is equipped with an integrated lithium-polymer battery. The
battery cannot be replaced. Do not attempt to remove the battery from the
device since it would damage the device. The full performance of a new bat-
tery is not achieved until after two or three complete charging-discharging
cycles. The battery can be charged and discharged several hundred times,
but it looses its capacity over time.
Disconnect the BT Drive Free 411 from the power supply as soon as the
battery is fully charged, since overcharging would reduce the service life of
the battery. A charged battery looses its capacity if it is not used.
Important: Ensure that the battery is fully charged if you do not use the device
for a longer period of time. To avoid a complete discharge of the battery, the
BT Drive Free 411 should be charged at least every 2 months.

7
Charging the battery
The BT Drive Free 411 is operated with a rechargeable battery. Charge the
battery completely before its rst use. Read the section "Battery information"
before starting the charging process.
You have to remove the BT Drive Free 411 from the steering wheel for the
charging procedure. The charging socket is located at the side of the hous-
ing that rests against the steering wheel. Connect the BT Drive Free 411 with
the vehicle charging adapter via the USB cable. Insert the vehicle charging
adapter into the cigarette lighter of the vehicle. The BT Drive Free 411 can
also be charged with the USB cable connected to the computer.
Note: As soon as the charger is connected, the BT Drive Free 411 switches o.
During the charging process, the MF button lights red. After the battery is
fully charged, the MF button lights blue. The charging process of the battery
lasts approx. 3 hours. Disconnect the BT Drive Free 411 from the charger after
it has been charged.
A completely charged battery supports a talk time of up to 7 hours and a
standby time of up to 300 hours. If the charge state of the battery becomes
low, the MF button ashes red every 3 seconds and you hear a warning beep
every 20 seconds.

8
Switching on/o
Switching on
To switch the unit on, press the MF button for approx. 3 seconds until you
hear a high-pitched signal tone and the MF button lights blue. Afterwards,
the MF button lights blue and the device is switched on.
Switching o
To switch the unit o, press the MF button for approx. 3 seconds until you
hear a low-pitched signal tone and the MF button lights red. Afterwards, the
device is switched o.
Registering (pairing) and connecting with the cell phone
Before you can use the BT Drive Free 411, you must register and connect it with
a Bluetooth-ready cell phone. Registering is a one-time process and required
only for the rst connection with the cell phone. The BT Drive Free 411 can
be registered with up to eight cell phones and be connected simultaneously
with two cell phones.
– Hold the BT Drive Free 411 within range of a Bluetooth-ready cell phone;
the distance should not exceed a metre.
– The BT Drive Free 411 must be switched o.
– Press the MF button for approx. 6 seconds until you hear a low-pitched
signal tone and the MF button intermittently ashes red and blue. The
device is in registration mode.
– Activate the Bluetooth function of the cell phone and start the search for
Bluetooth devices. (For further details, please read the operating instruc-
tions of your cell phone).
– From the list of devices found, select the "BT DF 411".
– If required, enter the PIN code "0000" and conrm the entry. If the pairing
process was successful, you hear a signal tone and the MF button lights
blue for 3 seconds. (Note: The PIN code is preprogrammed and cannot
be changed.)
– After registering, the BT Drive Free 411 automatically connects with the
cell phone. For some cell phones, you have to manually conrm the con-
nection. Next, the BT Drive Free 411 changes to standby mode and the
MF button ashes blue every 3 seconds.
Note: If the registering is not completed within 2 minutes, the BT Drive Free 411
switches o again. In this case, repeat the registering.

9
Multi-connection function
The multi-connection function allows the simultaneous use of the
BT Drive Free 411 with two cell phones. This is advantageous for users with
a personal and a business cell phone.
Establishing a connection with two cell phones
There are several options of connecting the BT Drive Free 411 with already
registered cell phones.
–Automatic connection
When switching on the BT Drive Free 411, a connection is automatically
established with the two most recently connected cell phones.
–Establishing a connection via the BT Drive Free 411
To manually establish a connection between the BT Drive Free 411 and
the two most recently connected cell phones, press the MF button. The
BT Drive Free 411 rst connects itself with the most recently connected
cell phone. Then it connects itself with the next most recently connected
one.
–Establishing a connection via the cell phone
If the cell phone is not one of the two most recently connected cell phones
with the BT Drive Free 411, you have to establish the connection via the
Bluetooth menu of the cell phone. After successful connection, you can
establish another connection with a second cell phone. This allows you
to determine the sequence of connections.
If two cell phones are connected with the BT Drive Free 411, the cell phone
connected rst is the rst device and the other one the second device. Another
connection can be established only after rst disconnecting one of the two
cell phones. The cell phone which is still connected afterwards becomes the
rst device in the sequence.
Note that voice dialing is available only for the rst device and the operation
for redialling the last number diers for the rst and the second device. The
other functions are executed the same way using the BT Drive Free 411 as a
connection with only one cell phone.

10
Using the BT Drive Free 411
After successfully completing the registration and charging the battery, the
following functions can be executed:
Making a call
–Voice dialing*
To activate voice dialing, briey press the MF button. You hear several
signal tones. After the signal tone, speak the voice command. After the
voice command has been recognized, the cell phone dials the number
associated with it.
Note: If two cell phones are connected with the BT Drive Free 411, the
voice commands are directed only to the cell phone connected rst.
–Redialling the last number*
Press the MF button twice. You hear a signal tone and the number dialled
last is being redialled.
Note: If two cell phones are connected with the BT Drive Free 411, hold
the "–" button pressed for 2 seconds to dial the last number of the cell
phone connected last.
–Call origination via cell phone
Select the desired number as usual via the cell phone.The call is automati-
cally transferred to the BT Drive Free 411.
Answering a call
To answer an incoming call, briey press the MF button.
Ending a call
Briey press the MF button to end a call.
Rejecting a call*
To reject a call, hold the MF button pressed until you hear a signal tone.
Adjusting the volume
During a phone call, adjust the volume with the buttons "+" and "–".
Muting the microphone
To mute the microphone during a call, press the "–" button for 3 seconds.The
MF button flashes red every 10 seconds and you hear two signal tones. Press
the "–" button again for 3 seconds to cancel mute.

11
Transferring a call
To transfer a call from the BT Drive Free 411 to the cell phone, press the but-
tons "+" and "–" at the same time. Repeat the step to transfer the call back
to the BT Drive Free 411.
Note: With some cell phones, the connection is disconnected if you transfer
the call to the cell phone. To transfer the call back to the BT Drive Free 411,
you have to press the MF button instead of the buttons "+" and "–".
Managing calls*
You can answer and manage two calls on one of the connected cell phones
via the BT Drive Free 411.
You receive a call during an active call
Hold the active call and answer the
incoming call.
Press the MF button for 2seconds.
End the active call and answer the
incoming call.
Briey press the MF button.
Continue the active call and reject
the incoming call.
Press the MF button twice.
You are conducting two calls, an active one and one on hold
Change between the active call
and the one on hold.
Press the MF button for 2seconds.
End the active call and answer the
call on hold.
Briey press the MF button.
Continue the active call and end
the call on hold.
Press the MF button twice.
Continue the active call and answer
the call on hold.
Briey press the "+" button
Note: You do not have the option of managing several calls from two con-
nected cell phones at the same time. When you receive a call on one cell
phone while a call is active on the other cell phone, the active call is being
ended when you answer the incoming call by briey pressing the MF button.
* The cell phone must support this function. You nd the pertinent information in
the operating instructions of the cell phone.

12
Resetting the BT Drive Free 411
The BT Drive Free 411 can be registered with up to eight cell phones. You
can delete the registration list and reset the hands-free system to the fac-
tory settings.
– The BT Drive Free 411 must be switched on and no connection may exist
to a cell phone.
– Press and hold down the "+" and "–" buttons simultaneously for approx.
10 seconds until the MF button intermittently flashes lights red and blue.
– If the registration list was deleted, the MF button stops ashing intermit-
tently.
– After the next switch-on, the BT Drive Free 411 is in registration mode.
Light indicators and signal tones
Device status MF button Signal tones
Switching on Lights blue for 3 seconds 1 high-pitched
sound
Switching o Lights red for 3 seconds 1 low-pitched
sound
Registration mode Flashes red and blue alternately
Standby
mode without
connection
Flashes blue once every 3 seconds
Standby mode
with connection
Lights blue every 3 seconds
Incoming call Flashes blue
Active call Flashes blue once every 2 seconds
Mute Flashes red once every 10 seconds 2 tones every
10 seconds
Low battery Flashes red once every 3 seconds 5 tones every
20 seconds
Battery is charging Lights red.
Lights blue after the battery is
fully charged.

13
Fault removal
If a connection between the BT Drive Free 411 and a cell phone cannot be
established, observe the following:
– Ensure that the battery is charged.
– Ensure that the Bluetooth function of the cell phone is activated.You nd
more detailed information in the operating instructions of the cell phone.
– Check whether the BT Drive Free 411 is connected with the cell phone.
– Ensure that the distance between the BT Drive Free 411 and a registered
cell phone is less than 10 metres and that no obstacles are between the two
devices. Obstacles can interfere with the transmission or reduce the range.
– If none of these measures is successful, please contact the service depart-
ment of your distributor.
– The BT Drive Free 411 meets the Bluetooth specication v2.1 + EDR. The
awless function between the BT Drive Free 411 and Bluetooth-ready cell
phones from dierent manufacturers and of dierent types cannot be
guaranteed since it depends on the compatibility.
Declaration of conformity
The Blaupunkt AudioVision GmbH & Co. KG declares that this product complies
with the basic requirements and the other relevant regulations of the direc-
tive 1999/5/EC. The declaration of conformity can be found on the Internet
under www.blaupunkt.com.
Warranty
We provide a manufacturer's warranty for products bought within the Euro-
pean Union. For devices purchased outside the European Union, the warranty
terms issued by our respective responsible domestic agency are valid. The
warranty terms can be called up from www.blaupunkt.com.

14
Technical data
Bluetooth specication Version 2.1 + EDR (Enhanced Data
Rate) + SSP (Secure Simple Pairing)*
Supported Bluetooth proles Headset and hands-free proles
Frequency range 2.4 to 2.48 GHz ISM band
Bluetooth range Up to 10 metres (Class 2)
Dimensions 46 (L) x 36 (W) x 95 (H) mm
Weight approx. 40 g
Battery charging time approx. 3 hours
Talk time up to 7 hours
Standby time up to 300 hours
Battery type Lithium-polymer, 3.7 V, 160 mAh,
rechargeable, non-replaceable
Charger 5 V - 6 V DC, 300 mA
* For registering hands-free systems without entering the PIN code if the other
Bluetooth device also supports version 2.1.
Subject to change!

15
FCC-Statements
All following FCC statements are valid for the Industry Canada Standard
(IC) as well.
General
Interference Warning: (according to FCC part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation
Caution: (pertaining to FCC part 15.21)
Modications not expressly approved by this company could void the user’s
authority to operate the equipment.

11/11 450 177 - gb
Blaupunkt AudioVision GmbH & Co. KG
Robert-Bosch-Str. 200
D-31139 Hildesheim
5 101 040 002
