Blaupunkt Chicago 600 Assembly instructions

Enjoy it.
Operating and installation instruction
MULTIMEDIA NAGIVATION-READY*
CHICAGO 600
AV
*Optional iGO PrimoNextgen Mapping

2

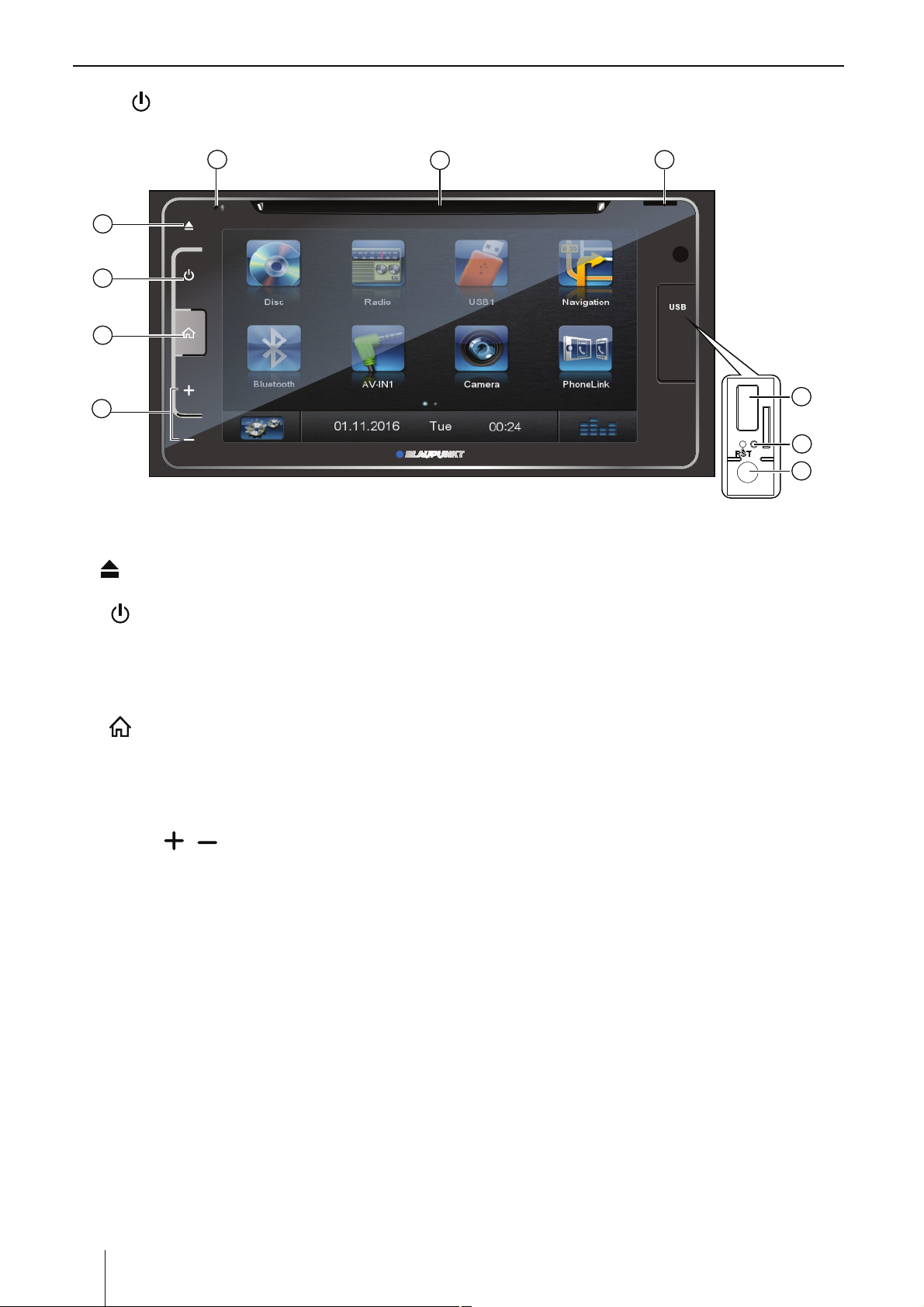

Press [ ] button to turn on the unit.
1. Eject disc (when disc inserted)
2. [ ] Button
Short press: Switch on device
In operation: Mute audio source
Long press: Switch o device
3. [ ] Button
Short press: Call up main menu
In the main menu: Call up menu of active source.
Long press: Call up Bluetooth® function directly
4. Volume /
Increase / Decrease the volume
5. Microphone
6. Disc Slot
Insert the disc with label side facing up.
7. microSD card reader
The card reader supports microSD cards on
which either audio/video les or navigation data
can be stored.Connect aUSB device for playback of
8.
OWUKEXKFGQſNGU
9 Reset
Load factorysettings
10. AV IN









Controls - Device
USB Connector
Connect aUSB device for playback of

ENGLISH
3
Control PanelRemote Control
11 25
26
27
28
29
30
31
32
33
34
35
37
38
12
13
14
15
16
17
18
19
20
21
22
23
24
36
39
40
41
Controls - Remote control
11. Return to the home menu
12. Eject the disc
13. Access to tuner source
14. Access to disc source
15. - Search an available radio station by
decreasing tuning frequency
- Select the previous chapter/track for playback
16. Select radio band
17. - Zoomin (Picture menu of CD/USB/SD)
- Access to music list (Audio menu of music
playing)
18. Adjust screen settings
19. Open EQ menu
20. Menu cursor
21. Enter
22. - Open route menu (DVD)
- Turns on/o PBC (VCD)
23. Digit area
24. Repeat playback
25. Change to next source
26. Power on/o
27. Access to Bluetooth source
28. Access to navigation source
29. Pause playback/Start playback
30. - Search an available radio station by
increasing tuning frequency
- Select the next chapter/track for playback
31. - Playback disc in dierent angle for a
scene (DVD)
- Rotate (photo playing)
- Access to video list
32. - Language selection for subtitle (DVD)
- Access to photo list
33. Change the sound channel for disc playback
34. Increase/Decrease volume
35. Access to settings source
36. Mute On/O Audio Output
37. Activate direct access mode
38. Dial/Receive a call
39. Hang up
40. Playall chapter/tracks in randomorder
41. - Press to clear the number one byone
- Hold to clear all the numbers

4
Controls
Placing the device in operation................... 5
Turn on/o the power ........................................... 5
Mute............................................................................. 5
Adjust the Volume................................................... 5
Playing Source Selection ...................................... 5
Main Menu................................................................. 5
Setting the reception area ................................... 5
Radio mode ................................................... 6
Start radio mode...................................................... 6
Select One Radio Band.......................................... 6
Tune.............................................................................. 6
Storing stations manually................................... 7
Storing stations automatically(Travelstore).. 7
Scanning stations ................................................... 7
Adjusting the seek tuning sensitivity............... 7
DVD/CD/USB media playback ..................... 7
Insert a Disc ............................................................... 7
Eject the Disc............................................................. 7
Connect a USB Device ........................................... 7
Remove a USB Device............................................ 7
Insert/Remove a SD Card...................................... 7
Touch Screen Controls........................................... 7
DVD movie playback.............................................. 8
Audio playback fromDVD/CD, USB or
microSDHC.................................................................... 8
Video playback fromDVD/CD, USB or
microSDHC.................................................................... 9
Image playback fromDVD/CD, USB or
audioSDHC..................................................................10

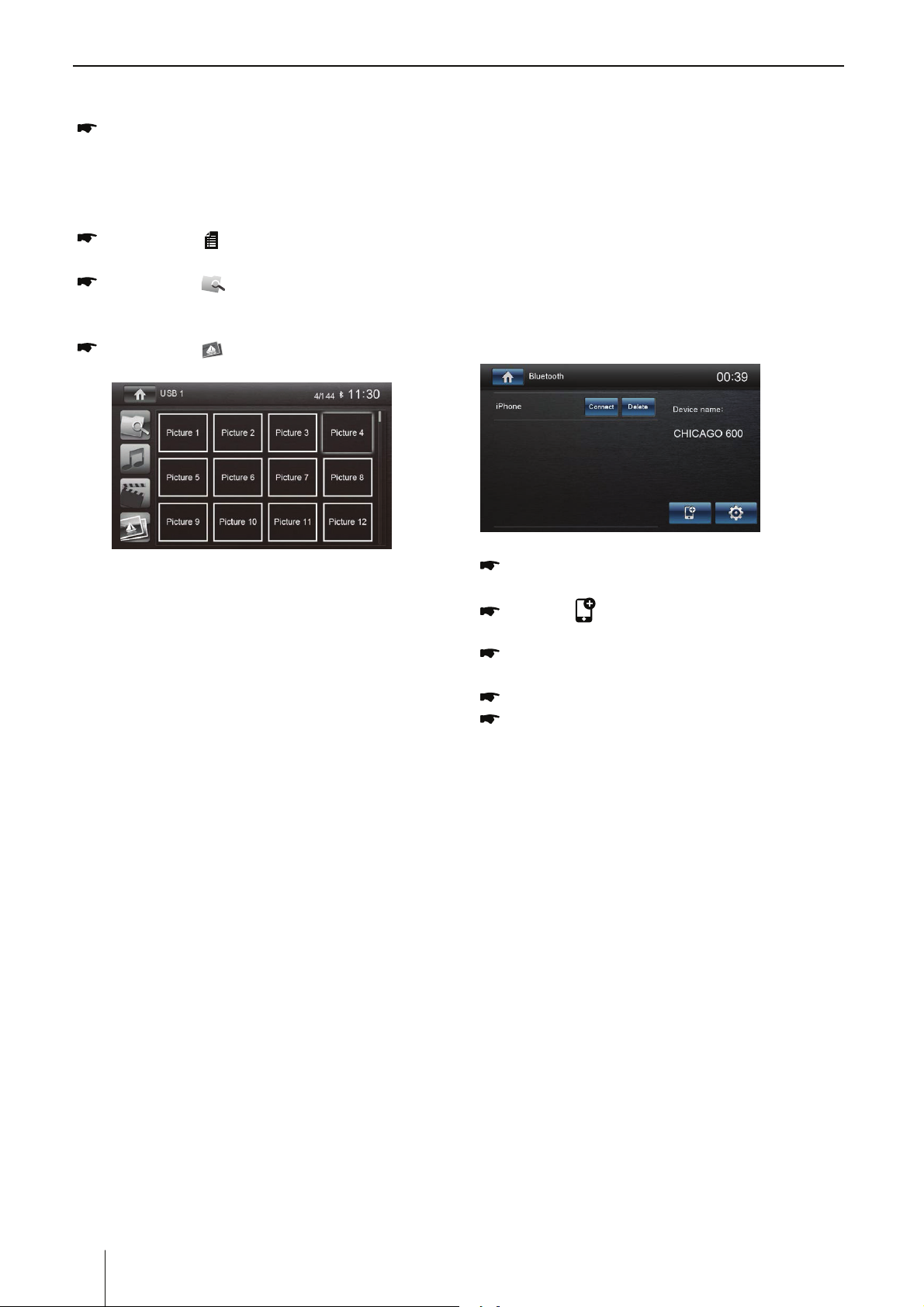

Bluetooth mode......................................... 10
Pair the Bluetooth-enabled Devices...............10
Disconnect Bluetooth Device...........................11
Make a Call...............................................................11
Answer an Incoming Call....................................11
Adjust Bluetooth Settings..................................11
Music Mode.............................................................12

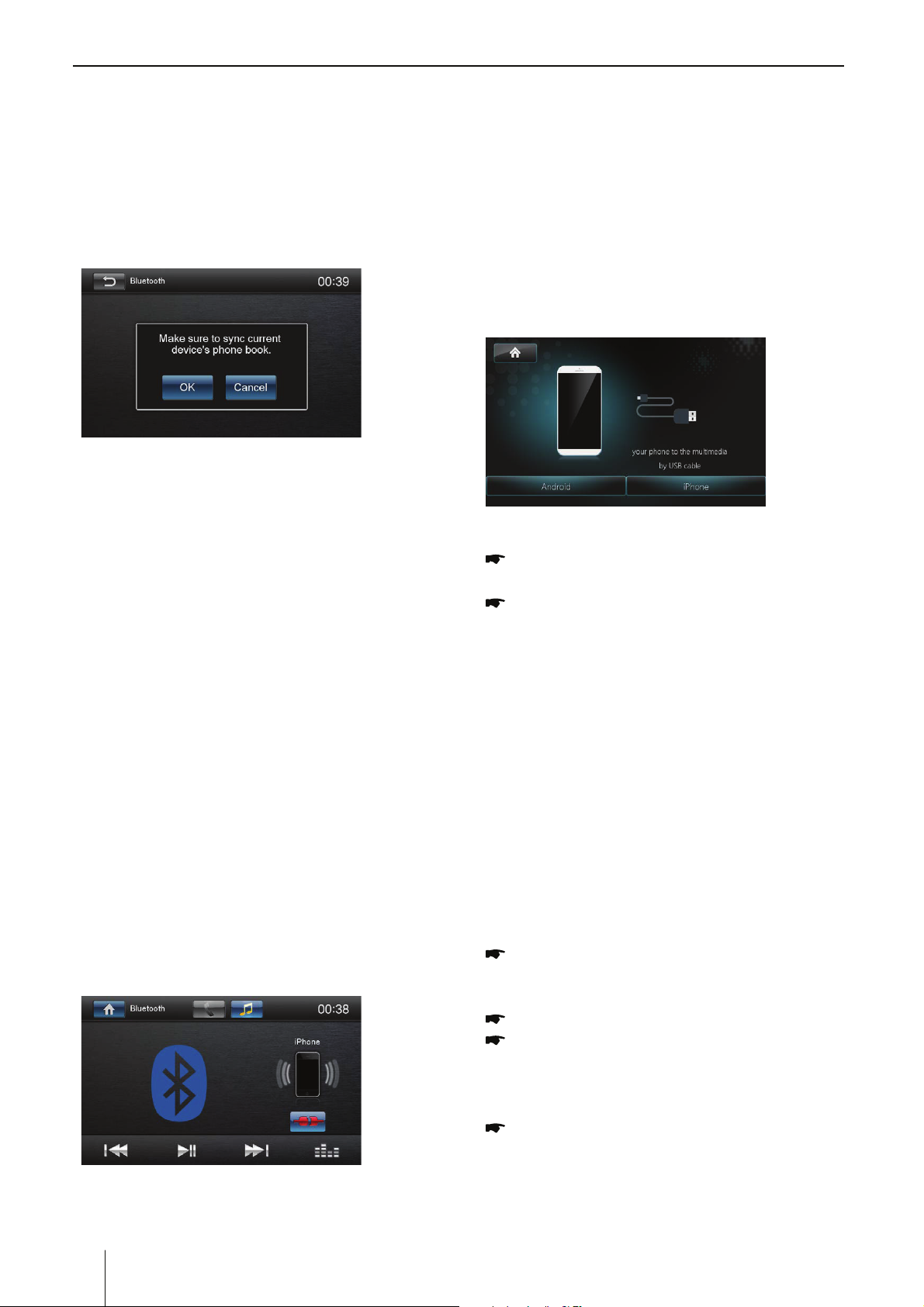

PhoneLink ................................................... 12
Overview of PhoneLink.......................................12
Connect with Android phone...........................12
Connect with iPhone ...........................................13

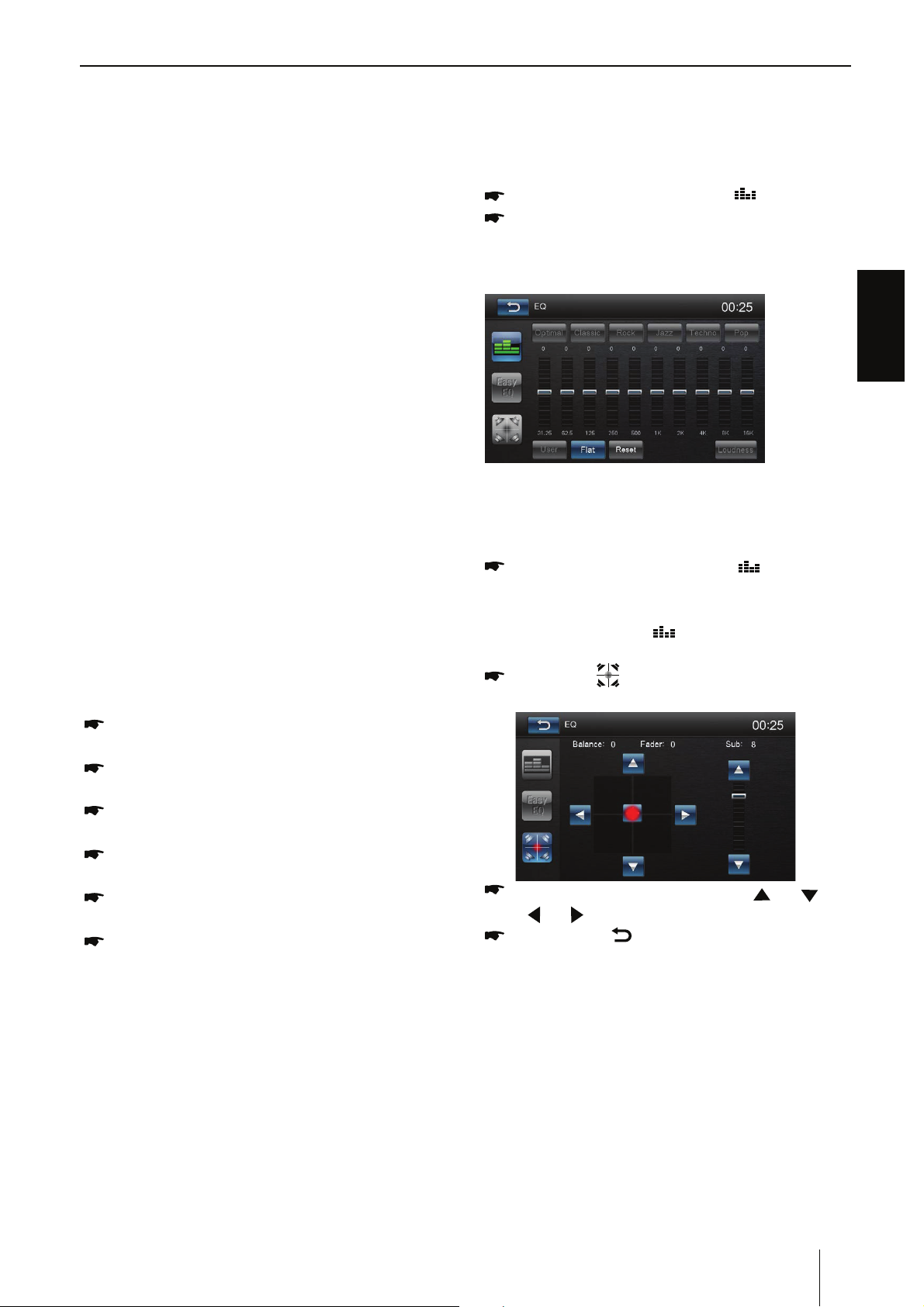

Sound settings............................................ 13
Select Preset Equalizer ........................................13
Adjust FAD BAL ...................................................13
Navigation Operations............................... 13
AUX Operations .......................................... 13
Basic Settings.............................................. 14
General......................................................................14
Video..........................................................................14
Sound ........................................................................14
Time............................................................................14
Language .................................................................14
Bluetooth .................................................................14
Volume ......................................................................14

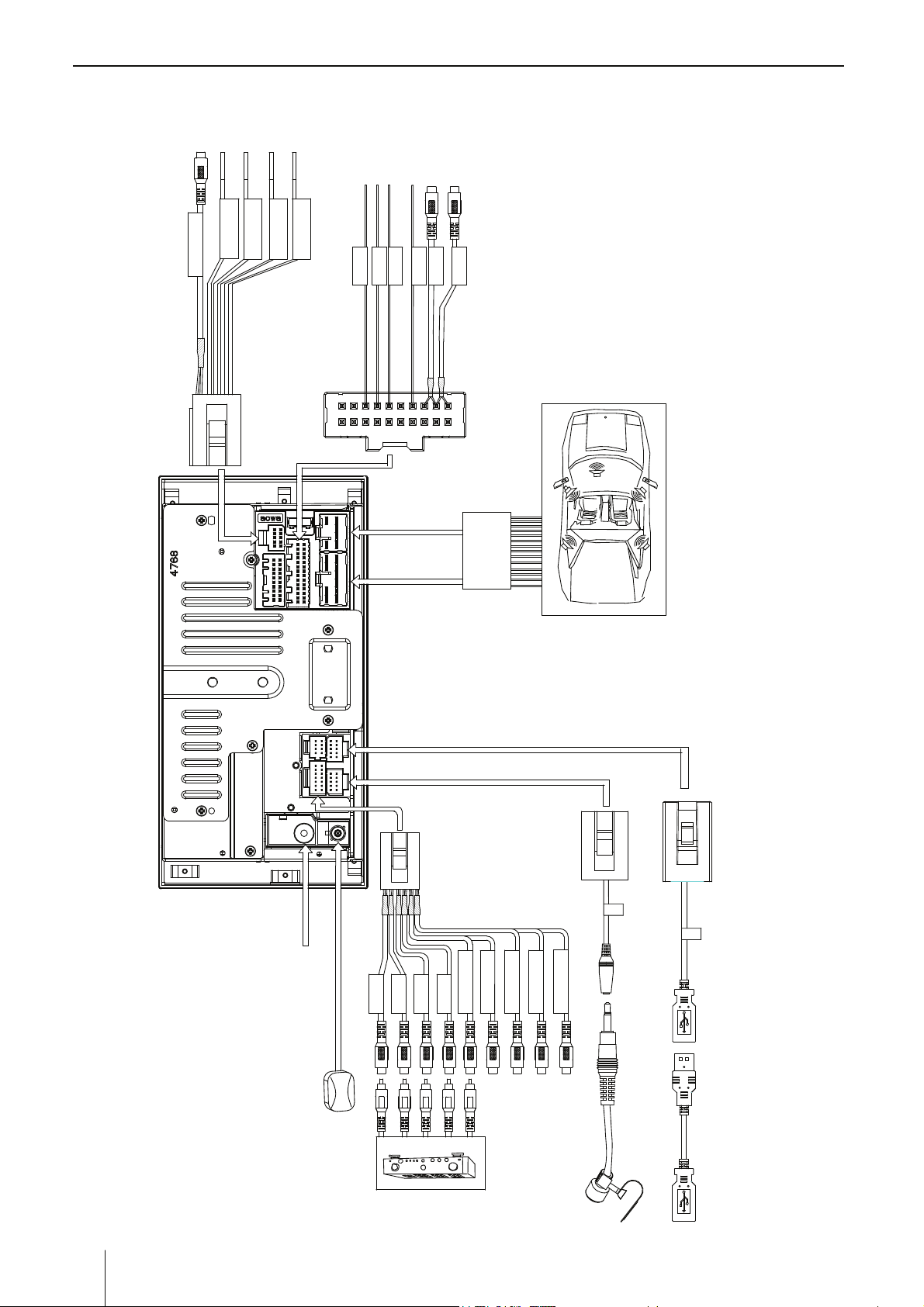

Connection diagram.............................................15
Troubleshooting.....................................................17
Supported formats................................................18

ENGLISH
5
Placing the device in operation
Caution!
Transport securing screws
Ensure that the transport securing screws at the
top side of the device are removed before the
startup of the device.
Turn on/o the power
Press and release [ ] button to turn the
unit on.
Press and hold the [ ] button to turn the
unit o.
Note:
The unit will power on in the same state it was
in when powered o.
Mute
Press the [ ] button to mute the sound.
Note:
t 1SFTTJOHUIF< ] button again or adjusting
volume will unmute.
Adjust the Volume
Press the [ ] or [ ] button to increase or
decrease the volume level.
The adjustable range of volume is 0 to 50.
Playing Source Selection
Press the [ ] button on the panel to show
main source menu.
Touch desired icon on the the screen to
enter corresponding working mode, such as
Disc, Navi, Radio, etc.
Drag left/right to scroll.
Note:
t 8IFOTPNFEFWJDFTBSFOPUSFBEZUIFZ
cannot be selected.
t :PVTIPVMETUPQTXJUDIJOHXIFOUIFQMBZJOH
source you desired has been selected and
wait for some seconds, the unit will auto enter
the playing source mode you have selected.
Main Menu
In the main menu, you press the buttons on the
touch-screen to call up the dierent sources and
operating modes.
Press the [ ]button to enter main source
menu.


1. Enter setting mode.
2. Function icons
3. Clock
4. Touch to access Equalizer level settings menu.
Setting the reception area
This car sound systemis designed for operation in
dierent regions with dierent frequencyranges
and station technologies. The factorydefault
of the reception area is "ASIA (FM/AM)". If you
operate the car sound systemoutside of Asia, you
mayrst have to set a suitable reception area in
the menu:

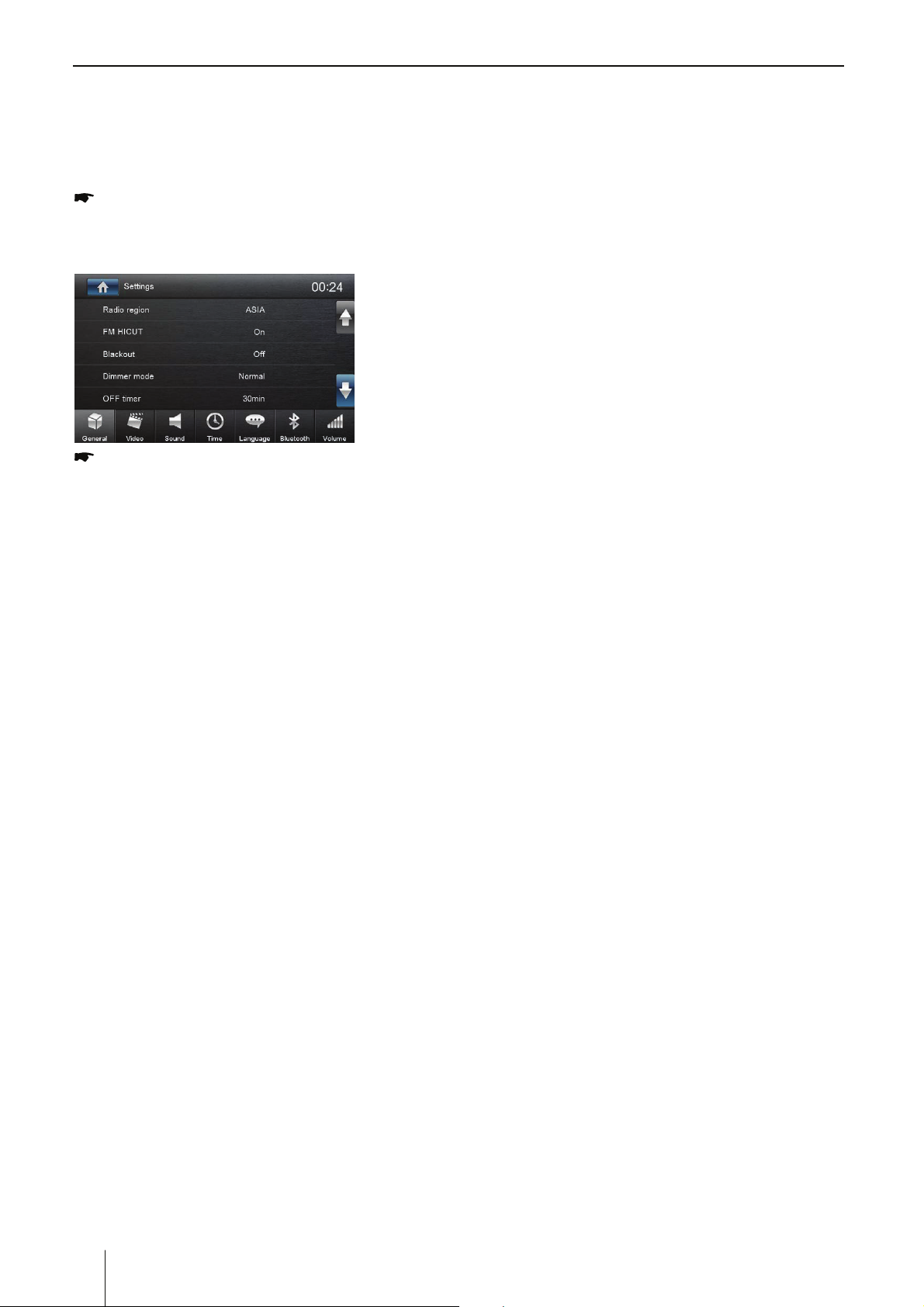

In the main menu, press the [ ] button.
The Settings menu is displayed.
In the bottomarea of the Settings menu,
press the [ General ] button.
The current setting is displayed behind
“Radio region”.
Tap twice (double-click) on the [ Radio
region ] button to displaythe list of available
reception areas.
Select the desired reception area bydouble-
clicking.The list is hidden, the selected
reception area is set.
Press the [ ] button. The main menu is
displayed again.
Startup

6
Radio mode
Radio mode

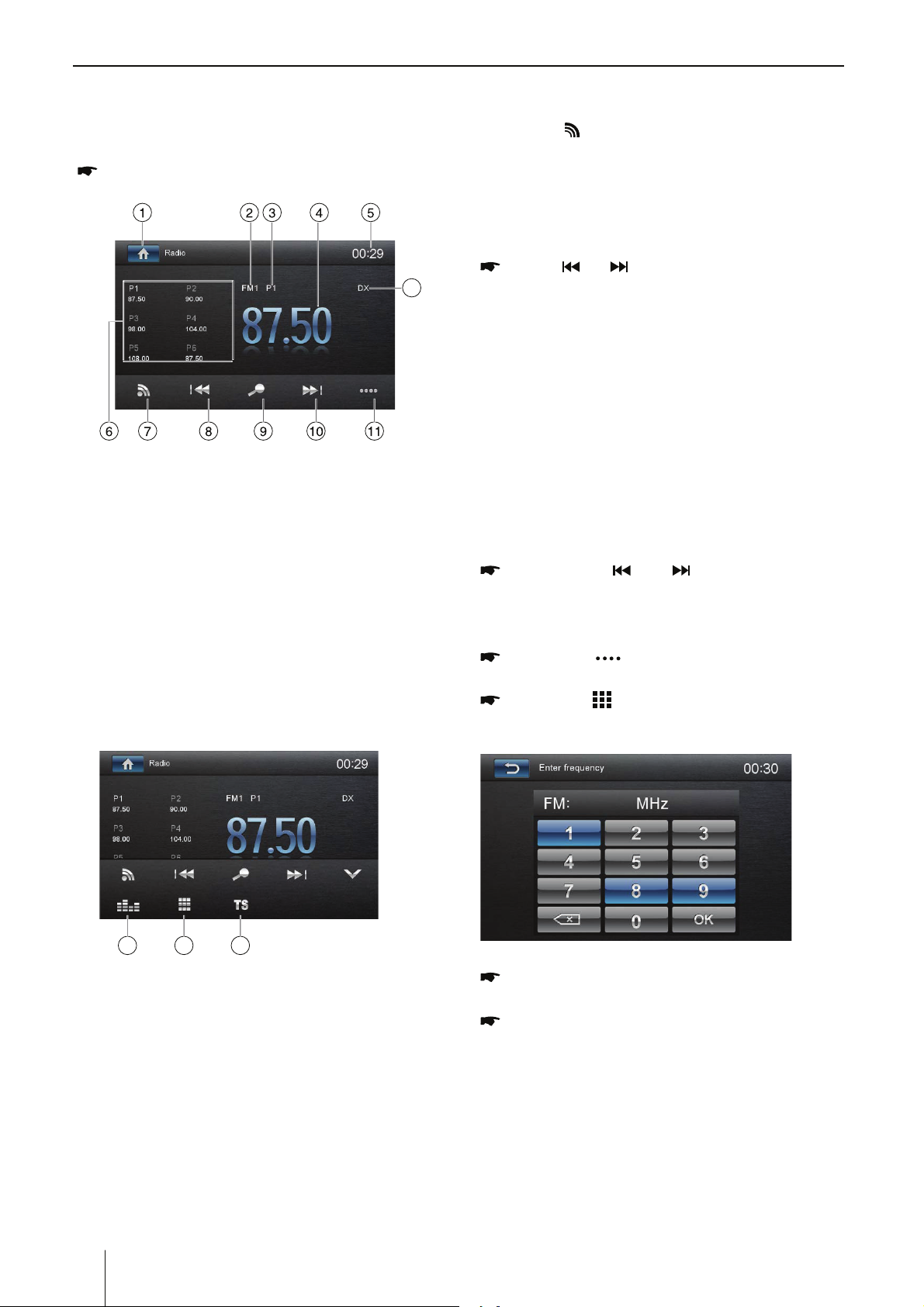

Start radio mode
In the main menu, press the [ Radio ] button.
The radio playback menu is displayed.
12
1. Return to home menu
2. Current radio band
3. Current preset radio station
4. Current frequency
5. Clock
6. Broadcaster information stored at the preset
7. Band switch
8. Tune backward
Auto tune backward. (long press)
9. Search stations automatically
10. Tune forward
Auto tune forward. (long press)
11. Touch to view more on-screen buttons
12. LO/DX Seeking
13 14 15
13. Touch for quick access to Equalizer level
settings
14. Enter frequencydirectly
15. Storing stations automatically
Select One Radio Band
Touch the [ ] icon on the user interface to select
one radio band among FM1, FM2, FM3, AM1 and
AM2.
Tune
Auto Tuning
Hold [ ] / [ ] icon on the user interface
more than 2 second to seek a higher / lower
station.
To stop searching, repeat the operation above or
press other buttons having radio functions.
Note:
8IFOBTUBUJPOJTSFDFJWFETFBSDIJOHTUPQTBOE
the station is played.
Manual Tuning
Method 1:
During manual tuning, the frequencywill be
changed in steps.
Touch the [ ] / [ ] icon on the user
interface to tune in a higher / lower station.
Method 2:
Press the [ ] button to displayadditional
operating options.
Press the [ ] button.
A numeric keypad is displayed for the
frequencyinput.
Enter the frequencyof the desired station
with the numeric keypad.
Press the [ OK ] button.
The radio playback menu is displayed, the
station of the frequencyentered is played
back.

ENGLISH
7
Storing stations manually
Select the desired memorybank with the
[
] button.
Set the desired station.
Press one of the memorybuttons [ P1 ] -
[ P6 ] for approx. 2 seconds to store the
current station at the button.
The station is stored.
Storing stations automatically
(Travelstore)
8JUI5SBWFMTUPSFZPVDBOBVUPNBUJDBMMZTFBSDIGPS
and store the 6 FM stations o ering the strongest
reception in the region in the current memory
bank. Anypreviouslystored stations in this
memorybank are deleted in the process.
Select a memorybank.
Press the [ ] button to displayadditional
operating options.
Press the [ TS ] button.
The tuner starts the automatic station seek tuning.
After the storing is completed, the radio plays the
station at memorylocation 1 of the previously
selected memorybank.
Scanning stations
:PVDBOVTFUIFTDBOGVODUJPOUPQMBZBMMUIF
receivable stations of the current waveband for a
few seconds.
Press the [ ] button.The seek tuning
searches for stations in the current waveband.
Each receivable station is played for a few
seconds in the process.
Pressing the [ ] button again selects the
currentlyscanned station and plays it back.
Adjusting the seek tuning sensitivity
The seek tuning sensitivitydecides whether the
automatic station seek tuning fi nds onlystrong
stations or also weaker stations that maybe noisy.
Press the [ LO ] or [ DX ] button to adjust the
sensitiv-ityof station seek tuning.
If LO is displayed, onlystations with a strong
signal are found during seek tuning.
If DX is displayed, stations with a strong and
weak signal are found during seek tuning.
Radio mode, DVD/CD/USB media playback
Insert a Disc
Insert a disc into the slot, and the unit will change
to disc mode automatically.
Notes:
t 1MFBTFDPOöSNXIFUIFSUIFSFJTBEJTDJOUIFVOJU
before you insert another one.
t 5IFVOJUXJMMFYJUDVSSFOUQMBZJOHTPVSDFBOE
enter DVD mode when one disc is inserted.
t 5IFGPMMPXJOHEJTDGPSNBUTBSFTVQQPSUFE$%3
$%38%7%3%7%3%7%38%7%38
Eject the Disc
Press [ ] on the panel to eject the disc.
Notes:
t "GUFSFKFDUJOHUIFEJTDUIFVOJUSFWFSUTUP
another source automatically.
t *GUIFEJTDJTOPUSFNPWFEGSPNUIFVOJUXJUIJO
10 seconds, the disc will be reloaded to prevent
accidental damage.
Connect a USB Device
Open the USB door.
Insert the USB device into the USB slot.
Playstarts automatically.
Remove a USB Device
Select another source in the main menu.
Remove the USB device.
Insert/Remove a SD Card
t*OTFSU
Insert the SD card into the SD card slot, the
unit will read the les automatically.
t3FNPWF
Select another source in the main menu.
Press the card until you hear a click sound.
Remove the SD card.
Touch Screen Controls
The touch areas for video/picture playback are
outlined below:
B
C
A
A: Return to the main menu
B: Pl aythe video and displayplayback

8
DVD/CD/USB media playback
information
C: Displayonscreen control menu
D: Time display
DVD movie playback
The car sound systemcan playvideo DVDs and
VCDs. After inserting the DVD, the playback starts
automatically. The DVD menu is displayed.
Touch the touchscreen once to displaythe
playback menu again.
The playback menu is shown.
1
23456
7
1. Return to home menu
2. Pause playback, call up DVD menu.
3. Select previous chapter.
4. Interrupt playback and continue playback.
5. Select next chapter.
6. Call up keypad for direct selection of titles,
chapters.
7. Show additional operating options.
Tap on [ ] to displayadditional operating
options of the playback menu.
1
8 9 10 11 12 13
8. Displayequalizer.
9. Dene range for repeat function.
10. Select playback language
11. Show subtitles
12. Repeat play
13. Adjust image.
Audio playback fromDVD/CD, USB
or microSDHC
5IFQSJODJQMFTPGBVEJPQMBZCBDL.18."
fromdata carriers are identical for all sources.
Select the desired source via the main menu.
The device changes to the desired source
and the playback starts.
If the playback does not start with the audio
playback,
Press the [ ] button to change to the folder/
le list.
Press the [ ] button to displayall the
folders and les of the data carrier.
- Or -
Press the [ ] button to displayall the
audio les of the data carrier.
[ ] Scroll through the list page by
page.
[ ] Scroll through the list page bypage.
[ ] Open selected folder or start titles.
- Or -
Brieflytap twice (double-click) on the name of
the folder/track. The folder is opened/the track is
started.
[ ] Exit the folder/le list.
After starting a title, the playback menu is
displayed.
1
23456
1. Return to home menu
2. Displaythe folder/le list.
3. Short press: Title selection.
Long press: Fast searching.
4. Interrupt playback and continue playback.
5. Short press: Title selection.

ENGLISH
9
DVD/CD/USB media playback
Long press: Fast searching.
6. Show additional operating options.
1
78910
7. Displaykeypad to directlyenter the number of
the desired title.
8. Start and end REPEAT function.
The REPEAT mode changes each time the
[
] button is pressed.
Display REPEAT mode
Repeat current track
Repeat current folder
Repeat all tracks of data carrier
9. Start MIX randomtrack playand end it again.
If the MIX function is switched on, the
symbol is displayed in white.
The MIX mode depends on the selected
REPEAT function.
REPEAT
mode
display
MIX mode
No random track play
Mixing tracks of the current
folder
Mixing tracks of the data
carrier
10. Displayequalizer.
Video playback fromUSB or
microSDHC
Select the desired source via the main menu.
The device changes to the desired source
and the playback starts.
If the playback does not start with the video
playback,
Press the [ ] button to change to the folder/
le list.
Press the [ ] button to displayall the
folders and les of the data carrier.
- Or -
Press the [ ] button to displayall the
video les of the data carrier.
If you selected a movie, the playback is started.
During the movie playback, the playback menu is
hidden.
Brieytouch the touchscreen once to display
the playback menu again.
The playback menu is shown.
1
23456
7
1. Return to home menu.
2. Displaythe folder/le list.
3. Select previous movie.
4. Interrupt playback and continue playback.
5. Select next movie.
6. Call up keypad for direct selection of movie.
7. Show additional operating options.
Tap on [ ] to displayadditional operating
options of the playback menu.
1
8 9 10 11 12
8. Displayequalizer.
9. Repeat play
10. Adjust image.
11. Select audio mode.
12. Select subtitles language.

10
Image playback
Select the desired source via the main menu.
The device changes to the desired source
and the playback starts.
If the playback does not start with the image
playback,
Press the [ ] button to change to the
folder/le list.
Press the [ ] button to displayall the
folders and les of the data carrier.
- Or -
Press the [ ] button to displayall the
images of the data carrier.
Bluetooth mode
:PVDBONBLFPSSFDFJWFQIPOFDBMMTXJUI
#MVFUPPUIFOBCMFEQIPOFTUISPVHIUIFVOJU:PV
can also listen to music froma Bluetooth-enabled
device.
Pair the Bluetooth-enabled Devices
To connect your Bluetooth device to the unit, you
need to pair the device to the unit. Pairing needs
POMZUPCFEPOFPODF:PVDBOQBJSVQUPGJWF
EFWJDFT:PVBMTPDBOTFBSDIGPS#MVFUPPUIEFWJDFT
bymobile phone.
Turn on the Bluetooth function on the
device.
Touch [ ] to search for Bluetooth device
with the device.
Select the Bluetooth device ID in the pairing
list.
Touch [ Connect ].
Enter default password “1234”.
Notes:
t 5IFPQFSBUJPOBMSBOHFCFUXFFOUIJTVOJUBOEB
Bluetooth device is approximately5 meters .
t #FGPSFZPVDPOOFDUB#MVFUPPUIEFWJDFUPUIJT
unit, familiarize yourself with the Bluetooth
capabilities of the device.
t $PNQBUJCJMJUZXJUIBMM#MVFUPPUIEFWJDFTJTOPU
guaranteed.
t "OZPCTUBDMFCFUXFFOUIJTVOJUBOEB
Bluetooth device can reduce the operational
range.
t ,FFQUIJTVOJUBXBZGSPNBOZPUIFSFMFDUSPOJD
device that maycause interference.
DVD/CD/USB media playback, Bluetooth mode

ENGLISH
11
Disconnect Bluetooth Device
To disconnect one device, touch [ ].
Notes:
t 5IFEFWJDFXJMMBMTPCFEJTDPOOFDUFEXIFO
the device is moved beyond the operational
range.
t *GZPVXBOUUPSFDPOOFDUUIFEFWJDFUPUIF
unit, place it within the operational range.
t *GZPVEPOPUXBOUUPSFDPOOFDUUIFEFWJDFUP
the unit automatically, touch [ ], then set [
Auto Connect ] to [ O ].
For details, see the “Adjust Bluetooth
Settings” section.
Make a Call
Select Bluetooth function in the home
menu.
Pair the phone with the unit.
Search for phone number fromthe
following list:
[
]: Phone Book
[
]: Call Log
[ ]: [Missed calls]
[ ]: [Received calls]
[ ]: [Dialed calls]
Or touch the number pad directly.
Answer an Incoming Call
Bydefault, all incoming calls are received
automaticaly.
1. If there is an incoming call, “Incoming” will
appear on the screen.
 :PVNBZUPVDIUIFTDSFFOUPTFMFDU
[ Hang up ] or [ Answer ].
Speak into the Bluetooth microphone.
∙ [ ]: Touch to mute the microphone audio
fromthe unit.
Touch the icon again to restore the
microphone audio fromthe unit.
∙ [ ]: Touch to transfer a call back to the
mobile phone.
∙ [ ]: Touch to access the direct dial screen.
Adjust Bluetooth Settings
In Bluetooth menu,touch [ ].
The option menu is displayed.
Touch on the selected option to change the
setting.
∙ [Bluetooth]: To turn on or off “Bluetooth”
function.
∙ [Auto Connect]: If “Auto Connect” is activated,
the device automaticallyconnects with
known Bluetooth devices as soon as theyare
in range.
∙ [Auto Answer]: If “Auto Answer” is activated,
incom-ing phone calls are automatically
answered.
∙ [Microphone]: Select the microphone
to be used for the hands-free systemvia
Bluetooth®.
Bluetooth mode

12
Overview of PhoneLink
5IFTZTUFNPGUIFDBSEFWJDFJT8JO$&WFSTJPO
which supports the connection between the car
device and Smart phone.
And you can also control your phone bythe
car device, such as receiving calls, dialing calls,
listening to the music and watching movies or
pictures fromyour phone.
Note:
You can't control your iPhone by the unit.
(iPhone mirrors display on screen)
Connect with Android phone
Select “PhoneLink” in the main menu and
select “Android” on the screen.
Start Android phone [USB debugging].
The operations of Android phone’s entering
[Setting] are as follows (since the Android
phone versions are not the same, it roughly
has two conditions):
1) Existence of [Developer options]: Click
[Additional settings]-Click [Developer
options]-click to open [Start developer
options]-click to open [USB debugging]-
determine to allow.
2) Inexistence of [Developer options]: Click
systemversion number (interior version
number) for 8 times, then back to setting
and click [Developer options]-click to open
“Start developer options”-click to open [USB
debugging]-determine to allow.
Bluetooth connection.
Scan for Bluetooth devices and select this
systemfor connection.
Correctlyconnect USB wire to front USB port.
Finish connection.
(If it is not connected successfully, please replace
USB cable or vehicle USB interface, or re-insert
USB wire or restart Android phone and re-try).
After connection, operate according to the
screen software.
∙ [Pair Password]: ManyBluetooth® devices
request the pairing code before establishing
UIFDPOOFDUJPO:PVDBOEFöOFJUIFSF
∙ [Phone Book sync]: To be able to access the
phone book of a connected telephone, you
must rst synchronise it via this menu entry.
Phonebook sync maytake several minutes to
load on initial setup.
Music Mode
A2DP
A2DP is short for Advanced Audio Distribution
Profile. The mobile phones supporting this
function can transmit stereo audio, whereas the
ones not supporting this function can transmit
mono audio only.
AVRCP
AVRCP is short for Audio/Video Remote Control
Profile. The mobile phones supporting this
function can control the playback of a Bluetooth
audio player.
To make a call in music playing mode, press
the number keys on the mobile phone and the
music player will stop. “Calling” will be displayed
on the TFT and once the call is received the
DBMMFSBVEJPXJMMCFUSBOTGFSSFEUPUIFVOJU8IFO
the call ends, the screen will displaythe music
playing menu.
If there is an incoming phone call, the music
player will stop and the screen will display
i*ODPNJOH$BMMw8IFOUIFDBMMFOETUIFTDSFFO
displaythe music playing menu.
Bluetooth mode, PhoneLink

ENGLISH
13
Tip:
t 'PSZPVSESJWJOHTBGFUZQMFBTFEPOPUVTFUIF
function during driving.
t 'PSOPSNBMVTFAndroid 4.0 to Android
6.0 version is recommended. Since Android
2.3X and below version systemlacks relevant
support, when using the version systemto
connect the product, some functions (such
as: mobile video play, etc.) maynot display
normally.
t "DDPSEJOHUPUIFEJGGFSFOUNPCJMFQIPOFw
Media library” and “Video” programsupport
formats, it is not all the video les copied to
mobile phone can be identied and played.
According to the different equipment
function, not all video les of all formats can
be played in vehicle terminal smoothly.
t 4JODFUIFNPCJMFQIPOFEBUBDBCMF
performance difference in the market, it is
stronglyrecommended using the original
USB data line to connect so as to guarantee
the connection stability.
t %VFUPUIFEJGGFSFODFPGNPCJMFQIPOF
performance, when using different mobile
phones to connect, the performance maybe
dierent.
Connect with iPhone
Select “PhoneLink” in the main menu and
select “iPhone ”on the screen.
Open the Personal Hotspot on the settings
menu of your iPhone.
Connect your iPhone to the front USB port of the
unit.
Open the control center of your iPhone and
touch [AirPlay].
Select [EC-Mirror], and turn on the
“Mirroring” function.
After connecting successfully, the desktop
of you iPhone will displayon the screen of
the unit.
(If it is not connected successfully, please restart
UIF8J'JPGZPVSJ1IPOFBOESFGSFTIUIFIPUTQPU
list on the unit.
Note:
This machine supports the versions of iPhone
operation systemare between iOS8.0 to iOS10.
Videos on web pages will not be shown with
operation systemversion below iOS9. At any
time, you and your partners’ voices will not
come into this machine when you are making
phone calls. The native video App on iOS8.0 and
below iPhones will not be supported.
Sound settings
Equalizer
:PVDBOBEKVTUUIFFRVBMJ[FSGPSBMMTPVSDFT
In the main menu, press the [ ] button.
Select EQ mode
Touch the desired EQ selection: [ Optimal ] / [
Classic ] / [ Rock ] / [ Jazz ] / [ Techno ] / [ Pop ],
and the EQ mode will change.
Adjust FAD BAL
:PVDBOBEKVTUUIFWPMVNFEJTUSJCVUJPOJOUIF
vehicle for all sources.
In the main menu, press the [ ] button.
- Or -
On the control bar of the current audio
source, press the [
] button.
The equalizer menu is displayed.
Press the [ ] button.
The menu for fader and balance is displayed.
Adjust fader and balance with [ ] / [ ] or
[ ] / [ ].
Next, press [ ].
The setting is stored, the current source is
displayed again.
Navigation Operations*
To navigate bythe unit, simplyselect the desired
navigation application on the main menu. Then
navigate bythe touch screen.
AUX Operations
Select [ [AV-IN1]/[AV-IN2] on the main menu to
visit auxiliarydevice.
PhoneLink, Sound settings, Navi, AUX
*Optional iGO PrimoNextgen Mapping required

14
Basic settings
Basic Settings
In the settings menu, you can adjust the basic
settings for the dierent functions of the device to
your requirements.
In the main menu, press the [ Settings ]
button.
The settings menu is displayed, the General
submenu is activated.
Call up the submenus with the buttons in the
lower area of the settings menu.
General
The following setting are possible:
Radio region - Select the reception region for the
radio reception.
FM HICUT - Activating/deactivating the Hicut fi
lter to improve playback in case of poor radio
reception.
Blackout - Choose screen blackout o, 10s or 20s.
Dimmer mode - Touch the [Dimmer mode], there
4 mode to select: Night/Dark/Normal/Bright.
OFF timer - Setting the switch-o time. To protect
the vehicle battery, the device is automatically
switched off after the set time period if the
vehicle ignition is switched o.
Beep - Switch conrmation beep on/o.
Keycolor - select the backlight color of the keys.
48$5IFCVUUPOTPGBDPOOFDUFETUFFSJOHXIFFM
con-trol can be congured here.
Software version - Displayof the current software
ver-sion.
Load factorysettings - Resets all personalised
settings.
Video
The following settings are possible:
Set password - Dene a password if you want to
use the parental controls.
Rating level - The rating of DVDs can be de ned
here. If set to “Adult”, all movies can be played
back. If a password was configured, the rating
level can be changed onlywith the password.
Video out - Switch video out on/o
Aspect ratio - Full/Normal mode
Sound
The following settings are possible:
Subwoofer - Switch subwoofer on/o
Subwoofer lter - Make the setting according to
the subwoofer used (settings: 80/120/160 Hz).
Dynamic sound - Switch dynamic bass on/o.
Time
The following settings are possible:
Date - Set the date.
Clock mode - Selection between 12 and 24-h
mode.
Time - Set the time.
Auto clock - Switch automatic clock setting on or
o with the time data transmitted via RDS.
Language
The following settings are possible:
OSD - Language for the user interface of the
device.
DVD audio - The audio playback of DVDs is
started in the language defi ned here.DVD
subtitle - The subtitles of DVDs are shown in the
language de ned here.
DVD menu - The DVD menu is displayed in the
language de ned here.
Bluetooth
The following settings are possible:
Bluetooth - Bluetooth® can be switched on or o .
Auto connect - If “Auto Connect” is activated,
the device automaticallyconnects with known
Bluetooth® devices as soon as theyare in range.
Auto answer - Phone calls fromconnected
telephones are automaticallyanswered if this
option is enabled.
Pairing code - ManyBluetooth® devices request
the pairing code before establishing the
DPOOFDUJPO:PVDBOEFöOFJUIFSF
Microphone - Select the microphone to be used
for the hands-free systemvia Bluetooth®.
Volume
:PVDBOBEKVTUUIFWPMVNFSBUJPGPSBMMBVEJP
sources in the volume menu.

ENGLISH
15
Sound setting
Connection diagram
Notes of connection
Ɣ 7KLVXQLWLVGHVLJQHGWREHXVHGLQDYHKLFOHZLWKDYROWEDWWHU\DQGQHJDWLYHJURXQGLQJ
%HIRUHLQVWDOOLQJWKLVXQLWWRDUHFUHDWLRQDOYHKLFOHDEXVRUDWUXFNPDNHVXUHWKHEDWWHU\
YROWDJHLVDSSURSULDWHIRUWKLVXQLWWREHXVHGRWKHUZLVHLQVWDOODWUDQVIRUPHUE\SURIHVVLRQDOWR
FRQYHUWWKHRXWSXWYROWDJHWR9
Ɣ 7RDYRLGVKRUWFLUFXLWLQWKHHOHFWULFDOV\VWHPHQVXUHWKDWWKHQHJDWLYHEDWWHU\FDEOHLV
GLVFRQQHFWHGEHIRUHLQVWDOODWLRQ
Ɣ 7RSUHYHQWVKRUWFLUFXLWLQWKHZLULQJDQGGDPDJLQJWRWKLVXQLWVHFXUHDOOZLULQJVZLWKFDEOH
FODPSRUDGKHVLYHWDSH5RXWHWKHZLULQJVLQDVHFXUHGRXWRIKHDWLQJSODFHZLWKRXWWRXFKLQJ
DQ\PRYLQJSDUWVVXFKDVJHDUVKLIWKDQGEUDNHDQGVHDWUDLOVWRSUHYHQWWKHZLULQJLQVXODWLRQ
EHLQJPHOWHGZRUHRII
Ɣ 1HYHUSDVVWKH\HOORZSRZHUFRUGWKURXJKWKHLQVWDOODWLRQKROHLQWRWKHHQJLQHFRPSDUWPHQWDQG
FRQQHFWWRWKHFDUEDWWHU\2WKHUZLVHDKLJKSRVVLELOLW\RIVHULRXVVKRUWFLUFXLWWRWKHHOHFWULFDO
V\VWHPPD\EHRFFXUUHG
Ɣ 5HSODFLQJDQHZIXVHZLWK$UDWLQJZKHQWKHROGRQHLVEURNHQXVLQJQRIXVHRUIXVHZLWK
LPSURSHUUDWLQJPD\FDXVHGDPDJHWRWKLVXQLWRUHYHQ¿UHV,IDSURSHUIXVHLVLQVWDOOHGDQG
HOHFWULFDOSUREOHPVVWLOORFFXUSOHDVHFRQWDFWZLWKDQ\SURIHVVLRQDOFDUVKRSVIRULQTXLU\
Ɣ 'RQRWFRQQHFWRWKHUHTXLSPHQWVZLWKWKHFDUEDWWHU\WRDYRLGEDWWHU\RYHUKHDWLQJ
Ɣ 3OHDVHPDNHVXUHDOOWKHZLULQJFRQQHFWLRQVWKHFDEOHVRIWKHVSHDNHUVDUHZHOOLQVXODWHG
2WKHUZLVHWKLVXQLWPD\EHGDPDJHGE\VKRUWFLUFXLW
Ɣ ,IWKHUHLVQR$&&DYDLODEOH3OHDVHFRQQHFW$&&OHDGWRWKHSRZHUVXSSO\ZLWKDVZLWFK
Ɣ ,IDQH[WHUQDOSRZHUDPSOL¿HULVFRQQHFWHGSOHDVHGRQ¶WFRQQHFW3&217OHDGWRWKHSRZHU
OHDGRIWKHH[WHUQDOSRZHUDPSOL¿HURWKHUZLVHHOHFWULFVSDUNRURWKHUGDPDJHPD\EHUHVXOWHG
Ɣ 1HYHUJURXQGWKHVSHDNHURXWSXWWRSUHYHQWWKHGDPDJHWRWKHEXLOWLQSRZHUDPSOL¿HU
Ɣ 7KHPLQLPXPUDWLQJRIWKHVSHDNHUVFRQQHFWHGWRWKLVXQLWLV:ZLWKWRȍLPSHGDQFH

16
Device Connections
GPS
FM/AM Connector
AV SYSTEM
Power and Speaker Connector
REAR R
VIDEO
OUT2
RCA RED FRONT R
FRONT L
REAR L
VIDEO OUT1
SUB OUT 1
SUB OUT 2
VIDEO
IN
AUX_IN_L
AUX_IN_R
AUX_DET
KGND
KEYB
KEYA
RCA WHITE RCA RED RCA WHITE RCA BROWN RCA BROWN RCA YELLOW RCA YELLOW RCA YELLOW
BLACK
BLACK BLACK
RCA YELLOW
BLACK
RCA RED
RCA WHITE
ORANGE
BROWN/BLACK
ORANGE/WHITE
GREEN/WHITE
PINK
YELLOW/RED
PURPLE
USB
MIC
MIC
CAMERA IN
CAMERA B+
GND
REVERSE
BRAKE
Connection diagram

ENGLISH
17
Troubleshooting
8IBUBQQFBSTUPCFBQSPCMFNJTOPUBMXBZTTFSJPVT1MFBTFDIFDLUIFGPMMPXJOHQPJOUTCFGPSFDBMMJOHB
service center.
Problem Cause Corrective action
General
Unit can not power on
7PKVHWUGDNQYP +PUVCNNPGYHWUGYKVJEQTTGEVTCVKPI
%CTDCVVGT[HWUGDNQYP +PUVCNNPGYHWUGYKVJEQTTGEVTCVKPI
Illegal operation 4GUGVVJGWPKV
No/low audio output
+ORTQRGTCWFKQQWVRWVEQPPGEVKQP %JGEMYKTKPICPFEQTTGEV
8QNWOGUGVVQQNQY +PETGCUGXQNWOGNGXGN
5RGCMGTUFCOCIGF 4GRNCEGURGCMGTU
*GCXKN[DKCUGFXQNWOGDCNCPEG Adjust the channel balance to center
RQUKVKQP
Speaker wiring is in contact with metal part
QHECT +PUWNCVGCNNURGCMGTYKTKPIEQPPGEVKQPU
Poor sound quality or
distortion
2KTCVGFFKUEKUKPWUG 7UGQTKIKPCNFKUE
5RGCMGTRQYGTTCVKPIFQGUPQVOCVEJWPKV 4GRNCEGURGCMGTU
9TQPIEQPPGEVKQPU %JGEMYKTKPICPFEQTTGEV
5RGCMGTKUUJQTVGF %JGEMYKTKPICPFEQTTGEV
Tel-Mute malfunction /76'YKTGKUITQWPFGF %JGEMVJGŎ/76'ŏYKTKPICPFEQTTGEV
Unit resets itself when
engine is off Incorrect connection between ACC and $#66 %JGEMYKTKPICPFEQTTGEV
TFT monitor
Warning information is
shown at all times 2CTMKPIDTGCMYKTKPIKUPQVEQTTGEV %JGEMYKTKPICPFEQTTGEV
Flashing image or
interference appears on
screen
The color system of DVD disc does not
OCVEJVJGOQPKVQT Adjust the color system of the DVD FKUERNC[KPIDCEMQTVJGOQPKVQTKPWUG
2KTCVGFFKUEKUKPWUG 7UGQTKIKPCNFKUE
8KFGQECDNGFCOCIGF 4GRNCEGECDNGU
+ORTQRGTXKFGQUKIPCNEQPPGEVKQPU %JGEMYKTKPICPFEQTTGEV
Disc playback
Cannot insert disc #FKUEKUCNTGCF[KPUKFGVJGWPKV 'LGEVEWTTGPVFKUECPFKPUGTVPGYQPG
Disc does not play back
&KUEKUYCTRGFQTUETCVEJGF 7UGFKUEKPIQQFEQPFKVKQP
&KUEKUFKTV[QTYGV %NGCPFKUEYKVJUQHVENQVJ
+PEQORCVKDNGFKUEKUWUGF 7UGEQORCVKDNGFKUE
&KUEKUKPUGTVGFWRUKFGFQYP +PUGTVFKUEYKVJNCDGNUKFGWR
Disc region code is not compatible with
WPKV 7UGFKUEYKVJRTQRGTTGIKQPEQFG
PBC cannot be used
during VCD playback 2$%KUPQVCXCKNCDNGQPVJGFKUE 7UGFKUEYKVJ2$%CXCKNCDNG
Repeat or search
function is invalid during
VCD playback 2$%KUQP 6WTP2$%QHH
Error messages
No disc
&KUEKUFKTV[ %NGCPFKUEYKVJUQHVENQVJ
&KUEKUWRUKFGFQYP +PUGTVFKUEYKVJNCDGNUKFGWR
0QFKUEKPUKFG +PUGTVFKUE
Bad disc &KUEKUFKTV[ %NGCPFKUEYKVJUQHVENQVJ
&KUEKUWRUKFGFQYP +PUGTVFKUEYKVJNCDGNUKFGWR
Unknown disc &KUEHQTOCVKUPQVEQORCVKDNGYKVJVJKUWPKV 7UGFKUEYKVJEQORCVKDNGHQTOCV
Region Error DVD region code is not compatible with
VJKUWPKV 7UGFKUEYKVJEQORCVKDNGTGIKQPEQFG

18
tVideo
File
Format Video Codec Supported
Prole
supported
le
extension
Audio Codec video bitrate Audio SampleRate
MPEG MPEG-1
MPEG-2
MPEG-2:
Simle,
Main,
High
*.mpg
*.mpeg
*.dat
*.vob
MPEG
AC3
PCM
MP3
Bitrate:
40Mbps
Resolution:
1080p
FrameRate:
30fps
MP3
8KHz/16KHz/1/32KHz
11KHz/22K/44KHz
12KHz/24K/48KHz
DolbyAC3
EAC3
32KHz/44.1KHz/48KHz
Cook
44.1KHz
APE
8 ~ 96KHz
FLA
C8~192KHz
AAC(HE-AAC)
8 ~ 96KHz
MPEG-1 layer1/2
32KHz/44.1KHz/48KHz
MPEG-2 layer1/2
32KHz/44.1KHz/48KHz
AVI Avi
(MPEG2,MPEG4)
MPEG2:
Simple,
Main,
High
MPEG4:
*.avi, *.xvid
MPEG
MP3
AC3
PCM
AAC
FLAC
RM RV8/9/10 N/A ".r m",
".r mvb"
COOK
AAC
FLV H264, SH.263
H.264:
Baseline,
Main,
High
*.v
PCM
MP3
AAC
ASF/
8.7
MPEG4,
MPEG-1/2,
H264,
H263
MPEG4:
Advanced Simple,
Simple MPEG2:
Simple, Main,
High
*.asf
MP3,
PCM,
AC3,
AAC,
mpeg,
aac_pure
MP4
MPEG4,
H.264,
SH. 263,
MPEG1/2
MPEG4:
Advanced Simple,
Simple H.264:
Main,
*.mp4,
*.mov
AAC,
MP2,
MP3,
AC3,
PCM,
AAC_PURE,
MPEG
MKV
MPEG1/2,
MPEG4,
H264,
RV8/9/10,
SH.263,
H.263
MPEG2:
Simpe,
Main,
High MPEG4:
Advanced
MP2,
MP3,
AC3,
AAC,
PCM,
mpeg,
aac_pure,
ac
OGM
MPEG-2;
MPEG-4;
H.264;
RV8/9/10;
H.263
MPEG2:
Main,High
MPEG4:
Advanced Simple,
Simple H.263:
Baseline
*.ogm
mp3
AC3
PCM
MPEG
AAC,
RA_COOK,
VOBIS
Supported formats

ENGLISH
19
tAudio
File Format supported le
extension supported audio sample rate
MP3
*.mp1
*.mp2
*.mp3
MP1/MP2/MP3
supported
8KHz/16KHz/1/32KHz
11KHz/22KHz/44KHz
AAC *.aac AAC supported
8 ~ 96KHz
FLAC *.ac FLAC supported
8~192KHz
APE *.ape APE supported
8 ~ 96KHz
tPicture
File Format supported le
extension limitation
JPEG *.jpg
baseline:
width* height <4096*4096
PNG *.png width * height <4096*4096
GIF *.gif width * height <4096*4096
Supported formats

20
Supported formats
tVideo
DVD le
File
Format
Supported
video codec Supported Prole Supported
extension
Supported
audio codec
Video
bitrate limit Audio bitrate limit
MPEG MPEG-1 Video
MPEG-2 Video
main
high
.mpg
.mpeg
.dat
.vob
mpeg,
AC3,
PCM
MPEG2 Video: 10Mbps
MPEG4 Video: 10Mbps
AVI Avi(MPEG2,MPEG4,)
MPEG2: Main, High
upto 720*576
MPEG4: Advanced
Simple, Simple
800*600
*.avi, *.xvid
MP2,MP3,
AC3,PCM
8."
MPEG2 Video: 10Mbps
MPEG4 Video: 10Mbps
ASF MPEG-4 video
MPEG4: Advanced
Simple, Simple
800*600
*.asf, MP3, PCM,
AC3
audio (wma)
bitrate(32k~192k)
MP4 MPEG 4 Video
MPEG4:
Advanced Simple,
Simple800*600.
.mp4, .mov AAC,MP2,
MP3,AC3 MPEG4 Video: 10Mbps
FLV H.263 H.263 main .v,.f4v mpeg 3Mbps
DAT MPEG1 MPEG1 main .dat mpeg,pcm,ac3 3Mbps
VOB MPEG2 MPEG2: Main, High
upto 720*576 .vob mpeg,pcm,ac3 10Mbps
OGM MPEG2,
MPEG4
MPEG2: Main, High
MPEG4: Advanced
Simple, Simple
*.ogm
mp3
AC3
LPCM
MPEG
MPEG2 Video: 10Mbps
MPEG4 Video: 10Mbps
tAudio
File Format Supported le Supported audio
codec Audio bitrate limit
MP3 .mp3 .mp2 MP1/MP2/MP3/pcm8kbps~320kbps
M4A .m4a aac 32Kbps~320Kbps
AAC .aac aac 32Kbps~320Kbps
tPicture
File Format Supported le Limitation
JPEG baseline jpeg,
progressive jpeg
Decoding source picture size up to 8784x5856
Re-sample to 720x480 and 720x576
