Blaupunkt IVMR-1042 User manual

In Car Video
http://www.blaupunkt.com
IVMR-9002 7 607 003 586
IVMR-1042 7 607 003 587
Operating and installation instructions

16
DEVICE OVERVIEW
6
<
9; 7
8:
@
=
>
?
A
1 2 3 4 1
5

17
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS

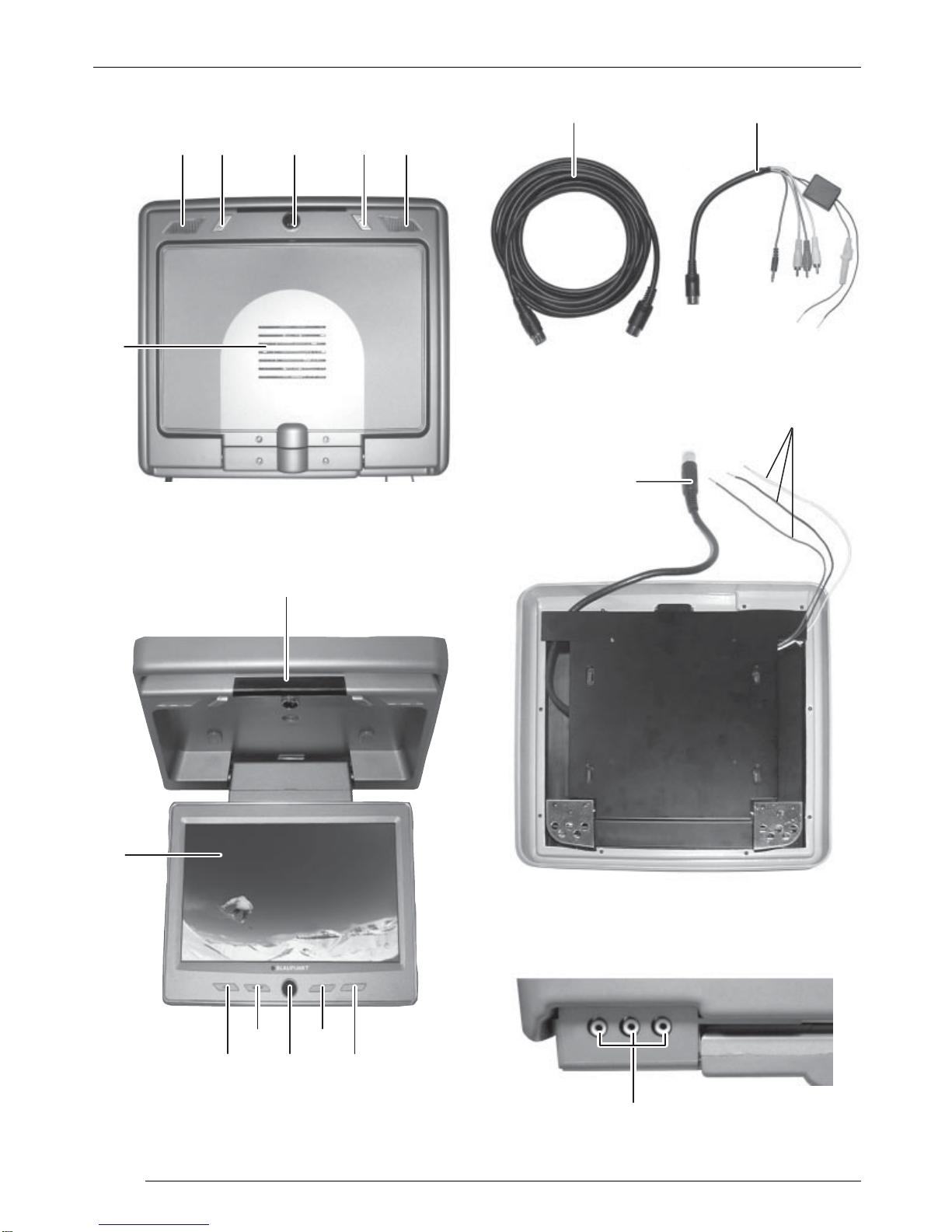

DEVICE OVERVIEW
Ceiling-mounted monitor
1Lights on the main unit
2Light switch ON
3Monitor latch
4Vehicle interior lighting switch
5Loudspeaker
6Infrared receiver for IR remote
control IVRC-06
Infrared transmitter for IR head-
phones IVHS-01 (accessory)
7Control button
Increase the monitor volume /
navigate in the OSD menu
8Control button
Decrease the monitor volume /
navigate in the OSD menu
9On/off button for the monitor
:Control button MENU
See Instructions / OSD menu.
;Control button CH
Channel selection if the monitor is
connected to a signal controller
IVSC-3302 or IVSC-5502.
<LCD screen
=Signal cable (13 pin)
>System cable (13 pin)
?Adapter cable RCA/jack (13 pin)
@Cable for the interior lighting
(3 pin)
Red = Electrical power supply
(+12V)
White = To the door switch
(Door open = Earth)
Black = Earth
A
AUX sockets
RedRCA = Audio IN (R)
WhiteRCA = Audio IN (L)
Yellow RCA = Video IN

18
IR remote control
DPOWER
On/off button for the monitor.
ETV/VIDEO
Input selector: switch between
AV1 and AUX.
FVOL • arrow button
Increase the volume for the se-
lected monitor.
VOL • arrow button
Decrease the volume for the se-
lected monitor.
GMUTE
Mute the volume of the loud-
speaker inside the monitor.
HCH • arrow button /
Channel selection if the monitor is
connected to a signal controller
IVSC-3302 or IVSC-5502.
Caution:
The way the CH /buttons
function depends on the monitor
selection, which is made using
the signal controller’s remote con-
trol.
IMENU
See Instructions / OSD menu.
JBattery compartment
DEVICE OVERVIEW
D
H
EF G
I
J

19
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
CONTENTS
Device overview ..................... 16
Ceiling-mounted monitor................ 17
IR remote control ........................... 18
Contents................................. 19
Notes for the user .................. 20
Precautionary measures ................ 20
Safety notices ........................ 21
Supplied parts ........................ 21
Installing the monitor ............. 22
Installing the monitor (mechanical) . 22
Cables .......................................... 23
Operation ............................... 24
Controlling the interior lighting
(monitor) ....................................... 24
Opening the monitor ...................... 24
Adjusting the position of the
monitor .......................................... 25
Closing the monitor ....................... 25
Switching on the monitor ............... 25
OSD menu .................................... 26
IR headphones IVHS-01
(accessory) ................................... 26
Changing the light bulb ................. 27
Changing the battery in the
remote control ............................... 27
Specifcations ......................... 28
IVMR-9002.................................... 28
IVMR-1042.................................... 29

20
Thank you for choosing a Blaupunkt
product. We hope you enjoy using this
new piece of equipment.
Please read these operating instruc-
tionsbeforeusingthe equipmentfor
the first time.
The Blaupunkt editors are constantly
working on making the operating in-
structions clearer and easier to under-
stand. However, if you still have any
questionsonhowtooperatethedevice,
please contact your dealer or the tele-
phone hotline for your country. You will
findthetelephonenumberprintedatthe
back of this booklet.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. You can view the guar-
antee conditions at www.blaupunkt.de
or ask for them directly at:
Blaupunkt GmbH
Hotline
Robert-Bosch-Str. 200
31139 Hildesheim
Germany
We shouldliketopointout that theright
to make a claim under the guarantee
could be forfeited if the device is
changed or modified in any way with-
out the express authorization of the
manufacturer.
Long-termoperationorstorageoutside
thespecifictemperaturerangecanlead
to a shortening of the useful life of the
LC display.
NOTES FOR THE USER
Precautionary measures
Pleaseobserveallthe warningnotices,
precautionary measures and mainte-
nance tips contained in these operat-
ing instructions so as to extend the life
of your monitor.
●If you are the driver you must never
use the monitor during the journey
in order to avoid causing a road ac-
cident.
●Do not place the monitor in the fol-
lowing positions:
1. Positions in which it could
restrict the driver’s view.
2. Positions in which it could
become a danger to safety
(e.g. handbrake, steering wheel,
gearshift lever and airbag).
●Only operate the device with the
recommended voltage supply of
12 V direct current.
●Do not attempt to open or disman-
tle the monitor, since you could suf-
fer an electric shock as a result.
●If the monitor’s housing is dam-
aged or broken, take it to your local
specialist dealer or send it in to our
customer service centre.
●Avoid using the monitor in environ-
ments where it is subjected to dust,
dirt or moisture.
●Do not install the monitor in places
where it is subjected to direct sun-
light or extreme temperatures.

21
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
NOTES FOR THE USER
Note
We recommend that you allow a spe-
cialist workshop to carry out the instal-
lation.
Safety notices
Please observe the following safety
noticesduringinstallation andwhilst
making the connections.
-Disconnect the negative and posi-
tive terminals of the battery.
-When doing so, please observe the
safety notices provided by the vehi-
cle manufacturer.
-Before drilling the holes necessary
for mounting the equipment and for
laying cables, please make sure
that concealed cables, the fuel tank
and fuel lines cannot be damaged
in the process!
Supplied parts
Themonitorissuppliedwithalltheparts
listed below. Please check that the
range of parts supplied with your de-
viceiscomplete.Ifoneofthelistedparts
is missing, please contact your dealer
immediately.
●Monitor (including mounting fixture
and screws)
●Remote control IVRC-06 with
battery
●5 m long 13-pin system cable
(for signal controller IVSC-3302 or
IVSC-5502)
●Connection adapter (13-pin RCA/
jack)
●Operating instructions
SUPPLIED PARTS

22
INSTALLING THE MONITOR

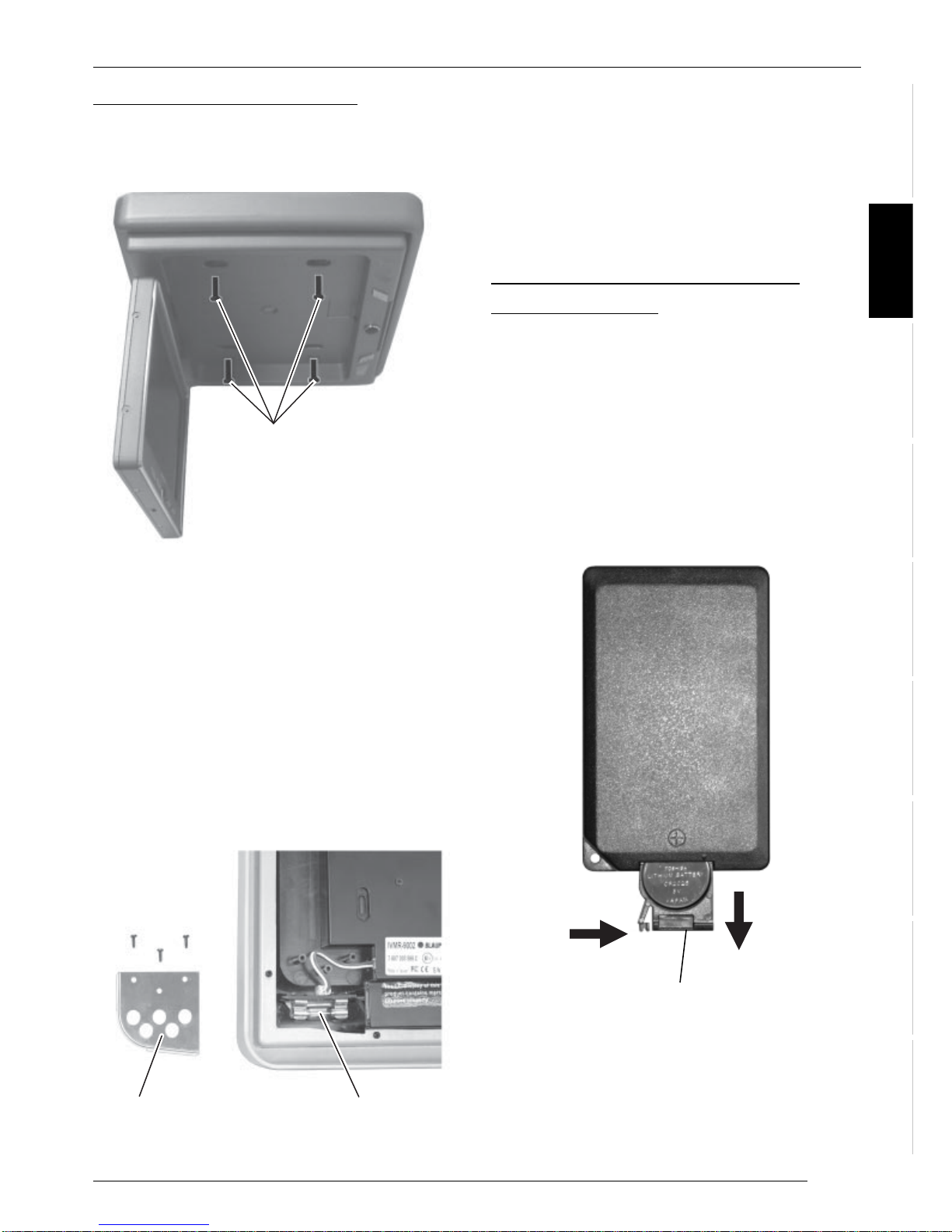

Screws for securing the
ceiling-mounted monitor
Installing the monitor
(mechanical)
Select a suitable position for secure
installation of the monitor:
●The device must not distract the
driver or restrict the driver’s view.
●The ability to enter and get out of
the vehicle must not be impeded.
●The device must not be installed in
such a way that could prevent the
other vehicle components from
functioning properly (e.g. sliding
sunroof).
●Make sure that the device is in-
stalled in a safe and secure posi-
tion and that it cannot become de-
tached in the event of an emergen-
cy stop.
●Do not attach the device merely to
the roof liner.
●If you need to drill additional holes,
make sure you do not drill through
the sheet metal of the vehicle’s
roof.
●Avoid using the monitor over a
longer period of time whilst the en-
gine is off in order to prevent the
battery from becoming discharged.

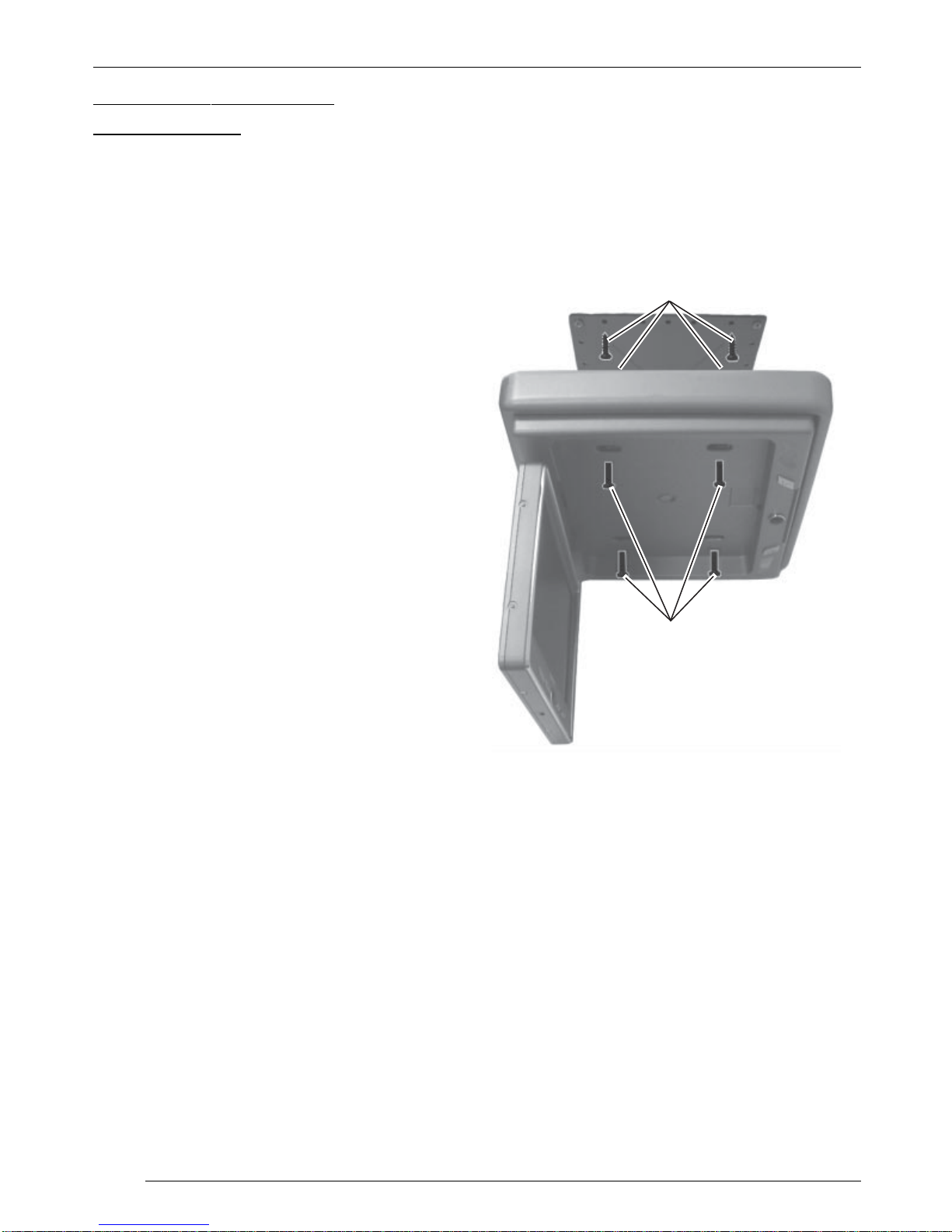

Screws for securing the
mounting plate

23
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
@
=
Cables
INSTALLING THE MONITOR
Systemcable
(13 pin)
Cable for the
interior lighting
(3 pin)
Adapter cable
Interior lighting connection (3 pin)
Red = Operating voltage (+12 V)
White = To the door switch
(Door open = Earth)
Black = Earth
To avoid discharging the battery, we
recommend you use a switched oper-
ating voltage (ignition).
Warning notice: The operating voltage
cable must be protected with at least a
1.5Afuse.
Monitor connection (13 pin)
Connect the system cable (13 pin) >
to a signal controller (IVSC-3302 or
IVSC-5502).(Thevoltagesupplyispro-
vided by these devices. Operating in-
structions are supplied with the devic-
es).
Or
Use the plug-in adapter cable ?to
connect to the 12 V supply voltage and
an external video/DVD device:
Red = +12 V direct current
Black = Earth
Red RCA = Audio IN (R)
White RCA = Audio IN (L)
Yellow RCA = Video IN
Jack plug
(blue) = Do not use!
(Only for special
devices)
>
?
Signal cable
(monitor hous-
ing) (13 pin)

24
Controlling the interior lighting
(monitor)
There are two switches for the lights:
ON 2and interior lighting 4.
ON :
This button is used to switch the lights
on/off.
Interior lighting :
If activated, the lights only come on
when the vehicle’s doors are opened.
OPERATION
Opening the monitor
➮Pull back the monitor release latch
3to flip down the LCD display.
➮To watch television, lower the mon-
itor until it is at an angle of approx.
90°to the monitor’s base unit.
2 4
3

25
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
OPERATION

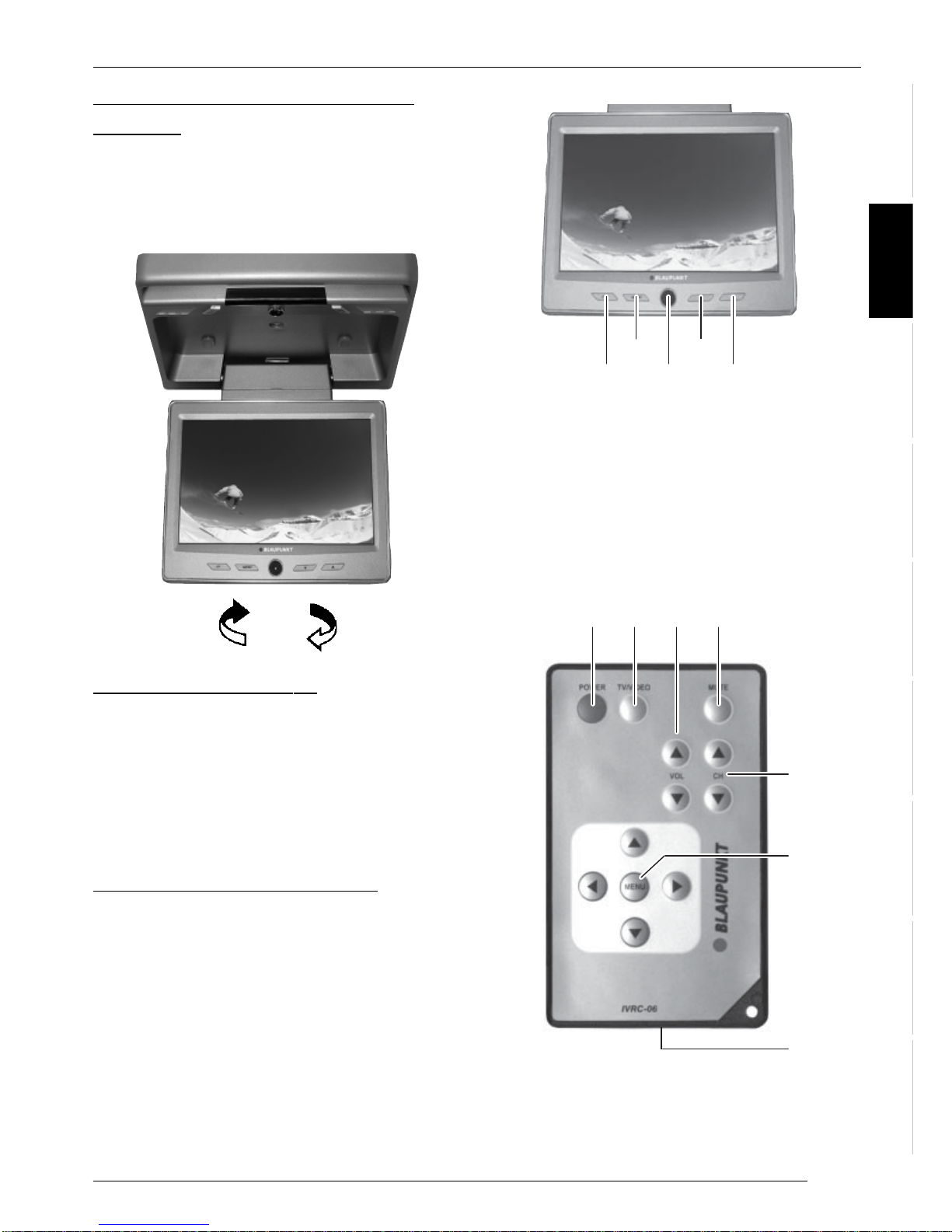

Adjusting the position of the
monitor
The monitor can be rotated by up to
approx. 30°to the right and left from its
central viewing position.
Closing the monitor
➮Turn the monitor back to its central
viewing position and push it into its
base unit so that it clips back into
the releasing/locking mechanism.
Switching on the monitor
Press the power-on button 9on the
main unit or the button Don the re-
mote control to switch the monitor on/
off.
Note:
The button 9lights up blue before the
monitorisswitchedon.Thismeansthat
the monitor is connected to the 12 V
voltage supply.
D
H
EF G
I
J
9; 7
8:

26
OPERATION
OSD menu
Operation
➮Press the MENU button :on the
display or the MENU button Ion
the remote control to open the
OSD menu.
●Use the arrow buttons 7/ 8or
I/to select the options.After
you press the MENU button :or
Iyou can use the arrow buttons
to change the settings.
➮Select the “EXIT” option to close
the OSD menu again.
SPEAKER ON
ZOOM
BRIGHTNESS
CONTRAST
COLOR
TINT
REVOLVE LEFT-RIGHT
UP-DOWN
RESET PICTURE
EXIT
●SPEAKER ON
Switch the internal loudspeaker on/
off (same function as the MUTE
button Gon the remote control).
The sound then continues to be
outputted over the IR headphones
IVHS-01 (accessory).
●ZOOM (picture size)
only IVMR-9002:
Change the picture height/width
- FULL
- NORMAL
- WIDE
●BRIGHTNESS:
To adjust the brightness
●CONTRAST:
To adjust the contrast
●COLOR:
To adjust the colour
●TINT:
To adjust the picture shade (only
for NTSC)
●REVOLVE:
To revolve the screen display
- LEFT - RIGHT:
Mirror horizontally
- UP - DOWN:
Mirror vertically
●RESET PICTURE:
To reset the configured parameters
to the factory default settings.
●EXIT:
To close the OSD menu
IR headphones IVHS-01
(accessory)
The IR transmitter window 6must not
becoveredup whenusingtheIRhead-
phones IVHS-01 (accessory).

27
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Light bulb specifications
Diameter: 8 mm
Length: 28 mm
Voltage: 12 V, 3 W
Changing the battery in the
remote control
➮Push the button on the battery
compartment Jto the right (seeA
below).
➮Pull the battery compartment J
out of the remote control (see B
below).
➮Change the 3 V battery (CR 2025).
Changing the light bulb
➮Detach the monitor from the ceiling
plate (4 screws).
➮Remove the 3 screws of the metal
cover (see picture below).
➮Take out the old bulb.
➮Fit a new bulb (12 V, 3 W).
➮Refit the monitor.
OPERATION
Metal cover Bulb
Screws for securing the
ceiling-mounted monitor
B
AJ

28
SPECIFICATIONS
IVMR-9002
Screen size: 9" Monitor
Screen resolution: 1440 (H) x 234 (V)
Active area: 198.0 (H) x 111.74 (V)
Signal system: Dual system NTSC/PAL
Brightness: 300 cd/m2
Contrast ratio: 100
Viewing angle: Left/right: 65/65 degrees
Up/down: 50/65 degrees
Video input level: 1.0 Vpp ±10 %
Audio input level: 0.3 Vrms
AUX input level: 1.0 Vpp ±10 %
Carrier frequency for IR sensor: L-CH: 2.3 MHz
R-CH: 2.8 MHz
Operating voltage (direct current): 10-16V
Current consumption: 1A(at +12V)
Quiescent current consumption: 35 mA (at +12 V)
Operating temperature: 0 - 60 °C
Storage temperature: - 30°C to +80°C
Dimensions: 286 x 258 x 57.4 mm
Weight: ≤2150 g
Subject to changes!

29
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
SPECIFICATIONS
IVMR-1042
Screen size: 10.4" Monitor
Screen resolution: 1920 (H) x 480 (V)
Active area: 211.2 (H) x 158.4 (V)
Signal system: Dual system NTSC/PAL
Brightness: 290 cd/m2
Contrast ratio: 100
Viewing angle: Left/right: 60/60 degrees
Up/down: 40/50 degrees
Video input level: 1.0 Vpp ±10 %
Audio input level: 0.3 Vrms
AUX input level: 1.0 Vpp ±10 %
Carrier frequency for IR sensor: L-CH: 2.3 MHz
R-CH: 2.8 MHz
Operating voltage (direct current): 10-16V
Current consumption: 1.1 A (at +12 V)
Quiescent current consumption: 70 mA (at +12 V)
Operating temperature: 0 - 60 °C
Storage temperature: - 30°C to +80°C
Dimensions: 322 x 305 x 63.5 mm
Weight: ≤2450 g
Subject to changes!

01/04 CM/PSS2 - 8 622 403 936
Blaupunkt GmbH
Service-Nummern / Service numbers / Numéros du service après-
vente / Numeri del servizio di assistenza / Servicenummers /
Telefonnummer för service / Números de servicio / Números de
serviço / Servicenumre
Country: Phone: Fax: WWW:
Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 390 01-610 393 91
Belgium (B) 02-525 5454 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 57 85 350 210 57 69 473
Ireland (IRL) 01-4149400 01-4598830
Italy (I) 02-369 6331 02-369 6464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 023-565 6348 023-565 6331
Norway (N) 66-817 000 66-817 157
Portugal (P) 01-2185 00144 01-2185 11111
Spain (E) 902-120234 916-467952
Sweden (S) 08-7501500 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0441 02-6130 0514
Hungary (H) 01-333 9575 01-324 8756
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-3350677 0212-3460040
USA (USA) 800-2662528 708-6817188
Brasil
(Mercosur) (BR) [phone] [phone]
Malaysia
(Asia Pacific) (MAL) [phone] [phone]
