Blaupunkt MMP440 User manual

MMP440
6.2” In Dash Touch Screen DVD Receiver
Instruction Manual

Thank you for buying a BLAUPUKT product. To operate the unit correctly, please
read the operation manual carefully before using. Keep this operation manual for future
reference.
The unit designed only for DV 12V negative ground operation system. Make sure your
vehicle is connect to DC 12V negative ground operation system. Be sure to connect the
speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel
speaker wires together or to the vehicle body.
The normal temperature for operation is between -20 and +60 degree Fahrenheit. Do not
operate in extreme high or low temperature and lock vents or radiator panels of the unit,
6.2” In Dash Touch Screen DVD Receiver
Instruction Manual
MPEG4/ AVI/ SVCD/ VCD/ MP3/ WMA/ CD-R/RW/ JPEG.
This operation manual shows the full version of this unit. GPS navigation system, dynamic
multi-colour illumination; back USB connection; iPod connection, digital TV tuner; analog
TV tuner; Bluetooth and AM radio are optional features of the software and may not be
included. Please refer to the exact functions & features that equipped with this unit for
operation.
This unit can play the following discs (4.72 in) and media les: DVD±R/RW/ RMVB

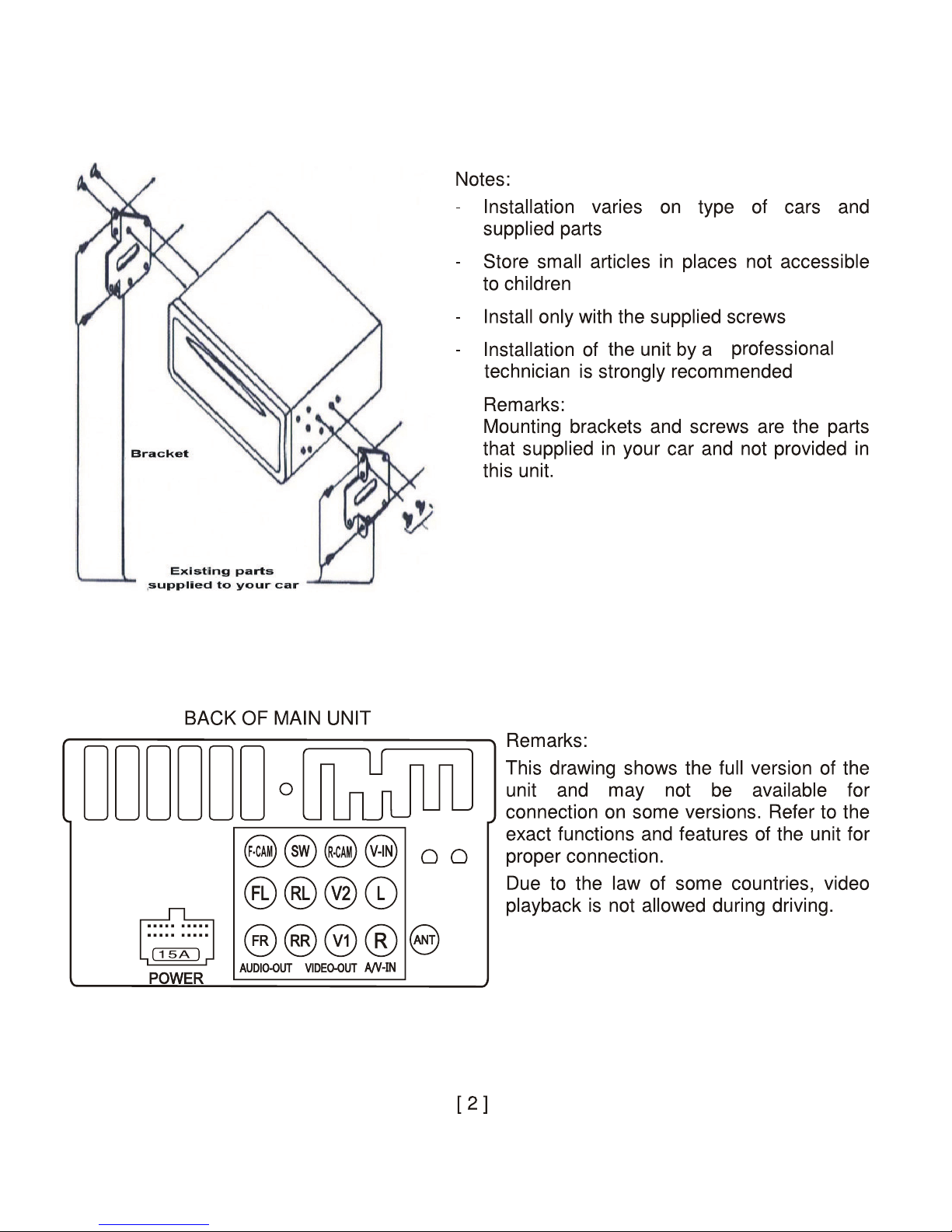

INSTALLATION
WIRING CONNECTION

Portion I Colour I Connection
Connecting Socket POWER Red Ignition switch (B+)
Black (Coarse) Ground (B-)
{Fine) Steering wheel control {Ground)
Yellow Memory back up (B+)
White Front left speaker (+)
WhiteI Black Front left speaker{-)
Grey Front right speaker(+)
GreyI Black Front right speaker(-)
Green Rear left speaker {+)
Green I Black Rear left speaker
{-)
Purple Rear right speaker(+)
Purple I Black Rear right speaker(-)
Blue/White Auto antenna {B+)
Pink Back sight {B+)
Pink/ Black Front camera {B+)
Grey Steering wheel control (1)
Green Steering wheel control (2)
Orange Illuminate backlight (B+)
Blue Amplifier control (B+)
Brown Brake {B-)
ANT Radio antenna
Audio output jack
sw Green Sub-woofer output
FL White Front left speaker output
FR Red Front right speaker output
RL White Rear left speaker output
RR
Red Rear right speaker output
Audio inputjack L White Auxiliary left speaker input
R Red Auxiliary right speaker input
Video output jack V1 Yellow Video output
V2 Yellow Video output
Video inputjack R-CAM Yellow Back sight camera input
V-IN Yellow Video input
F-CAM Brown Front camera input
[ 3]

go to the other operation
modes.

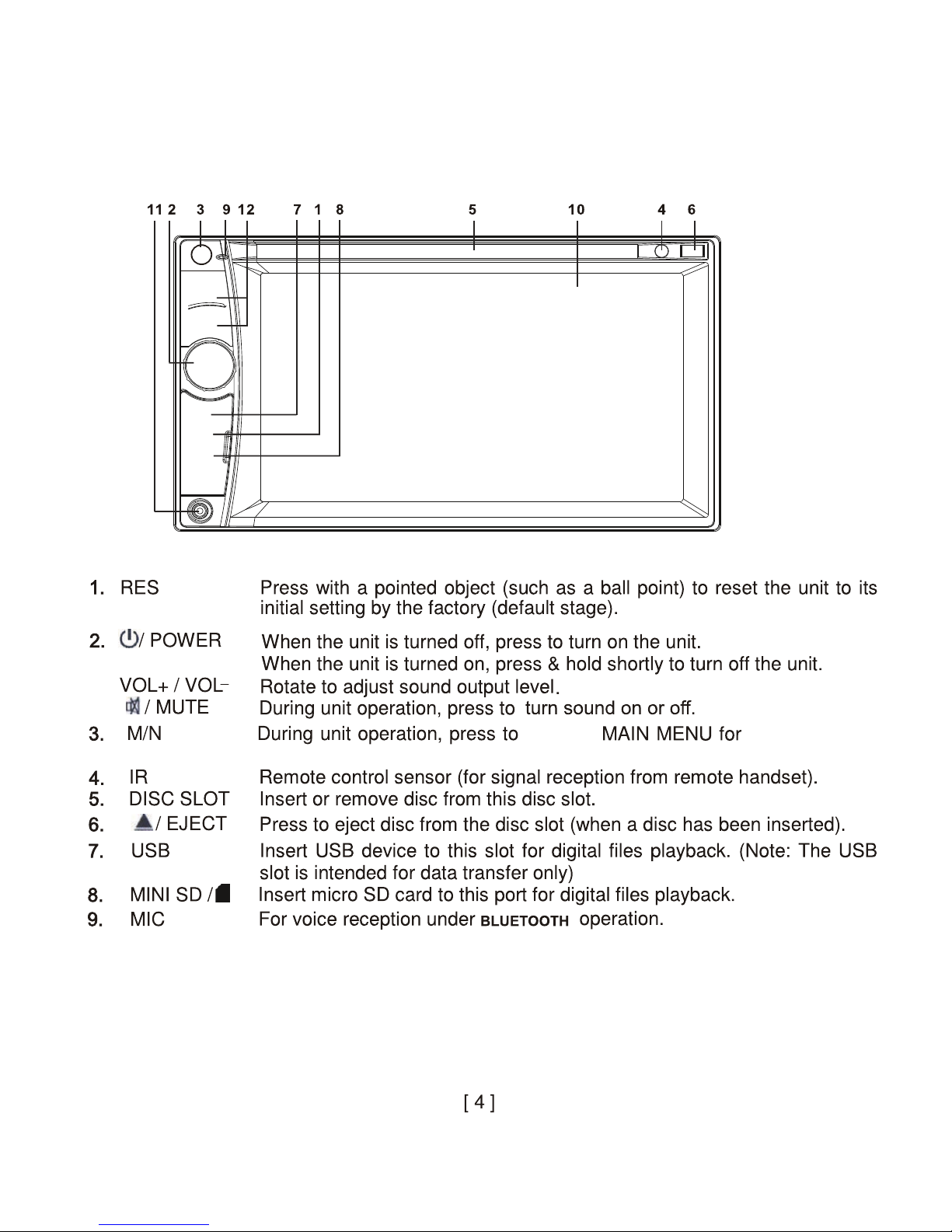

MAIN UNIT OPERATION
Symbol / Function Operation & Controls

10. TFT SCREEN
11.
AUX
Note
It shows the status of operation on the unit. This screen is also a touch
display -soft touch the screen for different operations of unit (for details,
refer to other parts
of this operation manual).
Insert
an external device to this jack in order to have sound output of that
external device through the unit.
Radio Mode
Press repeatedly to fine tune the radio frequency upward or downward.
Press & hold shortly to tune the radio frequency to the upward or
downward station for broadcasting.
DiscI
USB I SD Input Mode I BLUETOOTH Mode
Press repeatedly to shift track upward or downward for playback.
Press & hold shortly to activate fast forward I rewind of track.
At fast
forward 1rewind mode, press repeatedly for various fast forward I rewind
speeds. (Note: Fast forward I rewind is not available at
BLUETOOTH mode).
TV Mode
Press to choose TV channel upward or downward for broadcasting.
Press & hold shortly to tune the
TV frequency upward or downward and
stop for broadcasting when a TV
channel is received.
The above mentioned operations are for various series of the same type and may not be
available in the unit. Printing and symbols on the above may vary from the exact main unit.
Refer to the main unit for exact functions and features that applied. User is highly
recommended to use the touch screen control to operate. Most of the controls cannot be
operated by the main unit.
[ 5]

REMOTE HANDSET - GENERAK OPERATION
BATTERY REPLECEMENT
NO. SYMBOL OPERATION & CONTROL MODE

7. 1-6
0-9
8. ZOOM
0
9. BND
•
10. ROM
11. INT
12. ......
Radio Mode
Press any one
of the number keys 1-6 to select a station that had
been stored in the preset memory number key 1-6 for broadcasting.
Press & hold shortly the number key 1-6 to store
the current
broadcasting frequency or station into the respective preset memory
key number 1-6.
Disc I USBI SD I iPod Input Mode
Press directly to input the number of trackfor playback.
BLUETOOTH Mode
Press directly to input the phone number
for dial out.
TV Mode
Press directly to input the number of
channels that have been
memorized for broadcasting.
Disc I USBI SD Input Mode
At video & photo playback, each time press & hold shortly to select
various
zooming in and out of the screen for viewing.
Radio Mode
Press
to start scanning all the preset stations on memory and stop
for a few seconds
for broadcasting.
Press &hold shortly
to start searching the frequency and storing the
strongest signal stations into the preset memory stations (total 20
preset stations on each radio band). After storing the stations, the
unit starts scanning all the preset stations on memory and
stops for a
few seconds for broadcasting.
TV Mode
Press to start scanning all the preset channels on memory and stop
for a few seconds
for broadcasting.
Radio Mode
Press repeatedly
to select the desired radio band for broadcasting.
Disc I USBI SD Input Mode
At video playback mode underdisc input, press to stop playback.
At music I photo playback mode underdisc input and playback mode
under USB I
SD input, touch to stop playbacktemporarily and will
resume normal playback after a few seconds.
BLUETOOTH Mode
Press
to hang up or refuse an incoming call.
At disc I USB I SD input playback mode, press & hold shortly to turn
on or off of random playback of the input device
At music playback mode, press & hold shortly to turn on or off of
intra playback of the input device. (Note: Not available at
BLUETOOTH
mode)
At discI USBI SD I input & BLUETOOTH mode, press to pause, resume
or start playback. [
7]

<>
<>

19.
20.
21.
22.
23.
24.
SUB-T
SLOW
VOL+/VOL-
MENU/PBC
SETUP
Video Playback Mode
Each time press & hold shortly to select different sub-titles that
recoded
in the input device or media files. {Note: Available on input
device or media files recorded with sub-titles)
Radio Mode
At
FM radio band, press to select local setting for reception of strong
signal stations and distant setting for reception of weak signal
stations. {Note: LOC appears on screen on local setting whereas no
indication for distant setting)
At video playback mode, press & hold shortly to select different
speeds on slow motion playback.
Press repeatedly or press &hold to adjust sound output level.
DVD Mode
Press &hold shortly to display
on screen the menu of the entire disc
& resume playback after a while.
VCD Mode
Press & hold shortly to turn
on or off of PBC playback. At PBC on
mode, this will start the sequence playback at the beginning.
During unit operation, press &hold shortly to activate setup menu
on
screen for various system setup. Press & hold shortly again to
return to previous operation mode. (Note: System setup cannot be
operated by remote handset. System setup can only be operated by
touch
screen- refer to ON SCREEN OPERATION for details)
Bluetooth Mode
Press to pick up
an incoming call; dial out after inputting a phone
number; redial last
dialed out number.
~ 1 PHONE Press to shift conversation between main unit and mobile phone.
Remarks:
Depending on the input devices & playback media files, operation may be varied or not
available for operation.
[ 9]

the
BLUETOOTH
1234
56
7
89
10
11
12
13
6
ON SCREEN - MAIN MENU OPERATION
MAIN MENU

12
3
1
2
1
2
12
34

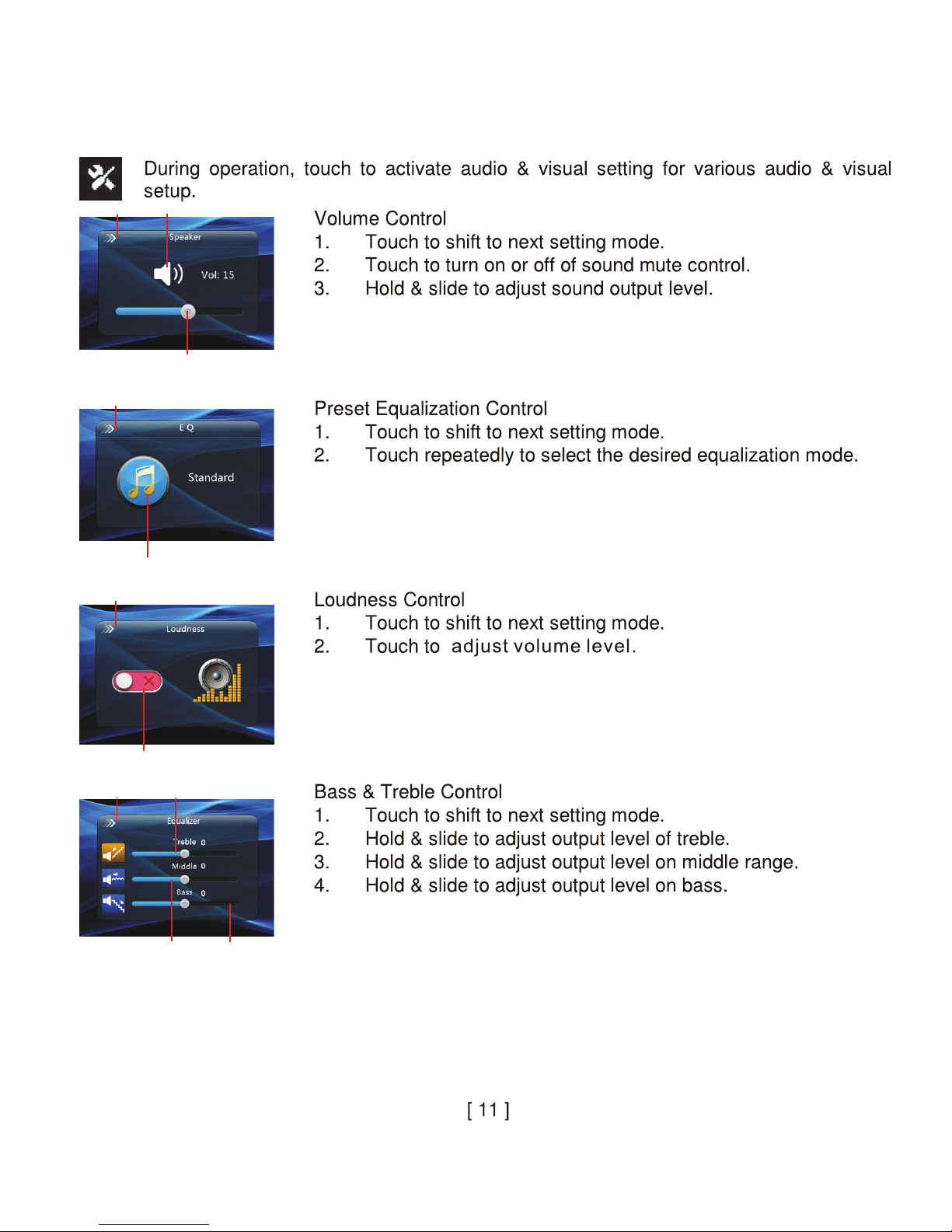

ON SCREEN - AUDIO & VISUAL SETTING

1
2
2
1
3
＜
＜
12
3
4
5
67
11
12
13
14
15
15
＜
＜
910
14 13 12 11
2
15 15
1
ON SCREEN - SETUP OPERATION

is
1
2
3
4517
13
14
15
16
17

EQMENU SURROUND MENU BALANCE & FADER MENU
{:}-
0 41 7 FEBRUJ RY 10.
20 14
t Q
..
..
,.,.
-
.. --.;
--
0 •
• • • • • • • • • • • • • • •
«
~
Stand ar d })
()
~
I!;J
S?
(,] '':
17
6
17
1. Touch to shift to AUDIO SETUP MENU.
2. Touch
to activate EQ MENU for equalization setting.
3. Touch
to activate SURROUND MENU for surround setting.
4. Touch
to activate BALANCE & FADER MENU for sound output setting on balance &
fader
5. Touch
to turn on or off volume control.
6. Touch repeatedly
to select the desired preset equalization mode.
7. Touch
to activate "custom" control mode. At this mode, hold & slide to set desired
equalization level.
8. Hold &slide
to show the hidden setting modes.
9. Touch
to select the desired surround mode.
10. Hold &slide
to set the desired output level between left & right speaker as well as
front & rear speaker.
11. Hold & slide
to adjust the output level between left & right speaker.
12. Hold & slide
to adjust the output level between front &rear speaker.
13. Touch
to shift to previous page, touch twice to shift to previous operation mode.
14. Touch
to turn off the screen. When the screen turned off, touch any portion of the
screen
to turn on the screen.
15. Touch
to shift to BLUETOOTH modefor BLUETOOTH operation.
16. Touch
to shift screen to MAIN MENU.
17. Hold & slide
to show the hidden setup modes.
[ 14]

VISUAL SETUP
VISUAL SETUP MENU
~
04:1 ~7
FEBRUARY 10, 2014
>t Q
~
SETT IN GS
e T
ype .
_, ,_
standard
>
f1
Adjust >
~
~
,......._
0 •
~ ~
~ t »
~
1. Touch to shift to VISUAL SETUP
MENU.
2. Touch
to activate PRESET VISUAL
MENU
for preset visual setting.
3. Touch to activate CUSTOM VISUAL
MENU
for visual setting.
4. Touch to select the desired preset mode of screen.
5. Hold & slideto adjust brightness of screen.
6. Hold & slide
to adjust contrast of screen.
7. Hold & slide to adjust hue of screen.
8. Hold & slideto adjustsaturation of screen.
9. Hold & slideto adjust sharpness of screen.
PRESET VISUAL MENU
u
0417
FEBRUARY 10. 2014
¥ Q
~
Ill Standard
----
"'
light
,, , Soft
,, , Bright
'---
Custom ~-
-
0 •
I
~-
~ I
(;J" ':
CUSTOM VISUAL MENU
u 04: 7 FEBRUARY ' 0. 2014
~
[,J
""
•
25
() · ----~- 29
,· · ~
25
•
25
~
~
00
-
0 •
r
!""~
~
~;~ ;:
10. Touch to shiftto previous page, touch twice to shiftto previous operation mode.
11. Touch to turn off the screen. When the screenis turned off, touch any portion
of the screen
to turn on the screen.
12. Touch to shift
to BLUETOOTH modefor BLUETOOTH operation.
13. Touch to shiftscreen to MAIN MENU.
14. Hold & slideto showthe hidden setup modes.
[ 15]

312 11
13
15 54115
14 2
16
6212 11
13
15 115
14
12 11
13
15 115
14 7
98
12 11
13
14
15 15
1
10
MEDIA SETUP
MEDIA SETUP MENU MEDIA SETUP MENU
KEY BOARD MENU
SCREEN RATIO MENU

16.
19 245
671
20 20
318 17 16 2
9
19 18 17 16
120
20 10
8
18 17 16
19 11
15
20 20
12 11413
17
18
20 15 20
19 11
13 1
13

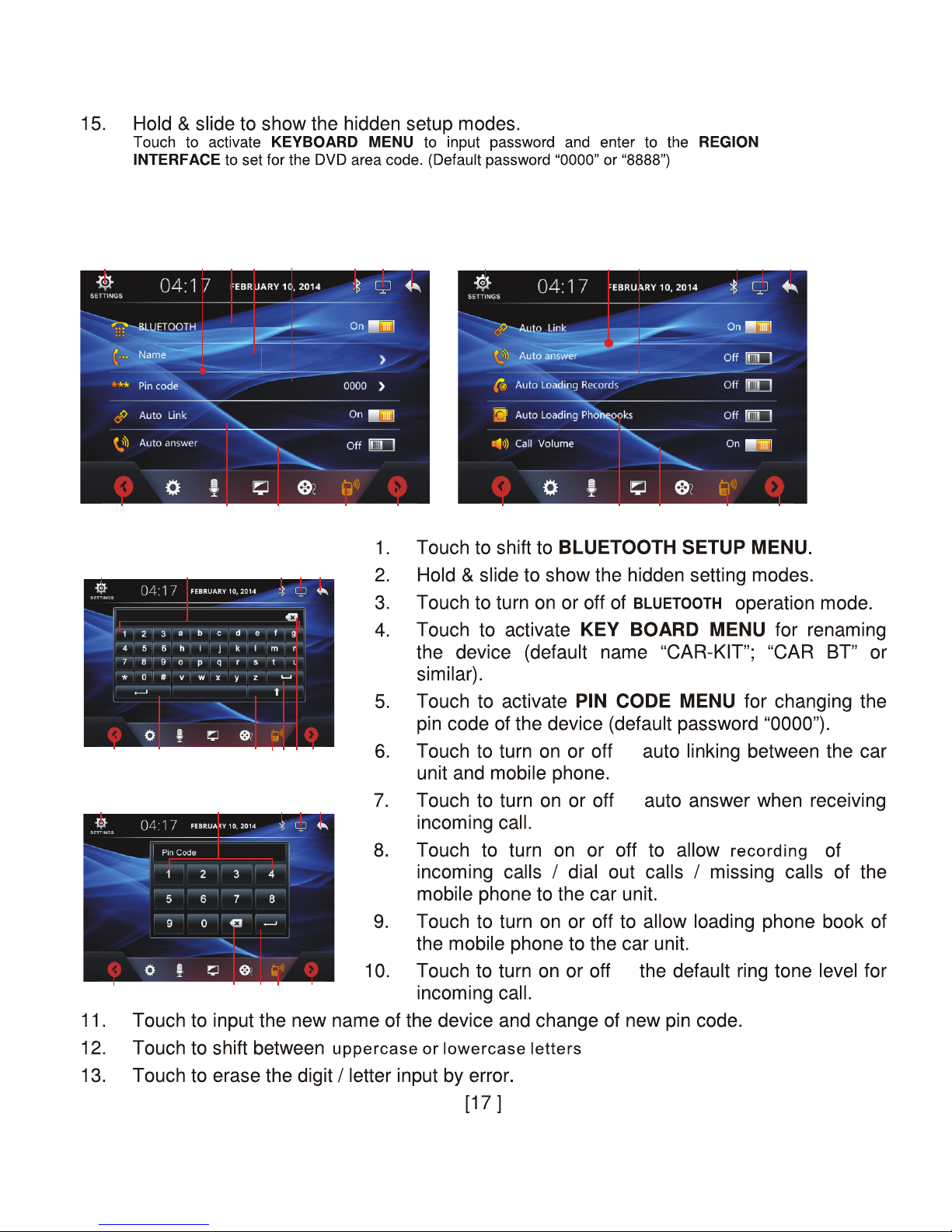

BLUETOOTH SETUP
BLUETOOTH SETUP MENU BLUETOOTH SETUP MENU
KEY BOARD MENU
PIN CODE MENU
MEMPHIS 440 BT

14. Touch for spacing.
15. Touch to confirm the input.
16. Touch to shift to previous page, touch twice to shift to previous operation mode.
17. Touch to turn off the screen. When the screen
is turned off, touch any portion of the screen
to turn on the screen.
18. Touch to shift to BLUETOOTH mode for BLUETOOTH operation.
19. Touch to shift screen to MAIN MENU.
20. Hold & slide to show the hidden setup modes.
CALEDAR 8r CLOCK SETUP
CALENDAR SETUP MENU
TIME FORMAT MENU SETTING MENU
-1!;:1-
04 17 FEBR'
JAR Y 10, 2014
,.
c;J ~
·~ llHour
_ _,--
0') 24Hou .:-------
"-.._,
......._
u • ~
: ~ :
l?i
11 11 1011 11
1. Touch to shift to CALENDAR SETUP MENU.
2. Touch to shift screen to MAIN MENU.
3. Touch to activate TIME FORMAT MENU for time format setting.
4. Touch to activate SETTING MENU for setting of calendar.
5. Touch to shift to BLUETOOTH mode for BLUETOOTH operation.
[
18]

6. Touch to turn off the screen. When the screen is turned off, touch any portion of the screen
to turn
on the screen.
7. Touch to shiftto previous page, touch twice to shift to previous operation mode.
8. Touch to setthe clock
in 12 hour format.
9. Touch to setthe clock
in 24 hour format.
10. Touch respectively to setfor year, month, date, hour &minute.
11 . Hold & slide to showthe hidden setup modes.
ILLUMINATION BACKLIGHT SETUP
AUTO MENU MANUAL MENU PRIMARY MENU
~
04 17
FEBRUI).RY 10 2014
..
..
Q
....
-- - ----
'
S.dJlght AdjUSt
,.. -
~
Auto
:.·I TO
Au to cycle ti me
~
......_
ti' " ~
: ~ : 0'
17 17
MODE MENU ADJUST MENU R.G.B.MENU
~
04 17
FE B RUARY 10 .2 014 t
_,--
--
•
~
......_
ti' " ~
:~ :
0.
17 17
1. Touch to shift to AUTO MENU I MANUAL MENU I PRIMARY MENU.
2. Touch to activate ADJUST MENU to adjust illumination backlight
Q
3. Touch to activate MODE MENU to select illumination mode (auto I manual/ primary).
4. Touch to select MANUAL MODE for
A. G.B. colour setting.
...
255
5. When AUTO MODE selected, touch to activate AUTO CYCLE TIME INTERFACE to
selectthe time for automatic backlight change.
[ 19]
