We are pleased that you have chosen a Blaupunkt product, and are grateful for the confidence that you are therefore showing us.
The following installation notes will help you to get the best use out of our product, because incorrect fitting can result in serious
problems. The fitting should therefore, if at all possible, be carried out by trained specialists.
Rules for fitting and connecting
•Disconnect the battery’s negative terminal! Follow the vehicle manufacturer’s safety instructions here.
•Make sure that vehicle parts are not damaged when drilling holes.
•The cross-sectional area of the positive and negative cables must not be less than 1.5 mm2.
•Do not connect the vehicle’s own plugs to the Chicago IVDM-7002!
•You can obtain the correct adapter cable for your vehicle from your Blaupunkt dealer.
•Your vehicle may differ from this description, depending on the type of construction. We cannot accept liability for damage to
the equipment or consequential damage resulting from incorrect fitting or connection.
If the instructions given here do not describe your fitting process, please contact your Blaupunkt dealer, your vehicle manufac-
turer, or use our telephone hotline.
•The Chicago IVDM-7002 is suitable for vehicles with:
-11 V - 14.4 V battery voltage
-the negative terminal connected to the chassis
Safety information

8
Contents
Safety information................ 7
Assembly .............................. 9
Connections ................................... 9
Power and loudspeaker connections ...... 9
Additional free connections ..................... 9
Centre loudspeaker................................. 9
Connect the handbrake signal ................ 9
Ignition positive for amplifier.................... 9
RC 10 connection (accessories) ............. 9
Installation .................................... 10
Radio antenna....................................... 10
Installation orientation ........................... 10
Fitting the bracket.................................. 10
Mounting the monitor unit...................... 10
Removing the monitor unit .................... 10
Fitting the amplifier................................ 10
Amplifier connection ................... 11
TravelPilot connection ................. 11
Video connection................................... 11
Audio connection .................................. 11
Reversing camera ........................ 11
Reversing light connection .................... 11
Reversing camera connection............... 11
Connection diagrams .................. 11
Included items .................... 53
Diagrams............................. 55

9
ENGLISH
11
11
1Handbrake (green)
Connection for the handbrake sig-
nal.
22
22
2Ignition positive (blue)
Additional positive ignition output.
33
33
3Navigation mute (orange)
Control line for muting the audio
source during a navigation an-
nouncement.
44
44
4Ignition positive (brown/white)
Additional positive ignition output
55
55
5Centre loudspeaker + (black)
66
66
6Centre loudspeaker - (black/
green)
Additionalloudspeakerfittedinthe
centre of the instrument panel.
77
77
7Ignition positive amplifier (blue/
white)
Positive ignition output for a con-
nected amplifier
88
88
8Reversing light connection
The cable end is included in the
vehicle-specificadaptercable,and
must inserted into chamber A, pin
3, if necessary.
1.3 Centre loudspeaker
The centre loudspeaker is connected
through the two black leads 55
55
5and 66
66
6
(see Fig. 1).
Your dealer can tell you about availa-
ble centre loudspeakers.
1.4 Connect the handbrake signal
Install a cable from the handbrake
switch to the connection on the con-
trol unit 11
11
1(see Fig. 1). Ensure that
the connection is earthed when the
handbrake is on.
1.5 Ignition positive for amplifier
Take a cable from the connection 77
77
7
tothepositiveignition connectionofthe
amplifier (or amplifiers) (see Fig. 1).
1.6 RC 10 connection (accesso-
ries)
The receiver sensor for the optional
remote control RC 10 is connected to
the monitor unit through the enclosed
adapter 8 619 002 421 (see Fig. 2).
Assembly
1. Connections
Warning! We accept no liability
for incorrect connection or its
consequences!
1.1 Power and loudspeaker con-
nections
The device must be connected to your
vehicle using the enclosed connection
cable (8 619 002 597) and an adapt-
er cable specific for your vehicle
(see Fig. 1).
Note: An adapter cable specific for
the vehicle must also be used even
if the vehicle is already fitted with
ISO connectors.
1.2 Additional free connections
The connecting leads described below
must, if necessary, be separately con-
nected to the corresponding connec-
tions on the vehicle (see Fig. 1).

10
2. Installation
2.1 Radio antenna
In ready-fitted vehicles (e.g. VW, Seat,
Audi) the antenna supply voltage is
provided through the antenna cable
(see the vehicle’s user instructions).
You can obtain an antenna supply
junction piece (order no. 7 691 290
202) or the adapter cable (order no.
7 607 621 129) from your dealer.
Fitting and connecting the cable are
describedintheantennafittinginstruc-
tions.
2.2 Installation orientation
The device must be fitted at an angle
of between 0°and +20°. The Chicago
IVDM-7002 is not suitable for vertical
fitting.

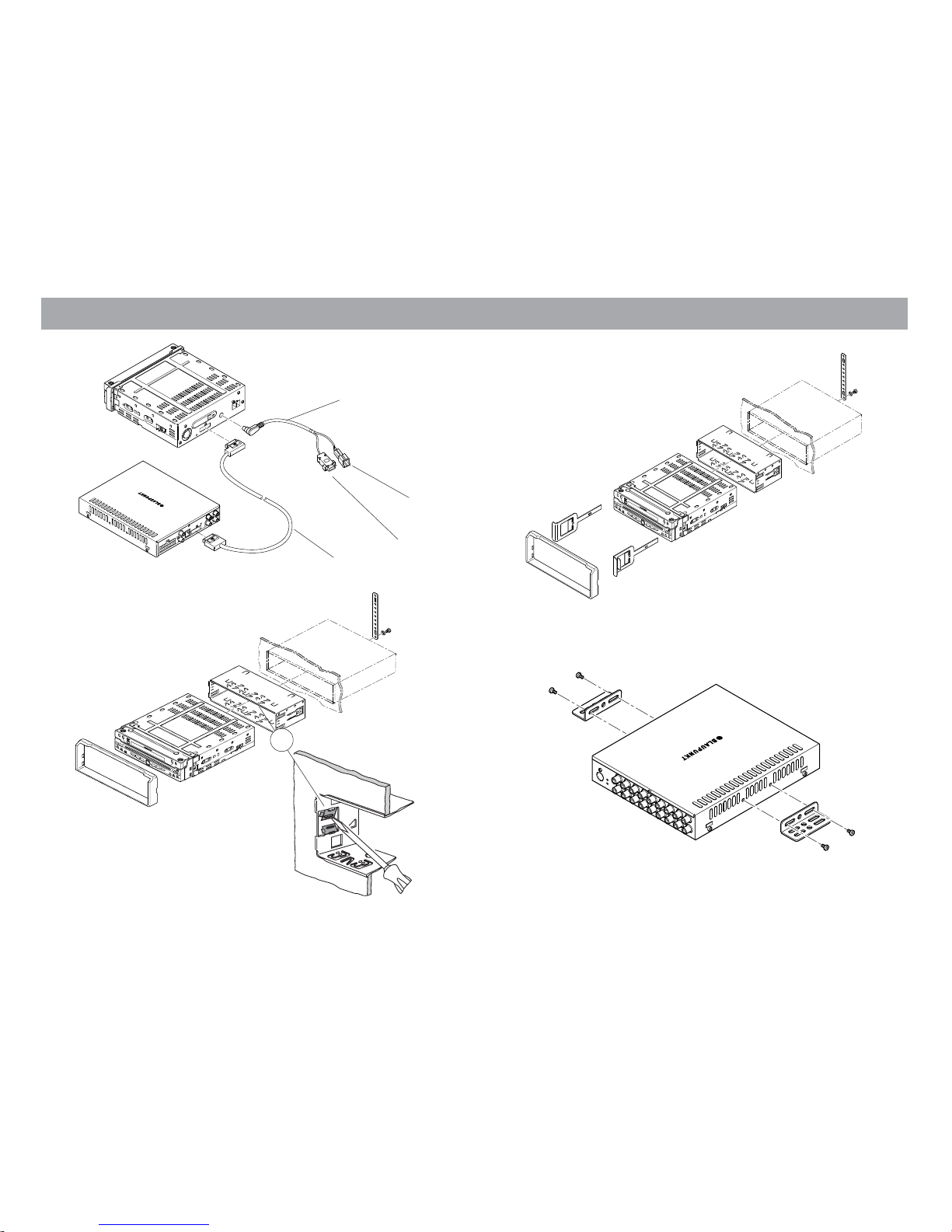

2.3 Fitting the bracket
The bracket included with the Chica-
go IVDM-7002 allows it to be mounted
invehicleswitha DINcarradioslot with
dimensions of 182 x 53 x 180 mm and
with instrument panels that are be-
tween 1 and 20 mm thick in the region
of the securing tabs (see Fig. 3). To
mount the device you must push the
bracket into the opening and check
which of the bracket’s securing tabs
can be bent over with a screwdriver
(see Fig. 3a).
Note: Bend all the securing tabs if
possible.
2.4 Mounting the monitor unit
Push all the plugs fully into their cham-
bers so that they engage. Then place
theChicagoIVDM-7002into the brack-
et at the front (see Fig. 3).
Push the device in by gently pressing
both ends of the frame until the catch
springs at the side lock into place (you
will hear a distinct click).
Warning! Do not press the display,
knobs or switches when pushing
the device into place!
2.5 Removing the monitor unit
Removetheplasticmaskingframe. You
mustnowpushthe clips inbetweenthe
device and the mounting frame on the
leftandthe right,andpressthem inuntil
adistinctclick canbeheard (thesprings
at the side disengage). Now carefully
withdraw the Chicago IVDM-7002 us-
ing the two clips. The connecting cable
can now be released and withdrawn
(see Fig. 4).
Note: When the clips have engaged,
they can only be removed by with-
drawing the Chicago IVDM-7002.
2.6 Fitting the amplifier
Mount the amplifier in a suitable loca-
tion using the enclosed angle bracket
(see Fig. 5).
Make sure that the fan’s outlet open-
ing is not covered. Use the connecting
cable to join the tuner unit to the mon-
itor unit (see Fig. 2).
Assembly

11
ENGLISH
5. Amplifier connection
The tuner/amplifier box provides a va-
riety of inputs and outputs with which
additional components can be con-
nected (see Fig. 6).
99
99
9Connectors for loudspeaker, pow-
er supply etc.
::
::
:CD changer connection
;;
;;
;Control unit connection
<<
<<
<Digital out connection
==
==
=Audio / video input NAVI
>>
>>
>Audio / video input AUX 1
??
??
?Audio / video output 1
@@
@@
@Pre-amplifieroutputtocentreloud-
speaker
AA
AA
APre-amplifier output
BB
BB
BRadio antenna input
CC
CC
CAudio / video input AUX 2
DD
DD
DAudio / video output 2
EE
EE
EPre-amplifier output to subwoofer
FF
FF
FConnections for the IVSC-5502 or
IVSC-3302 via connecting cable
7 607 001 605
The connection should be made using
theappropriateaccessoriesfromBlau-
punkt.
Your dealer will be glad to tell you
about this.
6. TravelPilot connection
6.1 Video connection
Connect the video output from the
TravelPilot using a connecting cable
7 607 001 602 (4 m) or 7 607 001 601
(1.5 m) and the adapter cable 8 619
002 421 to the input of the control unit
(see Fig. 7).
6.2 Audio connection
Plug the adapter cable 8 619 002 600
into the TravelPilot’s D-chamber, and
connect it to the audio input ==
==
=(left or
right). Join the adapter cable’s free
lead to the navigation mute lead 33
33
3of
the adapter cable 8 619 002 597 (see
Fig. 7).
Montage
7. Reversing camera
7.1 Reversing light connection
Connect the reversing light to Pin 3 of
chamber A of the vehicle-specific
adapter (see Fig. 1). Use the included
cable end 88
88
8for this. The Chicago
IVDM-7002willswitchon automatically
when reverse gear is engaged.
7.2 Reversing camera connection
Connect the camera’s video outputs to
the video input ==
==
=.Followthe camera’s
fitting instructions (see Fig. 8).

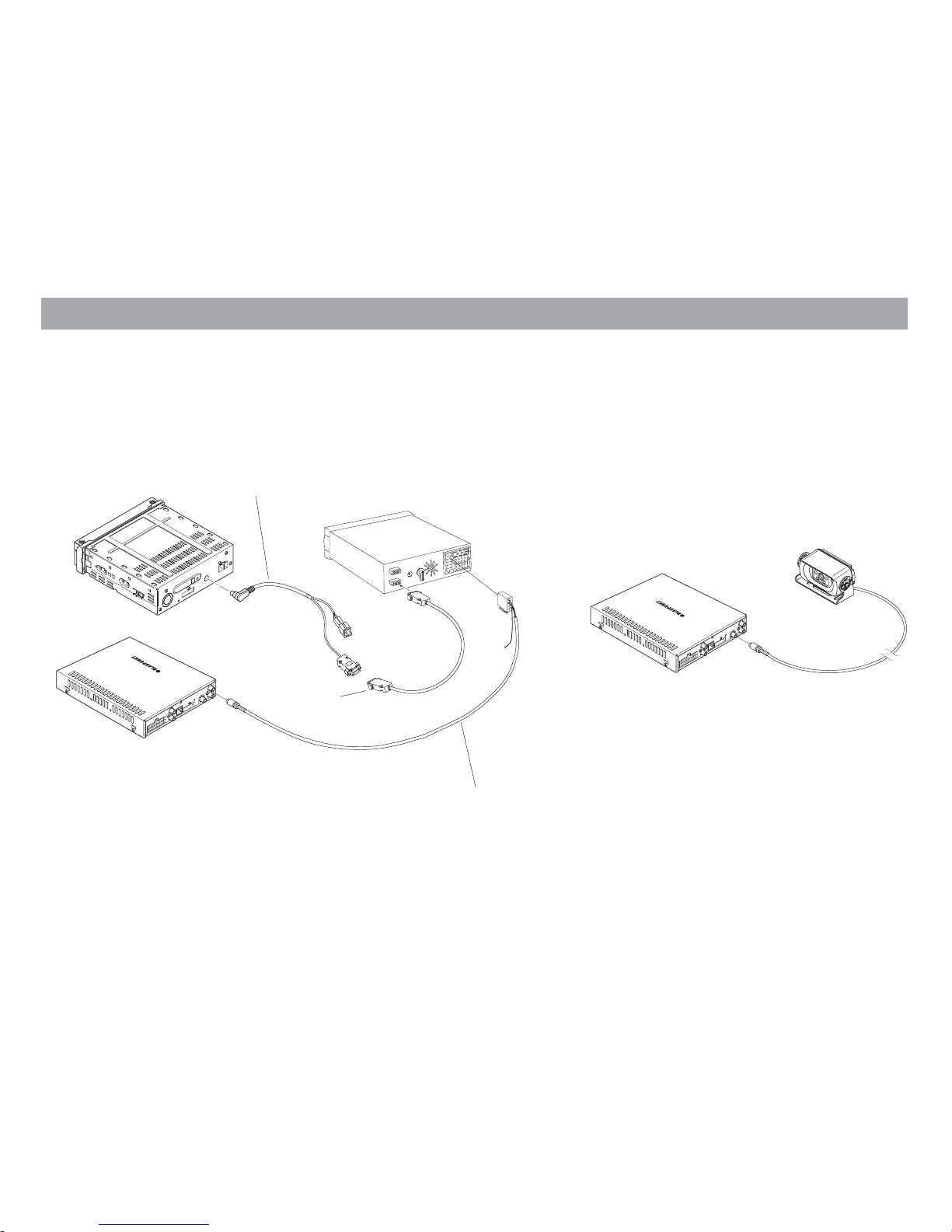

8. Connection diagrams
Power connection on
vehicle-specific connector....... Fig. 1
Loudspeaker connection......... Fig. 1
Connection of the connecting
cable ........................................ Fig. 2
TravelPilot connection............. Fig. 2
Fitting the
Chicago IVDM-7002................ Fig. 3
Removing the
Chicago IVDM-7002................ Fig. 4
Mounting the tuner box ........... Fig. 5
Box pin assignments ............... Fig. 6
TravelPilot connection............. Fig. 7
Reversing camera connection Fig. 8

53
DEUTSCH ENGLISH FRANÇAIS ITALIANO NEDERLANDS ESPAÑOL PORTUGUÊS DANSK SVENSKA NORSK
Bedienteil (Head unit)
Control unit (head unit)
Unité de commande (Head unit)
Dispositivo di comando (Head unit)
Bedieningsgedeelte (head unit)
Unidad de mando (Head unit)
Unidade de comando (Head Unit)
Betjeningsdel (Head unit)
huvudenhet (panel, skärm, spelare)
Betjeningsdel (Head unit)

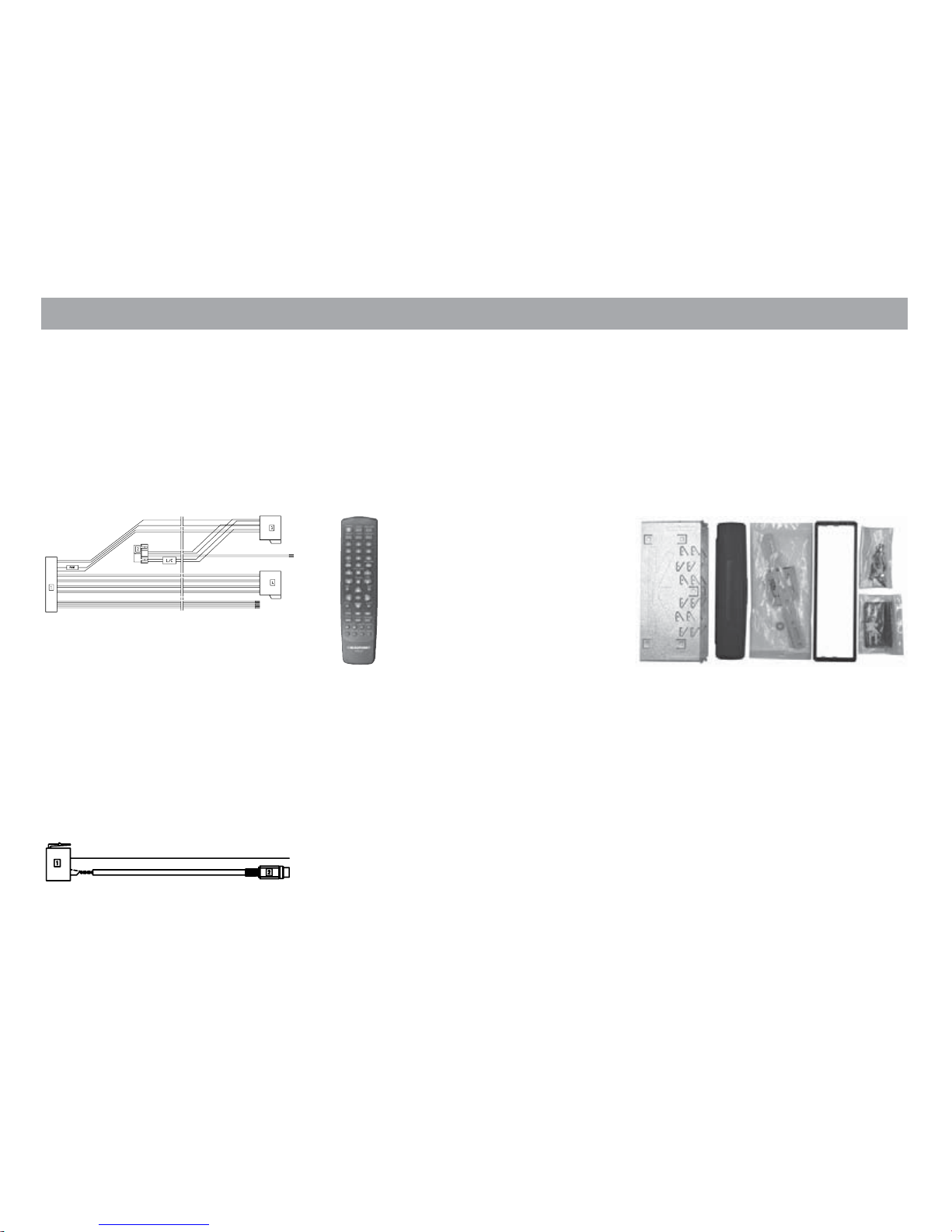

Lieferumfang / Included items / Fourniture / Massa di fornitura / Geleverd pakket / Volumen de suministro / Componentes fornecidos /
Leverancens indhold / Ingående komponenter / Leveringsomfang
Verstärker (Hideway Box)
Amplifier (hideaway box)
Amplificateur (Hideway Box)
Amplificatore (Hideway Box)
Versterker (hide-away box)
Amplificador (Hideway Box)
Amplificador (Hideway Box)
Forstærker (Hideway Box)
förstärkare inkl. mottagare (dold montering)
Forsterker (Hideway Box)
Adapterkabel für TravelPilot und Lenkrad-
fernbedienung RC 10
Adapter cable for TravelPilot and steering-
wheel remote control RC 10
Câble adaptateur pour TravelPilot et télécom-
mande au volant RC 10
Cavi di adattamento per TravelPilot e teleco-
mando su volante RC 10
Adapterkabel voor TravelPilot een stuurwiel-
afstandsbediening RC 10
Cable adaptador para TravelPilot y mando a
distancia para volante RC 10
Cabo adaptador para TravelPilot e telecoman-
do de volante RC 10
Adapterkabel for TravelPilot og rat-fjernbe-
tjening RC 10
adapterkabel för navigeringsenhet Travel-
Pilot och rattfjärrstyrning RC 10
Adapterkabel for TravelPilot og rattfjernkon-
troll RC 10

54
Adapterkabel
Adapter cable
Câble adaptateur
Cavo di adattamento
Adapterkabel
Cable adaptador
Cabo adaptador
Adapterkabel
adapterkabel
Adapterkabel
Audio-Anschlusskabel TravelPilot
Audio connecting cable for TravelPilot
Câble de connexion audio TravelPilot
Cavo di allacciamento audio per TravelPilot
Audio-aansluitkabel TravelPilot
Cable de conexión de audio para TravelPilot
Cabo de ligação áudio para TravelPilot
Audio-tilslutningskabel TravelPilot
audioanslutningskabel TravelPilot
Audio-tilkoplingskabel TravelPilot
Fernbedienung
Remote control
Télécommande
Telecomando
Afstandsbediening
Mando a distancia
Telecomando
Fjernbetjening
fjärrstyrning
Fjernkontroll
Antennenverlängerung
Antenna extension
Rallonge d’antenne
Prolunga per antenna
Antenneverlenging
Alargador de antena
Extensão de antena
Antenneforlænger
antennförlängning
Antenneforlengelse
Beipack
Accessory packs
Jeu de montage
Elementi aggiuntivi
Extra’s
Paquete adicional
Componentes adicionais
Vedlæg
övriga detaljer
Sideledning i bredbåndkabel
Lieferumfang / Included items / Fourniture / Massa di fornitura / Geleverd pakket / Volumen de suministro / Componentes fornecidos /
Leverancens indhold / Ingående komponenter / Leveringsomfang

55
DEUTSCH ENGLISH FRANÇAIS ITALIANO NEDERLANDS ESPAÑOL PORTUGUÊS DANSK SVENSKA NORSK
8 619 002 597
11
11
1
22
22
2
33
33
3
44
44
4
55
55
5
66
66
6
77
77
7
Fig. 1
7 6.. ... ...
Abbildungen / Diagrams / Illustrations / Illustrazioni / Afbeeldingen / Figuras / Figuras / Illustrationer / Figurer / Bilder
88
88
8

56
Fig. 5
Fig. 3
Fig. 4
VOL
-DISC
DISC+
ZOOM RPT
MIX
SCAN
TUNE
BSM
456
123
BND
CHICAGOIVDM-7002
SRC NAVI DIS
Fig. 3a
A
VOL
-DISC
DISC+
ZOOMRPT
MIX
SCAN
TUNE
BSM
456
123
BND
CHICAGOIVDM-7002
SRC NAVI DIS
TravelPilot DX-V
8 619 002 419
8 619 002 421
Fig. 2
RC 09
RC 10
Abbildungen / Diagrams / Illustrations / Illustrazioni / Afbeeldingen / Figuras / Figuras / Illustrationer / Figurer / Bilder

57
DEUTSCH ENGLISH FRANÇAIS ITALIANO NEDERLANDS ESPAÑOL PORTUGUÊS DANSK SVENSKA NORSK
Fig. 6
POWER SUPPLY R
L
CDC IN TO MAIN UNIT NAVI
DIGITAL OUT
R
L
V
FF
FF
F
V
R L VRL
RADIO ANT IN IN
AUX 2
IN
AUX 1
2VIDEO OUT
VIDEO 1 OUT OUTPRF
CT RR FR
SW RL FL
??
??
?AA
AA
A
CC
CC
CEE
EE
E
Abbildungen / Diagrams / Illustrations / Illustrazioni / Afbeeldingen / Figuras / Figuras / Illustrationer / Figurer / Bilder
BB
BB
BDD
DD
D
>>
>>
>@@
@@
@
99
99
9::
::
:;;
;;
;==
==
=
<<
<<
<

58
Fig. 7
Fig. 8
Abbildungen / Diagrams / Illustrations / Illustrazioni / Afbeeldingen / Figuras / Figuras / Illustrationer / Figurer / Bilder
A
8 619 002 600
7 607 001 601 (1,5 m)
7 607 001 602 (4 m)
8 619 002 421 TravelPilot DX-V
Camera
Mute

Country: Phone: Fax: www:
Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 39 0 01-610 39 391
Belgium (B) 02-525 5444 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 94 27 337 210 94 12 711
Ireland (IRL) 01-4149400 01-4598830
Italy (I) 02-369 62331 02-369 62464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 023-565 6348 023-565 6331
Norway (N) 66-817 000 66-817 157
Portugal (P) 01-2185 00144 01-2185 11111
Spain (E) 902-120234 916-467952
Sweden (S) 08-7501500 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0441 02-6130 0514
Hungary (H) 01-333 9575 01-324 8756
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-3350677 0212-3460040
Blaupunkt GmbH
07/04 CM/PSS 8 622 404 075 Index C /
