Blaupunkt IVOD-1022 User manual

IVOD-1022
Overhead–LCD Display/DVD Player
OPERATION MANUAL
Rifa

1. Important safety instruction
Read these instructions.
Keep these instructions
Heed all warning
Follow all instruction
Do not use benzene, thinner, solvents or any other chemical for cleaning
Wipe the cabinet with a soft cloth
WARNING :
To prevent fire or Shock hazard. do not expose the unit to rain or moisture. To
avoid electrical shock, do not open the cabinet (or back). Refer servicing to
qualified personnel only
2. Safety Precaution
This symbol indicates “dangerous voltage” inside the product
that presents a risk of electric shock or personal injury
Before attempting to connect, or operate this product, please
read the manual completely

This symbol indicates important instructions
accompanying the product
CAUTION: DVD PLAYERS USE AN INVISIBLE LASER
BEAM WHICH CAN CAUSE HAZARDOUS RADIATION
EXPOSURE IF DIRECTED. BE SURE TO OPERATE
PLAYER CORRECTLY AS INSTRUCTION
FCC NOTE
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to operated
the equipment under FCC rules.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to
the environment.
Do not keep under directly sunlight

Keep in a cool ventilated area
Store vertically
Keep in a clean protection jacket
COPY PROTECTION
Many DVD discs are encoded with copy protection.
Because of this, you should only connect your DVD player directly to your TV, not to a
VCR (Video Cassette Recorder). Connecting to a VCR result in a distorted picture from
copy - protection DVD discs..
This product incorporates copyright protection technology that is protected by methods
claims of certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes
must match in order for the disc to play. If the codes do not match, the disc
will not play.
This unit’s code is region 1.

Other regional codes cannot be played in this unit. The unit will display
“WRONG REGION.”
Region codes are printed on the DVD disc or protection jacket (rear side)

1. Canada, U.S., U.S. Territories
2. Japan, Europe, South Africa, Middle East (including egypt)
3. Southeast Asia, East Asia (including Hong Kong)
4. Australia, New Zealand, Pacific Islands, Central America, Mexico, South America,
Caribbean
5. Former Soviet Union, Indian Subcontinent, Africa (also North Korea, Mongolia)
6. China
3. Basic Features
• Built in DVD Player on the other side of LCD Display Panel
• 10.2 Inch Wide (16:9) TFT LCD Monitor
• World Slimmest Overhead DVD Player (38mm)
• Patented Mechanism of hybrid Slot-in Loading System
• OSD (On Screen Display) for the Control of Picture Quality and Functions
• Attachable(Optional) TV Tuner and FM Transmitter
• Fully Functioned Remote Control
• 20CH(max.) Frequency FM Modulator
• Six Infrared Transmitter for IR Wireless Headset
• Two Audio/Video Inputs (Composite Video)
• Last Scene Memory Function for DVD
• 2 Way (Front and Rear, Side) Remote Sensor
• High Bright Dual Dome Light
Appearances

Front
Back
Side(Left)
Side(Right)

4. Main Function Descriptions
1. Remote Sensor – Use receiver remote control to operate the BAT
2. POWER Button – Press this button to turn the BAT on. Press the button again to
turn the BAT off
3. PLAY/STOP (▶∥) Button
Press this button to activate the play mode while a disc is loaded into the disc
compartment. Press the button again to allows the user to stop the playback
4. NEXT/ F.F (▶▶) Button – Allows the user t advances to the next chapter, track or
scene during playback.
5. PREV/ F.R(◀◀) Button – Allows the user to goes back to the preceding chapter,
track or scene during playback.
6. MODE Button ( DVD, AV1, TV(option), AV2) - Switches input source
7. Dome Lights Button– Press this button to turn the Dome light on. Press the button
again to turn the Dome light off
8. OPEN/ EJECT – Open or Ejecting the disc.
4.1 Turning the BAT On/Off
1. Sliding the screen release lock forward will unlock the LCD screen and it will drop
down slightly. The internal friction will hold the screen in position while the system is
in use.
2. Pressing the power button on the unit or the remote control will turn the system on or

off alternately. When in use the internal backlighting will illuminate the controls.
4.2 Overhead Dome Lights
The lights integrated into the BAT are controlled by Push-Button switch. Push-Button
switch to the protrusion position will turn the lights off. And other position will allow the
lights to turn on.
4.3 Remote Sensor
The BAT incorporates three Infrared sensors which relay signals from the remote control
to allow the unit to be controlled simply by pointing its remote control at the remote
sensor eye.
4.4 DVD Basics
To get the optimum use out of the DVD section, make sure you read this section
completely.
5. Remote Control Operation
Battery Installation
Before attempting to operate your Remote Control, install the batteries as described below.
1) Turn the Remote Control face down. Using a clip and fingertip, pull down the battery
cover open.
2) Install One “CR2025” batteries as shown. Make sure that proper polarity (+ or -) is
observed.
3) Align the cover tabs with the remote control and press down until the cover clicks.
If remote doesn’t operate properly

1) Check the polarity +, - of the batteries (Coin-Cell)
2) Check if the batteries are drained
3) Check if remote sensor is blocked by obstacles
4) Check if there is any fluorescent lighting nearby
Using the Remote Control
1) Point the Remote Control at the REMOTE SENSOR located on the unit
2) When there is bright ambient light near the unit, the performance of the infrared
REMOTE SENSOR may be degraded, causing unreliable operation.
3) The recommended effective distance for remote operation is about 7 meter
Battery Replacement
When batteries become weak the operating distance of the remote control is
greatly reduced and you will need to replace the batteries.
Notes
1) If the Remote control is not going to be used for a long time (More than Several Weeks),
remove the batteries.
2) Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-ADMIUM)
batteries
WARNING
Do not dispose of batteries in fire, Batteries may explode or leak

Remote Control

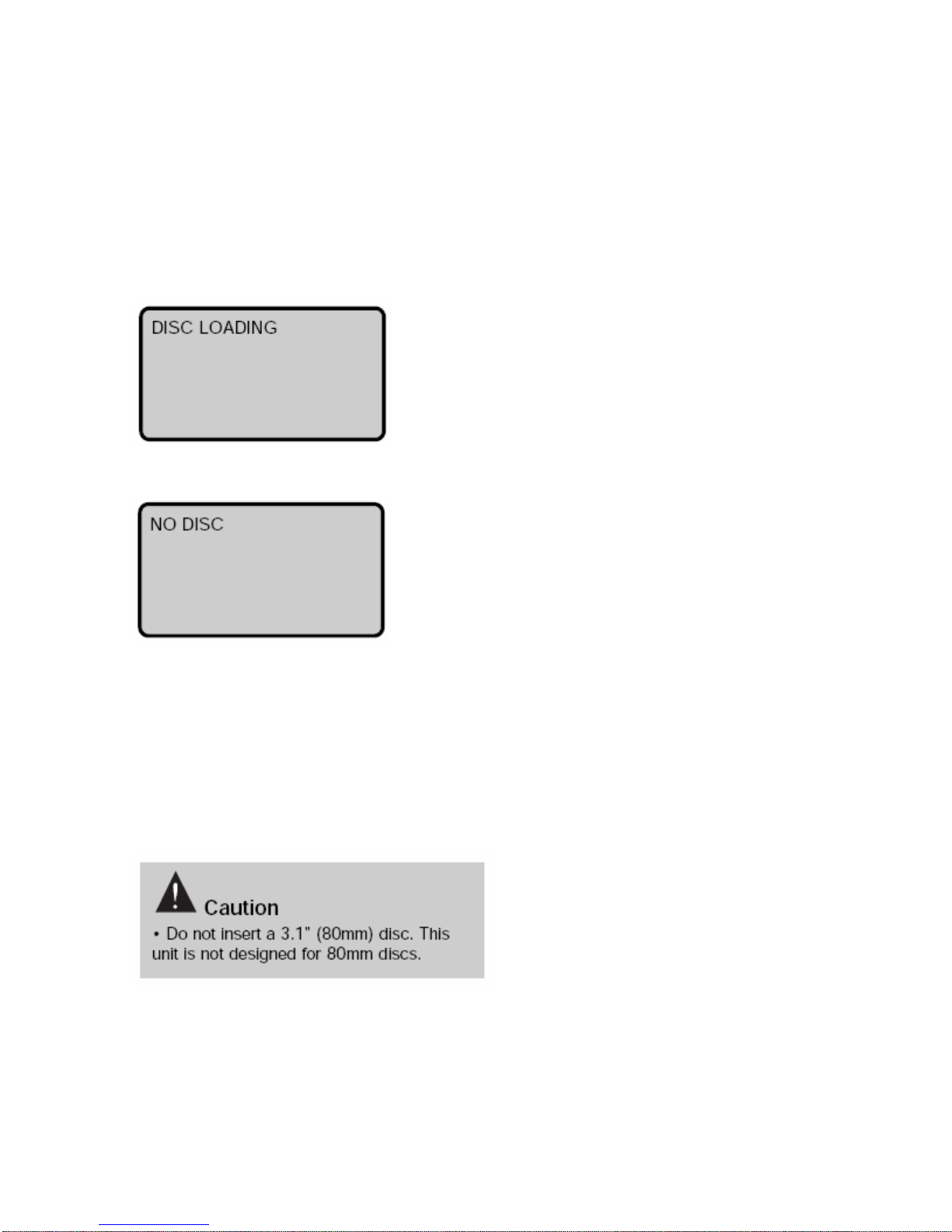

6. DVD Player Operation
STEP 1:
Press the POWER button. Starting logo is then displayed on the screen.
When a disc is loaded
When a disc is not loaded
STEP 2:
Insert a disc, the player identifies disc type automatically and disc type will be displayed in
the left top of TV screen. It will automatically start to play.
STEP 3:
If the power button of the unit or remote controller is pressed, the unit converts to stand-by
Mode (Blue LED "ON"). If the power button is pressed again, the power turns on (Blue
LED "off") and the unit starts to play (Blue LCD of window "ON").

7. Function Buttons

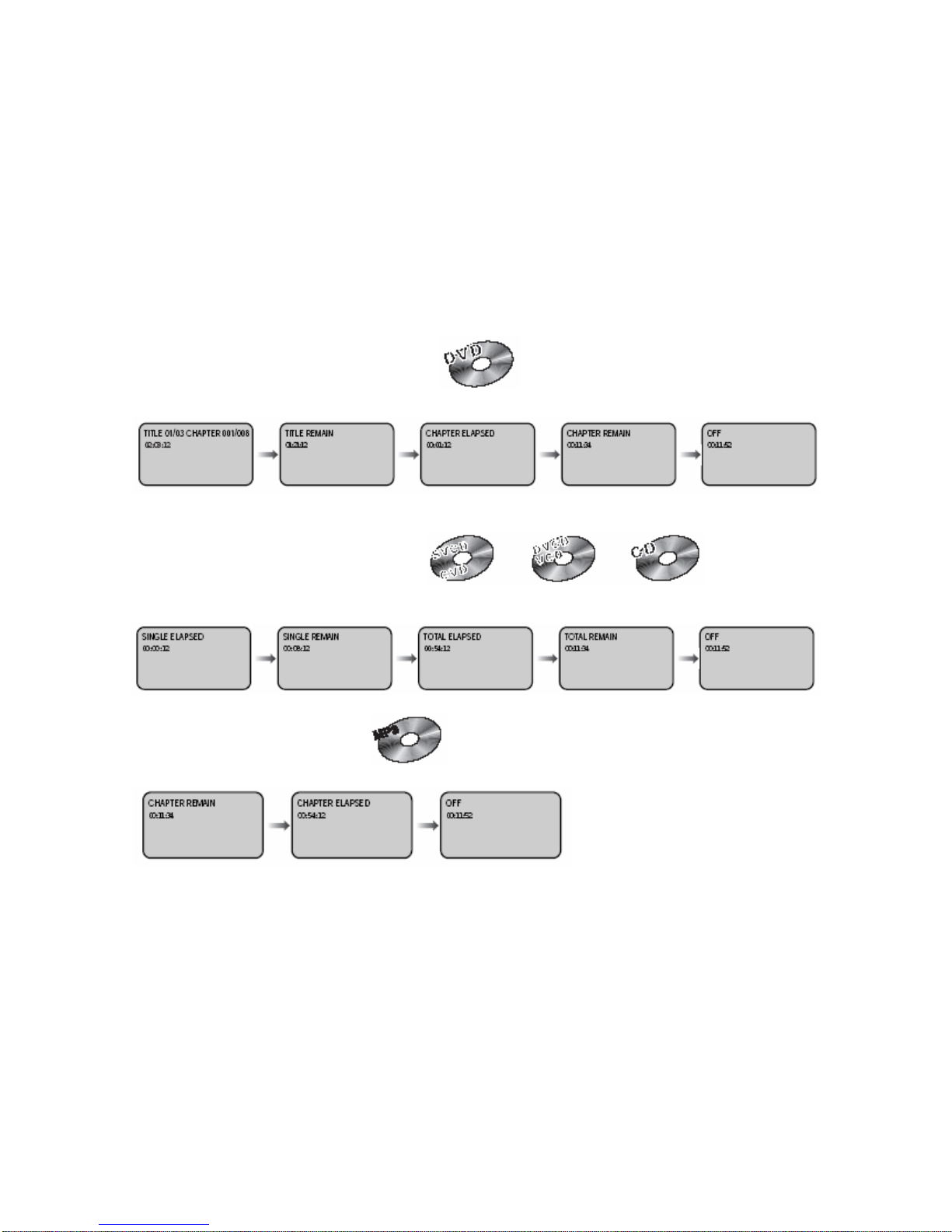

7-1. Screen Display
During playback, press the DISPLAY button several times, the following screen is
displayed.
If "Display" button is pressed several times. (Subject to disc type, some screens cannot be
displayed.)
During playback of a DVD disc
During playback of a
SVCD, CVD, DVCD, VCD, CD
During playback of MP3
7-2. PBC FUNCTION
PBC ON: If ‘Playback Control" is written in VCD 2.0 disc or the case, specific scene or
information can be selected using main menu displayed on the TV/monitor.
1) Press number buttons (0~9) to select a desired main menu displayed. when selecting a
desired main menu, the submenu is displayed on TV/monitor.
2) Select specific submenu to be played.
3) Press STOP button to stop play. It moves on the prior submenu.
4) Press STOP button again to move on main menu.

7-3. Audio (Selecting audio language)
Press the Audio button in remote control several times to select various audio languages.
This player supports up to 8 audio languages. (This function will work only if the DVD disc
supports this function)
7-4. Angle (Selecting watch angle)
When a DVD disc such as sports or game is viewed, press the ANGLE button on the
remote control several times to watch the same scene from different angles. (This function
will work only if the DVD disc supports this function)
7-5. Subtitle (Selecting subtitle language)
Press the SUBTITLE button in remote control several times to select various
subtitle languages. (This function will work only if the DVD disc supports
this function)
7-6. Four Way Rocker (Moving to various directions)
Use the four way directional pad to set up other items conveniently.

7-7. Number button
Use the number button to input certain chapters. To input number 10 or more, press the
+10 button and press the next number button.

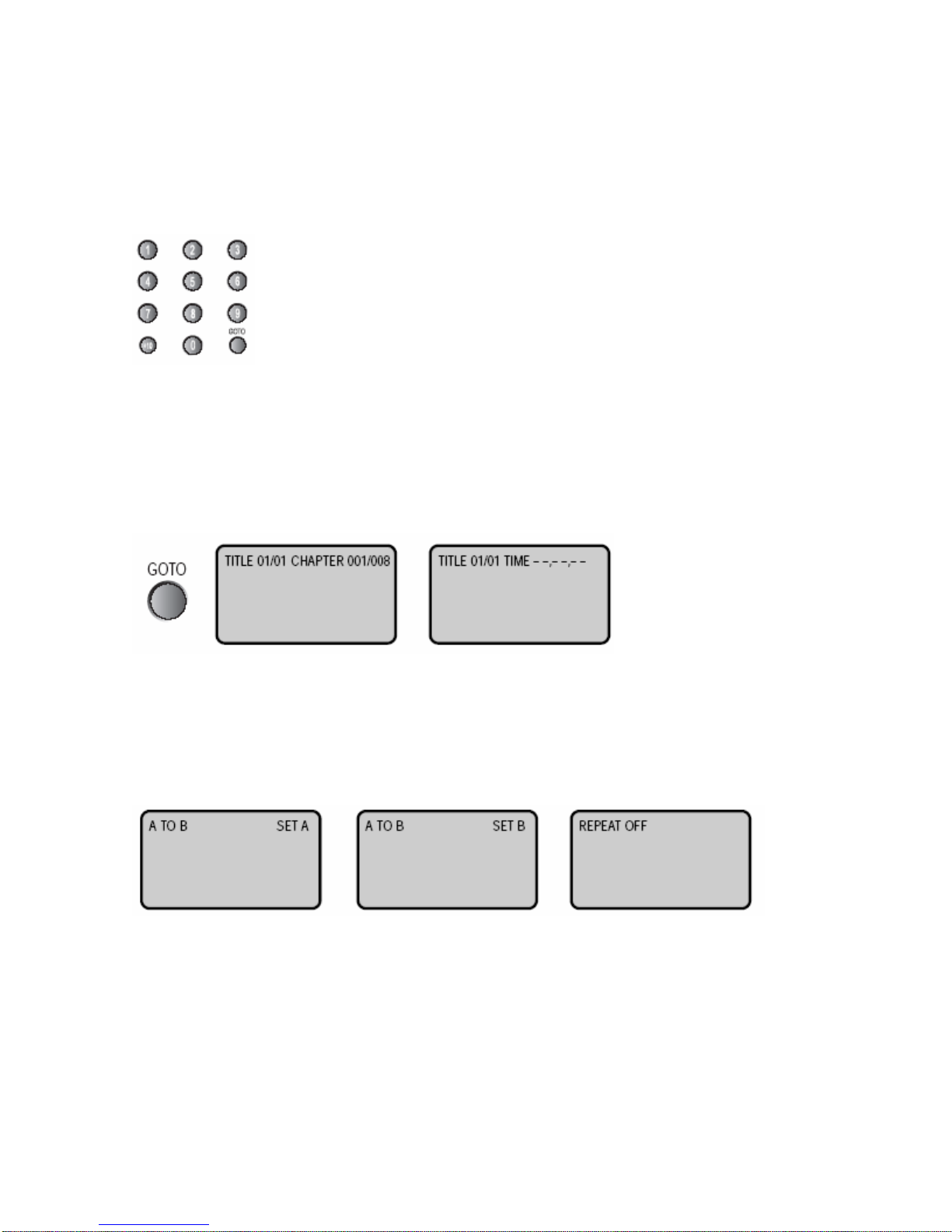

7-8. GO TO (Selecting the location to play)
1) Press the GO TO button and select the desired title and chapter or time, playing is
started from the selected part. At this time, press the PLAY button to start.
2) Press the GO TO button first and input the desired Title and Chapter.
3) Input the desired starting time by pressing the GO TO Button once more.
7-9. A-B (Playing between two specific points)
1) Press the A-B button once, starting point is specified.
2) Press the A-B button twice, ending point is specified. Then, disc is played between
specified A and B point repeatedly.
3) Press the A-B button three times, A-B Repeat Play function is finished.

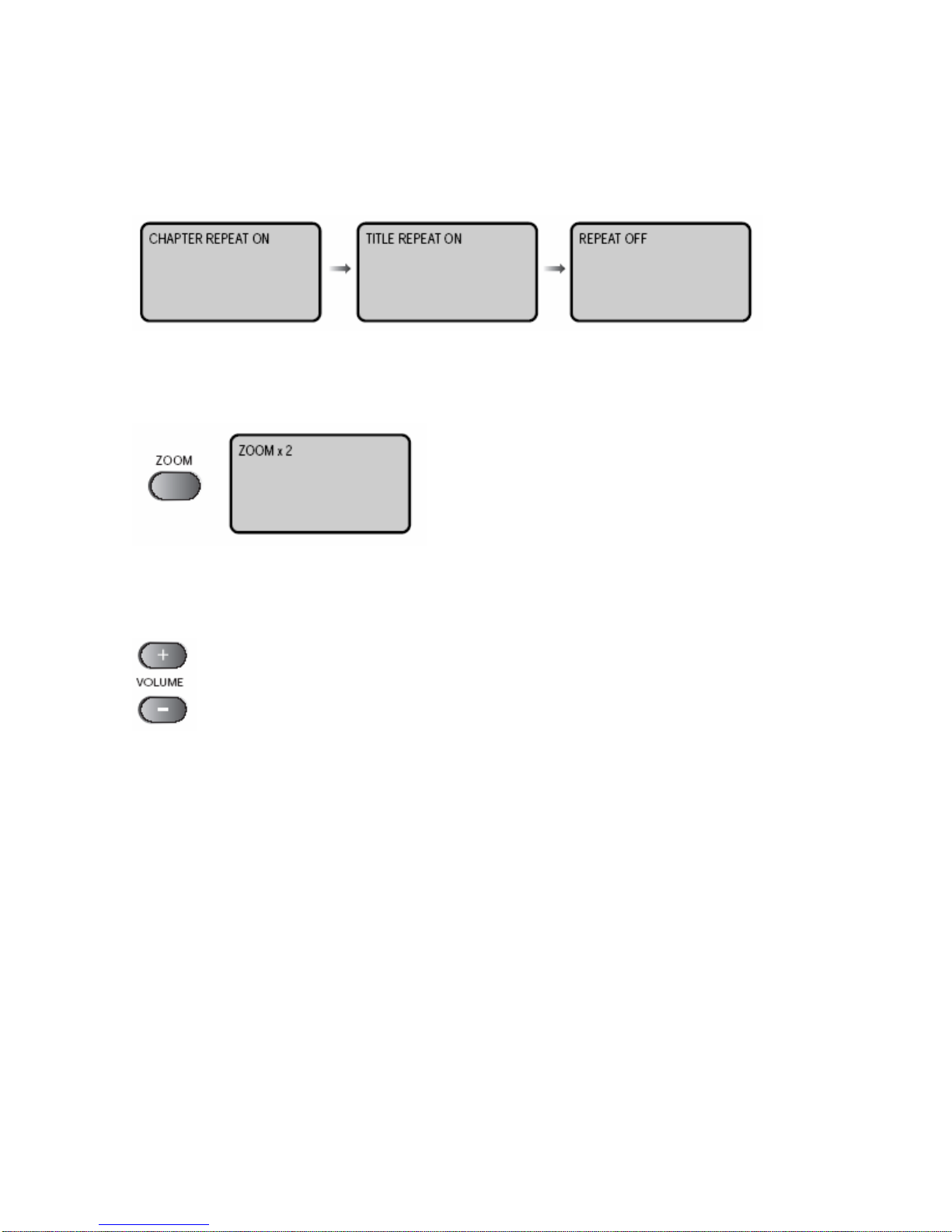

7-10. Repeat (Repeat setup)
Title of chapter can be repeated. In addition, the whole playing back track or title can be
displayed repeatedly. During playback of a DVD disc.
7-11. Zoom (Screen zoom-in or zoom-out)
Every time the ZOOM button is pressed, the screen can be zoomed in 1.5X, 2X and 3X.
7-12. Volume (Adjusting volume/key)
Press the + or Up button of VOLUME buttons to raise the volume. In contrast, press the -
or Down button to lower the volume.
7-13. Mute (No sound)
Press the MUTE button on the remote control once and the sound will be muted. Press the
MUTE again for sound.

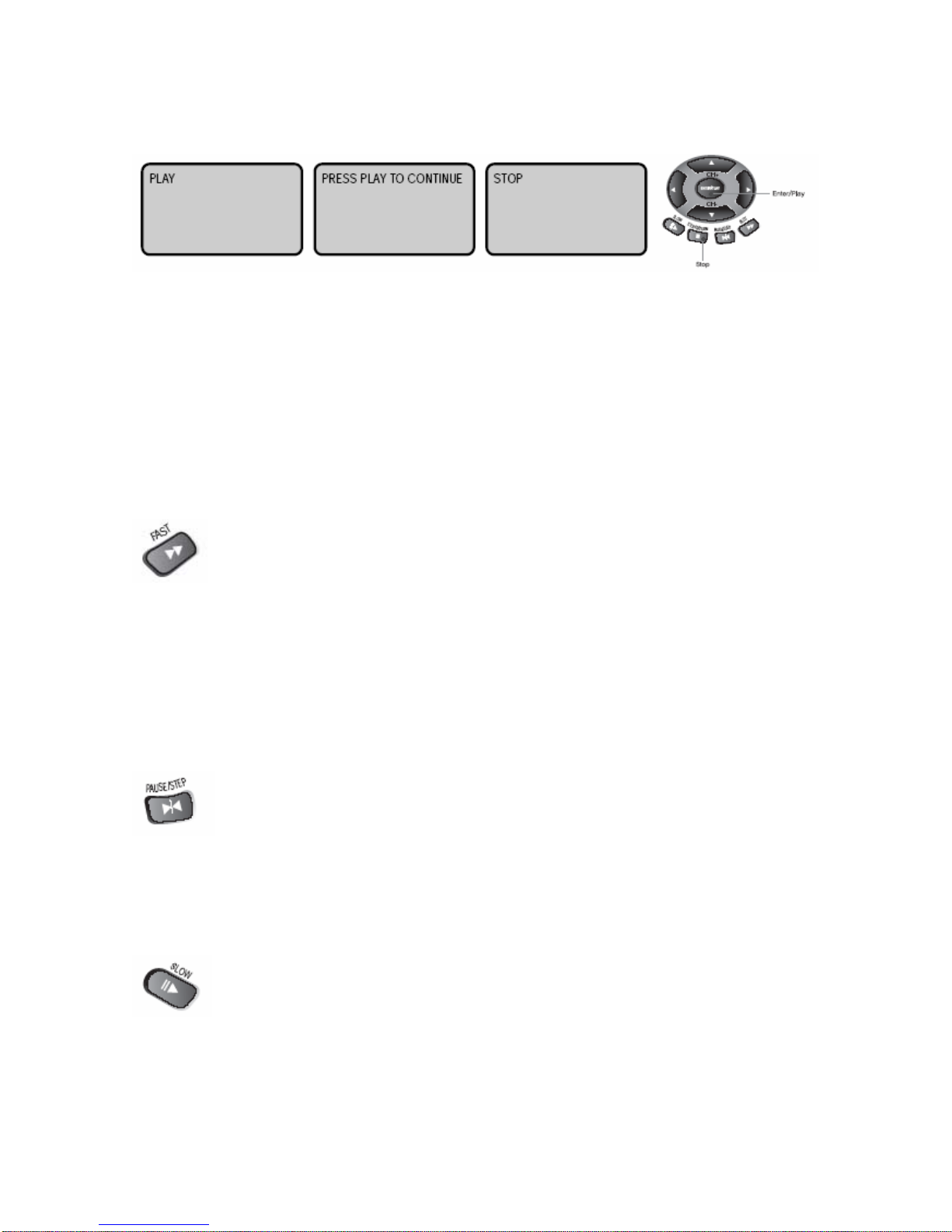

7-14. PLAY & STOP
During playback, press the STOP button on the player or the STOP button on the remote
control once, stopped point is remembered. To resume playback, press the PLAY button,
playback is started from the stopped point. To end playback, press the STOP button of the
player or the remote control, play will stop completely.

❋#VCD PLAY
To replay from the stopped scene of VCD, please press PBC button firstly to make PBC
OFF as the unit is originally set on PBC ON, And then press STOP button and RESUME
button in order. If you do not Press PBC button firstly to keep PBC ON, and then do press
STOP button, It automatically go to the first scene.#
7-15. Forward button
Press the Forward button in remote control repeatedly, screen is played forward at DVD
2X, 4X, 8X, 16X, 32X, 64X. If you play a disc at the normal speed, press the PLAY button
again. (Subject to disc type, VCD, CDDA-2X, 4X, MP3-2X).
7-16. Backward button
Press the Backward button in remote control repeatedly, screen is played backward at
DVD 2X, 4X, 8X, 16X, 32X, 64X. If you play a disc at the normal speed, press the PLAY
button again. (Subject to disc type, VCD, CDDA-2X, 4X, MP3-2X).
7-17. Pause/Step (still picture)
When press the PAUSE button on the remote control, play is paused. Press PAUSE
button again to continue.
7-18. Slow
Each time the SLOW button is pressed on the remote control, It plays 1/2, 1/4,
1/8 times in forward Direction and 1/2, 1/4, 1/8 times in backward Direction. If
you want to play normal mode, press the PLAY button.
7-19. Equalizer
Press the EQUALIZER button to display it on the Screen.

8. Setting and Adjustment for LCD

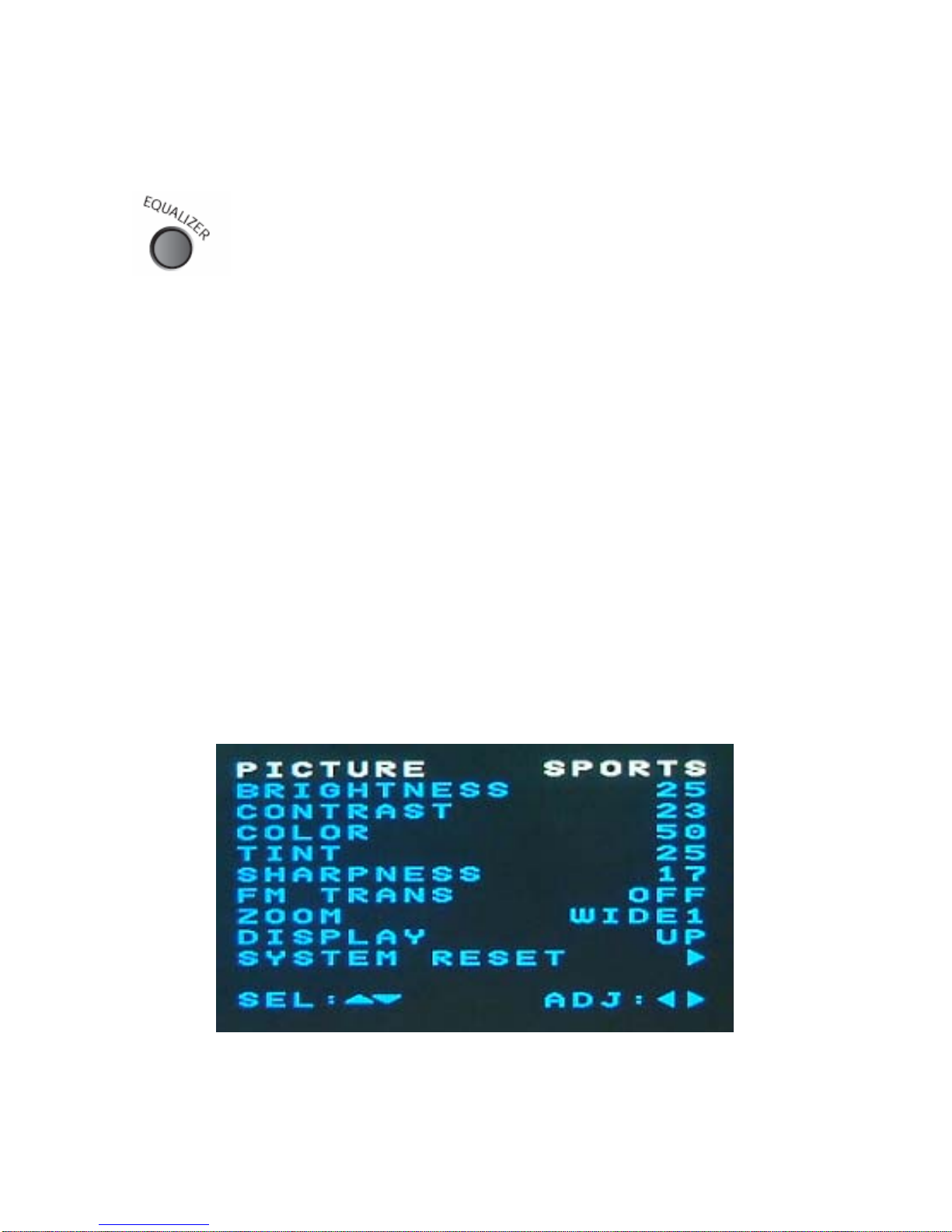

8.1 LCD OSD MENU
1. Press MON SETUP key when any OSD is not showing in display. Then you can see
LCD display set up screen.
2. Use▲/▼button to move menu.
3. Use◄/►button to choose.
4. After 10 seconds later, OSD display will be faded out, or press MON set up key to
make it fade out.
* Current selected menu will be changed to white highlight.

1. PICTURE
Picture mode : USER, SPORTS(DEFAULT), NORMAL, CINEMA
2. BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS
You can adjust each menu from 0~50.
3. FM TX
Transmit AUDIO signal through FM frequency.
<FMTXoffstatus> <FMTXonstatus>
Channel 88.3, 88.4, 88.5 ~ 90.0,90.1, 90.2MHz : totally 20CHs supported.
4. Mode
Convert screen size to WIDE1, WIDE2, NORMAL
WIDE1 WIDE2

NORMAL
5. Display
When IVOD-1022 is installed at roof ÆUP
When IVOD-1022 is put down ÆDOWN
Screen will be upside down when you change this menu.
<Display-UP> <Display-Down>
6. Factory setup
If you choose this menu, all value will be changed to factory default.
일본
및
국내
2
0
”
급의
T
