Blizzard Lighting KAYO.MORPH User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2016

Page 2
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
TABLE OF CONTENTS
Kryo.Morph™ Moving Head 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Kryo.Morph™ 5
Main Features 5
Additional Features 5
DMX Quick Reference 5
The Kryo.Morph™ Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of Kryo.Morph™s 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
Mounting Points 10
Clamp Mounting 11
Changing The Lamp 12
Lamp Adjustment 13
4. Operating Adjustments 14
The Control Panel 14
Control Panel Menu Structure 15
DMX Channel Values In-Depth 17
Gobo Replacement 23
Troubleshooting 23
5. Appendix 24
A Quick DMX Lesson 24
Keeping Your Kryo.Morph™ As Good As New 25
Returns (Gasp!) 25
Shipping Issues 25
Tech Specs 26
Dimensional Drawings 27

Page 3
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x Kryo.Morph™ 10R Beam/Wash/Spot
• A sweet set of mounting brackets
• A groovy power cord
• This lovely user manual
Getting It Out Of The Box
Congratulations on purchasing the Kryo.Morph™, the most far-out moving head in the
galaxy with mind-blowing 3-in-1 beam/spot/wash capabilities! Now that you’ve got your
Kryo.Morph™ (or hopefully, Morphs!) you should carefully unpack the box and check the
contents to ensure that all parts are present and in good condition. If anything looks as if it
has been damaged in transit, notify the shipper immediately and keep the packing material
for inspection. Again, please save the carton and all packing materials. If a xture must
be returned to the factory, it is important that the xture be returned in the original factory
box and packing.
Powering Up!
All xtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardlighting.com/
support and open a support ticket. We’ll be happy to help, honest.
Blizzard Lighting
N24 W23750 Watertown Rd Suite B
Waukesha, WI 53188 USA
www.blizzardlighting.com
414-395-8365
Disclaimer: The information and specications contained in this document are subject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from www.
blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 1/31/2016 J. Thomas 2/8/2016

Page 4
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
• This xture falls under protection class I, this xture must be earthed!
• This product is intended for indoor use only.
• Make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the xture.
• Avoid direct eye exposure to the light source while it is on.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• The minimum distance between light output and the illuminated surface must be more
than 10 meters (32.8 FT).
• Do not touch the device’s housing bare hands during its operation (housing becomes hot).
Allow the xture to cool approximately 20 minutes.
• If the xture has been exposed to drastic temperature uctuation (e.g. after transporta-
tion), do not switch it on immediately. The arising condensation water might damage your
device. Leave the device switched off until it has reached room temperature.
• During the initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective.
• The lamp has to be replaced when it is damaged or deformed due to the heat. Fast on-off-
cycles (e.g. 10 min. on/10 min. off) will reduce lamp life.
• Always disconnect the xture from AC power before cleaning, removing or installing the
fuses, or any part.
• For replacement use lamps and fuses of same type and rating only.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm)
from adjacent surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS secure xture using a safety chain. Use its carrying handles while transporting.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately. NEVER try
to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please contact us at www.blizzardlighting.com/support.

Page 5
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
2. MEET THE KRYO.MORPH™ MOVING HEAD
MAIN FEATURES
• 280W Beam/Wash/Spot 3-in-1 Moving Head
• HRI 280W discharge lamp light source
• Smooth dimmer from 0 - 100%
• Control channels: 13/16/24-channel
• Pan: 540°/tilt: 270°, 8/16-bit
• Color wheel: 13 dichroic lters + white
• Rotating gobo wheel: 9 indexable and replaceable slot-n-lock glass gobos +open
• Static gobo wheel: 10 metal gobos & 4 beam reducers
• 8-facet circular bidirectional prism with speed control
• 6-facet linear bidirectional prism with speed control
• Frost effect: separate, variable
• Strobe effect with variable speed (up to 15 ashes/sec.)
• 8/16-bit motorized zoom and focus
• LCD touch screen + 4-button control menu
• Pan/tilt-lock mechanism
ADDITIONAL FEATURES
• Protocol: USITT DMX-512
• DMX Channels: 13/16/24-channel
• Operating modes: standalone, master/slave, auto, sound active
• Dual quarter-turn “OMEGA” clamp brackets
• PowerCon™ compatible in power connector
• Internal fan cooling system
DMX QUICK REFERENCE - 13/16/24-CHANNEL MODES
Channel Defe 13-channel Small 16-channel Standard 24-channel
1 Color Wheel Pan Pan
2 Shutter/Strobe Tilt Fine Pan
3 Dimmer Pan/Tilt Speed Tilt
4 Gobo 1 (Fixed) Macro Function Fine Tilt
5 Prism Color Wheel Pan/Tilt Speed
6 Prism Rotation Reserved Macro Function
7 Gobo 2 (Rotating) Gobo 1 (Fixed) Color Wheel
8 Frost Gobo 2 (Rotating) Reserved
9 Focus Gobo Rotation Reserved
10 Pan Prism Gobo 1 (Fixed)
11 Fine Pan Prism Rotation Gobo 2 (Rotating)
12 Tilt Frost Gobo Rotation
13 Fine Tilt Zoom Reserved
14 -- Focus Prism
15 -- Shutter/Strobe Prism Rotation
16 -- Dimmer Frost
17 -- -- Zoom
18 -- -- Fine Zoom
19 -- -- Focus
20 -- -- Fine Focus
21 -- -- Reserved
22 -- -- Shutter/Strobe
23 -- -- Dimmer
24 -- -- Reserved

Page 6
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Figure 1: The Kryo.Morph™ Pin-Up Picture
HRI 280W
Discharge
Lamp
Control
Buttons
Touchscreen LCD Display
Figure 2: The Rear Connections
Head/Arms
Carry
Handle
Power
Switch
Fuse Holder
5-Pin
DMX
Out
3-Pin
DMX
Out
5-Pin
DMX
In
3-Pin
DMX
In
Power
Input
Pan
Lock
Tilt
Lock
*The pan and tilt
lock latches should
be in their locked
positions during
transportation.
Move these
latches to their
unlocked positions
before operating
the xture.

Page 7
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
3. SETUP
Fuse Replacement
With a phillips head screwdriver, unscrew the fuse holder out of its
housing. Remove the damaged fuse from its holder and replace with
exact same type of fuse. Reattach the fuse holder, and then reconnect
power.
Connecting A Bunch of Kryo.Morph™ Fixtures
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more xtures set to sync in mas-
ter/slave operating mode. The combined number of channels required
by all the xtures on a serial data link determines the number of x-
tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 xtures on one serial data link without
the use of a DMX optically-isolated splitter may result in deterioration
of the digital DMX signal. The maximum recommended cable-run dis-
tance is 500 meters (1640 ft). The maximum recommended number of
xtures on a serial data link is 32 xtures.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distanc-
es. In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 8
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the x-
ture’s chassis ground. Grounding the common can cause a ground
loop, and your xture may perform erratically. Test cables with an
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3-pin adapter.
They are widely available over the internet and from specialty retailers If you’d like to build your own, the
chart below details a proper cable conversion:
Conductor 3-Pin Female
(Output)
5-Pin Male
(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not Used. No Connection. No Connection.
Not Used. No Connection. No Connection.

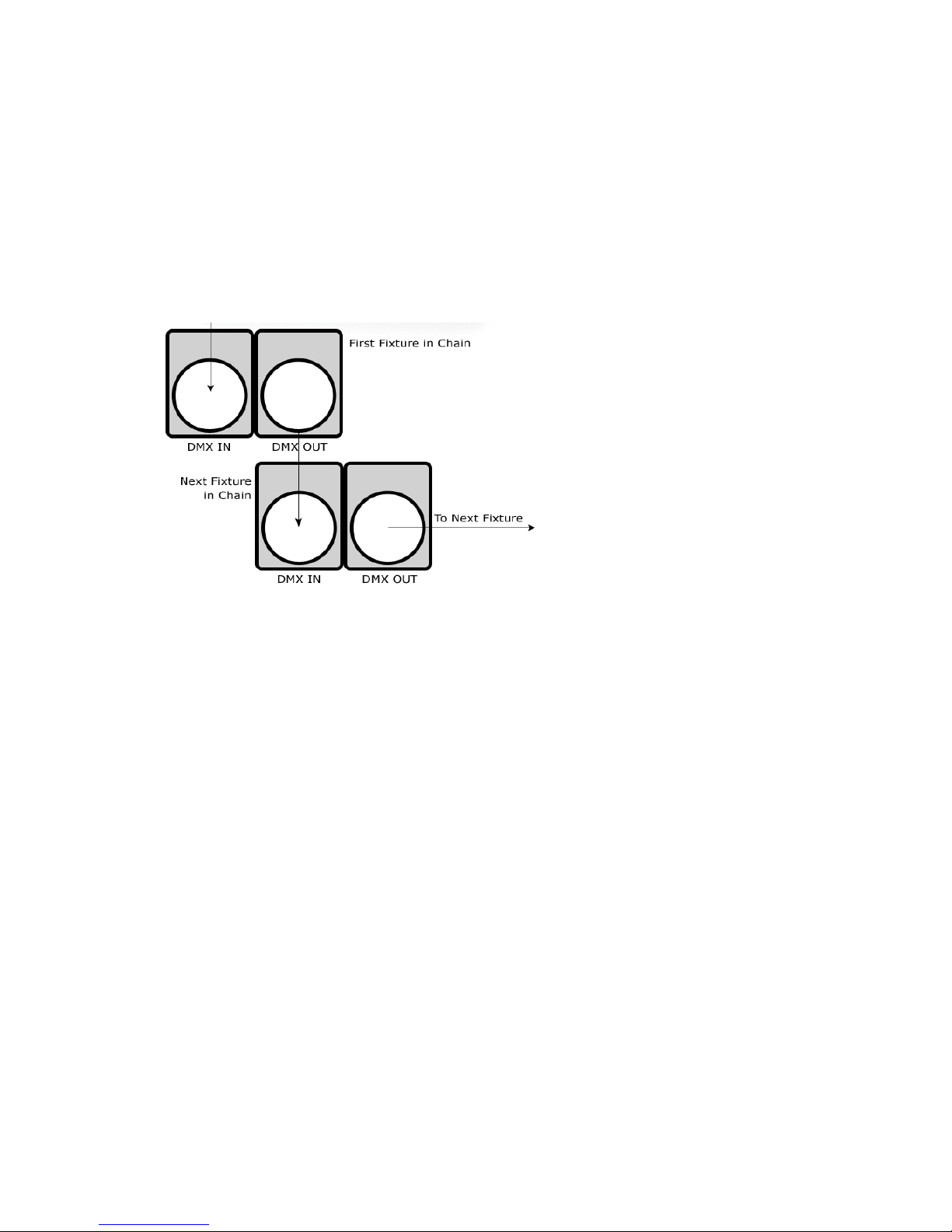

Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connec-
tor (input). Note: It doesn’t matter which
xture address is the rst one connected.
We recommend connecting the xtures in
terms of their proximity to the controller,
rather than connecting the lowest xture
number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture
to ensure best communication.

Page 9
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3/5-pin connector side of the
DMX cable to the output (female) 3/5-pin connector
of the rst xture.
2. Connect the end of the cable coming from the
rst xture which will have a (female) 3/5-pin con-
nector to the input connector of the next xture
consisting of a (male) 3/5-pin connector. Then, pro-
ceed to connect from the output as stated above to
the input of the following xture and so on.
A quick note: Often,
the setup for Master-
Slave and Standalone
operation requires that
the rst xture in the
chain be initialized for
this purpose via either
settings in the control
panel or DIP-switches.
Secondarily, the xtures
that follow may also re-
quire a slave setting.
Check the “Operating Adjustments” section in this manual for com-
plete instructions for this type of setup and conguration.
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is
enough room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the
xture using a suitable “C” or “O” type clamp. The clamp should be
rated to hold at least 10x the xture’s weight to ensure structural sta-
bility. Do not mount to surfaces with unknown strength, and ensure
properly “rated” rigging is used when mounting xtures overhead.
Adjust the angle of the xture by loosening both knobs and tilting the
xture. After nding the desired position, retighten both knobs.
• When selecting installation location, take into consideration lamp
replacement access (if applicable) and routine maintenance.
• Safety cables MUST ALWAYS be used.
• Never mount in places where the xture will be exposed to rain,
high humidity, extreme temperature changes or restricted ventilation.

Page 10
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Mounting Points
Overhead mounting requires extensive experience, which includes
calculating working load limits, knowledge of the installation material
being used, and periodic safety inspection of all installation material
and the xture. If you lack these qualications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
Caution!
Please be aware, you should have a qualied electrician performing all
of your electrical connection needs. Better safe than sorry!
Be sure to complete all rigging and installation procedures before
connecting the main power cord to the appropriate wall outlet.

Page 11
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Clamp Mounting
This xture provides a mounting bracket assembly that secures the
bottom of the base, the “Omega Brackets,” and the safety cable
rigging point together. When mounting this xture to truss, be sure to
secure an appropriately rated clamp to the omega bracket using an
M10 screw tted through the center hole of the “omega bracket”.
Securing the Fixture
Regardless of the rigging option you choose for your xtures always be
sure to secure your xture with a safety cable. Be sure to only use the
designated rigging point found on the underside of the base assembly
for the safety cable. Never secure a safety cable to a carrying handle.
1.) Clamp
2.) Omega Bracket
3.) ¼ Turn Quick Lock Fasteners
23
1

Page 12
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Changing The Lamp
DANGER: Install the lamp with the xture unplug from mains!
WARNING: Do not touch the lamp’s envelope with bare hands. Should this
happen, clean the bulb with a cloth soaked in alcohol and dry it.
1.) First disconnect the xture from mains and allow it to cool for at least 20
minutes.
2.) Remove the lamp compartment cover from the rear side of the head by tak-
ing out the 4 phillips head screws that hold it in place.
3.) Remove both electrical fastons from the at blades of the lamp.
4.) Holding the lamp by its ceramic base, carefully pull it outwards until it snaps
free from the spring locks that hold it in place, and remove the old lamp from
the compartment.
5.) Holding the new lamp by its ceramics base, insert it into the lamp compart-
ment until it snaps into place (held by the spring locks).
Note: Do not install a lamp with a higher wattage!
A lamp like this will generate temperatures this xture is not designed for.
Damages caused by non-observance are not subject to warranty.
6.) Slide both fastons onto the new lamp blades
7.) Reinstall the lamp compartment cover.
Never operate this xture without the lamp!
Do not operate this xture without the lamp cover!
Phillips
Head
Screw
Phillips
Head
Screw
Lamp Compartment Cover
(rear side of the head)
Phillips
Head
Screw
Phillips
Head
Screw

Page 13
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Lamp Adjustment
The lamp holder is aligned at the factory. Due to differences between lamps,
ne adjustment may improve light performance. This
xture is designed to make horizontal (left and right)
ne adjustments.
1.) Connect the xture to the mains, switch on the
lamp, open shutter and dimmer, set zoom and focus
(static gobo wheel and rotating gobo wheel should be
set at zero), and check the image on the wall.
2.) The hot spot should be fairly centered within the
circle of light that is projected on the wall.
3.) If needed, the lamp needs to move into the direction of shifted hot spot.
4.) Disconnect the xture from mains, and remove the lamp compartment
cover (see page 12).
5.) Loosen (but do not remove) the 4 hex screws that secure the lamp holder.
6.) Place a at head screwdriver on the left or right edge of the lamp holder,
and gently push the horizontally sliding lamp holder to the left or right to make
any ne adjustments, then re-tighten the hex screws.
7.) Reinstall the lamp compartment cover, connect the xture to the mains and
check if the adjustment has been correctly made. To adjust again, disconnect
the xture from mains and repeat.
Image on the wall
Centered lamp
Loosen
Hex
Screw
Loosen
Hex
Screw
Edge of
Lamp
Holder
Loosen
Hex
Screw
Loosen
Hex
Screw
Edge of
Lamp
Holder
Move the lamp
to the right
Move the lamp
to the left
Lamp Compartment:

Page 14
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the Kryo.Morph™ are ac-
cessed by using the control panel on the front of the xture. In addition to the
on-screen touch sensitive menu icons, there are 4 control menu buttons to the
right of the LCD display which allow you to navigate through the various control
panel menus.
<FUNC>
Is used to return to the main menu navigation screen.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
The control panel LCD display shows the menu items you select from the menu
map on pages 15-16. On the home screen there are 8 icons to choose from,
Feature Settings, Manual, System Info, Display Settings, Lamp Set-
tings, Rotate Display, Language, and Back to Home icons.
The 4 corresponding buttons are <FUNC>, <UP>, <DOWN>, and <ENTER>.
Press the <ENTER> button once from startup to reach the home screen, use
the <UP/DOWN> buttons to scroll through the menu, press <ENTER> for the
sub menu to make changes or touch the icon on the screen.

Page 15
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Control Panel Menu Structure
Icon Level 1 Level 2 Level 3
FEATURES SETTING Run Mode DMX / Wire (slave) / Auto
ChanMode DEFE (13-channel mode)
SMAL (16-channel mode)
STAN (20-channel mode)
X Reverse ON/OFF
Y Reverse ON/OFF
X. Angle 540
XY Fback ON/OFF
SignalClear ON/OFF
Full Color ON/OFF
Shortcut ON/OFF
RST.
SAVE
ESC
ADV. Zero. Set
Chan. Def.
Fact. Set
Use. Mang.
ESC
UNLOCK PassWord1 (0-255)
PassWord2 (0-255)
KEY
ESC
Passwords:
Zero. Set/Chan. Def. 1,0
Fact. Set 1,2
Use. Mang. 3,4
MANUAL REST (reset) ALL MOTOR (Yes/No)
PART MOTOR (Yes/No)
XY MOTOR (Yes/No)
TEST RUN AUTO
SOUND
ESC
SMULATE DMX (Add value
to the DMX channels)
CH1-CH32 (0-255)
ESC

Page 16
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
Control Panel Menu Structure (continued)
Icon Level 1 Level 2 Level 3
SYSTEM INFO DMX VALUE CH1-CH32(0-255)
ESC
OTHER INFO Run Time (0-9999)
Run Count (0-9999)
Fan 1 (0-9999)
Fan 2 (0-9999)
Temp 1 (0-100)
Temp 2 (0-100)
ESC
ERROR INFO Color
RotGobos
FixeGobo
Plane
Tilt
RotGobos1
Prism
Effect
Prism.R
Effect.R
Zoom
Focus
ESC
DISPLAY SETTINGS Brightness Level 1-7
LightDelay 10Sec/20Sec/30Sec/On
Menuback 10Sec/20Sec/30Sec/Off
Flicker ON/OFF
Save
ESC
LAMP SETTINGS Default ON/OFF
Manual ON/OFF
Electronic ON/OFF
ESC
ROTATE DISPLAY Change orientation of
the display
LANGUAGE Chinese/English
BACK Back to LOGO screen

Page 17
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
DMX Values In-Depth (16/24-Channel Mode)
Standard
Mode: 24ch
Compact
Mode: 16ch Value What It Does
1 1 000 <--> 255 Pan
2 -- 000 <--> 255 Fine Pan
3 2 000 <--> 255 Tilt
4 -- 000 <--> 255 Fine Tilt
5 3 000 <--> 255 Pan/Tilt Speed
6 4
000 <--> 049
050 <--> 059
060 <--> 069
070 <--> 079
080 <--> 089
090 <--> 099
100 <--> 109
110 <--> 119
120 <--> 129
130 <--> 139
140 <--> 149
150 <--> 189
190 <--> 199
200 <--> 209
210 <--> 229
230 <--> 239
240 <--> 255
Macro Function
Blank
Pan/Tilt Speed Mode
Pan/Tilt Time Mode
Blackout while pan/tilt moves
Disabled blackout while pan/tilt moves
Blackout while color wheel moves
Disabled blackout while color wheel moves
Blackout while gobo wheel moving
Disabled blackout while gobo wheel moves
Lamp On, reset all (except pan/tilt)
Pan/Tilt Reset
Effects Reset
Blank
Light Reset
Blank
Lamp Off By Controller
Blank
7 5
0
9
18
27
37
46
55
64
73
82
91
101
110
119
128 <--> 129
130 <--> 134
135 <--> 138
139 <--> 143
144 <--> 147
148 <--> 152
153 <--> 157
158 <--> 161
162 <--> 166
167 <--> 171
172 <--> 176
177 <--> 180
181 <--> 185
186 <--> 189
190 <--> 215
216 <--> 217
218 <--> 243
244 <--> 249
250 <--> 255
Color Wheel (continual positioning)
White
Deep Red
Deep Blue
Yellow
Green
Magenta
Azure
Red
Deep Green
Amber
Blue
Orange
Cooling
Fluorescent Blue
White
Color Wheel (positioning by color)
Crimson
Deep Blue
Yellow
Green
Magenta
Azure
Red
Deep Green
Amber
Blue
Orange
Cooling
Fluorescent Blue
Forwards rainbow effect (fast <--> slow)
No Rotation
Backwards rainbow effect (slow <--> fast)
Random color selection by sound control
Random color selection by audio control
8 -- -- Reserved
9 6 -- Reserved

Page 18
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
DMX Values In-Depth (16/24-Channel Mode), continued
Standard
Mode: 24ch
Compact
Mode: 16ch Value What It Does
10 7
000 <--> 003
004 <--> 009
010 <--> 015
016 <--> 021
022 <--> 027
028 <--> 033
034 <--> 039
040 <--> 045
046 <--> 051
052 <--> 057
058 <--> 063
064 <--> 069
070 <--> 075
076 <--> 087
088 <--> 095
096 <--> 103
104 <--> 111
112 <--> 119
120 <--> 127
128 <--> 135
136 <--> 143
144 <--> 151
152 <--> 159
160 <--> 167
168 <--> 175
176 <--> 183
184 <--> 199
200 <--> 201
202 <--> 221
222 <--> 223
224 <--> 243
244 <--> 249
250 <--> 255
Static Gobo Wheel
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Beam reducer 1
Beam reducer 2
Beam reducer 3
Gobo 1 Shake (slow <--> fast)
Gobo 2 Shake (slow <--> fast)
Gobo 3 Shake (slow <--> fast)
Gobo 4 Shake (slow <--> fast)
Gobo 5 Shake (slow <--> fast)
Gobo 6 Shake (slow <--> fast)
Gobo 7 Shake (slow <--> fast)
Gobo 8 Shake (slow <--> fast)
Gobo 9 Shake (slow <--> fast)
Gobo 10 Shake (slow <--> fast)
Beam reducer 1
Beam reducer 2
Beam reducer 3
Open
Forwards gobo wheel rotation (fast <--> slow)
No rotation
Backwards gobo wheel rotation (slow <--> fast)
Random gobo selection by audio control
Auto random gobo (fast <--> slow)
11 8
000 <--> 004
005 <--> 007
008 <--> 010
011 <--> 013
014 <--> 016
017 <--> 019
020 <--> 022
023 <--> 025
026 <--> 028
029 <--> 031
032 <--> 034
035 <--> 037
038 <--> 040
041 <--> 043
044 <--> 046
047 <--> 049
050 <--> 052
053 <--> 055
056 <--> 059
060 <--> 067
068 <--> 075
076 <--> 083
084 <--> 091
092 <--> 099
100 <--> 107
108 <--> 115
116 <--> 123
124 <--> 129
Rotating Gobo Wheel
Blank
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 1 Shake
Gobo 2 Shake
Gobo 3 Shake
Gobo 4 Shake
Gobo 5 Shake
Gobo 6 Shake
Gobo 7 Shake
Gobo 8 Shake
Gobo 9 Shake
*Set indexing
on channel 12/9
*Set rotation on
channel 12/9
*Set indexing on
channel 12/9
(slow <--> fast)

Page 19
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
DMX Values In-Depth (16/24-Channel Mode), continued
Standard
Mode: 24ch
Compact
Mode: 16ch Value What It Does
11 8
130 <--> 137
138 <--> 145
146 <--> 153
154 <--> 161
162 <--> 169
170 <--> 177
178 <--> 185
186 <--> 193
194 <--> 199
200 <--> 201
202 <--> 221
222 <--> 223
224 <--> 243
244 <--> 249
250 <--> 255
Static Gobo Wheel (continued)
Gobo 1 Shake
Gobo 2 Shake
Gobo 3 Shake
Gobo 4 Shake
Gobo 5 Shake
Gobo 6 Shake
Gobo 7 Shake
Gobo 8 Shake
Gobo 9 Shake
Open
Forwards gobo wheel rotation (fast <--> slow)
No rotation
Backwards gobo wheel rotation (slow <--> fast)
Random gobo selection by audio control
Auto random gobo (fast <--> slow)
12 9
000 <--> 127
128 <--> 177
178 <--> 203
204 <--> 255
Gobo Rotation
Indexing
Backwards gobo rotation (slow <--> fast)
Stop
Forwards gobo rotation (fast <--> slow)
13 -- -- Reserved
14 10
000 <--> 019
020 <--> 049
050 <--> 075
076 <--> 105
106 <--> 127
128 <--> 135
136 <--> 143
144 <--> 151
152 <--> 159
160 <--> 167
168 <--> 175
176 <--> 183
184 <--> 191
192 <--> 199
200 <--> 207
208 <--> 215
216 <--> 223
224 <--> 231
232 <--> 239
240 <--> 247
248 <--> 255
Prism
Open
6-facet linear rotating prism
6-facet circular rotating prism
8-facet linear rotating prism
8-facet circular rotating prism
Macro function 1
Macro function 2
Macro function 3
Macro function 4
Macro function 5
Macro function 6
Macro function 7
Macro function 8
Macro function 9
Macro function 10
Macro function 11
Macro function 12
Macro function 13
Macro function 14
Macro function 15
Macro function 16
15 11
000 <--> 127
128 <--> 191
192 <--> 193
194 <--> 255
Prism Rotation
Index
Forward prism rotation (fast <--> slow)
No rotation
Backward prism rotation (slow <--> fast)
16 12 000 <--> 064
065 <--> 255
Frost
Open
Frost (0% <--> 100%)
17 13 000 <--> 255
Zoom
From maximum to minimum beam angle
18 -- 000 <--> 255
Zoom - Fine
Fine zooming
19 14 000 <--> 255
Focus
Continuous adjustment (far <--> near)
20 -- 000 <--> 255
Focus - Fine
Fine focusing
*Set rotation on
channel 12/9
(slow <--> fast)

Page 20
Kryo.Morph™ User Manual - Rev. A (c) 2016 Blizzard Lighting, LLC
DMX Values In-Depth (16/24-Channel Mode), continued
Standard 24ch Small 16ch Value What It Does
21 -- -- Reserved
22 15
000 <--> 031
032 <--> 063
064 <--> 095
096 <--> 127
128 <--> 143
144 <--> 159
160 <--> 191
192 <--> 223
224 <--> 255
Shutter/Strobe
Shutter closed
Shutter open
Strobe effect (slow <--> fast)
Strobe open
Closing pulse in sequences (fast <--> slow)
Opening pulse in sequences (slow <--> fast)
Shutter open
Random strobe effect (slow <--> fast)
Shutter open
23 16 000 <--> 255
Dimmer
Dimmer intensity (0% <--> 100%)
24 -- -- Reserved
DMX Values In-Depth (13-Channel Mode)
Defe 13-ch Value What It Does
1
0
9
18
27
37
46
55
64
73
82
91
101
110
119
128 <--> 129
130 <--> 134
135 <--> 138
139 <--> 143
144 <--> 147
148 <--> 152
153 <--> 157
158 <--> 161
162 <--> 166
167 <--> 171
172 <--> 176
177 <--> 180
181 <--> 185
186 <--> 189
190 <--> 215
216 <--> 217
218 <--> 243
244 <--> 249
250 <--> 255
Color Wheel (continual positioning)
White
Deep Red
Deep Blue
Yellow
Green
Magenta
Azure
Red
Deep Green
Amber
Blue
Orange
Cooling
Fluorescent Blue
White
Color Wheel (positioning by color)
Crimson
Deep Blue
Yellow
Green
Magenta
Azure
Red
Deep Green
Amber
Blue
Orange
Cooling
Fluorescent Blue
Forwards rainbow effect (fast <--> slow)
No Rotation
Backwards rainbow effect (slow <--> fast)
Random color selection by sound control
Random color selection by audio control
2
000 <--> 031
032 <--> 063
064 <--> 095
096 <--> 127
Shutter/Strobe
Shutter closed
Shutter open
Strobe effect (slow <--> fast)
Strobe open
