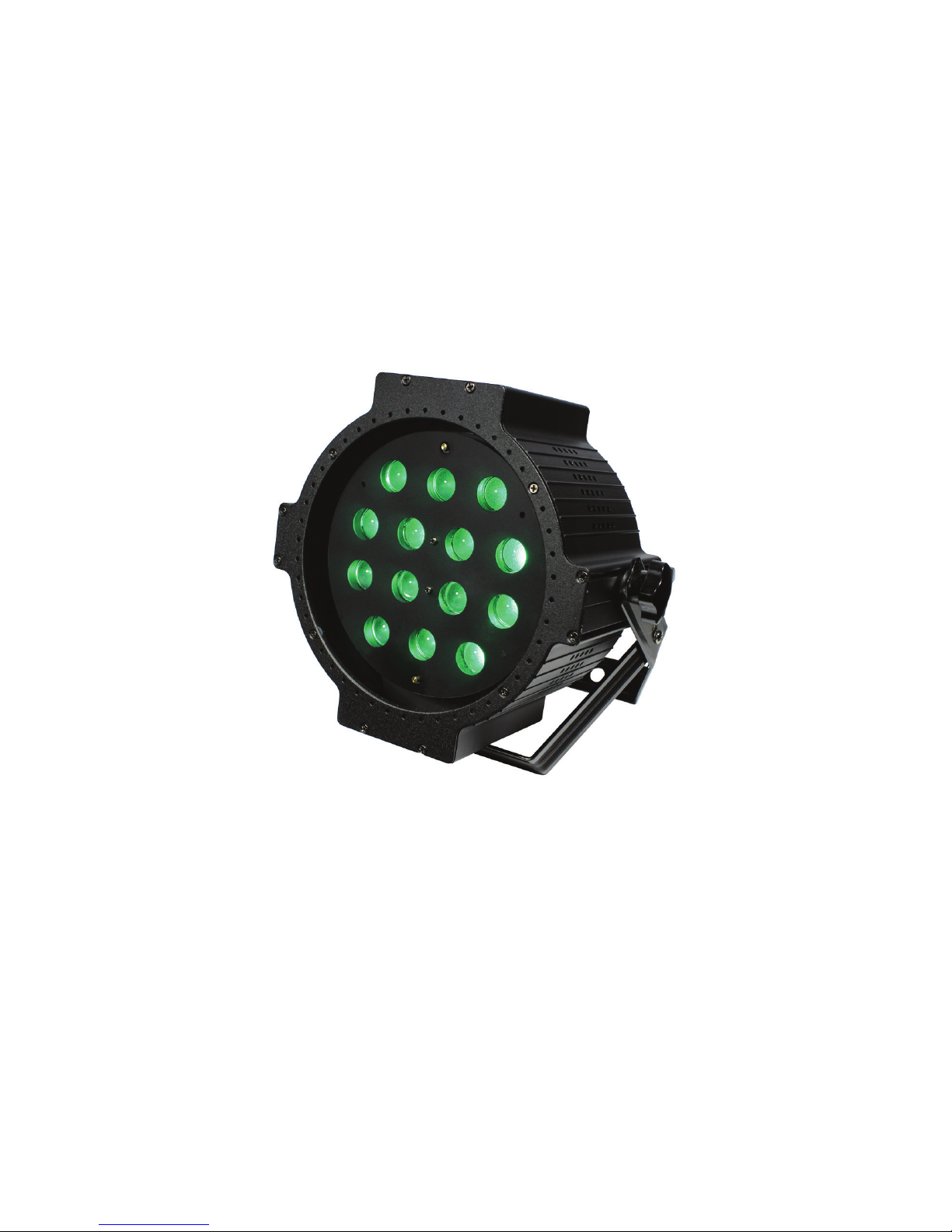

Blizzard Lighting Puck Pro Zoom EXA User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014

Page 2
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
TABLE OF CONTENTS
Puck Pro Zoom™ EXA 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Puck Pro Zoom™ EXA 5
Features 5
DMX Quick Reference 5
The Puck Pro Zoom™ EXA Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of Puck Pro Zoom™ EXA Fixtures 7
Data/DMX Cables 7
 UsingthisxturewiththewiCICLE®WirelessDMXSystem8
Cable Connectors 10
3-Pin??? 5-Pin??? Huh? 10
Take It To The Next Level: Setting up DMX Control 10
Fixture Linking (Master/Slave Mode) 11
Mounting/Rigging 11
4. Operating Adjustments 12
Navigating The Control Panel 12
Control Panel Menu Structure 13
DMX Mode 14
Manual Color Mixing 14
Static Colors & Built-In Programs 14
Auto Mode 14
Sound Active Mode 14
DMX Channel Values In-Depth 15
5. Appendix 16
A Quick DMX Lesson 16
Troubleshooting 16
Keeping Your Puck Pro Zoom™ EXA As Good As New 17
Returns (Gasp!) 17
Shipping Issues 17
 TechSpecs      18

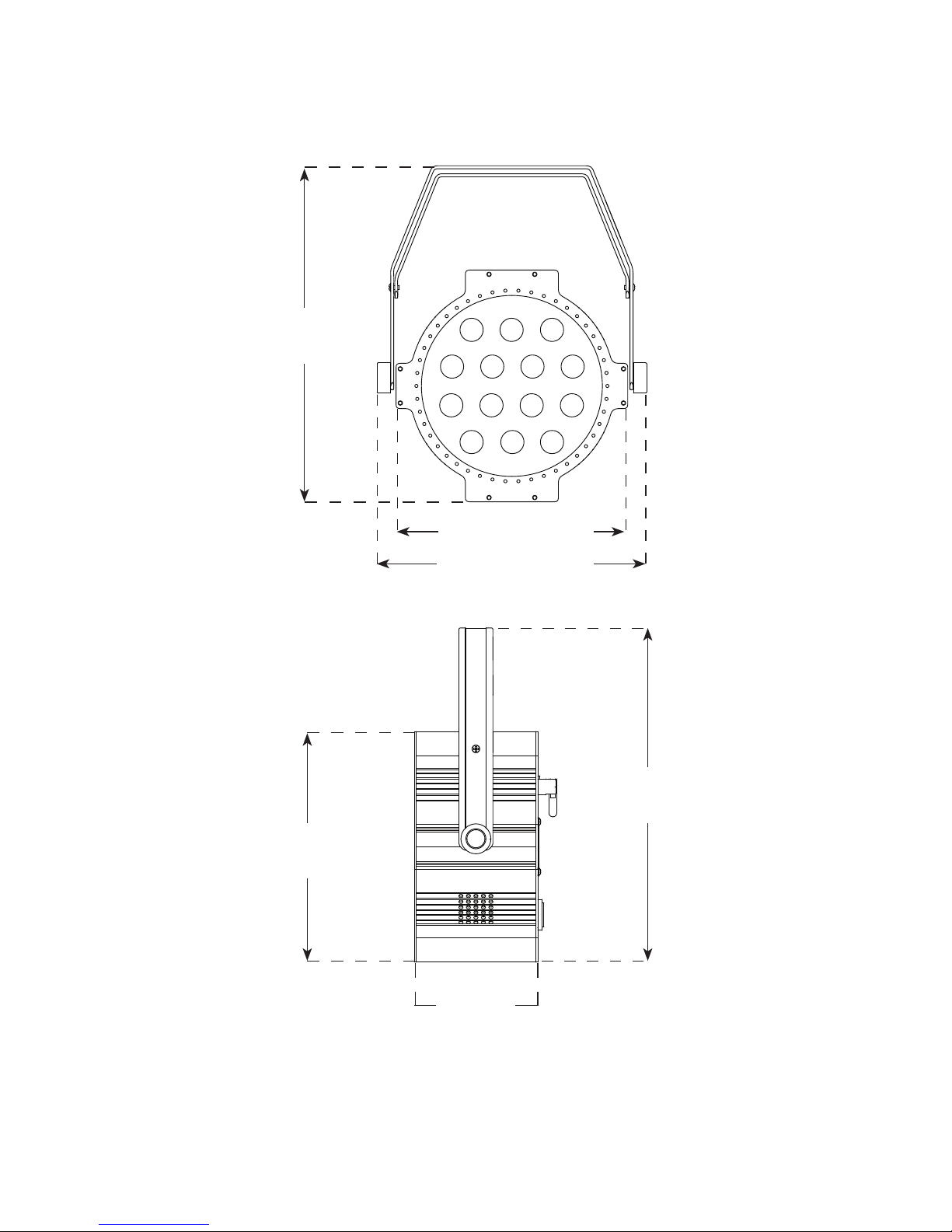

Dimensional Drawings 19

Page 3
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1x Puck Pro Zoom™ EXA Professional LED Fixture
• 1x Totally Rockin’ DMX Cable
• 1x Ever So Handy Power Cord
• This Lovely User Manual
Getting It Out Of The Box
CongratulationsonpurchasingoneofthecoolestLEDxturesanywhere!Nowthat
you’re the proud owner of a Puck Pro Zoom™ EXA (or hopefully, MORE!), you should
carefully unpack the box and check the contents to ensure that all parts are present
and in good condition. If anything looks as if it has been damaged in transit, notify the
shipper immediately and keep the packing material for inspection. Again, please save
thecartonandallpackingmaterials.Ifaxturemustbereturnedtothefactory,itis
importantthatthexturebereturnedintheoriginalfactoryboxandpacking.
Powering Up!
Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythat
thextureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthe
xtureorrefertothexture’sspecicationschartformoreinformation.Axture’s
listed current rating is its average current draw under normal conditions. Check the
xtureordevicecarefullytomakesurethatifavoltageselectionswitchexiststhatitis
set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied
does not match the voltage indicated on the voltage selector switch. All
xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be happy to
help, honest.
Blizzard Lighting
N16 W23390 Stoneridge Dr. Ste E
Waukesha,WI53188USA
www.blizzardlighting.com
414-395-8365
Email: [email protected]
Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability
for any errors or omissions that may appear in this user manual. Blizzard Lighting™
reserves the right to update the existing document or to create a new document to
correct any errors or omissions at any time. You can download the latest version of this
document from www.blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 5/1/2014 J. Thomas 7/7/2014

Page 4
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the
decalorrearpanelofthexture.
• This product is intended for indoor use only.
•Topreventriskofreorshock,donotexposexturetorainormoisture.
•Makesuretherearenoammablematerialsclosetotheunitwhileoperating.
• The unit must be installed in a location with adequate ventilation, at least
20in(50cm)fromadjacentsurfaces.Besurethatnoventilationslotsare
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
•ALWAYSsecurextureusingasafetychain.NEVERcarrythexturebyits
cord. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact Blizzard Lighting at
[email protected].

Page 5
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
2. MEET THE PUCK PRO ZOOM™ EXA
MAIN FEATURES:
• Exceptional color mixing from 14x 15-watt RGBAW+UV LEDs
• 25-45 degree zoomable beam angle
• Full color mixing in standalone, & master/slave DMX modes
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Easy to use LED digital control panel
• 3-pin male input and 3-pin female output
•Dualmountingyokeallowsexibilityinpositioning
• Heavy duty, black aluminum housing
•AbletodirectlypowerthewiCICLE®wirelesssystemviaDMX
•PowerCON®compatiblepowerin/outconnectors
CONTROL:
• USITT DMX-512 (14-Channel)
• 3-pin Input/Output
• LED 4-button control panel
DMX Quick Reference (14-Channel Mode)
Channel Channel
1 Zoom (wide <--> narrow)
2 Master Dimmer (0% <--> 100%)
3 Strobe (slow <--> fast)
4 Red Intensity (0% <--> 100%)
5 Green Intensity (0% <--> 100%)
6 Blue Intensity (0% <--> 100%)
7 Amber Intensity (0% <--> 100%)
8White Intensity (0% <--> 100%)
9 UV Intensity (0% <--> 100%)
10 Gradual Color Mixing
11 Built-in Programs
12 Speed (fast <--> slow)
13 Zoom Speed (fast <--> slow)
14 Reset

Page 6
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC

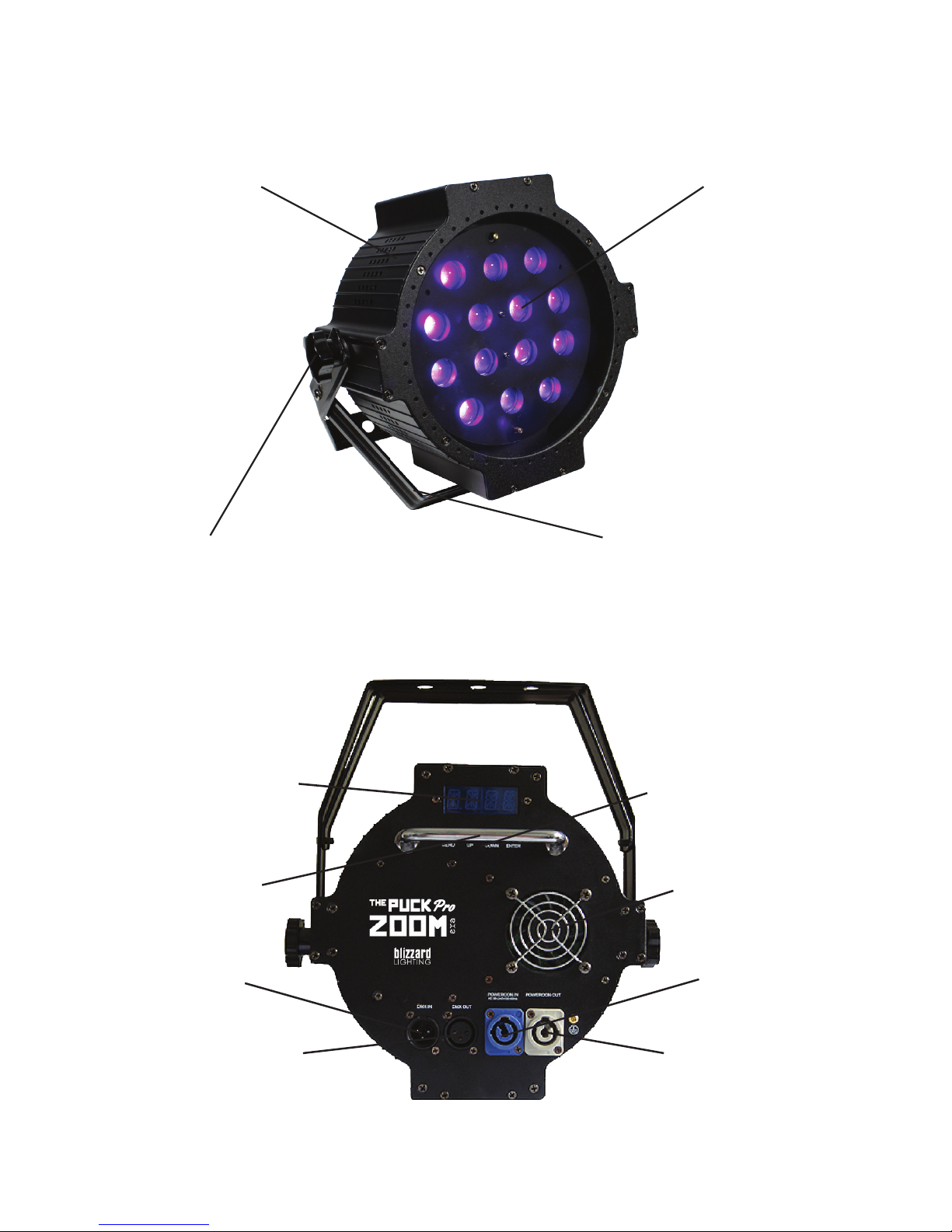

Figure 1: Puck Pro Zoom™ Pin-Up Picture
Locking Knobs
Figure 2: The Rear Connections
LED Control
Panel Display
Dual Mounting Brackets
DMX Out
Control Panel
Buttons
Power In
Power Out
DMX In
Carrying
Handle/
Safety Point
Anodized Extruded
Aluminum Enclosure
RGBAW+UV LEDs
w/Zoomable Optics
Cooling Fan

Page 7
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
3. SETUP

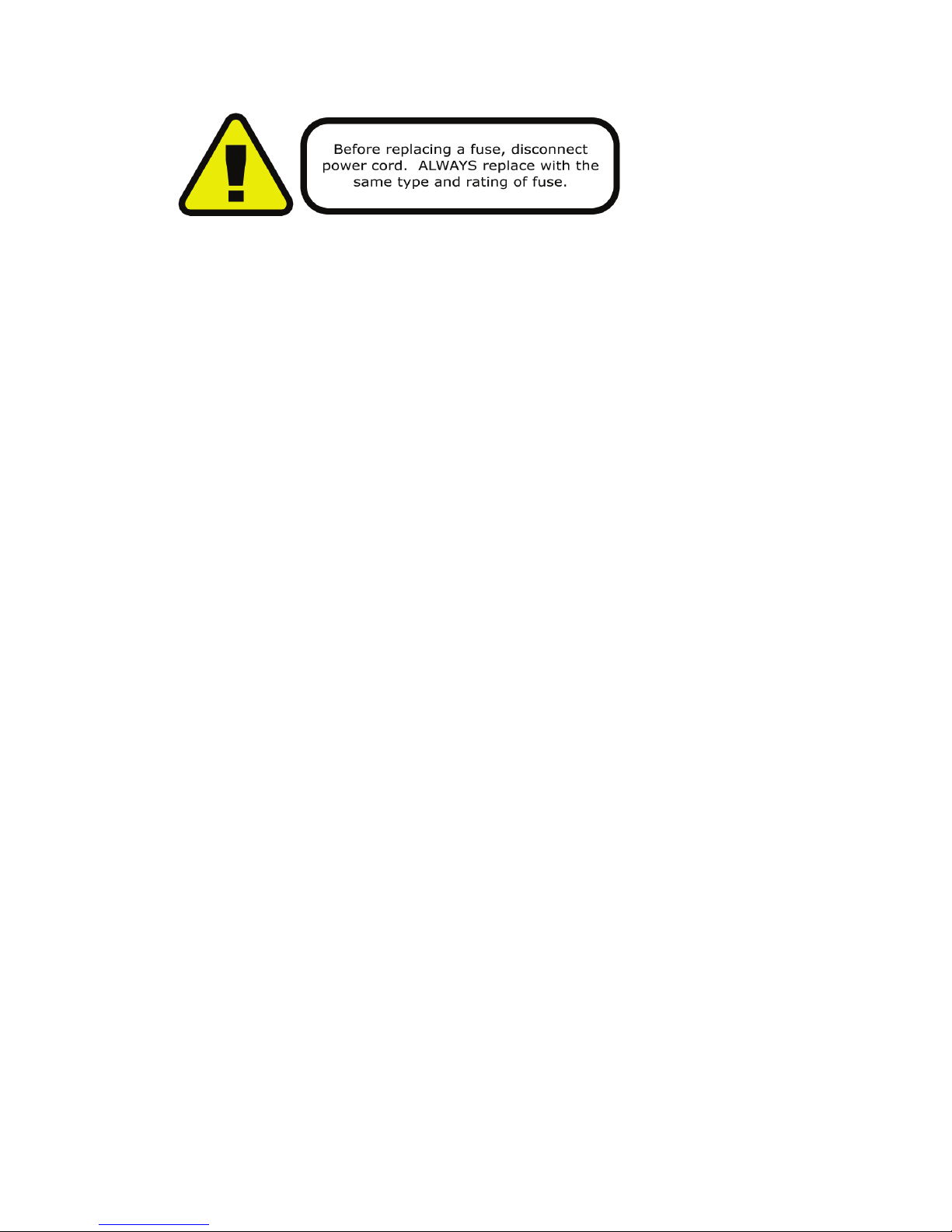

Fuse Replacement
CAUTION! The Puck Pro Zoom™ EXA utilizes a high-output switch-
mode power supply with an internal fuse. Under normal operating
conditions,thefuseshouldnotrequirereplacement.Thefuseiseld
replaceable,howeveritisanadvancedproceduresuitedtoqualied
individuals. Should your Puck Pro Zoom™ EXA fuse require replacement,
please contact Blizzard Lighting for instructions, or to return your unit for
service.
Connecting A Bunch of Puck Pro Zoom™ EXA Fixtures
You will need a serial data link to run light shows using a DMX-512
controllerortorunshowsontwoormorexturessettosyncinmaster/
slave operating mode. The combined number of channels required by all
thexturesonaserialdatalinkdeterminesthenumberofxturesthe
data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also,connectingmorethan32xturesononeserialdatalinkwithout
the use of a DMX optically-isolated splitter may result in deterioration of
the digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640 ft).
Themaximumrecommendednumberofxturesonaserialdatalinkis
32xtures.

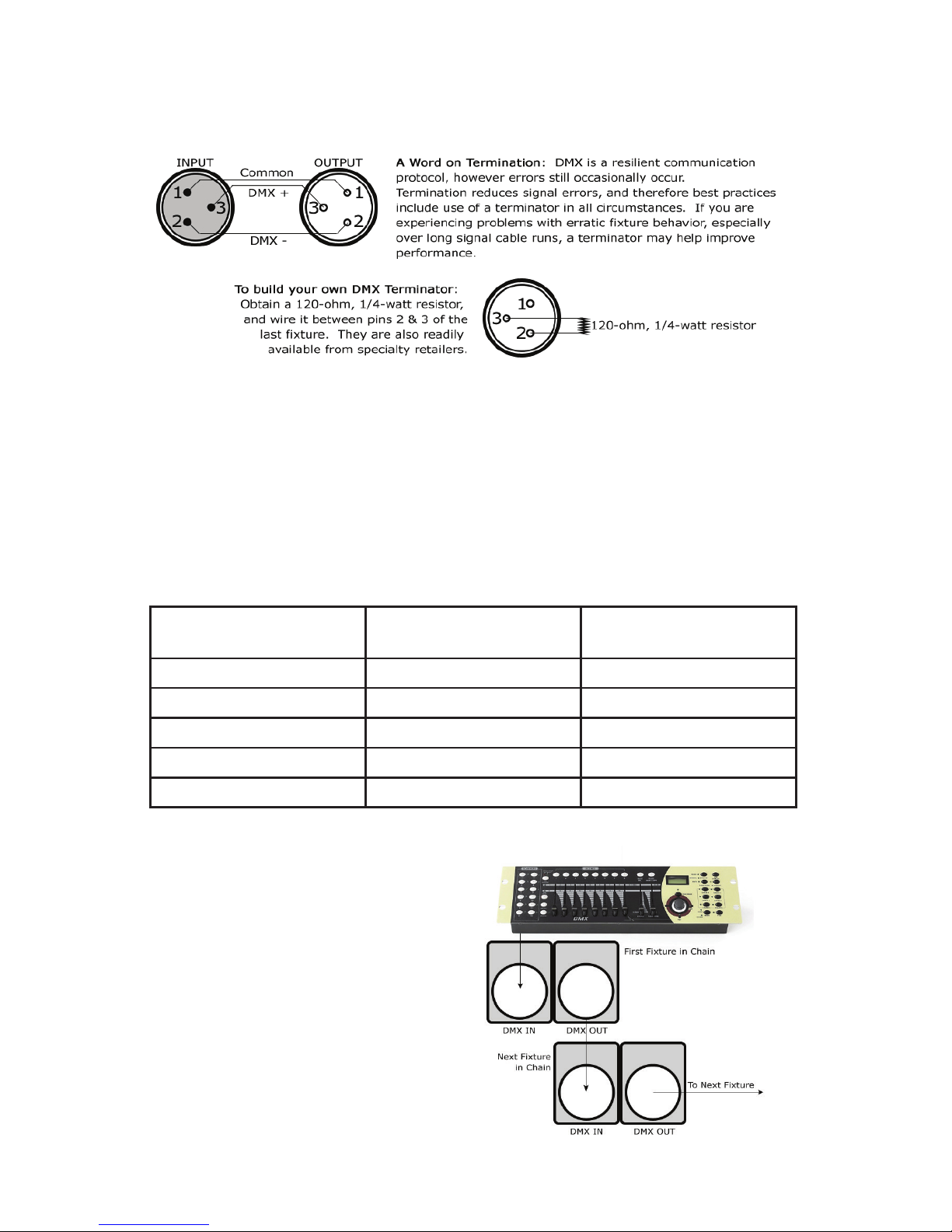

Data/DMX Cabling
Tolinkxturestogetheryou’llneeddatacables.Youshouldusedata-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
Forinstance,Belden©9841meetsthespecicationsforEIARS-485
applications. Standard microphone cables will “probably” be OK, but note
that they cannot transmit DMX data as reliably over long distances. In
any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page8
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
USING THIS FIXTURE WITH THE wiCICLE® WIRELESS
DMX SYSTEM
In addition to the unbridled thrill you already
receivedthersttimeyoupluggedinyourx-
ture,you’llbedelightedtoknowthatThisx-
ture also works seamlessly with our wiCICLE®
Wireless DMX system, without additional power.
•ONLYxturesbearingthislogoarecertiedforusewiththewiCICLE®
without external power.
• Unauthorized modication and/or using the wiCICLE®with un-
approved xtures may cause damage to the wiCICLE® or xture.
UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPON-
SIBLE FOR ANY DAMAGE FROM SUCH OPERATION.
• Fixtures bearing the above logo MUST only use cable and connectors
which separate chassis/case ground from cable shielding. Cabling with
the shield connected to the connector’s case/chassis may cause malfunc-
tion and damage to the wiCICLE®orxture.
• wiCICLE®transmitters have additional power requirements and
thereforecannotbepowereddirectlyfromthexture.Youwill
need to utilize the supplied AC/DC adaptor to drive wiCICLE®
transmitters in your system.

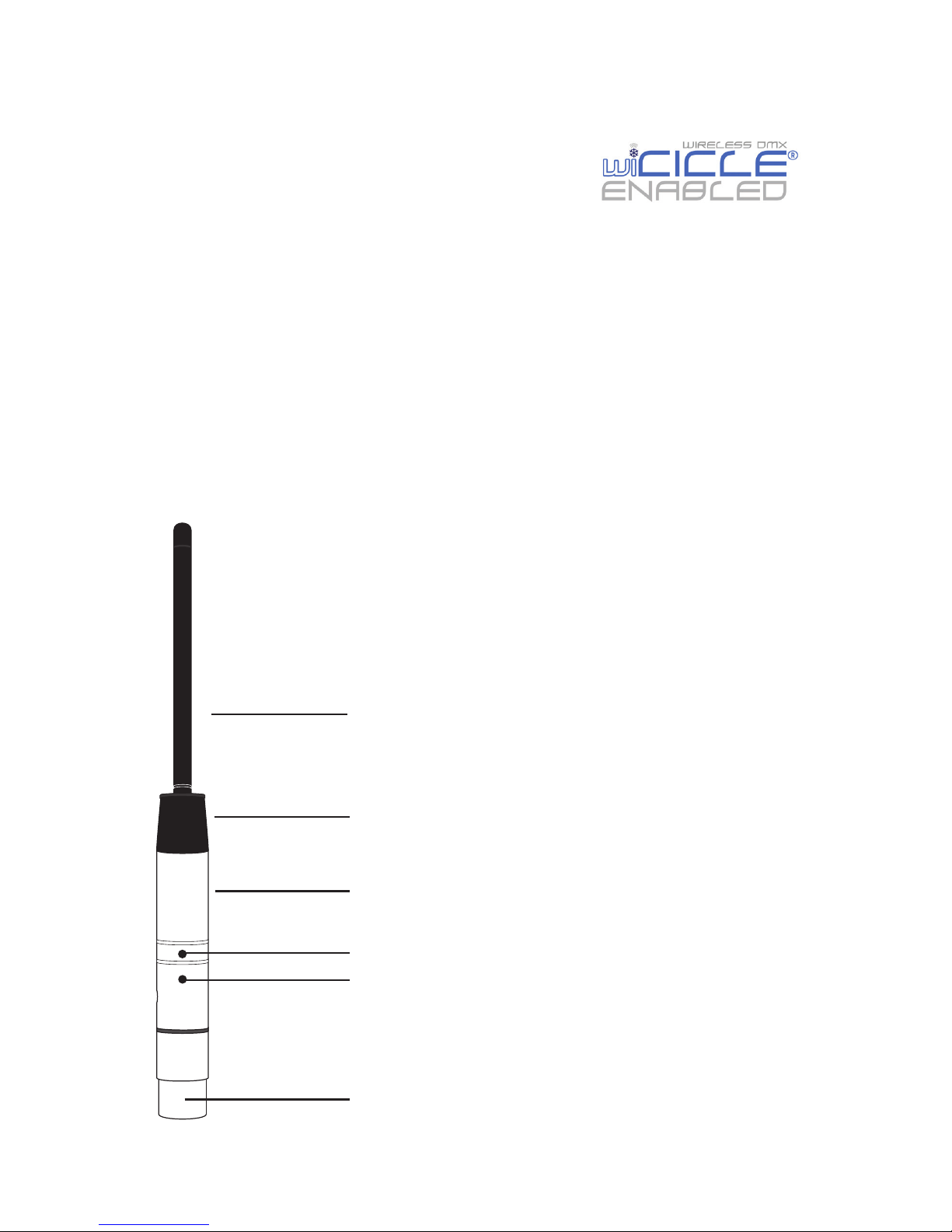

WE HAD THIS SPACE, SO WE FIGURED WE’D DRAW
YOU A PICTURE:
Antenna Housing & 1/2-wave
Antenna
Antenna ferrule & articulation
joint
Stainless Steel Housing
Recessed Selector Button
Status LED
3-Pin XLR Connector
(Male on transmitter, Female
on receiver model)

Page 9
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Each wiCICLE®acts as both a transmitter and a receiver, depending on whether a
DMX source is applied to the integral XLR connector. This is an extremely pow-
erful feature of the system, however, it also requires 1 piece of due dilligence,
and that is the removal of extraneous DMX signals from your lighting rig BEFORE
proceeding.
SO: BEFORE DOING ANYTHING ELSE, YOU SHOULD DISABLE ANY BUILT-
IN PROGRAMS IN THE FIXTURES YOU WISH TO CONNECT AND/OR SET
THEM AS SLAVES PRIOR TO RETURNING THEM TO DMX MODE (IF APPLI-
CABLE). Most xtures contain a built-in automatic, sound active or cus-
tom program which is designed to operate with the xture NOT connected
to a DMX chain.
Someoftheseprogramswillautomaticallyrununlessthextureissettoslave
mode.ThesexturestypicallysenseDMXautomaticallyandswitchtoDMXmode
upon receiving DMX signal (our Pucks do that!)
If you plug a wiCICLE®“receiver”intoanautosensingxturesetasa“master,
“chances are good that the wiCICLE®“receiver” will begin transmitting the master
program. Most times, this is undesirable, and taking the two seconds to switch
these programs off will solve a lot of ails.
Got that done? Good! Then let’s proceed!
1. Plug the wiCICLE®Receiverintothe“DMXIN”connectorofthextureand
verify it is receiving power (the STATUS LED should illuminate.)
2. Connect the AC/DC adaptor to the the wiCICLE®Transmitter and verify it is
receiving power (the STATUS LED should illuminate.)
3. Press the RECESSED SELECTOR BUTTON on the Transmitter to select the
operating channel group. (The system will store this setting for future use)
The 7-Color Status LED will change color to indicate the current channel group:
· GROUP 1: RED
· GROUP 2: GREEN
· GROUP 3: YELLOW
· GROUP 4: BLUE
· GROUP 5: VIOLET
· GROUP 6: CYAN
· GROUP 7: WHITE
4. Follow the same procedure on the Receiver to select the channel group.
5. Once both the transmitter and receiver(s) are both set to the same channel
group,connectthetransmittertotheDMXcontrollerortheDMXoutofaxture
on your DMX chain.
6. Once a DMX signal is provided to the transmitter, the status LED will blink RED
slowly until communication is established with the receiver. The status LED on
thereceiver(s)willashGREEN slowly until communication is established.
7. Once the clearest channel is auto-selected, the status LEDs will blink quickly on
both the transmitter and receiver. NOTE: The color of the LED DURING opera-
tion does not indicate channel group, instead it indicates whether the unit is
transmitting or receiving. That’s It!
NOTE: “GROUP” number also
corresponds to the “GROUP”
setting on our LightCaster™
wireless DMX Transceiver.

Page 10
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the
xture’schassisground.Groundingthecommoncancauseaground
loop,andyourxturemayperformerratically.Testcableswithan
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.
They are widely available over the internet and from specialty retailers. If you’d like to build your own,
the chart below details a proper cable conversion:
Conductor 3-Pin Female
(Output)
5-Pin Male
(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not Used. No Connection. No Connection.
Not Used. No Connection. No Connection.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller.
Step 2: Connect the female connector of
theDMXcabletotherstxture’smale
connector (input). Note: It doesn’t matter
whichxtureaddressistherstone
connected. We recommend connecting the
xturesintermsoftheirproximitytothe
controller, rather than connecting the lowest
xturenumberrst,andsoon.
Step 3:Connectotherxturesinthechain
from output to input as above. Place a DMX
terminatorontheoutputofthenalxture
to ensure best communication.

Page 11
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the
DMX cable to the output (female) 3 pin connector of
therstxture.
2. Connect the end of the cable coming from
therstxturewhichwillhavea(female)3pin
connectortotheinputconnectorofthenextxture
consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above
totheinputofthefollowingxtureandsoon.
A quick note: Often,
the setup for Master-
Slave and Standalone
operation requires that
therstxtureinthe
chain be initialized for
this purpose via either
settings in the control
panel or DIP-switches.
Secondarily,thextures
that follow may also
require a slave setting.
Check the “Operating Adjustments” section in this manual for
completeinstructionsforthistypeofsetupandconguration.
Mounting & Rigging
ThisxturemaybemountedinanySAFEpositionprovidedthereis
enough room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the
xtureusingasuitable“C”or“O”typeclamp.Theclampshouldbe
ratedtoholdatleast10xthexture’sweighttoensurestructural
stability. Do not mount to surfaces with unknown strength, and ensure
properly“rated”riggingisusedwhenmountingxturesoverhead.
Adjusttheangleofthexturebylooseningbothknobsandtiltingthe
xture.Afterndingthedesiredposition,retightenbothknobs.
• When selecting installation location, take into consideration lamp
replacement access (if applicable) and routine maintenance.
• Safety cables MUST ALWAYS be used.
•Nevermountinplaceswherethexturewillbeexposedtorain,
high humidity, extreme temperature changes or restricted ventilation.

Page 12
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the Puck™ Pro Zoom
EXAareaccessedbyusingthecontrolpanelonthebackofthexture.
There are 4 control buttons below the LED display which allow you to
navigate through the various control panel menus.
<MODE>
Is used to navigate the various modes.
<SETUP>
Is used to enter into the selected mode setup.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
The control panel LED display shows the menu items listed on the
control panel menu structure on page 13. Use the <MODE> button to
navigate your choices. To edit a setting, push the <SETUP> button,
then use the <UP> and <DOWN> buttons again to scroll through
your options.
MENU UP DOWN ENTER

Page 13
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Control Panel Menu Structure
d001 d001 - d512 To choose the DMX address
rL-- rL00 - rL99 Red Intensity (0% <--> 100%)
9L-- 9L00 - 9L99 Green Intensity (0% <--> 100%)
bL-- bL00 - bL99 Blue Intensity (0% <--> 100%)
AL-- AL00 - AL99 Amber Intensity (0% <--> 100%)
UL-- UL00 - UL99 White Intensity (0% <--> 100%)
PL-- PL00 - PL99 UV Intensity (0% <--> 100%)
Pr-- Pr01 - Pr43 Static Colors, Auto, Sound Active (1-43)
SP-- SP01 - SP16 Speed (slow <--> fast)
TEST <ENTER> Test Mode
REST <ENTER> Reset the Fixture

Page 14
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Tip: Push the <MENU> button repeatedly to scroll through all of the top tier menu items.
Set the Starting DMX Address:
ThedefaultmodeforthextureisDMX,sotherstmenuitemthatyoucaneditisthe
starting DMX address.
1.) Navigate the menu using the <MENU> button until you reach d001.
2.) Use the <UP/DOWN> buttons to select a DMX channel from d001-d512.
3.) Press the <ENTER>buttontoconrm.
Manual Color Mixing:
Red:
1.) Navigate the menu using the <MENU> button until you reach rL--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
Green:
1.) Navigate the menu using the <MENU> button until you reach 9L--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
Blue:
1.) Navigate the menu using the <MENU> button until you reach bL--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
Amber:
1.) Navigate the menu using the <MENU> button until you reach AL--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
White:
1.) Navigate the menu using the <MENU> button until you reach UL--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
UV:
1.) Navigate the menu using the <MENU> button until you reach PL--.
2.) Use the <UP/DOWN>buttonstoadjusttheintensitylevelfrom0-99.
3.) Press the <ENTER>buttontoconrm.
Static Colors & Built-in Programs
Static Colors:
1.) Navigate the menu using the <MENU> button until you reach Pr--.
2.) Use the <UP/DOWN> buttons to scroll through the selections ranging from 01-39.
Auto Mode:
1.) Navigate the menu using the <MENU> button until you reach Pr--.
2.) Use the <UP/DOWN> buttons to scroll to the selections of either 40 (color snap) or
41 color fade.
3.)Youcanthenadjusttheprogramspeedbypressingthe<MODE> button, and
choose a speed value anywhere from SP01 to SP16 (slow <--> fast).
Sound Active Mode:
1.) Navigate the menu using the <MENU> button until you reach Pr--.
2.) Use the <UP/DOWN> buttons to scroll through the selections ranging from 42-43.

Page 15
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
DMX Values In-Depth (14-Channel Mode)
Channel Value What It Does
1 000 <--> 255 Zoom (wide <--> narrow)
2 000 <--> 255 Master Dimmer (0% <--> 100%)
3 000 <--> 255 Strobe (slow <--> fast)
4 000 <--> 255 Red Intensity (0% <--> 100%)
5 000 <--> 255 Green Intensity (0% <--> 100%)
6 000 <--> 255 Blue Intensity (0% <--> 100%)
7 000 <--> 255 Amber Intensity (0% <--> 100%)
8000 <--> 255 White Intensity (0% <--> 100%)
9 000 <--> 255 UV Intensity (0% <--> 100%)
10
000 <--> 020
021 <--> 040
041 <--> 060
061<-->080
081<-->100
101 <--> 120
121 <--> 140
141 <--> 160
161<-->180
181<-->200
201 <--> 220
221 <--> 255
Gradual Color Mixing
R+G
R+B
G+R
G+B
B+G
R+G+B+W
R+B+G+W
A+P
B+A+R+G+A+P
A+W+P
R+B+G+A+P+W
R+G+B+A+W+P
11
000 <--> 060
061 <--> 120
121<-->180
181<-->244
245 <--> 255
Built-in Programs
No Function
Color Snap
Color Fade
Color Snap to Color Fade
Sound Active Mode
12 000 <--> 255 Speed (fast <--> slow)
13 000 <--> 255 Zoom Speed (fast <--> slow)
14 000 <--> 255 Reset

Page 16
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communications standard used by lighting and related stage equipment.
DMX provides up to 512 control “channels” per data link. Each of these channels was
originally intended to control lamp dimmer levels. You can think of it as 512 faders on a
lighting console, connected to 512 light bulbs. Each slider’s position is sent over the data
linkasan8-bitnumberhavingavaluebetween0and255.Thevalue0correspondstothe
light bulb being completely off while 255 corresponds to the light bulb being fully on.
DMXdataistransmittedat250,000bitspersecondusingtheRS-485transmission
standard over two wires. As with microphone cables, a grounded cable shield is used to
prevent interference with other signals.
TherearevepinsonaDMXconnector:awireforground(cableshield),twowiresfor
“Primary” communication which goes from a DMX source to a DMX receiver, and two
wires for a “Secondary” communication which goes from a DMX receiver back to a DMX
source.Generally,the“Secondary”channelisnotusedsodataowsonlyfromsources
to receivers. Hence, most of us are most familiar with DMX-512 as being employer over
typical3-pin“miccables,”althoughthisdoesnotconformtothedenedstandard.
DMXisconnectedusingadaisy-chaincongurationwherethesourceconnectstotheinput
oftherstdevice,theoutputoftherstdeviceconnectstotheinputofthenextdevice,
and so on. The standard allows for up to 32 devices on a single DMX link.
Each receiving device typically has a means for setting the “starting channel number” that
itwillrespondto.Forexample,iftwo6-channelxturesareused,therstxturemight
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
xturewouldbesettostartatchannel7soitwouldrespondtochannels7through12.
Troubleshooting
Symptom Solution
Fixture Auto-
Shut Off
Checkthefaninthexture.Ifitisstoppedormovingslowerthan
normal, the unit may have shut itself off due to high heat. This is to
protectthexturefromoverheating.Clearthefanofobstructions,
or return the unit for service.
Beam is Dim Check optical system and clean excess dust/grime. Also ensure that
the 220V/110V switch is in the correct position, if applicable.
No Light Output Checktoensurextureisoperatingundercorrectmode,IEsound
active/auto/DMX/Etc., if applicable. Contact service for more infor-
mation.
Chase Speed Too
Fast/Slow
Checktoensurepropersetupofspeedadjustment.
No Power Check fuse, AC cord and circuit for malfunction.
No Response to
Audio
Verifythatthextureisin“SoundActive”mode.
AdjustAudioSensitivity,IfApplicable.
Fixture Not
Responding /
Responding Er-
ratically
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Resetxture(s).

Page 17
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Keeping Your Puck Pro Zoom™ EXA As Good As New
Thextureyou’vereceivedisarugged,toughpieceofprolightingequipment,
and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
Youshouldabsolutelykeepthextureclean,especiallyifyouareusingitinan
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
thexturerunningcoolandpreventdamagefromoverheating.
Intransit,keepthexturesincases.Youwouldn’tthrowaprizedguitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
xtures.
Commonsenseandtakingcareofyourxtureswillbethesinglebiggestthing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your
client’s satisfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But,
like any complex piece of equipment designed and built by humans, once in a
while,somethingdoesn’tgoasplanned.Ifyoundyourselfwithaxturethat
isn’tbehavinglikeagoodlittlextureshould,you’llneedtoobtainaReturn
Authorization (RA).
Don’t worry, this is easy. Just send an email to [email protected],
and we’ll issue you an RA. Then, you’ll need to send the unit to us using a
trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
Makesureyoucarefullypackthexturefortransit,andwheneverpossible,use
the original box & packing for shipping.
Whenreturningyourxtureforservice,besuretoincludethefollowing:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
Wewill,atourdiscretion,repairorreplacethexture.Pleaseremember
that any shipping damage which occurs in transit to us is the customer’s
responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page18
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Width 9.2 in (23 cm) housing, 10.9 in (27.75 cm) with knobs
Height 9.2 in (23 cm) housing, 12.5 in (31.7 cm) including brackets
Depth 5 in (12.7 cm)
Weight 6.4 pounds (2.9 kg)
Power
Operating Voltage AC 110/250VAC, 50-60 Hertz
Power Consumption 158w
Current .58AInrush,2.17AMax.Operating
Power Factor .65
Light Source
LED 14x 15-watt RGBAW+UV LEDs, 10,000 hours
Optical
Beam Angle 25-45 degree zoomable beam angle
Luminous Intensity Lux per meter Red Green Blue Amber White UV All
Narrow
1m 1,262 1,586 1,625 1,126 2,342 574 6,350
2m 386 505 525 318 656 196 1,660
Wide
1m 1,070 1,284 1,297 935 1,674 422 5,670
2m 326 389 392 295 496 161 1,204
Thermal
Max. Operating
Temp.
104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 14-Channels
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating
Modes Standalone, Master/Slave, Sound Active, Color Preset
Other Information
Ijustsawabunchofducksmakingteenagegirlfaces.
Warranty
2-year limited warranty, does not cover malfunction caused by damage to
LED’s.

Page 19
The Puck™ Pro Zoom EXA Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC
Dimensional Drawings
12.5 in (31.7 cm)
5 in
(12.7 cm)
9.2 in (23 cm)
9.2 in (23 cm)
10.9 in (27.75 cm)
12.5 in (31.7 cm)

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
