Blizzard Lighting The Puck 3NX User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Wisconsin, USA
Copyright (c) 2011-2012

Page 2
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC
TABLE OF CONTENTS
The Puck 3NX™ LED PAR Can 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Puck 3NX™ LED PAR Can 5
Features 5
DMX Quick Reference (3 and 6-Channel Modes) 5
The Puck 3NX™Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of Puck 3NX™ LED PAR Cans 7
Data/DMX Cables 7
4. Operating Adjustments 8
DMX Mode & DMX Mode Selection 8
Master/Slave Mode 8
Sound Active Mode 8
Custom Color Display 9
Fixture running hour display 9
Additional Operating Help 9

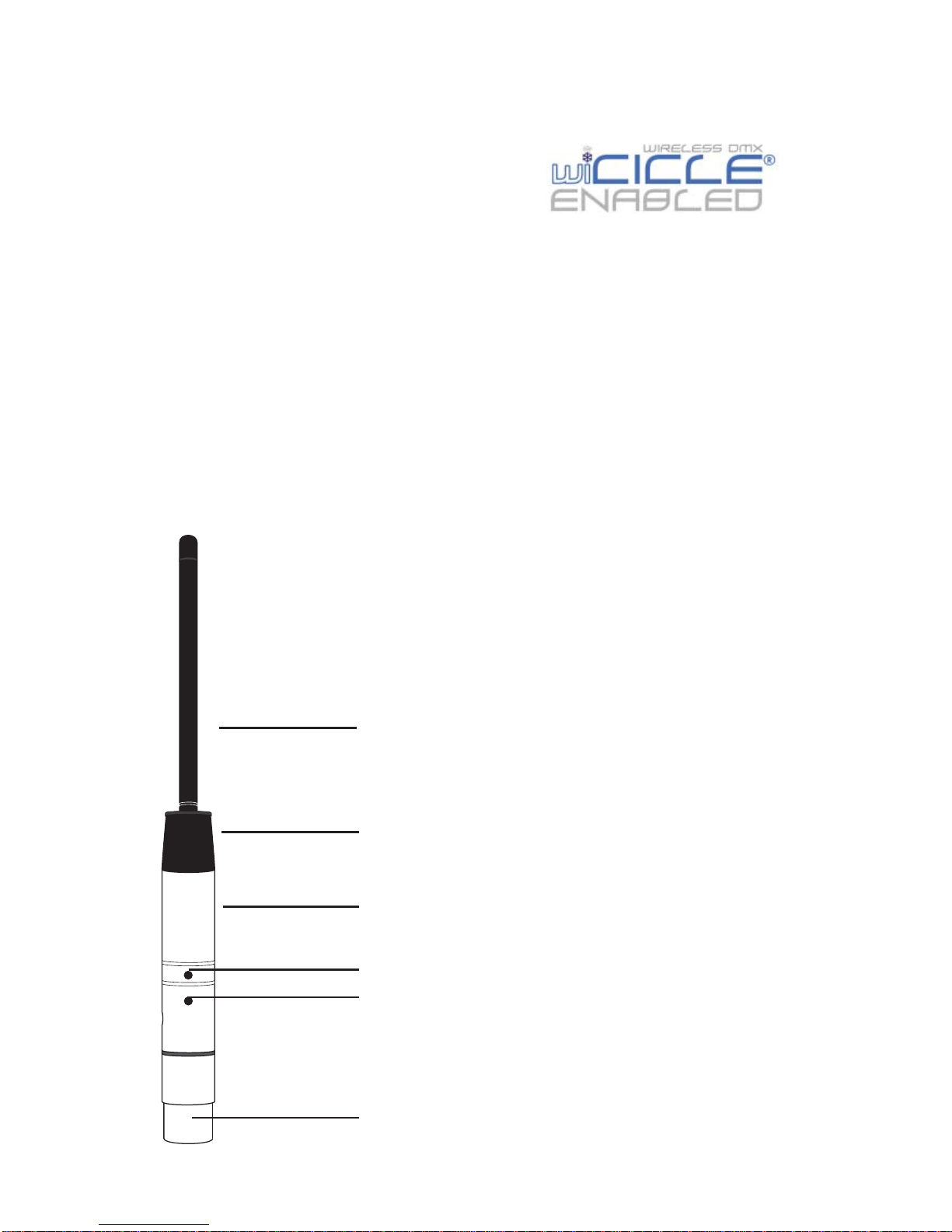

Using the Fixture With The wiCICLE®Wireless DMX System 10
Troubleshooting 12
5. Appendix 13
A Quick DMX Lesson 13
Keeping The Puck 3NX™LED PAR Can As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs 15

Page 3
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x Puck 3NX™ Flat LED PAR Fixture
• 1x Mounting Bracket & 2 Knobs
• 1x IEC Power Cord
• This Eloquently Written User Manual
Getting It Out Of The Box
Congratulations on purchasing the next generation of our best-selling fixture
ever! We’ve completely redesigned the Puck3 to provide more output, more
reliability and more features, all at the same great price!
Now that you’ve got The Puck 3NX™ (or hopefully, Pucks!), you should care-
fully unpack the box and check the contents to ensure that all parts are present
and in good condition. If anything looks as if it has been damaged in transit,
notify the shipper immediately and keep the packing material for inspection.
Again, please save the carton and all packing materials. If a fixture must be re-
turned to the factory, it is important that the fixture be returned in the original
factory box and packing.
Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run
off a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all fixtures have a voltage select switch, so please
verify that the fixture you receive is suitable for your local power supply. See
the label on the fixture or refer to the fixture’s specifications chart for more
information. A fixture’s listed current rating is its average current draw under
normal conditions. Check the fixture or device carefully to make sure that if a
voltage selection switch exists that it is set to the correct line voltage you will
use.
Warning! Verify that the voltage select switch on your unit matches
the line voltage applied. Damage to your fixture may result if the line
voltage applied does not match the voltage indicated on the voltage se-
lector switch. All fixtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be
happy to help, honest.
Blizzard Lighting
W220 N1531 Jericho Ct. Suite E, Waukesha, WI 53186 USA
[email protected]
www.blizzardlighting.com
866.493.6025

Page 4
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC

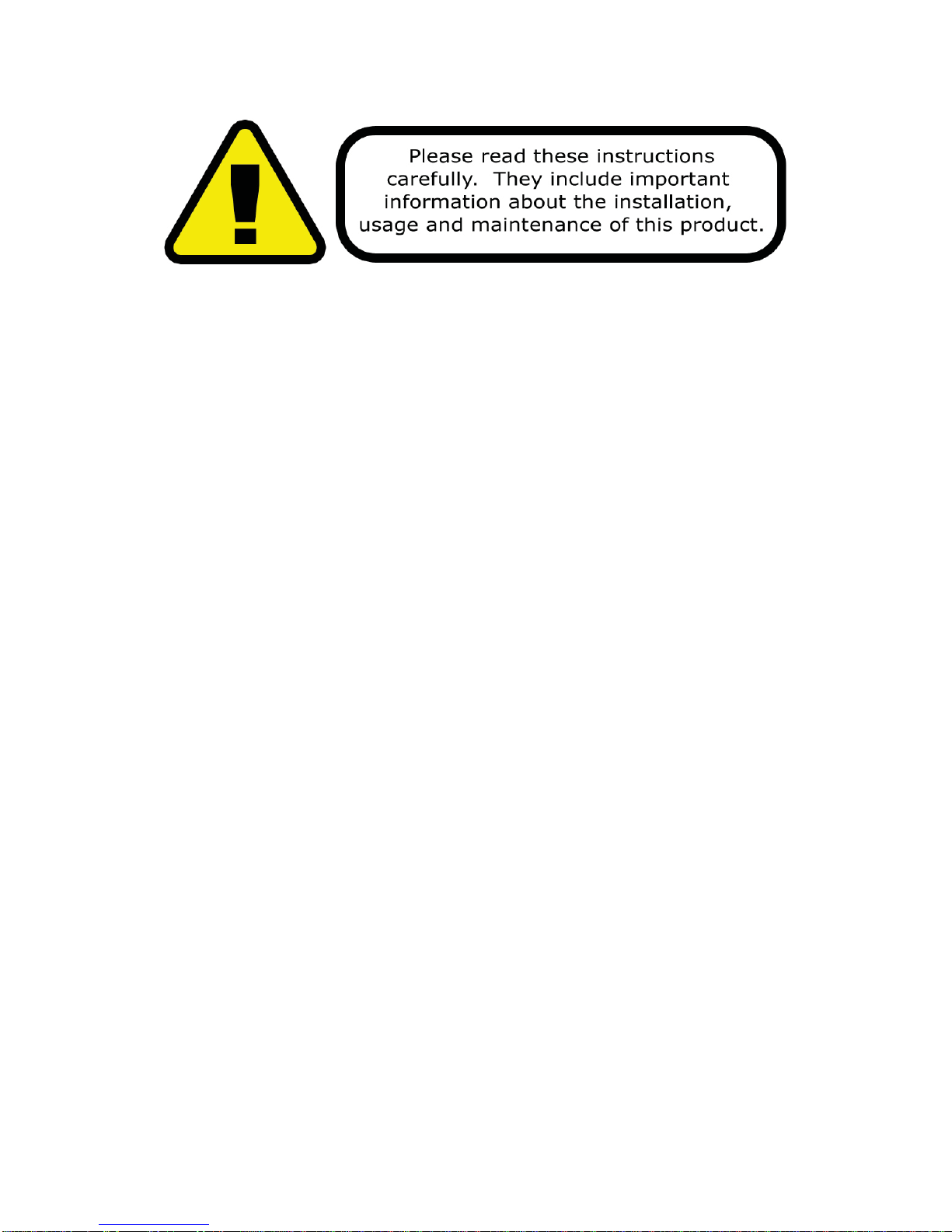

SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the fixture.
• This product is intended for indoor use only.
• To prevent risk of fire or shock, do not expose fixture to rain or moisture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its
cord. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact Blizzard Lighting at sup-
[email protected].

Page 5
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
2. MEET The Puck 3NX™Flat LED PAR Can
CONTROL FEATURES
• Superior color mixing via 9x 3-watt TRI-Color LEDs
• Variable electronic strobe
• Variable electronic dimmer
• Built-in automated programs via DMX and master/slave
• Built-in sound active programs
• Full color mixing in standalone and master/slave
• RGB Dimming (3-Channel) and extended (6-Channel) DMX modes
ADDITIONAL FEATURES
• Lighter and brighter than the original!
• Durable acrylic lens protector for added LED protection
• 4-Button LED control panel for easy programming
• Light source: 9x 3-watt TRI-Color Edison Edixeon LEDs
• Dual bracket for flexibility in mounting
• Power outlet for fixture linking (MAX 3A @ 120VAC)
• Ultra-quiet fan for cool operation all night long
• wiCICLE®Enabled functionality allows plug-and-play operation with
our wiCICLE®Brand Wireless DMX system
DMX Quick Reference (6-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity
4 Color Chase (slow <-> fast)
5 Strobe (0-15 off, 16-255 strobe
slow <-> fast)
6 Dimmer
DMX Quick Reference (3-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity

Page 6
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC

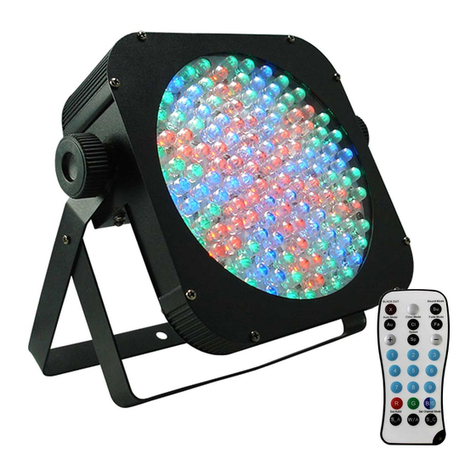

Figure 1: The Puck 3NX™ Pin-Up Picture
Super Fly TRI-Color
LEDs
Flat as a pancake!
Dual Mounting
Yokes
Figure 2: The Rear Connections
AC Power In/Out
DMX In DMX Out
LED Control Panel
Microphone
Acrylic Lens
Protector

Page 7
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
3. SETUP
Fuse Replacement
With a flat head screwdriver, wedge the
fuse holder out of its housing. Remove the
damaged fuse from its holder and replace
with exact same type fuse. Insert the fuse
holder back in its place and reconnect
power.
Connecting A Bunch of The Puck 3NX™ Flat LED PAR Cans
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more fixtures set to sync in mas-
ter/slave operating mode. The combined number of channels required
by all the fixtures on a serial data link determines the number of fix-
tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 fixtures on one serial data link without
the use of a DMX optically-isolated splitter may result in deterioration
of the digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640
ft). The maximum recommended number of fixtures on a serial data
link is 32 fixtures.
Data/DMX Cabling
To link fixtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distanc-
es. In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 8
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
NOTE: After making any adjustment, hold the <MENU> button for approximately
3 seconds, otherwise the fixture will return to the correct mode after approxi-
mately 10 seconds.
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
1.) The default mode for the fixture is DMX, which appears as Addr on the LED
Readout. Use the <ENTER> button then the <UP> and <DOWN> buttons to
choose a channel between 1and 512. Press <ENTER> again to confirm.
2.) To change between 3 and 6 channel DMX mode, select ChNd, then press
<ENTER>. Select either 6Ch or 3Ch, then press <ENTER> again to con-
firm.
Master/Slave Mode (Auto/Sound Active/Color Preset/Custom):
Allows you to link up to 32 units together without a controller.
1.) Use standard DMX cables to daisy chain your units together via the DMX con-
nector on the rear of the units.
2.) Choose a unit to function as the Master. Select MAST. The master unit must
be the first unit. Finally, chain the units together using DMX cable.
Master SLNd then NASt to confirm.
3.) Select slave function by using the <UP>/<DOWN> keys to reach SLAV in
the Master/Auto menu on the slave units, and they will react in the same as the
Master.
Slave SLNd then SLAu to confirm.
NOTE: Fixtures in slave mode will display “STBY“ (Standby). This is NORMAL.
Return the fixture to master mode to use it as a standalone fixture.
4.) On the master fixture, use the <UP>/<DOWN> keys to reach SHND, which
allows you to select the Master/Slave mode.
Sound active SoUn then <ENTER> to confirm.
Auto mode CoLo then Auto, then <ENTER> to confirm.
Color preset CoLo then CoL 1 - CoL 7, <ENTER>.
Fade Mode FAdE then SP 1 - SP 8, <ENTER>.
NOTE: Speed 1 = Fastest (Approx. 1.5 sec. per color), Speed 8 = Slowest (Approx.
2 min. per color).

Page 9
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
To set a custom color in Master/Slave / Standalone Mode:
Using this function, you can select any color by adjusting the Red, Green and Blue values
from 0-255. You may also adjust the color balance of the fixture.
Please note that modifying the values in this step will affect ALL modes, therefore
we recommend resetting all levels to their highest value (255) after using this
mode.
1.) Select NAnu from the control panel, then hit <ENTER>.
2.) Choose rEd, GrEE, or bLuE, then hit <ENTER> to confirm.
3.) Using the <UP>/<DOWN> keys, select the color you wish to display by
varying Red/Green/Blue intensity between 0 and 255, then hit <ENTER> to
confirm each color choice.
4.) Select Color preset mode as instructed above, then select CoL 7. then
<ENTER> to confirm.
To Show the Fixture Running Hours:
1.) Select FhrS from the control panel, then hit <ENTER> to confirm.
Stuck? Want More
Information?
Check out our
helpful tutorial video
HERE:
http://youtu.be/xVKhmV-v0jA
That should tell you everything you need to
know!

Page 10
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC
USING THIS FIXTURE WITH THE wiCICLE® WIRELESS
DMX SYSTEM
In addition to the unbridled thrill you al-
ready received the first time you plugged
in your fixture, you’ll be delighted to know
that This fixture also works seamlessly with
our wiCICLE®Wireless DMX system, without additional power.
• ONLY fixtures bearing this logo are certified for use with the wiCI-
CLE®without external power.
• Unauthorized modification and/or using the wiCICLE®with
unapproved fixtures may cause damage to the wiCICLE®or
fixture. UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING
RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION.
• Fixtures bearing the above logo MUST only use cable and connec-
tors which separate chassis/case ground from cable shielding. Cabling
with the shield connected to the connector’s case/chassis may cause
malfunction and damage to the wiCICLE®or fixture.
• wiCICLE®transmitters have additional power requirements
and therefore cannot be powered directly from the fixture. You
will need to utilize the supplied AC/DC adaptor to drive wiCI-
CLE®transmitters in your system.
WE HAD THIS SPACE, SO WE FIGURED WE’D DRAW
YOU A PICTURE:
Antenna Housing & 1/2-wave
Antenna
Antenna ferrule & articulation
joint
Stainless Steel Housing
Recessed Selector Button
Status LED
3-Pin XLR Connector
(Male on transmitter, Female
on receiver model)

Page 11
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
Each wiCICLE®acts as both a transmitter and a receiver, depending on whether
a DMX source is applied to the integral XLR connector. This is an extremely
powerful feature of the system, however, it also requires 1 piece of due dilli-
gence, and that is the removal of extraneous DMX signals from your lighting rig
BEFORE proceeding.
SO: BEFORE DOING ANYTHING ELSE, YOU SHOULD DISABLE ANY
BUILT-IN PROGRAMS IN THE FIXTURES YOU WISH TO CONNECT AND/
OR SET THEM AS SLAVES PRIOR TO RETURNING THEM TO DMX MODE
(IF APPLICABLE). Most fixtures contain a built-in automatic, sound
active or custom program which is designed to operate with the fixture
NOT connected to a DMX chain.
Some of these programs will automatically run unless the fixture is set to slave
mode. These fixtures typically sense DMX automatically and switch to DMX
mode upon receiving DMX signal (our Pucks do that!)
If you plug a wiCICLE®“receiver” into an autosensing fixture set as a “mas-
ter, “chances are good that the wiCICLE®“receiver” will begin transmitting the
master program. Most times, this is undesirable, and taking the two seconds to
switch these programs off will solve a lot of ails.
Got that done? Good! Then let’s proceed!
1. Plug the wiCICLE®Receiver into the “DMX IN” connector of the fixture and
verify it is receiving power (the STATUS LED should illuminate.)
2. Connect the AC/DC adaptor to the the wiCICLE®Transmitter and verify it is
receiving power (the STATUS LED should illuminate.)
3. Press the RECESSED SELECTOR BUTTON on the Transmitter to select the
operating channel group. (The system will store this setting for future use)
The 7-Color Status LED will change color to indicate the current channel group:
· GROUP 1: RED
· GROUP 2: GREEN
· GROUP 3: YELLOW
· GROUP 4: BLUE
· GROUP 5: VIOLET
· GROUP 6: CYAN
· GROUP 7: WHITE
4. Follow the same procedure on the Receiver to select the channel group.
5. Once both the transmitter and receiver(s) are both set to the same chan-
nel group, connect the transmitter to the DMX controller or the DMX out of a
fixture on your DMX chain.
6. Once a DMX signal is provided to the transmitter, the status LED will blink
RED slowly until communication is established with the receiver. The status
LED on the receiver(s) will flash GREEN slowly until communication is estab-
lished.
7. Once the clearest channel is auto-selected, the status LEDs will blink quickly
on both the transmitter and receiver. NOTE: The color of the LED DURING
operation does not indicate channel group, instead it indicates whether the
unit is transmitting or receiving. That’s It!
NOTE: “GROUP” number
also corresponds to the
“GROUP” setting on our
LightCaster™wireless DMX
Transceiver.

Page 12
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC
Troubleshooting
Symptom Solution
Fixture Auto-
Shut Off Check the fan in the fixture. If it is stopped or moving slower than normal, the unit may have shut itself off due to
high heat. This is to protect the fixture from overheating.
Clear the fan of obstructions, or return the unit for service.
Beam is Dim Check optical system and clean excess dust/grime. Also
ensure that the 220V/110V switch is in the correct position,
if applicable.
No Light Output Check to ensure fixture is operating under correct mode, IE
sound active/auto/DMX/Etc., if applicable. Contact service
for more information.
Chase Speed
Too Fast/Slow Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Blown Fuse Check AC cord and circuit for damage, verify that moving
parts are not restricted and that unit’s ventilation is not
obstructed
Slow Movement Verify that 220V/110V switch is in the correct position, if
applicable. Also check that speed channels are set appropri-
ately.
No Response to
Audio Verify that the fixture is in “Sound Active” mode. Adjust Audio Sensitivity, If Applicable.
Fixture Not
Responding /
Responding Er-
raticly
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Reset fixture(s).
Intermittant
Lamp Check lamp for properly installation. Relamp, lamp may have reached end of life.
Remote Doesn’t
Work Verify remote control cable is installed properly and securely. Verify remote is correct type (CA-9 or other as applicable.)
Fixture Moving
On Its Own Verify proper mode of operation. Is the fixture in “Auto” mode?
If your problem isn’t listed, or if problems persist,
please contact support: [email protected].

Page 13
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre
Technology (USITT) as a standardized method for connecting lighting consoles to lighting
dimmer modules. It was revised in 1990 and again in 2000 to allow more flexibility. The
Entertainment Services and Technology Association (ESTA) has since assumed control over
the DMX512 standard. It has also been approved and recognized for ANSI standard clas-
sification.
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communications standard used by lighting and related stage equipment.
DMX provides up to 512 control “channels” per data link. Each of these channels was origi-
nally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting
console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an
8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb
being completely off while 255 corresponds to the light bulb being fully on.
DMX data is transmitted at 250,000 bits per second using the RS-485 transmission stan-
dard over two wires. As with microphone cables, a grounded cable shield is used to prevent
interference with other signals.
There are five pins on a DMX connector: a wire for ground (cable shield), two wires for
“Primary” communication which goes from a DMX source to a DMX receiver, and two wires
for a “Secondary” communication which goes from a DMX receiver back to a DMX source.
Generally, the “Secondary” channel is not used so data flows only from sources to receiv-
ers. Hence, most of us are most familiar with DMX-512 as being employer over typical
3-pin “mic cables,” although this does not conform to the defined standard.
DMX is connected using a daisy-chain configuration where the source connects to the input
of the first device, the output of the first device connects to the input of the next device,
and so on. The standard allows for up to 32 devices on a single DMX link.
Each receiving device typically has a means for setting the “starting channel number” that
it will respond to. For example, if two 6-channel fixtures are used, the first fixture might
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
fixture would be set to start at channel 7 so it would respond to channels 7 through 12.
The greatest strength of the DMX communications protocol is that it is very simple and
robust. It involves transmitting a reset condition (indicating the start of a new “packet”),
a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As
soon as one packet is finished, another can begin with no delay if desired (usually another
follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will
be sent out over and over again. This is a great feature of DMX -- if for some reason the
data is not interpreted the first time around, it will be re-sent shortly.
Not all 512 channels need to be output per packet, and in fact, it is very uncommon to find
all 512 used. The fewer channels are used, the higher the “refresh” rate. It is possible to
get DMX refreshes at around 1000 times per second if only 24 channels are being trans-
mitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per
second.
In summary, since its design and evolution in the 1980’s DMX has become the standard
for lighting control. It is flexible, robust, and scalable, and its ability to control everything
from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for
any lighting designer or lighting performer.

Page 14
The Puck 3NX Manual Rev. A Copyright (c) 2011-2012 Blizzard Lighting, LLC
Keeping Your Puck 3NX™As Good As New
The fixture you’ve received is a rugged, tough piece of pro lighting equip-
ment, and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
You should absolutely keep the fixture clean, especially if you are using it in an
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
the fixture running cool and prevent damage from overheating.
In transit, keep the fixtures in cases. You wouldn’t throw a prized guitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
fixtures.
Common sense and taking care of your fixtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your cli-
ent’s satistfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But, like
any complex piece of equipment designed and built by humans, once in a while,
something doesn’t go as planned. If you find yourself with a fixture that isn’t
behaving like a good little fixture should, you’ll need to obtain a Return Authori-
zation (RA).
Don’t worry, this is easy. Just send an email to [email protected],
and we’ll issue you an RA. Then, you’ll need to send the unit to us using a
trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
Make sure you carefully pack the fixture for transit, and whenever possible, use
the original box & packing for shipping.
When returning your fixture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the fixture. Please remember that
any shipping damage which occurs in transit to us is the customer’s responsibil-
ity, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page 15
The Puck 3NX Manual Rev. B Copyright (c) 2011-2012 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Length 8.50 inches (215 mm)
Width 3.75 inches (95.25 mm)
Height 8.25 inches (210 mm)
Weight 4.2 lbs (1.9 kg)
Power
Operating Voltage 90-230VAC, 50-60 Hertz
Fuse 2A 250V
Power Consumption 35W
Light Source
LED 9x 3-watt TRI-Color LED’s 60K hrs.
Optical
Beam Angle 25 degrees
29 degree field
Luminous Intensity 7,160 Lux @ 1m (Full White)
Red 1,550 Lux @ 1m
Green 2,250 Lux @ 1m
Blue 2,930 Lux @ 1m
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 3 or 6 (User Selectable)
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Sound Active, Color Preset, Standalone color mixing
Coolness Factor
Leventy Billion Percent
Warranty 2-year limited warranty, does not cover mal- function caused by damage to LED’s.

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
