DTS SCENA COMPACT LED 50 User manual

Made in Italy
PROFILO COMPACT LED 50
User’s Manual rel. 1.0 GB
D.T.S. Illuminazione s.r.l. –ITALY
http://www.dts-lighting.it/

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1- SYMBOLS 4
2- GENERAL WARNING 4
3- GENERAL WARRANTY CONDITION 4
4- TECHNICAL FEATURES 5
5- ACCESSORIES 6
6- IMPORTANT SAFETY INFORMATION 7
6.1 Fire prevention
6.2 Prevention of electric shock
6.3 Safety
7- INPUT / OUTPUT CONNECTIONS 7
8- DMX SIGNAL CONNECTION 8
8.1 DMX Addresses
8.2 Selecting the DMX address
9- FIRMWARE UPDATING 9
10- DISPLAY FUNCTIONS 10
11- DMX PROTOCOL 14

4
!
1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK
RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS YOU CAN PLACE THE
UNIT ON NORMALLY FLAMMABLE SURFACES
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE TO BE KEPT BETWEEN THE DEVICE
AND THE LIT OBJECT
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation , use and maintenance.
The device is not for domestic use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
LED 30 cm

5
4- TECHNICAL FEATURES
OVERVIEW
PROFILO COMPACT LED 50 is a professional shaper featuring a single high-power
White LED (4,725 Lux / 2 m, 3.000K), and 18°- 36° linear zoom with high-efficiency
optical system.
PROFILO COMPACT LED 50 features an internal rotating system with four
removable shutters, to give high-precision shaping of light beams.
PROFILO COMPACT LED 50 is a modern alternative to conventional lights,
improving light quality, flexibility of use and installation, energy savings and
component duration.
In fact the fixture doesn’t heat up, and the projection is always flicker free.
Also, the dimming curves are similar to those of halogen lamps.
PROFILO COMPACT LED 50 is contained in a strong housing with folded edges,
designed to resist all the rigors of continuous use.
PROFILO COMPACT LED 50 features a reversible yoke for using the projector in any
position. Also, the yoke has an exclusive round flange + clutch system which
guarantees a perfect grip and safer operation.
PRODUCT CODES:
03.TP015.46 PROFILO COMPACT LED 50 *White 3.000°K *Black
03.TP016.46 PROFILO COMPACT LED 50 *White 4.000°K *Black
03.TP017.46 PROFILO COMPACT LED 50 *White 5.000°K *Black
LED Technology
1 x White LED (3.000 °K, 4000°K or 5000°K)
CRI > 90; LED Max power: 50W
Optical group
18°-36° linear zoom; 2100 Lux / 3 m (18°)
Shutters
4 removable shutters
Control
2 DMX channels
4 digit 7 segments display + 4 soft keys
Connectors
Power supply: POWERCON IN & OUT connectors
DMX: 5 poles In & Out connectors
Power supply
Electronic full-range AC 90-260V , 50/60 Hz
Weight
4,9 Kg

6
DIMENSIONS
5- ACCESSORIES
As standard
1 x User’s Manual
1 x POWERCON male cable connector (D.T.S. Code 0520P014)
1 x XLR 5 pins male cable connector (D.T.S. Code 0508B028)
1 x XLR 5 pins female cable connector (D.T.S. Code 0508B027)
4 x Shutter blades (Single blade D.T.S. Code 02SK0041)
Optional (on request)
- “C” Clamp G60 (Max. Load. 50 Kg) *Black finish (D.T.S. Code 0521A004)
- Gobo holder (D.T.S. Code 03.TA208)
- Iris/diaphram (D.T.S. Code 03.TA207)
- Barndoor *Black finish (D.T.S. Code 03.TA206)
- Filterframe *Black finish (D.T.S. Code 02M00422.46)

7
7- IMPORTANT SAFETY INFORMATION
7.1 Fire prevention:
It is permissible to place the unit on normally flammable surfaces.
Suitable for mounting on normally flammable materials surfaces greater than 200°C
with some combustion time lag.
Minimum distance from the closest illuminable surface: 30 cm.
Replace any blown or damaged fuses only with those of identical value (1AT).
7.2 Prevention from electric shock:
High voltage is present inside the unit.
Unplug the unit prior to performing any operation which involves touching the inside of
the unit.
This equipment must be grounded, do not connect to non-grounded supplies.
The use of a thermal magnetic circuit breaker is recommended for each PROFILO
COMPACT LED 50 unit. Use only AC supplies 90-260V , 50 / 60 Hz.
PROFILO COMPACT LED 50 should never be located in position exposed to rain or in
areas of extreme humidity.
A good air ventilation is essential for proper equipment work.
7.3 Safety:
The external surface of the unit may exeed 50°C; never handle the unit until at least 5
minutes have elapsed since the unit was turned off.
Never install the unit in an enclosed area lacking sufficient air flow.
The ambient temperature should not exeed 40°C and should not be lower than -10°C.
8- INPUT / OUTPUT CONNECTIONS
FUSE 1AT
DMX OUT
XLR 5 Pins Male Panel Connector
MAINS AC INPUT 90-260V , 50/60 Hz
DMX IN
XLR 5 Pins Female Panel Connector
DISPLAY PANEL
MAINS AC OUTPUT 90-260V , 50/60 Hz
MAX 16A
!

8

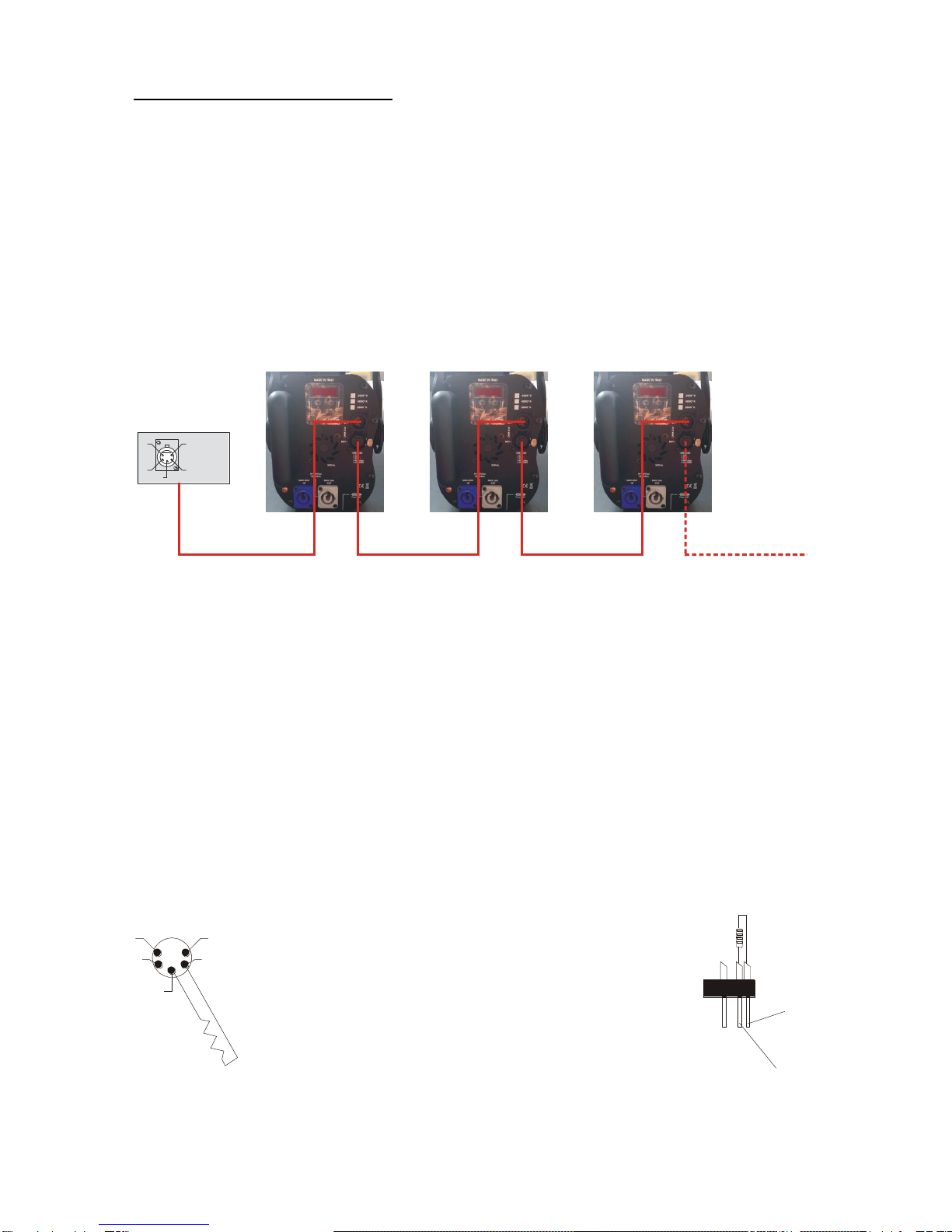

9- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 signal.
Connection between the controller and the unit or between units must be carried out
using a two pair screened ø 0.5 mm.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the DMX connector chassis.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
unit to the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has
occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we
suggest to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S T A N D A R D
D M X 5 1 2
DMX OUT DMX OUT
DMX IN DMX IN
DMX OUT
DMX IN
DMX OUT

9
9.1 DMX addresses
PROFILO COMPACT LED 50 can be controlled with 2 DMX channels.
In order to use the unit in 2 DMX channels mode, set the following addresses on the
mixer:
Projector 1 A001
Projector 2 A003 If you want to select the next projector, just add “2”
Projector 3 A005
….. A….
projector 6 A011
9.2 Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more
quickly and you get a faster selection.
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
10- FIRMWARE UPDATING
To update the software version of the PROFILO COMPACT LED 50 you need:
- D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008)
- USB-DMX Driver for the D.T.S. RED BOX interface
- “D.T.S. Firmware upgrade utility” program installed on PC
- Latest firmware release available for PROFILO COMPACT LED 50 unit
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the
unit software.
2. Connect the D.T.S. RED BOX interface to the PC by using a USB cable.
3. Connect the D.T.S. RED BOX interface to the fixture by using a DMX cable.
4. Send the new software version into the unit by using “D.T.S. Firmware upgrade
Utility”program.

10
Up-Down
MENU ENTERUp-Down Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down
Up-Down
MENU ENTER
Up-Down ENTER
ENTER
Up-Down ENTER
ENTER
ENTER

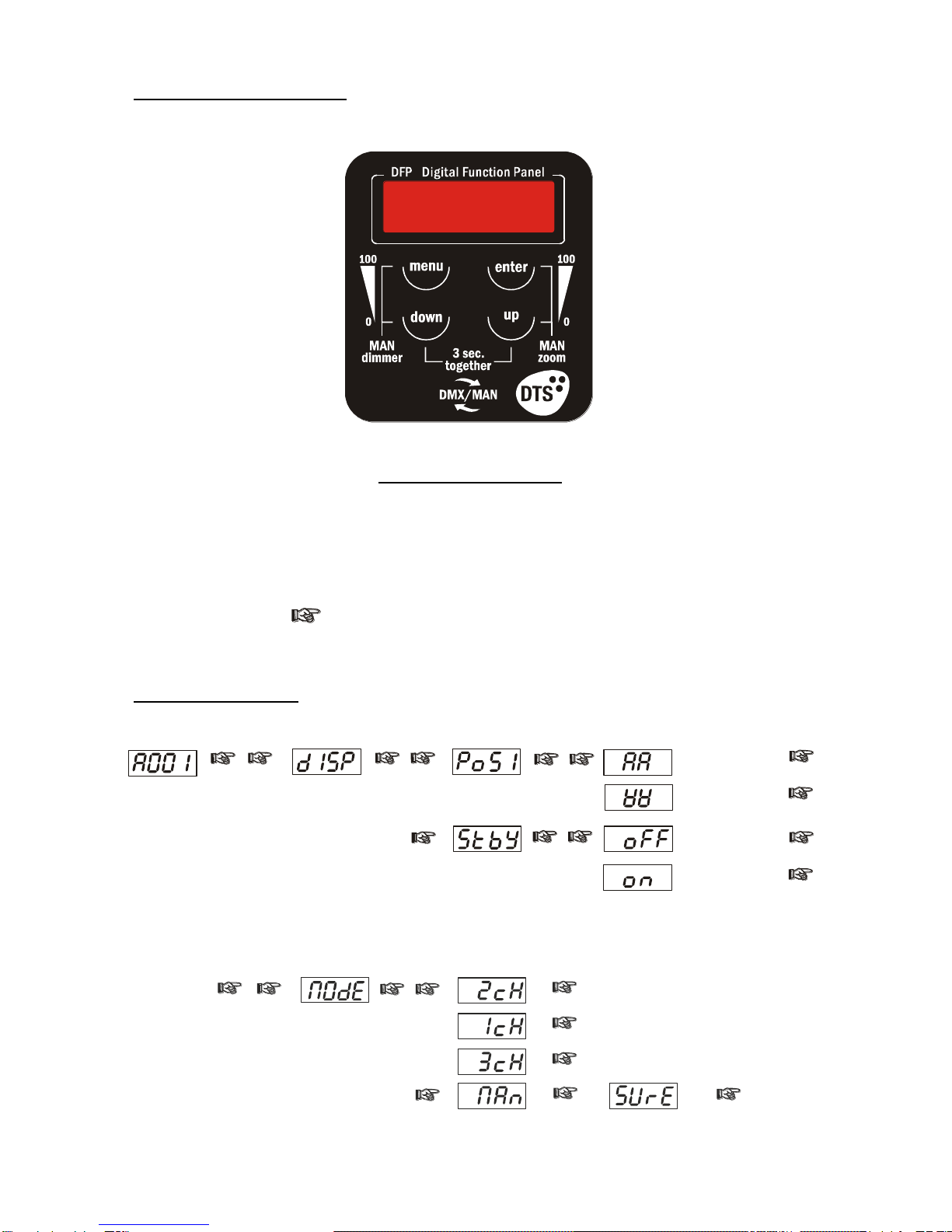

10- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The PROFILO COMPACT LED 50 display panel shows all the available functions.
Using these functions, it is possible to change some of the parameters and add some
functions. Changing the D.T.S. setting can vary the functions of the unit so that it does
not respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired
function.
Software version 1.00
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position (on the ground or
suspended).
DISPLAY STAND BY
To turn off the display (after 5 seconds)
Or leave it always on.
DMX MODE
To select DMX mode : 2 DMX channels
mode (default), 1 DMX channel mode,
3 DMX channels mode or Manual mode.
Manual mode can also be activated by
pressing at the same time the “UP’’ +
”DOWN” buttons on unit display for 3
seconds (“A001”).
Suspended
Position
Floor
Position
Display
Off
Display
Always on
Default DMX Mode
2 Channels
Manual Mode
1 DMX channel mode
3 DMX channels mode

11
With BOOST active, the LED’S
current is set to Max value.
(30% more gain compared to
BOOST Off)
Default = Disabled
Up-Down
MENU ENTER
Up-Down ENTER
Up-Down
Up-Down Up-DownENTER ENTER
ENTER
Up-Down
Up-Down
Up-Down
ENTER
Up-DownENTER
Up-DownENTER
Up-DownENTER ENTER
ENTER
ENTER
ENTER
MENU Up-Down Up-DownENTER ENTER
LED
Led Min/Max, Smooth, Compression,
Sync and Boost level values settings
LED MINIMUM VALUE
This menu allows to select the
minimum levels for white
LED MAXIMUM VALUE
This menu allows to select the
maximum levels for white
These settings have priority
on Master Dimmer channel
SMOOTH VALUE
This menu allows to select the value of
the delay (in milliseconds) for Dimmer
channel reaction to DMX or Program
variation.
Off = 25 ms. Instant response to DMX
variation.
20 = 250 ms. Smooth response to DMX
variation.
COMPRESSION
This menu allows to select between
Linear current output or Quadratic
current output for LEDs
Default = Quadratic
SYNC
This menu allows to adjust the PWM
frequency value (Hz) in order to reduce
flickering in the process of your camera
recordings
BOOST DRIVING
This menu allow to increase the LED’s
current from Min to Max
Linear = Linear
Current output
Quadratic =
Linear light
output
Default = 0
Default = 100
Range = Off-20
Default = 4
Range =
610 Hz –10 KHz
Default = 610 Hz
Boost mode
activated
Boost mode
deactivated
MENU Up-Down Up-DownENTER ENTER
ENTER
INFRARED MODE
Infrared remote control.
By activating Ir Mode, it will be
possible to navigate trought the unit
functions by using the D.T.S.
infrared remote control
(D.T.S. Code: 0514L008)
Note:
External infrared remote sensor
needed (D.T.S. Code: 03.LA.016)
NOT IMPLEMENTED ON PROFILO COMPACT LED 50
DIMMER
Dimmer intensity level (range 0-255)
Active only if MODE = 1 DMX channel mode

12
MENU Up-Down Up-DownENTER Up-DownENTER ENTER
ENTER
ENTER

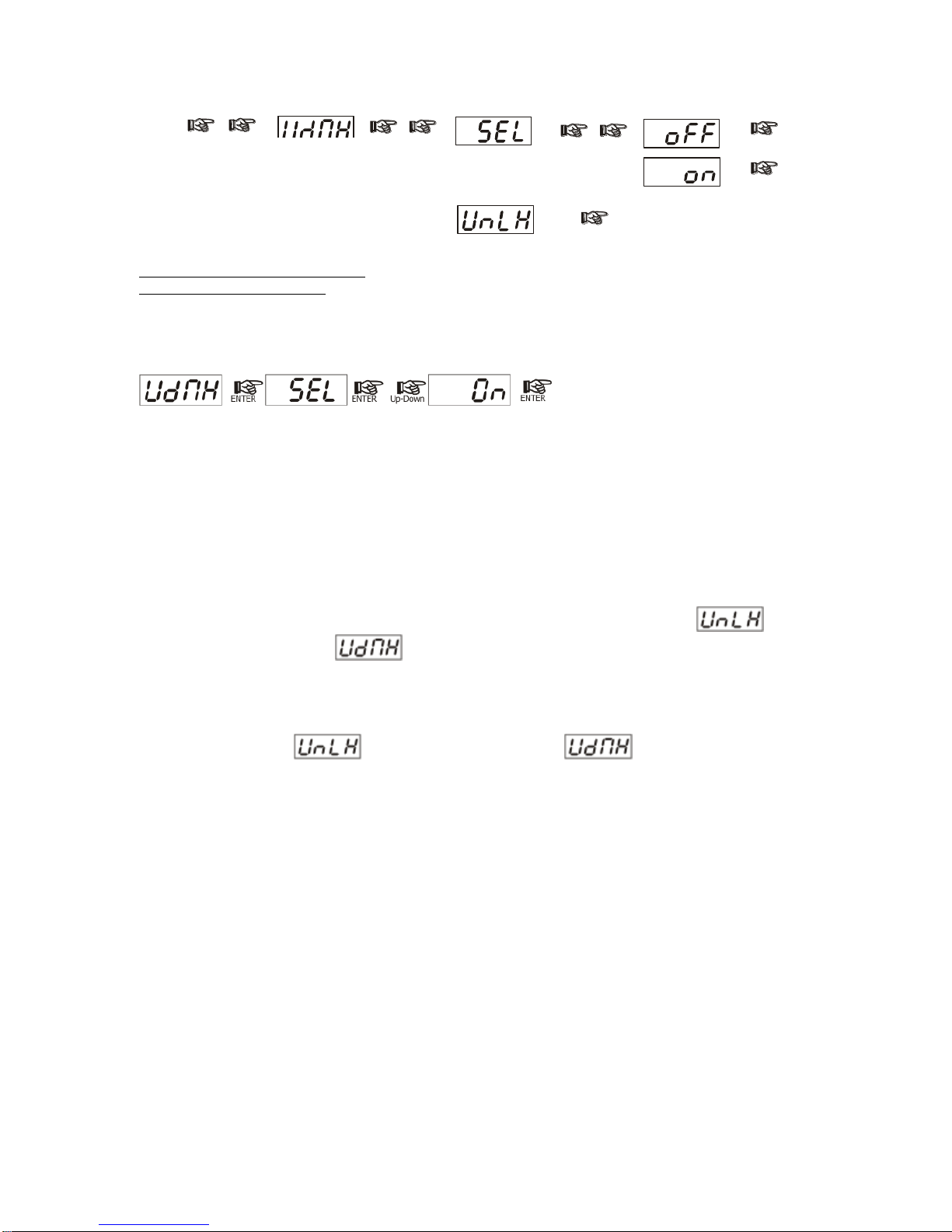

WIRELESS DMX
Wireless DMX enabled / disabled.
By activating WDMX MODE, it will be
possible to control PROFILO COMPACT
LED 50 via D.T.S. ANTENNA Wireless
DMX Transmitter (cod. 03.E1271).
Active only on PROFILO COMPACT
LED 50 with Wireless on board
Wireless
Enabled
Wireless
Disabled
UNLINK = LOG OUT
Logging on PROFILO COMPACT LED 50 (WIRELESS DMX must be enabled on PROFILO COMPACT
LED 50 unit)
To log on the PROFILO COMPACT LED 50 in the WIRELESS system simply press and quickly release the
function button on the transmitter.
The transmitter will start flashing rapidly red/green scanning for new free receivers / PROFILO COMPACT
LED 50 units. When a PROFILO COMPACT LED 50 logs on to the transmitter the LINK green light on
transmitter starts to flash rapidly.
After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data.
The PROFILO COMPACT LED 50 now try to synchronize to the transmitter.
When synchronized to the transmitter, 2 different modes are possible:
1. Antenna transmitter has detected and transmits a DMX signal, in this mode a solid green light is seen on the
transmitter and solid display is seen on PROFILO COMPACT LED 50.
2. No DMX signal connected, the Antenna transmitter will flash red/green; display blinking on PROFILO
COMPACT LED 50.
To log PROFILO COMPACT LED 50 off from a transmitter simply select UNLINK function
under WIRELESS DMX MENU and press ENTER.
When PROFILO COMPACT LED 50 is logged off, the display is blinking, meaning its available for log in on a
new transmitter.
Logging out a PROFILO COMPACT LED 50
Select UNLINK function under WIRELESS DMX MENU and press ENTER.
When PROFILO COMPACT LED 50 is logged off the display is blinking, meaning its available for log in on a
new transmitter.
Logging out all PROFILO COMPACT LED 50 units linked to a transmitter
Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on
PROFILO COMPACT LED 50, it mean that the units are logged out.
Transmitter, Status LED
Flashing red/green, no dmx connected.
Solid green, dmx signal detected and transmitted.
Fast flashing red/green, log in mode (every free PROFILO COMPACT LED 50 unit, not logged in to any other
transmitter, will be logged on)
PROFILO COMPACT LED 50 Status
Display blinking = not logged on to a transmitter (free).
Solid display = logged on to a transmitter and receiving dmx data.
NOT IMPLEMENTED ON PROFILO COMPACT LED 50

13
MENU Up-Down Up-DownENTER
ENTER
Up-DownENTER ENTER
ENTER
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select
Dimmer intensity level that will
then ran if DMX signal is
missing or not available.
Usefull for Emergency EXIT
illumination on public areas.
Default = 204 (80%)
ENTERENTER
Up-Down
MENU
ENTERENTER
Up-Down
MENU .
DEFAULT SETTING
To restore default settings
TEMPERATURE
Internal unit temperature
visualisation
Internal unit temperature
(° Celsius)
LIFE TIME
This menu show the total
unit life time and the
LED life time
SOFTWARE
Software version
Default = OFF
ENTER
Up-DownENTER
Up-Down
MENU
ENTER
ENTER
Up-Down
MENU . .

14
11- DMX PROTOCOL
2 CHANNELS MODE (Default)
1 SHUTTER / STROBE
2 DIMMER
DMX CHANNEL
1
Parameter: SHUTTER / STROBE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-009
Black-out
010-019
Open
020-029
Black-out
030-119
Strobe (from 3.27 s to 30 ms)
120-149
Pulse up (from 42.6 s to 120 ms)
150-179
Pulse down (from 42.6 s to 120 ms)
180-204
Random strobe
(Dimmer channel active)
205-229
Full independent Random Strobe
(Dimmer channel disabled)
230-255
Open
DMX CHANNEL
2
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer
1 CHANNEL MODE
1 DIMMER
DMX CHANNEL
1
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer

15
3 CHANNELS MODE
1 SHUTTER / STROBE
2 DIMMER
3 DIMMER FINE
DMX CHANNEL
1
Parameter: SHUTTER / STROBE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-009
Black-out
010-019
Open
020-029
Black-out
030-119
Strobe (from 3.27 s to 30 ms)
120-149
Pulse up (from 42.6 s to 120 ms)
150-179
Pulse down (from 42.6 s to 120 ms)
180-204
Random strobe
(Dimmer channel active)
205-229
Full independent Random Strobe
(Dimmer channel disabled)
230-255
Open
DMX CHANNEL
2
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer
DMX CHANNEL
3
Parameter: DIMMER FINE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer

16
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are reserved
and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
D.T.S. Illuminazione s.r.l. –Via Fagnano Selve 10-12-14 47843
Misano Adriatico (RN) Italia
Tel.: [phone]. Fax + 39 0541 611111
[e-mail] www.dts-lighting.it
0517I224
MADE IN ITALY
ISO 9001:2008
D.T.S. quality system
is certified to the
ISO 9001:2008 standard
D.T.S. products are designed
and manufactured at the D.T.S.
plants in italy
*0517I224*
