Bodet Profil TGV 950 User manual

1
Clock
Prol TGV 950
Prol TGV 970
Receiver minute, ½
minute impulses
IRIG B/AFNOR time
signal reception
France-Inter radio
synchronisation
INSTALLATION AND OPERATING INSTRUCTIONS
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : [phone]
Fax : [phone]
www.bodet.com
Upon receipt, always check the product for damage during shipment. If any is found, you may le a damage
claim with the carrier
Réf.: 605732 E

2
Table of contents
I - INITIAL VERIFICATION 3
1.1 Unpacking the clock 3
1.2 Cleaning 4
II - INSTALLATION 5
2.1 Clock setting up 6
2.2 Setting the antenna 7
III - SETTING IN OPERATION 8
3.1 External supply connection 8
3.2 Clock connections and time setting 9
3.2.1. Impulses slave clock 9
3.2.2. AFNOR/IRIG-B time signal reception 11
3.2.3. France Inter radio receiver clock 12
IV - TECHNICAL FEATURES 13
TGV 950 13
TGV 970 14
V - WHAT TO DO IF...? ...CHECK. 16

3
I - INITIAL VERIFICATION
Thank you for choosing a BODET clock. This product has been carefully
designed for your satisfaction based on ISO9001 quality requirements. We
advise you to read this manual thoroughly before attempting to manipulate
the clock.
Keep this booklet during all the life of your clock, so that you can refer to it
each time it is necessary
Bodet accepts no responsibility for accidents resulting from any use
not conforming with the above provisions.
Any modication to the product will invalidate the warantee.
1.1 Unpacking the clock
Unpack with caution and check the contents of the packaging. It must contain :
- the TGV clock,
- for radio synchronised models : the antenna,
- a key to open the casing,
- a cleaning kit,
- this booklet.

4
Versions : a label inside the clock species what model the clock is :
AFNOR/FI HMS or AF/FI HMS = the clock is a receiver driven by : a
master clock that sends AFNOR NFS-87500A coded time messages or
a radio France Inter receiver antenna, and supplied in 240 VAC, with a
servo second hand.
AFNOR HM = the clock is a receiver driven by a master clock that
sends AFNOR NFS-87500A time coded messages ; it is supplied in 240
VAC.
AF/FI HM = the clock is a receiver driven by : a master clock that sends
AFNOR NFS-87500A coded time messages or a radio France Inter
receiver antenna, and supplied in 240 VAC.
MN 24V // HM = the clock is a receiver driven by a master clock that
sends minute impulses on a parallel line.
MN 24V // HMS = the clock is a receiver driven by a master clock that
sends minute impulses on a parallel ligne ; it is supplied in 240 VAC,
with a servo second hand.
1/2MN SER HM = the clock is a receiver driven by a master clock that
sends ½ minute impulses on a serial line.
1/2MN SER HMS = the clock is a receiver driven by a master clock that
sends ½ minute impulses on a serial ligne ; it is supplied in 240 VAC,
with a servo second hand.
1.2 Cleaning
Use an antistatic product of similar type to the one shipped in the original
packaging. Never use alcohol, acetone or any other solvent liable to damage
the casing and lter on your clock.

5

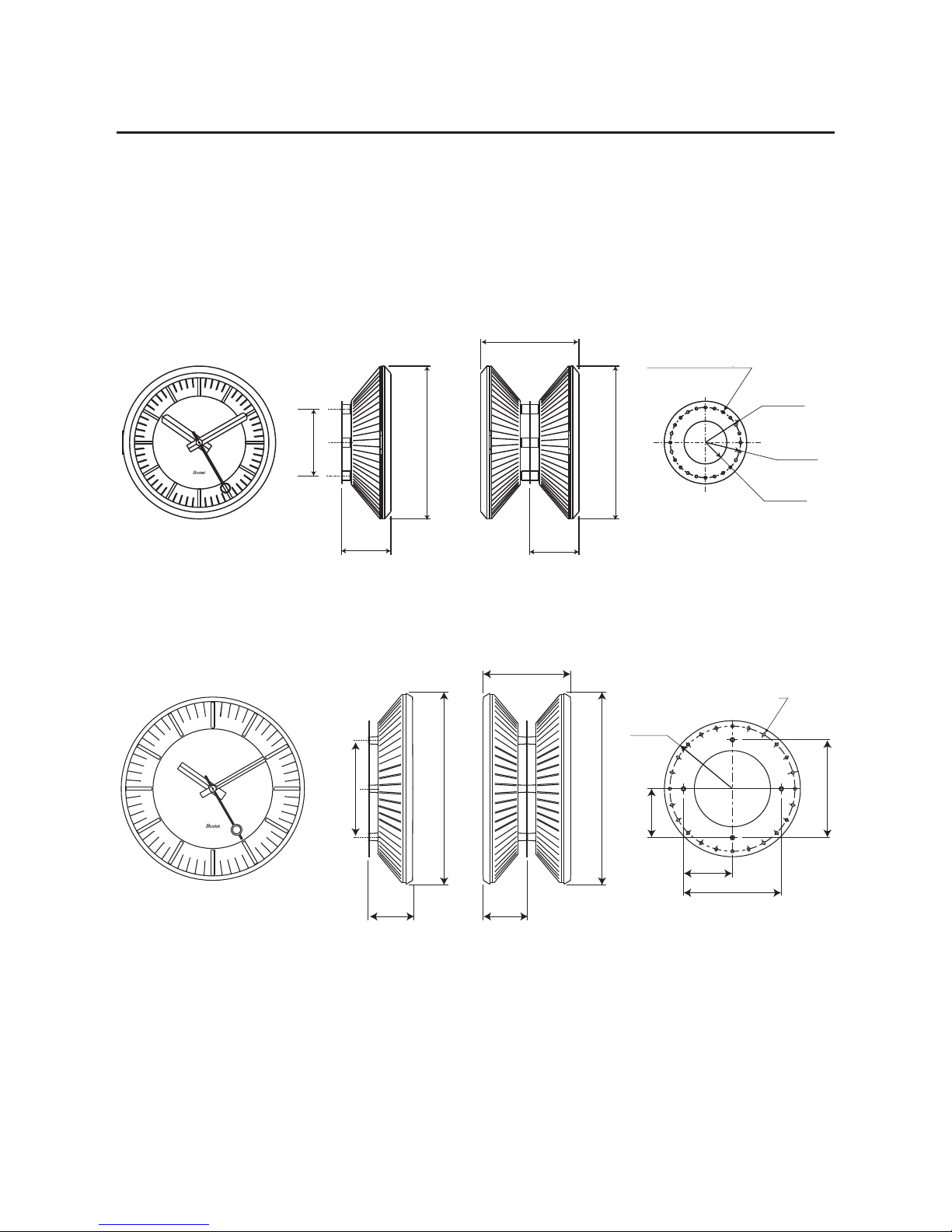

II - INSTALLATION
Select the place where the clock will be installed while making sure that radio
reception is correct for radio synchronisation models.
TGV 950 clock
TGV 970 clock
230
322
162
162
Ø 500
Ø 500
Ø 140
Ø 230
Ø 270
24 trous Ø 8,20
24 holes Ø8,20
322
163
360
180
163
Ø 700
Ø 700
360
180
360
Ø 470
24 trous Ø 11
sur un Ø430
24 holes Ø11
on Ø 430

6

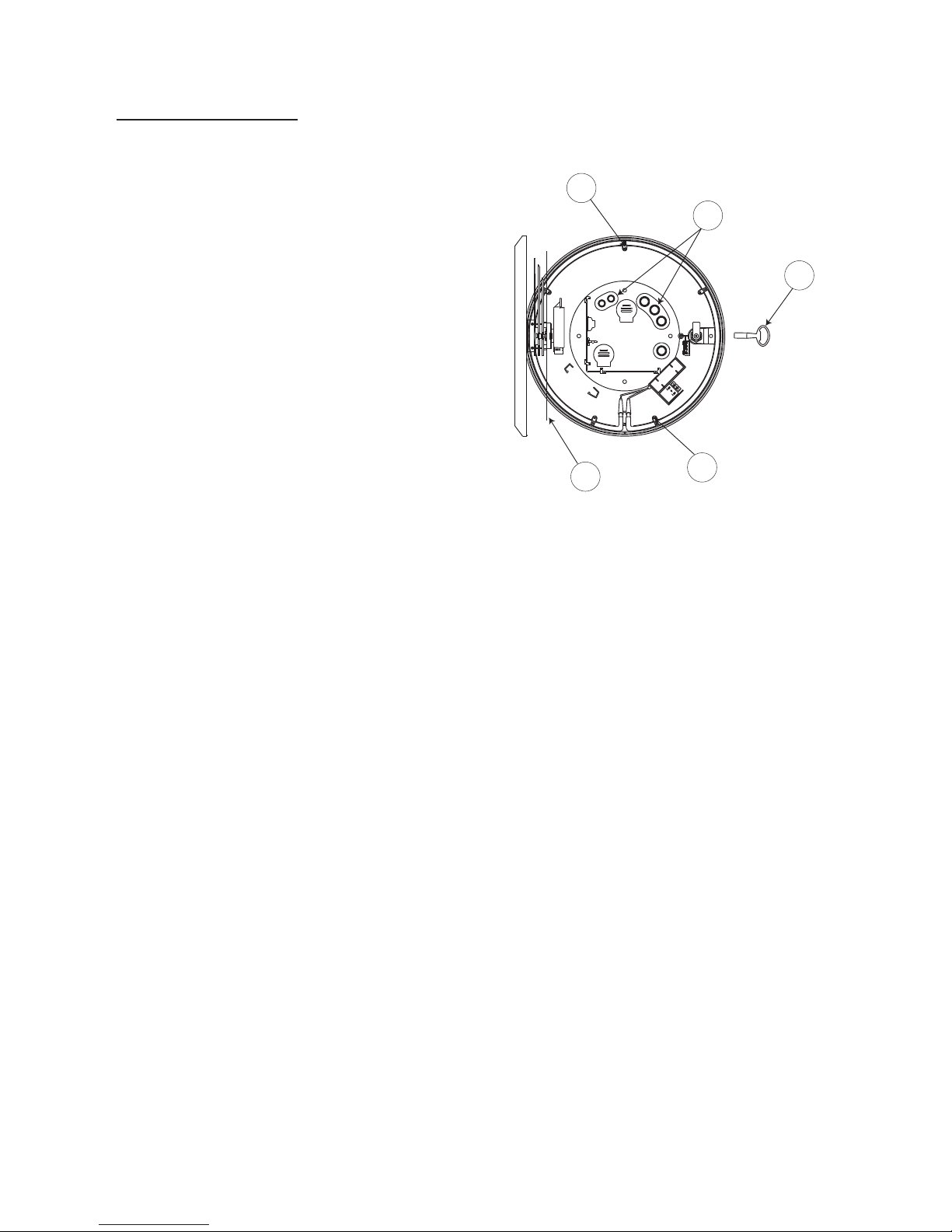

2.1 Clock setting up
- Open the clock by giving the lock a
quarter turn with the key (5).
- On the TGV950 clock, remove the 2
locking srews (3) (provided for the transit).
- Pull the whole dial (1) towards you.
The hinge arm opening system ensures a
fast and secure maintenance of the lighting
without having to put the front part of the
clock on the ground.
- Hang the clock and x it, without locking
it, after you have put the wires (between Ø7 and Ø10) through the waterproof
pressure joints (4).
- Carry out the various connections (external supply : see page 8 and
connection to time distribution network : see page 9).
- Lock the clock.
- Power it.
- Reset the time if necessary.
- Close the clock.
5
4
3
3
1

7
2.2 Setting the antenna
For radio synchronised clocks :
The best reception conditions are
outside buildings or near windows.
Positioning the antenna (perpendicular
to the direction of the transmitter)
improves reception.
The antenna must not be placed on a
metal support.
As for any radio system, a building with
metal structures can cause
interference in the reception of the signal.
Computers, television sets and electrical appliances can
also cause interference that disrupt the reception of the
radio message.
- Unlock the antenna from its support.
- Fix the support with the screw supplied and lock the
antenna again.
Beware : in a double face system. So as not to cause
interference between the 2 antennas, the latter must be xed at least one
metre away from each other.
DCF
F-I

8
III - SETTING IN OPERATION
3.1 External supply connection
Installation and maintenance of this equipment must be carried out by
qualied personnel only.
Electrical installation must comply with current standard CEI 364. (NF C15-
100 in France for example).
The mains supply for the clocks must include a neutral phase circuit breaker
10A C curb, rapidly accessible. This circuit breaker must be switched off
during maintenance operations..
Note : the power supply wires must be linked near their xing point.
AFNOR/France Inter clock :
- Connect mains supply 230 Volt 50 Hz (lighting + time
base supply) to the supply card terminal : max.1,5 mm2
wire and bare on 5 mm.
The earth wire must be longer than the other ones.
- Lock the wires with collars.
This card is protected by 2 fuses (F) 2A 250V.
- Connect the terminal (2) of the battery, on this main
card.
Minute, ½ minute, with synchronous second hand
clock receiver
■The second hand is driven by an independent motor.
This motor must be permanently supply.
■Connect permanent power supply 230V +earth
(lighting + time base supply) on the terminal (4).
The earth wire must be longer than the other ones.
Nota : the power supply wires should be
assembled together near their connecting terminal.
2
15
F
Permanent
power supply
230V
Permanent power
supply 230V +earth

9
3.2 Clock connections and time setting
NOTA : to respect the security rules, the time distribution network must be be
SELV-type.
- The impulses wires should be assembled together near their connecting
terminal.

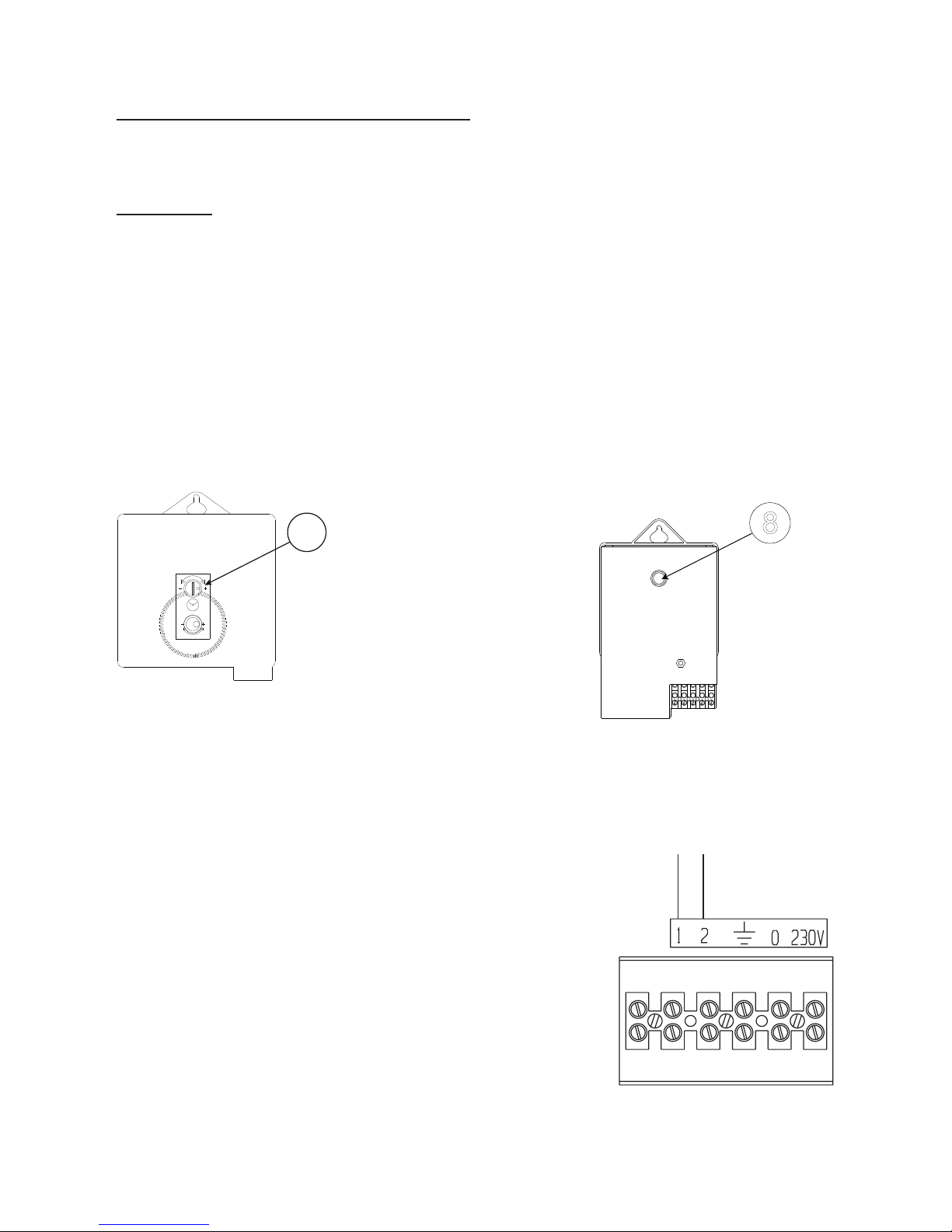

3.2.1. Impulses slave clock
A time distribution network emits only impulses, so that it is necessary to set
the clock at the time of this network.
To add a clock on a network, it is necessary to stop this network and to set on
time the clock.
To set on time the clock, turn the control knob (7 or 8).
Minute 24V // receiver,
- Connect the time distribution network to terminals 1
and 2 on the terminal strip.
Leave works 2 minutes.
- If the clock, or one of the clocks in case of a double
side mounting, is one minute late : stop the emitter,
reverse the connection on terminal (3) and put the
clock forward 2 minutes, then restart the emitter.
In fact, the same impulse is either positive or negative
according to the way to connect and the initial position
of the movement, it will take or not the rst impulse.
78
Synchronous
second hand
movement
Impulses

10
½ minute serial receiver,
- Connect the time distribution network to terminals 1
and 2 on the terminal strip.
- The terminal 3 of the terminal strip is available. You
can use it to connect a double side clock.
To insure the continuation of the serial distribution
network, (to avoid to cut the serial line when a slave
clock is disconnect) connect a resistor according to
the intensity of the network.
Network intensity ½ Minute movement shunt Second movement shunt
65 mA 100 Ohms 150 Ohms
80 mA 47 Ohms 56 Ohms
Leave works 2 minutes.
- If the clock, or one of the clocks in case of a double side mounting, is ½
minute late : stop the emitter, reverse the connection on terminal and put the
clock forward 1 minute, then restart the emitter.
In fact, the same impulse is either positive or negative according to the way
to connect and the initial position of the movement, it will take or not the rst
impulse.
Impulses

11
3.2.2. AFNOR/IRIG-B time signal reception
- Connect the time signal network to the
terminals 1 and 2 of the AFNOR receiver
card.
Check that the dip switch (15), is pushed
towards top on the PCB (AFNOR
reception).
The AFNOR/IRIG-B HMS clocks can be
set on time manually :
- At the rst press on button “time setting” (17) , the internal clock stats.
- Every press on button “time setting” (17) advances the clock by one minute.
- After this manual time setting, the clock operates in stand alone mode until
reception of the signal, or reset function by pressing button (16) or a power
supply failure.
Operating principle of AFNOR HMS receiver clock :
During 15 minutes without reception of the time signal the clock operates
with its own time basis. If the signal recovery is achieved within this period,
the clock will be resynchronised automatically. Beyond, the clock is reset and
hands are set on position 12.00.
Operating with battery :
- Without power supply 230V the clock operates with its battery during 1 hour.
- After 1 hour without time signal reception or if the battery voltage drops
down, hands are set position 12.00 until power supply recovery.
- The synchronous second hand witch is powered by the main 12V 50Hz, will
stop immediately.
230 0 21 3
21
15
17
16
AFNOR
input

12

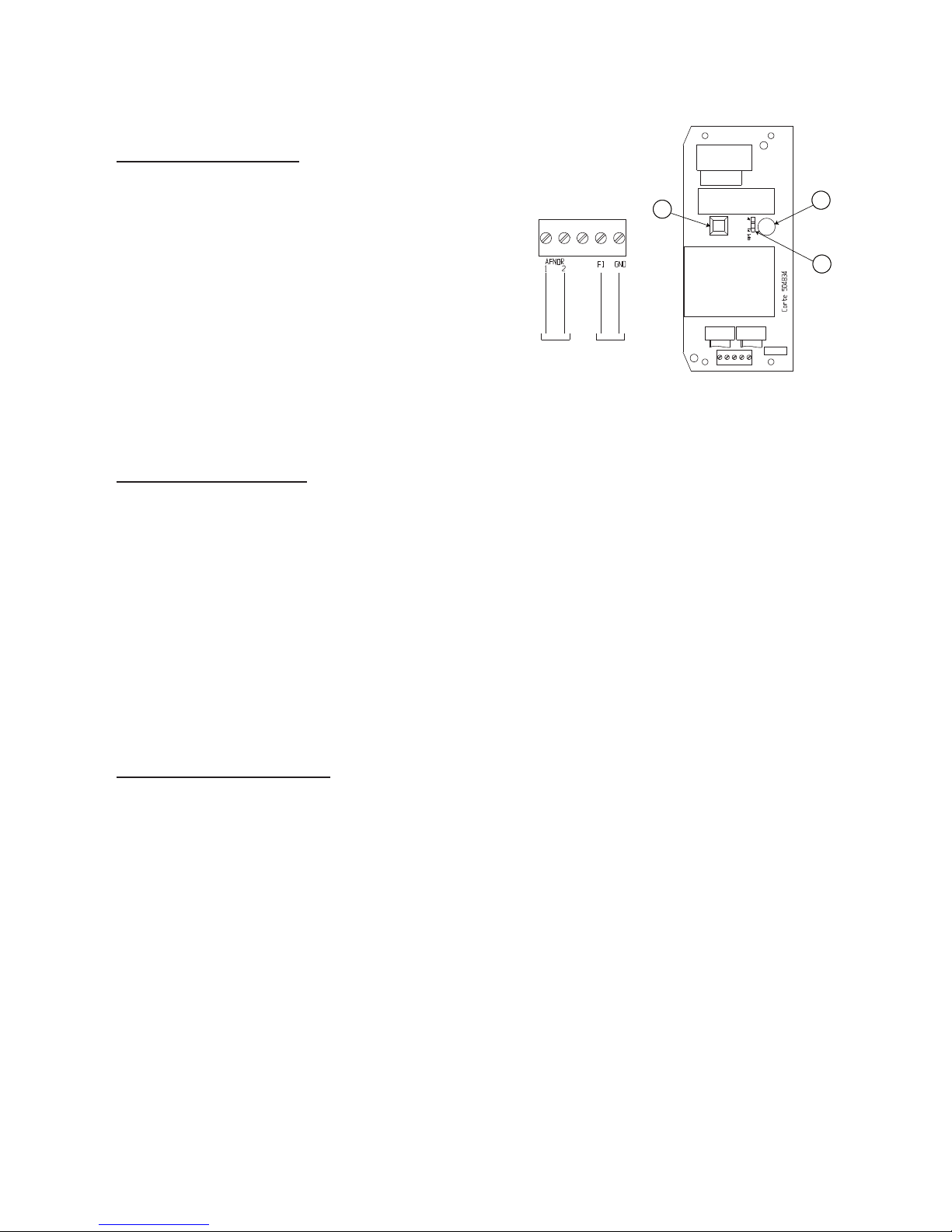

3.2.3. France Inter radio receiver clock
Antenna connection :
Connect the 2 wires of the antenna on the FI
and GND terminal.
Check that the dip switch (15) is in France-
Inter receiver position, push toward the down
of the PCB.
When switching on power supply, hands are
set at 12.00 until the correct reception of the
time signal is achieved or a manual setting
on time is done.
After 3 successive coherent France-Inter time signals are received, the clock
starts and automatically get on time with fast impulses.
Manual time setting :
The clock opened
At the rst press on button “time setting” (17) , the internal clock stats.
Every press on button “time setting” (17) advances the clock by one minute.
After this manual time setting, the clock operates in stand alone mode until
reception of the signal, or reset function by pressing button (16) or a power
supply failure.
Operating principle of France Inter receiver :
Once the clock is synchronised, it will operates with its own time basis even if
there is no more reception until there is no power failure.
Operating with battery :
Without power supply 230V the clock operates with its battery during 1 hour.
After 1 hour without time signal reception or if the battery voltage drops down,
hands are set position 12.00 until power supply recovery.
The synchronous second hand witch is powered by the main 12V 50Hz, will
stop immediately.
17
16
15

13
IV - TECHNICAL FEATURES
Power supply : 230 Volt 50 Hz ±10%
Operating temperatures : -25°C to +70°C
Protection index : IP55

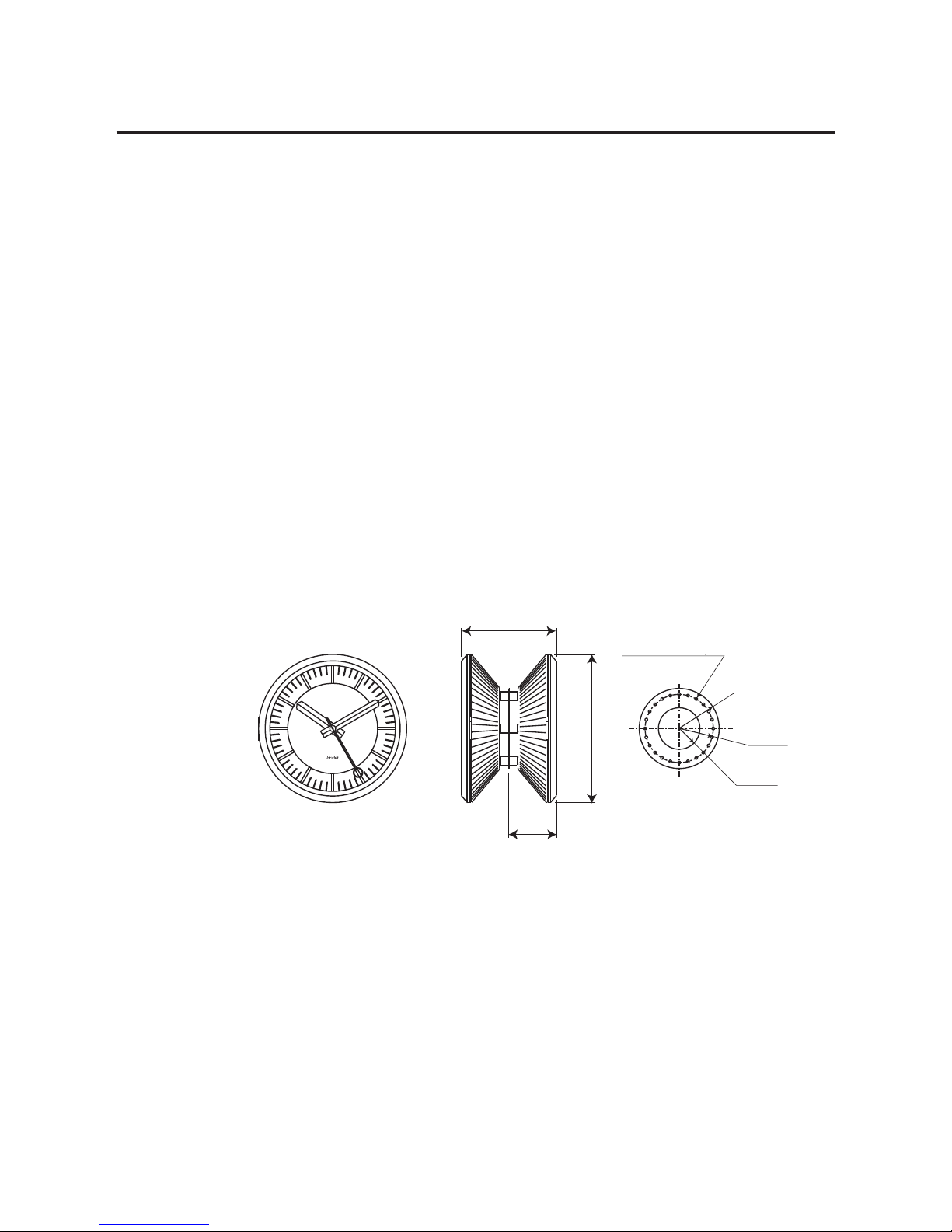

TGV 950
Readability : 40m.
Weight : 9 kg.
Consumption : 60 VA.
Sizes :
Lighting : long life néon tube, 30mA 1500V.
Spare part : neon tube : 404562
322
162
Ø 500
Ø 140
Ø 230
Ø 270
24 trous Ø 8,20
Double face
clock
Single face
clock
Disk for hanging bracket or
suspension on a chain
24 holes Ø8,20

14
TGV 970
Readability : 50m.
Weight : 16 kg
Consumption : 100 VA.
Sizes :
Lighting : long life néon tube, 50mA 1500V.
Spare part : neon tube : 404561
322
163
360
180
Ø 700
180
360
Ø 470
24 trous Ø 11
sur un Ø430
Double face
clock
Single face
clock
Disk for hanging bracket or
suspension on a chain
24 holes Ø11
on Ø430

15
France Inter radio receiver clock with synchronous second hand :
Permanent power supply : 230V; 70mA.
Schéma d’alimentation secteur : TT ou TN.
Accuracy : absolute with automatic summer/winter changeover.
The electronic of the clock is protected by 2 fuses 2A/250V.
Receiver impulses Minute 24V // HM :
Reversed polarised minutes impulses 9,6 mA.
Accuracy of the master clock.
Receiver impulses Minute 24V // with synchronous second hand :
Reversed polarised minutes impulses 9,6 mA.
Permanent power supply : 230V; 15mA.
Accuracy of the master clock.
Receiver impulses ½ minute serial HM :
Reversed polarised ½ minutes impulses 0,9V/65 mA.
Accuracy of the master clock.
Receiver impulses ½ minute serial with synchronous second hand :
Reversed polarised ½ minutes impulses 0,9V/65 mA.
Permanent power supply : 230V; 15mA.
Accuracy of the master clock.
AFNOR/IRIG-B time signal reception HM :
Permanent power supply : 230V; 15mA.
Schéma d’alimentation secteur : TT ou TN.
Accuracy of the master clock.
The electronic of the clock is protected by 2 fuses 2A/250V.
AFNOR/IRIG-B time signal reception with synchronous second hand :
Permanent power supply : 230V; 70mA
Schéma d’alimentation secteur : TT ou TN.
Accuracy of the master clock.
The electronic of the clock is protected by a fuse 0,2AT/250V.

16
V - WHAT TO DO IF...? ...CHECK.
What to do if...? … Check.
■No synchronisation after
the installation.
■Check that the type of signal send by
the master clock (min, ½ min, AFNOR/
Irig-B) is in accordance with the type
programmed in the clock.
■A receiver clock on a ½
minute network is 30s late
after the installation.
■It is impossible for a slave clock to discern
between two 1/2 minute impulses which
one is the master clock minute stroke,
the reversal of the two wires is needed to
correct the time.
■Minute or ½ minute parallel
receiver stopped.
■Lack of impulse, check the master clock
and the network.
■AFNOR / Irig-B receiver
stopped at 12h00.
■Lack of impulse since more than 1 hour,
check the master clock and the network.
■The synchronous second
hand is stopped on a
receiver clock.
■The permanent supply powering second
hand is cut-off. Check this power supply.
