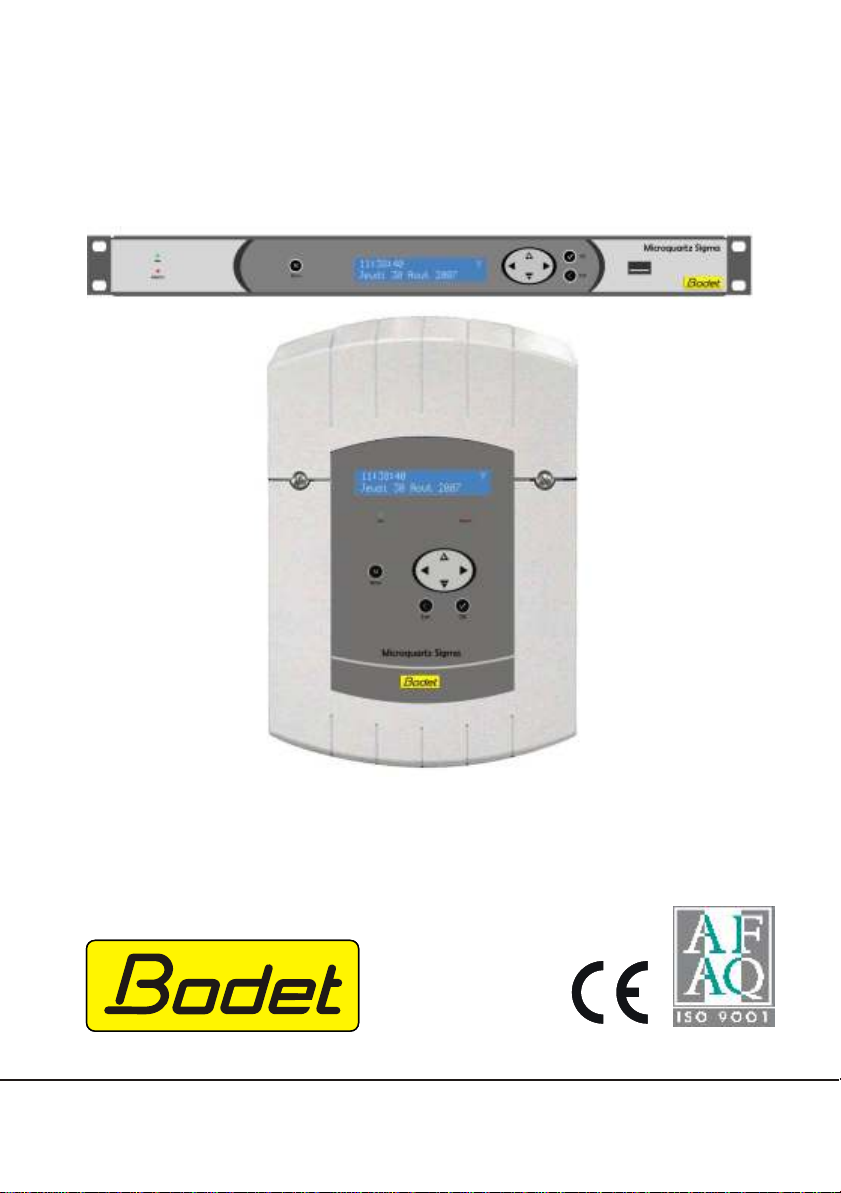

Bodet SIGMA H Instructions and recipes

SIGMA H
Installation and start-up instructions
Check the product for shipping damage on reception for any reservations to the carrier
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : [phone]
Fax : [phone]
www.bodet.com
Réf.:606528 J

Table of contents
1) General..............................................................................................3
2) Safety rules .......................................................................................4
PROTECTIONS :..................................................................................4
3) Description........................................................................................6
4) Keypad: Key functions ......................................................................7
5) Main menu programming..................................................................9
5.1 Standby state ..................................................................................9
5.2 User menu.......................................................................................9
5.3 USB loading and backup...............................................................10
5.4 Adding DHF receivers ...................................................................11
5.5 Access code..................................................................................11
5.6 Time and date ...............................................................................12
5.7 Dynamic radio reception................................................................13
5.8 Language ......................................................................................13
5.9 Version..........................................................................................13
6) Technician menu programming ......................................................14
6.1 Time synchronisation menu...........................................................15
6.2 Time output management menu....................................................18
6.3 Function setting menu...................................................................20
6.4 CPU software download menu......................................................20
6.5 Factory setting restoration menu...................................................21
7) Alarm messages .............................................................................22
8) Installation.......................................................................................24
8.1 Mechanical installation ..................................................................24
8.2 Electrical connections ...................................................................25
9) Technical characteristics.................................................................28
10 ) What to do if ...? Check that …....................................................30
11) Installation examples.....................................................................31
11.1 Set the 24V impulse output .........................................................31
11.2 Set the DHF output......................................................................31
11.3 Set a 24V TBT output..................................................................32
2

1) General
The Sigma is a master clock which can be used to control receiver clocks.
The SIGMA has functions which can be programmed from the technician
menu.
On first installation, it is essential to program the technician menu (see
page 14) before the customer menu.
It is also essential when installing the SIGMA to program the technician
functions in the order in which they appear in the menu.
This product must be installed in a residential, commercial or light industry
environment.
Bodet declines all responsibility in the event of an accident resulting from
use not in accordance with the recommendations of this manual.
CAUTION :
Any modification on the product renders the guarantee null and void.
Checking the equipment:
One SIGMA master clock.
This instruction manual.
To verify the model of the master clock,
press the key.
3
SIGMA H

2) Safety rules
nMaintenance of this equipment must be carried out by qualified
personnel.
nIf the SIGMA is connected to the 230 V mains power supply, its
installation must comply with the European standard IEC 364 (NFC
15.100 for France).
PROTECTIONS :
n110-230V version: the mains supply for this device must include a neutral
phase circuit breaker of maximum 6 A C curve, rapidly accessible
upstream from the supply.
n24V DC version: the SELV 24 V power supply for this device must include
a protection of maximum 6 A.
n36-72V DC version: the SELV 36-72 V power supply (according to NFC
15-100) for this device must include a protection of maximum 6 A.
nThe circuit breaker must be switched off during maintenance operation.
Refer to labels in the product.
nAll cables must be attached either to the wall (wall-mounted version) or to
the frame of the cabinet (Rack version) before being connected to the
various terminals strips, to prevent any pulling on these terminal strips. In
addition, the wires of each terminal strips must be attached to each other
to maintain the various isolations if an initial fault occurs.
nThe time distribution cables must not run alongside high power mains
cables (to avoid interference with communication between the SIGMA
and the clocks).
nThe SIGMA must be attached (to the wall or on its support) before being
switched on.
4

n“Rack” models must be mounted in a slide-in unit for 19” cabinets or
racks. These components will provide mechanical, electrical and fire
protection (only the front panel may remain accessible).
nIMPORTANT: before any installation, refer to the “technical
characteristics” paragraph.
n
Caution :

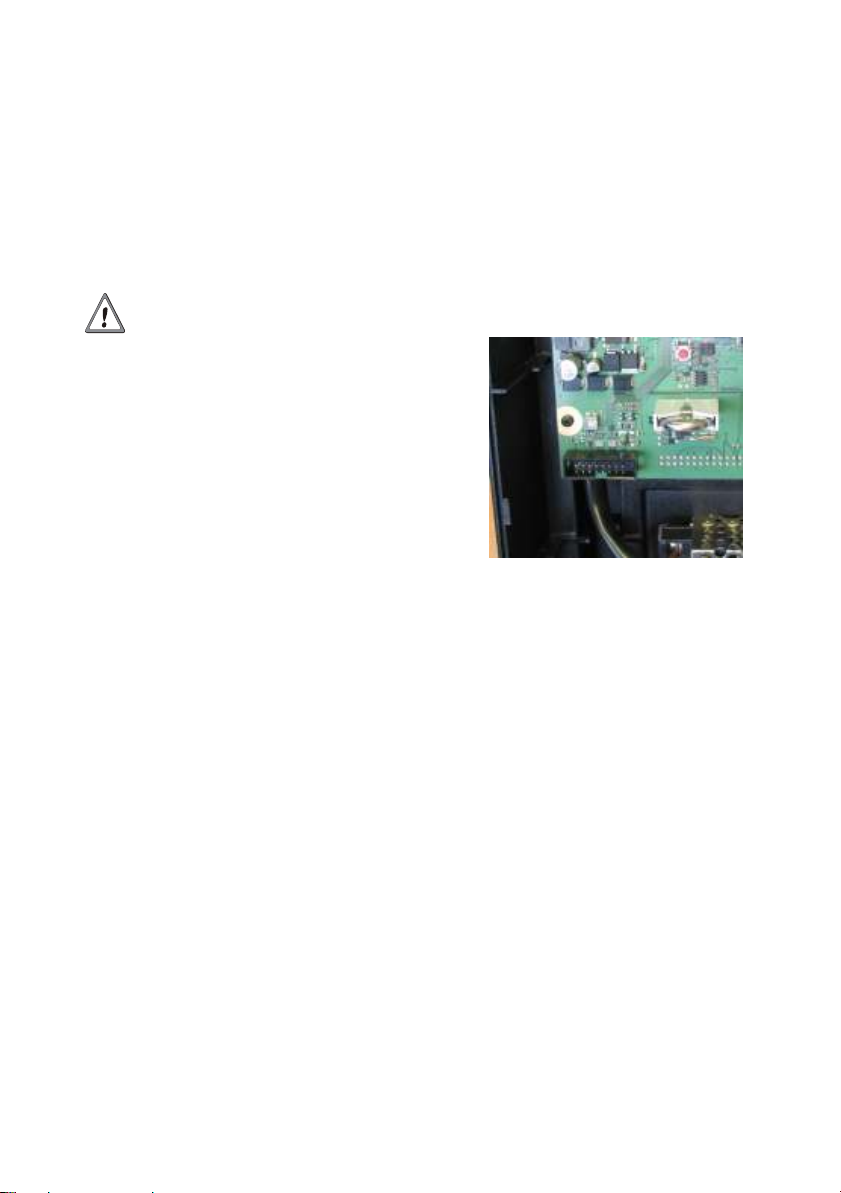

nIn case of replacement of the CR2032
battery, it is IMPERATIVE to respect the
polarity following the opposite
indications.
nThere is risk of explosion if the battery is
replaced by a battery of incorrect type.
nDispose of used batteries according to
the instructions of the manufacturer.
5
-
+

3) Description
Wall box 19" Rack
A) LCD screen
B) Keypad (see page 6)
C) Alarm indicator light (red LED)
D) Mains indicator light (green LED)
E) USB connector
6
C
E
B
DA
E
B
A
D
C

4) Keypad: Key functions
Keys Functions
Menu key.
Correction key.
Validation key.
, , , Navigation keys.
Note: exit from the menus is automatic if a key has not been pressed for
one minute in the customer menu or for 5 minutes in the technician menu.
7

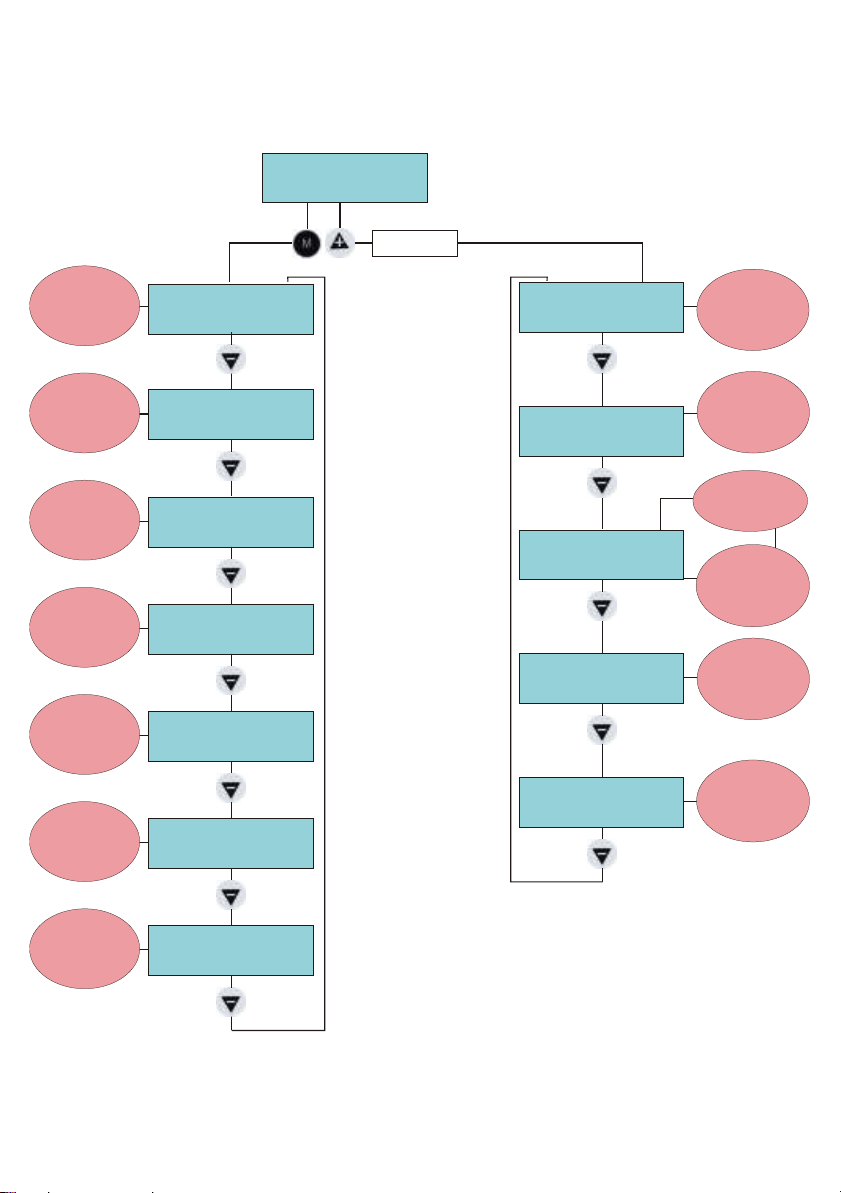

Synoptic diagram of the programming
8
15:12:49
Fri 23 MAY 2009
Time synchro ok
Time output õ
Time output ok
Function setting õ
Function setting ok
Download CPU soft õ
Download CPU soft ok
Factory setting õ
Factory setting ok
õ
USB transfer ok
Add DHF clocks õ
Add DHF clocks ok
Access code õ
Access code ok
Time and date õ
Time and date ok
Dynamic radio õ
Dynamic radio ok
Language õ
Language ok
Version õ
Version ok
õ
Choice of
the time
synchronisation
Time output
management
Choice of
Master or
slave operation
Activation
of the backlight
Update the
system software
Restore
factory setting
Put in
INIT mode
Load / save
programming
+ Access code
Access code
YES / NO
Display of
the radio
reception
Choice of
the language
Display of
the system
software version
Setting of
time, date and
time zone

5) Main menu programming
5.1 Standby state
nIn normal functioning the SIGMA
displays the time and date :
óis the radio signal indicator, which
flashes if reception is poor.
5.2 User menu
To access the user menu, press the menu key .
Enter the user access code if necessary
(see page 11).
Access the menu options using the
key and validate with .
The user menu options are :
1/ USB loading and backup,
2/ Add DHF receivers,
3/ Customer menu access code,
4/ Time and date / time changeover,
5/ View dynamic reception,
6/ Language choice,
7/ System version.
9
10:54:32 ó
Fri 23 MAY 2008
USB transfer ok
Add DHF receivers õ

5.3 USB loading and backup
The SIGMA can load or back up its programming via a USB key.
Validate the option with the key,
The following screen is displayed :
Insert the USB key and validate with the
key.
To load a Program in the Sigma :
Validate the option with the key,
The SIGMA will search for the files
available on the key (.sig extension).
Select the file to be loaded using the
and keys and validate with the key,
The loading is then carried out. When it is
completed, the unit displays :
To back up the existing Program of the Sigma :
Validate the option with the key,
The SIGMA saves the file with an
automatically allocated name in the
format: sauve1_DD_MM.sig (The number
(1, etc.) and the date are incremented automatically).
It is possible to rename this file from the PC, while keeping the same “.sig”
extension.
Once the backup is completed, the unit
displays:
10
USB transfer ok
Add DHF receivers õ
Connect USB key then
press ok exit C
Restore backup ÷
Create backup ö
Restore:Nest01.02ú
Confirm ok exit C
TRANSFER COMPLETED
REMOVE USB KEY
Create backup
Confirm ok exit C
TRANSFER COMPLETED
REMOVE USB KEY

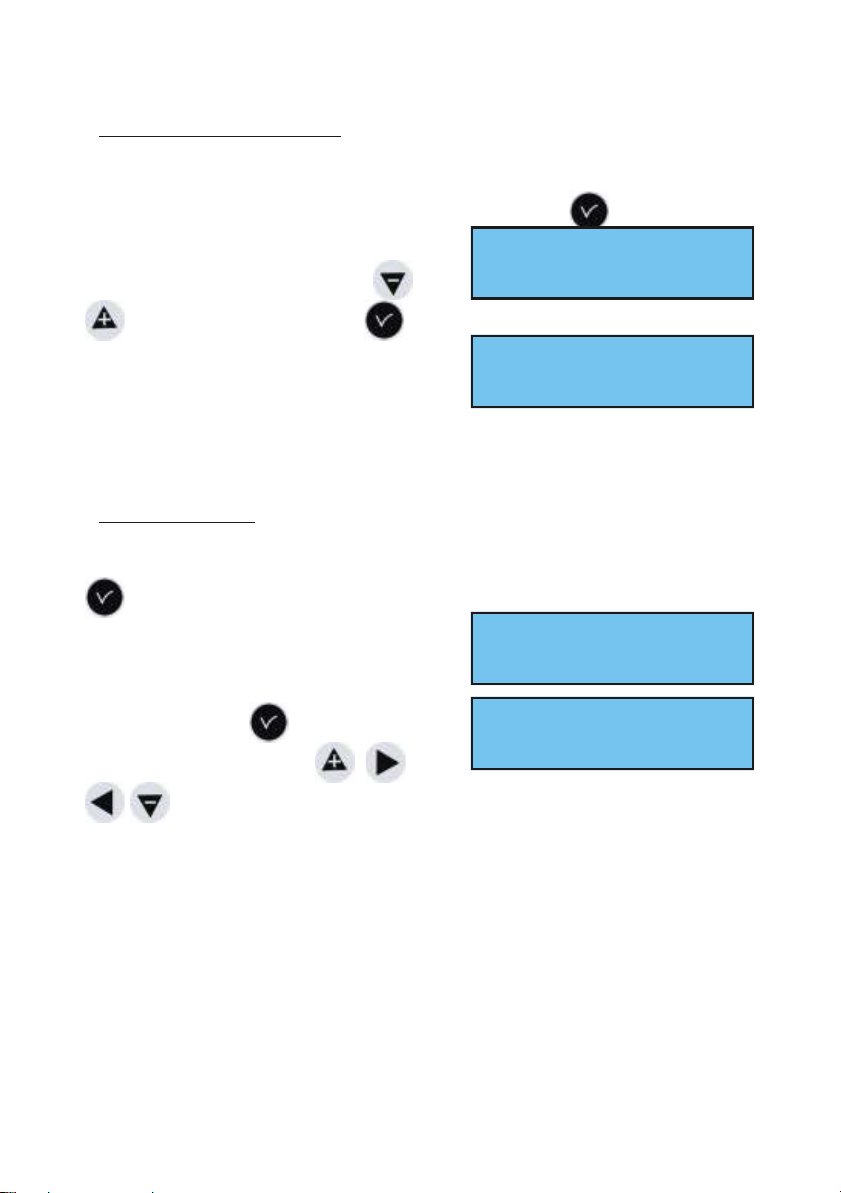

5.4 Adding DHF receivers
To put the SIGMA in “DHF initialisation” mode and enable synchronisation
of a new clock, validate the initialisation mode with the key,
The following screen is displayed :
Select “ACTIVE” mode using the and
keys and validate with the key.
The “init” display mode will appear
alternately with the normal display during
this period (4 hours).
It is possible, once the receivers DHF initialized, to stop this mode in this menu.
5.5 Access code
To enter or remove the SIGMA access code, validate the option with the
key,
The following screen is displayed :
Choose the option you require and
validate it with the key.
The access code is fixed, , ,
,.
If there are 3 attempts with the wrong access code, an alarm message
appears. The keyboard is locked for 10 minutes. It is possible to unlock it
from the technician menu.
11
Add DHF receivers ok
Access code õ
Init mode:ACTIVE ú
Add receivers ok
Access code ok
Time and date õ
Access code Yes ú
ok

5.6 Time and date
To change the time or the date of the SIGMA, validate the option with the
key,
The following screen is displayed :
You have access to the time zone
selection.
The time zone selection allows you to
automatically manage winter/summer time changeovers.
If the zone is not available in the 20
pre-programmed towns or time zones,
select “PROG” mode which is
programmed in the technician menu.
“PROG” mode allows you to configure personalised time zone differentials
and time changeovers.
By default it is in “PROG” mode.
The hour is flashing: set the hour using
the and keys and move on to
the minutes with the key.
Proceed in the same way for the date.
Validate with the key. If the time has been changed, the seconds are
reset to 0.
12
Time and date ok
Dynamic reception õ
Time zone : LONDON ú
(GMT + 0h00) ok
Time zone :PROG ú
(GMT) ok
Time 10:12:00 ú
Date 20/12/2007 ok

5.7 Dynamic radio reception
To view the dynamic reception of the SIGMA, validate the option with the
key,
If the reception is correct, the time and
date are constructed automatically.
If the SIGMA is synchronised by a GPS
antenna, the time displayed is GMT.
If the SIGMA is synchronised by a
France-Inter or DCF antenna, the radio
time is displayed.
5.8 Language
To select the language of the SIGMA,
validate the option with the key,
Select the SIGMA display language from
the different options available.
The languages available are : FRENCH,
ENGLISH, SPANISH, GERMAN, DUTCH, PORTUGUESE, NORWEGIAN,
DANISH, ITALIAN, ...
5.9 Version
To view the version of the SIGMA,
validate the option with the key,
The following screen is displayed :
13
Dynamic reception ok
Language õ
GMT : 10:12
21/12/2007 exit C
10:12
21/12/2007 exit C
Language ok
Version õ
Language:ENGLISH ú
ok
Version ok
õ
SIGMA H Version
V1.1B08 02/10/2009 ok

6) Technician menu programming
The technician menu is accessible via an access code sent to the approved
persons.
Press one of the navigation keys for a
few seconds.
A code is then requested.
The technician code is a fixed code, , , , and .
You then have access to the technician menu with the key.
The options in the technician menu are :
1/ Time synchro,
2/ Time output and DHF
management (impulses, D1 D2, Afnor, DHF) and output time
zone differential,
3/ Function assignment,
4/ CPU hardware software download (.cod extension),
5/ Restore factory configuration.
Validate the selected option with key.
To exit the technician menu, use the key.
14
Enter TECHNICIAN code
****
Time synchro ok
Time outputs õ

6.1 Time synchronisation menu
To configure the time synchronisation of the SIGMA, validate the option in
the technician menu with the key,
The following screen is displayed :
Select the time synchronisation mode
from the following options:
FI/DCF Radio,
Minute radio (mode used for countries receiving the FI/DCF radio
signal but for which the time is different from Paris/Berlin [only minute
is synchronised, date and hour must be set manually]),
EXTERNAL (mode used for synchronisation from a Sigma “Master”
which transmits a GPS signal simulation from an ASCII extension
card),
NONE: if you choose to have no synchronisation, the radio
pictogram is not displayed.
GPS,
Remark : all the synchronisation options are proposed without
checking that an antenna is connected (by default, the configuration
is FI/DCF mode).
In case of synchronisation input failure, an alarm message is sent.
This alarm is triggered after 24 hours without synchronisation.
Select the synchronisation mode with the and keys and validate
with the key.
The following screen is displayed if
“Prog” mode has been validated in the
customer menu (see “Time and date”, page 12) :
This menu can be used to program non-standard winter/summer time
changeovers.
15
Time synchro ok
Time outputs õ
Synchro:EXTERNAL ú
ok
Prog. time change:Yesú
ok

6.1.1 Programmable time changeover
This menu can be used to program the summer/winter time changeover
dates. It allows you to define the start of
the winter period and then the start of the
summer period.
To program the summer/winter time
changeovers, validate with the key.
- Set the start date of the winter period
using the and and key.
In order:
The “Rank” flashes. The Rank designates the order number of the day of
the week in the month1(1 to 5 depending on the month) (rank 5 always
indicates the last week).
The “day” flashes.
The “month” flashes.
The “time” flashes.
Validate with the key.
- Set the start date of the summer period
using the and and .
Validate with the key.
Whatever the synchronisation mode (radio France Inter or GPS), this
forces the automatic time changeover for radio FI or DCF.
Set the start date of the winter period and then the summer period using
and and keys.
Validate with the key.
16
Prog. time change:Yesú
ok
Last Sun OCT.03h ú
Winter time ch. ok
Last Sun MAR.02H ú
Summer time ch. ok
1Example of Rank calculation: the second Monday of the month or the second Thursday
of the month have rank “2”, while the last Tuesday of June has rank “5” as there are no
more than 5 weeks in a month.

6.1.2 Setting the time base
This menu can be used to set the drift of the time base. This can be useful
when the master clock has no external synchronisation.
To access this menu, you need to have
selected “None” mode in the external
synchronisation menu.
Set the drift using the and keys and validate with the key.
17
Drift:+0.0sec/day ú
Time base setting ok

6.2 Time output management menu
This menu can be used to view all the time outputs, modify their status
(Start/Stop), configure the DHF distribution in Init mode and configure the
“impulse” and “D1D2" distribution.
This menu allows you also to configure the impulse output (Impuls 01) to
provide TBT 24VDC (0,5A) power supply.
To go to the SIGMA time output management menu, validate the option in
the technician menu with the key,
The following screen is displayed :
You can view the different options and
change the values using the and
keys.
You can go through the different outputs
by validating using the key.
The 3 outputs (Impulse 01, Afnor 02 and DHF03) are not programmable
with a time zone differential.
The placing of a DHF output in “INIT”
status is active for 4 hours before return
to START mode (The init mode display is
alternating with the normal display during this period).
This menu can be used to set the power of the DHF output with a choice of
25mW / 125mW (by default) / 500mW and assign the system address from
1 to 4 (1 by default).
18
Time outputs ok
Function setting õ
D1D2 minute:06s ú
START 00:00 ok
Afnor 02: START ú
ok
DHF 03 : INIT ú
125mW channel:1 ok

Buzzer mode allows you to activate a buzzer on the secondary transmitters
in order to identify them.
For an “impulse” or “D1D2" output, the
key can be used to go to the
configuration menu.
Remark: the “D1D2" menu appears only if the relays have been assigned
to the D1D2 distribution (see “Relay setting menu”, page 17).
Use the key to move on to the next parameter:
Choice of impulse length.
Minute 24V standard impulse length (factory configuration) of 1.2
seconds variable from 0.5 to 5 seconds,
Second 24V standard impulse length (factory configuration) of 0.3
seconds variable from 0.1 to 0.9 seconds,
D1D2 standard impulse length (factory configuration) of 6 seconds,
variable from 1 to 10 seconds.
Use the key to move on to the next
parameter:
Choice of status (“Start”/“Stop”).
Circuit stopping must be confirmed.
Use the key to return to the previous screen.
19
Caution STOP mode ok
on D1D2 output
D1D2 minute:06s ú
START 00:00 ok

6.3 Function setting menu
This menu can be used to define whether the master clock functions as a
master or as a secondary clock (slave).
It can also be used to activate the backlight of the display screen.
To go to the SIGMA function setting menu, validate the option in the
technician menu with the key,
The following screen is displayed :
The master clock is configured in master
mode by default.
If you configure it in “slave” mode to
assign it as a secondary master clock,
then the external input (see below) displays SLAVE and cannot be
modified.
The following screen can be used to
activate or deactivate the idle screen
backlight (by default, the backlight is lit,
therefore value set to No).
6.4 CPU software download menu
This menu allows you to update the system software of the master clock.
To go to this SIGMA menu, validate the option in the technician menu with
the key,
The code file (*.cod) must be on the root
of a USB key and be the only “.cod” file.
20
Function setting ok
Update syst. soft õ
Function : MAIN ú
ok
Function : BACK-UP ú
ok
Backlight off : NO ú
ok
Update syst. soft ok
Factory config. õ
