Body Solid Powerline PSC-43X User manual

Owner’s Manual
        
PSC-43X
SEATED CALF RAISE
WWW.BODYSOLID.COM

DO NOT REMOVE WARNING LABELS FROM
MANUAL OR MACHINE
2
WARNING
Safety and Maintenance
of Cables
IMPORTANT: Cables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection should
be performed daily.
Inspectall cables, the
nylon coating on all
cables, and the area
near the fitting at each
end of each cable.
Replace any damaged or
worn cable immediately.
Do not allow the machine
to be used until damaged
or worn cables are
replaced. Using or allowing
a machine to be used
with a suspect cable can
result in serious injury. See
Owner’s Manual for more
information.
                           
Call 1-800-556-3113
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THISTYPE OF EQUIPMENT.
TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins
are in place and fully tightened. Also, before use,check cables for sign of wear. Replace all
worn parts immediately. Never use machine if any parts are damaged or missing.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
Keep clear of the cables and all moving parts when machine is in use.
Always make sure all Snap Links are closed when doing cable/pulley/strap exercises.
Exercise with care. Perform your exercises at a smooth moderate pace; never perform jerky
or uncoordinated movements that may cause injury.
It is recommended that you workout with a training partner.
Do not allow children or minors to play on or around this equipment.
If unsure of proper use of equipment, call your local Body-Solid distributor or the
Body-Solid customer service center at 1-800-556-3113.
WARNING: Consult your physician before starting your exercise program. For your own
safety, do not begin any exercise program without proper instruction.

PSC-43X
TABLE OF CONTENTS
SAFETY INSTRUCTIONS.......................
PREPARATION.......................................
HARDWARE LIST...................................
HARDWARE ILLUSTRATION.................
PART LIST / ILLUSTRATION..................
ASSEMBLY INSTRUCTIONS.................
EXPLODED VIEW...................................
CONTACT PAGE.....................................
•
•
•
•
•
•
•
•
3
PAGE 4
PAGE 5
PAGE 6
PAGE 7
PAGE 10
PAGE 12
PAGE 18
PAGE 20

PSC-43X
SAFETY INSTRUCTIONS
4
When using exercise equipment,
you should always take basic
precautions including the
following:
Read all instructions before using the PSC-43X.
These instructions are written to ensure your safety
and to protect the unit.
          !  " # ! $   " % ! &  % # $     ' 
 ! ( ' )   *
Do not allow children on or near the equipment.
Use the equipment only for its intended purpose
as described in this guide. Do not use accessory
attachments that are not recommended by the
manufacturer. Such attachments might cause serious
injuries.
Wear proper excercise clothing and shoes for your
workout, no loose clothing.
Keep hands, limbs, loose clothing, and long hair well
out of the way of all moving parts
Use care when getting on or off the unit.
Do no overexert yourself or work to exhaustion.
If you feel any pain or abnormal symptoms, stop your
workout immediately and consult your physician.
Never operate unit when it has been dropped or
damaged. Return the equipment to a service center
for examination and repair.
Never drop or insert objects into any opening in the
equipment.
Always check the unit and its cables before each use.
Make sure that all fasteners and cables are secure
and in good working condition.
Do not use the equipment outdoors or near water.
•
+
•
•
•
•
•
•
•
•
•
•
•
Personal Safety During Assembly
Before beginning assembly, please take the time to
read the instructions thoroughly.
Read each step in the assembly instructions and
follow the steps in sequence. Do not skip ahead. If
you skip ahead, you may learn later that you have
to disassemble components and that you may have
damaged the equipment
Assemble and operate the PSC-43X on a solid, level
surface. Locate the unit a few feet from the walls or
furniture to provide easy access.
•
•
•
The PSC-43X is designed for your enjoyment. By
following these precautions and using common sense,
you will have many safe and pleasurable hours of
healthful exercise with your Powerline Seated Calf
Raise Machine.
After assembly, you should check all functions to
ensure correct operation. If you experience problems,
fi r st recheck the assembly instructions to locate any
possible errors made during assembly. If you are un-
able to correct the problem, call the dealer from whom
you purchased the machine or call 1-800-556-3113 for
the dealer nearest you.
Obtaining Service
Please use this Owner’s Manual to make sure that
all parts have been included in your shipment. When
ordering parts, you must use the part number and
description from this Owner’s Manual. Use only
Powerline by Body Solid replacement parts when
servicing this machine. Failure to do so will void your
warranty and could result in personal injury.
For information about product operation or
service, check out the official Powerline website
at www.bodysolid.com or contact an authorized
Powerline dealer or a Powerline factory-authorized
service company or contact Body-Solid customer
service at one of the following:
Toll Free: 1-800-556-3113
Phone: [phone]
Fax: [phone]
Email: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for
furture reference. Part numbers
are required when ordering parts.

PSC-43X
PREPARATION
Required tools
The basic tools that you must obtain before assembling
the PSC-43X include but are not limit to:
•Standard Wrench Set
•Metric Wrench Set
•Adjustable Wrench
•Standard / Metric Allen Key Set
Installation Requirements
Follow these installation requirements when assembling
the PSC-43X:
Set up the PSC-43X on a solid, flat surface. A smooth,
fl a t surface under the machine helps keep it level.
Provide ample space around the machine. Open space
around the machine allows for easier access.
For aesthetic purposes, insert all bolts in the same
direction unless specified (in text or illustrations) to do
otherwise.
Leave room for adjustments. Tighten fasteners such as
bolts, nuts, and screws so the unit is stable, but leave
room for adjustments. Do not fully tighten fasteners until
instructed in the assembly steps to do so.
Fill out and mail the warranty card.
Ordering Replacement Parts
If you need to order replacement parts please be
prepared to provide the following information
when contacting us so that we can assist you better.
1.Model Number
2.Place of Purchase
3.Serial Number (S/N)
4.Part # and Description
Assembly Tips
Read all “Notes” on each page before beginning each step.
While you may be able to assemble the PSC-43X using the
illustrations only, important safety notes and other tips may be
included in the text.
Some pieces may have extra holes that you will not use. Use
only those holes indicated in the instructions and illustrations.
NOTE: With so many assembled parts, proper
alignment and adjustment is critical. While
tightening the nuts and bolts, be sure to leave
room for adjustments.
NOTE: The bottles that are marked “Poison” is your
touch up paint. Keep away from children.
, - . / 0 1 2
: Obtain assistance! If you feel like you can’t
assemble the PSC-43X by yourself then do
not attempt to do so as this could result in
injury. Review the Installation Requirements
before proceeding with the following steps.
5
YOUR S/N # CAN
BE FOUND HERE

PSC-43X
HARDWARE LIST
QUANTITYDESCRIPTIONSIZEPART #
6

PSC-43X
HARDWARE ILLUSTRATION
7
,7,¨w¿®z®>P°¸>®¨zÅ^V
Part #3 M10X70mm hex head bolt Qty. 6
Part #2 M12X80mm hex head bolt Qty. 2
Part #1 1/2”X 3 1/2” hex head bolt Qty. 1
Part #4 5/16”X2 3/4” hex head bolt Qty. 2
Part #5 1/2” nylon lock nut Qty. 1

8

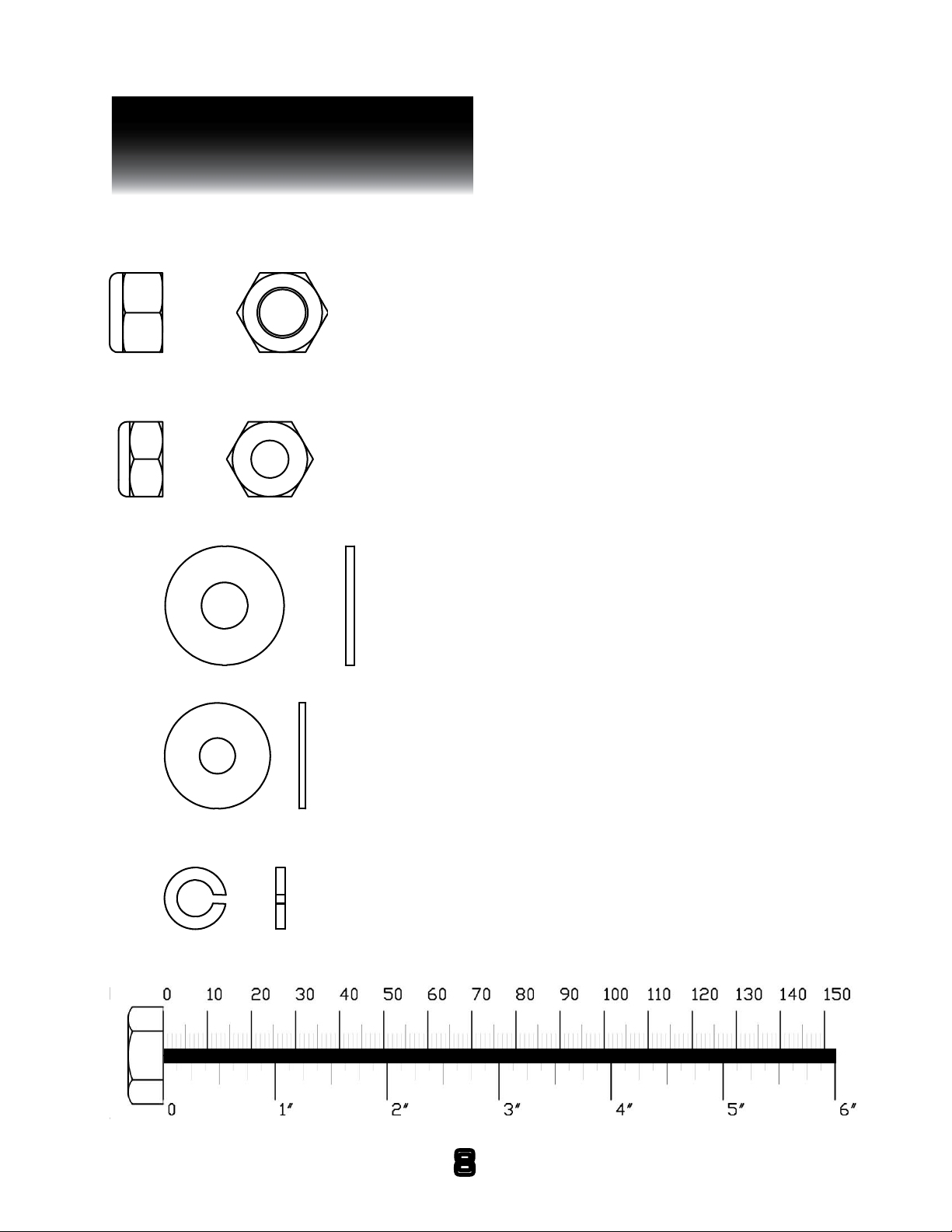

PSC-43X
HARDWARE LIST CONT.
,7,¨w¿®z®>P°¸>®¨zÅ^V
Part #7 M10 nylon lock nut Qty. 6
Part #8 M10 (I.D.) washer Qty. 4
Part #9 5/16” (I.D.) washer Qty. 2
Part #6 M12 nylon lock nut Qty. 2
Part #10 5/16” spring washer Qty. 2

PSC-43X
HARDWARE ILLUSTRATION
9
Part #13 13/4”X1 3/4” end cap Qty. 2
Part #12 2”X2” end cap Qty. 4
Part #11 2”X2” foot cap Qty. 4
Part #14 48mm dia. round end cap Qty. 2
Part #15 1”dia. round end cap Qty. 4
Part #18 rubber bar cushion Qty. 1
Part #17 1”dia.X5” rubber grip Qty. 1
Part #16 50X45mm nylon bushing Qty. 1
Part #19 quick release ring pin Qty. 1
Part #20 95X140mm no-slip tape Qty. 2
Part #21 31/2” dia.X8” foam roller Qty. 2

PSC-43X
PART LIST
10
Part A
support frame
[1pcs]
Part B
mainframe
[1pcs]
Part C
weight holder
[1pcs]
Part D
ring pin frame
[1pcs]
Part E
roller adjuster
[1pcs]
Part F
foot frame
[1pcs]

PSC-43X
PART LIST CONT.
11
Part G
seat frame
[1pcs]
Part H
base frame
[1pcs]
Part I
weight rod
[1pcs]
Part J
seat pad
[1pcs]
Part K
roller rod
[1pcs]
Note: weight rod (I) is 500mm long and roller rod (K) is 445mm long

PSC-43X
STEP 1
BE CAREFUL TO ASSEMBLE ALL COMPONENTS
IN THE SEQUENCE THAT THEY ARE PRESENTED.
NOTE:
finger tighten all hardware in this step. DO NOT wrench tighten
until the last step. some components may be pre-assembled.
nylon lock nuts will not fully screw onto bolts, must wrench tighten.
1A. attach base frame (H) to mainframe (B) using:
2 - (#3) M10X70mm hex head bolt
2- (#8) M10 washer
2- (#7) M10 nylon lock nut
1B. attach seat frame (G) to mainframe (B) using:
2 - (#3) M10X70mm hex head bolt
2- (#8) M10 washer
2- (#7) M10 nylon lock nut
1C. attach foot frame (F) to mainframe (B) using:
2 - (#3) M10X70mm hex head bolt
2- (#7) M10 nylon lock nut
1D. insert foot caps onto ends of base frame (H) and
seat frame (G) using:
4 - (#11) 2”X2” foot cap
1E. insert end caps into ends of foot frame (F) using:
2 - (#14) 48mm dia. round end cap
1F. insert no-slip tape on top surface of foot frame (F)
using:
2 - (#20) 95X140mm no-slip tape
12

PSC-43X
STEP 1
13
Above shows STEP 1
assembled and completed

PSC-43X
STEP 2
BE CAREFUL TO ASSEMBLE ALL COMPONENTS
IN THE SEQUENCE THAT THEY ARE PRESENTED.
NOTE:
finger tighten all hardware in this step. DO NOT wrench tighten
until the last step. some components may be pre-assembled.
nylon lock nuts will not fully screw onto bolts, must wrench tighten.
2A. insert end cap, attach rubber bar cushion, and slide
onrubber grip to weight holder (C) using:
1 - (#12) 2”X2” end cap
1- (#18) rubber bar cushion
1- (#17) 1” dia.X5” rubber grip
2B. attach weight holder (C) to mainframe (B) using:
1 - (#2) M12X80mm hex head bolt
1- (#6) M12 nylon lock nut
2C. attach support frame (A) to seat frame (G) using:
1 - (#1) 1/2”X 3 1/2” hex head bolt
1- (#5) 1/2” nylon lock nut
2D. attach seat pad (J) to support frame (A) using:
2 - (#4) 5/16”X 2 3/4” hex head bolt
2- (#10) 5/16” spring washer
2- (#9) 5/16” washer
2E. insert end caps into both ends of support frame (A)
using:
2 - (#12) 2”X2” end cap
2F. insert weight rod (I) into opening at front of support
frame (A), secure by tightening M10X25mm bolt and nut
and insert end caps into ends of weight rod using:
2 - (#15) 1” dia. round end cap.
14

15
Above shows STEP 2
assembled and completed
PSC-43X
STEP 2
M10 nut
←
M10X25mm bolt
←

PSC-43X
STEP 3
BE CAREFUL TO ASSEMBLE ALL COMPONENTS
IN THE SEQUENCE THAT THEY ARE PRESENTED.
NOTE:
finger tighten all hardware in this step. DO NOT wrench tighten
until the last step. some components may be pre-assembled.
nylon lock nuts will not fully screw onto bolts, must wrench tighten.
3A. insert end cap into bottom opening and slide nylon
bushing onto top opening of ring pin frame (D) using:
1 - (#12) 2”X2” end cap
1- (#16) 50X45mm nylon bushing
3B. attach ring pin frame (D) to support frame (A) using:
1 - (#2) M12X80mm hex head bolt
1- (#6) M12 nylon lock nut
3C. insert end caps into both ends of roller adjuster (E)
using:
2 - (#13) 1 3/4”X1 3/4” end cap
3D. slide roller adjuster (E) into ring pin frame (D) and
secure using:
1 - (#19) quick release ring pin
3E. slide roller rod (K) into opening of ring pin frame (D)
and insert a foam roller and round end cap onto each
side of roller rod (K) using:
2 - (#21) 3 1/2” dia.X8” foam roller
2- (#15) 1” dia. round end cap
16

PSC-43X
STEP 3
Above shows STEP 3
assembled and completed
17

18
PSC-43X
EXPLODED VIEW
M10 nut
←
M10X25mm bolt
←

PSC-43X
NOTES
19

PSC-43X
S/N # - - - -
please write your serial number in the boxes below
c
Copyright 2011. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
Body-Solid
Built for Life
®
www.bodysolid.com
1900 S. Des Plaines Ave.
Forest Park, IL 60130
Phone:[phone]
Fax:[phone]
Hours: M-F 8:30 - 5:00 CST
20
