BODYMAX MXT40-M1 User manual

MXT40-M1 APEX TRAINER
Assembly and operating instructions
Item number CVET2703
2021.05
36.5 kg
C
B
A
A 54.5 cm
B 98 cm
C 146 cm
m
a
x
.
1
2
0
k
g
~ 60 min.

3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand BodyMax, the brand that
makes athlete‘s hearts beat faster. BodyMax oers a wide range of home tness equipm nt is the
optimal equipment for all those who want to train at home independent of goals and tness level.
For further information please visit www.powerhouse-tness.co.uk or www.bodymax-tness.com.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst use. These
instructions are intended to ensure speedy assembly and explain safe usage. Make
sure that all people exercising with the equipment (in particular children
and persons with limited physical, sensory, mental or motor capabilities) are informed about these
instructions and its content in advance. In case of doubt, a responsible person must supervise the
use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as
possible, potential safety hazards which could cause injury have been eliminated. Make sure to
follow the instructions carefully and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment
when it is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for semiprofessional (e.
g., hospitals, clubs, hotels, schools, etc.) and commercial or professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

4MXT40-M1 APEX TRAINER
CONTENTS
1IMPORTANT SAFETY NOTICE 5
2GENERAL INFORMATION 6
2.1 Technical data 6
2.2 Personal safety 7
2.3 Set-up place 8
3ASSEMBLY INSTRUCTION 9
3.1 General instructions 9
3.2 Scope of Delivery 10
3.3 Assembly 12
4OPERATING INSTRUCTIONS 18
4.1 Console Display 18
4.2 Functions Button 18
5STORAGE AND TRANSPORT 19
5.1 General Instructions 19
5.2 Folding Mechanism 19
6TROUBLESHOOTING, CARE AND MAINTENANCE 20
6.1 General Instructions 20
6.2 Faults and Fault Diagnosis 20
6.3 Maintenance and Inspection Calendar 20
7DISPOSAL 21
8RECOMMENDED ACCESSORIES 21
9ORDERING SPARE PARTS 22
9.1 Serial Number and Model Name 22
9.2 Parts list 23
9.3 Exploded drawing 24
10 WARRANTY 25
11 CONTACT 27

5
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as
possible, potential safety hazards which could cause injury have been eliminated. Make sure to
carefully follow the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight or
minor injuries!
WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death or
serious injuries!
NOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.
1IMPORTANT SAFETY NOTICE

6MXT40-M1 APEX TRAINER
2.1 Technical data
LCD Display of
+Speed in km/h
+Rotations per minute
+Training time in min
+Training distance
+Calorie consumption in kcal
+Heart rate (when using the hand pulse sensors)
Resistance system: manual magnetic brake system
Resistanc leveel: 8
Maximum stride length: 25 cm
Stride height: 18 cm
Stride width: 27 cm
Flywheel mass: 7 kg
Weight and Dimensions:
Article weight (gross, incl. packaging) approx.: 40 kg
Article weight (net, without packaging) approx.: 36 kg
Packaging dimensions (L x W x H) approx.: 93.5 cm x 33 cm x 77.5 cm
Set up dimensions (L x W x H) approx.: 98 cm x 54.5 cm x 146 cm
Maximum user weight: 120 kg
2GENERAL INFORMATION

7
2.2 Personal safety
DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.
2GENERAL INFORMATION

8MXT40-M1 APEX TRAINER
2GENERAL INFORMATION
2.3 Set-up place
WARNING
+ Do not place the equipment in main corridors or escape routes.
CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms (ambient
temperatures between 10°C and 35°C). The equipment should not be used outdoors or in
rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

9
3ASSEMBLY
3.1 General instructions
DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
NOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

10 MXT40-M1 APEX TRAINER
NO. 1 / 9L / 9R / 39
Main Fame × 1set
NO. 41
Monitor × 1pc
NO. 31
Kettle Shelf × 1pc
NO. 73
Pedal Subplate × 1set
User Manual × 1pc
No. 10L / 10R
Pedal Tube (L/R) × 1pc
NO. 37
Handlebar × 1pc
NO. 70L / 70R
Down Decorative Cover × 1set
NO. 2
Front Stabilizer × 1pc
NO. 3
Front Stabilizer × 1pc
3ASSEMBLY INSTRUCTION
3.2 Scope of Delivery

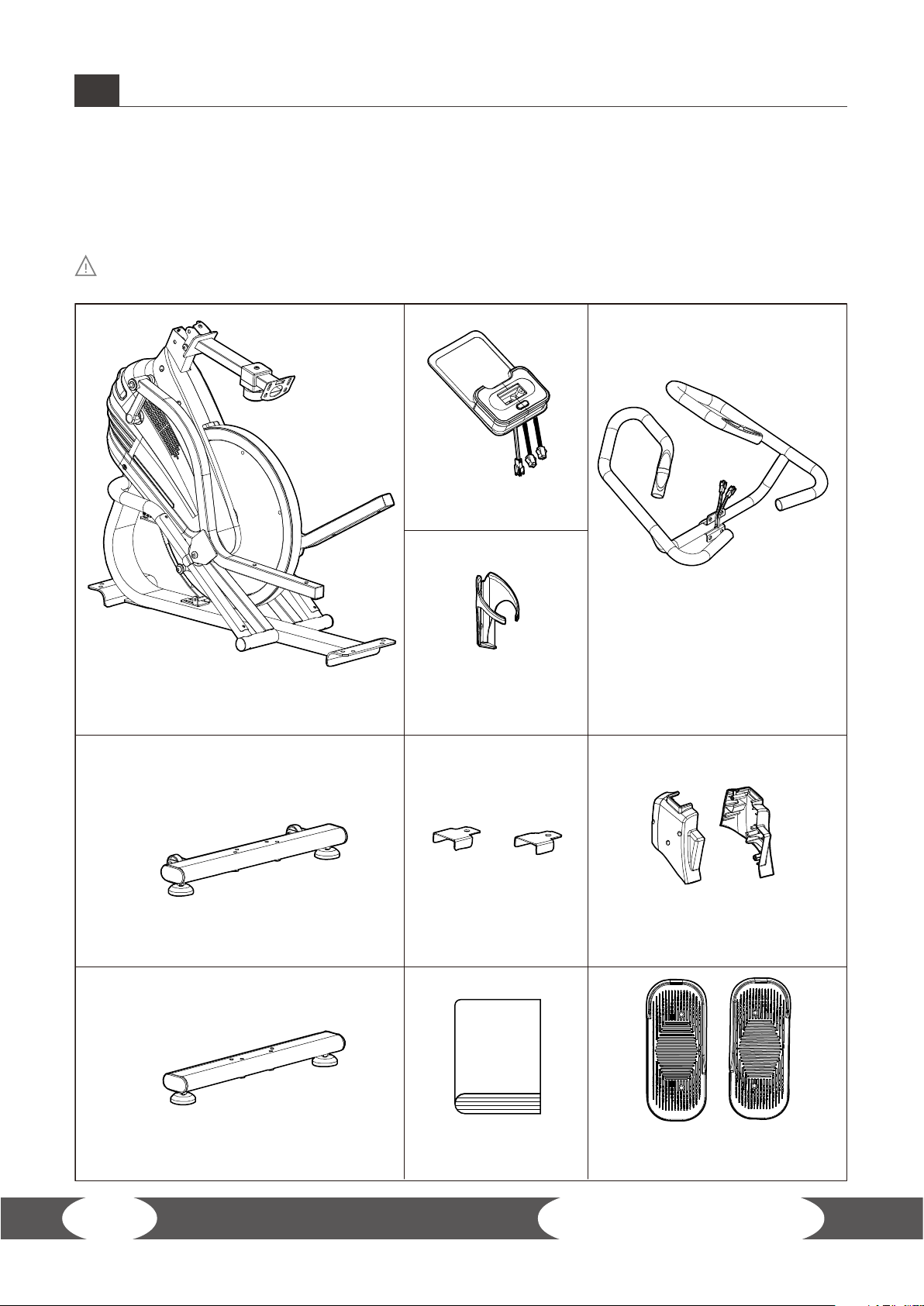

The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

11
NO.4
Screw (M8×55) × 8pcs
NO.6
Flat Washer (D8) × 8pcs
Multi Hex Tool with Screwdriver (S13/14/15) × 1pc Wrench × 1pc
NO.25 Screw (M8×48) × 1pc
NO.26 Screw (M8×20) × 1pc
NO.12 Nylon Nut (M8) × 1pc
NO.6 Flat Washer (D8) × 1pc
NO.5 Spring Washer (D8) × 1pc
NO.5
Spring Washer (D8) × 8pcs
Step 1
Step 3
Step 4
Step 2
NO.75
Screw (ST4.2x20) × 4pcs
NO.11
Bolt (B8×50) × 4pcs
NO.6
Washer (D8) × 4pcs
NO.12
Nylon Nut (M8) × 4pcs
NO.26
Screw (M8×20) × 4pcs
NO.5
Spring Washer (D8) × 4pcs
NO.6
Flat Washer (D8) × 4pcs
3ASSEMBLY INSTRUCTION

12 MXT40-M1 APEX TRAINER
4
3
1
5
4
5
6
6
2
NO.4 Screw (M8×55) × 8pcs
NO.6 Flat Washer (D8) × 8pcs
Wrench × 1pc
NO.5 Spring Washer (D8) × 8pcs
3ASSEMBLY INSTRUCTION
3.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the
assembly in the order given.
NOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

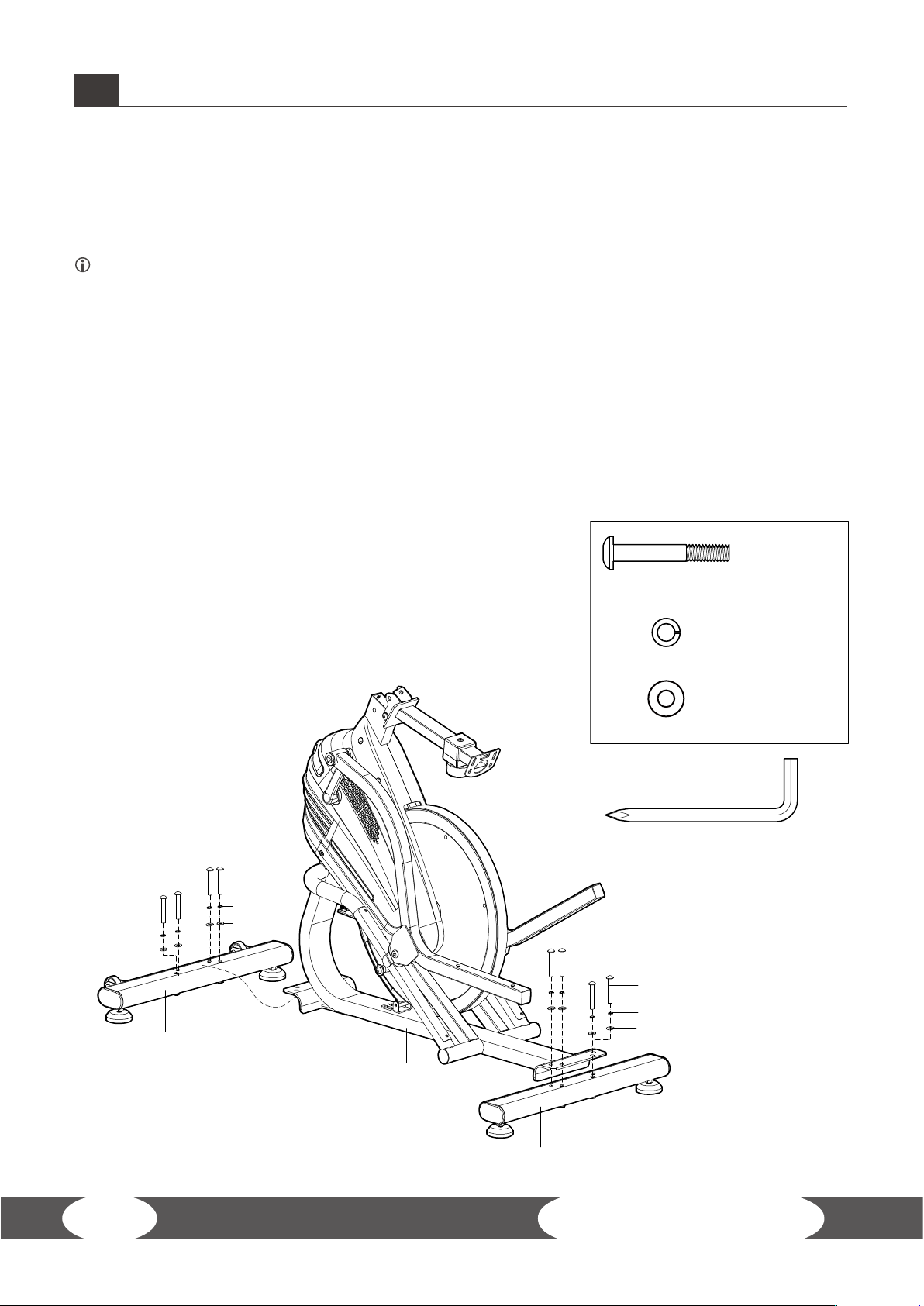

Step 1: Assembly of the Front and Rear Stabilizers
1. Mount the front stabilizer (2) to the main frame (1) with four screws (4), four spring washers (5)
and four at washers (6).
2. Mount the rear stabilizer (3) to the main frame (1) with four screws (4), four spring washers (5) and
four at washers (6).

13
6
12
6
12
73
73
11
11
10R
9L
9R
10L
NO. 73 Pedal Subplate ×1set
Multi Hex Tool with Screwdriver
(S13/14/15) × 1pc
NO.11 Bolt (B8×50) × 4pcs
NO.6 Washer (D8) ×4pcs
NO.12 Nylon Nut (M8) ×4pcs
3ASSEMBLY INSTRUCTION

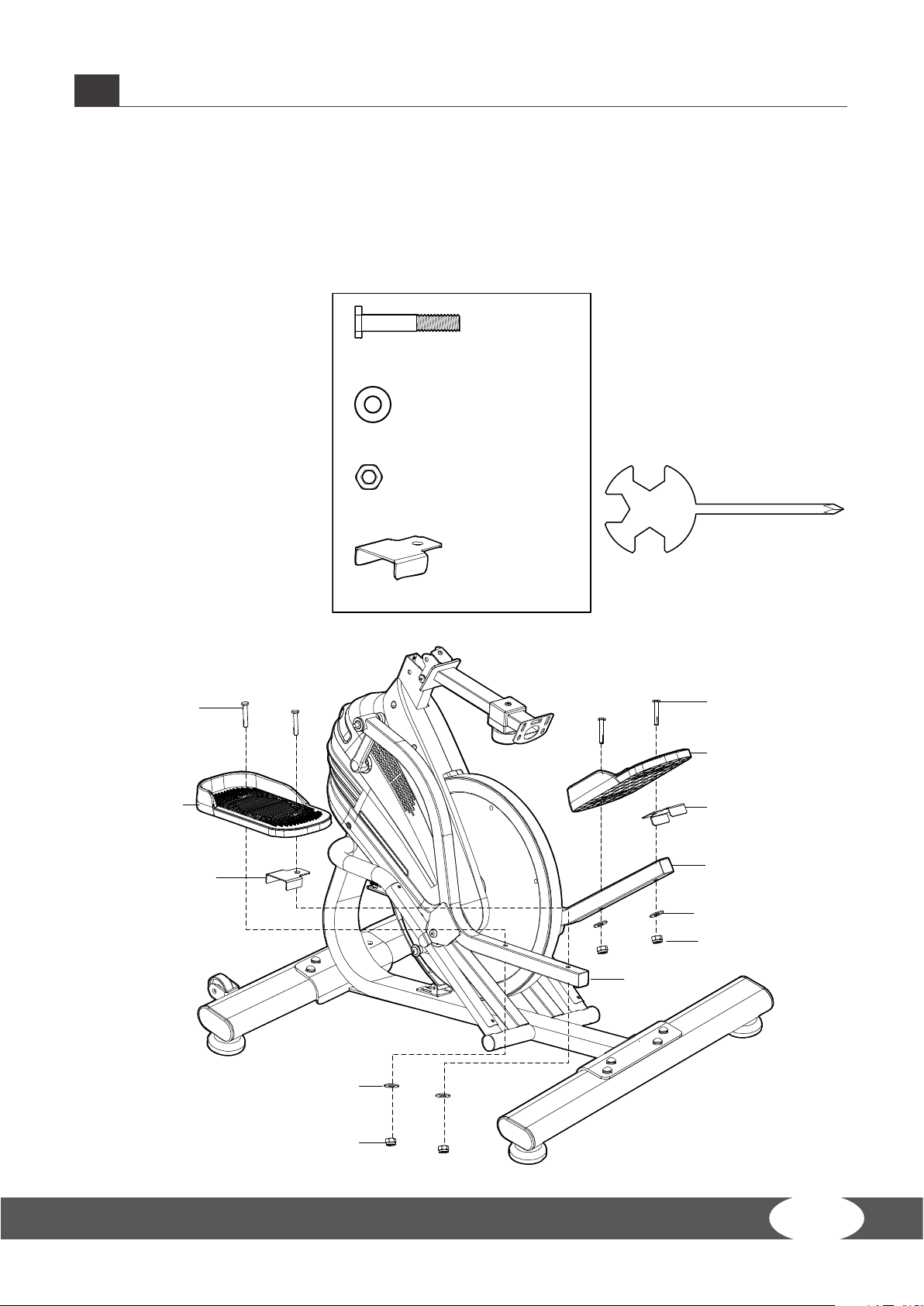

Step 2: Assembly of the Pedals
1. Place one pedal subplate (73) on each of the pedal tubes (9R & 9L).
2. Mount the pedals (10R & 10L) to their respective pedal tube (9R & 9L) with two screws (11), two
washers (6) and two nylon nuts (12) on each side.

14 MXT40-M1 APEX TRAINER
1
39
25
26
5
6
12
75
70L
70R
75
75
72
72
75
Multi Hex Tool with Screwdriver
(S13/14/15) × 1pc
Wrench × 1pc
NO.26 Screw (M8×20) × 1pc
NO.12 Nylon Nut (M8) ×1pc
NO.25 Screw (M8×48) × 1pc
NO.72 Screw (ST4.2×20) × 2pcs
NO.75 Screw (ST4.2×20) × 4pcs
NO.5 Spring Washer (D8) × 1pc
NO.6 Flat Washer (D8) × 1pc
3ASSEMBLY INSTRUCTION
Step 3: Assembly of the Mid Upright and the Decorative Covers
1. Mount the mid upright (39) to the main frame (1) with one screw (25), one nylon nut (12), one
screw (26), one curved washer (6) and one spring washer (5).
2. Mount the decorative covers (70R & 70L) to the main frame (1) with two screws (75) and one
screw (72) on each side.

15
37
39
26 56
NO.26 Screw (M8×20) × 4pcs
NO.6 Flat Washer (D8) × 4pcs
Wrench × 1pc
NO.5 Spring Washer (D8) × 4pcs
3ASSEMBLY INSTRUCTION
Step 4: Assembly of the Mid Handlebar
Mount the mid handlebar (37) to the mid upright (39) with four screws (26), four spring washers (5)
and four curved washers (6).

16 MXT40-M1 APEX TRAINER
41
80
33
42
39
41
41
80 33
NO.32 Screw (M5x10xø10) × 4pcs
Multi Hex Tool with Screwdriver
(S13/14/15) × 1pc

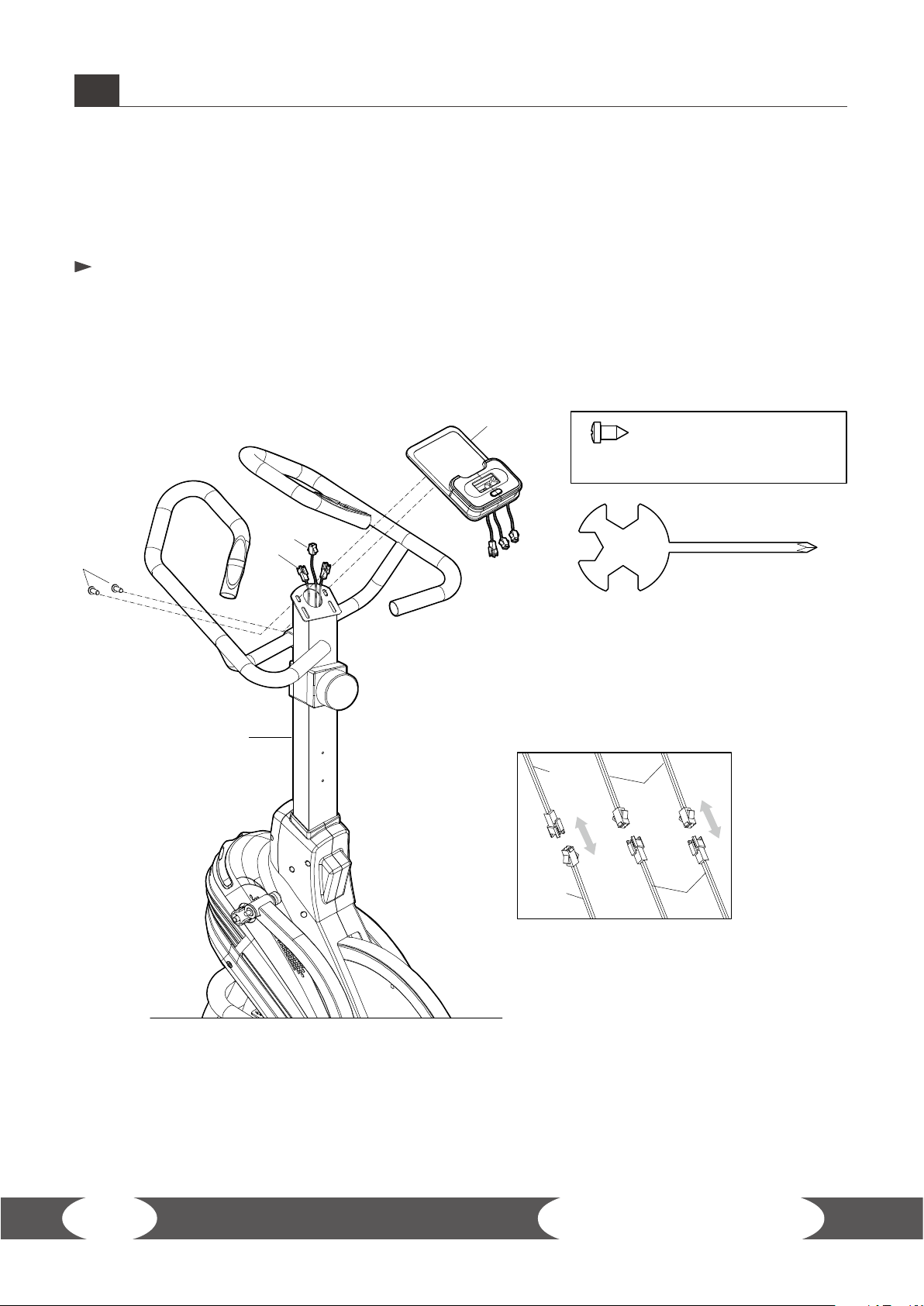

3ASSEMBLY INSTRUCTION
Step 5: Assembly of the Console
1. Remove both screws (42) from the monitor (41).
2. Connect the cables of the mid upright (80 & 33) to the cables of the monitor (41).
ATTENTION
Make sure not to pinch the cables during the following step.
3. Mount the monitor (41) to the mid upright (39) with the two previously removed screws (42) in
step 1.

17
31
39
32
NO.32 Screw (M5×10) × 2pcs
Multi Hex Tool with Screwdriver
(S13/14/15) × 1pc
3ASSEMBLY INSTRUCTION
Step 6: Assembly of the Kettle Shelf
1. Mount the kettle shelf (31) to the mid upright (39) with two screws (32).
2. Now tighten all screw joints with the necessary tools.
→ The assembly of the equipment is nished.
Step 7: Alignment of the Feet
If the oor is uneven, you can stabilize the equipment by turning the setting screws under the main
frame.
1. Lift the equipment on the desired side and rotate the setting screws under the main frame.
2. Rotate the screws clockwise in order to remove them and to raise the equipment.
3. Rotate them counterclockwise in order to lower the equipment.

18 MXT40-M1 APEX TRAINER
NOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
4.1 Console Display
Scan Displays a dierent training value every six seconds
Time Displays the remaining or elapsed training time between 00:00 -99:00 in
minutes
Speed Displays the current training speed
Distance Displays the remaining distance or the distance traveled
Odometer Displays the total amount of distance traveled since rst use
Calories Displays the total amount of burned calories
Pulse Rate
Displays the current heart rate.
WARNING
Your training equipment is not a medical device. The heart rate
measurement of this equipment may be inaccurate. Various factors
can aect the accuracy of the heart rate measurement. The heart rate
measurement serves only as a training aid.
Battery AAA Battery (2x)
Operating Temperature 0 ~ 40°C (32 °F ~ 104 °F)
Storage Temperature -10 ~ 60°C
4.2 Functions Button
Functions Button

+By pressing the functions button, you can choose between functions,
such as TIME - SPEED - DIST - CALORIES(CAL) - ODO - PULSE RATE
wechseln

+In order to reset a value, press and then hold the respective button for
3 seconds
4.3 Hibernation
The console enters hibernation mode automatically if the sensor does not receive a signal.
The console will turn on again once the functions button is pressed or the sensor receives a signal.
4OPERATING INSTRUCTIONS

19
5STORAGE AND TRANSPORT
5.1 General Instructions
WARNING
+ The storage location should be chosen so that improper use by third parties or children can
be prevented.
+ If your equipment does not have transportation wheels, the equipment must be
disassembled before transportation.
ATTENTION
+ Make sure that the equipment is protected from moisture, dust and dirt in the selected
storage location. The storage location should be dry and well ventilated and have a constant
ambient temperature between 10°C and 35°C.
5.2 Folding Mechanism
ATTENTION
+ If you want to transport your equipment over particularly sensitive and soft oor coverings,
such as parquet, planks or laminate, lay out the transport route with cardboard or similar to
avoid possible oor damage.

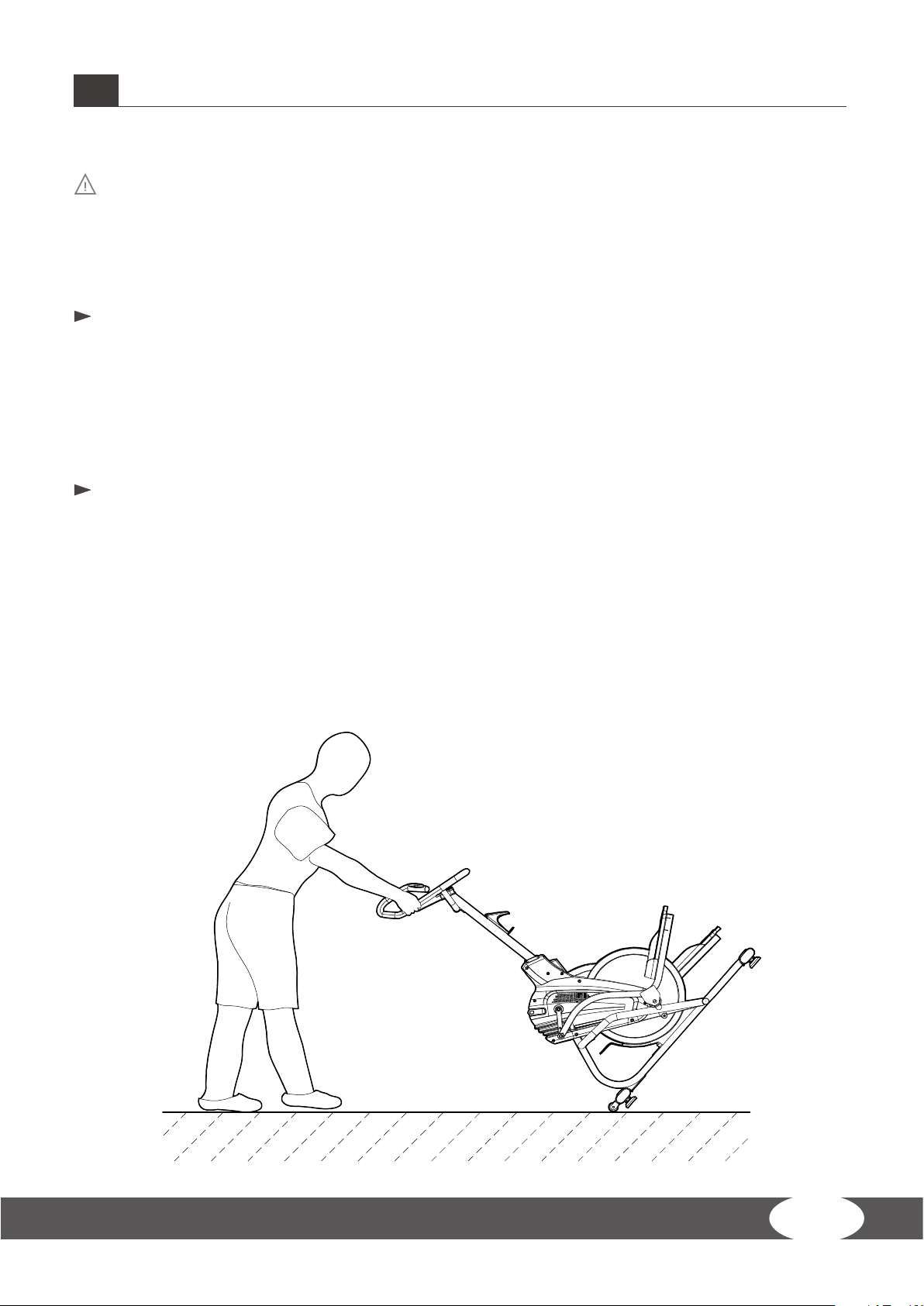

1. Stand in front of the equipment and lift it until the weight is transferred to the transportation
wheels. After that, you easily can move the equipment to a new position. For long transport
distances the equipment should be disassembled and safely packed.
2. Select the new location by following the instructions in the section 1.3 of this manual.

20 MXT40-M1 APEX TRAINER
6TROUBLESHOOTING, CARE AND MAINTENANCE
6.1 General Instructions
WARNING
+ Do not make any improper changes to the equipment.
CAUTION
+ Damaged or worn components may aect your safety and the life of the equipment.
Therefore, immediately replace damaged or worn components. In such a case, contact the
contract partner. The equipment must not be used until it has been repaired. If necessary, use
only original spare parts.
ATTENTION
+ In addition to the instructions and recommendations for maintenance and care given here,
additional service and/or repair work may be necessary; this must only be carried out by
authorised service technicians.
6.2 Faults and Fault Diagnosis
The equipment undergoes regular quality controls during production. Nevertheless, faults or
malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an
exchange is usually sucient. Please refer to the following overview for the most common errors
and how to correct them. If the equipment still does not function properly, contact your contract
partner.
Fault Cause Solution
Drive disks wobble/make
noises Drive disk loose Tighten nut (pay attention to left-hand / right-hand thread)
Display is blank/is not working Loose cable connections Check cable connections
Equipment wobbles Equipment is not level Align the feet
Creaking noises on the
stepping area Loose screws on stepping area Tighten the screws on the stepping area
Creaking noises Screw connections loosened or
too tight Check screw connections
Squeaking noises on the guide
rails
Guide rails or rollers dirty or
guide rails dry
Clean the guide rails and then
lubricate them with a suitable
lubricant
No pulse display 
+battery empty

+Pulse display defective Changing batteries
6.3 Maintenance and Inspection Calendar
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no
solvents!) after each training session.
The following routine tasks must be performed at the specied intervals:
Part Weekly Monthly Quarterly
Screw connections I
Screws and cable connections I
Legend: C = clean; I = inspect
