BOLERO FS397 User manual

Model:
FS397
Patio heater
Instruction manual
FS397_UK_A5_v1_20220107.indb 1FS397_UK_A5_v1_20220107.indb 1 2022/1/7 13:382022/1/7 13:38

2
UK
Safety Instructions
Electrical requirements:
This appliance should only be connected to the mains
electricity supply by a qualified electrician. Hardwire
the appliance into a suitable power supply with correct
voltage and sufficient power capacity. Refer to the
product label on the appliance for voltage and wattage
requirements.
Under no circumstances put a plug on the cable.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• Caution! Some parts of this appliance can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are present.
• Keep combustible materials, such as clothes, curtains and
other furnishings, away from the appliance.
• Do not touch the fireguard or reflecting cover when in use.
• Do not use in any area where there is a presence of gases,
explosives or flammable objects.
• Do not allow the power cord to hang over a countertop or
come into contact with any hot surface.
• Do not locate the appliance immediately below a socket-outlet
or under dripping clothes.
FS397_UK_A5_v1_20220107.indb 2FS397_UK_A5_v1_20220107.indb 2 2022/1/7 13:382022/1/7 13:38

3
UK
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use
of the appliance in a safe way and understand the hazards
involved. Children must not play with the appliance. Cleaning
and user maintenance must not be made by children without
supervision.
• Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform
user maintenance.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Intended for outdoor use but not suitable for locations that are
wet/humid or exposed to rainfall/snowfall. The location should
be sheltered from the effects of weather.
• Do NOT insert any objects into the openings.
• Do NOT immerse the appliance in water.
• Do not leave the appliance unattended when in use.
• Do not use the appliance for anything other than its intended
use.
• Do not use if damaged.
• Avoid the use of extension cords.
• Always switch off and disconnect the power supply to the
appliance before installation, when not in use, before cleaning
and maintaining/service procedure.
FS397_UK_A5_v1_20220107.indb 3FS397_UK_A5_v1_20220107.indb 3 2022/1/7 13:382022/1/7 13:38

4
UK
• DO NOT obstruct or cover
the appliance in any way
when in use.
• Keep all packaging away
from children. Dispose of
the packaging in accordance
to the regulations of local
authorities.
• If the power cord is
damaged, it must be
replaced by a BOLERO agent
or a recommended qualified
technician in order to avoid a
hazard.
• BOLERO recommend that
this appliance should be
periodically tested (at least
annually) by a Competent
Person. Testing should
include, but not be limited
to: Visual Inspection, Polarity
Test, Earth Continuity,
Insulation Continuity and
Functional Testing.
• BOLERO recommend that
this product is connected
to a circuit protected by an
appropriate RCD (Residual
Current Device).
Introduction
Please take a few moments to carefully read
through this manual. Correct maintenance and
operation of this machine will provide the best
possible performance from your Bolero product.
Featured with the even heat distribution from the
gold halogen lamp, this infrared heater can save
up to 30%-40% of electricity in comparison with
traditional heaters. Ideal for outdoor spot heating
like patios, and so on.
Pack Contents
The following is included:
• Patio heater
• Remote control
• Instruction manual
• Installation fixings
BOLERO prides itself on quality and service,
ensuring that at the time of packaging the contents
are supplied fully functional and free of damage.
Should you find any damage as a result of transit,
please contact your BOLERO dealer immediately.
Preparation
• Carefully unpack the appliance and remove all
packing materials.
• All recommended fixings are supplied. Do not
use less substantial fittings.
• Any additional or replacement parts shall only
be obtained from the BOLERO agent.
• For safe use of the product, the unit is
recommend to be installed to brickwork or
blockwork using fixings that are appropriate to
the wall.
Tools Required (Not included)
FS397_UK_A5_v1_20220107.indb 4FS397_UK_A5_v1_20220107.indb 4 2022/1/7 13:382022/1/7 13:38

5
UK
Installation
Guide on the installation fixings
01 Bracket x4
02 Screw M6x60 mm x4
03 Screw M5x10 mm x4
04 Nut M6 x2
05 Screw M6x12 mm x2
01
05 03
02
04
Caution:
• When mounting, observe fire-fighting
regulations in force in the country of
installation.
• Ensure that all fixings are checked and
tightened as necessary.
• Before drilling holes, ensure there
are no electric wires or water pipes
underneath.
• With the specifically designed brackets, the
heater can be mounted to a wall or ceiling.
• For sufficient ventilation and free
adjustment of the appliance, ensure
a minimum clearance of 40cm is
maintained at the sides and on the top.
The heater must be installed at least 1.8m
above the floor.
min.
40cm
min.
40cm
min.
40cm
min.
1.8m
30-45°
Important: Ensure that the supply cables
are well arranged and do not come into
contact with reflector of the heater or trail
into heated area.
The cables can be fixed to the mounting
bracket at the rear with a cable tie.
FS397_UK_A5_v1_20220107.indb 5FS397_UK_A5_v1_20220107.indb 5 2022/1/7 13:382022/1/7 13:38

6
UK

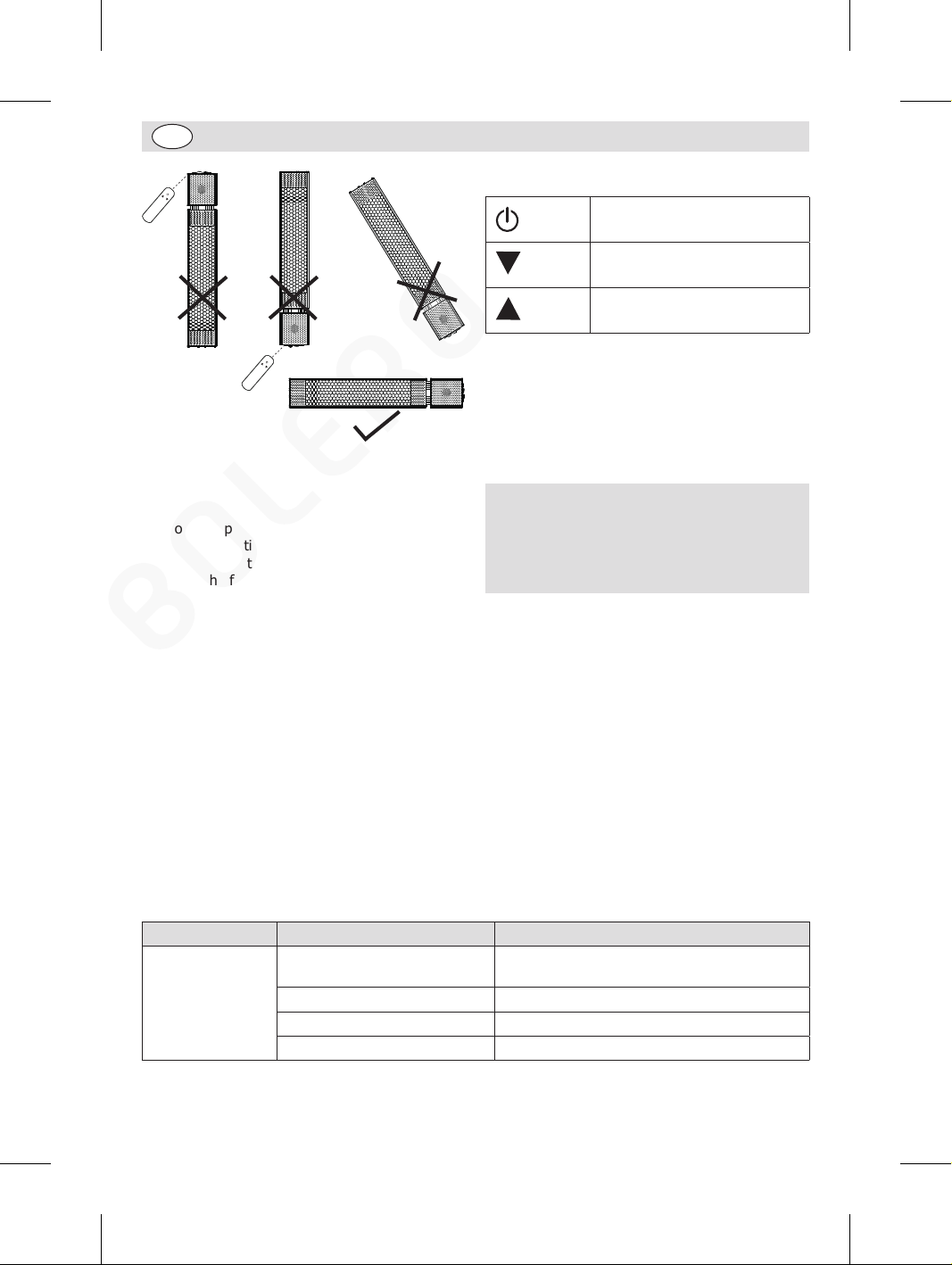

Operation
• The power switch (black) controls the mains
power supply of the appliance. Ensure to turn
it On (Iposition) before use.
• Turn the heater on and select the Power level
using the function button (red), OR using the
remote control.
Using the remote control
• Remove the battery compartment cover (on
the bottom). Insert 2 x 1.5V AAA batteries
(not supplied), and ensure to follow polarity
markings on the battery compartment.
Re-locate the cover.
• Use the remote control:
button Press to turn heater on/off
button Power level 1: Heater on with
50% power
button Power level 2: Heater on with
100% power
Note: Remove the batteries if the remote control
is not to be used for an extended period of time.
Cleaning, Care &
Maintenance
• Proper maintenance plays an important
part in the life span and functioning of
the heater.
• Turn off and disconnect the heater
from power source before cleaning and
maintenance. Ensure the surface is cool.
• Clean the external surface using a damp cloth.
If necessary, clean with a damp sponge and
mild detergent. Always wipe dry after cleaning.
• DO NOT allow any moisture to enter the
interior via any air inlet/outlet.
• DO NOT use alcohol, gasoline, abrasive
powders, furniture polish or rough brushes
for cleaning. This may cause damage or
deterioration to the surface of the heater.
• Storage: Store in a cool, dry location when
not in use to prevent dust and dirt build up.
Troubleshooting
The appliance contains no user serviceable parts. A BOLERO dealer or qualified technician should carry
out repairs if required.
Fault Probable Cause Solution
Appliance not
working
The unit is not switched on Check the unit is hardwired correctly and
switched on
Lead is damaged Replace the lead
Mains power supply fault Check mains power supply
Lamp expired Call BOLERO agent or qualified Technician
FS397_UK_A5_v1_20220107.indb 6FS397_UK_A5_v1_20220107.indb 6 2022/1/7 13:382022/1/7 13:38

7
UK
Technical Specifications
Model Voltage Power Current Dimensions
h x w x d mm Weight
FS397 220-240V 50/60Hz 2000W 8.7A 72 x 627 x 105 1.7kg
Electrical Wiring
This appliance is supplied unplugged and requires hardwiring to a suitable electrical power supply.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Connection to a suitable power supply should only be carried out by a qualified and
competent electrical engineer.
Compliance
Dispose of depleted batteries in accordance with local regulations, within the EC there
are nominated disposal points for batteries.
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
BOLERO parts have undergone strict product testing in order to comply
with regulatory standards and specifications set by international,
independent, and federal authorities.
BOLERO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of BOLERO.
Every effort is made to ensure all details are correct at the time of going to press, however, BOLERO reserve the right to
change specifications without notice.
FS397_UK_A5_v1_20220107.indb 7FS397_UK_A5_v1_20220107.indb 7 2022/1/7 13:382022/1/7 13:38

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Model • Modèle • Modell • Modello
• Modelo • Malli
Wall Mounted IP55 Patio Heater
FS397
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en)
• Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do
Conselho
Low Voltage Directive (LVD) - 2014/35/EU
Electrical Equipment (Safety) Regulations 2016
EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019 +A14:2019 A2:2019
EN 60335-2-30:2009 +A11:2012
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC
Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)
EN 55014-1:2017
EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013 +A1:2019
Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to
Directive 2011/65/EU
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012 (S.I. 2012/3032)
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante • Nome do fabricante
Bolero
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)
and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es)
Directiva(s) e Norma(s)
Date • Data • Date • Datum • Data •
Fecha • Data
3rd June 2021
Signature • Handtekening • Signature
• Unterschrift Firma • Firma •
Assinatura
Full Name • Volledige naam • Nom et
prénom • Vollständiger Name • Nome
completo • Nombre completo • Nome
por extenso
Ashley Hooper
Eoghan Donnellan
Position • Functie • Fonction • Position
• Qualifica • Posición • Função
Technical & Quality Manager
Commercial Manager/ Importer
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift des
Herstellers • Indirizzo del produttore •
Dirección del fabricante • Morada do
fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
42 North Point Business Park
New Mallow Road
Cork
Ireland
DocuSign Envelope ID: AF588B8D-4BF2-4203-B8E4-DBEAF6A90DCF
FS397_UK_A5_v1_20220107.indb 8FS397_UK_A5_v1_20220107.indb 8 2022/1/7 13:382022/1/7 13:38

UK
[phone]
Eire
NL 040 – 2628080
FR 01 60 34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 – 1860806
IT N/A
ES 901-100 133
FS397_UK_A5_v1_20220107.indb 9FS397_UK_A5_v1_20220107.indb 9 2022/1/7 13:382022/1/7 13:38

FS397_UK_A5_v1_20220107.indb 10FS397_UK_A5_v1_20220107.indb 10 2022/1/7 13:382022/1/7 13:38

FS397_UK_A5_v1_20220107.indb 11FS397_UK_A5_v1_20220107.indb 11 2022/1/7 13:382022/1/7 13:38

FS397_UK_A5_v1_20220107
FS397_UK_A5_v1_20220107.indb 12FS397_UK_A5_v1_20220107.indb 12 2022/1/7 13:382022/1/7 13:38
