BOLERO FS398 User manual

Model:
FS398
Patio heater
Instruction manual
FS398_UK_A5_v1_20210611.indb 1FS398_UK_A5_v1_20210611.indb 1 2021/6/11 09:572021/6/11 09:57

2
UK
Safety Tips
Electrical requirements:
This appliance should only be connected to the mains
electricity supply by a qualified electrician. Hardwire
the appliance into a suitable power supply with correct
voltage and sufficient power capacity. Refer to the
product label on the appliance for voltage and wattage
requirements.
Under no circumstances put a plug on the cable.
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• Caution! Some parts of this appliance can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are present.
• Keep combustible materials, such as clothes, curtains and
other furnishings, away from the appliance.
• Do not touch the fireguard or reflecting cover when in use.
• Do not use in any area where there is a presence of gases,
explosives or flammable objects.
• Do not allow the power cord to hang over a countertop or
come into contact with any hot surface.
• Do not locate the appliance immediately below a socket-outlet
or under dripping clothes.
FS398_UK_A5_v1_20210611.indb 2FS398_UK_A5_v1_20210611.indb 2 2021/6/11 09:572021/6/11 09:57

3
UK
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use
of the appliance in a safe way and understand the hazards
involved. Children must not play with the appliance. Cleaning
and user maintenance must not be made by children without
supervision.
• Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform
user maintenance.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Intended for outdoor use but not suitable for locations that are
wet/humid or exposed to rainfall/snowfall. The location should
be sheltered from the effects of weather.
• Do NOT insert any objects into the openings.
• Do NOT immerse the appliance in water.
• Do not leave the appliance unattended when in use.
• Do not use the appliance for anything other than its intended
use.
• Do not use if damaged.
• Avoid the use of extension cords.
• Always switch off and disconnect the power supply to the
appliance before installation, when not in use, before cleaning
and maintaining/service procedure.
FS398_UK_A5_v1_20210611.indb 3FS398_UK_A5_v1_20210611.indb 3 2021/6/11 09:572021/6/11 09:57

4
UK
• DO NOT obstruct or cover
the appliance in any way
when in use.
• Keep all packaging away
from children. Dispose of
the packaging in accordance
to the regulations of local
authorities.
• If the power cord is
damaged, it must be
replaced by a BOLERO agent
or a recommended qualified
technician in order to avoid a
hazard.
• BOLERO recommend that
this appliance should be
periodically tested (at least
annually) by a Competent
Person. Testing should
include, but not be limited
to: Visual Inspection, Polarity
Test, Earth Continuity,
Insulation Continuity and
Functional Testing.
• BOLERO recommend that
this product is connected
to a circuit protected by an
appropriate RCD (Residual
Current Device).
Introduction
Please take a few moments to carefully read
through this manual. Correct maintenance and
operation of this machine will provide the best
possible performance from your BOLERO product.
Pack Contents
The following is included:
• Heater head with connector and cables
• Poles (x3)
• Base
• Instruction manual
• Installation fixings
BOLERO prides itself on quality and service,
ensuring that at the time of packaging the contents
are supplied fully functional and free of damage.
Should you find any damage as a result of transit,
please contact your BOLERO dealer immediately.
Preparation
• Carefully unpack the appliance and remove all
packing materials.
• All recommended fixings are supplied. Do not
use less substantial fittings.
• Any additional or replacement parts shall only
be obtained from the BOLERO agent.
• Make sure the installation site provides the
proper installation clearances for the unit.

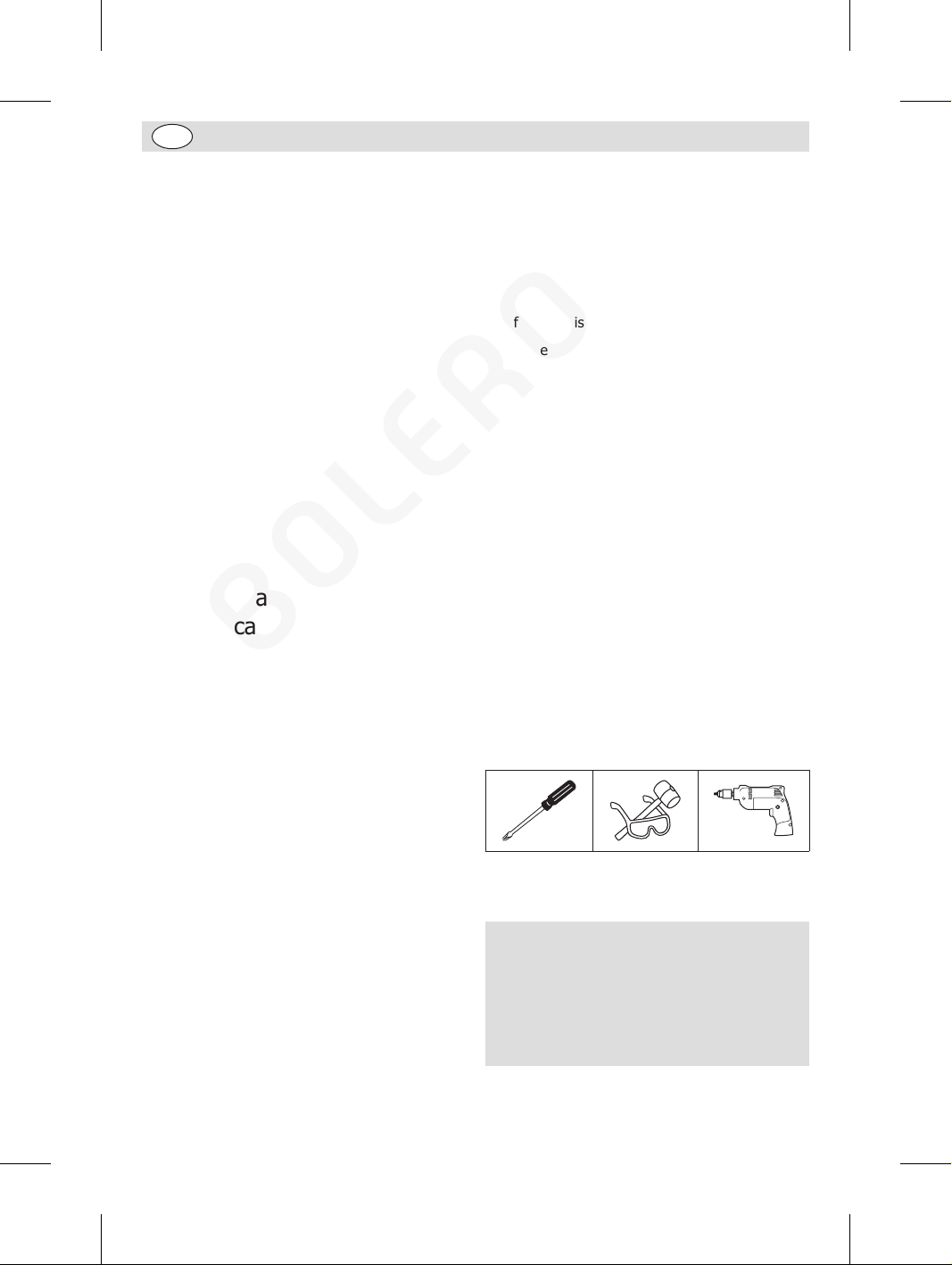

Tools Required (Not included)
Installation
Caution:
When mounting, observe fire-fighting
regulations in force in the country of
installation.
Ensure that all fixings are checked and
tightened as necessary.
Before drilling holes, ensure there are no
electric wires or water pipes underneath.
FS398_UK_A5_v1_20210611.indb 4FS398_UK_A5_v1_20210611.indb 4 2021/6/11 09:572021/6/11 09:57

5
UK
01 Hex screw M6*30mm x3 05 Screw M5*10mm x2
02 Flat gasket Φ25*Φ6.5*2.0mm x6 06 Pressure strip PA66 x2
03 Spring washer Φ6*T1.0mm x3 07 Screw PW4*20mm x4
04 Base pad M8*15 x5 08 Expansion
screw M6*85mm x3
Step 1: Connect the 3 poles together. Step 3: Attach the connector end from the heater head
to the other end with cables. Then thread the cables
through the poles and base.
Step 2: Fix the pole onto the base.
04
02
03
01
Step 4: Mount
the heater head
onto the upper
pole.
05
Step 5: Fix the
power cable into
the groove in
the base bottom
using the
pressure strips
and screws.
07
06
FS398_UK_A5_v1_20210611.indb 5FS398_UK_A5_v1_20210611.indb 5 2021/6/11 09:572021/6/11 09:57

6
UK
Step 6: Drill holes on the floor. Then stand the heater upright and fix it on the floor.
Important: Ensure that the supply cables are well
arranged and do not come into contact with reflector of
the heater or trail into heated area.
Floor
08
Operation
Turn the heater on and select the desired Power level using the ON/OFF switch.
Oposition Heater on/off
Iposition Power level 1: Heater on with 50% power
II position Power level 2: Heater on with 100% power
Note: Featured with the tip-over protection, the heater will automatically turn off in the
event of a tip-over angle more than 45°.
Cleaning, Care & Maintenance
• Proper maintenance plays an important part in the life span and functioning of the
heater.
• Turn off and disconnect the heater from power source before cleaning and maintenance.
Ensure the surface is cool.
• Clean the external surface using a damp cloth. If necessary, clean with a damp sponge and mild
detergent. Always wipe dry after cleaning.
• DO NOT allow any moisture to enter the interior via any air inlet/outlet.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes for cleaning. This
may cause damage or deterioration to the surface of the heater.
• The appliance contains no user serviceable parts. A BOLERO dealer or qualified technician should
carry out repairs if required.
• Storage: Store in a cool, dry location when not in use to prevent dust and dirt build up.
Troubleshooting
Fault Probable Cause Solution
Appliance not
working
The unit is not switched on Check the unit is hardwired correctly and
switched on
Lead is damaged Call BOLERO agent or qualified Technician
Power supply Check power supply
Lamp expired Call BOLERO agent or qualified Technician
FS398_UK_A5_v1_20210611.indb 6FS398_UK_A5_v1_20210611.indb 6 2021/6/11 09:572021/6/11 09:57

7
UK
Technical Specifications
Model Voltage Power Current Dimensions
h x Ø mm Weight
FS398 220-240V 50/60Hz 1500W 6.52A 2070 x 425 11.53kg
Electrical Wiring
This appliance is supplied unplugged and requires hardwiring to a suitable electrical power supply.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Connection to a suitable power supply should only be carried out by a qualified and
competent electrical engineer.
Compliance
Dispose of depleted batteries in accordance with local regulations, within the EC there
are nominated disposal points for batteries.
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
BOLERO parts have undergone strict product testing in order to comply
with regulatory standards and specifications set by international,
independent, and federal authorities.
BOLERO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of BOLERO.
Every effort is made to ensure all details are correct at the time of going to press, however, BOLERO reserve the right to
change specifications without notice.
FS398_UK_A5_v1_20210611.indb 7FS398_UK_A5_v1_20210611.indb 7 2021/6/11 09:572021/6/11 09:57

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Model • Modèle • Modell • Modello
• Modelo • Malli
Free Standing Patio Heater Lamp
FS398
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en)
• Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do
Conselho
Low Voltage Directive (LVD) - 2014/35/EU
Electrical Equipment (Safety) Regulations 2016
EN 60335-1:2012 +A11:2014 +A13:2017
EN 60335-2-30:2009 +A11:2012
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC
Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to
Directive 2011/65/EU
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012 (S.I. 2012/3032)
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante • Nome do fabricante
Bolero
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)
and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es)
Directiva(s) e Norma(s)
Date • Data • Date • Datum • Data •
Fecha • Data
4th June 2021
Signature • Handtekening • Signature
• Unterschrift Firma • Firma •
Assinatura
Full Name • Volledige naam • Nom et
prénom • Vollständiger Name • Nome
completo • Nombre completo • Nome
por extenso
Ashley Hooper
Eoghan Donnellan
Position • Functie • Fonction • Position
• Qualifica • Posición • Função
Technical & Quality Manager
Commercial Manager/ Importer
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift des
Herstellers • Indirizzo del produttore •
Dirección del fabricante • Morada do
fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
42 North Point Business Park
New Mallow Road
Cork
Ireland
DocuSign Envelope ID: AF588B8D-4BF2-4203-B8E4-DBEAF6A90DCF
FS398_UK_A5_v1_20210611.indb 8FS398_UK_A5_v1_20210611.indb 8 2021/6/11 09:572021/6/11 09:57

UK
[phone]
Eire
NL 040 – 2628080
FR 01 60 34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 – 1860806
IT N/A
ES 901-100 133
PT [email protected]
FS398_UK_A5_v1_20210611.indb 9FS398_UK_A5_v1_20210611.indb 9 2021/6/11 09:572021/6/11 09:57

FS398_UK_A5_v1_20210611.indb 10FS398_UK_A5_v1_20210611.indb 10 2021/6/11 09:572021/6/11 09:57

FS398_UK_A5_v1_20210611.indb 11FS398_UK_A5_v1_20210611.indb 11 2021/6/11 09:572021/6/11 09:57

FS398_UK_A5_v1_20210611
FS398_UK_A5_v1_20210611.indb 12FS398_UK_A5_v1_20210611.indb 12 2021/6/11 09:572021/6/11 09:57
