Bosch Rexroth HEDE 10-3 Series User manual

Electronic pressure sensor
with switching and analog
output
Type HEDE 10-3X
Operating instructions
RE 30277-02-B/07.2016
Replaces: 07.2010
English

2/48
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
The data specied serves to describe the product. If information on
the use of the product is given, it is only to be regarded as application
examples and recommendations. Catalog information does not
constitute warranted properties. The information given does not
release the user from the obligation of own judgment and verication.
Our products are subject to a natural process of wear and aging.
© This document, as well as the data, specications and other
information set forth in it, are the exclusive property of Bosch Rexroth
AG. It may not be reproduced or given to third parties without consent
of Bosch Rexroth AG.
The cover shows an example conguration. The product supplied may
therefore dier from the gure shown.
The original operating instructions were prepared in German.

RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
Contents
1 About this documentation 5
1.1 Validity of the documentation 5
1.2 Required and supplementary documentation 5
1.3 Representation of information 6
1.3.1 Safety instructions 6
1.3.2 Symbols 6
1.3.3 Terms used 8
1.3.4 Abbreviations 8
2 Safety instructions 8
2.1 General information on this chapter 8
2.2 Intended use 9
2.3 Improper use 9
2.4 Personnel qualication 10
2.5 General safety instructions 11
2.6 Product-specic safety instructions 12
3 General notes on damage to material and the product 14
4 Scope of delivery 15
5 About this product 16
5.1 Applications 16
5.2 Function 17
5.2.1 Switching function 17
5.2.2 Analog function 18
5.2.3 IO-Link 19
6 Transport and storage 20
6.1 Storing the pressuer sensor 20
7 Installation 21
7.1 Electrical connection 22
8 Commissioning 23
8.1 Operating and display elements 24
8.2 Menu 25
8.2.1 Menu structure: Main menu 25
8.2.2 Explanation of menu level 1 26
8.2.3 Explanation of menu level 2 26
8.3 Parameter setting 27

4/48
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
8.3.1 Parameter setting in general 27
8.4 Conguring the display (optional) 30
8.5 Setting the output signals 31
8.5.1 Setting the output functions 31
8.5.2 Determining the switching limits for the hysteresis function 31
8.5.3 Determining the switching limits for the window function 32
8.6 User settings (optional) 32
8.6.1 Setting the delay for the switching outputs 32
8.6.2 Setting damping for the switching signal 32
8.6.3 Setting damping for the analog output 33
8.6.4 Reading the min/max values for the system pressure 33
8.6.5 Resetting all parameters to factory setting 33
8.6.6 Set color change of the display color 34
8.6.7 Graphical depiction of the color change of the display 35
9 Operation 37
9.1 Reading the parameter settings 38
10 Maintenance and repair 38
10.1 Cleaning and care 39
10.2 Spare parts 39
10.3 Repair 39
11 Demounting and replacement 40
12 Disposal 41
12.1 Environmental protection 41
12.2 Return to Bosch Rexroth AG 41
12.3 Packaging 42
12.4 Materials used 42
12.5 Recycling 42
13 Extensionandmodication 42
14 Troubleshooting 43
14.1 Self-diagnosis/error indications 43
14.2 Setting ranges 45
14.3 Factory setting 46
15 Technical data 46
16 Annex 47
16.1 Address directory 47

About this documentation 5/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
1 About this documentation
1.1 Validity of the documentation
This documentation is valid for the following products:
• R901425473 HEDE10-30/100/1/-Gi-K35-0
• R901425474 HEDE10-30/250/1/-Gi-K35-0
• R901425475 HEDE10-30/400/1/-Gi-K35-0
• R901425476 HEDE10-30/600/1/-Gi-K35-0
• R901433082 HEDE10-30/100/1/-Ga-K35-V
• R901433085 HEDE10-30/250/1/-Ga-K35-V
• R901433084 HEDE10-30/400/1/-Ga-K35-V
• R901433083 HEDE10-30/600/1/-Ga-K35-V
This documentation is intended for tters, operators, service
technicians, system operators and plant/machine manufacturers.
This documentation contains important information on the safe and
appropriate installation, transport, commissioning, maintenance,
operation, removal and simple troubleshooting of the product.
▶Read this documentation thoroughly, especially Chapter 2 “Safety
instructions“ and Chapter 3 “General notes on damage to property
and damage to the product“, before working with the pressure
sensor.
1.2 Required and supplementary documentation
▶Only commission the product, when you have the documents
marked with the book symbol at hand and have understood and
observed them.

6/48 About this documentation
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
Tabelle 1: Required and supplementary documentation
Title Document no. Document type
Electronic pressure switch type
HEDE 10
RE 30277 Data sheet
1.3 Representation of information
In order that this documentation allows you to work directly and safely
with your product, standardized safety notes, symbols, terms and
abbreviations are used. For better understanding, they are explained
in the following sections.
1.3.1 Safety instructions
This documentation contains safety notes in chapter 2.6 “Product-
specic safety instructions“ and chapter 3 “General notes on damage
to material and the product“ as well as before a sequence of activities
or instructions for action, which involve the risk of personal injury or
damage to equipment. The measures described for averting the hazard
have to be observed.
Safety notes are structured as follows:
SIGNAL WORD
Type and source of danger!
Consequences in case of non-compliance
▶Hazard avoidance measures
▶<Enumeration>
• Warning symbol: draws attention to a hazard
• Signal word: identies the degree of danger
• Type and source of danger!: species the type and source of danger

About this documentation 7/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
• Consequences: describes the consequences in case of non-
compliance
• Precaution: Species how the danger can be prevented
Tabelle 2: Hazard classes according to ANSI Z535.6-2006
Warning sign, signal word Meaning
DANGER Indicates a hazardous situation which,
if not avoided, will certainly result in
death or serious injury.
WARNING
Indicates a hazardous situation which,
if not avoided, could result in death or
serious injury.
CAUTION
Indicates a hazardous situation which,
if not avoided, could result in minor or
moderate injury.
NOTICE Damage to property: The product or the
environment could be damaged.
1.3.2 Symbols
The following symbols indicate notices which are not safety-relevant
but increase the comprehensibility of the documentation.
Tabelle 3: Meaning of the symbols
Symbol Meaning
If this information is not observed, the product cannot be used
and/or operated optimally.
1.
2.
3.
Numbered instruction:
The numbers indicate that the actions must be carried out one
after the other.
[...] Designation of keys, buttons or indications

8/48 Safety instructions
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
Symbol Meaning
▶Individual, independent action
1.3.3 Terms
The following terms are used in this documentation:
Tabelle 4: Designations
Term Meaning
HEDE 10-3X Pressure sensors with a separately settable switching
output and an analog output
1.3.4 Abbreviations
The following abbreviations are used in this documentation:
Tabelle 5: Abbreviations
Abbreviation Meaning
UMRL Upper measuring range limit
PELV Protective Extra Low Voltage
SELV Safety Extra Low Voltage
2 Safety instructions
2.1 About this chapter
The product has been manufactured according to the generally
accepted rules of current technology. There is, however, still a risk
of personal injury or damage to equipment if you do not observe this
chapter and the safety instructions contained in this documentation.

Safety instructions 9/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
▶Read these instructions completely and thoroughly before working
with the product.
▶Keep this documentation in a location where it is accessible to all
users at all times.
▶Always pass the product together with the required documentation
to third parties.
2.2 Intended use
The product is an electronic component. These pressure sensors
comply with the Pressure Equipment Directive and are designed and
manufactured for group 2 uids in according with sound engineering
practice. You may use the product as follows:
• For acquiring the system pressure in hydraulic and pneumatic
systems.
• While adhering to the operating and ambient conditions and
specied performance limits according to the data sheet.
• In the original condition, without damage.
• Only in applications for which they are suitable without any
restrictions.
• Only within the pressure limits provided in the operating range.
The product is intended exclusively for professional use and not for
private usage.
Operation according to the intended use also implies that you have
read and understood this documentation completely, especially
chapter 2 “Safety instructions“.
2.3 Improper use
Any use other than described in the section “Intended use” is
considered as improper and is therefore not permitted.
Improper use of the pressure sensor includes:
• Use in potentially explosive atmospheres.
• Improper storing.

10/48 Safety instructions
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
• Improper transport.
• Insucient cleanliness for storing and installation.
• Incorrect installation.
• Use of unsuitable/non-approved media.
• Exceeding of the specied overload pressures.
• Operation outside the permissible temperature range.
Bosch Rexroth AG does not assume any liability for damage caused by
improper use. The risks arising from improper use lie exclusively with
the user.
2.4 Personnelqualications
The activities described in this documentation require basic
knowledge of mechanics, electrics and hydraulics as well as
knowledge of the appropriate technical terms. In order to ensure
safe use, these activities may only be carried out by an expert in
the respective eld or an instructed person under the direction and
supervision of an expert.
Qualied personnel are those who are able to recognize potential
hazards and apply the appropriate safety measures due to their
professional training, knowledge and experience, as well as their
understanding of the relevant conditions pertaining to the work to be
undertaken. An expert must observe the relevant specic professional
rules and have the necessary expert knowledge.
With regard to hydraulic products, specialist knowledge means, for
example:
• The ability to read and entirely understand hydraulic circuit
diagrams,
• In particular, completely understanding the correlations regarding
the safety equipment and
• knowledge of the function and structure of hydraulic components.

Safety instructions 11/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
Bosch Rexroth oers measures that support your qualication
in specic elds. An overview over the training contents can
be found online at:
http://www.boschrexroth.com
2.5 General safety instructions
• Observe the valid regulations on accident prevention and
environmental protection.
• Observe the safety regulations and provisions of the country in
which the product is used/applied.
• Exclusively use Rexroth products in technically perfect condition.
• Observe all notices on the product.
• Persons installing, operating, demounting or maintaining Rexroth
products must not be under the inuence of alcohol, other drugs or
medication inuencing the ability to react.
• Only use original Rexroth accessories and spare parts in order to
exclude hazards to persons due to unsuitable spare parts.
• Comply with the technical data and environmental conditions
specied in the product documentation.
• The installation or use of inappropriate products in safety-relevant
applications could result in unintended operating states when being
used which in turn could cause personal injuries and/or damage
to property. Therefore, only use a product for safety-relevant
applications if this use is expressly specied and permitted in the
documentation of the product, e.g. in explosion protection zones or
in safety-related parts of control systems (functional safety).
• You may commission the product only when it has been established
that the nal product (for example, a machine or system), in which
the Rexroth product is installed, complies with national regulations,
safety regulations and standards relevant for the application.

12/48 Safety instructions
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
2.6 Product-specicsafetyinstructions
WARNING
Systempartsunderpressureandejectinghydraulicuid!
When working on hydraulic systems with stored energy (accumulator
or cylinder operating under gravity) hydraulic components may still
be under pressure even after the pressure supply was switched o.
During installation and demounting, pressure sensors or parts may
y around and cause personal injuries and/or damage to property.
There is moreover the risk of serious injury caused by a powerful,
ejecting hydraulic uid jet.
▶Before working on the hydraulic product ensure that the
hydraulic system is depressurized and the electrical control de-
energized.
▶Completely unload the pressure of machines and systems before
working on hydraulic products.
Improper mounting!
Improper mounting can cause the pressure sensor to loosen and
to fall down. Consequently, hydraulic uid may leak and lead to
personal injuries and/or damage to property.
▶Install the pressure sensor thoroughly according to the mounting
instructions by means of suitable mounting aids.
▶Adhere to the specied tightening torques.
Easilyinammablehydraulicuid!
In connection with re or other sources of heat, leaking hydraulic
uid mist, which results from defective or incompletely mounted
pressure sensorss and their connections, may lead to re or
explosions.
▶Do not use hydraulic components in areas with open re and only
at a sucient distance to sources of heat.

Safety instructions 13/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
CAUTION
Exceedance of the maximum temperatures!
When the pressure sensor is operated outside the specied
temperatures, malfunction or failures, e.g. overheating, may occur
and thus pose a risk of injury.
▶Operate the pressure sensors only within the ambient and uid
temperatures provided for them.
• Before commissioning the pressure sensor, read this document and
make sure that the product is suitable for your application without
any restrictions.
• Check the compatibility of the product materials with the media to
be measured in all applications.
• Correct condition of the pressure sensor during operation can
only be guaranteed if it is only used for media, to which the wetted
materials are suciently resistant.
• The pressure sensor may only be operated within the specied
measuring range.
• The maximum pressure resistance specied must not be exceeded.
Even brief exceeding of the maximum pressure resistance can lead
to the destruction of the pressure sensor.
• Notes on pressure limits, product materials and materials in contact
with the media as well as further information can be found in the
technical data (see data sheet).

14/48 General information on damage to property and damage to the product
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
3 General information on damage to
property and damage to the product
The warranty is valid exclusively for the conguration delivered.
• Warranty claims will be rejected in the case of improper installation,
commissioning and operation as well as in the case of use not in
accordance with the intended purpose and/or improper handling.
NOTICE
Inadmissible mechanical load!
Impact or similar forces on the pressure sensor may damage or even
destroy it.
▶Never use pressure sensors as a handle or step. Do not place/put
any objects on top of it.
Pollutinghydraulicuid!
Leaking hydraulic uid leads to environmental pollution.
▶Remove any leakage immediately.
▶Dispose of the hydraulic uid in accordance with the national
regulations in your country.
Dirt and foreign particles in hydraulic components!
Penetrating dirt and foreign particles lead to wear and malfunctions.
Safe function of the hydraulic components is no longer ensured.
▶During assembly, ensure utmost cleanliness in order to prevent
foreign particles such as welding beads or metal chips from
getting into the hydraulic lines.
▶Do not use linting fabric for cleaning.
▶Take care that no detergents enter the hydraulic system.

Scope of delivery 15/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
NOTICE
Contaminatedhydraulicuid!
Contamination in the hydraulic uid can lead to malfunction, e.g.
jamming or clogging of the pressure sensor.
▶Ensure sucient cleanliness of the hydraulic uid over the entire
operating range.
4 Scope of delivery
• 1 pressure sensor
• 1 documentation

16/48 About this product
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
5 About this product
The device measures and monitors the system pressure of machines
and installations.
5.1 Applications
WARNING
Excessive pressure!
Risk of injury and risk of destruction of the pressure sensor, even if
the bursting pressure is exceeded only briey.
▶Avoid static and dynamic overpressureexceeding the specied
pressure resistance.
Tabelle 6: Operating range of HED10-3X
Ordering code Measuring
range **
Pressure
resistance *
Bursting
pressure
Pressure sensor with female thread
HEDE10-30/100/1/-Gi-K35-0 0…100 bar 300 bar 400 bar
HEDE10-30/250/1/-Gi-K35-0 0…250 bar 500 bar 1000 bar
HEDE10-30/400/1/-Gi-K35-0 0…400 bar 800 bar 1600 bar
HEDE10-30/600/1/-Gi-K35-0 0…600 bar 800 bar 2500 bar
Pressure sensor with male thread
HEDE10-30/100/1/-Ga-K35-V 0…100 bar 300 bar 400 bar
HEDE10-30/250/1/-Ga-K35-V 0…250 bar 500 bar 1000 bar
HEDE10-30/400/1/-Ga-K35-V 0…400 bar 800 bar 1600 bar
HEDE10-30/600/1/-Ga-K35-V 0…600 bar 800 bar 2500 bar
*) With static overload pressure or max. 100 million pressure cycles.
**) The pressure sensor may only be operated within the specied
measuring range.

About this product 17/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
The units are vacuum-resistant.
5.2 Function
The pressure sensor displays the current system pressure. It
generates output signals according to the operating mode and the
parameter setting.
It moreover provides the process data via IO-Link.
The pressure sensor is designed for bidirectional communication. So,
the following options are provided:
• Remote display: Reading and displaying the current system pressure
• Remote parameter setting: Reading and changing current parameter
settings
• OI-Link parameter setting
OUT1 (pin 4) Switching signal for system pressure limit value
Communication via IO-Link
OUT2 (pin 2) Analog signal of the system pressure

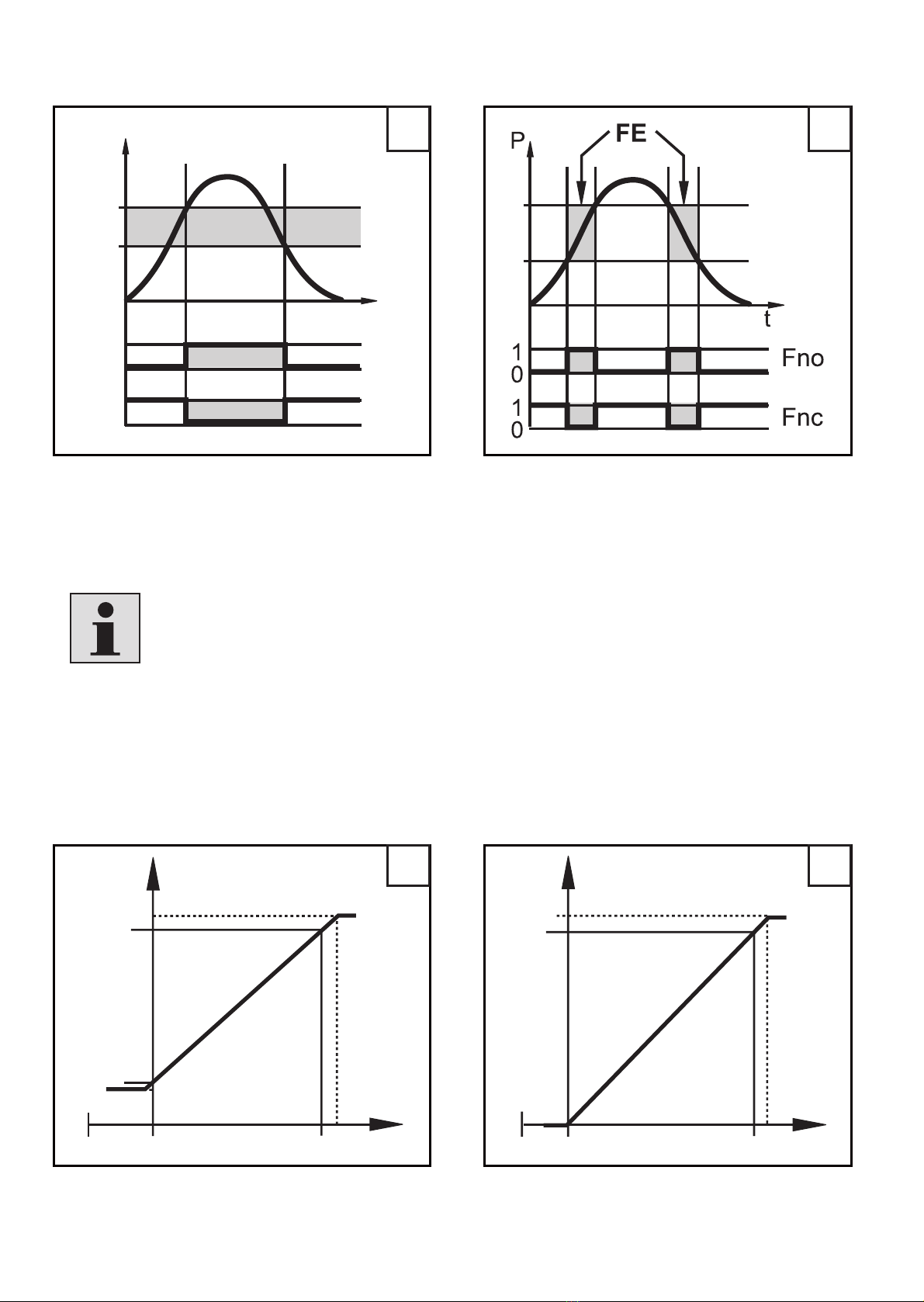

5.2.1 Switching function
OUT1 changes its switching state if it is above or below the set
switching limits (SP1, rP1). The following switching functions can be
selected:
• Hysteresis function / normally open: [ou1 = [Hno] (see Fig. 1).
• Hysteresis function / normally closed: [ou1] = [Hnc] (see Fig. 1).
• First the set point (SP1) is to be determined, then the reset point
(rP1).
The hysteresis thus dened remains, even if SP1 is changed again.
• Window function / normally open: [ou1] = [Fno] (see Fig. 2).
• Window function / normally closed: [ou1] = [Fnc] (see Fig. 2).
• The width of the window can be set by means of the dierence
between FH1 and FL1. FH1 = upper value, FL1 = lower value.

18/48 About this product
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016











FH
FL
1 2
P = system pressure
HY = hysteresis
FE = window
When set to the window function, the set and reset points
have a xed hysteresis of 0.25 % of the measuring span.
5.2.2 Analog function
OUT2 provides an analog output:
• Current output: [ou2] = [I] (see Fig. 3).
• Voltage output: [ou2] = [U] (see Fig. 4).











3 4

About this product 19/48
RE 30277-02-B/07.2016, HEDE 10-3X, Bosch Rexroth AG
P = system pressure
UMRL = Upper measuring range limit
Current output:
Within the measuring range of the device the output signal ranges
between 4 and 20 mA.
Moreover, the following is signaled:
• System pressure above measuring range: 20...20.5 mA
• Error signaling from 21.5 mA on.
• System pressure below measuring range: 4...3.8 mA
Voltage output:
Within the measuring range of the device the output signal ranges
between 0 and 10 V.
Moreover, the following is signaled:
• System pressure above measuring range: 10...10.3 V
• Error signaling from 11 V on.
5.2.3 IO-Link
General information
The pressure sensor is provided with an IO-Link communication
interface, which requires an IO-Link-capable module (IO-Link master)
for operation.
The IO-Link interface enables direct access to the process and
diagnostic data and provides the possibility of setting parameters of
the pressure sensor during operation.
In addition, communication is possible via a point-to-point connection
with a USB adapter cable.
You can nd the IODDs necessary for the conguration of the device,
detailed information about process data structure, diagnostic
information and parameter addresses as well as the required
information on the necessary IO-Link hardware and software at
www.boschrexroth.de/hede10-3x

20/48 Transport and storage
Bosch Rexroth AG, HEDE 10-3X, RE 30277-02-B/07.2016
6 Transport and storage
Rexroth components are delivered in an unobjectionable state.
When transporting and storing the product, strictly adhere to
the ambient conditions specied in the data sheet. Improper
storage can be detrimental to the product.
6.1 Storing the pressure sensor
Pressure sensors are suitable for storage for up to 12 months under
the following conditions:
▶Do not store the hydraulic component outdoors but in a well-
ventilated room.
▶Provide for 100 % UV protection.
▶Ensure a storage temperature between -40 °C and +100 °C.
▶Protect the pressure sensor against humidity, particularly ground
humidity. Store the pressure sensor in the shelf or on a pallet. The
relative air humidity must not exceed 65 % and there must not be
any condensation.
▶Ensure that no ozone formation takes place near the storage
location.
▶Store the pressure sensor in packaging in order to protect it from
dust and dirt.
